Volvo EC460, EC460LC Excavator Service Parts Catalogue Manual INSTANT SN: 3001 and up

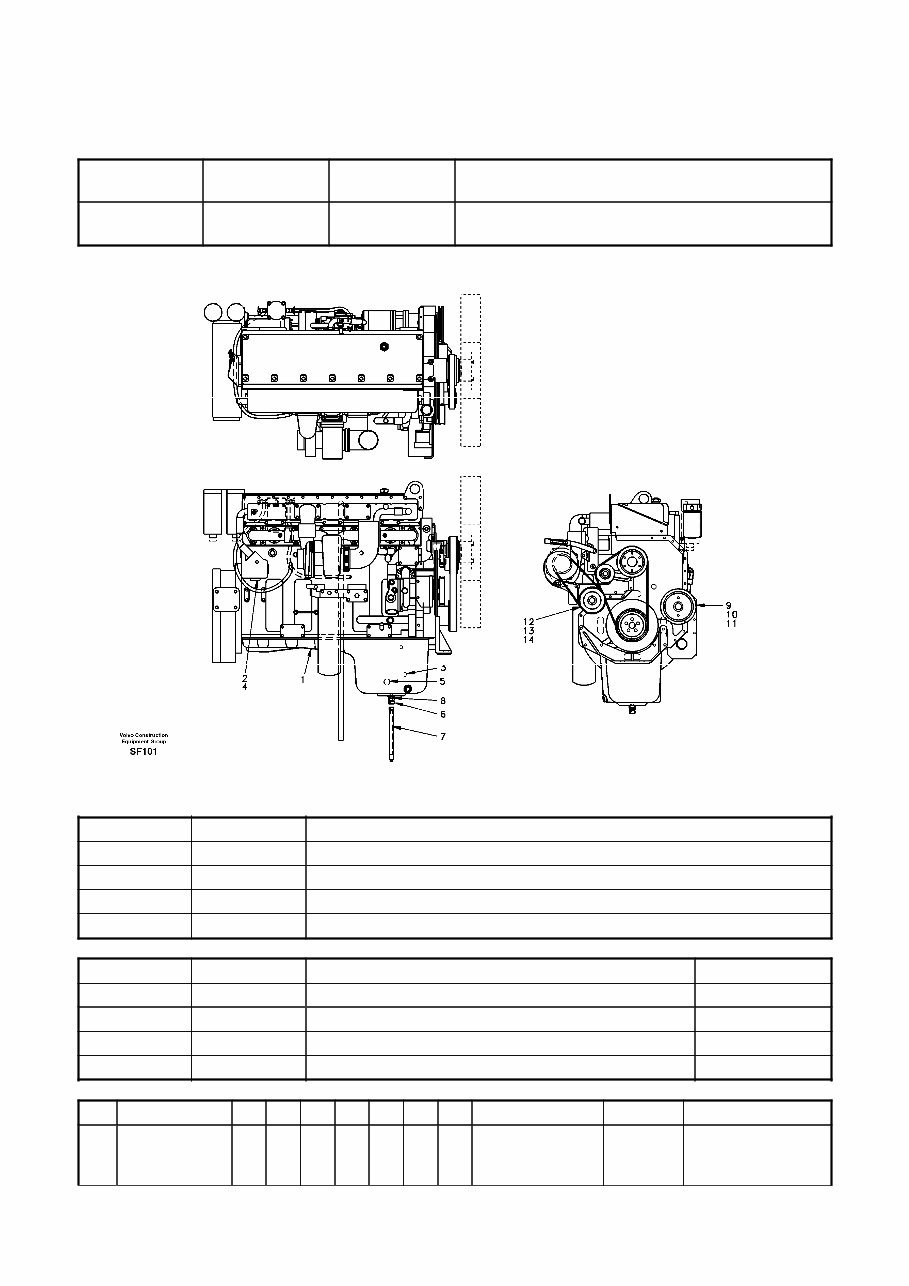

Date: 2014/1/20 Image id: SF101 Catalogue: 56123 Model: EC460 Brand: Volvo Serial: 3001-9999 Group/Section: 210/100 Title: Engine Section option Kit Option description SADJ04B001 Air heater for engine SADJ04B002 Without air pre-heater for engine SADJ04C001 Engine block heater 120V SADJ04C002 Engine block heater 240V Q1-Q5 Option Option description Q1 DJ04B001 SADJ04B001 Air heater for engine Q2 DJ04B002 SADJ04B002 Without air pre-heater for engine Q3 DJ04C001 SADJ04C001 Engine block heater 120V Q4 DJ04C002 SADJ04C002 Engine block heater 240V Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark 1 SA1111-00791 1 SS Engine SER NO 3001-3235 LOW-EMISSION W/AIR HEATER

VOE14512524 1 OP Engine SER NO 3236- LOW EMISSION W/AIR HEATER SA1111-00841 1 OP Engine 2 SA2011-00530 1 Heater 240V 3 SA2011-00470 1 Heater 240V 4 SA2011-00540 1 Heater 120V 5 SA2011-00480 1 Heater 120V 6 SA1012-01620 1 1 Valve 7 SA1012-01510 1 1 Adapter 8 VOE13947628 1 1 Plane gasket (SA9426-20100) 9 SA3046203 1 1 Pulley 10 SA3818229 1 1 Hexagon screw 11 SA3818463 1 1 Washer 12 SA3883324 1 1 Pulley 13 SA3018671 1 1 Bolt 14 SA3041247 1 1 Washer

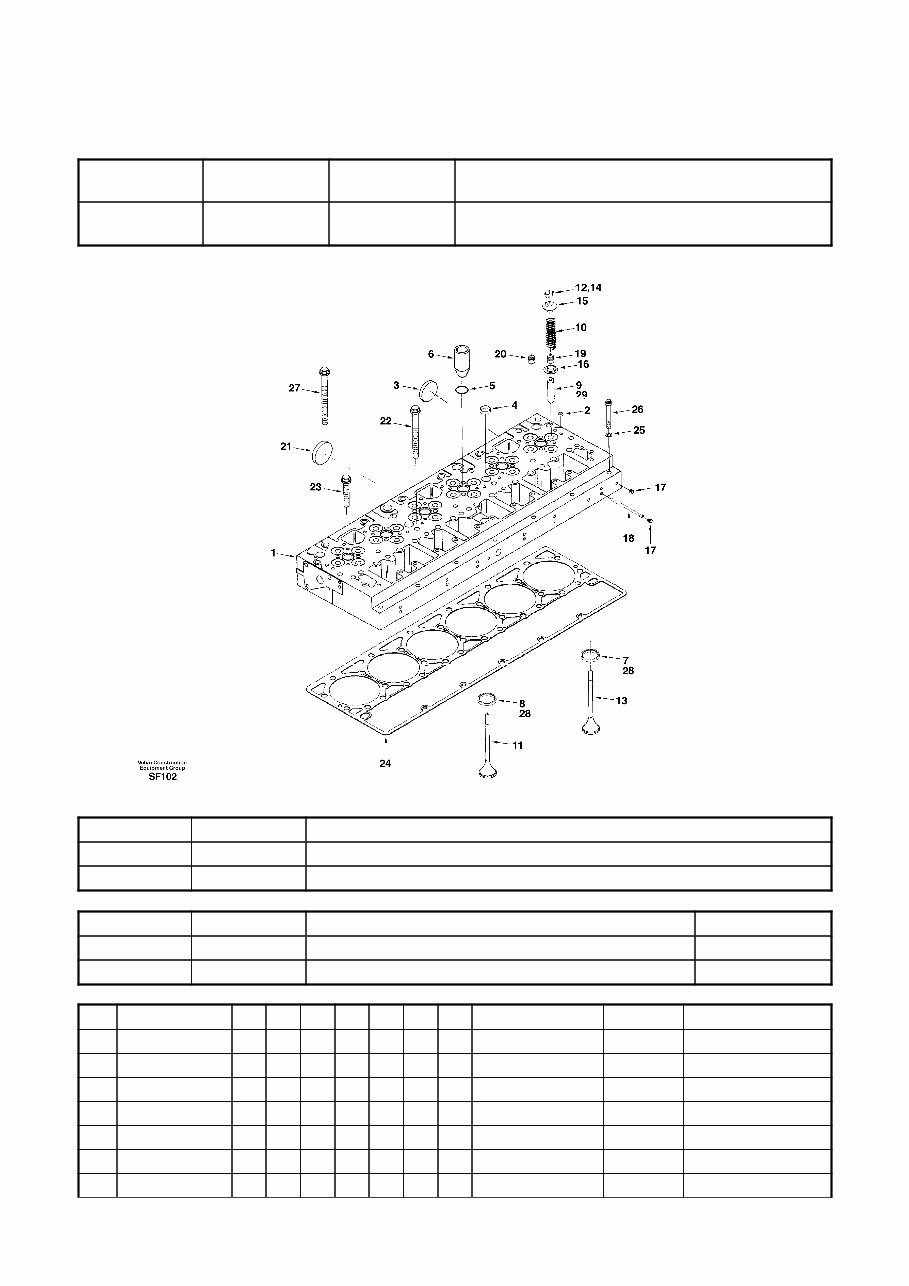

Date: 2014/1/20 Image id: SF102 Catalogue: 56123 Model: EC460 Brand: Volvo Serial: 3001-9999 Group/Section: 211/100 Title: Cylinder head Section option Kit Option description SADJ04B001 Air heater for engine SADJ04B002 Without air pre-heater for engine Q1-Q5 Option Option description Q1 DJ04B001 SADJ04B001 Air heater for engine Q2 DJ04B002 SADJ04B002 Without air pre-heater for engine Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark 1 SA3084650 1 Cylinder head SA3896295 1 SS Cylinder head 2 SA3007632 2 2 •Plug 3 SA206741 2 2 •Plug 4 SA3007635 8 8 •Plug 5 SA3007759 6 6 •Seal 6 SA3070486 6 6 •Sleeve

7 SA3028070 12 12 •Seat OUTLET 8 SA3820180 12 12 •Seat INLET 9 SA3328785 24 24 •Guide_valve Ste (SA3073512) 10 SA3895860 24 24 •Spring 11 SA3803310 12 12 •Valve 12 SA3275354 24 24 ••Collet 13 SA3800639 12 12 •Outlet Valve (SA3803730) 14 SA3275354 24 24 ••Collet 15 SA3883512 24 24 •Retainer 16 SA3070072 24 24 •Guide 17 SA3008465 16 16 •Plug 18 SA3820749 6 6 •Insert 19 SA3073509 12 12 •Seal INLET 20 SA3328781 12 12 •Seal OUTLET 21 SA3895479 2 2 •Plug 22 SA3045850 29 29 Bolt 23 SA3161515 3 3 Bolt 24 SA3328925 1 1 SS Gasket 25 SA3328328 7 7 Washer 26 SA3328637 5 5 Bolt 27 SA3328379 2 2 Bolt 28 SA3028071 REQ REQ Seat 0.25MM O SZ SA3028072 REQ REQ Seat 0.50MM O SZ SA3028073 REQ REQ NS Seat 0.75MM O SZ SA3028074 REQ REQ NS Seat 1.00MM O SZ 29 SA3074118 REQ REQ Guide 0.20MM O SZ

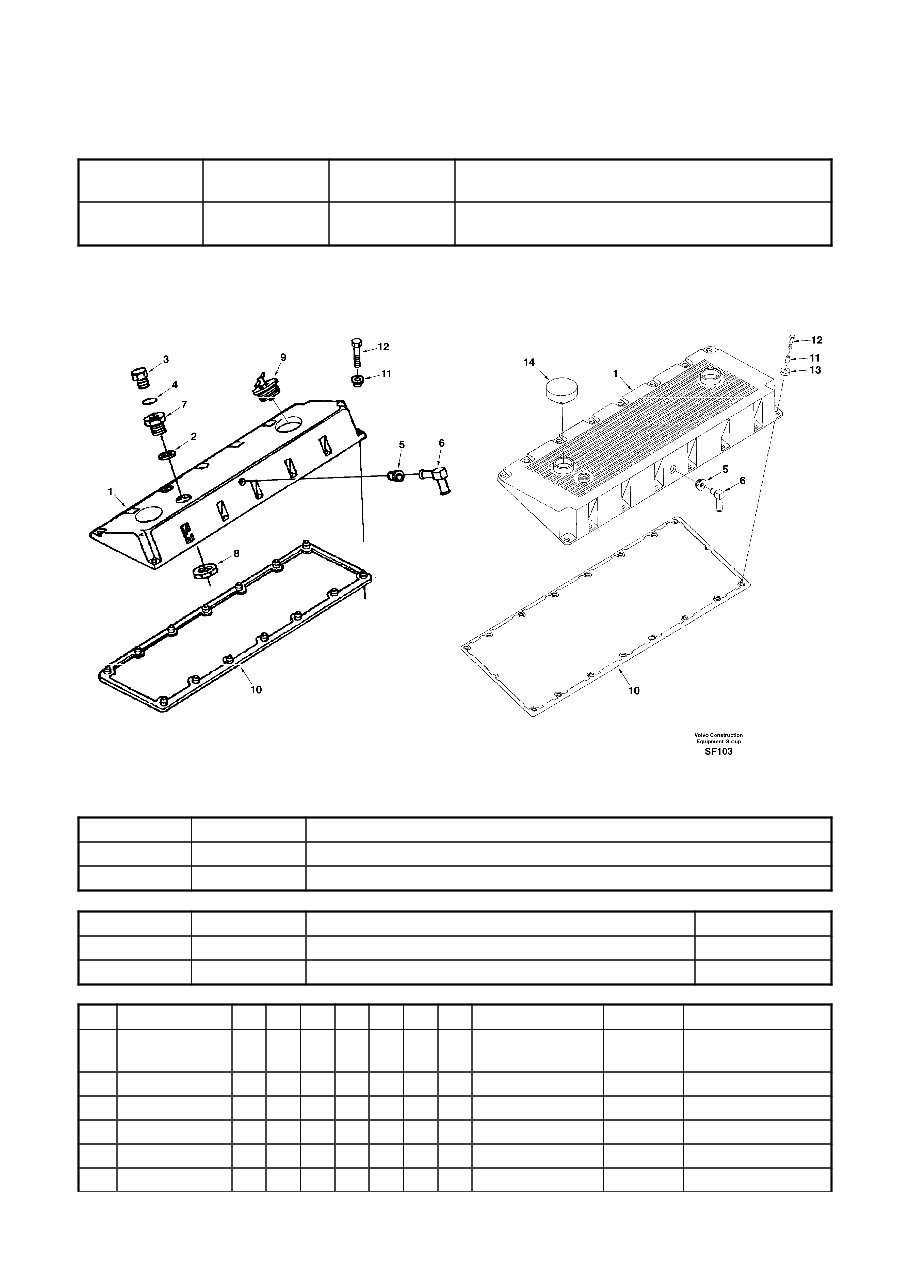

Date: 2014/1/20 Image id: SF103 Catalogue: 56123 Model: EC460 Brand: Volvo Serial: 3001-9999 Group/Section: 211/200 Title: Valve cover Section option Kit Option description SADJ04B001 Air heater for engine SADJ04B002 Without air pre-heater for engine Q1-Q5 Option Option description Q1 DJ04B001 SADJ04B001 Air heater for engine Q2 DJ04B002 SADJ04B002 Without air pre-heater for engine Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark 1 SA3401302 1 Cover (SA3328412) STANDARD SA3401308 1 Cover TROPICAL 2 SA3035228 1 •O-ring 3 SA3040995 1 •Plug SA3040809 1 SS ••Plug 4 SA3037537 1 ••O-ring
