Date:
2014/1/14
Image id:
1028093
Catalogue:
20101
Model:
EC360C L
Brand:
Volvo
Serial:
110001-115000,
140001-145000
Group/Section:
431/100

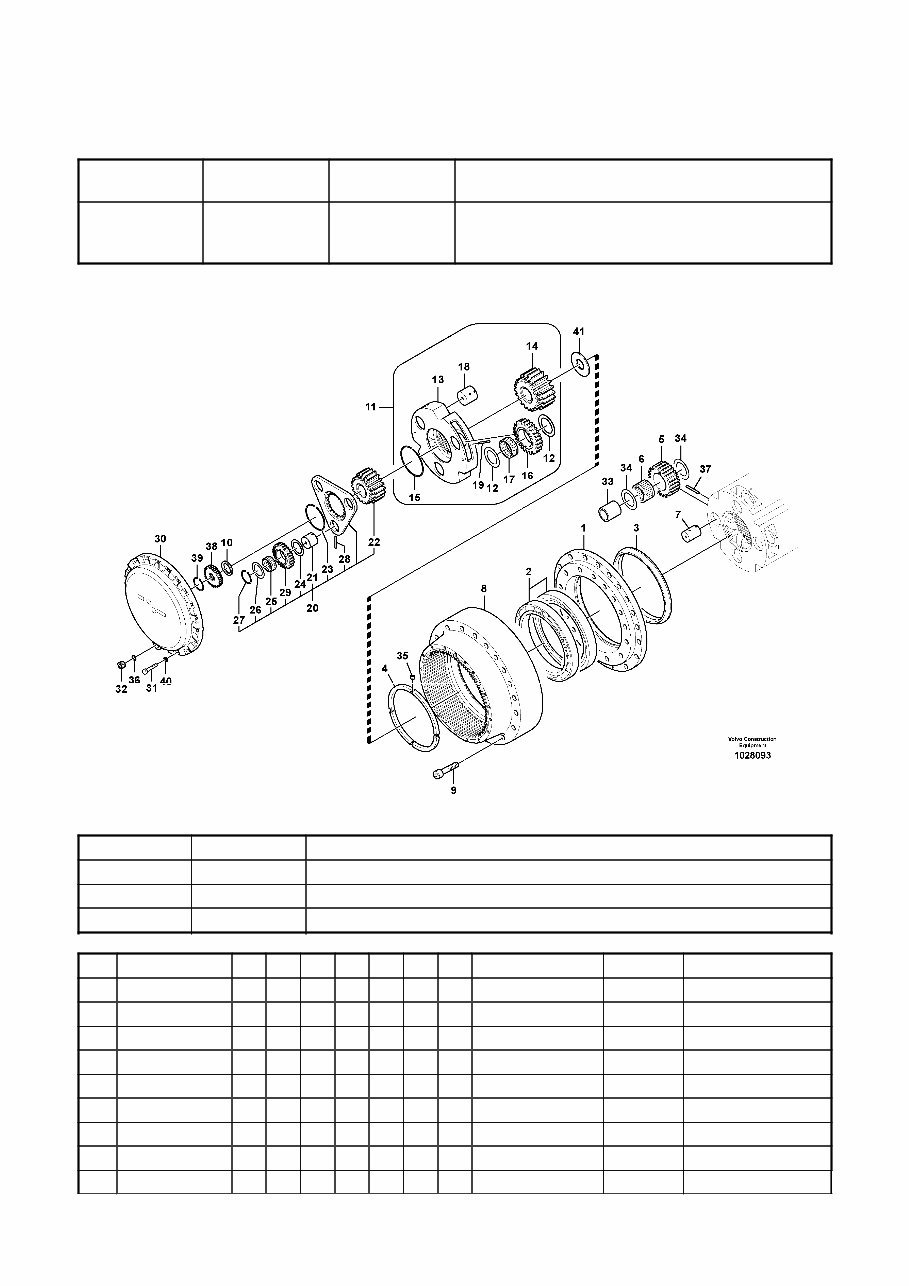

Title:
Travel gearbox 8280846, 8280847, 8281897:S/N -110531
Section option Kit Option description
VOE8281897 Lower frame, bolted step NLC TYPE
VOE8280846 Lower frame, welded step LC TYPE
VOE8280847 Lower frame, bolted step LC TYPE
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
VOE14551151 1 NS Gearbox
1 VOE14522996 1 •Housing
2 SA7117-38230 2 •Bearing
3 VOE14522998 1 •Sealing
4 VOE14528319 1 •Nut
5 SA7117-38271 4 •Planet gear
6 SA7117-38520 4 •Needle bearing
7 SA7117-38301 4 •Pin
8 VOE14522997 1 •Gear
9 SA9016-21620 24 •Hex. socket screw
10 SA1036-00290 1 •Thrust ring
11 VOE14551153 1 •Carrier
12 VOE14556491 6 ••Washer
13 SA7117-38320 1 NS ••Carrier
14 SA7117-38330 1 ••Gear
15 SA7117-38340 1 ••Ring
16 SA7117-38350 3 ••Planetary Gear
17 SA7117-38360 3 ••Needle bearing
18 SA7117-38380 3 ••Pin
19 SA9325-06012 3 ••Spring pin
20 VOE14551152 1 •Planet gear
VOE14515055 1 OP ••Carrier
21 SA7117-38180 3 ••Pin
22 SA7117-38400 1 ••Gear
23 SA7117-38410 1 ••Ring
24 VOE14556490 3 ••Washer
25 SA7117-38420 3 ••Needle Bearing
26 VOE14556489 3 ••Washer (SA7117-38440)
27 SA9541-01040 3 ••Ring
28 SA9325-06012 3 ••Spring pin
29 VOE14513559 3 ••Planetary Gear
30 VOE14601855 1 •Cover (VOE14522993)
31 VOE983252 16 •Hexagon screw
32 SA9415-11052 3 •Plug
33 SA7117-38460 4 •Inner ring
34 VOE14546062 8 •Washer
35 VOE14526459 3 •Screw
36 VOE983524 3 •O-ring
37 SA9325-06012 4 •Spring pin
38 VOE14515056 1 •Sun gear
39 VOE914467 1 •Retaining ring (SA9541-01038)
40 VOE955922 16 •Spring washer
41 SA8230-21020 1 •Thrust ring
Date:
2014/1/14
Image id:
1040996
Catalogue:
20101
Model:
EC360C L
Brand:
Volvo
Serial:
110001-115000,
140001-145000
Group/Section:
431/150

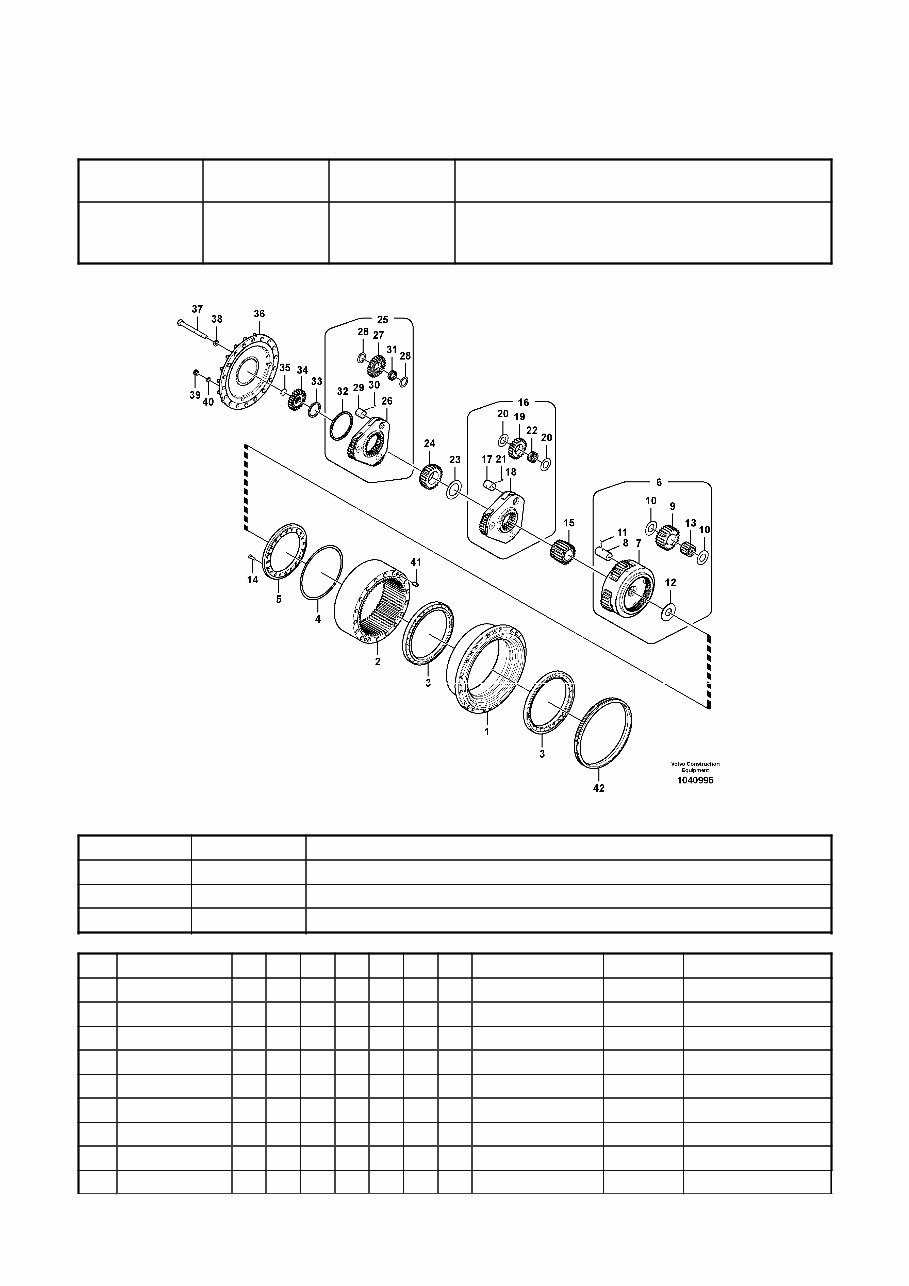

Title:
Travel gearbox 8280846,8280847,8281897:S/N 110532-
Section option Kit Option description
VOE8281897 Lower frame, bolted step NLC TYPE
VOE8280846 Lower frame, welded step LC TYPE
VOE8282847 Hydr. Quick fit equipment on basic machine UQF
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
VOE14566401 1 OP Gearbox
1 VOE14566402 1 •Housing
2 VOE14566409 1 •Gear
3 SA7117-38230 2 •Bearing
4 VOE14566404 1 •Shim
5 VOE14566403 1 •Retainer
6 VOE14566410 1 •Gear
7 VOE14566411 1 NS ••Carrier
8 VOE14566415 4 ••Pin
9 VOE14566413 4 ••Planetary gear
10 VOE14566414 8 ••Washer
11 SA9325-06012 4 ••Spring pin
12 SA8230-21020 1 ••Thrust ring
13 VOE14566412 4 ••Needle bearing
14 VOE984088 20 •Bolt
15 VOE14566416 1 •Gear
16 VOE14566418 1 •Gear
17 VOE14566423 3 ••Pin
18 VOE14566419 1 NS ••Carrier
19 VOE14566421 3 ••Planetary gear
20 VOE14566422 6 ••Washer
21 SA9325-06012 3 ••Spring pin
22 VOE14566420 3 ••Needle bearing
23 VOE14566433 1 •Plate
24 VOE14566424 1 •Gear
25 VOE14566425 1 •Gear
26 VOE14566426 1 NS ••Carrier
27 VOE14566428 3 ••Planetary gear
28 VOE14566429 6 ••Washer
29 VOE14566430 3 ••Pin
30 SA9325-06012 3 ••Spring pin
31 VOE14566427 3 ••Needle bearing
32 VOE14569232 1 ••Ring
33 VOE14566417 1 •Ring
34 VOE14566431 1 •Gear
35 VOE914467 1 •Retaining ring
36 VOE14566432 1 •Cover
37 VOE992961 18 •Screw (SA9011-22028)
38 SA9213-20000 18 •Spring Washer
39 SA9415-11042 2 •Plug
40 VOE990557 2 •O-ring
41 VOE950677 4 •Pin
42 VOE14579901 1 •Sealing
Date:
2014/1/14
Image id:
1028096
Catalogue:
20101
Model:
EC360C L
Brand:
Volvo
Serial:
110001-115000,
140001-145000
Group/Section:
431/300

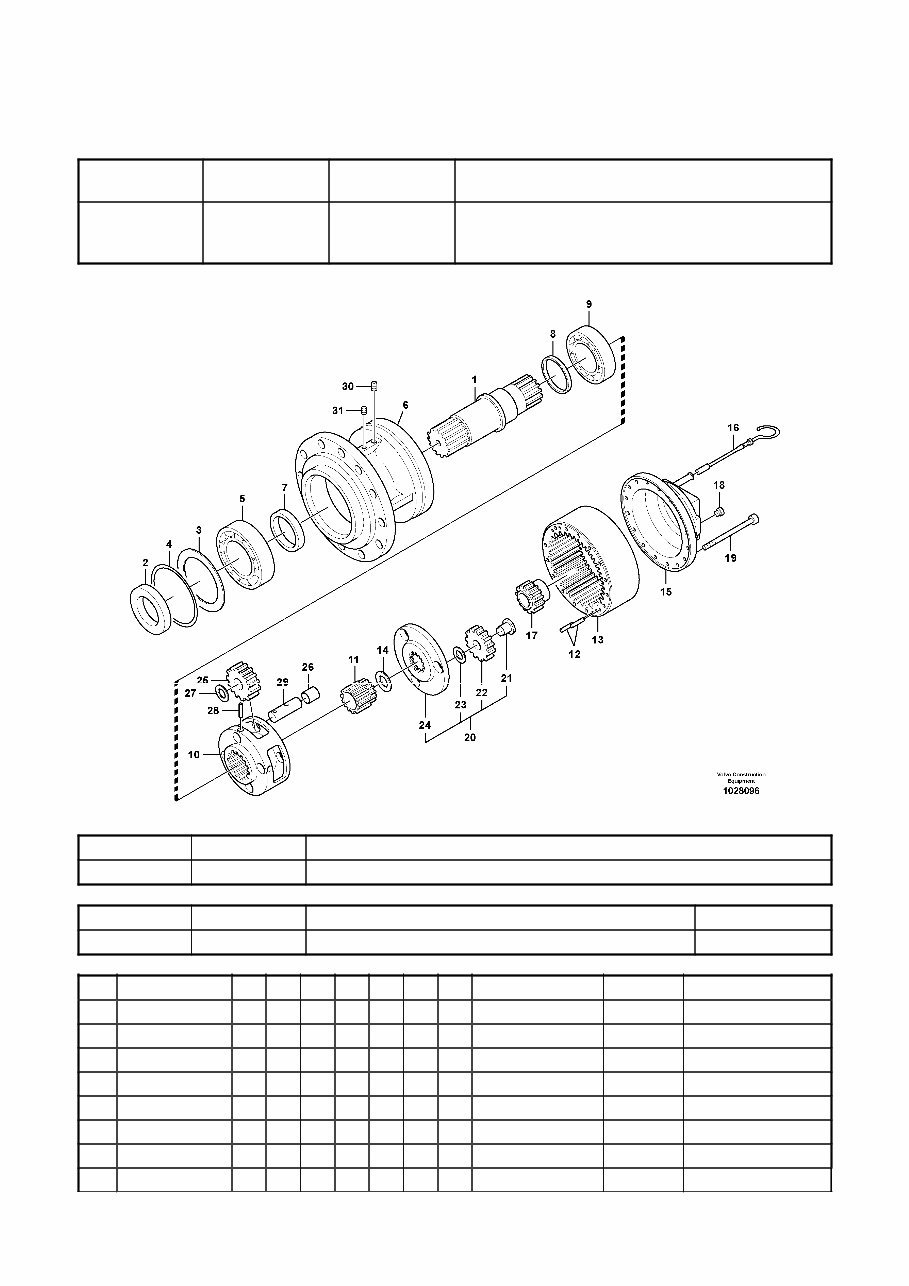

Title:
Swing gearbox S/N:-110531
Section option Kit Option description
VOE8287264 Basic Machine EC360C
Q1-Q5 Option Option description
Q1 8287264 VOE8287264 Basic Machine EC360C
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
VOE14596603 1 Reduction gear
1 SA8230-22560 1 •Shaft
2 SA8230-22480 1 •Collar
3 SA8230-22490 1 •Plate
4 SA8230-01080 1 •Retaining ring
5 SA8230-00780 1 •Roller bearing
6 VOE14596609 1 •Case (VOE14512783)
7 SA8230-22500 1 •Collar
