Volvo EC340D L EC340DL Excavator Service Parts Catalogue Manual INSTANT SN: 210001 and up

Date: 2014/1/10 Image id: EK102 Catalogue: 20593 Model: EC340D L Brand: Volvo Serial: 210001- Group/Section: 210/100 Title: Repair kits for engine Section option Kit Option description VOE8289891 Engine D13H TIER 4I WITH ASSOCIATED EQUIPMENT VOE8289023 Engine D13H STAGE 3B WITH ASSOCIATED EQUIPMENT VOE15049436 Engine D13H-C, US VOE15117871 Engine D13H-D, EU

Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark VOE21330684 6 Cylinder liner kit See ref 213/100 VOE270950 6 •Sealing kit VOE21253763 6 •Piston ring kit 6 Big-end Bearing See ref 216/100 4 Thrust Washer 7 Mn Bearing Kit

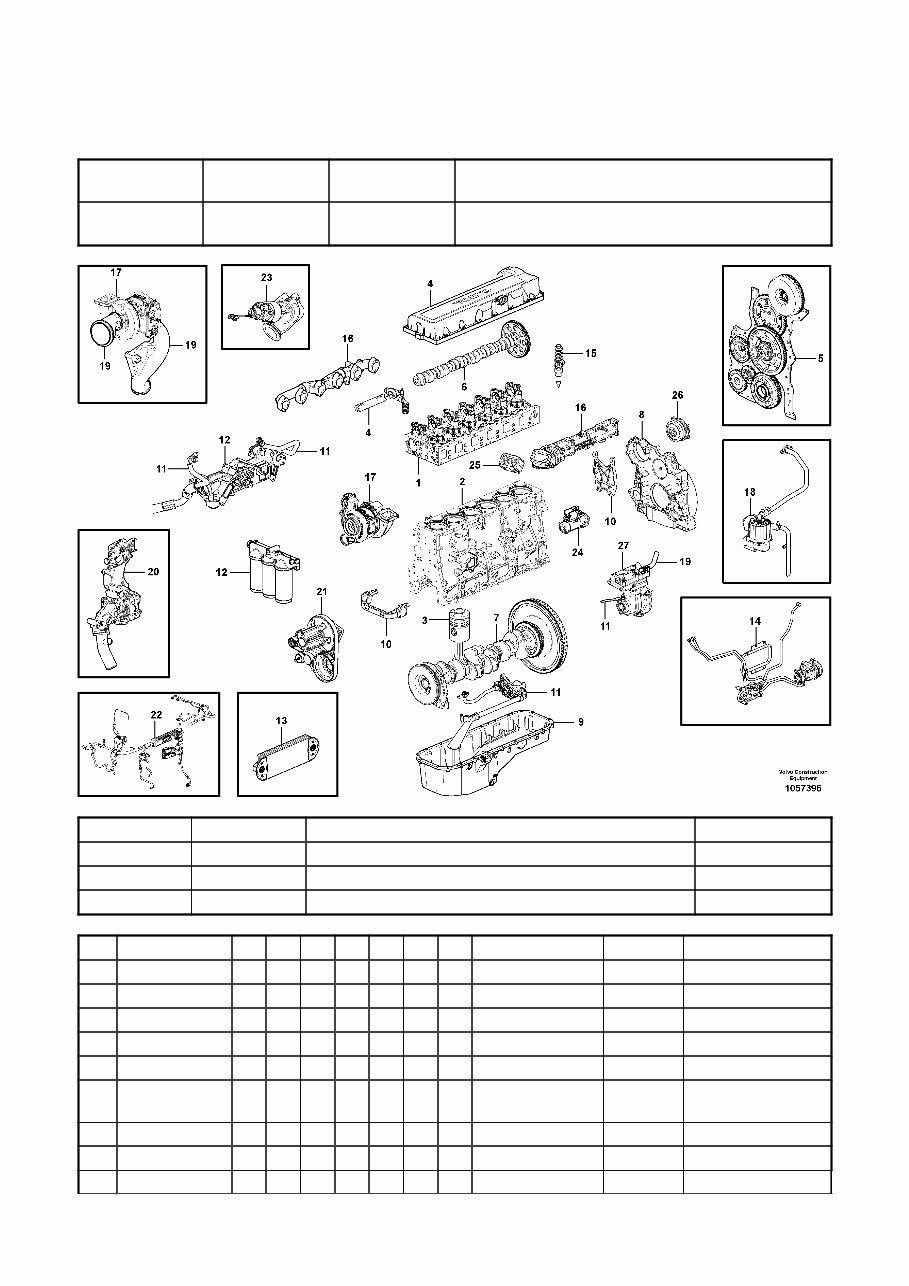

Date: 2014/1/10 Image id: 1057396 Catalogue: 20593 Model: EC340D L Brand: Volvo Serial: 210001- Group/Section: 210/200 Title: Engine Q1-Q5 Option Option description Q1 8289023 VOE8289023 Engine D13H STAGE 3B WITH ASSOCIATED EQUIPMENT Q2 8289891 VOE8289891 Engine D13H TIER 4I WITH ASSOCIATED EQUIPMENT Q3 15173113 VOE15173113 Engine D13H, EU/US Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark VOE15117871 1 SE Engine VOE15049436 1 SE Engine VOE15173113 1 Engine See footnote 1) AME 1 1 1 •Cylinder head See ref 211/100 2 1 1 •Cylinder block See ref 212/100 3 6 6 •Cylinder liner,piston See ref 213/100 4 1 1 •Valve mechanism See ref 214/100 5 1 1 •Timing gears See ref 215/100 6 1 1 •Camshaft See ref 215/200

7 1 1 •Crankshaft See ref 216/100 8 1 1 •Flywheel Hsg See ref 216/200 9 1 1 •Oil sump See ref 217/100 10 1 1 •Engine mounting See ref 218/200 11 1 1 •Lubricating system See ref 221/100 12 1 1 •Oil filter See ref 222/100 13 1 1 •Oil cooler See ref 223/100 14 1 1 •Fuel system See ref 235/200 15 1 1 •Injector See ref 237/100 16 1 1 •Inlet, exhaust syst. See ref 251/100 17 1 1 •Turbocharger See ref 255/100 18 1 1 •Crankcase Venti See ref 257/100 19 1 1 •Chg Air Cooler See ref 258/100 20 1 1 •Cooling System See ref 262/100 21 1 1 •Belt transmission See ref 263/100 22 1 1 •Cable harness See ref 286/100 23 1 1 •EGR valve See ref 293/100 24 1 1 •Starter Motor See ref 331/100 25 1 1 •Starter Element See ref 333/100 26 1 1 •Bearing Housing See ref 482/100 27 1 1 •Compressor See ref 254/4100 1) Replacement version

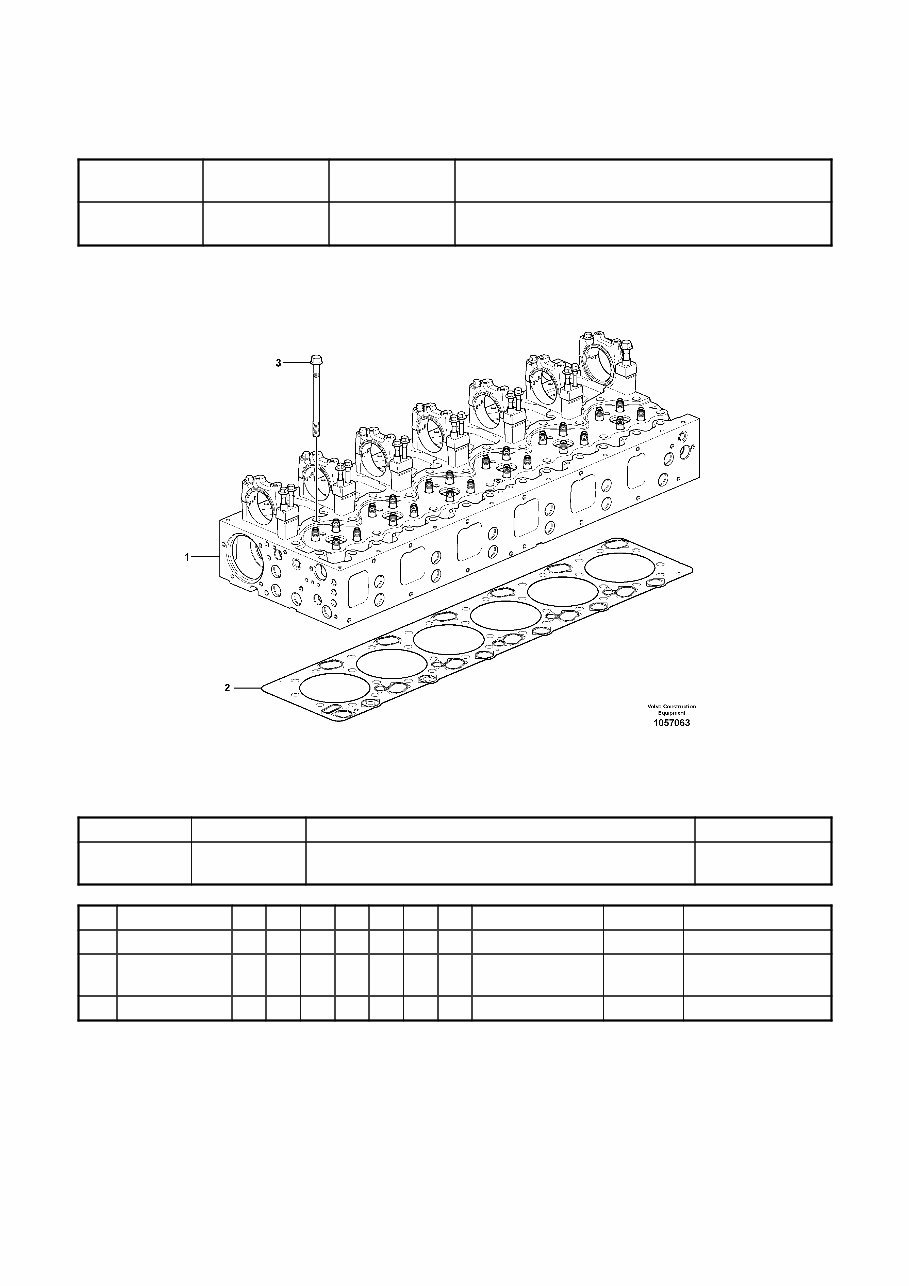

Date: 2014/1/10 Image id: 1057063 Catalogue: 20593 Model: EC340D L Brand: Volvo Serial: 210001- Group/Section: 211/100 Title: Cylinder head with fitting parts Q1-Q5 Option Option description Q1 8289023 8289891 VOE8289023 Engine D13H STAGE 3B WITH ASSOCIATED EQUIPMENT Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark 1 1 Cylinder head See ref 211/200 2 VOE21313537 1 Cylinder head gasket 3 VOE21345131 38 Screw
