Date:
2013/11/16
Image id:
SB124
Catalogue:
56118
Model:
EC240
Brand:
Volvo
Serial:
3001-9999
Group/Section:
233/100

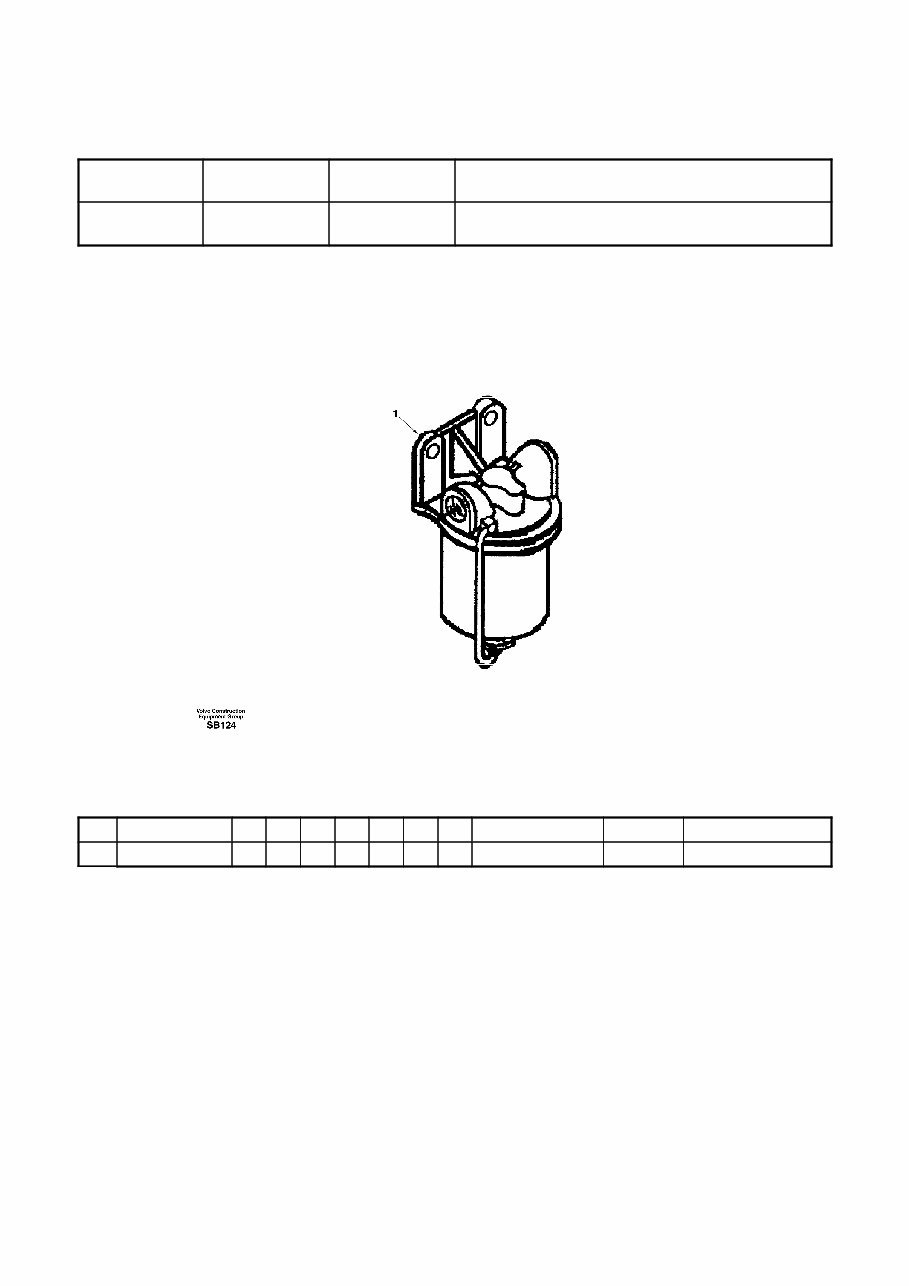

Title:
Water separator
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 SA3908607 1 Water Separator
Date:
2013/11/16
Image id:
SB125
Catalogue:
56118
Model:
EC240
Brand:
Volvo
Serial:
3001-9999
Group/Section:
233/200

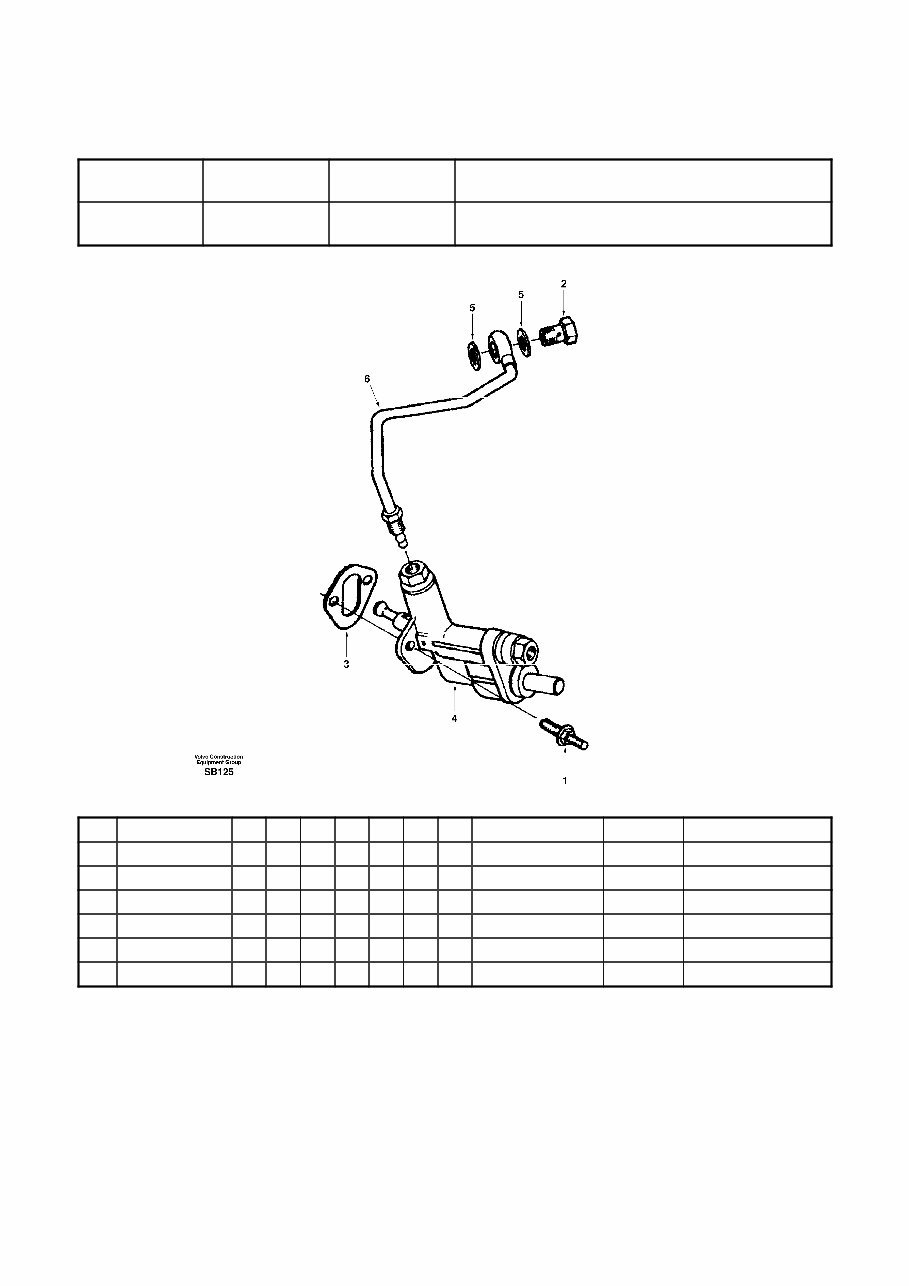

Title:
Fuel feed pump
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 SA3909310 2 Bolt
2 SA3916361 1 Banjo Fitting
3 SA3923054 1 SS Gasket
4 SA3933252 1 SS Feed Pump
5 SA3918191 2 SS Seal
6 SA3918539 1 Pipe
Date:
2013/11/16
Image id:
SB126
Catalogue:
56118
Model:
EC240
Brand:
Volvo
Serial:
3001-9999
Group/Section:
233/300

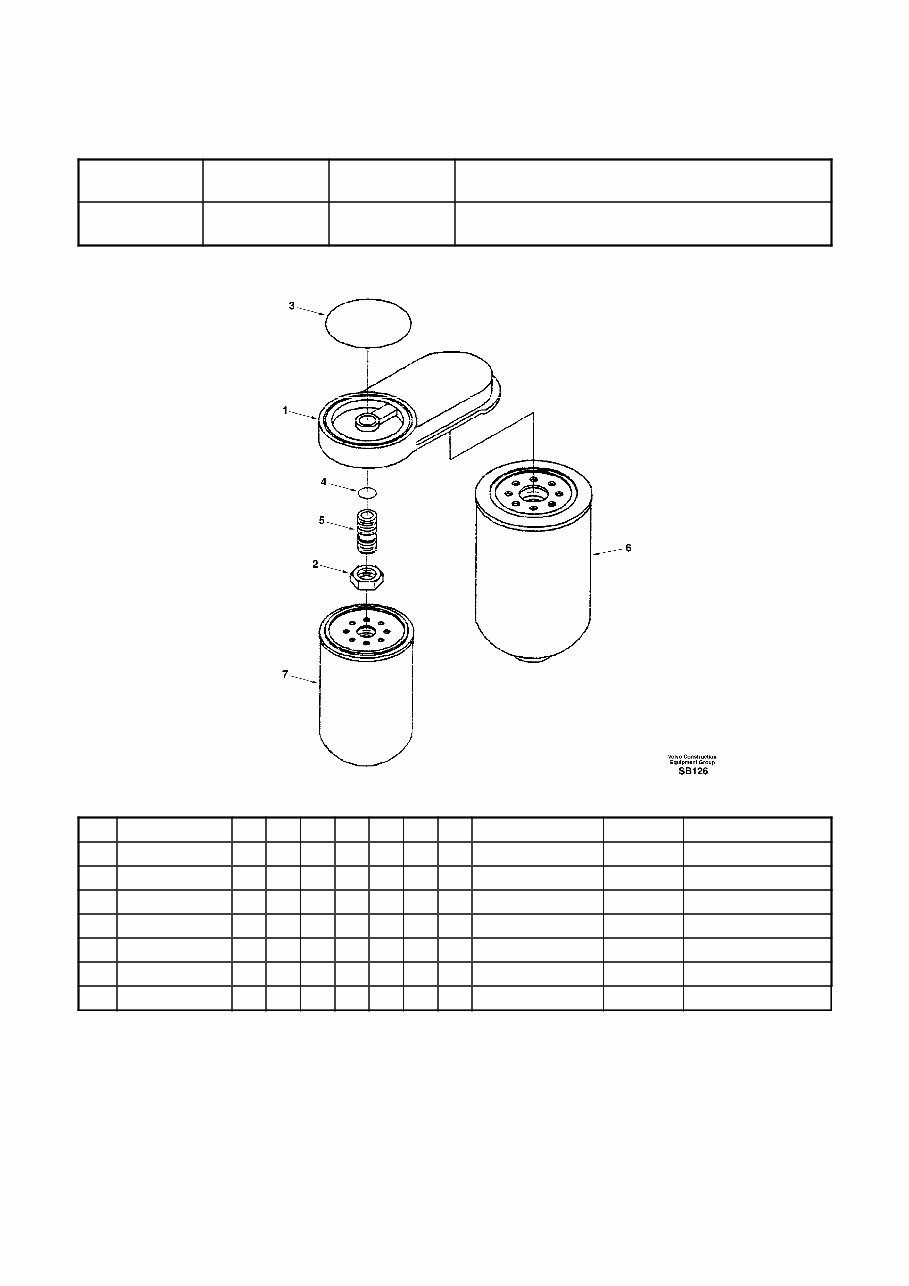

Title:
Fuel filter
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 SA3936315 1 Fuel filter (SA3897331)
2 SA3903293 1 Nut
3 SA3903546 1 Sealing ring
4 SA3903846 1 Sealing
5 SA3925955 1 Filter
6 SA9912-03410 1 Fuel filter
7 SA9912-03640 1 Fuel Filter
Date:
2013/11/16
Image id:
1005748
Catalogue:
56118
Model:
EC240
Brand:
Volvo
Serial:
3001-9999
Group/Section:
234/100

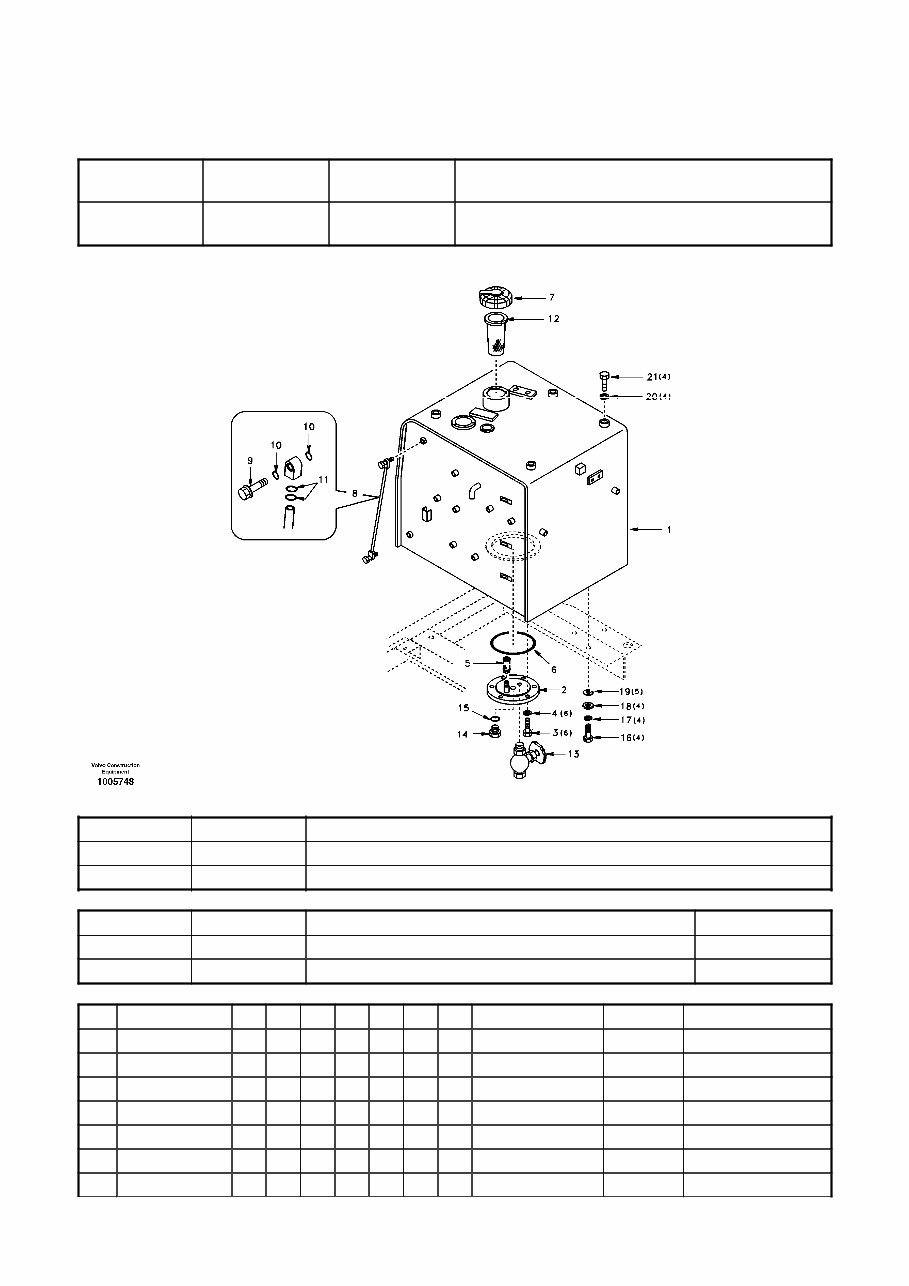

Title:
Fuel tank with fitting parts
Section option Kit Option description
SADE00A001 Basic Machine EC240
SADE08E001 Specific Key. Combination
Q1-Q5 Option Option description
Q1 DE00A001 SADE00A001 Basic Machine EC240
Q2 DE08E001 SADE08E001 Specific Key. Combination
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 SA1116-00580 1 SS Fuel tank SER NO 3001-3758
VOE14512148 1 Fuel tank SER NO 3759-
2 SA1116-00081 1 •Cover SER NO 3001-3168
VOE14500530 1 •Cover SER NO 3169-3758
VOE14512162 1 OP •Cover SER NO 3759-
3 SA9011-11005 4 SS •Bolt SER NO 3001-3168
SA9011-11005 6 SS •Bolt SER NO 3169-
4 SA9213-10000 4 SS •Spring Washer SER NO 3001-3168
SA9213-10000 6 SS •Spring Washer SER NO 3169-
5 SA1016-00830 1 •Strainer
6 SA9511-22230 1 •O-ring
7 SA1116-00240 1 Cap DOMESTIC
SA8240-00490 1 Cap EXPORT
8 VOE1116-00450 1 Lvl Ind Pipe (SA1116-00450)SER
NO 3001-3791
SA1116-00450 1 SS Lvl Ind Pipe SER NO 3792-
9 VOE14517557 2 •Bolt SER NO 3792-
10 SA9511-12010 4 •O-ring SER NO 3792-
11 SA9511-12018 4 SS •O-ring SER NO 3792-
12 SA1116-00220 1 Filter
13 SA8240-03800 1 SS Shut-off Cock
14 SA1010-60030 1 Plug SER NO 3001-3758
15 SA9511-12028 1 O-ring SER NO 3001-3758
16 SA9011-12009 4 Bolt
17 SA9211-20000 4 Washer
18 SA9213-20000 4 Spring Washer
19 SA9742-50020 5 Shim
20 SA9213-12000 4 Spring Washer SER NO 3001-3197
21 SA9011-12004 4 Bolt SER NO 3001-3197
