Date:
2013/11/2
Image id:
1028135
Catalogue:
20130
Model:
EC235C LD
Brand:
Volvo
Serial:
120001-
Group/Section:
210/100
Title:
Engine
Section option Kit Option description
VOE8282066 Engine with Epa label EMISSION CERTIFICATED FROM EU&EPA
Q1-Q5 Option Option description
Q1 8282066 VOE8282066 Engine with Epa label EMISSION CERTIFICATED FROM EU&EPA
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 VOE14549720 1 Engine
2 VOE14388666 1 Hose (VOE14387122)
3 VOE14388667 1 Hose (VOE14387123)
4 VOE14880502 1 Hose
5 SA9312-10175 1 Clamp
6 VOE946441 4 Flange screw
7 VOE946471 2 Flange screw
8 VOE13955894 3 Washer
9 VOE983248 3 Hexagon screw
10 VOE947760 4 Flange screw
11 VOE14507451 1 Clip
12 VOE14500297 1 Clip
13 VOE14550620 1 NS Bracket
14 VOE60100000 1 ECU
Date:
2013/11/2
Image id:
1024616
Catalogue:
20130
Model:
EC235C LD
Brand:
Volvo
Serial:
120001-
Group/Section:
210/200
Title:
Engine
Section option Kit Option description
VOE14549720 Engine D6E EGE3
Q1-Q5 Option Option description
Q1 8282066 VOE8282066 Engine with Epa label EMISSION CERTIFICATED FROM EU&EPA
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
VOE14549720 1 Engine D6E EGE3
1 1 •Cylinder head See ref 211/100
2 1 •Cylinder block See ref 212/100
3 1 •Crankcase
ventilation
See ref 212/300
4 6 •Piston See ref 213/100
5 1 •Valve mechanism See ref 214/100
6 1 •Timing gear casing See ref 215/100
7 1 •Crankshaft See ref 216/100
8 1 •Flywheel Hsg See ref 216/200
9 1 •Oil sump See ref 217/100
10 1 •Lubricating system See ref 221/100
11 1 •Oil filter See ref 222/100
12 1 •Oil cooler See ref 223/100
13 1 •Fuel pump See ref 233/100
14 1 •Fuel Filter Housing See ref 233/300
15 1 •Fuel Filter See ref 233/300
16 1 •Rail See ref 237/100
17 1 •Regulator See ref 237/100
18 2 •Injcection pump See ref 237/100
19 6 •Injector See ref 237/100
20 1 •Inlet Manifold See ref 251/100
21 1 •Exhaust pipe See ref 251/100
22 1 •Turbocharger See ref 255/100
23 1 •Coolant Pump See ref 262/100
24 1 •Belt Xmsn See ref 263/100
25 1 •Pump drive See ref 263/500
26 1 •Alternator See ref 321/100
27 1 •Starter motor See ref 331/100
28 1 •Pre-heater See ref 333/100
29 1 •Cable harness See ref 371/300
Date:
2013/11/2
Image id:
1000126
Catalogue:
20130
Model:
EC235C LD
Brand:
Volvo
Serial:
120001-
Group/Section:
210/300
Title:

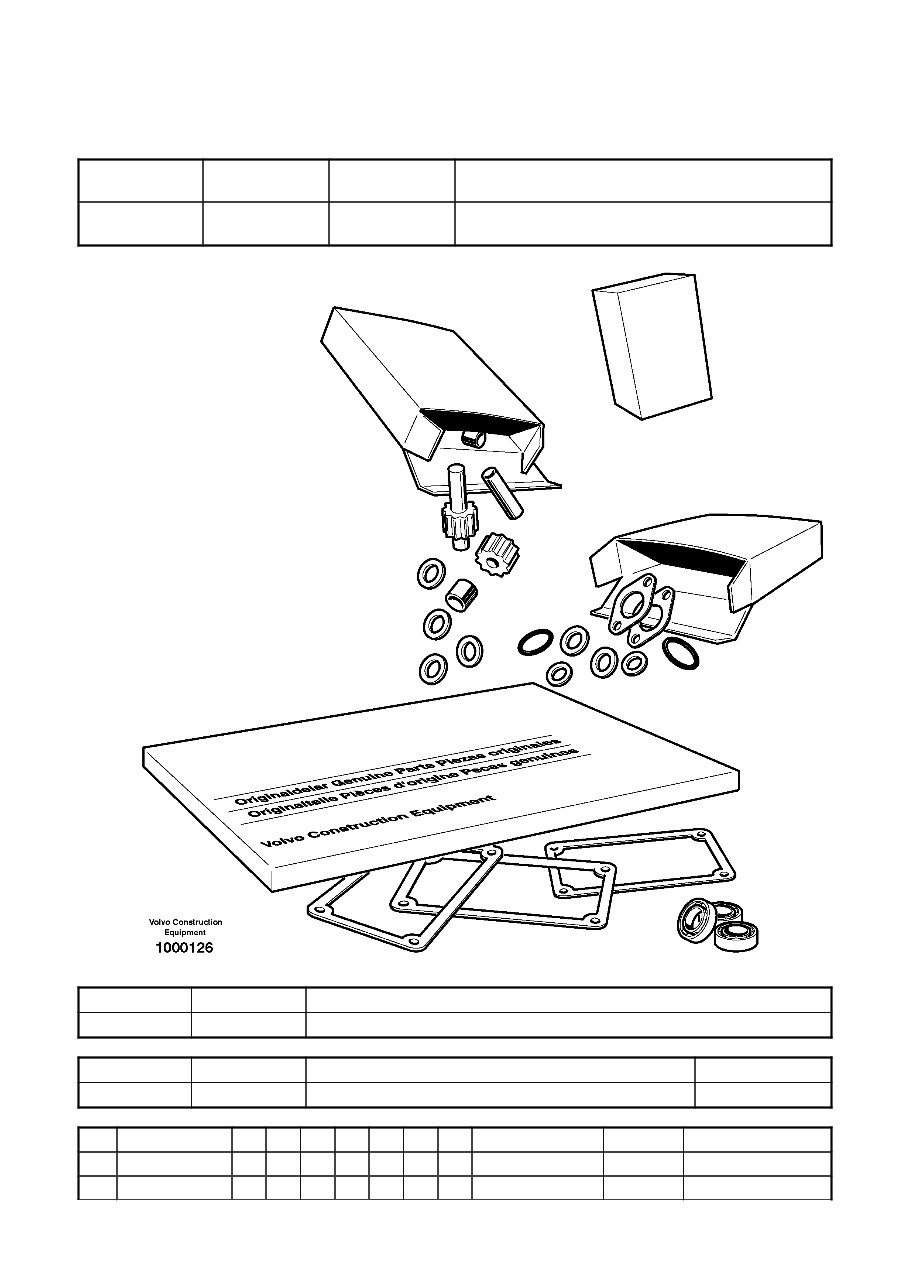

Repair kits for engine
Section option Kit Option description
VOE14549720 Engine D6E EGE3
Q1-Q5 Option Option description
Q1 8282066 VOE8282066 Engine with Epa label EMISSION CERTIFICATED FROM EU&EPA
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 VOE15011856 1 Overhaul kit
2 VOE15011854 1 •Cylinder head kit
