Volvo EC20B XTV EC20BXTV Compact Excavator Service Parts Catalogue Manual INSTANT SN: 80151 and up
What's Included?
Lifetime Access
Fast Download Speeds
Offline Viewing
Access Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
Date:
2013/11/28
Image id:
210Z1
Catalogue:
10019
Model:
EC20B XTV
Brand:
Volvo
Serial:
80151-99999
Group/Section:
210/100

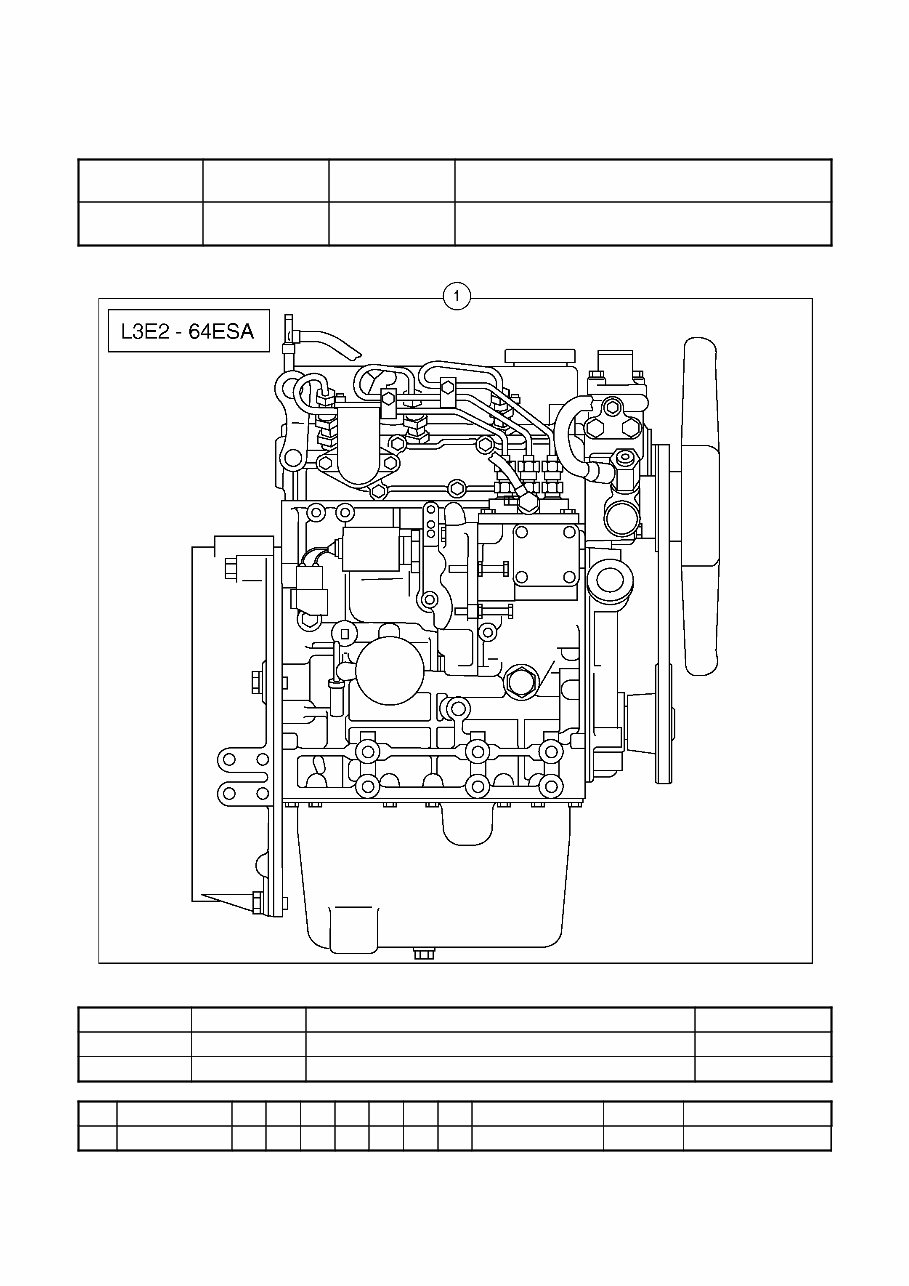

Title:
Equipped engine L3E2-64ESA
Q1-Q5 Option Option description
Q1 .
Q2 .
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 VOE11800860 1 1 Engine L3E2-64ESA
Date:
2013/11/28
Image id:
210NZ1
Catalogue:
10019
Model:
EC20B XTV
Brand:
Volvo
Serial:
80151-99999
Group/Section:
210/200

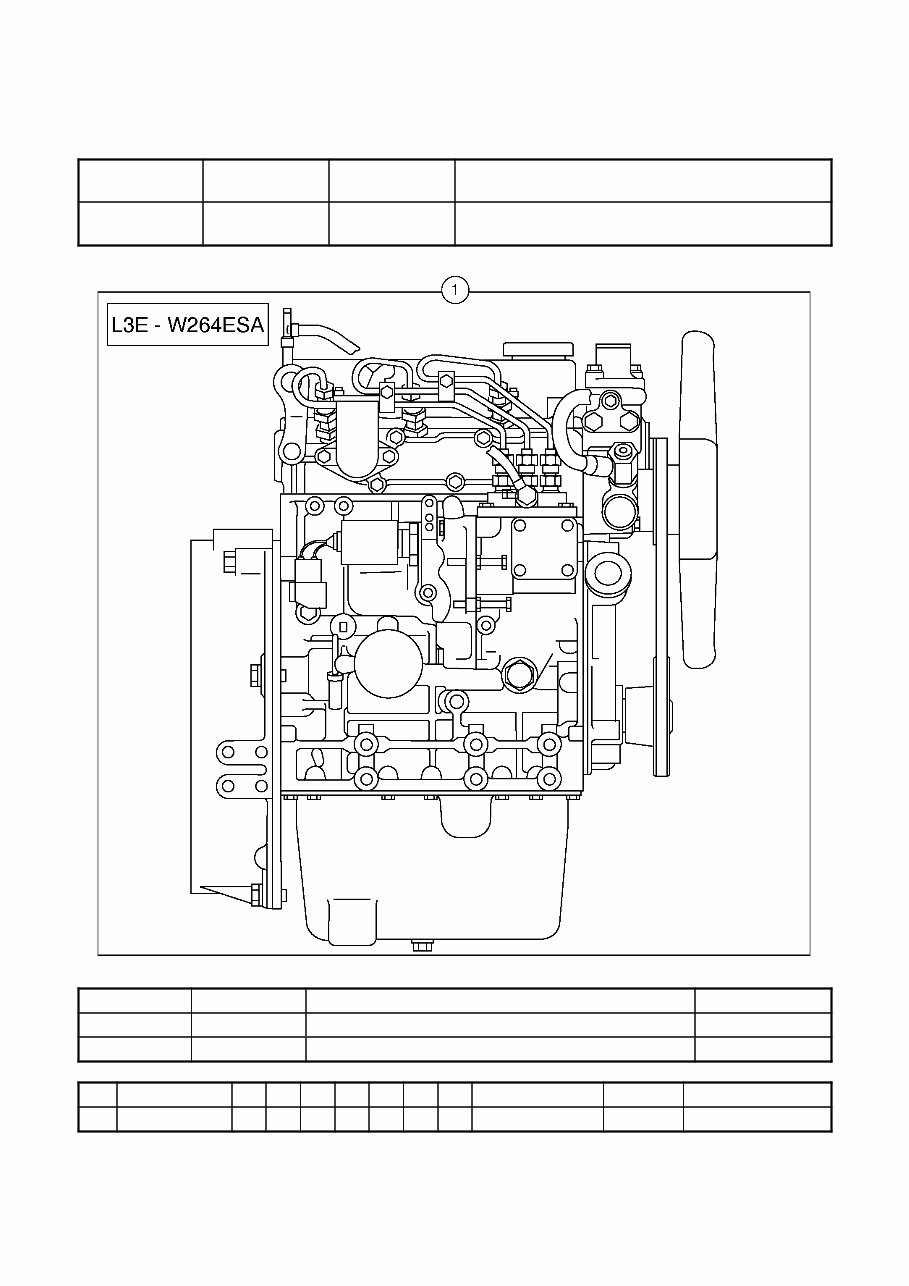

Title:
Equipped engine L3E-W264ESA
Q1-Q5 Option Option description
Q1 .
Q2 .
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 VOE11800862 1 1 Engine L3E-W264ESA
Date:
2013/11/28
Image id:
210PZ1
Catalogue:
10019
Model:
EC20B XTV
Brand:
Volvo
Serial:
80151-99999
Group/Section:
210/300

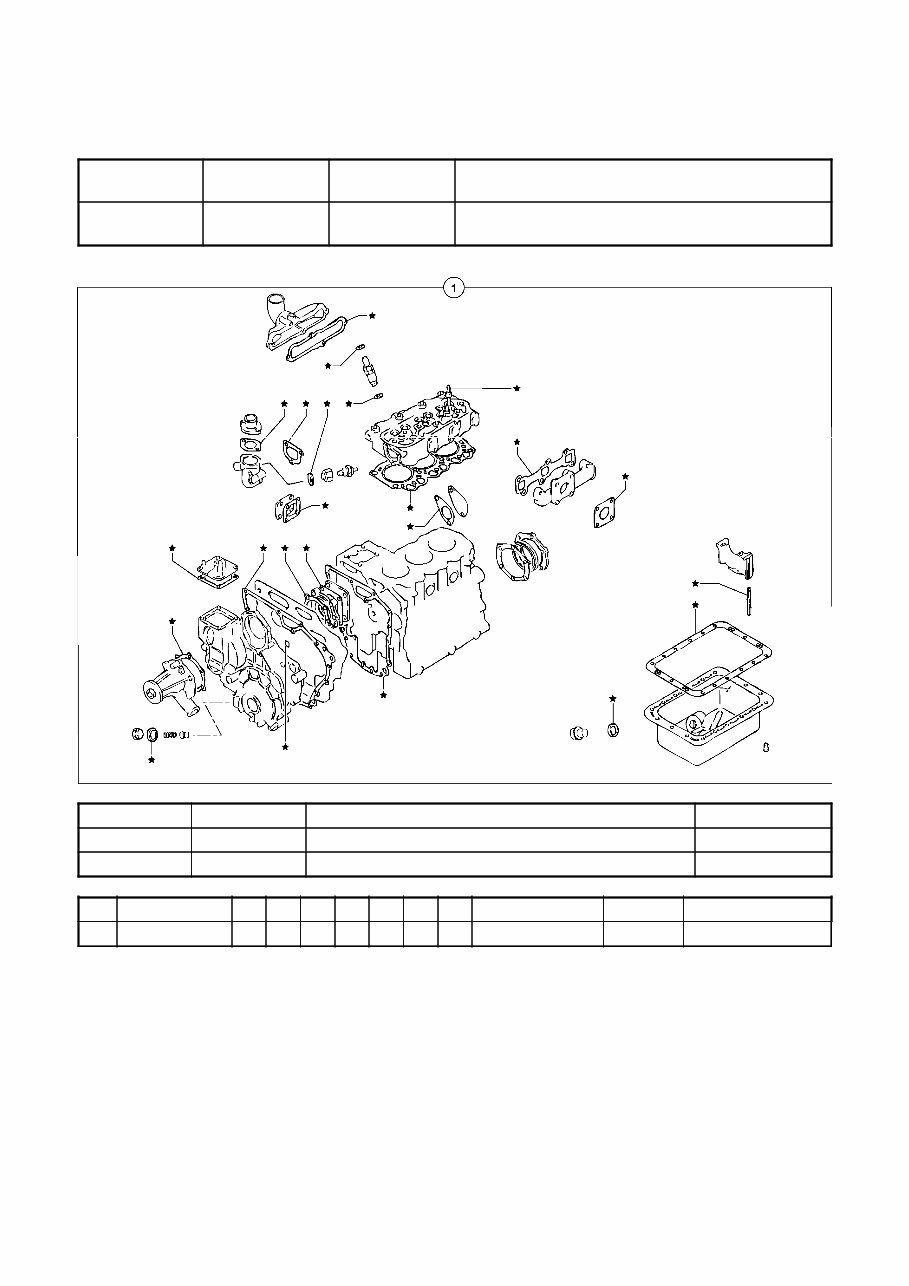

Title:
Engine gasket kit
Q1-Q5 Option Option description
Q1 272.60151
Q2 272.80151
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 PJ7418513 1 1 Seal kit
Date:
2013/11/28
Image id:
211Z1
Catalogue:
10019
Model:
EC20B XTV
Brand:
Volvo
Serial:
80151-99999
Group/Section:
211/100

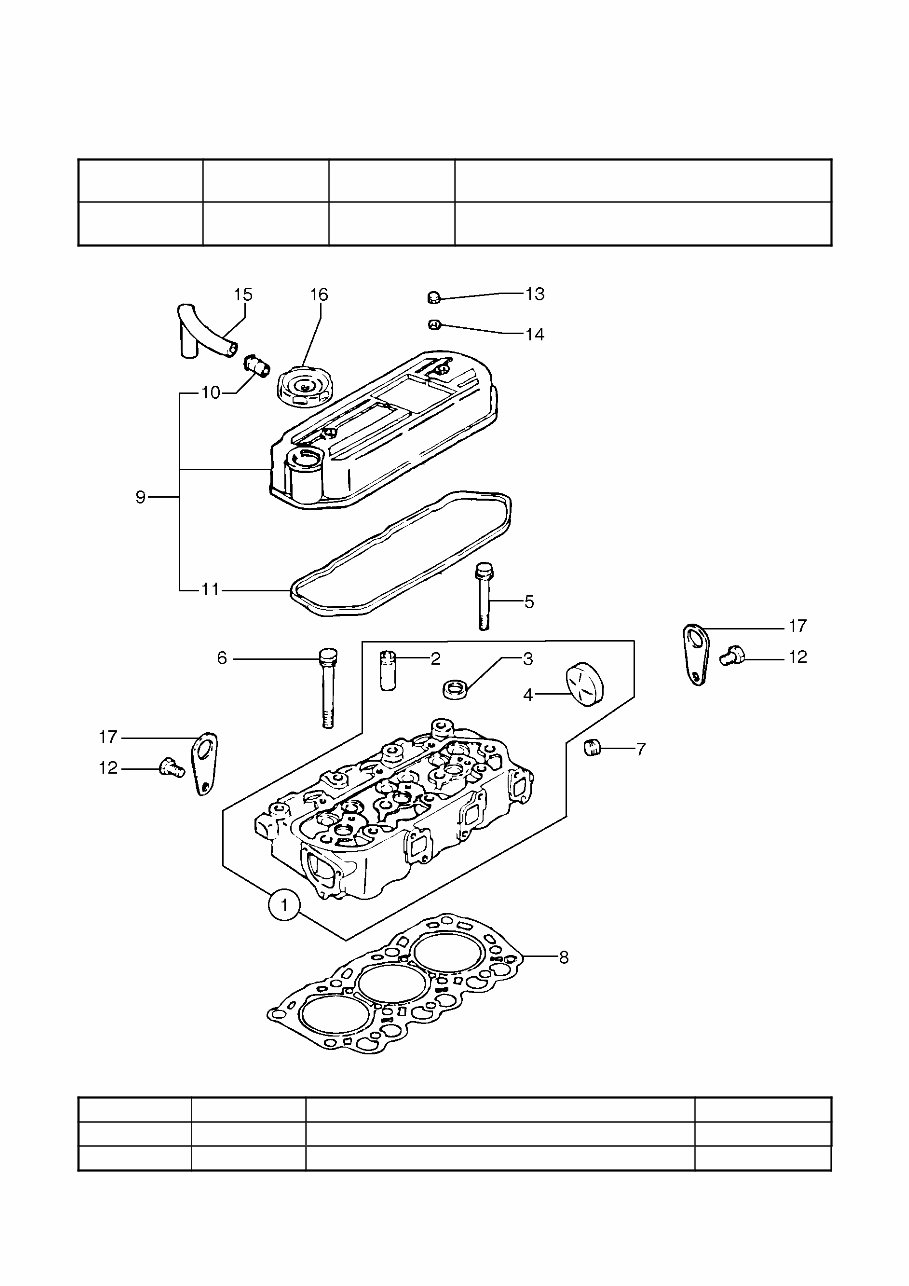

Title:
Cylinder head
Q1-Q5 Option Option description
Q1 272.60151
Q2 272.80151
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 PJ7417039 1 1 Cylinder head L3E2-64ESA
1 PJ7412995 1 1 Cylinder head L3E-W264ESA
2 PJ7410611 6 6 •Giude
3 PJ7410609 3 3 •Sealing
4 PJ7410577 1 1 •Plug
5 PJ7410587 3 3 Bolt
6 PJ7417085 8 8 Bolt
7 PJ7410691 1 1 Plug
8 PJ7415738 1 1 Cyl Head Gasket
9 PJ7418418 1 1 Cover
10 1 1 NS •Nipple
11 PJ7412914 1 1 •Seal
12 PJ7410097 2 2 SS Screw
13 PJ7410599 2 2 Nut
14 PJ7410123 2 2 SS Washer
15 PJ7410665 1 1 Tube
16 PJ11712227 1 1 Filler cap
17 PJ7410628 2 2 OP Support
Date:
2013/11/28
Image id:
212Z1
Catalogue:
10019
Model:
EC20B XTV
Brand:
Volvo
Serial:
80151-99999
Group/Section:
212/100

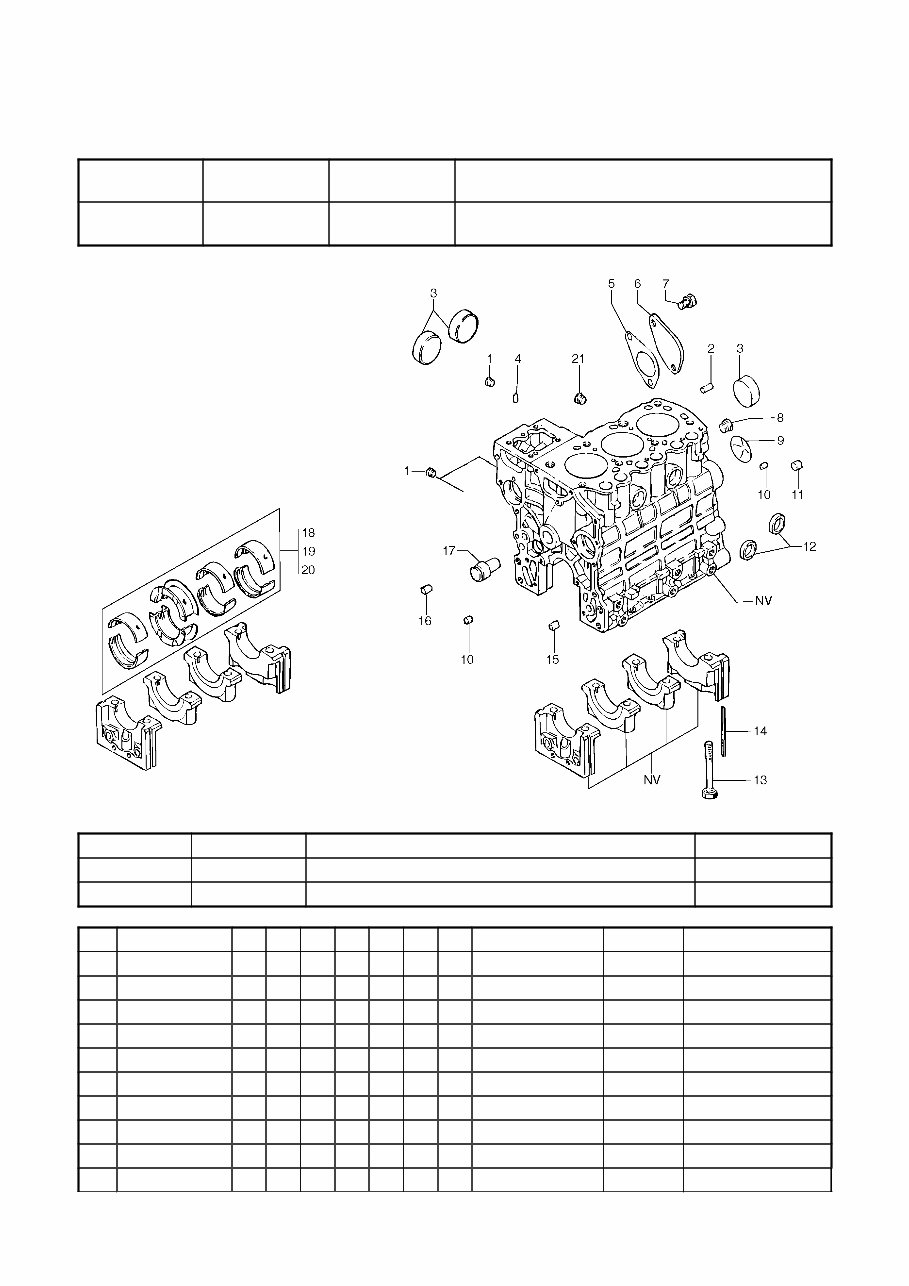

Title:
Cylinder block
Q1-Q5 Option Option description
Q1 272.60151
Q2 272.80151
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 PJ7417041 3 3 Plug
2 PJ7410129 1 1 Centraliser
3 PJ7410577 3 3 Plug
4 PJ7410287 2 2 Centraliser
5 PJ7418420 1 1 Seal
6 1 1 NS Plate
7 PJ4380042 2 2 Screw
8 PJ7410692 1 1 Plug
9 PJ7410608 1 1 Plug
10 PJ7410688 2 2 Bushing
11 PJ7410690 3 3 Bushing
12 PJ7410144 2 2 Plug
13 PJ7418419 8 8 Bolt
14 PJ7410625 4 4 Seal
15 PJ7410689 1 1 Bushing
16 PJ7410404 2 2 Bushing
17 PJ7415739 1 1 Shaft
18 PJ7413155 1 1 Bearings (kit) STD
19 PJ7413156 1 1 Bearings (kit) 0,25 mm, 0.0098 in
20 PJ7413157 1 1 Bearings (kit) 0,50 mm, 0.0197 in
21 PJ7410039 1 1 Plug
Date:
2013/11/28
Image id:
2125Z1
Catalogue:
10019
Model:
EC20B XTV
Brand:
Volvo
Serial:
80151-99999
Group/Section:
212/500
Title:

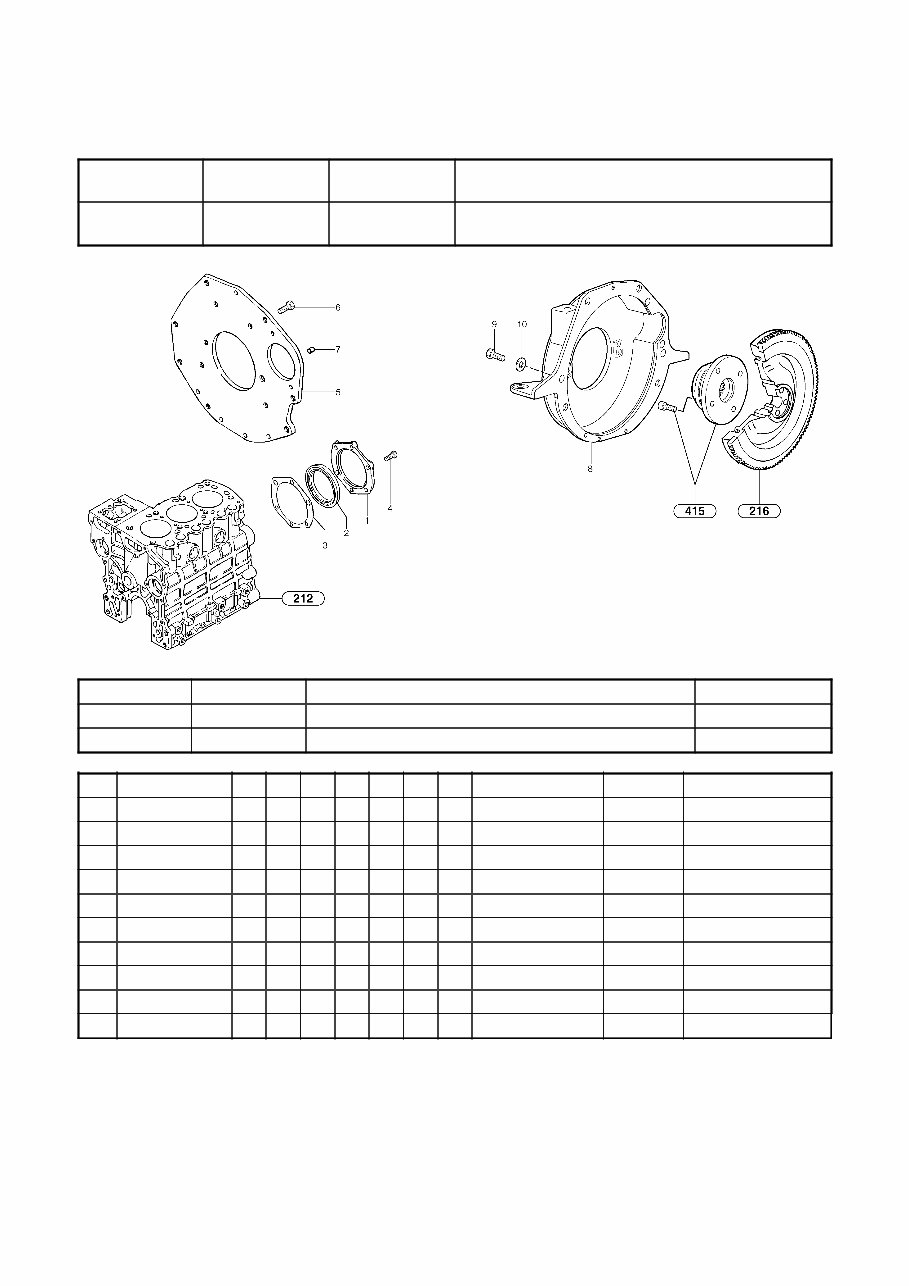

Flywheel housing
Q1-Q5 Option Option description
Q1 272.60151
Q2 272.80151
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 PJ7410615 1 1 Flange
2 PJ7410585 1 1 Seal
3 PJ7410626 1 1 Seal
4 PJ4380032 6 6 Screw
5 1 1 NS Plate
6 PJ7416472 6 6 Attachment kit
7 PJ7412990 1 1 Centraliser
8 PJ5030096 1 1 Flywheel housing
9 PJ4380172 6 6 Screw HM12X20
10 VOE955897 6 6 Washer 13x24x2
Date:
2013/11/28
Image id:
213Z1
Catalogue:
10019
Model:
EC20B XTV
Brand:
Volvo
Serial:
80151-99999
Group/Section:
213/100

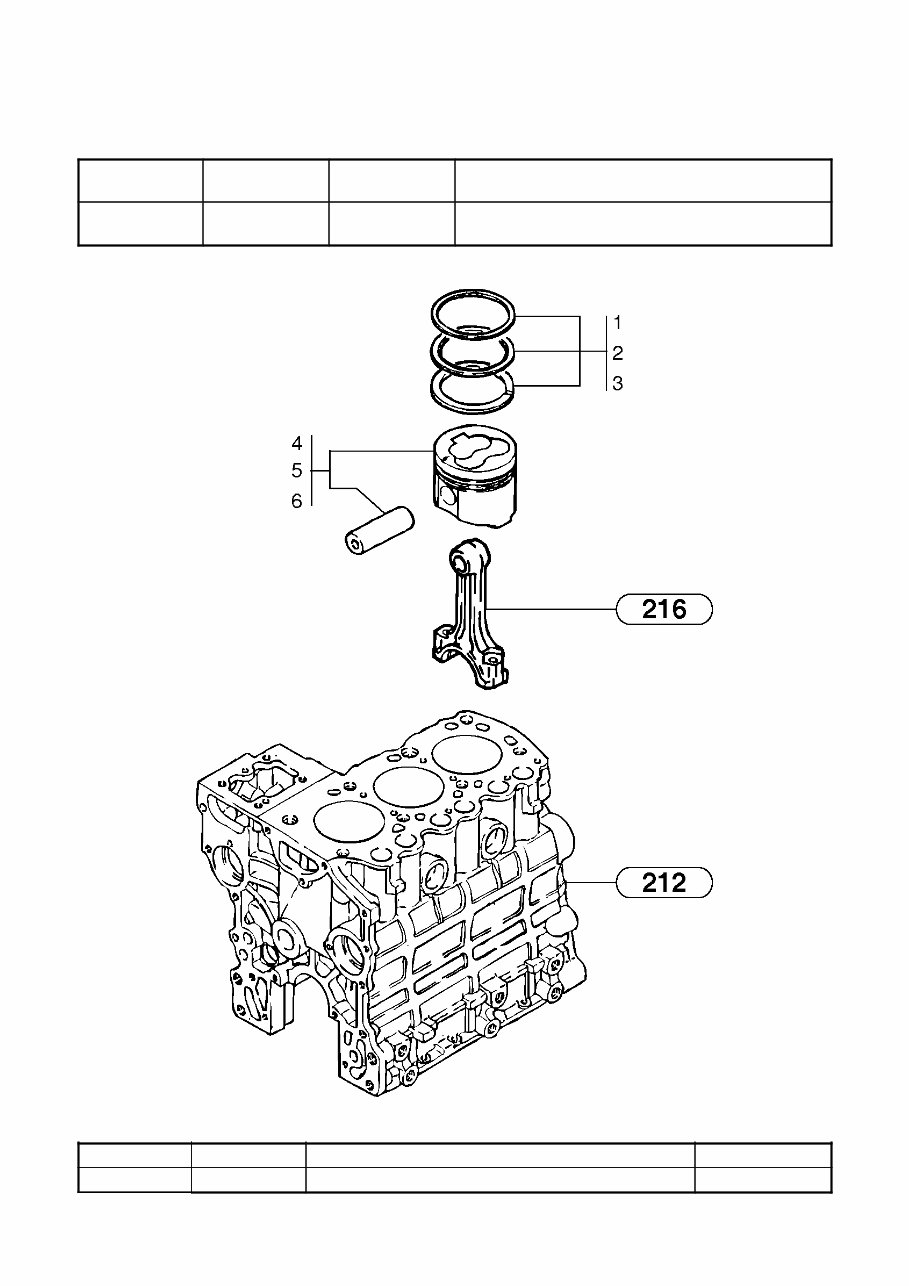

Title:
Pistons
Q1-Q5 Option Option description
Q1 L3E2-64ESA
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 PJ7410666 3 Piston rings (kit) STD
2 PJ7411182 3 Piston rings (kit) 0,25 mm, 0.0098 in
3 PJ7411183 3 Piston rings (kit) 0,50 mm, 0.0197 in
4 PJ7418421 3 Piston STD
5 PJ7418422 3 Piston 0,25 mm, 0.0098 in
6 PJ7418423 3 Piston 0,50 mm, 0.0197 in
