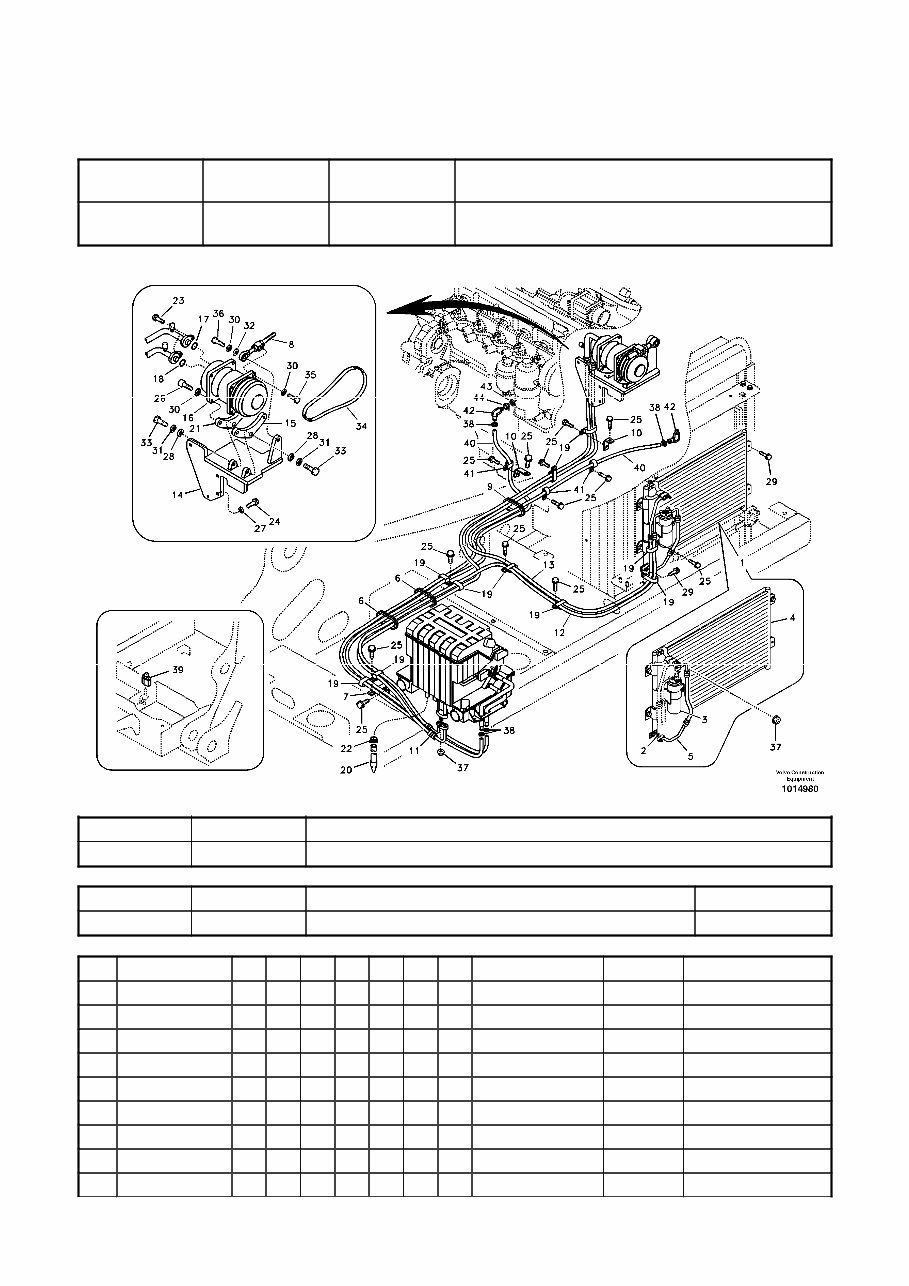

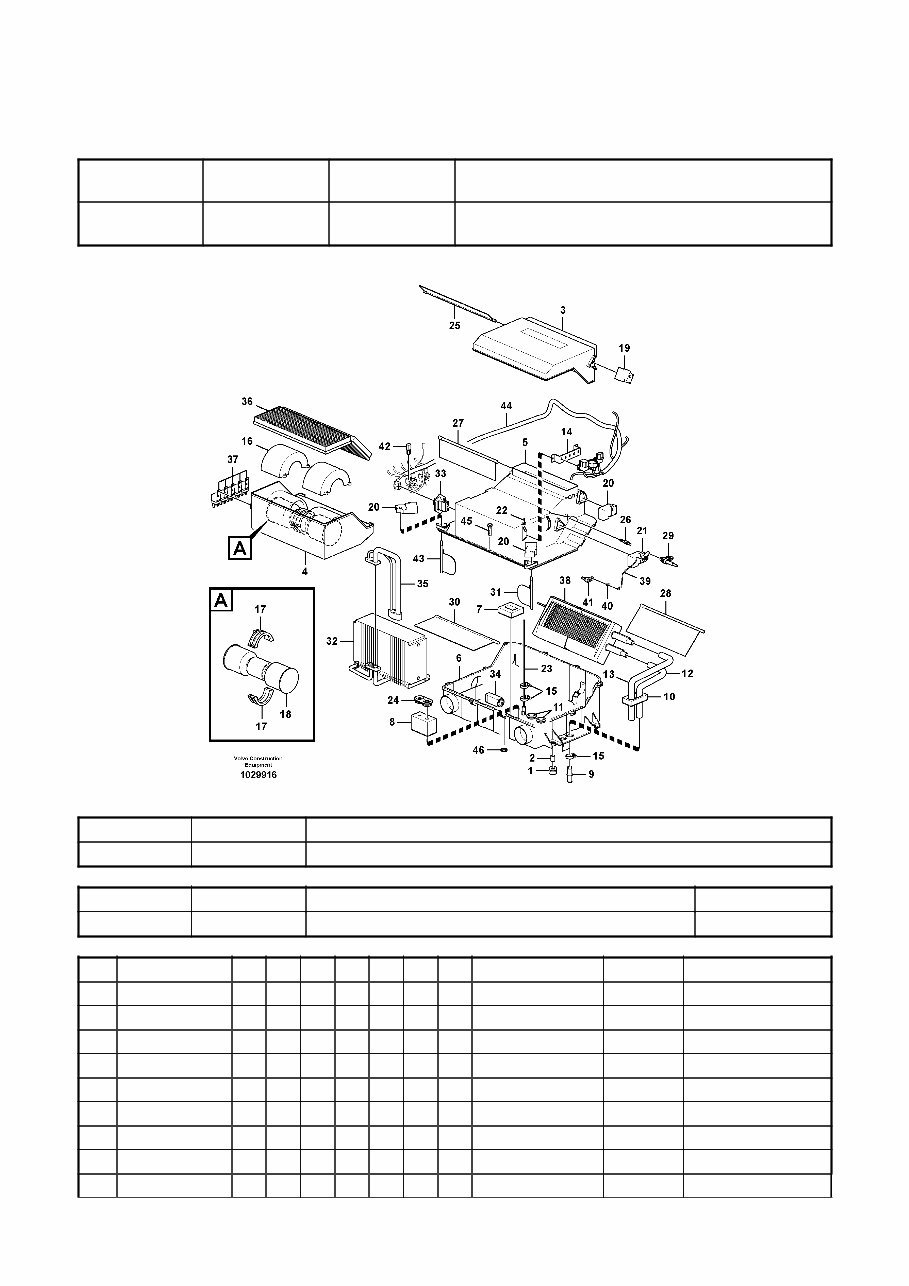

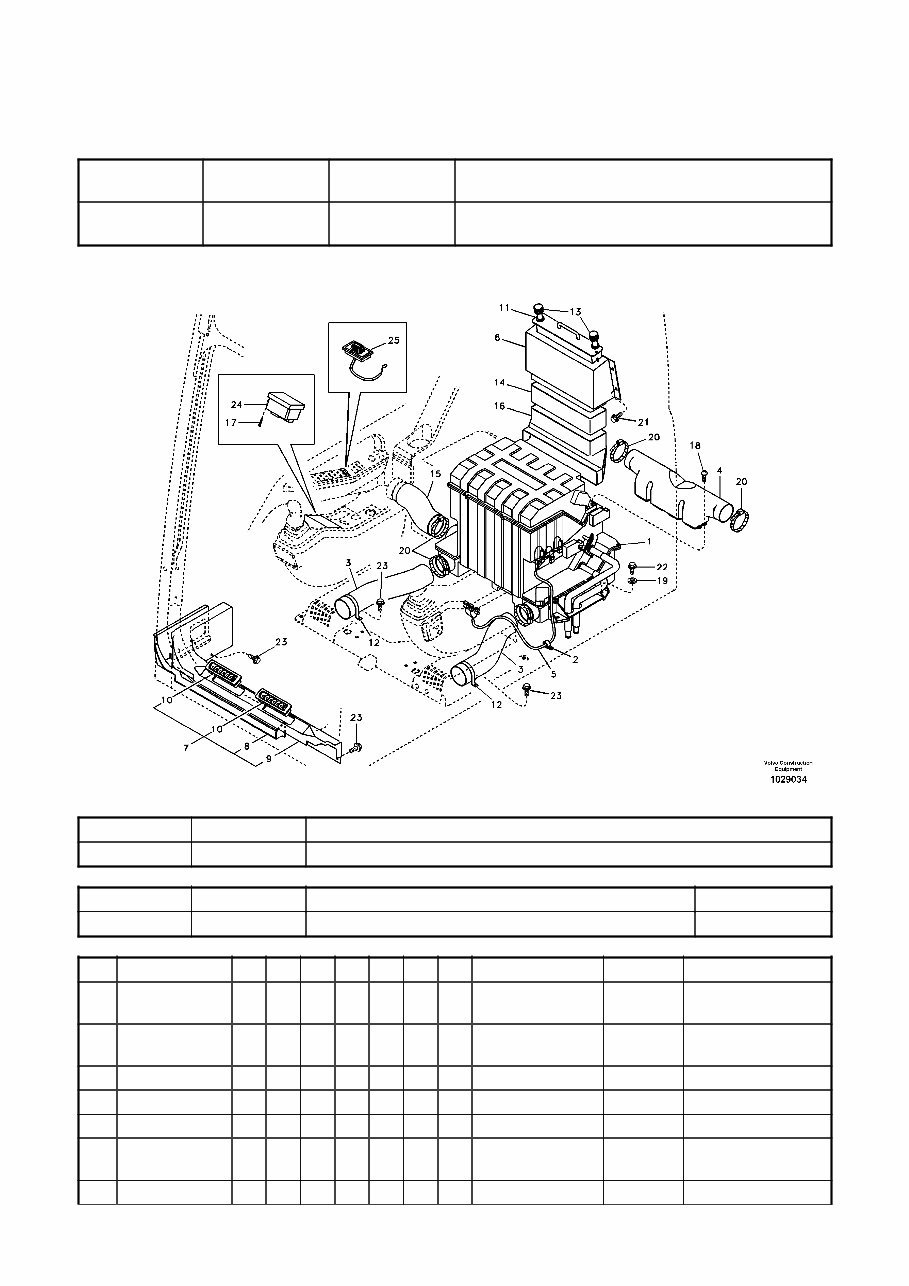

Date:
2013/10/10
Image id:
1014980
Catalogue:
20015
Model:
EC160B LC
Brand:
Volvo
Serial:
10001-12000
Group/Section:
870/100
Title:
Air conditioning line, cooling and heater
Section option Kit Option description
VOE8278394 Air conditioning, heater and cooler.
Q1-Q5 Option Option description
Q1 8278394 VOE8278394 Air conditioning, heater and cooler.
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 VOE14503256 1 Condenser
2 VOE14529051 2 •O-ring
3 VOE14509377 1 •Receiver drier
VOE14584775 1 •Bracket
VOE14591545 1 ••Switch (VOE14541016)
4 VOE14509415 1 •Condenser
5 VOE14509416 1 •Hose
6 VOE14529064 2 Grommet
7 VOE14529258 1 Bracket
8 SA1125-03040 1 SS Adj Device SER NO 10001-10450
VOE14528506 1 Adj Device SER NO 10451-
9 VOE14529326 1 Grommet
10 VOE14529346 2 Bracket
11 VOE14515621 1 Hose
12 VOE14515622 1 Hose
13 VOE14515623 1 Hose
14 VOE14518602 1 Bracket SER NO 10001-10031
VOE14521290 1 Bracket SER NO 10032-
15 VOE14509216 1 Compressor bracket
16 VOE14518640 1 Compressor S/N 10001-11564 Incl.
Fig.17,18
VOE11412632 1 Compressor S/N 11565-
VOE14553061 1 •Clutch S/N 10001-11564
VOE14577651 1 •Clutch S/N 11565-
17 VOE14509304 1 •O-ring
18 VOE14509305 1 •O-ring
19 VOE14507450 10 SS Clip
20 VOE14511074 1 Drain hose
21 VOE14518628 1 Bracket
22 VOE14880627 1 Clip
23 VOE946173 2 Flange screw
24 VOE983243 3 Hexagon screw SER NO 10001-10031
VOE983243 4 Hexagon screw SER NO 10032-
25 VOE946471 13 Flange screw
26 VOE984082 4 Allen Hd Screw
27 VOE955894 3 SS Washer SER NO 10001-10031
VOE14521287 4 Washer SER NO 10032-
28 VOE955897 2 Washer
29 VOE946441 5 Flange screw
30 VOE955922 6 Spring washer
31 VOE955923 2 Spring washer
32 VOE960148 1 Washer
33 VOE978933 2 Hexagon screw
34 VOE14881276 1 V-belt
35 VOE983251 1 Hexagon screw
36 VOE983252 1 Hexagon screw
37 VOE945407 4 Flange nut
38 VOE14511415 4 Clamp
39 VOE14505515 1 Sensor AMBI
40 VOE14881135 2 Hose
41 VOE14500295 3 Clip
42 SA9411-95650 2 Elbow
43 SA9426-20060 1 Gasket
44 VOE14517404 1 Connector
Date:
2013/10/10
Image id:
1029034
Catalogue:
20015
Model:
EC160B LC
Brand:
Volvo
Serial:
10001-12000
Group/Section:
870/200
Title:
Air duct in cabin and cabin floor
Section option Kit Option description
VOE8278394 Air conditioning, heater and cooler.
Q1-Q5 Option Option description
Q1 8278394 VOE8278394 Air conditioning, heater and cooler.
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 VOE14502527 1 SS Air condition
aggregate
SER NO 10001-10657
See ref 870/300
VOE14532728 1 Air Cond SER NO 10658- See
ref 870/300
2 VOE14500295 1 Clip SER NO 10001-10595
3 VOE14502537 2 Hose
4 VOE14502539 1 Duct
5 VOE14503260 1 Wire harness Air con SER NO
10001-10595
6 VOE14503262 1 Case
7 VOE14517758 1 Cover
8 VOE14503049 1 •Defroster duct
9 VOE14517757 1 •Duct
10 VOE14517615 2 •Grille
11 VOE14503269 1 Filter AMBI
12 VOE14504237 2 Bracket
13 VOE14504267 2 Knob
14 VOE14505500 1 Grommet
15 VOE14505516 1 Hose
16 VOE14503265 1 Duct
17 SA9025-04004 4 Screw SER NO 10001-10595
SA9025-04003 4 Screw SER NO 10596-
18 SA9025-05002 4 Screw
19 SA9285-16000 4 Washer
20 SA9312-10350 5 Clamp
21 VOE946471 4 Flange screw
22 VOE965185 4 Flange screw
23 VOE965175 8 Flange screw
24 VOE14520400 1 SS Switch Air Con,Auto SER NO
10001-10595
VOE14530573 1 SS Switch Air Con,Auto SER NO
10596-11021
VOE14590052 1 Switch (VOE14541344)Air
Con,Auto SER NO
11022-
25 VOE14514330 1 Sensor Incarlt
Date:
2013/10/10
Image id:
1029916
Catalogue:
20015
Model:
EC160B LC
Brand:
Volvo
Serial:
10001-12000
Group/Section:
870/300
Title:
Air conditioning unit, cooling and heater
Section option Kit Option description
VOE8278394 Air conditioning, heater and cooler.
Q1-Q5 Option Option description
Q1 8278394 VOE8278394 Air conditioning, heater and cooler.
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
VOE14532728 1 Air Cond
1 VOE14514720 4 •Bushing
2 VOE14515454 4 OP •Pipe
3 VOE14509328 1 •Cover
4 VOE14509327 1 •Case
5 VOE14509326 1 •Case
6 VOE14585933 1 •Case
7 VOE14509367 1 •Gasket
8 VOE14509366 1 •Packing
