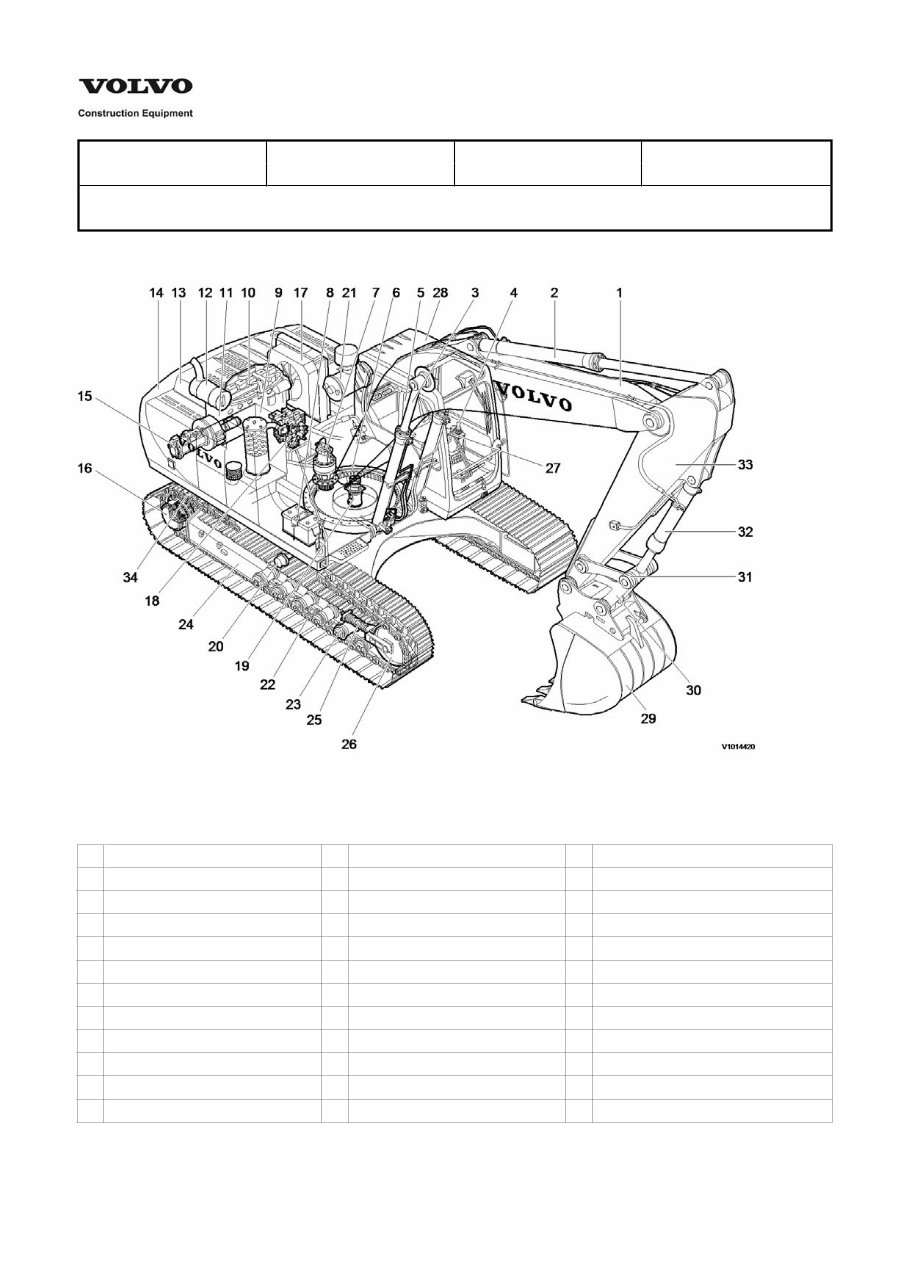

Service Information Document Title: Function Group: Information Type: Date: Component locations 000 Service Information 2015/3/3 0 Profile: EXC, EC140B LC [GB] Component locations Figure 1 Location of components 1 Boom 13 Cowl 25 Recoil spring 2 Arm cylinder 14 Counterweight 26 Idler 3 Boom cylinder 15 Hydraulic pump 27 Control lever (travel) 4 Control lever 16 Track motor and gearbox 28 Operator cab 5 Operator’s seat 17 Radiator and oil cooler 29 Bucket 6 Slew ring gear 18 Main control valve 30 Connecting rod 7 Slew motor and gearbox 19 Center passage 31 Yoke 8 Battery 20 Top roller 32 Bucket cylinder 9 Fuel tank 21 Air cleaner 33 Arm 10 Engine 22 Track link 34 Sprocket 11 Hydraulic tank 23 Bottom roller 12 Muffler 24 Superstructure Watermark,businessmanaccount:"thebestmanual",Pleasedonotresell.Thankyouverymuch. Watermark,businessmanaccount:"thebestmanual",Pleasedonotresell.Thankyouverymuch.

Service Information Document Title: Function Group: Information Type: Date: Measurement conversion tables 030 Service Information 2015/3/3 0 Profile: EXC, EC140B LC [GB] Measurement conversion tables Length Unit cm m km in ft yd mile cm 1 0.01 0.00001 0.3937 0.03281 0.01094 0.000006 m 100 1 0.001 39.37 3.2808 1.0936 0.00062 km 100000 1000 1 39370.7 3280.8 1093.6 0.62137 in 2.54 0.0254 0.000025 1 0.08333 0.02777 0.000015 ft 30.48 0.3048 0.000304 12 1 0.3333 0.000189 yd 91.44 0.9144 0.000914 36 3 1 0.000568 mile 160930 1609.3 1.6093 63360 5280 1760 1 1 mm = 0.1 cm, 1 mm = 0.001 m Area Unit cm2 m2 km2 a ft2 yd2 in2 cm2 1 0.0001 - 0.000001 0.001076 0.000012 0.155000 m2 10000 1 0.000001 0.01 10.764 1.1958 1550.000 km2 - 1000000 1 10000 1076400 1195800 - a 0.01 100 0.0001 1 1076.4 119.58 - ft2 - 0.092903 - 0.000929 1 0.1111 144.000 yd2 - 0.83613 - 0.008361 9 1 1296.00 in2 6.4516 0.000645 - - 0.006943 0.000771 1 1 ha = 100 a, 1 mile2 = 259 ha = 2.59 km2 Volume Unit cm3 = cc m3 Liter in3 ft3 yd3 cm3 = m liter 1 0.000001 0.001 0.061024 0.000035 0.000001 m3 1000000 1 1000 61024 35.315 1.30796 Liter 1000 0.001 1 61.024 0.035315 0.001308 in3 16.387 0.000016 0.01638 1 0.000578 0.000021 ft3 28316.8 0.028317 28.317 1728 1 0.03704 yd3 764529.8 0.76453 764.53 46656 27 1 1 gal(US) = 3785.41 cm3 = 231 in3 = 0.83267 gal(US) Weight Unit g kg t oz lb g 1 0.001 0.000001 0.03527 0.0022 kg 1000 1 0.001 35.273 2.20459 Watermark,businessmanaccount:"thebestmanual",Pleasedonotresell.Thankyouverymuch. Watermark,businessmanaccount:"thebestmanual",Pleasedonotresell.Thankyouverymuch.

t 1000000 1000 1 35273 2204.59 oz 28.3495 0.02835 0.000028 1 0.0625 lb 453.592 0.45359 0.000454 16 1 1 tonne(metric) = 1.1023 ton(US) = 0.9842 ton(UK) Pressure Unit kgf/cm2 bar Pa=N/m2 kPa lbf/in2 lbf/ft2 kgf/cm2 1 0.98067 98066.5 98.0665 14.2233 2048.16 bar 1.01972 1 100000 100 14.5037 2088.6 Pa=N/m2 0.00001 0.001 1 0.001 0.00015 0.02086 kPa 0.01020 0.01 1000 1 0.14504 20.886 lbf/in2 0.07032 0.0689 6894.76 6.89476 1 144 lbf/ft2 0.00047 0.00047 47.88028 0.04788 0.00694 1 1 kgf/cm2 = 735.56 Torr(mmHg) = 0.96784 atm Approximate conversions SI Conversion Non-SI Conversion SI Unit Factor Unit Factor Unit Torque newton meter (N·m) x 10.2 = kgf·cm x 0.8664 = (lbf·in) newton meter (N·m) x 0.74 = lb·ft x 1.36 = N·m newton meter (N·m) x 0.102 = kgf·m x 7.22 = (lbf·ft) Pressure (Pa = N/m2 ) kilopascal (kPa) x 4.0 = in. H2O x 0.249 = kPa kilopascal (kPa) x 0.30 = in. Hg x 3.38 = kPa kilopascal (kPa) x 0.145 = psi x 6.89 = kPa (bar) x 14.5 = psi x 0.069 = (bar) (kgf/cm2) x 14.22 = psi x 0.070 = (kgf/cm2 ) (newton/mm2 ) x 145.04 = psi x 0.069 = (bar) megapascal (MPa) x 145 = psi x 0.00689 = MPa Power (W = J/s) kilowatt (kW) x 1.36 = PS (cv) x 0.736 = kW kilowatt (kW) x 1.34 = HP x 0.746 = kW kilowatt (kW) x 0.948 = Btu/s x 1.055 = kW watt (W) x 0.74 = ft·lb/s x 1.36 = W Energy (J = N·m) kilojoule (kJ) x 0.948 = Btu x 1.055 = kJ joule (J) x 0.239 = calorie x 4.19 = J Velocity and Acceleration meter per sec2 (m/s2 ) x 3.28 = ft/s2 x 0.305 = m/s2 meter per sec (m/s) x 3.28 = ft/s x 0.305 = m/s kilometer per hour (km/h) x 0.62 = mph x 1.61 = km/h Horse power/torque BHP x 5252 rpm = TQ (lb·ft) TQ x rpm 5252 = B.H.P. Temperature °C = (°F - 32) /1.8 °F = (°C x 1.8) + 32 Flow Rate Watermark,businessmanaccount:"thebestmanual",Pleasedonotresell.Thankyouverymuch. Watermark,businessmanaccount:"thebestmanual",Pleasedonotresell.Thankyouverymuch.

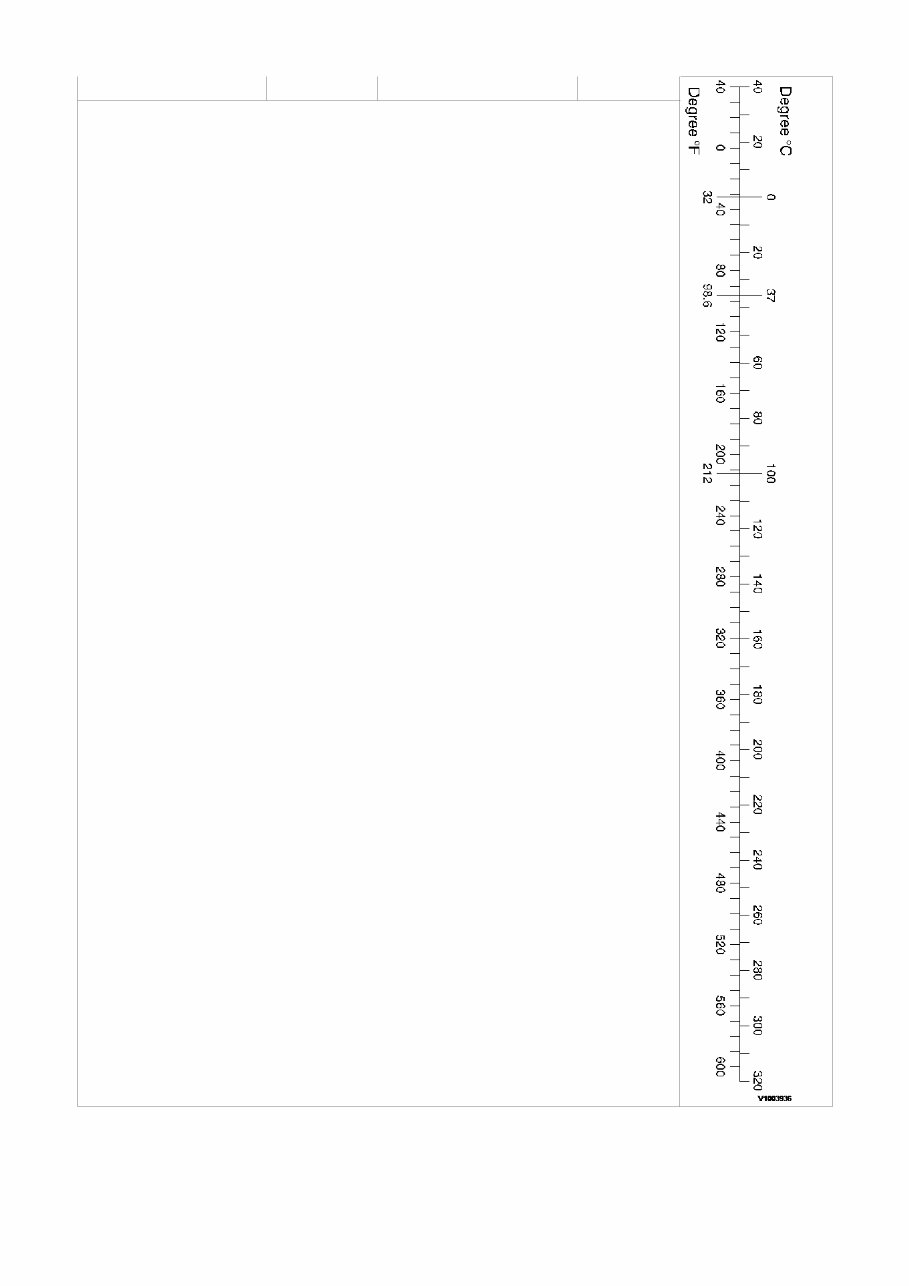

liter/min (dm3/min) x 0.264 = US gal/min x 3.785 = liter/min Note: ( ) non-si unit

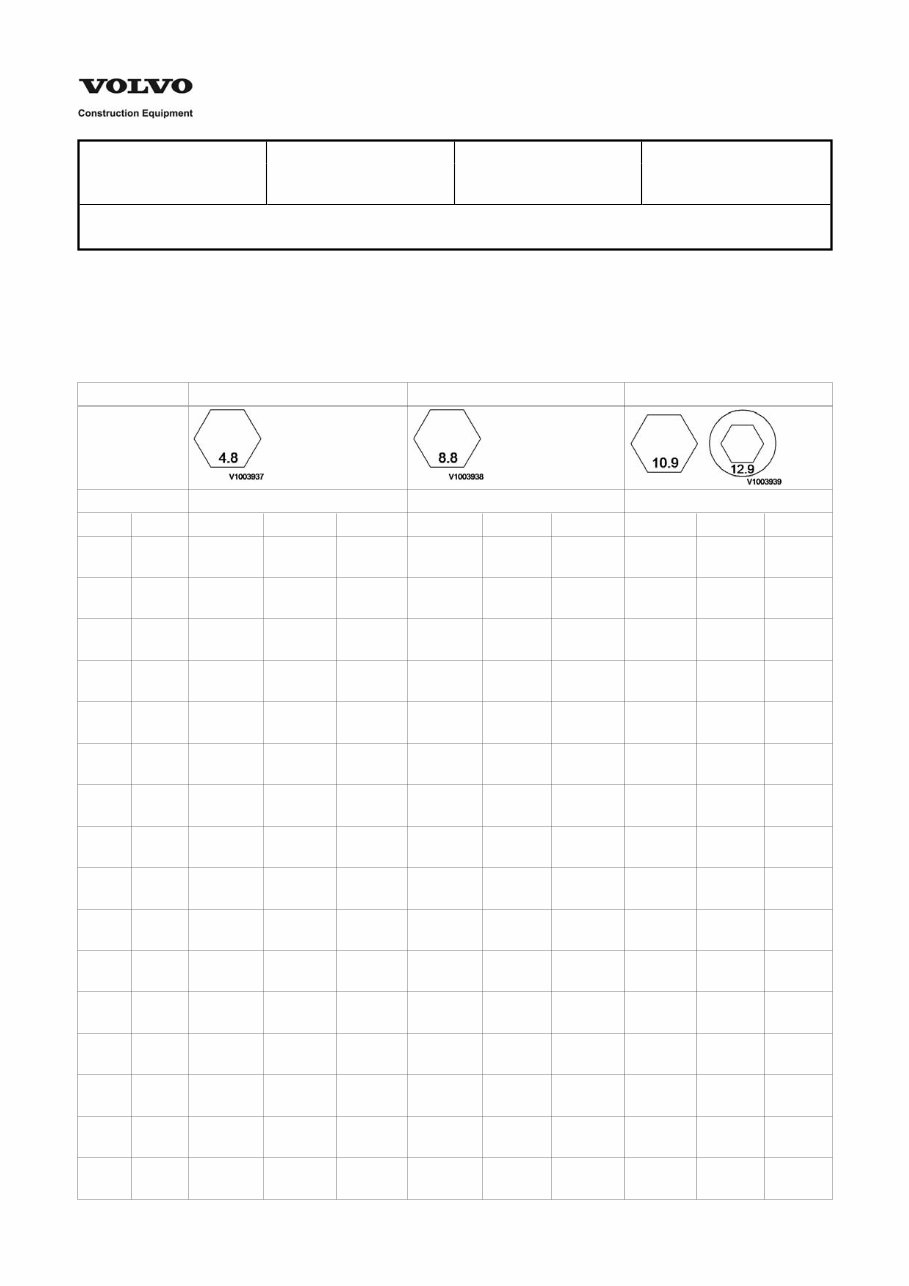

Service Information Document Title: Function Group: Information Type: Date: Standard tightening torques 030 Service Information 2015/3/3 0 Profile: EXC, EC140B LC [GB] Standard tightening torques The following charts give the standard tightening torques of screws and nuts. Exceptions are given in each sections of “disassembly and assembly”. Tightening torque (meter) Classification 4.8T 8.8T 10.9T, 12.9T Screw type Screw size Tightening torque Tightening torque Tightening torque mm inch N m kgf m lbf ft N m kgf m lbf ft N m kgf m lbf ft M 4 0.15 1.96 ±0.19 0.2 ±0.02 1.4 ±0.1 - - - 3.92 ±0.39 0.4 ±0.04 2.9 ±0.3 M 5 0.19 2.94 ±0.29 0.3 ±0.03 2.2 ±0.2 5.88 ±0.59 0.6 ±0.06 4.3 ±0.4 7.84 ±0.78 0.8 ±0.08 5.8 ±0.6 M 6 0.23 4.90 ±0.49 0.5 ±0.05 3.6 ±0.4 9.8 ±0.98 1.0 ±0.10 7.2 ±0.7 13.72 ±1.37 1.4 ±0.14 10.1 ±1 M 8 0.31 11.76 ±1.17 1.2 ±0.12 8.7 ±0.9 23.541 ±2.35 2.4 ±0.24 17.3 ±1.7 32.36 ±2.94 3.3 ±0.3 23.8 ±2.2 M 10 0.39 22.55 ±2.25 2.3 ±0.23 16.6 ±1.7 48.05 ±4.9 4.9 ±0.5 35.4 ±3.6 63.74 ±6.86 6.5 ±0.7 46.9 ±5.1 M 12 0.46 39.22 ±3.92 4.0 ±0.4 29 ±3 85.32 ±8.83 8.7 ±0.9 62.8 ±6.5 110.81 ±10.78 11.3 ±1.1 81.6 ±7.9 M 14 0.55 62.7 ±5.88 6.4 ±0.6 46 ±4 140.24 ±13.73 14.3 ±1.4 103.2 ±10.1 175.53 ±17.65 17.9 ±1.8 129.2 ±13 M 16 0.62 93.16 ±8.82 9.5 ±0.9 69 ±6 219.67 ±21.57 22.4 ±2.2 161.7 ±15.9 261.83 ±26.47 26.7 ±2.7 192.8 ±19.5 M 18 0.71 132.3 ±13.72 13.5 ±1.4 97 ±10 290.28 ±29.42 29.6 ±3.0 213.7 ±21.7 372.65 37.26 38.0 ±3.8 274.4 ±27.4 M 20 0.78 182.40 ±18.63 18.6 ±1.9 134 ±14 430.51 ±43.14 43.9 ±4.4 317.0 ±31.8 511.90 ±50.99 52.2 ±5.2 376.9 ±37.5 M 22 0.87 242.22 ±24.51 24.7 ±2.5 178 ±18 579.57 ±57.85 59.1 ±5.9 426.7 ±42.6 680.58 ±67.66 69.4 ±6.9 501.1 ±49.8 M 24 0.94 314.79 ±31.38 32.1 ±3.2 232 ±23 740.40 ±73.54 75.5 ±7.5 545.1 ±54.2 884.56 ±88.25 90.2 ±9.0 651.2 ±65 M 30 1.17 613.80 ±61.78 62.6 ±6.3 452 ±45 - - - 1726.95 ±172.59 176.1 ±17.6 1271.4 ±127.1 M 36 1.40 1061.08 ±105.91 108.2 ±10.8 781 ±78 - - - 2984.16 ±298.12 304.3 ±30.4 2197 ±219.5 M 42 1.65 1684.78 ±168.67 171.8 ±17.2 1240 ±124 - - - 4738.57 ±473.66 483.2 ±48.3 3488.7 ±348.7 M 45 1.77 2072.15 ±206.92 211.3 ±21.1 1525 ±152 - - - 5828.09 ±582.51 594.3 ±59.4 4290.9 ±428.9

Tightening torque (inch) Classification 4.8T 8.8T 10.9T, 12.9T Screw size Tightening torque Tightening torque Tightening torque mm inch N m kgf m lbf ft N m kgf m lbf ft N m kgf m lbf ft 1/4 6.35 9.80 ±0.98 0.6 ±0.06 4.3 ±0.4 23.53 ±2.35 1.0 ±0.1 7.2 ±0.7 16.67 ±1.96 1.7 ±0.2 12.2 ±1.2 5/16 7.94 11.76 ±1.17 1.2 ±0.12 8.7 ±0.8 19.61 ±1.96 2.0 ±0.2 14.4 ±1.4 29.42 ±2.94 3.0 ±0.3 21.7 ±2.2 3/8 9.53 19.61 ±1.96 2.0 ±0.20 14.4 ±1.4 40.20 ±3.92 4.1 ±0.4 29.6 ±2.9 54.91 ±4.90 5.6 ±0.5 40 ±4 7/16 11.11 31.38 ±3.13 3.2 ±0.32 23 ±2 59.82 ±5.88 6.1 ±0.6 44.0 ±4.3 87.27 ±8.82 8.9 ±0.9 64 ±6 1/2 12.70 46.09 ±4.60 4.7 ±0.47 34 ±3 100.02 ±9.80 10.2 ±1.0 73.6 ±7.2 131.40 ±12.74 13.4 ±1.3 97 ±10 9/16 14.29 66.68 ±6.66 6.8 ±0.68 50 ±5 140.23 ±13.72 14.3 ±1.4 103.2 ±10.1 186.32 ±18.63 19.0 ±1.9 137 ±14 5/8 15.88 91.20 ±9.12 9.3 ±0.93 67 ±7 200.05 ±19.61 20.4 ±2.0 147.3 ±14.4 255.95 ±25.49 26.1 ±2.6 190 ±19 3/4 19.05 156.90 ±15.69 16.0 ±1.60 115 ±15 - - - 442.28 ±44.12 45.1 ±4.5 325 ±33 7/8 22.22 250.07 ±25.00 25.5 ±2.55 185 ±19 - - - 702.15 ±70.60 71.6 ±7.2 520 ±52 1 25.40 372.65 ±37.26 38.0 ±3.80 275 ±27 - - - 1048.33 ±104.93 106.9 ±10.7 770 ±77 1 1/8 28.58 530.54 ±53.05 54.1 ±5.41 390 ±39 - - - 1492.57 ±149.06 152.2 ±15.2 1100 ±110 1 1/4 31.75 727.65 ±72.76 74.2 ±7.42 535 ±54 - - - 2048.61 ±204.95 208.9 ±20.9 1510 ±151 1 3/4 34.93 968.89 ±96.88 98.8 ±9.88 710 ±71 - - - 2724.29 ±272.62 277.8 ±27.8 2000 ±200 1 1/2 38.1 1257.21 ±125.72 128.2 ± 12.82 925 ± 93 - - - 3537.26 ±354.02 360.7 ±36.1 2600 ±260 NOTE! This torque table does not apply to screws with nylon packings or where nonferrous metal washers are to be used, or which require tightening to a different specified torque, or tightening procedure. NOTE! N m (Newton meter):1 N m ≅ 0.1 kgf m Tightening torque of split flange screws Use these torques for split flange screws. Tightening torque (split flange screws) Tightening torque Thread diameter of screw (mm) Width across flats (mm) N m kgf m lbf ft 10 12 16 14 17 22 65.7 ±6.8 112 ±9.8 279 ±29 6.7 ±0.7 11.5 ±1 28.5 ±3 48.4 ±5 83 ±8 206 ±20 Tightening torque for hydraulic plugs with O-ring

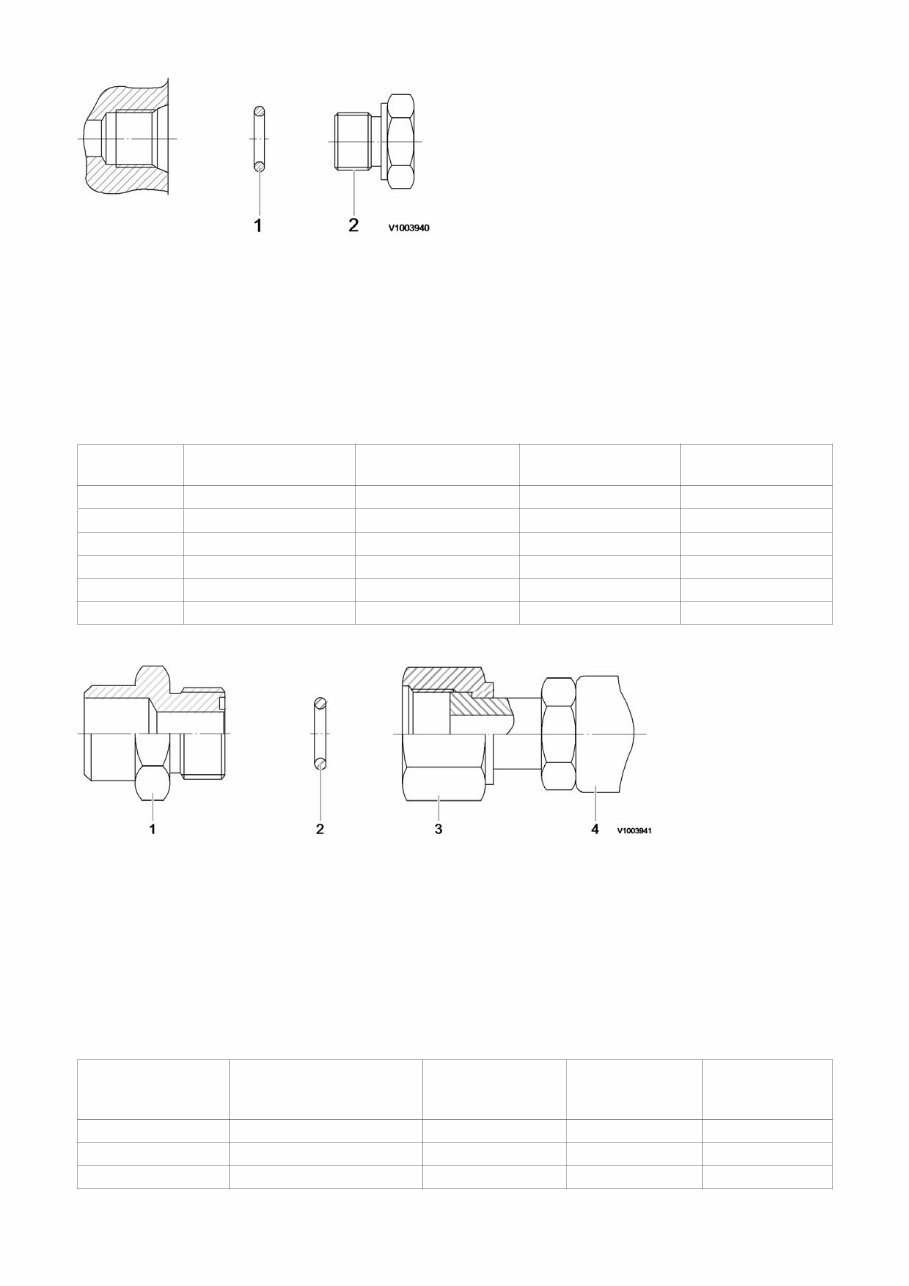

Figure 1 Hydraulic plugs with O-ring 1. 2. O-ring Plug Pf thread Tightening torque (hydraulic plugs) Thread Plug part No. Tightening torque N m Tightening torque kgf m Tightening torque lbf ft 1/8 9415–11012 24.51 ±1.96 2.5 ±0.2 18 ±1.4 1/4 9415–11022 49.03 ±4.90 5.0 ±0.5 36 ±3.6 3/8 9415–11032 73.54 ±4.90 7.5 ±0.5 54 ±3.6 1/2 9415–11042 107.87 ±9.80 11.0 ±1.0 79 ±7 3/4 9415–11052 176.52 ±9.80 18.0 ±1.0 130 ±7 1 9415–11062 205.94 ±19.61 21.0 ±2.0 152 ±14 Tightening torque for swivel nut fitting with O-ring Figure 2 Swivel nut fitting with O-ring 1. 2. 3. 4. Connector O-ring Swivel nut Hose Tightening torque for swivel nut fitting Tube outer diameter (in) Thread size (in) Tightening torque, N m Tightening torque, kgf m Tightening torque, lbf ft 1/2 UN 13/16 – 16 93.16 ±9.31 9.5 ±0.95 69 ±7 3/4 UN 1 3/16 – 12 176.52 ±17.65 18 ±1.8 130 ±13 1 UN 1 7/16 – 12 205.94 ±20.59 21 ±2.1 152 ±15

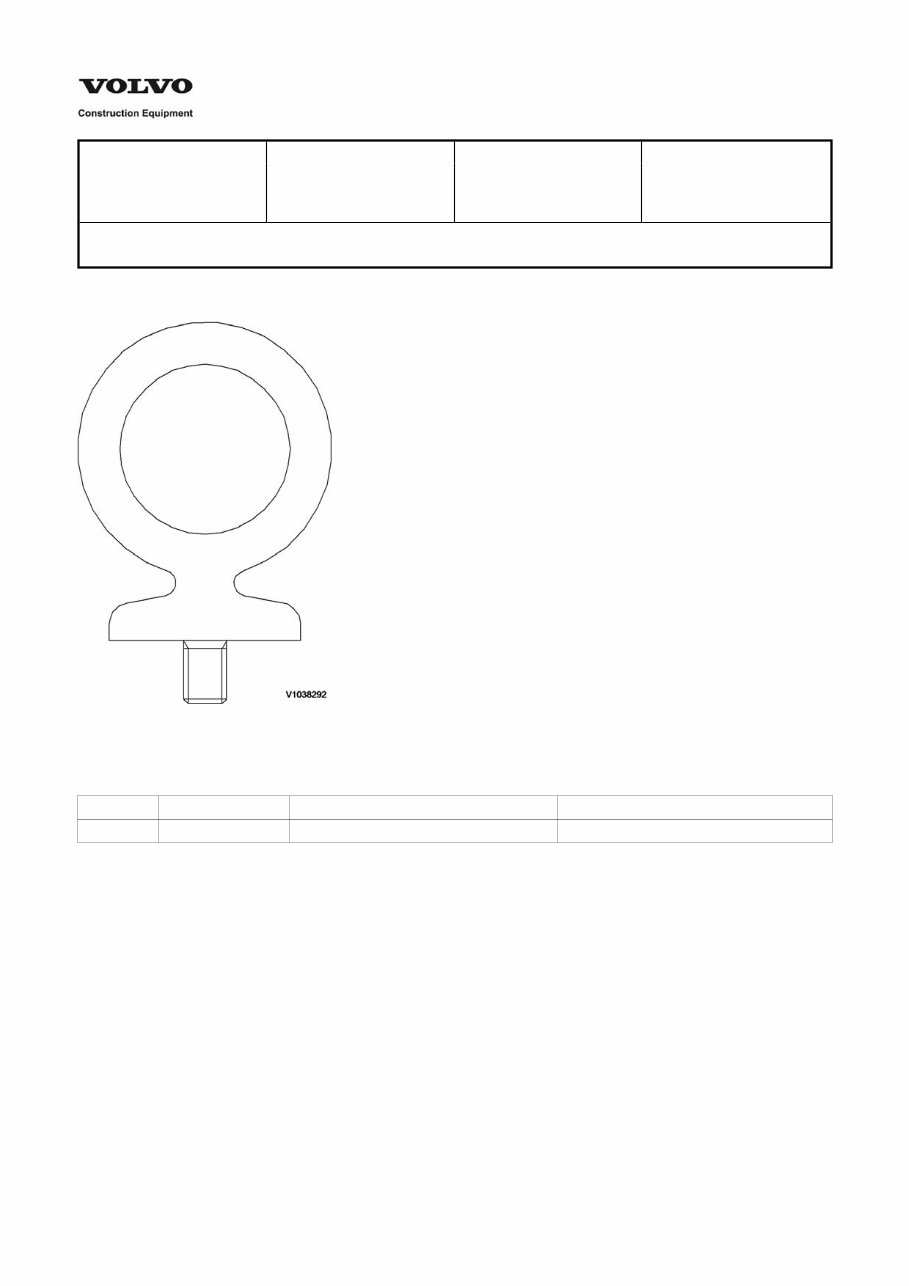

Service Information Document Title: Function Group: Information Type: Date: NET 8940-00170 Replace tool for the hydraulic tank and fuel tank 080 Service Information 2015/3/3 0 Profile: EXC, EC140B LC [GB] NET 8940-00170 Replace tool for the hydraulic tank and fuel tank Figure 1 Replace tool for the hydraulic tank and fuel tank Item Quantity Name Remark 1 2 Lifting eye bolt SAE 4120

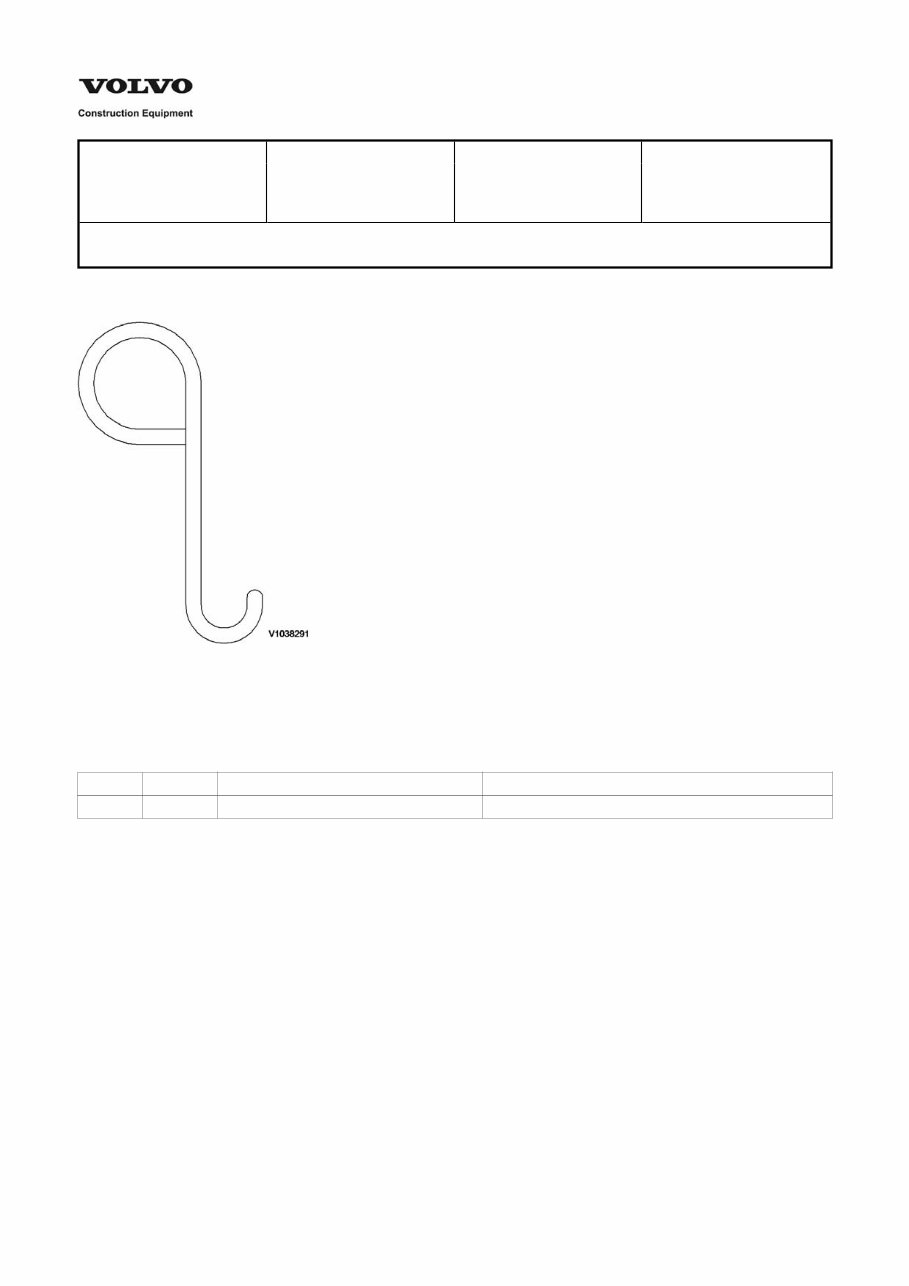

Service Information Document Title: Function Group: Information Type: Date: NET 8940-00020 Replace tool for the radiator assembly 080 Service Information 2015/3/3 0 Profile: EXC, EC140B LC [GB] NET 8940-00020 Replace tool for the radiator assembly Figure 1 Replace tool for the radiator assembly Item Quantity Name Remark 1 2 Lifter SAE 1040

Service Information Document Title: Function Group: Information Type: Date: NET 8940-00200 Replace tool for the remote control valve joint 080 Service Information 2015/3/3 0 Profile: EXC, EC140B LC [GB] NET 8940-00200 Replace tool for the remote control valve joint Figure 1 Replace tool for the remote control valve joint Item Quantity Name Remark 1 1 Socket SAE 4130 (QT) 2 1 Stop plate SAE 4130 (QT)
