TB175(P-TB175BAB) Book No. BL3Z010 S/N 17510003-
Index
Ref. 0 Page 0
TB175
Book No.BL3Z010
Serial No.17510003-
10
5 8
3
4
6
1
2

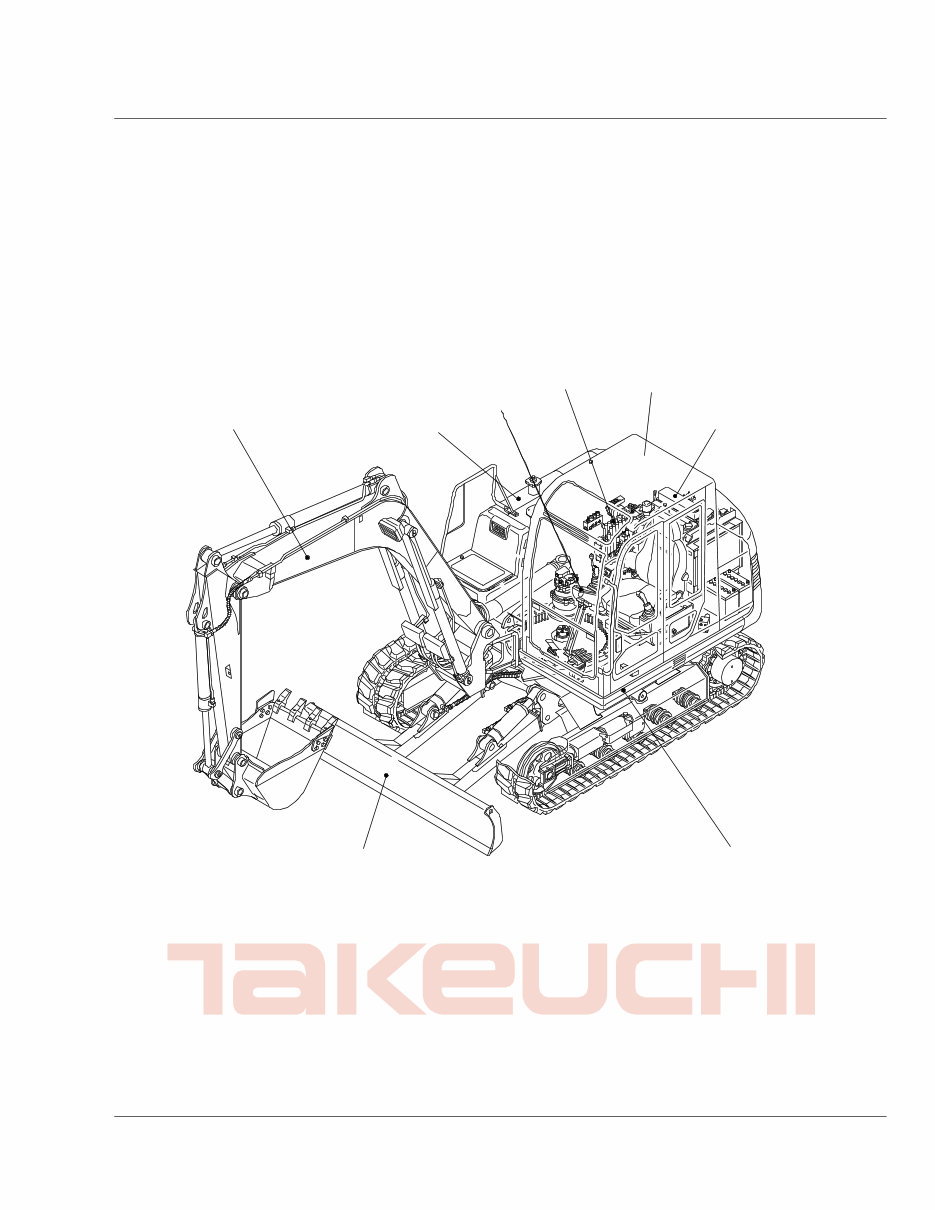

INDEX
Reference:0 Page:0
Item Part number Description Q'ty Chan. Serial No. Serv. Remarks
1 UNDERCARRIAGE
2 TURNTABLE & CONTROL LEVER
3 ENGINE & ELECTRICAL SYSTEM
4 HYDRAULIC PIPNG & TANK
5 COVER & CAB
6 HOE ATTACHMENT
7 DECAL & TOOL
8 HYDRAULIC DEVICE
10 ENGINE(4TNE98-TBZ)
ENGINE(4TNV98-VTBZ)
2009.06.02
P-TB175BAB
TB175(P-TB175BAB) Book No. BL3Z010 S/N 17510003-

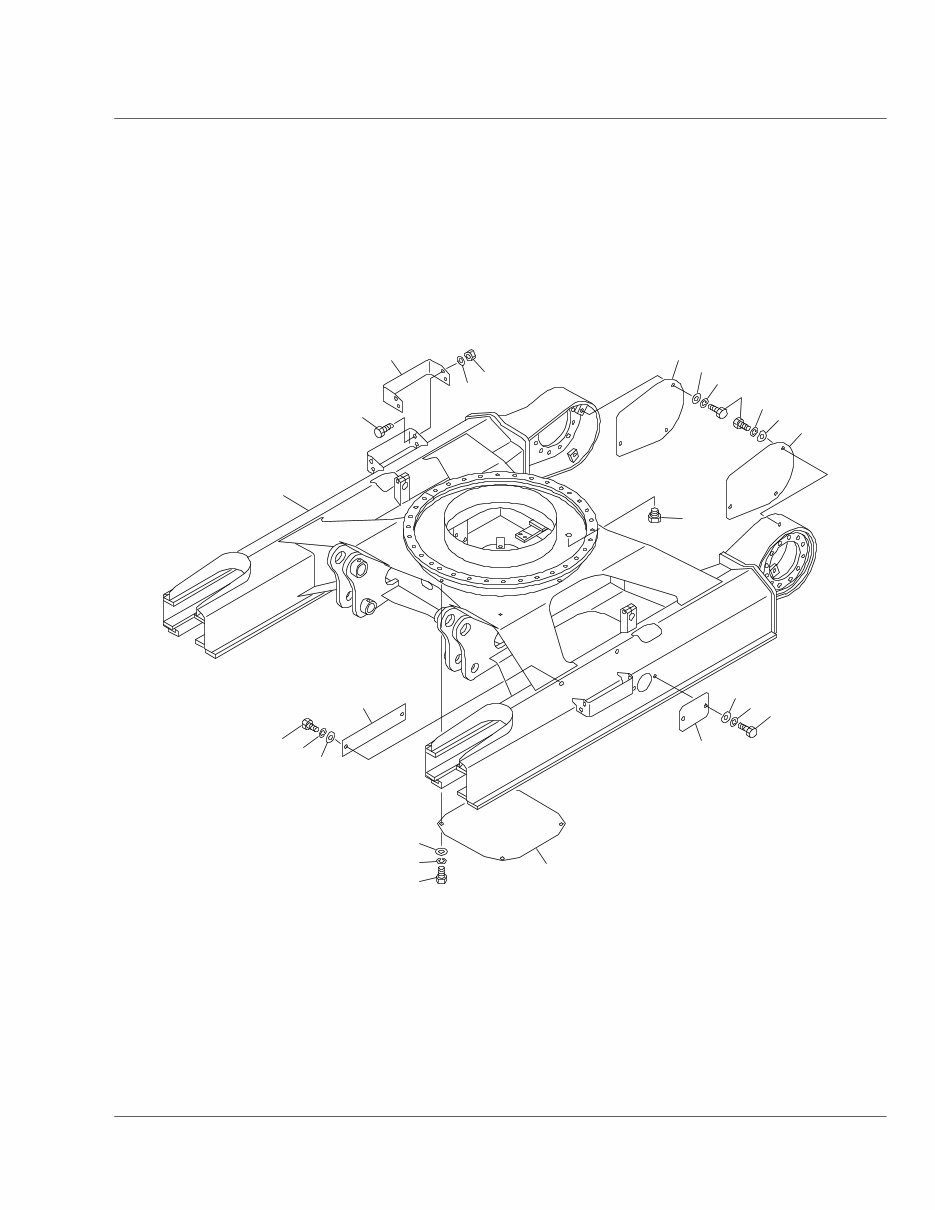

LOWER FRAME
Ref. L3A011 Page 1-1
L3A011 S=1/18
2
13
10
11
9
4
3
18
15
16
17
10
8
1
5
12
7
6
10
13
2
18
11
9
14
LOWER FRAME
Reference:L3A011 Page:1-1
Item Part number Description Q'ty Chan. Serial No. Serv. Remarks
FRAME ASSY, lower
FRAME ASSY, lower (550mm shoe)
1 X ********** FRAME 1
2 0561027020 COVER 2
3 0561017400 COVER 2
4 0561019400 COVER 2
5 0561019500 STEP 2 550mm shoe
6 1501710010 PLUG 1
7 1100041020 BOLT 6
8 1100041025 BOLT 8 550mm shoe
9 1100040816 BOLT 8
10 1140020010 WASHER, spring 6
1140020010 WASHER, spring 14 550mm shoe
11 1140020008 WASHER, spring 8
12 1130040010 NUT 8 550mm shoe
13 1141110010 WASHER 6
14 0561021010 COVER 1
15 1100041225 BOLT 4
16 1140020012 WASHER, spring 4
17 1141110012 WASHER 4
18 1141110008 WASHER 8
L3a011
TB175(P-TB175BAB) Book No. BL3Z010 S/N 17510003-

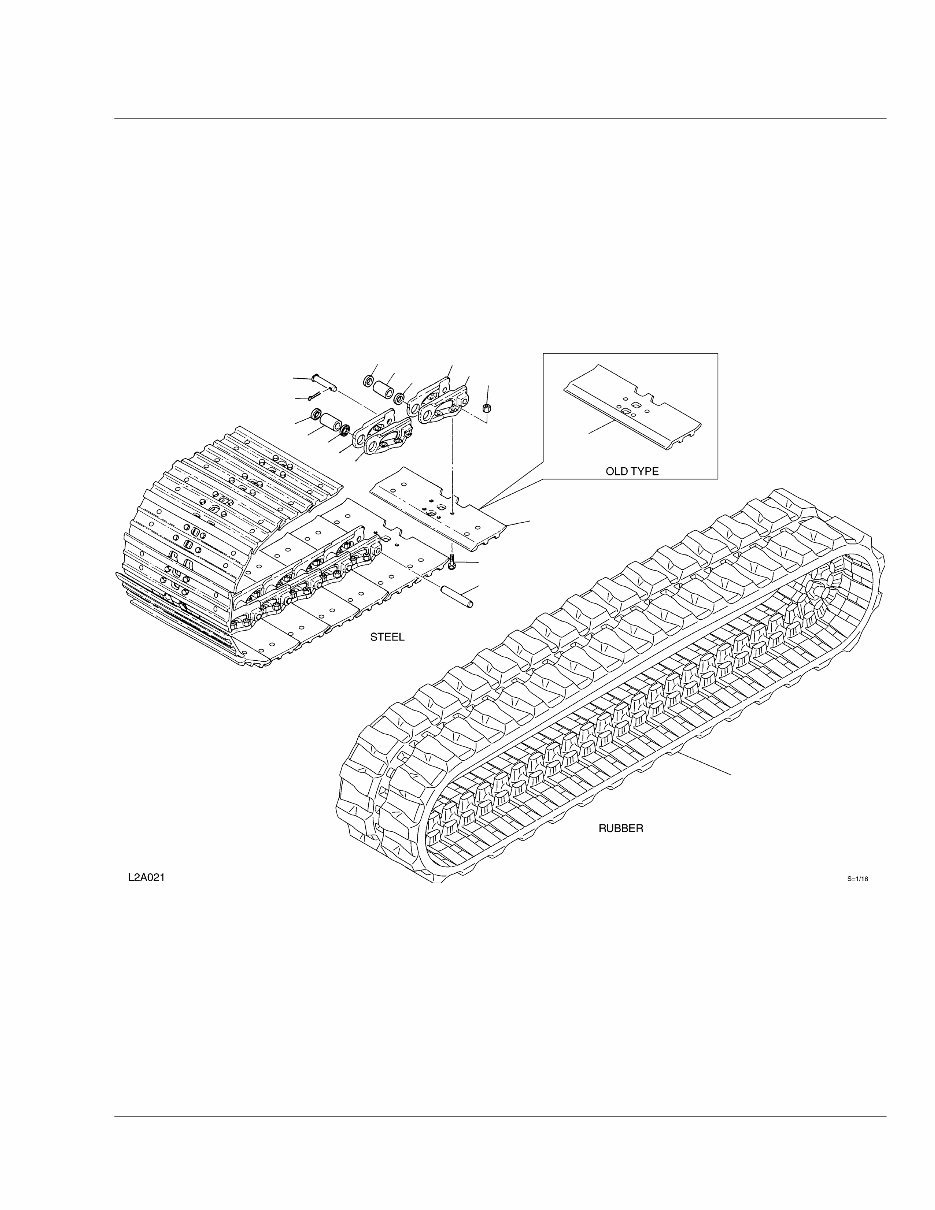

CRAWLER BELT
Ref. L2A021 Page 1-2
9
7
2
9
8
5
3
4
12
6
15
14
10
11
11
1
13
14
CRAWLER BELT
Reference:L2A021 Page:1-2
Item Part number Description Q'ty Chan. Serial No. Serv. Remarks
0 1914087100 BELT, steel crawler 2 old type 450mm shoe
1914087300 BELT, steel crawler 2 new type 450mm shoe
1914088100 BELT, steel crawler 2 550mm shoe
0-1 1914087199 LINK ASSY 2
1 1914087001 LINK(R.H.) 38
2 1914087002 LINK(L.H.) 38
3 1914087003 LINK, master(R.H.) 1
4 1914087004 LINK, master(L.H.) 1
5 1914087005 BUSHING 38
6 1914087006 PIN, track 38
7 1914087012 BUSHING 1
8 1914087007 PIN, master 1
9 1914087013 COLLAR 2
10 1914087014 PIN, split 1
11 1914087015 SEAL 76
12 1914087009 BOLT 156
13 1914087010 NUT 156
14 1914087011 PLATE 39 old type 450mm shoe
1914087311 PLATE 39 new type 450mm shoe
1914088011 PLATE 39 550mm shoe
15 1914086300 BELT, rubber crawler 2
1914086410 BELT, rubber crawler 2 (H)
L3a022
TB175(P-TB175BAB) Book No. BL3Z010 S/N 17510003-

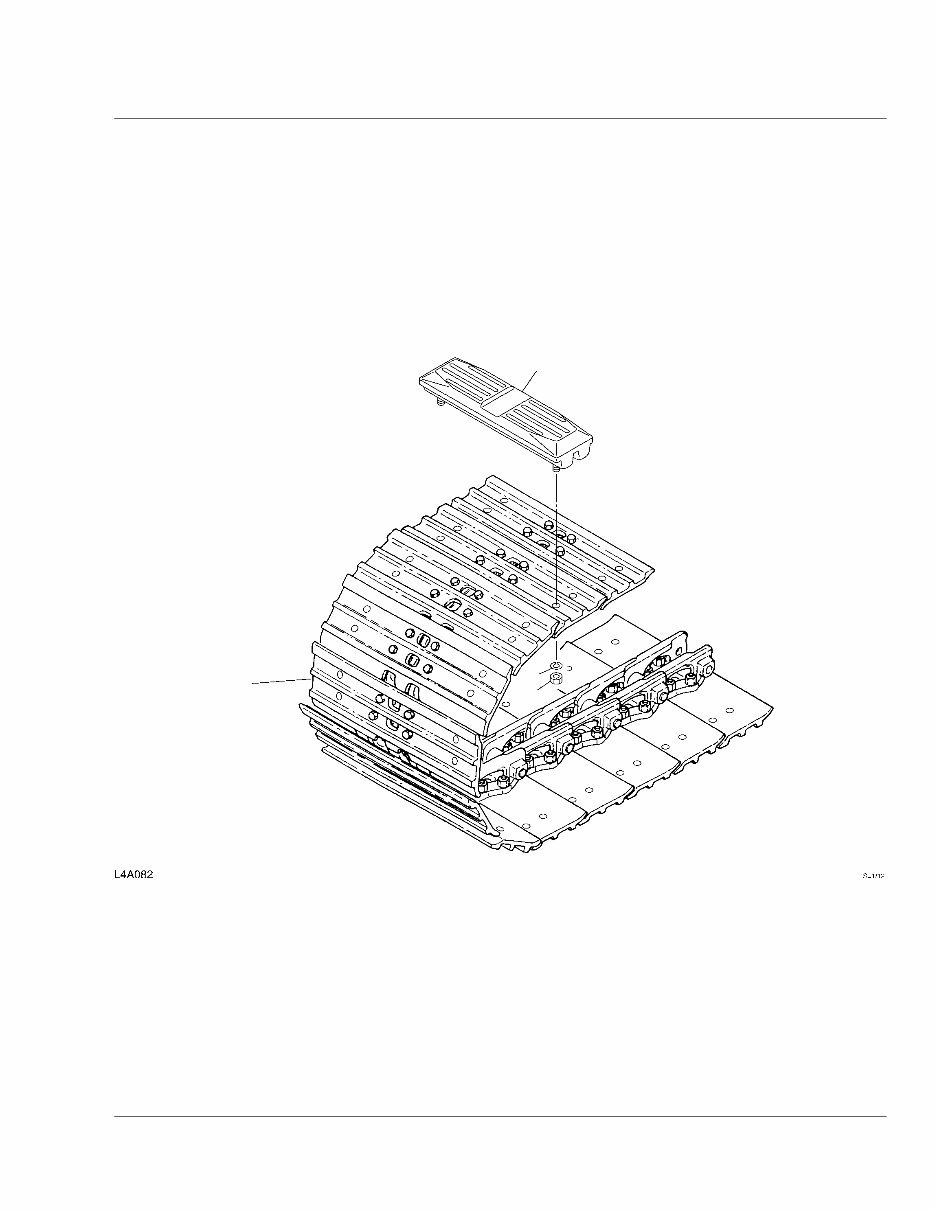

CRAWLER BELT (with rubber pads)
Ref. L4A082 Page 1-3
15
17
1
16
CRAWLER BELT (with rubber pads)
Reference:L4A082 Page:1-3
Item Part number Description Q'ty Chan. Serial No. Serv. Remarks
0 1914087400 BELT ASSY, steel crawler (with rubber pads) 2
1 1914087300 BELT, steel crawler 1
15 1914400600 PAD, rubber 39
16 1130050014 NUT 4
17 1140010014 WASHER, spring 4
L4a083
TB175(P-TB175BAB) Book No. BL3Z010 S/N 17510003-

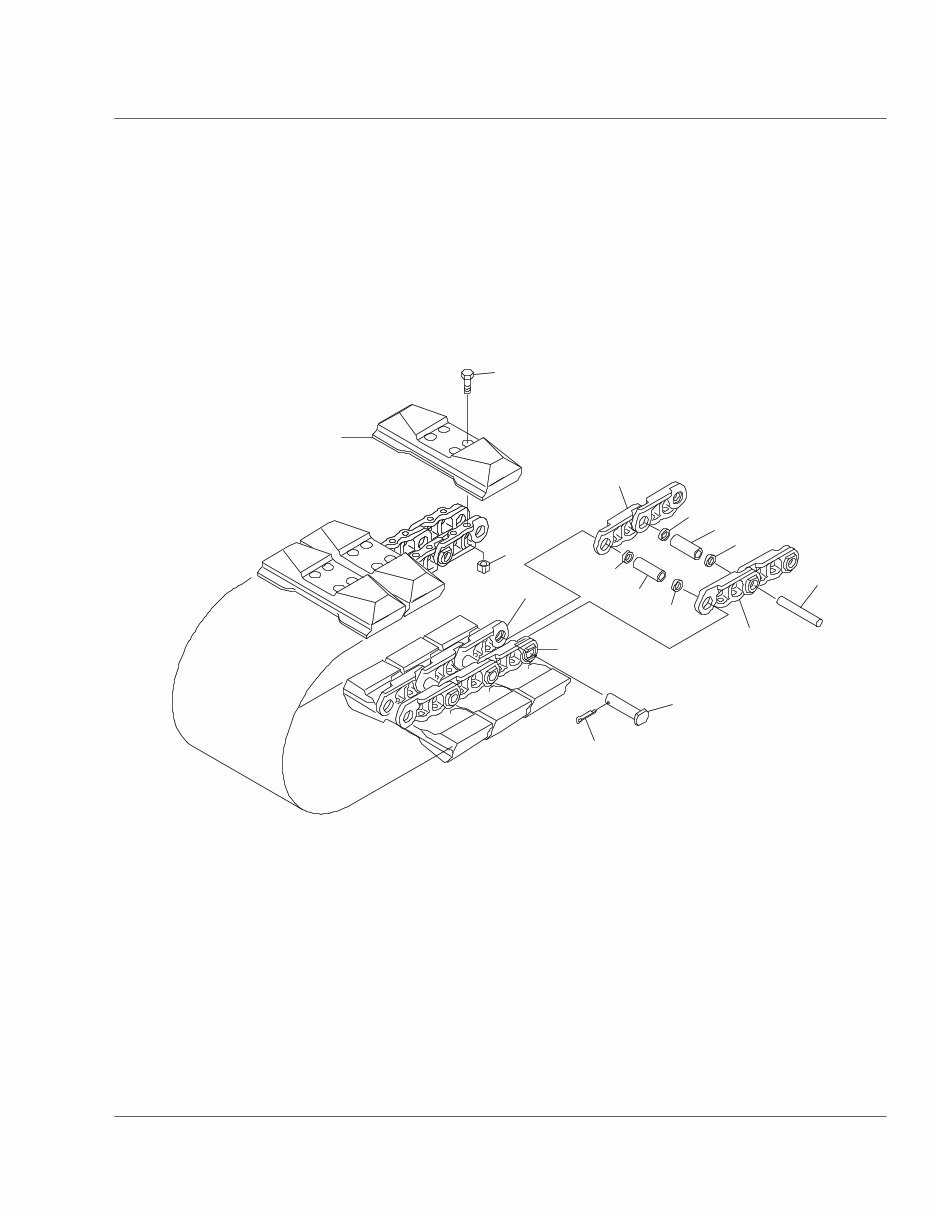

CRAWLER BELT (segment rubber crawler)
Ref. L3A130 Page 1-4
L3A130 S=1/12
3
4
1
2-8
2-4
2-3
2-9
2-7
2-9
2-1
2-10
2-2
2-6
2-11
2-5
2-11
