TB125 Book No. BE5Z010 S/N 12510009-

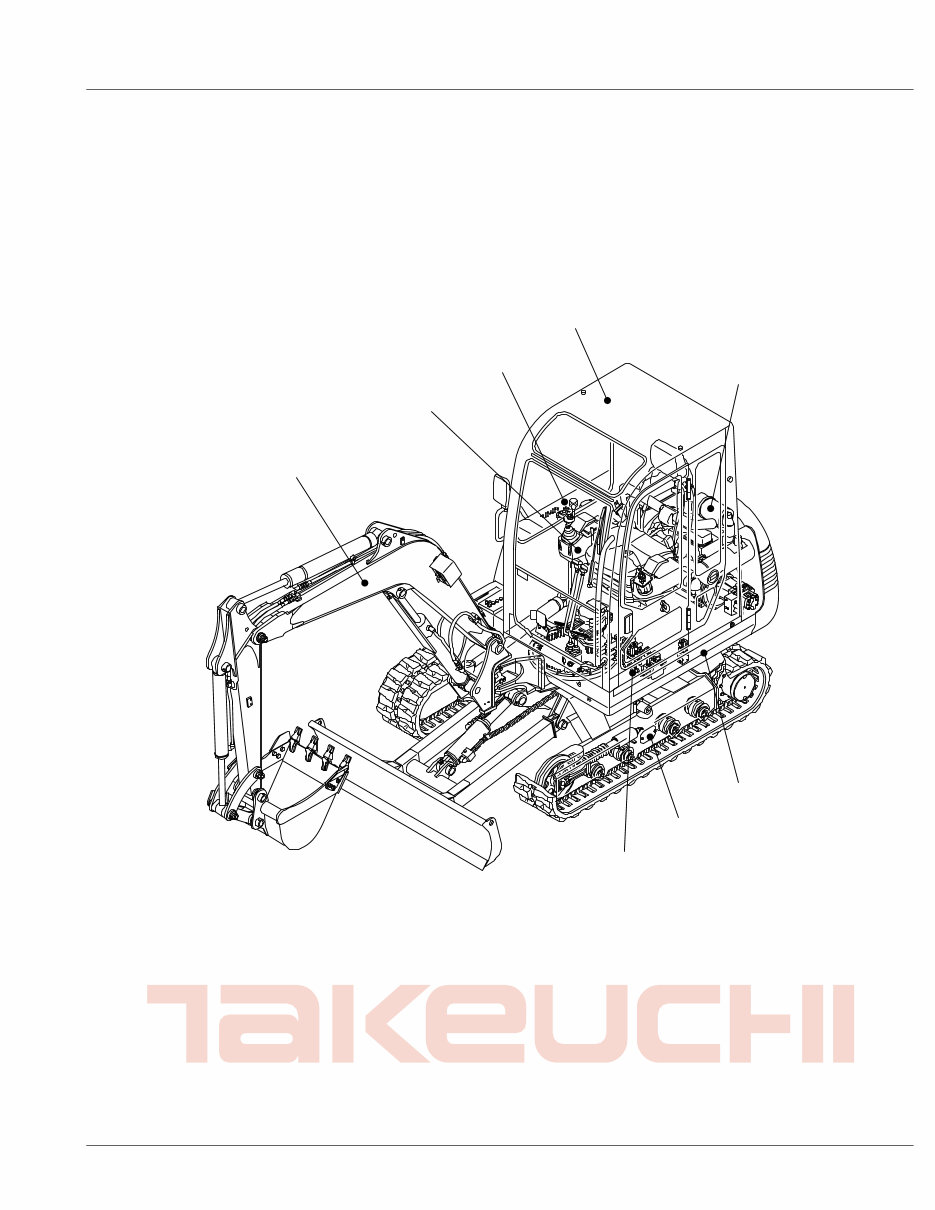

Index
Ref. 0 Page 0
TB125
Book No.BE5Z010
Serial No.12510010-
8
1
2
10
1
5
4
3
6
INDEX
Item Part number Description Q'ty Chan. Serial No. Serv. Remarks
1 UNDERCARRIAGE
2 TURNTABLE & CONTROL LEVER
3 ENGINE & ELECTRICAL SYSTEM
4 HYDRAULIC PIPNG & TANK
5 COVER & CAB
6 HOE ATTACHMENT
7 DECAL & TOOL
8 HYDRAULIC DEVICE
10 ENGINE(3TNE82A-TB)
ENGINE(3TNE82A-ETB)
ENGINE(3TNV82A-QTB,QTB1)
2008.4.18
Reference:0 Page:0
TB125 Book No. BE5Z010 S/N 12510009-

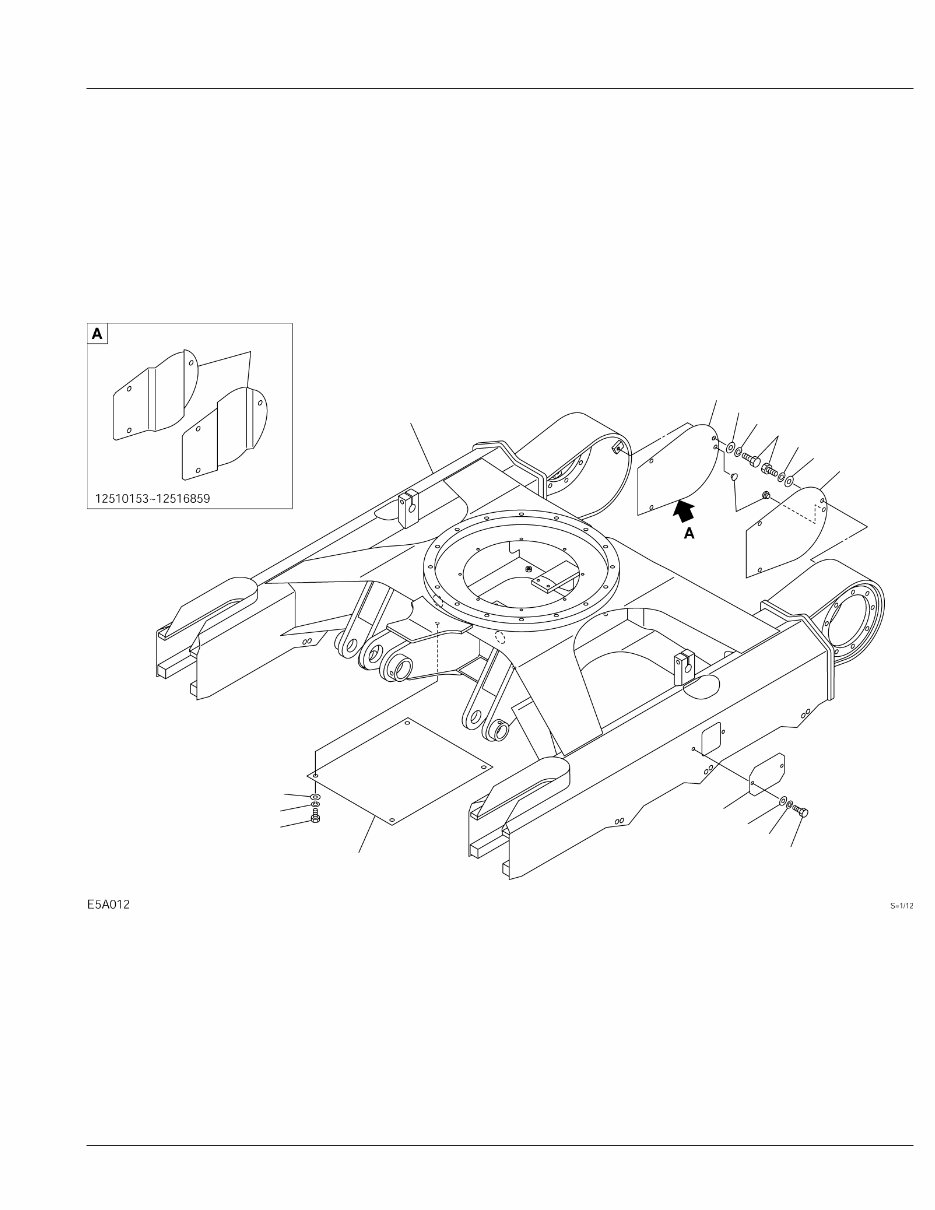

LOWER FRAME
2
2
2
10
10
10
1
8
8
8
6
6
11
4
9
7
5
3
Ref E5A012 Page 1-1
LOWER FRAME
Item Part number Description Q'ty Chan. Serial No. Serv. Remarks
FRAME ASSY, lower X03510-06000-2
1 X ********** FRAME 1
2 0351006010 COVER 2 12510009~12510152
0351006020 COVER 2 (H)(L) 12510153~12516859
0351006010 COVER 2 12516860~
3 0431003600 COVER 1
4 0331018600 COVER 2
5 1100040816 BOLT 4
6 1100041016 BOLT 10
7 1140020008 WASHER, spring 4
8 1140020010 WASHER, spring 10
9 1141110008 WASHER 4
10 1141110010 WASHER 10
11 1652533019 CAP 2 12516860~
E5a012
Reference:E5A012 Page:1-1
TB125 Book No. BE5Z010 S/N 12510009-

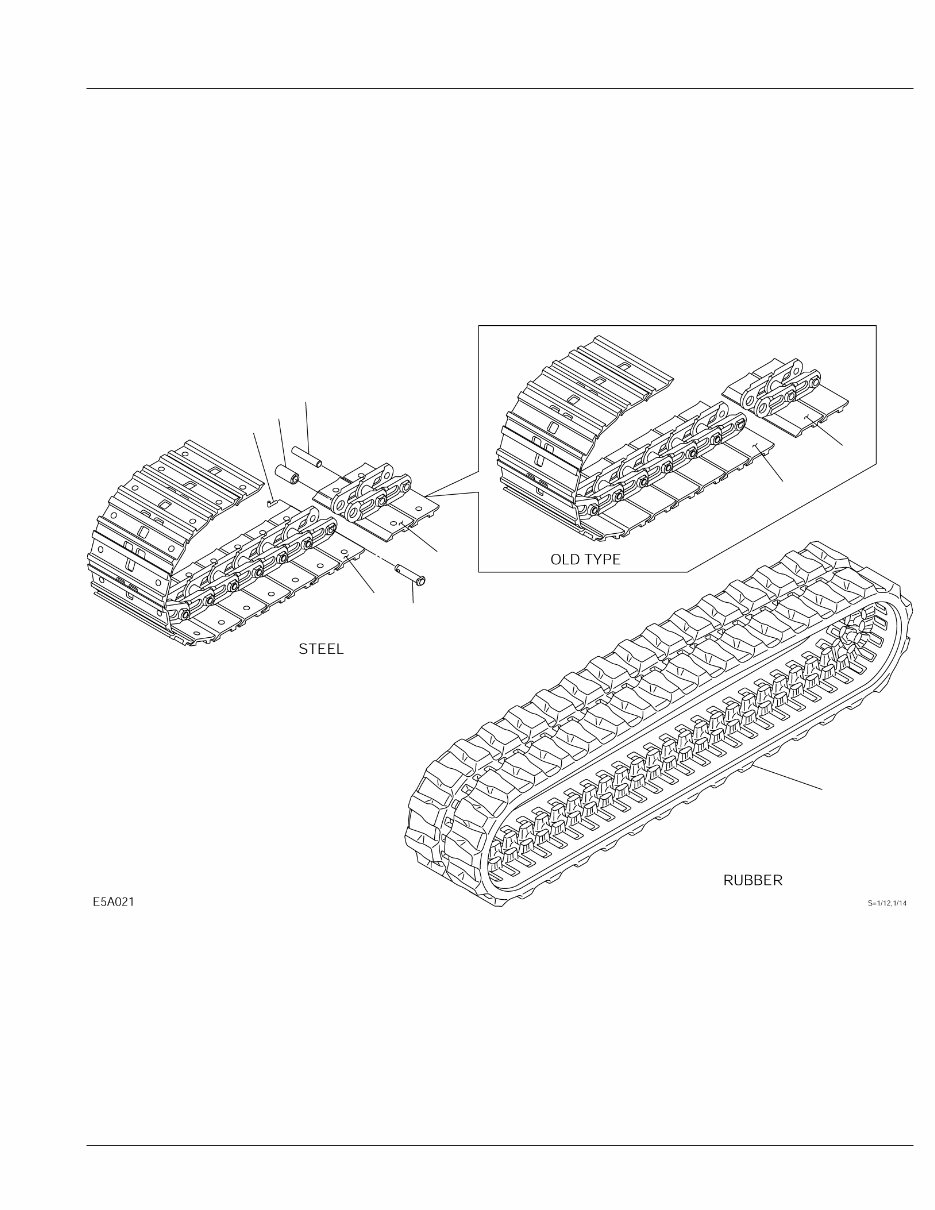

CRAWLER BELT
6
3
4
1
1
5
2
2
7
Ref E5A021 Page 1-2
CRAWLER BELT
Item Part number Description Q'ty Chan. Serial No. Serv. Remarks
0 1914053400 BELT, steel crawler 2 old type X19140-53400-0
1914053600 BELT, steel crawler 2 (H) new type X19140-53600-0
1 1914053413 PLATE ASSY 38 old type
1914053613 PLATE ASSY 38 new type
2 1914053414 PLATE ASSY, master 1 old type
1914053614 PLATE ASSY, master 1 new type
3 1914053505 BUSHING 39
4 1914053506 PIN, track 38
5 1914053507 PIN, master 1
6 1914053608 PIN, cotter 1
7 1914067600 BELT, rubber crawler 2 12510009~12513553 X19140-67600-0
1914067900 BELT, rubber crawler 2 (H) 12513554~ X19140-67900-1
E5a025
Reference:E5A021 Page:1-2
TB125 Book No. BE5Z010 S/N 12510009-

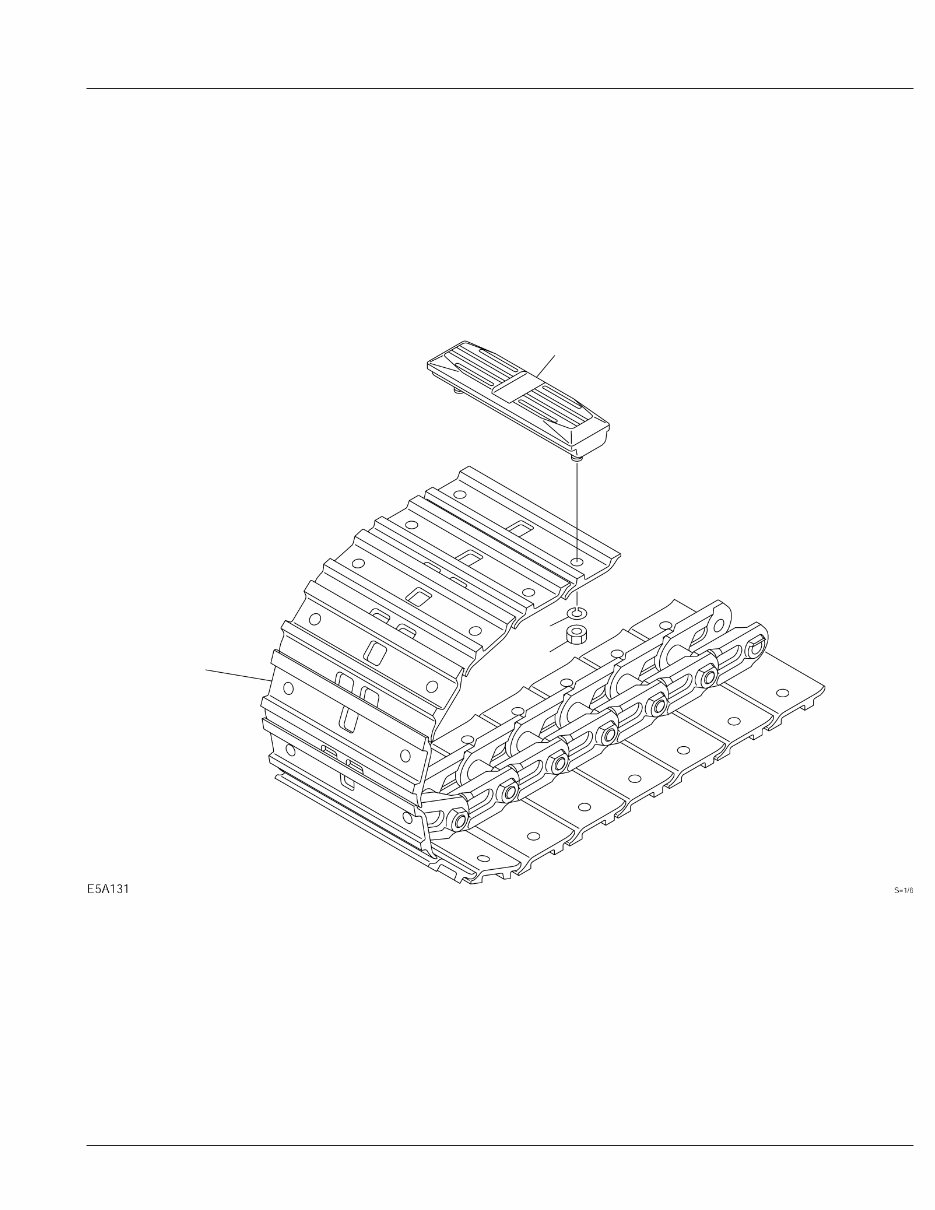

CRAWLER BELT (with rubber pads)
7
9
8
1
Ref E5A131 Page 1-3
CRAWLER BELT (with rubber pads)
Item Part number Description Q'ty Chan. Serial No. Serv. Remarks
0 1914053700 BELT ASSY, steel crawler (with rubber
pads)
2 X19140-53700-0
1 1914053600 BELT, steel crawler 1
7 1914400300 PAD, rubber 39
8 1130020012 NUT 2
9 1140020012 WASHER, spring 2
E5a133
Reference:E5A131 Page:1-3
TB125 Book No. BE5Z010 S/N 12510009-

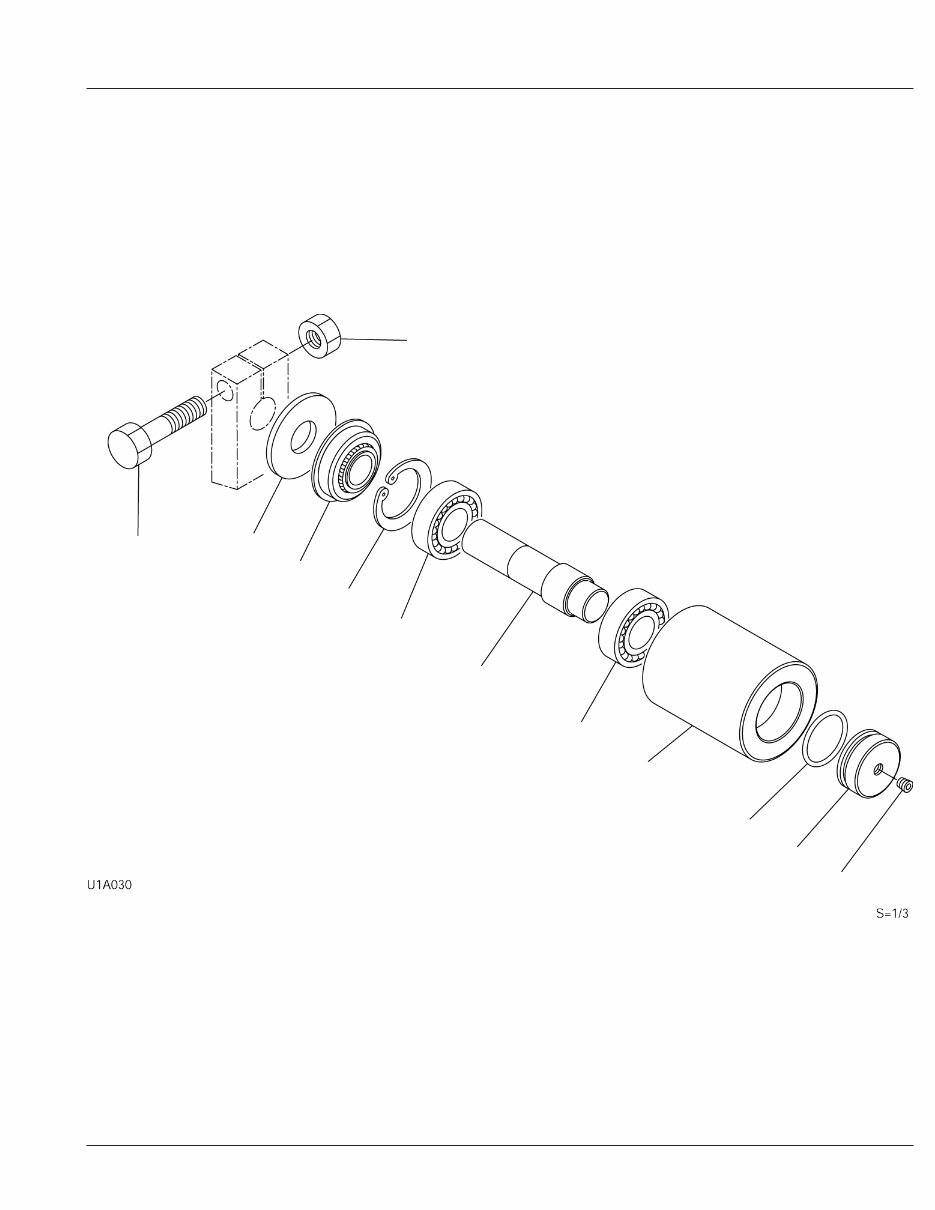

CARRIER ROLLER (12510009-12513451)
11
12
3
5
8
6
6
2
1
7
4
9
Ref U1A030 Page 1-4
