Takeuchi TB070 Excavator Service Parts Catalogue Manual

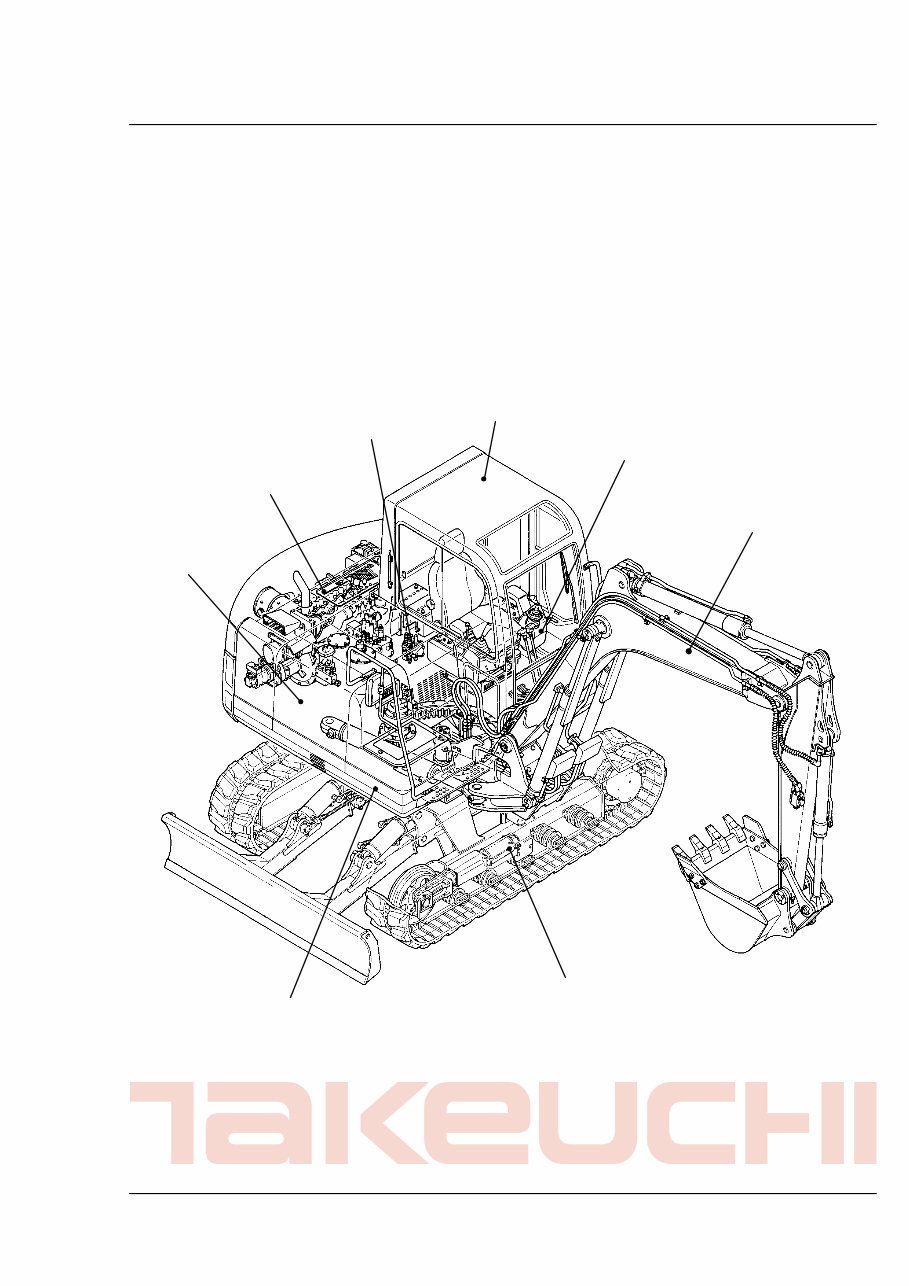

TB070 Book No.PL1-101Z5 Reference Index ﾍﾟｰｼ TB070 Book No. PL1-101Z5 Serial No. 1703004-1705487 6 3 5 8 10 4 2 1

Index Item Part number Description Q'ty Chan. Serial No. Serv. Remarks 1 UNDERCARRIAGE 2 TURNTABLE & CONTROL LEVER 3 ENGINE & ELECTRICAL SYSTEM 4 HYDRAULIC PIPNG & TANK 5 COVER & CAB 6 HOE ATTACHMENT 7 DECAL & TOOL 8 HYDRAULIC DEVICE 10 ENGINE Reference:Index Page:0

TB070 Book No.PL1-101Z5 S/N1703004-1705487 LOWER FRAME 12 10 10 10 2 2 5 13 13 8 7 6 9 9 11 11 1 3 4 17 14 16 15 Ref L1-01a-2-D Page 1-3

LOWER FRAME Item Part number Description Q'ty Chan. Serial No. Serv. Remarks FRAME ASSY, lower (450W) 1703932~ FRAME ASSY, lower (550W) 1703932~ 1 X ********** FRAME 1 2 0561019300 COVER 2 3 0561017400 COVER 2 4 0561019400 COVER 2 5 0561019500 STEP 2 550mm shoe 6 1501710010 PLUG 1 7 1100041020 BOLT 8 450mm shoe 8 1100041025 BOLT 8 550mm shoe 9 1100040816 BOLT 8 10 1140020010 WASHER, spring 8 450mm shoe 1140020010 WASHER, spring 16 550mm shoe 11 1140020008 WASHER, spring 8 12 1130040010 NUT 8 550mm shoe 13 1141110010 WASHER 8 14 0561021010 COVER 1 1703932~ 15 1100041225 BOLT 4 1703932~ 16 1140020012 WASHER, spring 4 1703932~ 17 1141110012 WASHER 4 1703932~ L101a2L Reference:L1-01a-2-D Page:1-3

TB070 Book No.PL1-101Z5 S/N1703004-1705487 CRAWLER BELT 15 6 12 14 13 2 1 8 10 11 11 5 3 4 9 9 7 Ref L2A020 Page 1-4

CRAWLER BELT Item Part number Description Q'ty Chan. Serial No. Serv. Remarks 0 1914087100 BELT, steel crawler 2 450wide 1914088100 BELT, steel crawler 2 550wide 0-1 1914087199 LINK ASSY 2 1 1914087001 LINK (R.H.) 38 2 1914087002 LINK (L.H.) 38 3 1914087003 LINK, master (R.H.) 1 4 1914087004 LINK, master (L.H.) 1 5 1914087005 BUSHING 38 6 1914087006 PIN, track 38 7 1914087012 BUSHING 1 8 1914087007 PIN, master 1 9 1914087013 COLLAR 2 10 1914087014 PIN, split 1 11 1914087015 SEAL 76 12 1914087009 BOLT 156 13 1914087010 NUT 156 14 1914087011 PLATE, shoe 39 450wide 1914088011 PLATE, shoe 39 550wide 15 1914086000 BELT, rubber crawler 2 1703004~1704323 1914086300 BELT, rubber crawler 2 (H) 1704324~ L102a2L Reference:L2A020 Page:1-4

TB070 Book No.PL1-101Z5 S/N1703004-1705487 CARRIER ROLLER 11 12 3 10 5 1 6 6 2 8 7 4 9 Ref L1-03a-0-D Page 1-5

CARRIER ROLLER Item Part number Description Q'ty Chan. Serial No. Serv. Remarks ROLLER ASSY, carrier 0-1 0561201100 ROLLER SUB ASSY, carrier 2 1 0561200200 ROLLER 1 2 0561201300 SHAFT 1 3 0171200300 COVER 1 4 0561200400 COVER 1 5 1431203562 SEAL 1 6 1300006207 BEARING 2 7 1420100750 O-RING 1 8 1221000072 RING, snap 1 9 1501810001 PLUG 1 10 1213010860 PIN, spring 1 11 1101041675 BOLT 2 12 1130540016 NUT 2 L103a2L Reference:L1-03a-0-D Page:1-5

TB070 Book No.PL1-101Z5 S/N1703004-1705487 TRACK ROLLER 6 6 7 7 7 4 10 10 11 11 3 3 8 8 9 9 5 5 1 Ref L1-04a-1-D Page 1-6
