Sumitomo SH60-2 Parts Manual

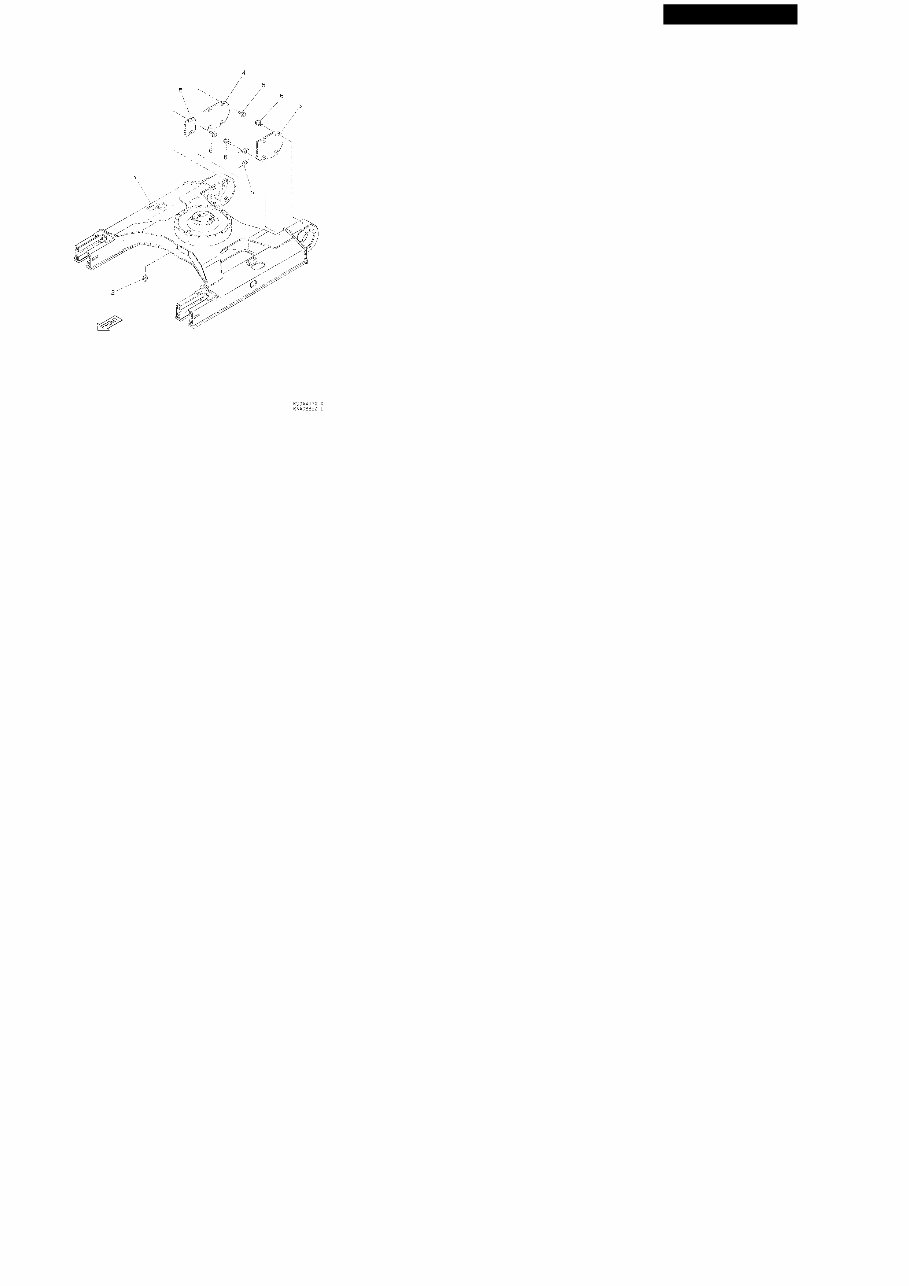

Part Page Code: 81- 1- 95. 0 illust Name : LOWER FRAME Item Level P/N PART NAME Q'ty Serial No. ICA Replace 1 KAA0888 FRAME;LOWER 1 01101- 2 M01X0831 PLUG 1 01101- 3 KAA0751 COVER;MOTOR(L.H) 1 01101- 4 KAA0752 COVER;MOTOR(R.H) 1 01101- 5 KAA0803 COVER 2 01101- 6 KHN1079 BOLT;SPL 12 01101-

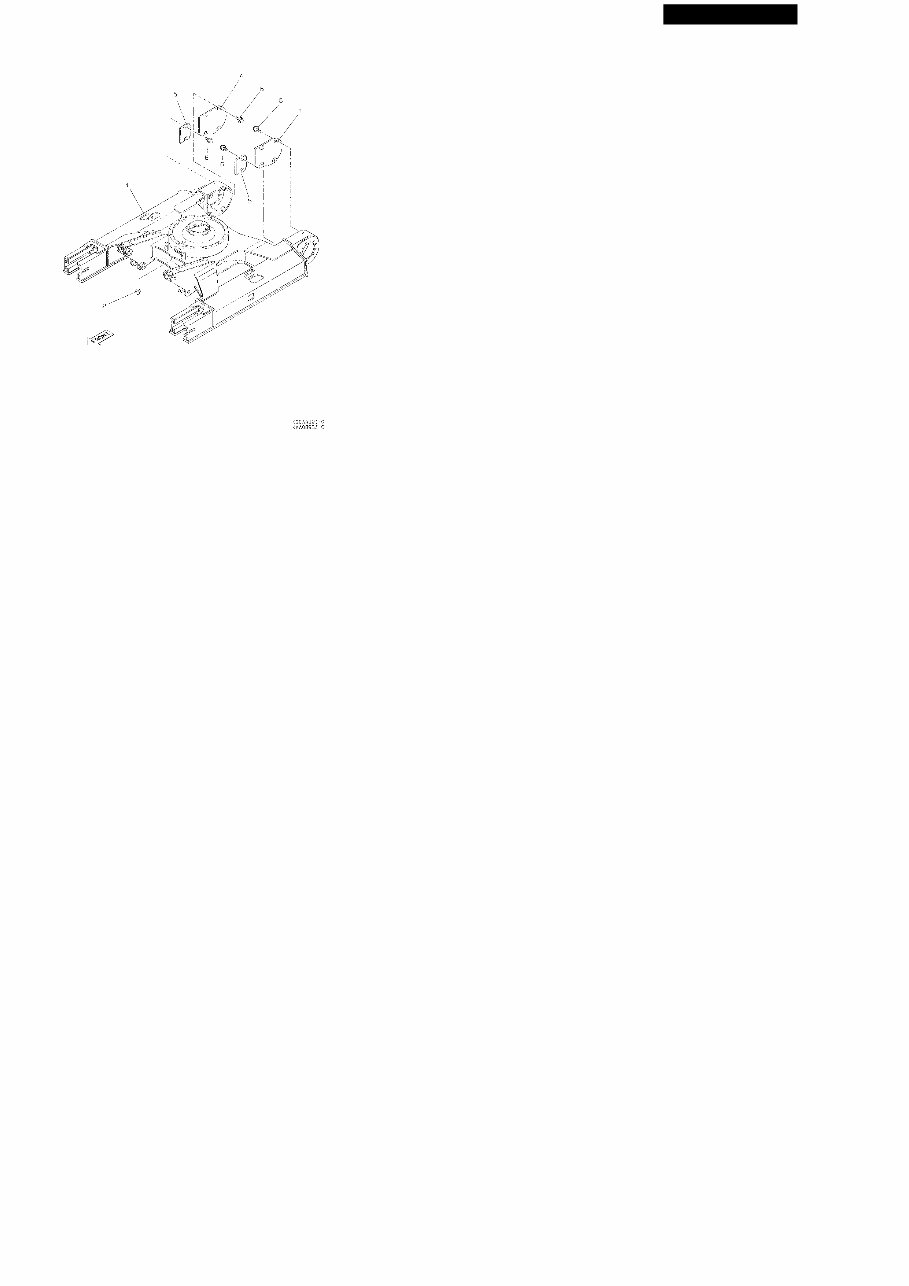

Part Page Code: 81- 1- 96. 0 illust Name : LOWER FRAME Item Level P/N PART NAME Q'ty Serial No. ICA Replace 1 KAA0892 FRAME;LOWER 1 2 M01X0831 PLUG 1 3 KAA0751 COVER;MOTOR(L.H) 1 4 KAA0752 COVER;MOTOR(R.H) 1 5 KAA0803 COVER 2 6 KHN1079 BOLT;SPL 12

Part Page Code: 81- 2- 52. 0 illust Name : TRACTION EQUIPMENT Item Level P/N PART NAME Q'ty Serial No. ICA Replace 1 KAA0715 MOTOR;TRACTION UNIT 2 01101- 2 102R016Y045N BOLT;HIGH STRENGTH 24 01101- 3 BHP0373 WASHER;HIGH STRENGTH 24 01101- 4 KAA0529 SPROCKET 2 01101- 5 KMC0061 BOLT;SPL 24 01101- 6 KSH0081 WASHER;HIGH STRENGTH 24 01101-

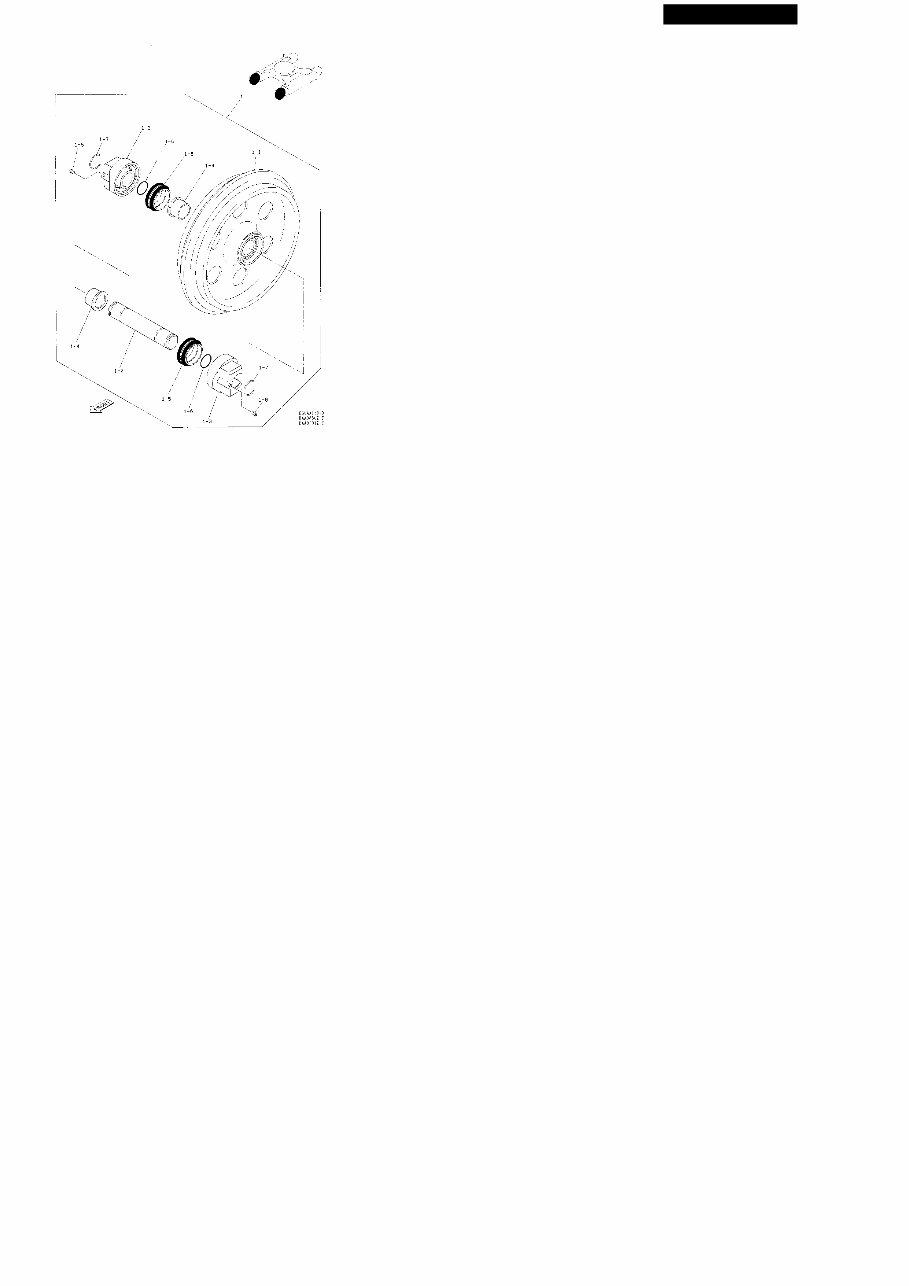

Part Page Code: 81- 3- 45. 1 illust Name : TAKE-UP ROLLER(IRON) Item Level P/N PART NAME Q'ty Serial No. ICA Replace 1 KAA0690 ASSY;TAKE-UP ROLLER 2 < KAA0896 1 KAA0896 ROLLER;TAKE-UP ASSY 2 01101- 1- 1 KAA0691 ROLLER;TAKE-UP 2 < KAA0897 1- 1 KAA0897 ROLLER;TAKE-UP 2 01101- 1- 2 KAA0692 SHAFT;ROLLER 2 01101- 1- 3 KAA0693 HUB 4 01101- 1- 4 KAA0717 BUSH;FABRICATED 4 01101- 1- 5 KAA0257 SEAL;FLOATING 4 01101- 1- 6 CAJ0720 O-RING 4 01101- 1- 7 KAA0248 CLIP;WIRE 4 01101- 1- 8 KHJ0299 PLUG 4 01101-

Part Page Code: 81- 3- 46. 1 illust Name : TAKE-UP ROLLER(RUBER) Item Level P/N PART NAME Q'ty Serial No. ICA Replace 1 KAA0850 ASSY;TAKE-UP ROLLER 2 < KAA0901 1 KAA0901 ROLLER;TAKE-UP ASSY 2 01101- 1- 1 KAA0851 ROLLER;TAKE-UP 2 < KAA0902 1- 1 KAA0902 ROLLER;TAKE-UP 2 01101- 1- 2 KAA0692 SHAFT;ROLLER 2 01101- 1- 3 KAA0693 HUB 4 01101- 1- 4 KAA0717 BUSH;FABRICATED 4 01101- 1- 5 KAA0257 SEAL;FLOATING 4 01101- 1- 6 CAJ0720 O-RING 4 01101- 1- 7 KAA0248 CLIP;WIRE 4 01101- 1- 8 KHJ0299 PLUG 4 01101-

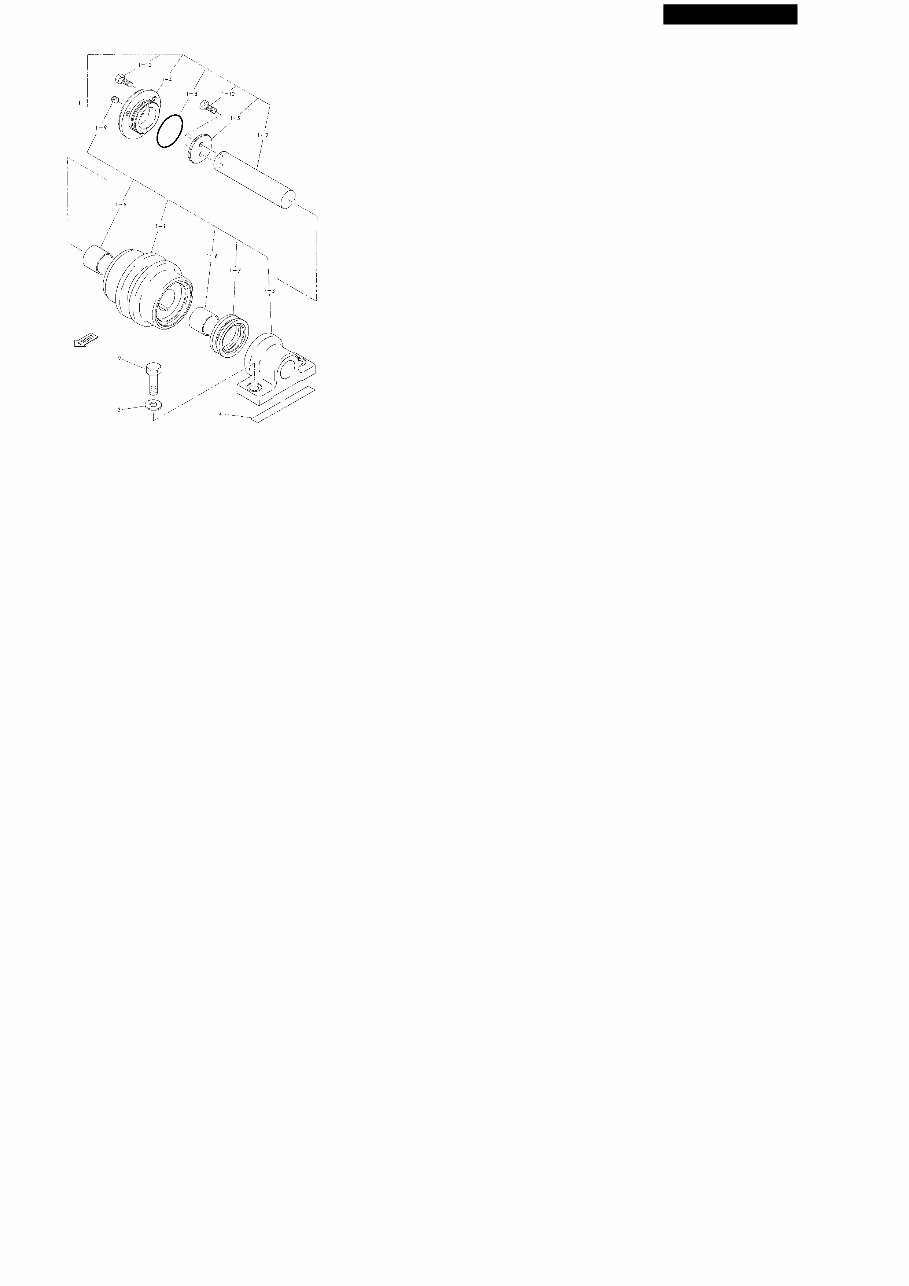

Part Page Code: 81- 4- 49. 0 illust Name : UPPER ROLLER Item Level P/N PART NAME Q'ty Serial No. ICA Replace 1 KAA0683 ASSY;CARRIER ROLLER 2 01101- 1- 1 KAA0684 ROLLER;CARRIER 2 01101- 1- 2 KAA0685 SHAFT;ROLLER 2 01101- 1- 3 KAA0686 BRACKET 2 01101- 1- 4 KAA0687 COVER 2 01101- 1- 5 KAA0688 PLATE 2 01101- 1- 6 KAA0485 BUSHING;NYLON 4 01101- 1- 7 KEA0082 SEAL;PIVOT 2 01101- 1- 8 BHA0956 O-RING 2 01101- 1- 9 KHJ0299 PLUG 2 01101- 1-10 102R008Y020N BOLT;HIGH STRENGTH 10 01101- 2 KAA0932 BOLT;HIGH STRENGTH 4 01101- 3 BHP0372 WASHER;HIGH STRENGTH 4 01101- 4 KHA0025 SHIM;PLATE 2 01101-

Part Page Code: 81- 5- 48. 0 illust Name : LOWER ROLLER Item Level P/N PART NAME Q'ty Serial No. ICA Replace 1 KAA0675 ASSY;TRACK ROLLER(OU 6 01101- 1- 1 KAA0677 ROLLER;TRACK(OUTER) 6 01101- 1- 2 KAA0681 COLLAR 12 01101- 1- 3 KAA0682 SHAFT;ROLLER 6 01101- 1- 4 KAA0719 BUSHING;FABRICATED 12 01101- 1- 5 BHA1092 SEAL;FLOATING 12 01101- 1- 6 KAA0258 O-RING 12 01101- 1- 7 KAA0026 CLIP;WIRE 12 01101- 1- 8 KHJ0299 PLUG 12 01101- 2 KAA0676 ASSY;TRACK ROLLER(IN 4 01101- 2- 1 KAA0679 ROLLER;TRACK(INNER) 4 01101- 2- 2 KAA0681 COLLAR 8 01101- 2- 3 KAA0682 SHAFT;ROLLER 4 01101- 2- 4 KAA0719 BUSHING;FABRICATED 8 01101- 2- 5 BHA1092 SEAL;FLOATING 8 01101- 2- 6 KAA0258 O-RING 8 01101- 2- 7 KAA0026 CLIP;WIRE 8 01101- 2- 8 KHJ0299 PLUG 8 01101- 3 102R012Y050N BOLT;HIGH STRENGTH 40 01101- 4 BHP0372 WASHER;HIGH STRENGTH 40 01101-

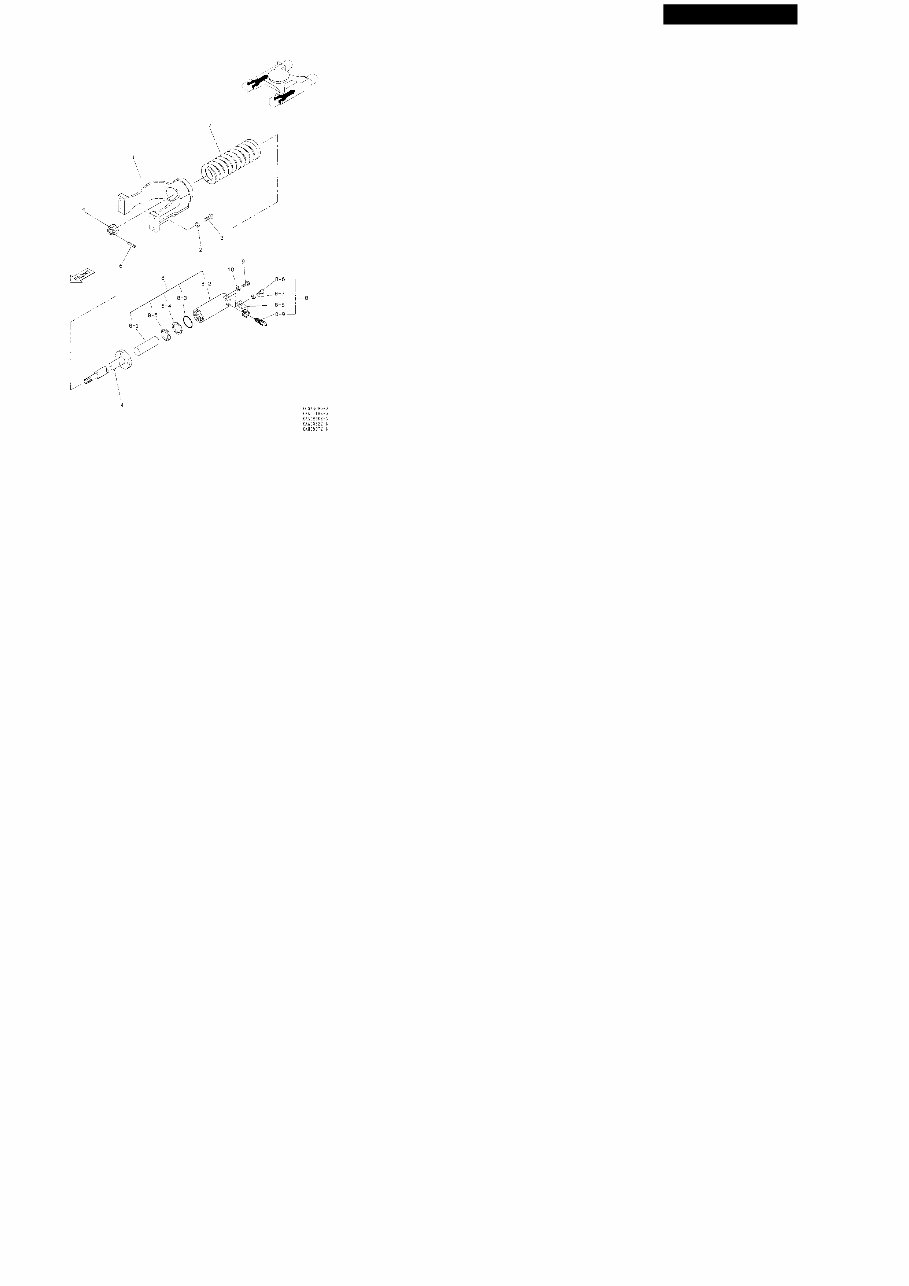

Part Page Code: 81- 6- 51. 2 illust Name : RECOIL SPRING(IRON) Item Level P/N PART NAME Q'ty Serial No. ICA Replace 1 KAA0695 YOKE 2 01101- 2 BRH0254 WASHER;HIGH STRENGTH 8 01101- 3 102R010Y035R BOLT;HIGH STRENGTH 8 4 KAA0696 ROD;THREADED 2 01101- 5 165R030HSN NUT 2 01101- 6 338W060Z056B PIN;SPRING 2 01101- 7 KAA0417 SPRING;RECOIL 2 01101- 8 KAA0697 S/A;GREASE CYLINDER 2 < KAA0907 8 KAA0907 CYL;GREASE ASSY 2 01101- 8- 1 KAA0305 ROD;PISTON 2 X KAA0908 8- 1 KAA0908 ROD;PISTON 2 01101- 8- 2 KAA0698 CYLINDER;GREASE 2 X KAA0909 8- 2 KAA0909 CYL;GREASE 2 01101- 8- 3 AMM0047 O-RING 2 X BNC0022 8- 3 BNC0022 O-RING 2 01101- 8- 4 KAA0311 RING;BACK-UP 2 X CSP0166 8- 4 CSP0166 RING;BACK-UP 2 01101- 8- 5 KAA0312 SEAL;DUST 2 X CSP0164 8- 5 CSP0164 SEAL;DUST 2 01101- 8- 6 102R008Y016R BOLT;HIGH STRENGTH 2 8- 7 183-108VR WASHER;SPRING 2 8- 8 KAA0786 BRACKET 2 X KAA0873 8- 8 KAA0873 BRACKET 2 X KAA0910 8- 8 KAA0910 BRACKET 2 01101- 8- 9 KHA0026 VALVE;CHECK 2 01101- 9 102R012Y040R BOLT;HIGH STRENGTH 4 10 BHP0372 WASHER;HIGH STRENGTH 4 01101-

Part Page Code: 81- 6- 53. 2 illust Name : RECOIL SPRING(RUBBER) Item Level P/N PART NAME Q'ty Serial No. ICA Replace 1 KAA0695 YOKE 2 01101- 2 BRH0254 WASHER;HIGH STRENGTH 8 01101- 3 102R010Y065N BOLT;HIGH STRENGTH 8 01101- 4 KAA0696 ROD;THREADED 2 01101- 5 KAA0862 SPACER 2 01101- 6 KAA0765 SPACER 2 01101- 7 165R030HSN NUT 2 01101- 8 338W060Z056B PIN;SPRING 2 01101- 9 108R008Y020N BOLT;HEX SOC HD 6 01101- 10 184-008VN WASHER;SPRING 6 01101- 11 KAA0417 SPRING;RECOIL 2 01101- 12 KAA0907 S/A;GREASE CYLINDER 2 01101- 12- 1 KAA0908 ROD;PISTON 2 01101- 12- 2 KAA0909 CYLINDER;GREASE 2 01101- 12- 3 BNC0022 O-RING 2 01101- 12- 4 CSP0166 RING;BACK-UP 2 01101- 12- 5 CSP0164 SEAL;DUST 2 01101- 12- 6 102R008Y016N BOLT;HIGH STRENGTH 2 01101- 12- 7 183-108VN WASHER;SPRING 2 01101- 12- 8 KAA0910 BRACKET 2 12- 9 KHA0026 S/A;CHECK VALVE 2 13 102R012Y040N BOLT;HIGH STRENGTH 4 14 BHP0372 WASHER;HIGH STRENGTH 24 15 KAA0852 SPACER 4 16 102R012Y020N BOLT;HIGH STRENGTH 20

Part Page Code: 81- 8- 54. 1 illust Name : TRACTION MOTOR LINE Item Level P/N PART NAME Q'ty Serial No. ICA Replace 1 KNJ0605 ADAPTER;HOSE 4 01101- 1- 1 UBJ0158 O-RING 4 01101- 2 KAA0731 HOSE;HYD 4 01101- 3 KSA0389 GUARD;HOSE 4 01101- 4 KAA0709 ADAPTER;HOSE 2 = KMJ0836 4 KMJ0836 ADAPTER;HOSE 2 01101- 4- 1 UBJ0157 O-RING 2 01101- 5 KMJ0836 ADAPTER;HOSE 2 01101- 5- 1 UBJ0157 O-RING 2 01101- 6 KRA0904 TEE 1 01101- 7 KAA0733 HOSE;NYLON 2 01101- 8 KNJ0758 ADAPTER;HOSE 2 01101- 8- 1 UEJ0360 O-RING 2 01101- 9 KAA0809 TEE 1 01101- 10 KAA0818 HOSE;HYD 2 01101- 11 KNJ0759 ADAPTER;HOSE 2 01101- 11- 1 BRP0007 O-RING 2 01101- 12 KAA0734 CUSHION;RUBBER 2 01101- 13 KAA0735 CUSHION;RUBBER 2 01101- 14 KAR0017 BAND;HARNESS 2 01101-
