New Holland CE EC130 Parts Catalog
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
00 - GENERAL 2
01 - ENGINE 4
04 - UNDERCARRIAGE 57
05 - SUPERSTRUCTURE 124
09 - FRONT END ATTACHMENTS 702
13 - TOOLS KITS-DECALS 757
19 - OPTIONS 772
Variants
-
Model Information
-
Serial Number ranges
-
Production Dates
-
# Part # Part Name Description Qty

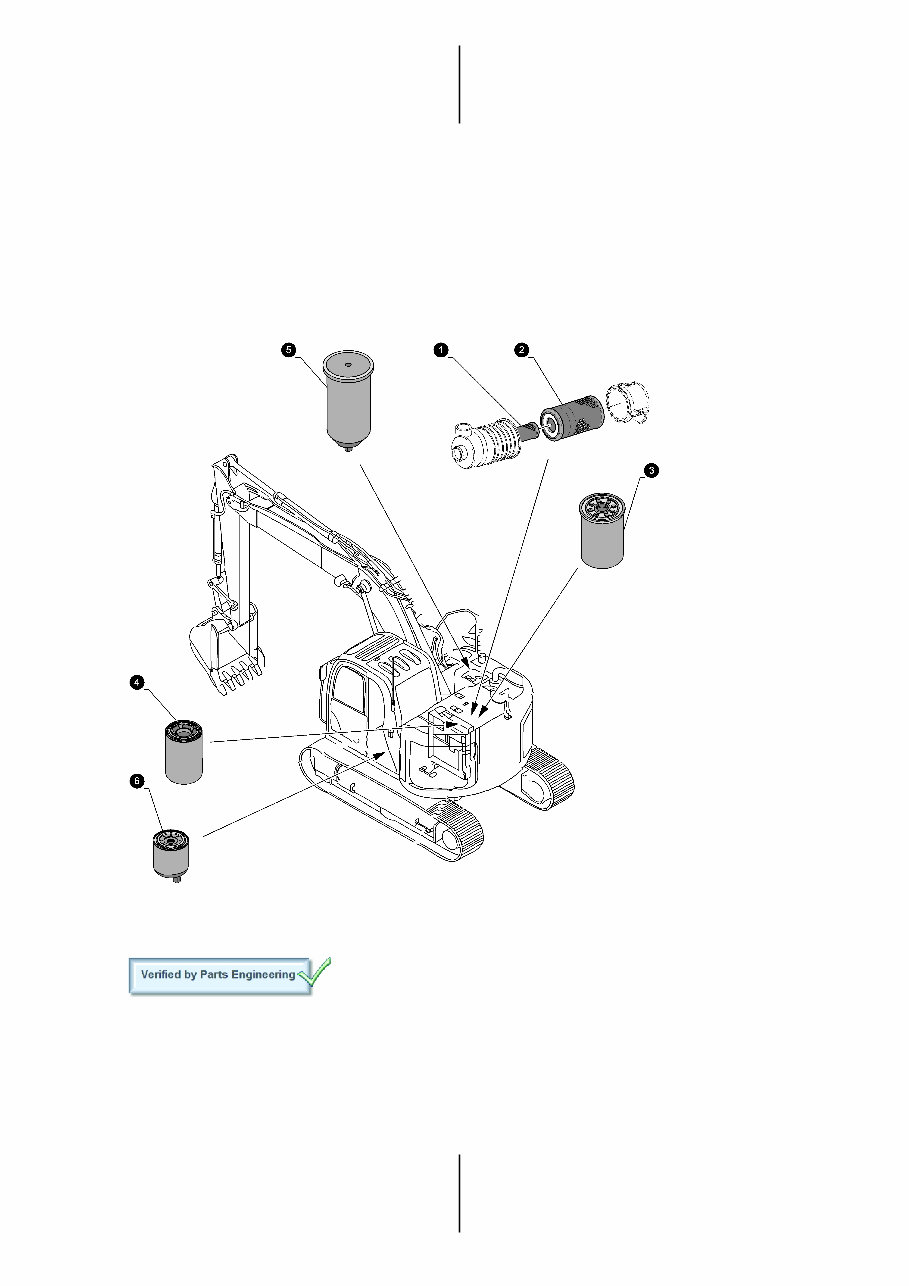

1 87683000 AIR FILTER Safety, 108.5mm OD
x 403.1mm L
Inner Cartridge;EC130-
CRAWLER EXCAVATOR
1
2 87704248 AIR FILTER 105.9mm ID x
207.6mm OD x 409.5mm L
Outer Cartridge;EC130-
CRAWLER EXCAVATOR
1
3 84496951 ENGINE OIL FILTER Engine Oil Filter, Spin-On;EC130-
CRAWLER EXCAVATOR
1
4 84557099 FUEL FILTER Primary, w/Water
Separator;EC130-CRAWLER
1
5 D139225 FILTER, FUEL 9.5mm x
9.5mmTube OD x 98mm L
Secondary, w/Water
Separator;EC130-CRAWLER
1
6 71104220 FUEL FILTER Spin-On, w/Water
Separator;EC130-CRAWLER
1
13.010[001] - MOTOR INSTALL.MATERIAL (S_N 11701-11720) 2
13.010[002] - MOTOR INSTALL.MATERIAL (S_N 11721-11740) 4
13.010[003] - MOTOR INSTALL.MATERIAL (S_N 11741-12021) 6
13.010[004] - MOTOR INSTALL.MATERIAL (S_N 12022-UP) 8
13.011[001] - MOTOR MOUNTING PARTS (S_N 11701-11720) 10
13.011[002] - MOTOR MOUNTING PARTS (S_N 11721-11740) 13
13.011[003] - MOTOR MOUNTING PARTS (S_N 11741-UP) 16
13.020[001] - BEARING MOTOR (S_N 11701-UP) 19
13.110[00] - REGULATION MOTOR SPEED 21
13.220[001] - EXHAUST SYSTEM INSTALL.MATERIAL (S_N
11701-UP) 23
13.230[001] - INTAKE SYSTEM INSTALL.MATERIAL (S_N
11701-11740) 25
13.230[002] - INTAKE SYSTEM INSTALL.MATERIAL (S_N
11741-UP) 27
13.300[001] - FUEL SYSTEM (S_N 11701-UP) 29
13.400[001] - COLD-START SYSTEM (S_N 11701-UP) 31
13.501[001] - AIR FILTER MOUNTING PARTS (S_N 11701-
11740) 33
13.501[002] - AIR FILTER MOUNTING PARTS (S_N 11741-UP) 35
13.502[001] - AIR FILTER (S_N 11701-11740) 37
13.502[002] - AIR FILTER (S_N 11741-UP) 39
15.100[001] - COOLING SYSTEM WATER INSTALL.MATERIAL
(S_N 11701-11740) 41
15.100[002] - COOLING SYSTEM WATER INSTALL.MATERIAL
(S_N 11741-12021) 44
15.100[003] - COOLING SYSTEM WATER INSTALL.MATERIAL
(S_N 12022-UP) 47
15.102[001] - RADIATOR WATER (S_N 11701-12021) 50
15.102[002] - RADIATOR WATER (S_N 12022-UP) 52
Variants
-
Model Information
-
Serial Number ranges
-
Production Dates
-
# Part # Part Name Description Qty

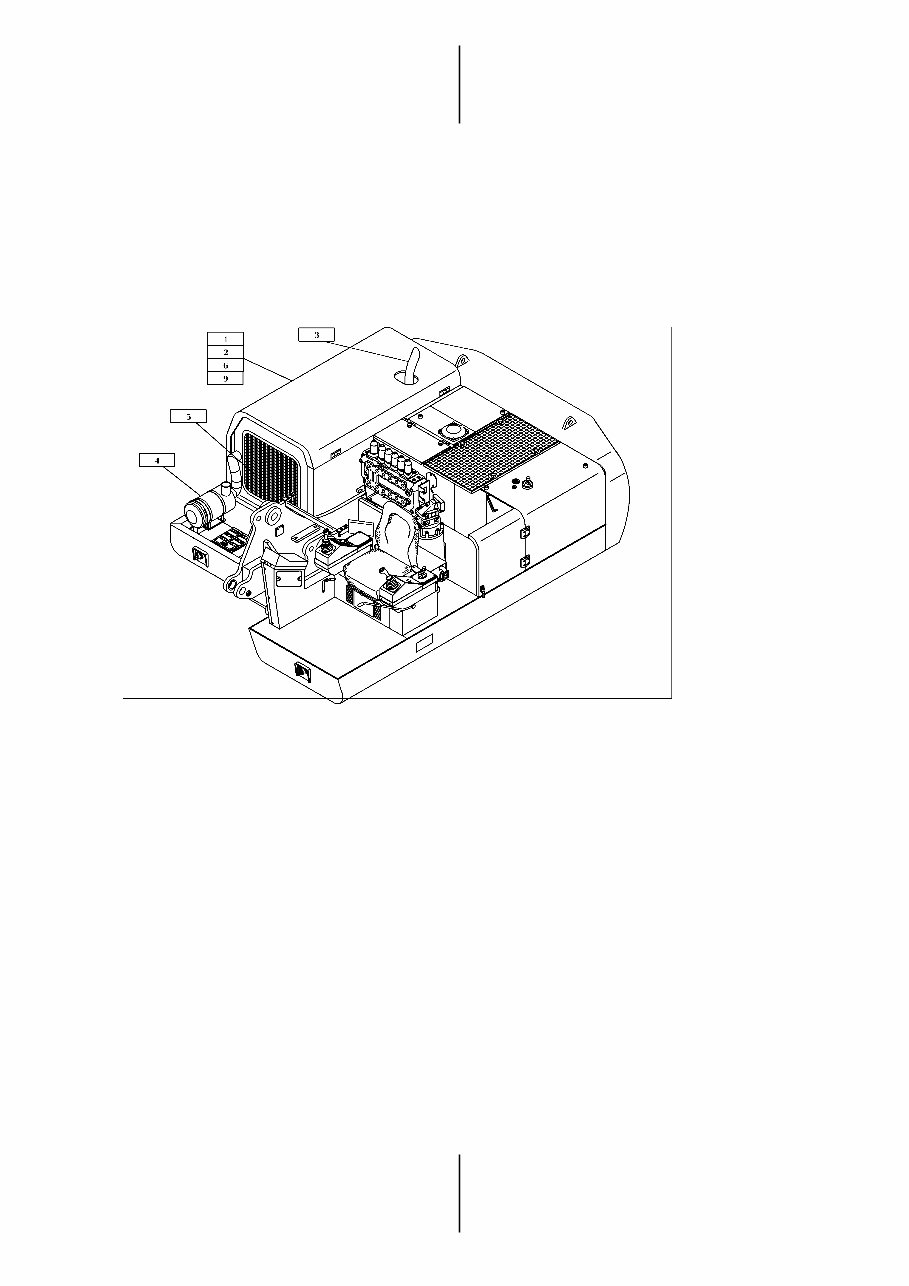

1 NS NOT SERVICED MOTOR MOUNTING PARTS
SEE FIGURE 13.011/001
1
2 NS NOT SERVICED FUEL SYSTEM SEE FIGURE
13.300/001
1
3 NS NOT SERVICED EXHAUST SYSTEM
INSTALL.MATERIAL SEE FIGURE
1
4 NS NOT SERVICED INTAKE SYSTEM
INSTALL.MATERIAL SEE FIGURE
1
5 NS NOT SERVICED COOLING SYSTEM WATER
INSTALL.MATERIAL SEE FIGURE
1
6 NS NOT SERVICED ELECTRICAL SYSTEM MOTOR
SEE FIGURE 32.250/002
1
9 NS NOT SERVICED COLD-START SYSTEM SEE
FIGURE 13.400/001
1
Variants
-
Model Information
-
Serial Number ranges
-
Production Dates
-
# Part # Part Name Description Qty

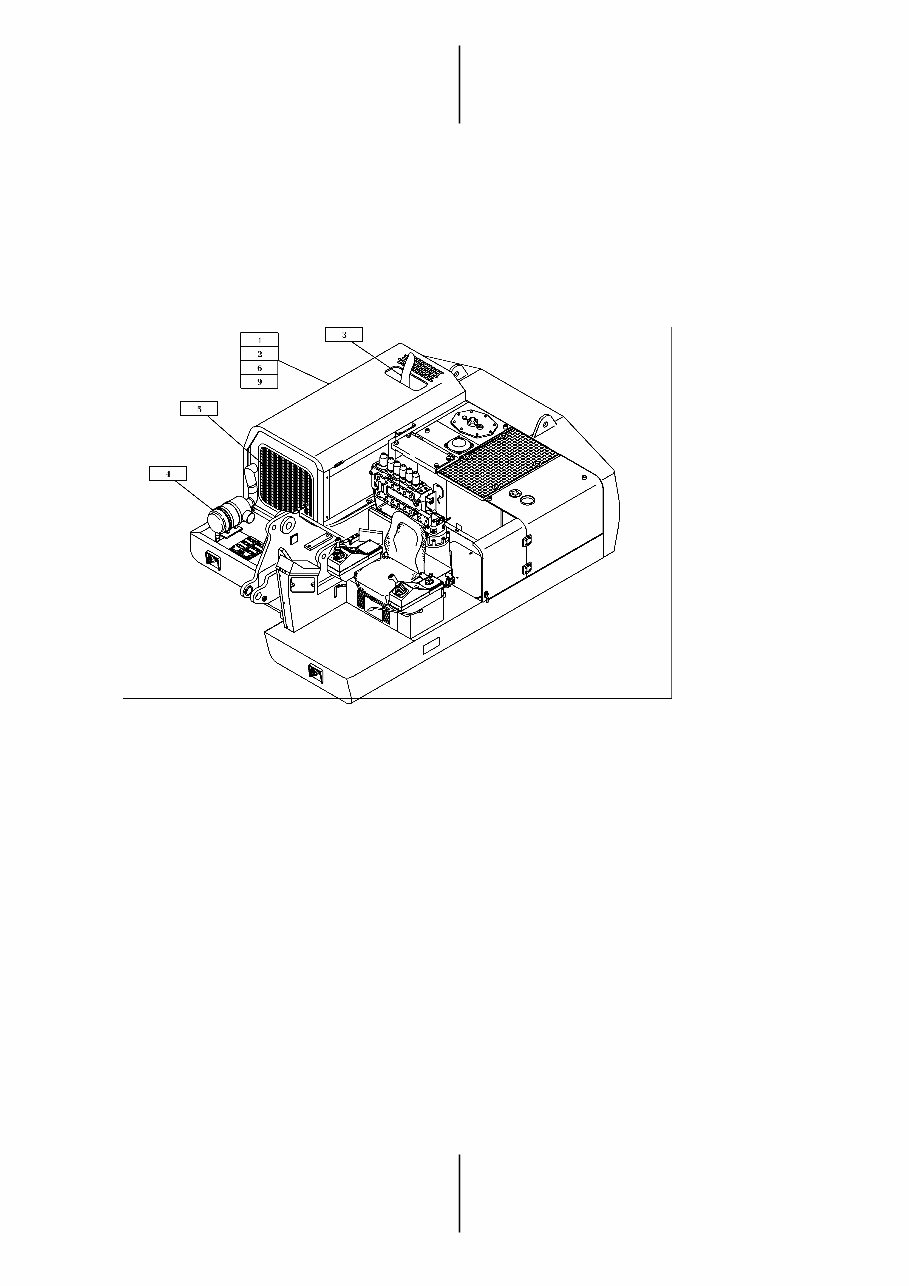

1 NS NOT SERVICED MOTOR MOUNTING PARTS
SEE FIGURE 13.011/002
1
2 NS NOT SERVICED FUEL SYSTEM SEE FIGURE
13.300/001
1
3 NS NOT SERVICED EXHAUST SYSTEM
INSTALL.MATERIAL SEE FIGURE
1
4 NS NOT SERVICED INTAKE SYSTEM
INSTALL.MATERIAL SEE FIGURE
1
5 NS NOT SERVICED COOLING SYSTEM WATER
INSTALL.MATERIAL SEE FIGURE
1
6 NS NOT SERVICED ELECTRICAL SYSTEM MOTOR
SEE FIGURE 32.250/002
1
9 NS NOT SERVICED COLD-START SYSTEM SEE
FIGURE 13.400/001
1
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$145.99
Viewed 45 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$145.99
- The New Holland CE EC130 Excavators Parts Catalog is a comprehensive guide providing detailed information about the various parts of the EC130 excavator. It features easy-to-understand exploded view illustrations, enabling quick identification and location of specific parts.
- Whether you are a professional excavator operator or a DIY enthusiast, this parts catalog is an invaluable resource for maintaining and repairing your EC130 excavator. It covers every aspect of the machine, from the engine and hydraulic system to the electrical components and undercarriage.
- Models covered in this parts catalog:
- New Holland CE EC130B
- New Holland CE EC130C
- New Holland CE EC130D
- Each model is thoroughly documented, ensuring that you can find the correct parts for your specific EC130 excavator model. The exploded view illustrations provide a clear visual representation of each part, making it easy to understand how they fit together and how they should be installed.
