E215 CRAWLER EXCAVATOR (1/05- )

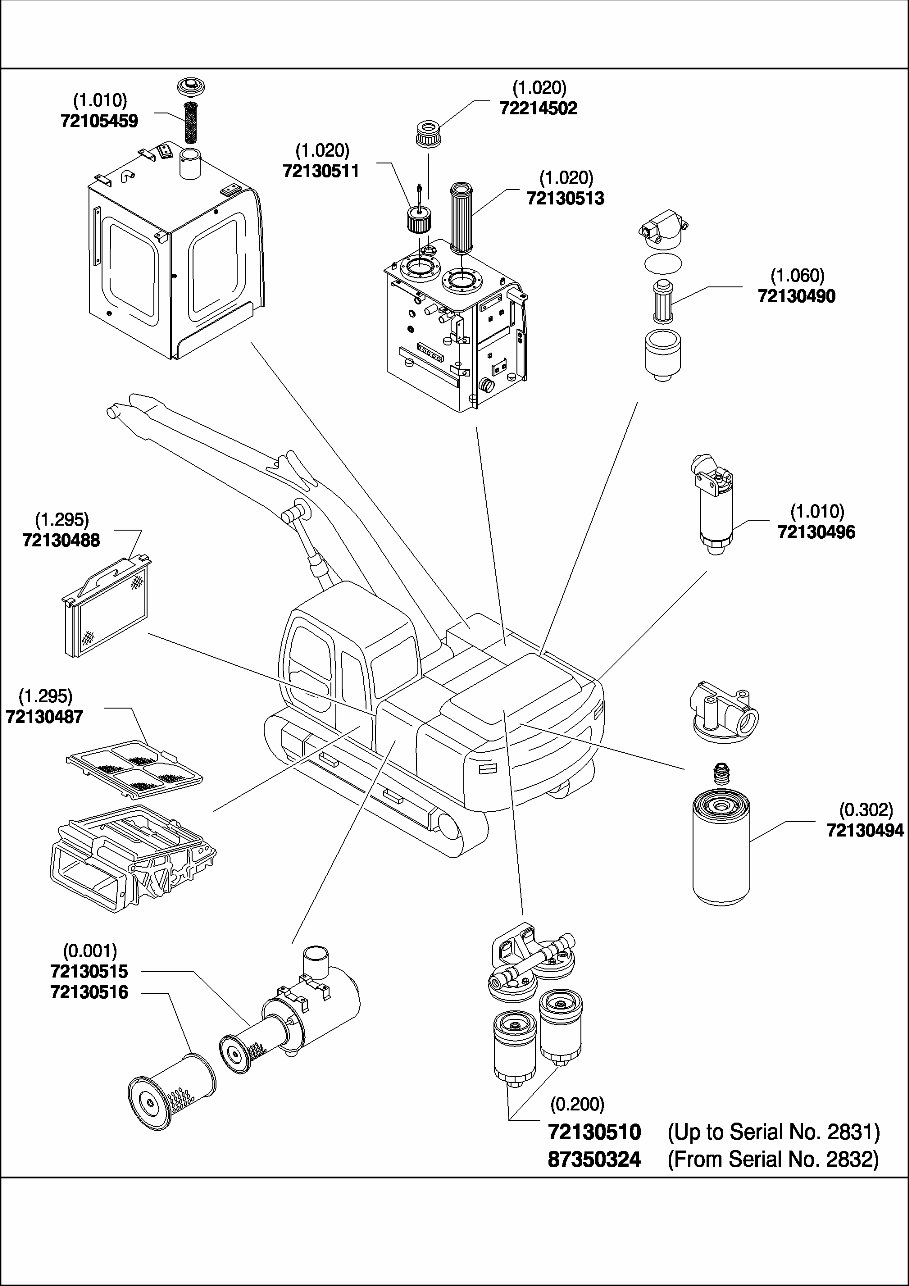

0 - FILTERS(00) MAINTENANCE PARTS
Ref Part Number Qty Description
E215 CRAWLER EXCAVATOR (1/05- )
0 - FILTERS(00) MAINTENANCE PARTS
E215 CRAWLER EXCAVATOR (1/05- )

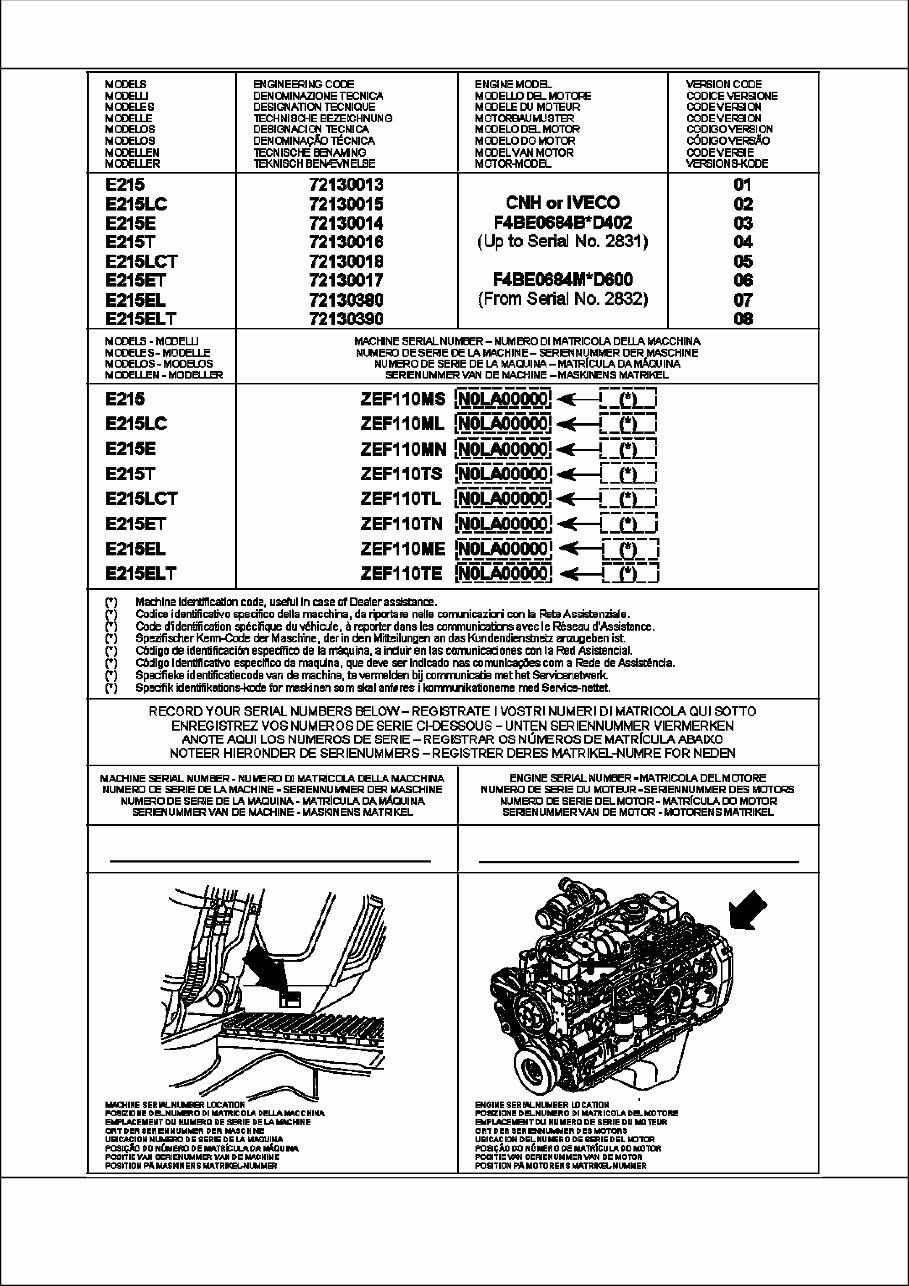

0 - VERSION(00) IDENTIFICATION AND VERSION LIST
Ref Part Number Qty Description
E215 CRAWLER EXCAVATOR (1/05- )
0 - VERSION(00) IDENTIFICATION AND VERSION LIST
E215 CRAWLER EXCAVATOR (1/05- )

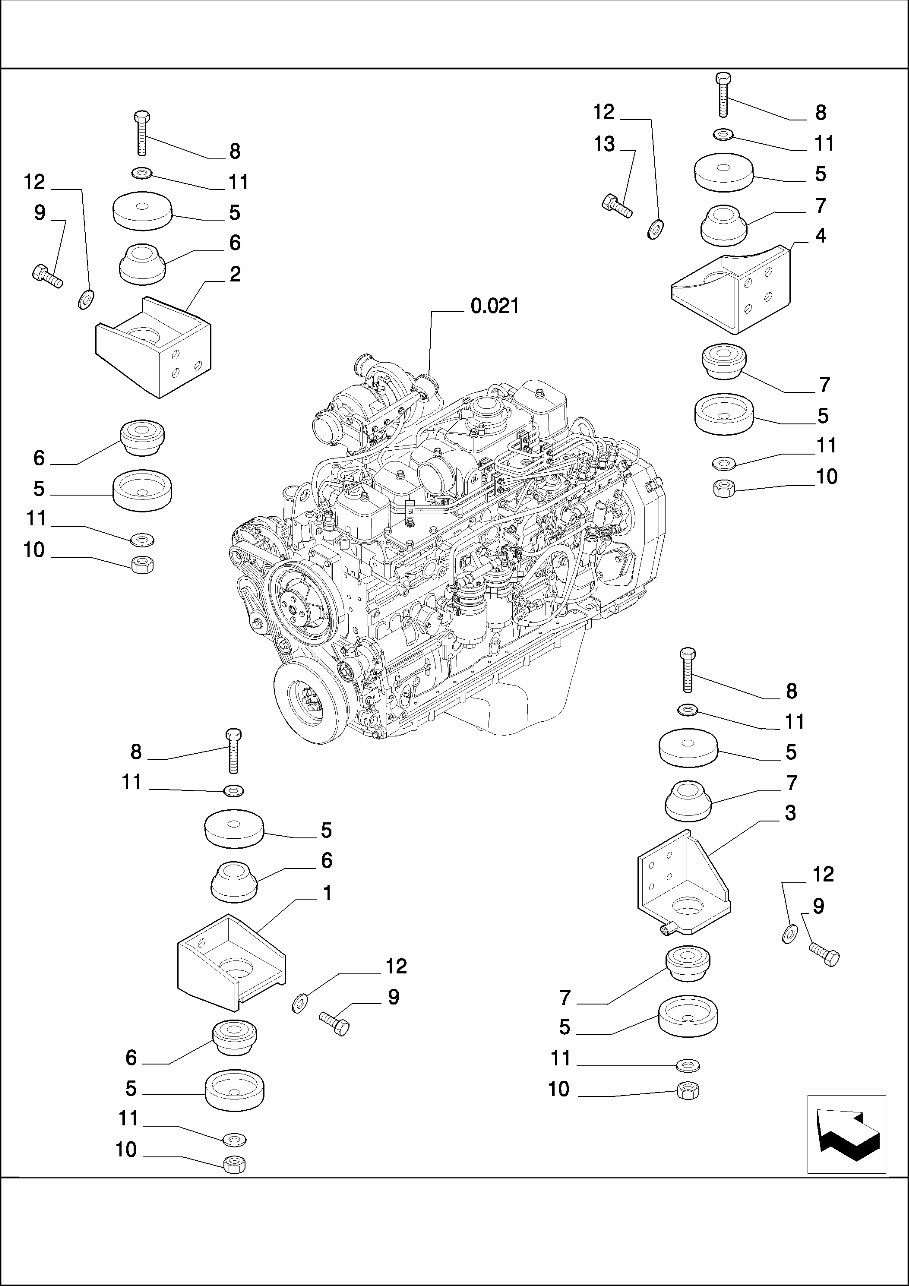

0.000(01) ENGINE SUSPENSIONS
Ref Part Number Qty Description
E215 CRAWLER EXCAVATOR (1/05- )
0.000(01) ENGINE SUSPENSIONS
1 72203735 1 BRACKET,
2 72203751 1 BRACKET,
3 72203746 1 BRACKET,
4 72203740 1 BRACKET,
5 72203750 8 COVER,
6 YN02P01022P1 4 MOUNTING, RUBBER, {PP:72203757}
7 72203758 4 BEARING ASSY,
8 15203134 4 SCREW, Hex, M18 x 130, 10.9,
9 11112434 10 SCREW, Hex, M12 x 30, 10.9, Full Thd,
10 11703221 4 NUT, M18
11 14497031 8 WASHER, 18X34
12 14496731 14 WASHER, 12X24
13 11112834 4 BOLT, Hex, M12 x 40, 10.9, Full Thd,
E215 CRAWLER EXCAVATOR (1/05- )

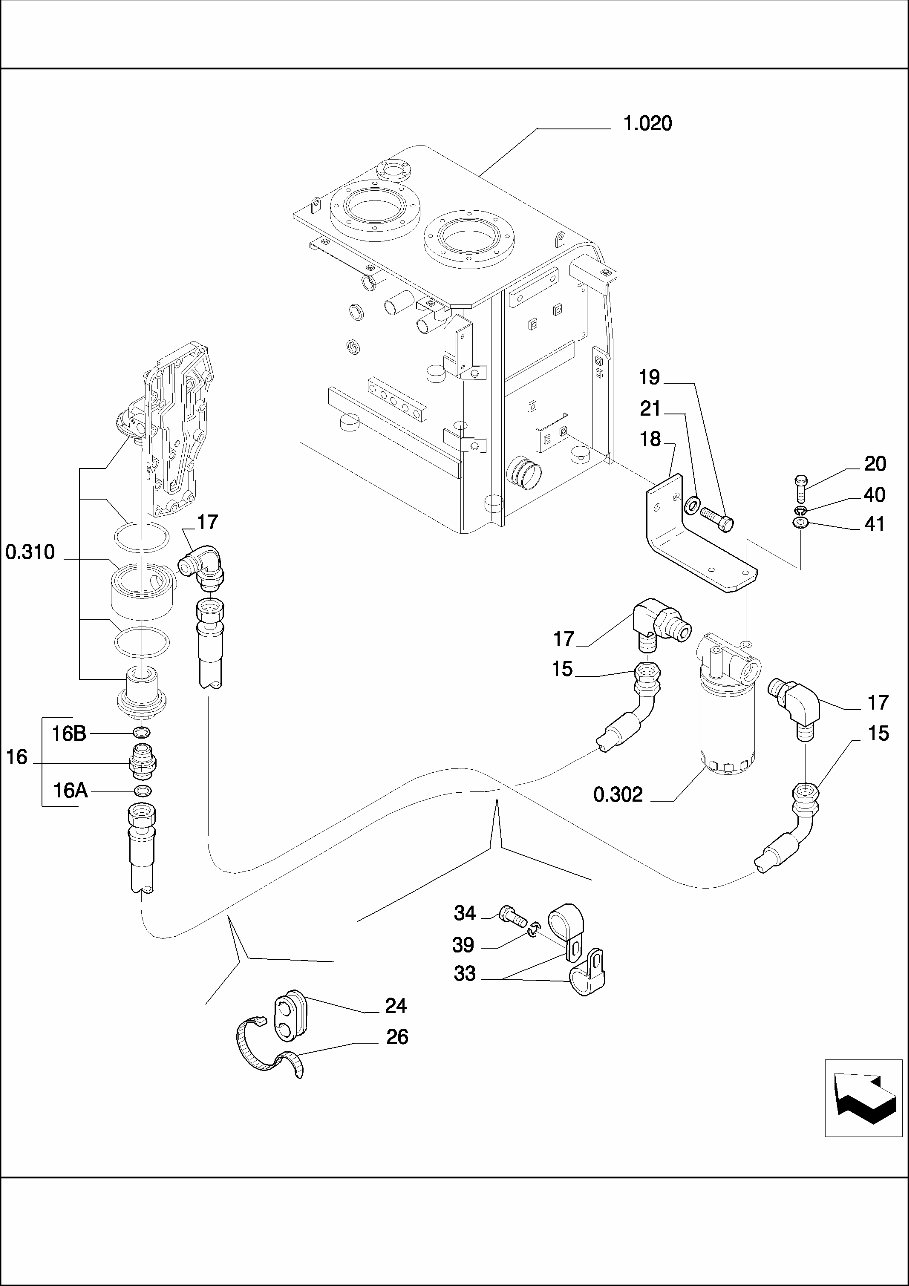

0.000(02) PIPING - ENGINE OIL
Ref Part Number Qty Description
E215 CRAWLER EXCAVATOR (1/05- )
0.000(02) PIPING - ENGINE OIL
15 72203705 2 HOSE, FLEXIBLE,
16 71483692 1 CONNECTOR, HYD., - ASSY
16A 71483512 1 GASKET,
16B 71484462 1 GASKET,
17 72109077 3 CONNECTOR, HYD., 90°
18 72203759 1 BRACKET,
19 11106234 2 SCREW, Hex, M10 x 25, 10.9, Full Thd, 10X25
20 16043434 2 SCREW, Hex, M8 x 20, 10.9, Full Thd,
21 14496631 2 WASHER, M10 x 21 x 2,
24 72203762 1 GASKET,
26 4982514 1 COLLAR,
33 71405770 2 COLLAR, RETAINER,
34 11106034 1 SCREW, Hex, M10 x 20, 10.9, Full Thd,
39 10516874 1 WASHER, LOCK, 10
40 10516674 2 WASHER, LOCK, 8
41 14496531 2 WASHER, M8 x 17 x 1.6,
E215 CRAWLER EXCAVATOR (1/05- )

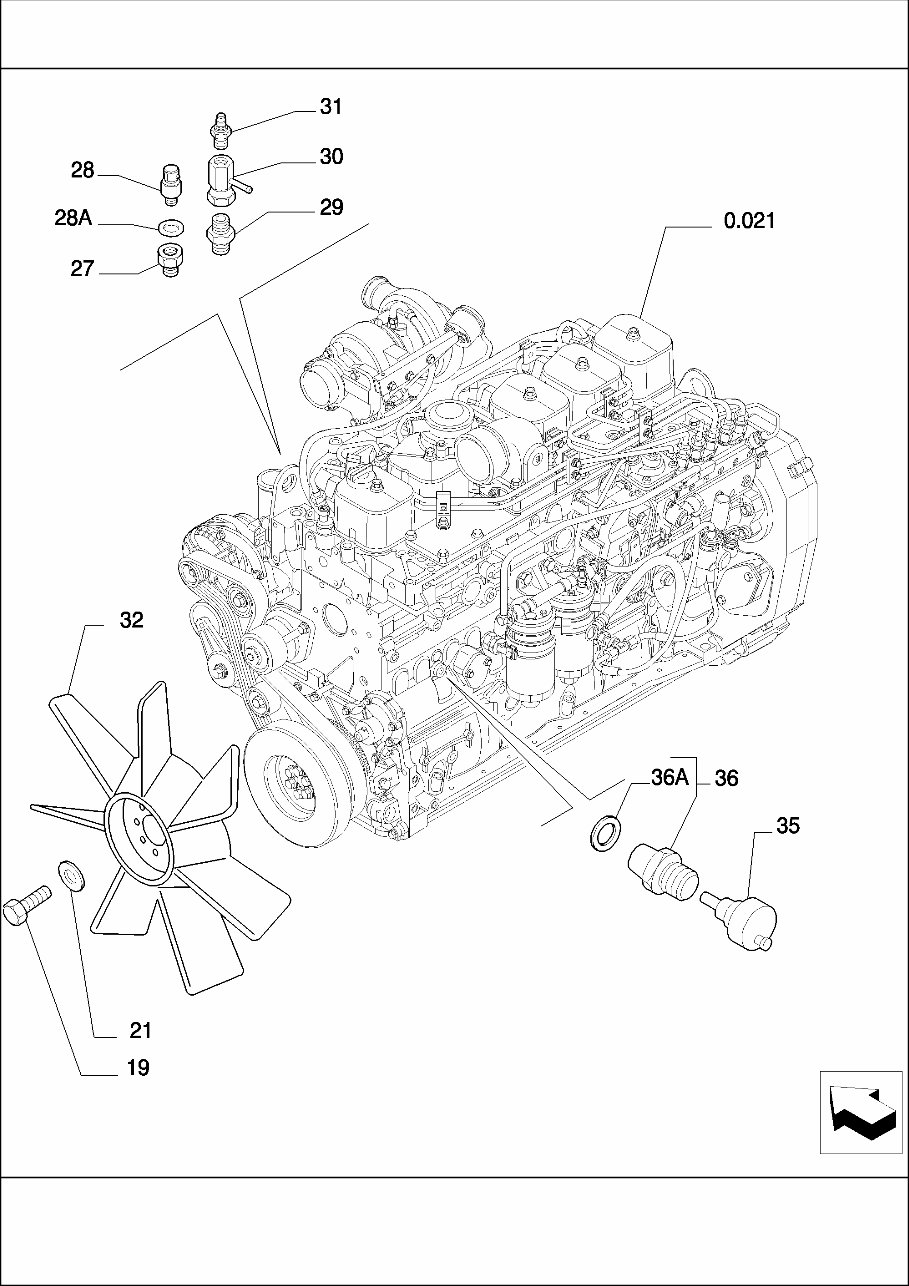

0.000(03) ENGINE - COMPONENTS
Ref Part Number Qty Description
E215 CRAWLER EXCAVATOR (1/05- )
0.000(03) ENGINE - COMPONENTS
19 11106234 4 SCREW, Hex, M10 x 25, 10.9, Full Thd, 10X25
21 14496631 4 WASHER, M10 x 21 x 2,
27 71485013 1 CONNECTOR, HYD.,
28 71451230 1 SWITCH, - ASSY
28A 71417459 1 WASHER,
29 72204109 1 CONNECTOR, HYD.,
30 72204108 1 CONNECTOR, HYD.,
31 72218764 1 SENSOR, - TEMPERATURE
32 72204105 1 BLOWER,
35 71451954 1 SWITCH, - PRESSURE
36 72109072 1 CONNECTOR, HYD., - ASSY
36A 72109073 1 GASKET,
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$150.99
New Holland CE E215 Parts Catalog
Viewed 53 Times Today
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$150.99
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
Description
The New Holland CE E215 Excavators Parts Catalog is a comprehensive guide for identifying and ordering the right parts for your excavator. It features detailed illustrations and exploded views to facilitate easy part identification.
Whether you're a professional excavator operator or a do-it-yourself enthusiast, this catalog is an essential resource. It offers extensive information about every part of the New Holland CE E215 Excavator, enabling you to maintain your machine efficiently.
Some of the models covered in this parts catalog include:
- New Holland CE E215 Excavator
