Kubota KX91-3 Excavator Illustrated Master Parts Manual

Instructions for Parts Books The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part numbers. Definition of column headings on part number pages: REF.No  The number refering to the part on the picture page of the parts book. Part No.  The number assigned to this part at the time of printing the parts book. Description  Discription of part. Q'ty  Quanity of part used on that page. S.No.  Serial number range of the equipment that this part will fit. >= Your serial number should be greater than or equal to the number shown. <= Your serial number should be lesser than or equal to the serial number shown. I/C  Interchangeability of part shown.  The part shown will work for the older and later serial number. # The part shown is not interchangable with the other serial number.  new for old  old for new Remarks  Notes about this particulart part. Sometimes this may say except [FR] or [CA] Note about Country Codes: The parts books we use in the United States of America may also contain information about a part that would be different in another country. It is important that you are aware of the country codes in some instances. Symbol Country A United States of America CA Canada FR France GR Greece PO Portugal AU Australia If the remarks column says for example EXCEPT [FR] this part works in all countries except France. That means it will work here in the USA.

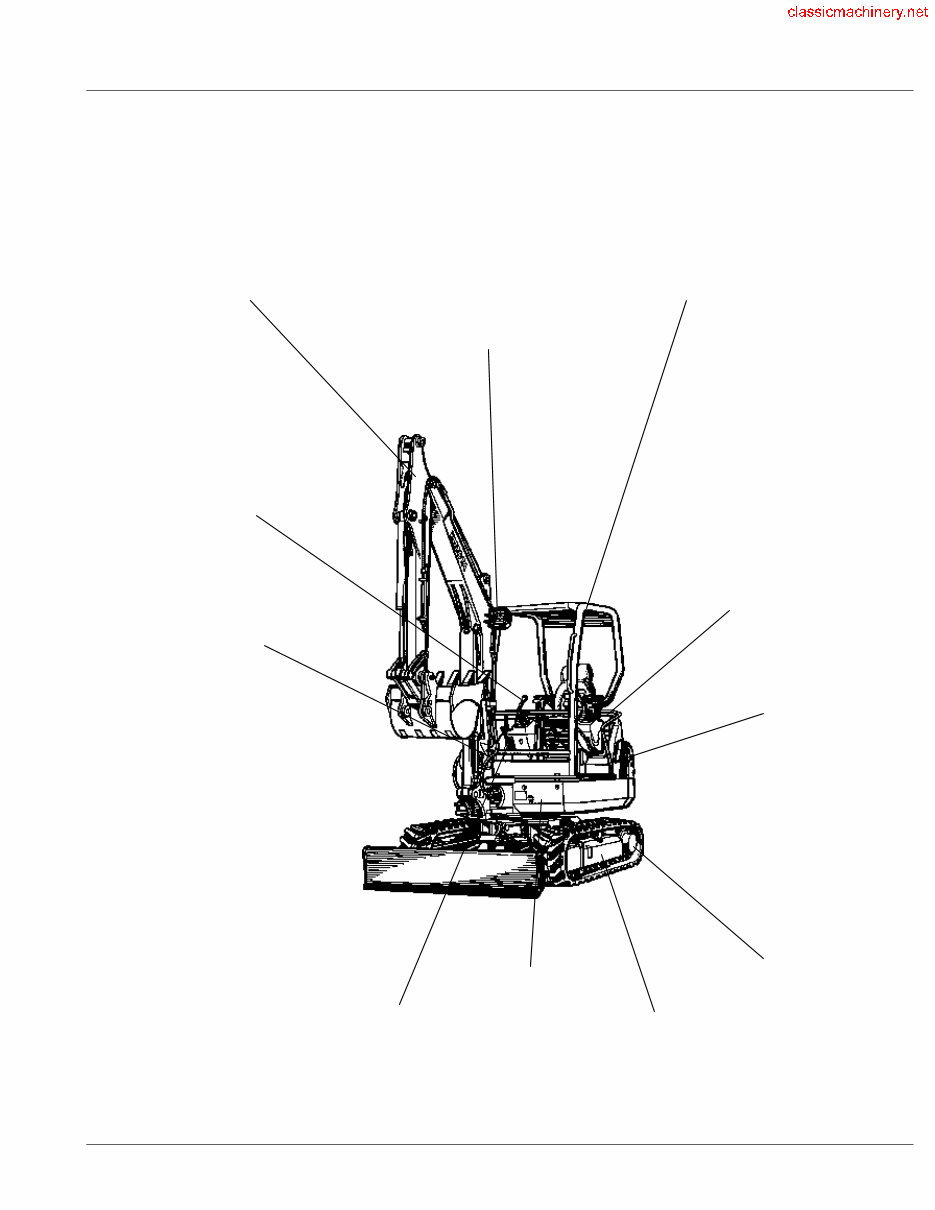

|ALL PRODUCT INDEX KX91-3 Ref. KX91-3 Page 41039 ENGINE FUEL SYSTEM ELECTRICAL SYSTEM PUMP/MOTOR SYSTEM CONTROL VALVE CONTROL LEVER HYDRAULIC SYSTEM FRONT ATTACHMENTS TRACK FRAME SWIVEL FRAME OPERATOR'S PLATFORM LABEL ACCESSORIES

Ref. KX91-3 Page 41039 Item Part No. Description Book ENGINE 010001 CRANK CASE 100A0180 010002 OIL PAN 100A0180 010003 CYLINDER HEAD 100A0180 010004 GEAR CASE 100A0180 010005 HEAD COVER 100A0180 010100 MAIN BEARING CASE 100A0180 010101 CAMSHAFT AND IDLE GEAR SHAFT 100A0180 010102 PISTON AND CRANKSHAFT 100A0180 010103 FLYWHEEL 100A0180 010105 FUEL CAMSHAFT AND GOVERNOR SHAFT 100A0180 010200 ENGINE STOP LEVER 100A0180 010202 INJECTION PUMP 100A0180 010203 INJECTION PUMP (COMPONENT PARTS) 100A0180 010204 GOVERNOR 100A0180 010205 SPEED CONTROL PLATE 100A0180 010206 NOZZLE HOLDER AND GLOW PLUG 100A0180 010413 ALTERNATOR 100A0180 010414 ALTERNATOR (COMPONENT PARTS) 100A0180 010416 STARTER 100A0180 010417 STARTER (COMPONENT PARTS) 100A0180 010500 WATER FLANGE AND THERMOSTAT 100A0180 010501 WATER PUMP 100A0180 010600 VALVE AND ROCKER ARM 100A0180 010610 INLET MANIFOLD 100A0180 010612 EXHAUST MANIFOLD 100A0180 020030 ENGINE BRACKET 100A0180 020511 RADIATOR 100A0180 020513 WATER PIPE 100A0180 020614 AIR CLEANER 100A0180 020616 MUFFLER 100A0180 FUEL SYSTEM 02A200 ACCEL LEVER 100A0180 02A300 FUEL PIPING 100A0180 02A301 FUEL FILTER (COMPONENT PARTS) 100A0180 02A303 FUEL TANK 100A0180 ELECTRICAL SYSTEM 02B400 BATTERY 100A0180 02B402 TIMER AND HORN 100A0180 02B404 SWITCH AND METER 100A0180 02B406 LIGHT 100A0180 02B408 ELECTRICAL WIRING 100A0180 PUMP/MOTOR SYSTEM 02C000 PUMP HOUSING 100A0180 02C200 PISTON PUMP(COMPONENT PARTS) 100A0180 02C30001 DRIVE MOTOR AND COMPONENT PARTS 100A0180 02C30002 DRIVE MOTOR AND COMPONENT PARTS 100A0180 02C40001 SWIVEL MOTOR AND COMPONENT PARTS 100A0180 02C40002 SWIVEL MOTOR AND COMPONENT PARTS 100A0180 02C500 ROTARY JOINT 100A0180 02C502 OIL TANK 100A0180 CONTROL VALVE 02C600 CONTROL VALVE 100A0180 02C601 CONTROL VALVE (COMPONENT PARTS) 100A0180 02C60201 SPOOL SECTION (SWIVEL) 100A0180 02C60202 SPOOL SECTION (SWING) 100A0180 02C60203 SPOOL SECTION (BLADE) 100A0180 02C60204 SPOOL SECTION (TRAVEL STRAIGHT) 100A0180 02C60205 SPOOL SECTION (S/P) 100A0180 02C60206 SPOOL SECTION (ARM) 100A0180 02C60207 SPOOL SECTION (TRAVEL LH) 100A0180 02C60208 SPOOL SECTION (TRAVEL RH) 100A0180 02C60209 SPOOL SECTION (BOOM) 100A0180 02C60210 SPOOL SECTION (BOOM LOCK) 100A0180

Ref. KX91-3 Page 41039 Item Part No. Description Book CONTROL VALVE 02C60211 SPOOL SECTION (BUCKET) 100A0180 02C704 CHANGE VALVE 100A0180 02C705 CHANGE VALVE (COMPONENT PARTS) 100A0180 02C900 TPSS VALVE 100A0180 02C901 TPSS VALVE (COMPONENT PARTS) 100A0180 CONTROL LEVER 02D100 CONTROL LEVER (LEVER LH) 100A0180 02D200 CONTROL LEVER (LEVER RH) 100A0180 02D201 PILOT VALVE (COMPONENT PARTS) 100A0180 02D300 CONTROL LEVER (TRAVEL LH 1) 100A0180 02D301 CONTROL LEVER (TRAVEL LH 2) 100A0180 02D400 CONTROL LEVER (TRAVEL RH 1) 100A0180 02D401 CONTROL LEVER (TRAVEL RH 2) 100A0180 02D405 CONTROL LEVER (TRAVEL LOCK) 100A0180 02D500 CONTROL TRAVEL PEDAL 100A0180 02D600 CONTROL LEVER (SAFETY LOCK LEVER) 100A0180 02D700 CONTROL PEDAL (SWIVEL/SWING CHANGE 1) 100A0180 02D702 CONTROL PEDAL (SWIVEL/SWING CHANGE 2) 100A0180 02D705 TPSS LEVER 100A0180 02D800 CONTROL LEVER (BLADE) 100A0180 02D900 CONTROL LEVER (S/P) 100A0180 HYDRAULIC SYSTEM 02E000 OIL PIPING (SUCTION) 100A0180 02E002 OIL PIPING (DELIVERY) 100A0180 02E00401 OIL PIPING (RETURN 1) 100A0180 02E00402 OIL PIPING (RETURN 2) 100A0180 02E006 OIL PIPING (OIL COOLER) 100A0180 02E100 OIL PIPING (CONTROL LH) 100A0180 02E102 OIL PIPING (CONTROL RH) 100A0180 02E200 OIL PIPING (TRAVEL LH) 100A0180 02E202 OIL PIPING (TRAVEL RH) 100A0180 02E204 OIL PIPING (SWIVEL) 100A0180 02E300 OIL PIPING (SWING) 100A0180 02E304 OIL PIPING (BOOM) 100A0180 02E400 OIL PIPING (ARM) 100A0180 02E500 OIL PIPING (BUCKET) 100A0180 02E600 OIL PIPING (BLADE) 100A0180 02E700 OIL PIPING (CLAMP) 100A0180 02E800 OIL PIPING (S/P) 100A0180 02F000 BOOM CYLINDER AND COMPONENT PARTS 100A0180 02F00001 BOOM CYLINDER AND COMPONENT PARTS 100A0180 02F100 ARM CYLINDER AND COMPONENT PARTS 100A0180 02F20001 BUCKET CYLINDER AND COMPONENT PARTS 100A0180 02F20002 BUCKET CYLINDER AND COMPONENT PARTS(TELESCOPIC) 100A0180 02F300 BLADE CYLINDER AND COMPONENT PARTS 100A0180 02F400 SWING CYLINDER AND COMPONENT PARTS 100A0180 FRONT ATTACHMENTS 02G000 SWING BRACKET 100A0180 02G100 BOOM 100A0180 02G104 CYLINDER COVER (BOOM) 100A0180 02G200 ARM 100A0180 02G201 ARM (TELESCOPIC) 100A0180 02G202 TELESCOPIC CYLINDER(TELESCOPIC) 100A0180 02G300 BUCKET LINK 100A0180 02G301 BUCKET LINK (TELESCOPIC) 100A0180 02G500 BLADE 100A0180 TRACK FRAME 02H000 TRACK FRAME 100A0180 02H100 IDLER 100A0180 02H200 TRACK ROLLER 100A0180 02H300 CRAWLER 100A0180 SWIVEL FRAME 02J000 SWIVEL FRAME 100A0180

Ref. KX91-3 Page 41039 Item Part No. Description Book SWIVEL FRAME 02J001 ARCH FRAME 100A0180 02J100 SWIVEL BEARING 100A0180 02J200 SEAT SUPPORT 100A0180 02J300 STEP 100A0180 02K000 COVER LH 100A0180 02K001 COVER RH 100A0180 02K101 BONNET LH 100A0180 02K102 BONNET RH 100A0180 02K103 BONNET REAR 100A0180 02K200 SPONGE 1 100A0180 02K201 SPONGE 2 100A0180 02K300 WEIGHT 100A0180 02K400 SEAT 100A0180 02K401 SEAT (COMPONENT PARTS) 100A0180 OPERATOR'S PLATFORM 02L000 CANOPY 100A0180 02L100 CABIN (BODY) 100A0180 02L200 CABIN (DOOR) 100A0180 02L201 CABIN (DOOR LOCK) 100A0180 02L300 CABIN (WINDOW) 100A0180 02L301 CABIN (WINDOW FRONT) 100A0180 02L402 CABIN (SEAL RUBBER) 100A0180 02L500 CABIN (WIPER MOTOR) 100A0180 02L502 CABIN (ELECTRICAL WIRING) 100A0180 02L600 CABIN (HEATER) 100A0180 02L601 CABIN (DEFROSTER) 100A0180 LABEL 02M000 LABEL 100A0180 ACCESSORIES 02N000 ACCESSORIES 100A0180

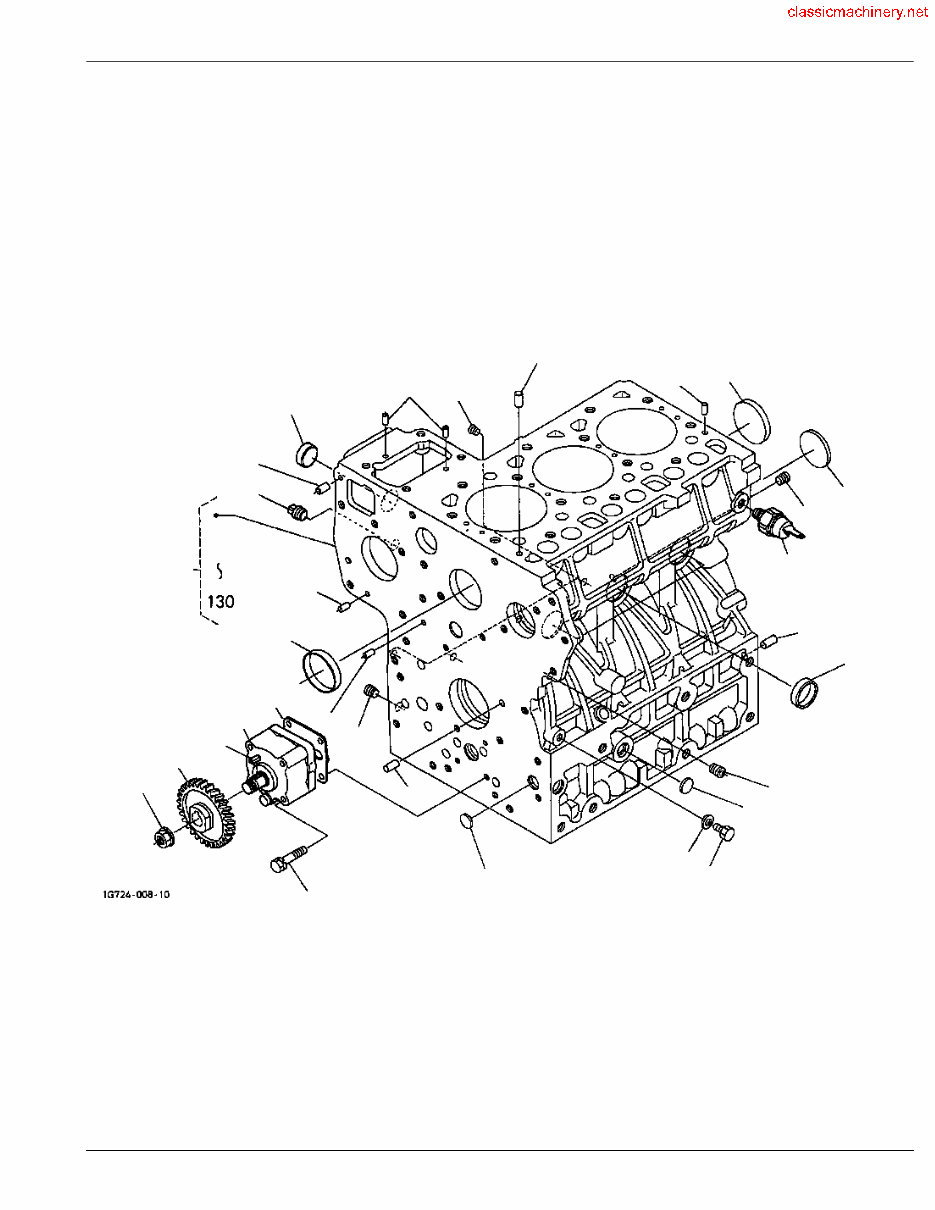

CRANK CASE Reference: 010001 Page: 1 010 020 020 020 030 030 035 040 040 050 060 070 070 080 080 090 090 100 100 110 120 130 140 150 170 180 190 200 210 220 230

CRANK CASE Reference: 010001 Page: 1 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 1A053-01010 COMP.CRANKCASE 1 <=1W1403 48.5 106.7 010 1A053-01016 COMP.CRANKCASE 1 >=1Y0001 ← 48.5 106.7 020 15521-96020 PLUG 5 0.003 0.0066 030 15521-96030 PLUG 2 0.007 0.0154 035 06312-10020 PLUG 1 0.016 0.0352 040 17391-96160 PLUG EXPANSION 3 0.003 0.0066 050 06311-75045 PLUG EXPANSION 1 <=3G0964 0.026 0.0572 050 16271-96160 PLUG EXPANSION 1 >=3J0001 ≠ 0.025 0.055 060 15221-03380 CAP SEALING 5 0.017 0.0374 070 15221-03390 CAP SEALING 2 0.03 0.066 080 05012-00408 PIN STRAIGHT 2 0.001 0.0022 090 05012-00609 PIN STRAIGHT 3 0.003 0.0066 100 05012-00612 PIN STRAIGHT 2 0.003 0.0066 110 05012-01018 PIN STRAIGHT 2 0.012 0.0264 120 15221-33650 PIN PIPE 1 0.004 0.0088 130 06311-85020 CAP SEALING 1 0.002 0.0044 140 15221-33610 PLUG 1 0.009 0.0198 150 15021-33660 GASKET 1 0.001 0.0022 160 99999-99999 BLANK 0 0 0 170 15471-35012 ASSY PUMP OIL 1 0.55 1.21 180 1A021-35150 GASKET OIL PUMP 1 0.001 0.0022 190 01023-60650 BOLT 4 0.015 0.033 200 19202-35660 GEAR OIL PUMP DRIVE 1 0.23 0.506 210 05712-00410 KEY FEATHER 1 0.001 0.0022 220 15221-35682 NUT FLANGE 1 0.014 0.0308 230 15531-39010 SWITCH OIL 1 <=20402 EXCAVATOR SERIAL No. 0.032 0.0704 230 1A024-39010 SWITCH OIL 1 >=20403 ← EXCAVATOR SERIAL No. 0.035 0.077

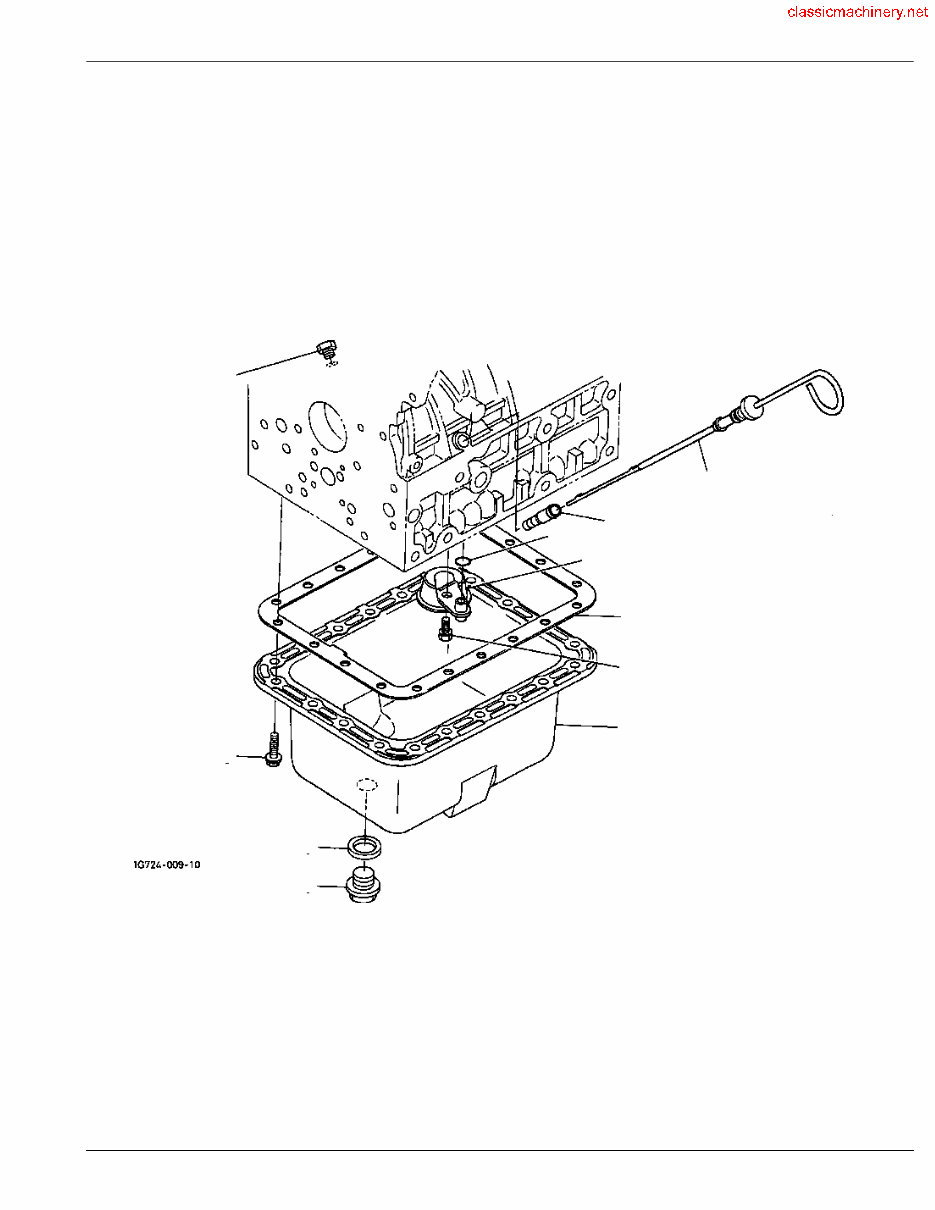

OIL PAN Reference: 010002 Page: 2 010 020 030 040 050 060 070 080 090 100 110

OIL PAN Reference: 010002 Page: 2 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 1A053-01500 COMP.OIL PAN 1 1.925 4.235 020 15313-01620 GASKET OIL PAN 1 <=2V9999 0.055 0.121 020 1G841-01620 GASKET OIL PAN 1 >=2W0001 ↔ 0.045 0.099 030 17333-91010 BOLT FLANGE 20 <=2V9999 0.03 0.066 030 17333-91013 BOLT FLANGE 20 >=2W0001 ≠ 0.03 0.066 040 15707-33750 PLUG DRAIN 1 0.1 0.22 050 15451-96670 GASKET 1 0.003 0.0066 060 16413-32110 FILTER OIL 1 <=3C9999 0.24 0.528 060 1G850-32110 FILTER OIL 1 >=3E0001 ← 0.255 0.561 070 01123-60814 BOLT 1 0.01 0.022 080 04814-00160 O RING 1 0.001 0.0022 090 1A053-36410 GAUGE OIL 1 0.045 0.099 100 17456-36420 GUIDE OIL GAUGE 1 0.03 0.066 110 16414-33640 PLUG OIL GAUGE 1 0.003 0.0066

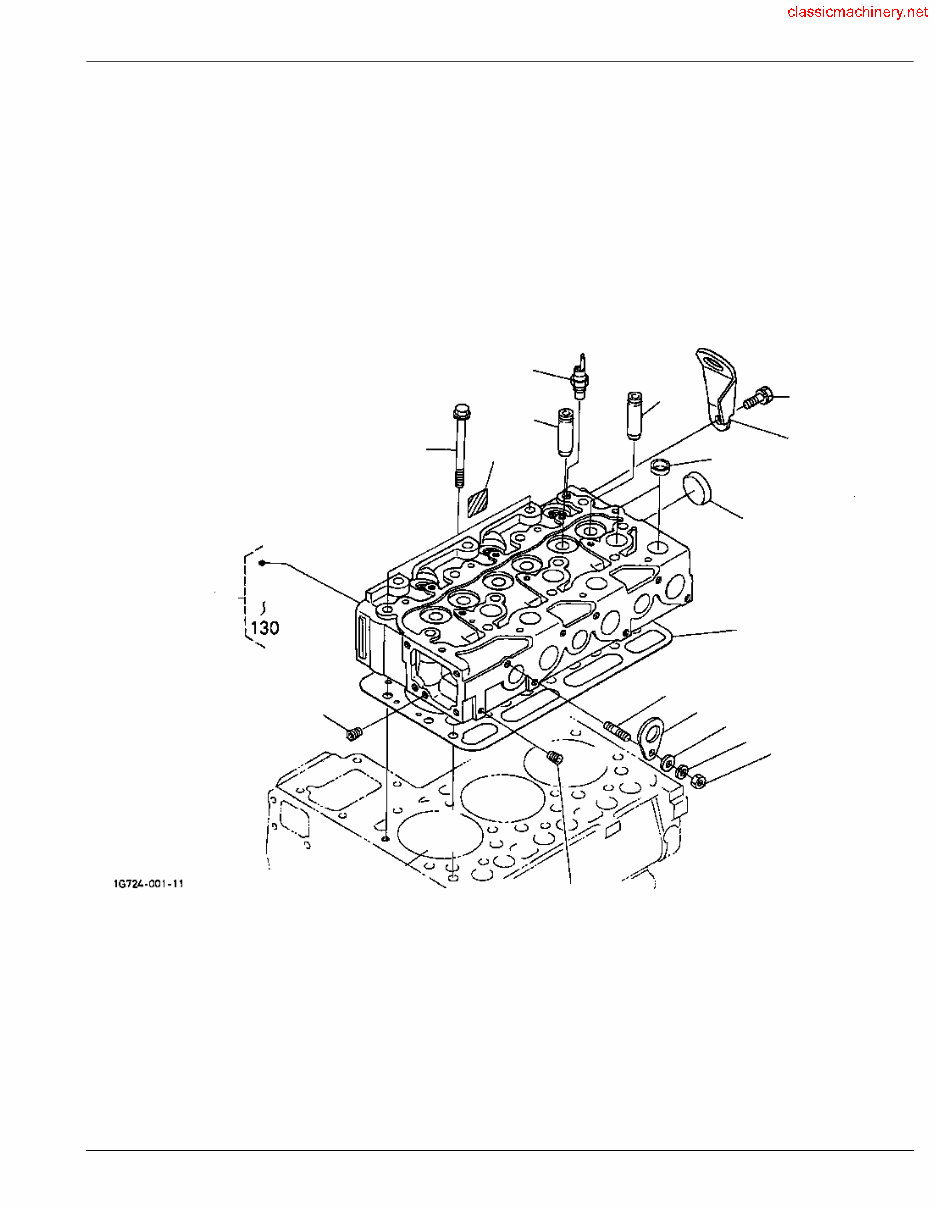

CYLINDER HEAD Reference: 010003 Page: 3 010 020 030 040 050 060 070 080 090 090 100 110 110 120 130 140 150 160 170
