Kubota KX61-2 Excavator Illustrated Master Parts Manual

Instructions for Parts Books The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part numbers. Definition of column headings on part number pages: REF.No  The number refering to the part on the picture page of the parts book. Part No.  The number assigned to this part at the time of printing the parts book. Description  Discription of part. Q'ty  Quanity of part used on that page. S.No.  Serial number range of the equipment that this part will fit. >= Your serial number should be greater than or equal to the number shown. <= Your serial number should be lesser than or equal to the serial number shown. I/C  Interchangeability of part shown.  The part shown will work for the older and later serial number. # The part shown is not interchangable with the other serial number.  new for old  old for new Remarks  Notes about this particulart part. Sometimes this may say except [FR] or [CA] Note about Country Codes: The parts books we use in the United States of America may also contain information about a part that would be different in another country. It is important that you are aware of the country codes in some instances. Symbol Country A United States of America CA Canada FR France GR Greece PO Portugal AU Australia If the remarks column says for example EXCEPT [FR] this part works in all countries except France. That means it will work here in the USA.

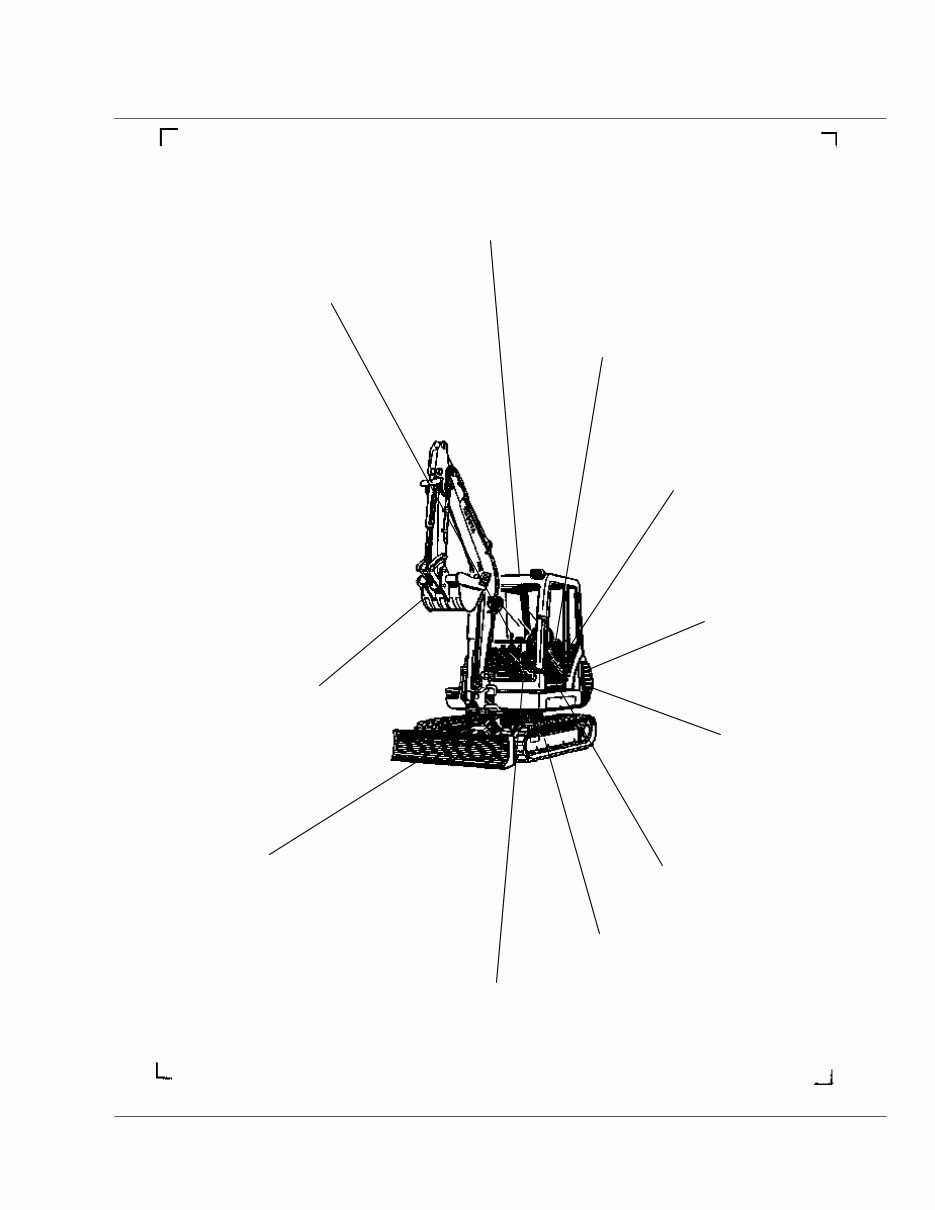

|ALL PRODUCT INDEX KX61-2 Ref. KX61-2 Page 41029 BASIC ENGINE AIR INTAKE SYSTEM EXHAUST SYSTEM FUEL SYSTEM COOLING SYSTEM ELECTRICAL SYSTEM HYDRAULIC SYSTEM FRONT ATTACHMENTS TRACK FRAME SWIVEL FRAME OPERATOR'S PLATFORM ACCESSORIES

Ref. KX61-2 Page 41029 Item Part No. Description Book BASIC ENGINE 01S001 CRANKCASE 100A0039 01S002 OIL PAN 100A0039 01S003 PISTON,CRANKSHAFT 100A0039 01S004 MAIN BEARING CASE 100A0039 01S005 CAMSHAFT 100A0039 01S006 CYLINDER HEAD 100A0039 01S007 VALVE AND ROCKER ARM 100A0039 01S008 HEAD COVER 100A0039 01S009 GEAR CASE 100A0039 FUEL SYSTEM 01S013 NOZZLE HOLDER,GLOW PLUG 100A0039 01S014 NOZZLE HOLDER [COMPONENT PARTS] 100A0039 01S015 SPEED CONTROL PLATE 100A0039 01S016 STOP SOLENOID 100A0039 01S017 GOVERNOR 100A0039 01S018 INJECTION PUMP 100A0039 01S019 INJECTION PUMP [COMPONENT PARTS] 100A0039 01S020 FUEL CAMSHAFT 100A0039 COOLING SYSTEM 01S025 WATER FLANGE 100A0039 01S026 WATER PUMP 100A0039 ELECTRICAL SYSTEM 01S029 FLYWHEEL,STARTER 100A0039 01S030 STARTER [COMPONENT PARTS] 100A0039 01S031 ALTERNATOR 100A0039 01S032 ALTERNATOR [COMPONENT PARTS] 100A0039 BASIC ENGINE 02S010 ENGINE BRACKET 100A0039 AIR INTAKE SYSTEM 02S011 AIR CLEANER,INLET MANIFOLD 100A0039 EXHAUST SYSTEM 02S012 MUFFLER,EXHAUST MANIFOLD 100A0039 FUEL SYSTEM 02S021 ACCEL LEVER 100A0039 02S022 FUEL PIPING 100A0039 02S023 FUEL FILTER [COMPONENT PARTS] 100A0039 02S024 FUEL TANK 100A0039 COOLING SYSTEM 02S027 RADIATOR 100A0039 02S028 WATER PIPE 100A0039 ELECTRICAL SYSTEM 02S033 BATTERY 100A0039 02S034 TIMER,HORN 100A0039 02S035 SWITCH,METER 100A0039 02S036 LIGHT 100A0039 02S037 ELECTRICAL WIRING 100A0039 HYDRAULIC SYSTEM 02S038 PUMP HOUSING 100A0039 02S039 PISTON PUMP AND COMPONENT PARTS 100A0039 02S040 HYDRAULIC PUMP AND COMPONENT PARTS 100A0039 02S041-1 DRIVE MOTOR AND COMPONENT PARTS 100A0039 02S041-2 DRIVE MOTOR AND COMPONENT PARTS 100A0039 02S042-1 SWIVEL MOTOR COMPONENT PARTS 100A0039 02S042-2 SWIVEL MOTOR COMPONENT PARTS 100A0039 02S043 ROTARY JOINT 100A0039 02S044 OIL TANK 100A0039 02S045 CONTROL VALVE 100A0039 02S046 CONTROL VALVE [COMPONENT PARTS] 100A0039 02S047-1 SPOOL SECTION (BUCKET/SWIVEL) 100A0039 02S047-2 SPOOL SECTION (BOOM 1) 100A0039 02S047-3 SPOOL SECTION (TRAVEL RH) 100A0039 02S047-4 SPOOL SECTION (TRAVEL LH) 100A0039 02S047-5 SPOOL SECTION (BOOM 2) 100A0039 02S047-6 SPOOL SECTION (ARM) 100A0039 02S047-7 SPOOL SECTION (S/P) 100A0039 02S047-8 SPOOL SECTION (TRAVEL STRAIGHT) 100A0039 02S047-9 SPOOL SECTION (SWING/BLADE) 100A0039

Ref. KX61-2 Page 41029 Item Part No. Description Book HYDRAULIC SYSTEM 02S048 CHANGE VALVE 100A0039 02S049 CHANGE VALVE [COMPONENT PARTS] 100A0039 02S050-1 MULTI VALVE 100A0039 02S050-2 TPSS VALVE 100A0039 02S051-1 MULTI VALVE [COMPONENT PARTS] 100A0039 02S051-2 TPSS VALVE [COMPONENT PARTS] 100A0039 02S052 CONTROL LEVER (FRAME) 100A0039 02S053 CONTROL LEVER (LEVER LH) 100A0039 02S054 CONTROL LEVER (LEVER RH) 100A0039 02S055 PILOT VALVE [COMPONENT PARTS] 100A0039 02S056 CONTROL LEVER (TRAVEL LH) 100A0039 02S057 CONTROL LEVER (TRAVEL RH) 100A0039 02S058 CONTROL TRAVEL PEDAL 100A0039 02S059 CONTROL LEVER (SAFETY LOCK LEVER) 100A0039 02S060 CONTROL PEDAL (SWIVEL/SWING CHANGE) 100A0039 02S061-1 CONTROL LEVER (TPSS) 100A0039 02S061-2 CONTROL LEVER (TPSS) 100A0039 02S062 CONTROL LEVER (BLADE) 100A0039 02S063 CONTROL LEVER (S/P 1) 100A0039 02S064 CONTROL LEVER (S/P 2) 100A0039 02S065 OIL PIPING (SUCTION) 100A0039 02S066 OIL PIPING (DELIVERY) 100A0039 02S067 OIL PIPING (RETURN) 100A0039 02S068 OIL PIPING (OIL COOLER) 100A0039 02S069 OIL PIPING (TRAVEL LH) 100A0039 02S070 OIL PIPING (TRAVEL RH) 100A0039 02S071-1 OIL PIPING (SWIVEL 1) 100A0039 02S071-2 OIL PIPING (SWIVEL 1) 100A0039 02S071-3 OIL PIPING (SWIVEL 1) 100A0039 02S072 OIL PIPING (SWIVEL 2) 100A0039 02S073 OIL PIPING (SWING) 100A0039 02S074 OIL PIPING (LOCK) 100A0039 02S075-1 OIL PIPING (BOOM 1) 100A0039 02S075-2 OIL PIPING (BOOM 1) 100A0039 02S075-3 OIL PIPING (BOOM 1) 100A0039 02S076 OIL PIPING (BOOM 2) 100A0039 02S077-1 OIL PIPING (ARM 1) 100A0039 02S077-2 OIL PIPING (ARM 1) 100A0039 02S077-3 OIL PIPING (ARM 1) 100A0039 02S078 OIL PIPING (ARM 2) 100A0039 02S079-1 OIL PIPING (BUCKET 1) 100A0039 02S079-2 OIL PIPING (BUCKET 1) 100A0039 02S080 OIL PIPING (BUCKET 2) 100A0039 02S081 OIL PIPING (BLADE) 100A0039 02S082 OIL PIPING (CLAMP) 100A0039 02S083 OIL PIPING (S/P) 100A0039 02S084 BOOM CYLINDER AND COMPONENT PARTS 100A0039 02S085 ARM CYLINDER AND COMPONENT PARTS 100A0039 02S086 BUCKET CYLINDER AND COMPONENT PARTS 100A0039 02S087 BLADE CYLINDER AND COMPONENT PARTS 100A0039 02S088 SWING CYLINDER AND COMPONENT PARTS 100A0039 FRONT ATTACHMENTS 02S089 SWING BRACKET 100A0039 02S090 BOOM 100A0039 02S091 CYLINDER COVER (BOOM) 100A0039 02S092-1 ARM 100A0039 02S092-2 ARM (TELESCOPIC) 100A0039 02S092-3 TELESCOPIC CYLINDER [COMONENT PARTS] 100A0039

Ref. KX61-2 Page 41029 Item Part No. Description Book FRONT ATTACHMENTS 02S093-1 BUCKET LINK 100A0039 02S093-2 BUCKET LINK (TELESCOPIC) 100A0039 02S094 BUCKET 100A0039 02S095 BLADE 100A0039 TRACK FRAME 02S096 TRACK FRAME 100A0039 02S097 IDLER 100A0039 02S098 TRACK ROLLER 100A0039 02S099 CRAWLER 100A0039 SWIVEL FRAME 02S100 SWIVEL FRAME 100A0039 02S101 SWIVEL BEARING 100A0039 02S102 SEAT SUPPORT 100A0039 02S103-1 STEP 100A0039 02S103-2 STEP 100A0039 02S104 COVER (LEFT) 100A0039 02S105 COVER (TANK) 100A0039 02S106 INSTRUMENT PANEL 100A0039 02S107 BONNET 100A0039 02S108 SPONGE (1) 100A0039 02S109 SPONGE (2) 100A0039 02S110-1 WEIGHT 100A0039 02S110-2 WEIGHT (TELESCOPIC) 100A0039 OPERATOR'S PLATFORM 02S111 SEAT 100A0039 02S112 CANOPY 100A0039 02S113 CABIN (BODY) 100A0039 02S114 CABIN (DOOR) 100A0039 02S115 CABIN (WINDOW 1) 100A0039 02S116 CABIN (WINDOW 2) 100A0039 02S117 CABIN (SPONGE) 100A0039 02S118 CABIN (ELECTRICAL WIRING) 100A0039 02S119 CABIN (WIPER MOTOR) 100A0039 02S120 CABIN (HEATER) 100A0039 02S121 CABIN (DEFROSTER) 100A0039 02S122 LABEL 100A0039 ACCESSORIES 02S123 ACCESSORIES 100A0039 02S124 WEIGHT KIT 100A0039 02S125 LABEL KIT 100A0039

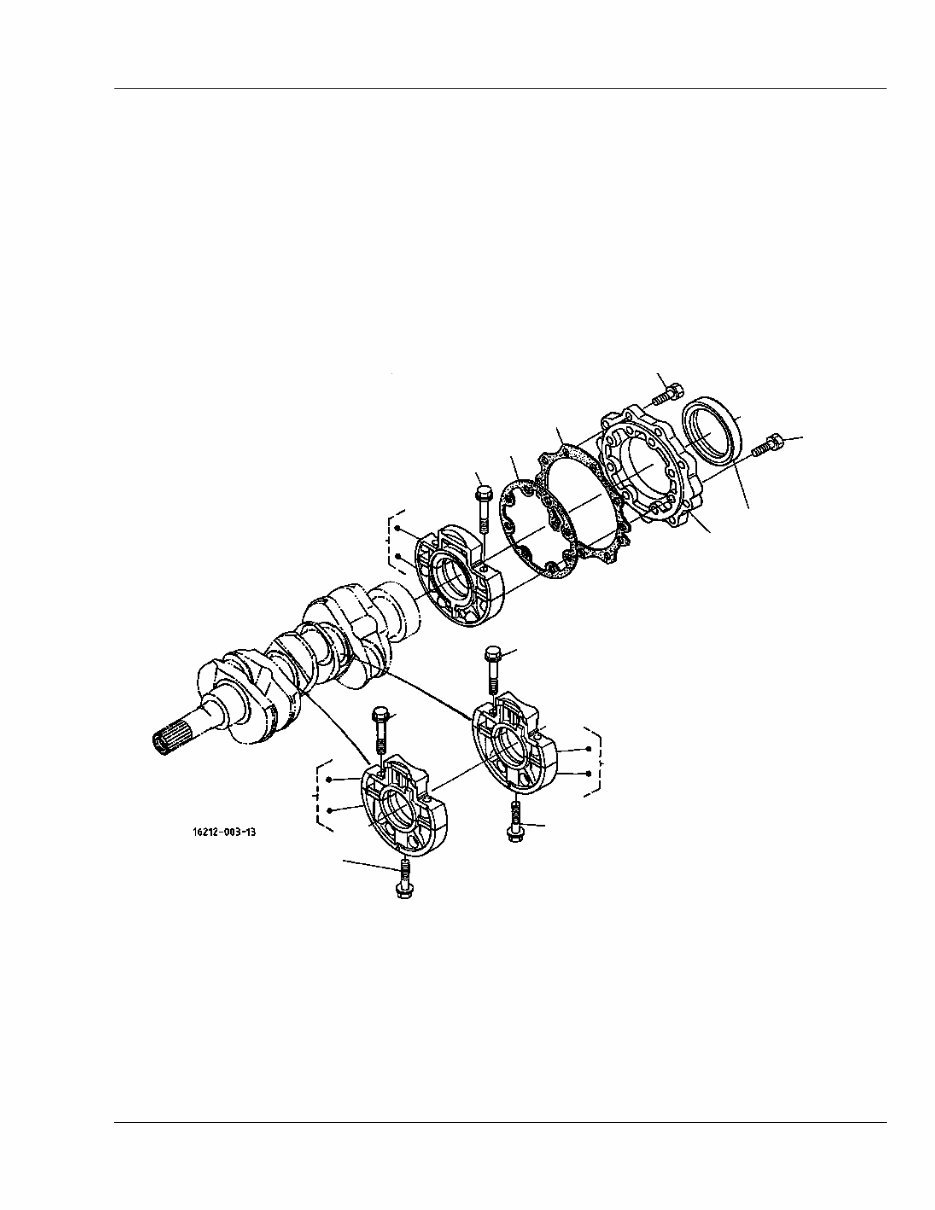

MAIN BEARING CASE Reference: 01S004 Page: 4 010 020 030 040 050 060 070 080 090 100 110 110 120 130

MAIN BEARING CASE Reference: 01S004 Page: 4 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 16241-04092 ASSY CASE MAIN BRG. 1 1.13 2.486 020 16241-04540 BOLT BEARING CASE 2 0.02 0.044 030 16264-04360 GASKET BRG.CASE 1 0.002 0.0044 040 16241-04813 COVER BEARING CASE 1 0.22 0.484 050 16241-04460 SEAL OIL 1 0.02 0.044 060 16264-04820 GASKET 1 0.008 0.0176 070 01023-50625 BOLT 8 0.007 0.0154 080 01023-50620 BOLT 9 0.006 0.0132 090 16261-04040 ASSY CASE MAIN BRG. 1 0.9 1.98 100 16241-04540 BOLT BEARING CASE 2 0.02 0.044 110 16241-04560 BOLT BEARING CASE 2 0.03 0.066 120 16261-04050 ASSY CASE MAIN BRG. 1 1.11 2.442 130 16241-04540 BOLT BEARING CASE 2 0.02 0.044

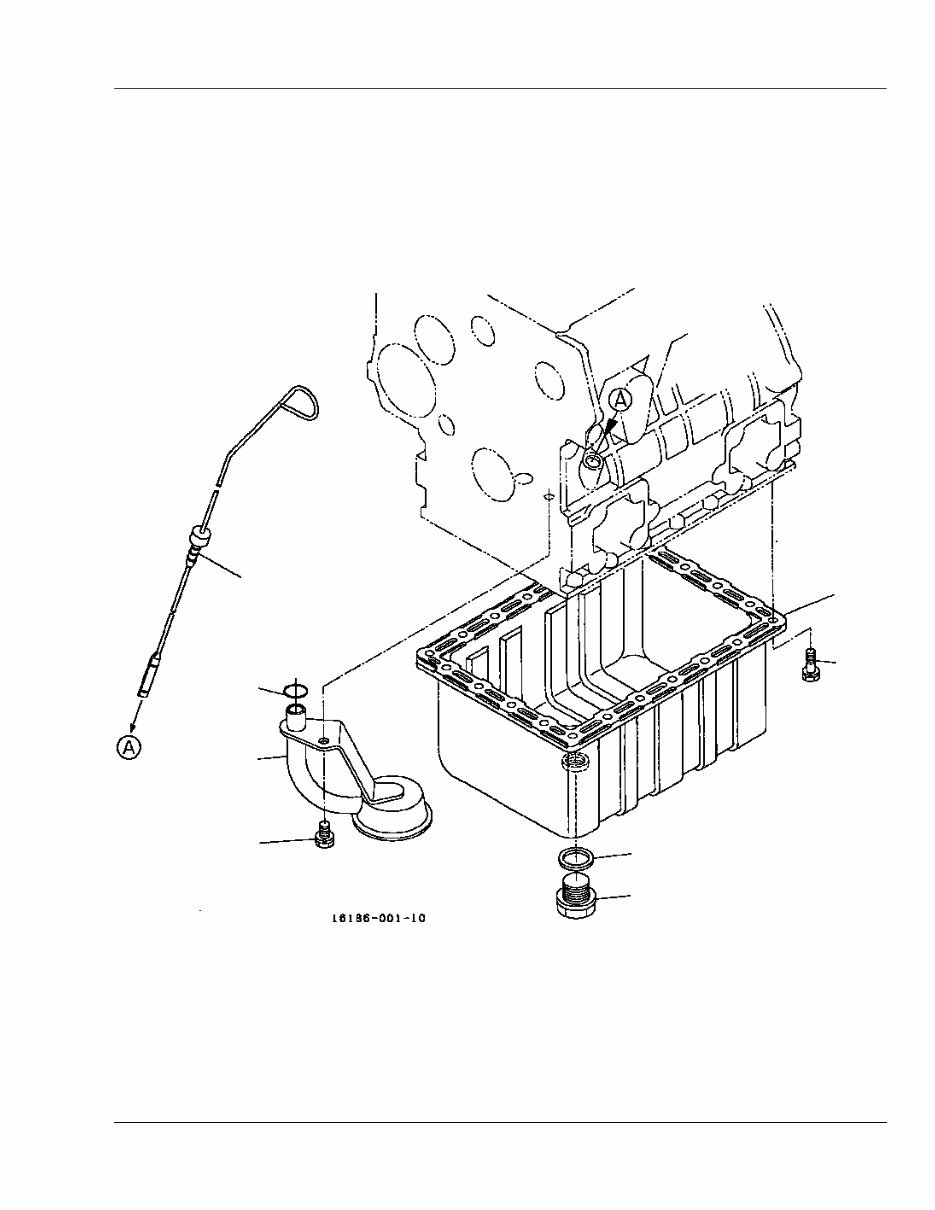

OIL PAN Reference: 01S002 Page: 2 010 030 040 050 060 070 080 090

OIL PAN # REV.MAR.15 '01 Reference: 01S002 Page: 2 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 16265-01500 COMP.OIL PAN 1 1.58 3.476 020 99999-99999 BLANK 0 0 0 030 01023-50612 BOLT 22 0.005 0.011 040 16541-33750 PLUG DRAIN 1 0 0 050 15451-96670 GASKET 1 0.003 0.0066 060 16241-32114 FILTER OIL 1 <=XG9803 0.25 0.55 060 16226-32110 FILTER OIL 1 >=XJ0001 ← 0.28 0.616 070 01123-60816 BOLT 1 0.01 0.022 080 04814-00160 O RING 1 0.001 0.0022 090 16264-36413 GAUGE OIL 1 0.047 0.1034

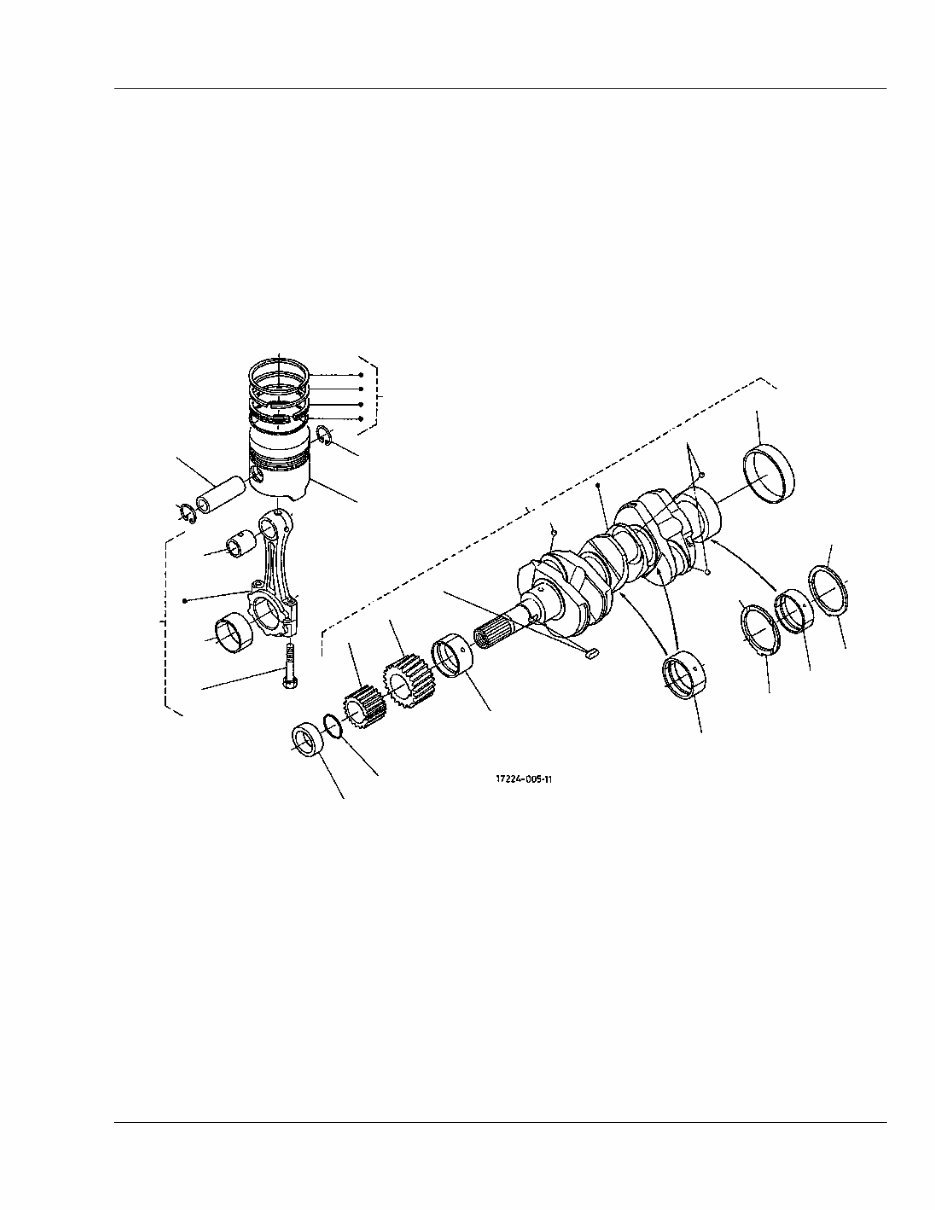

PISTON,CRANKSHAFT Reference: 01S003 Page: 3 010 020 030 040 040 050 060 070 080 090 110 110 120 130 140 150 160 170 180 190 200 210 210 220 220
