Instructions for Parts Books
The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part
numbers.
Definition of column headings on part number pages:
REF.No The number refering to the part on the picture page of the parts book.
Part No. The number assigned to this part at the time of printing the parts book.
Description Discription of part.
Q'ty Quanity of part used on that page.
S.No. Serial number range of the equipment that this part will fit.
>= Your serial number should be greater than or equal to the number shown.
<= Your serial number should be lesser than or equal to the serial number shown.
I/C Interchangeability of part shown.
The part shown will work for the older and later serial number.
# The part shown is not interchangable with the other serial number.
new for old
old for new
Remarks Notes about this particulart part. Sometimes this may say except [FR] or [CA]
Note about Country Codes:
The parts books we use in the United States of America may also contain information about a part that would be
different in another country. It is important that you are aware of the country codes in some instances.
Symbol Country
A United States of America
CA Canada
FR France
GR Greece
PO Portugal
AU Australia
If the remarks column says for example EXCEPT [FR] this part works in all countries except France.
That means it will work here in the USA.
|ALL PRODUCT INDEX

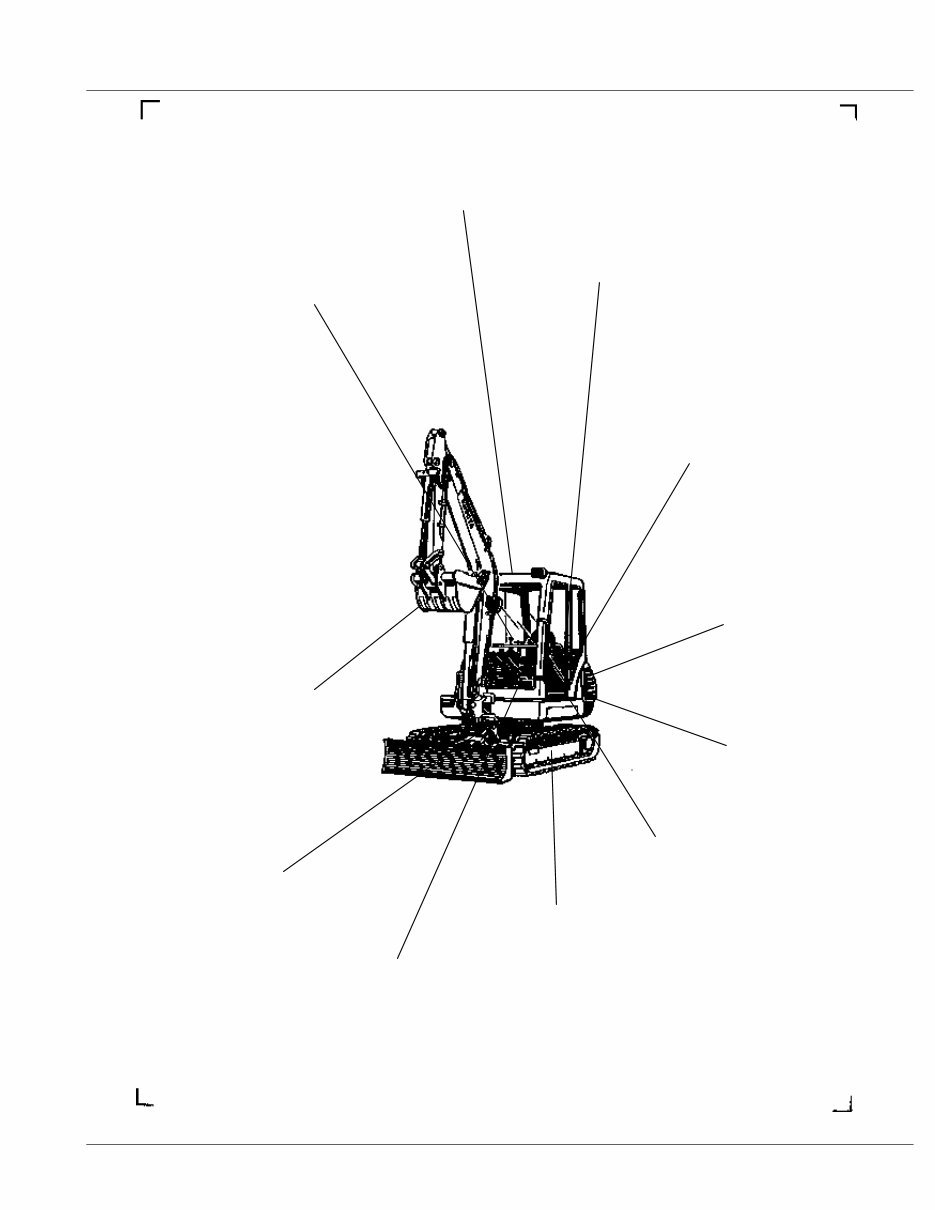

KX121-2
Ref. KX121-2 Page 41024
BASIC ENGINE
AIR INTAKE SYSTEM
EXHAUST SYSTEM
FUEL SYSTEM
COOLING SYSTEM
ELECTRICAL SYSTEM
HYDRAULIC SYSTEM
FRONT ATTACHMENTS
TRACK FRAME
SWIVEL FRAME
OPERATOR'S PLATFORM
ACCESSORIES
Ref. KX121-2 Page 41024
Item Part No. Description Book
BASIC ENGINE 01S001 CRANKCASE 100A0036
01S002 OIL PAN 100A0036
01S003 PISTON AND CRANKSHAFT 100A0036
01S004 MAIN BEARING CASE 100A0036
01S005 CAMSHAFT 100A0036
01S006 CYLINDER HEAD 100A0036
01S007 VALVE AND ROCKER ARM 100A0036
01S008 CYLINDER HEAD COVER 100A0036
01S009 GEAR CASE 100A0036
FUEL SYSTEM 01S013 NOZZLE HOLDER AND GLOW PLUG 100A0036
01S014 SPEED CONTROL PLATE 100A0036
01S015 ENGINE STOP LEVER 100A0036
01S016 GOVERNOR 100A0036
01S017 INJECTION PUMP 100A0036
01S018 INJECTION PUMP [COMPONENT PARTS] 100A0036
01S019 FUEL CAMSHAFT 100A0036
COOLING SYSTEM 01S024 WATER FLANGE 100A0036
01S025 WATER PUMP 100A0036
ELECTRICAL SYSTEM 01S028 FLYWHEEL,STARTER 100A0036
01S029 STARTER [COMPONENT PARTS] 100A0036
01S030 ALTERNATOR 100A0036
01S031 ALTERNATOR [COMPONENT PARTS] 100A0036
BASIC ENGINE 02S010 ENGINE BRACKET 100A0036
AIR INTAKE SYSTEM 02S011 AIR CLEANER,INLET MANIFOLD 100A0036
EXHAUST SYSTEM 02S012 MUFFLER,EXHAUST MANIFOLD 100A0036
FUEL SYSTEM 02S020 ACCEL LEVER 100A0036
02S021 FUEL PIPING 100A0036
02S022 FUEL FILTER [COMPONENT PARTS] 100A0036
02S023 FUEL TANK 100A0036
COOLING SYSTEM 02S026 RADIATOR 100A0036
02S027 WATER PIPE 100A0036
ELECTRICAL SYSTEM 02S032 BATTERY 100A0036
02S033 TIMER,HORN 100A0036
02S034 SWITCH,METER 100A0036
02S035 ELECTRICAL WIRING 100A0036
HYDRAULIC SYSTEM 02S036 PUMP HOUSING 100A0036
02S037 PISTON PUMP AND COMPONENT PARTS 100A0036
02S038 HYDRAULIC PUMP AND COMPONENT PARTS 100A0036
02S039-1 DRIVE MOTOR AND COMPONENT PARTS (1) 100A0036
02S039-2 DRIVE MOTOR AND COMPONENT PARTS (2) 100A0036
02S040 SWIVEL MOTOR AND COMPONENT PARTS 100A0036
02S041 ROTARY JOINT 100A0036
02S042 OIL TANK 100A0036
02S043 CONTROL VALVE 100A0036
02S044 CONTROL VALVE [COMPONENT PARTS] 100A0036
02S045-1 SPOOL SECTION (BUCKET/SWIVEL) 100A0036
02S045-2 SPOOL SECTION (BOOM) 100A0036
02S045-3 SPOOL SECTION (TRAVEL RH) 100A0036
02S045-4 SPOOL SECTION (TRAVEL LH) 100A0036
02S045-5 SPOOL SECTION (ARM) 100A0036
02S045-6 SPOOL SECTION (S/P) 100A0036
02S045-7 SPOOL SECTION (TRAVEL STRAIGHT) 100A0036
02S045-8 SPOOL SECTION (SWING/BLADE) 100A0036
02S046 CHANGE VALVE 100A0036
02S047 CHANGE VALVE [COMPONENT PARTS] 100A0036
02S048-1 MULTI VALVE 100A0036
02S048-2 TPSS VALVE 100A0036
02S049-1 MULTI VALVE [COMPONENT PARTS] 100A0036
02S049-2 TPSS VALVE [COMPONENT PARTS] 100A0036
Ref. KX121-2 Page 41024
Item Part No. Description Book
HYDRAULIC SYSTEM 02S050 CONTROL LEVER (FRAME) 100A0036
02S051 CONTROL LEVER (LEVER LH) 100A0036
02S052 CONTROL LEVER (LEVER RH) 100A0036
02S053 PILOT VALVE [COMPONENT PARTS] 100A0036
02S054 CONTROL LEVER (TRAVEL LH) 100A0036
02S055 CONTROL LEVER (TRAVEL RH) 100A0036
02S056 CONTROL TRAVEL PEDAL 100A0036
02S057 CONTROL LEVER (SAFETY LOCK LEVER) 100A0036
02S058 CONTROL PEDAL (SWIVEL/SWING CHANGE) 100A0036
02S059-1 CONTROL LEVER (TPSS) 100A0036
02S059-2 CONTROL LEVER (TPSS) 100A0036
02S060 CONTROL LEVER (BLADE) 100A0036
02S061 CONTROL LEVER (S/P 1) 100A0036
02S062 CONTROL LEVER (S/P 2) 100A0036
02S063 OIL PIPING (SUCTION) 100A0036
02S064 OIL PIPING (DELIVERY) 100A0036
02S065 OIL PIPING (RETURN) 100A0036
02S066 OIL PIPING (OIL COOLER) 100A0036
02S067 OIL PIPING (TRAVEL LH) 100A0036
02S068 OIL PIPING (TRAVEL RH) 100A0036
02S069-1 OIL PIPING (SWIVEL 1) 100A0036
02S069-2 OIL PIPING (SWIVEL 1) 100A0036
02S070 OIL PIPING (SWIVEL 2) 100A0036
02S071 OIL PIPING (SWING) 100A0036
02S072 OIL PIPING (LOCK) 100A0036
02S073-1 OIL PIPING (BOOM 1) 100A0036
02S073-2 OIL PIPING (BOOM 1) 100A0036
02S074 OIL PIPING (BOOM 2) 100A0036
02S075-1 OIL PIPING (ARM 1) 100A0036
02S075-2 OIL PIPING (ARM 1) 100A0036
02S076 OIL PIPING (ARM 2) 100A0036
02S077-1 OIL PIPING (BUCKET 1) 100A0036
02S077-2 OIL PIPING (BUCKET 1) 100A0036
02S078 OIL PIPING (BUCKET 2) 100A0036
02S079 OIL PIPING (BLADE) 100A0036
02S080 OIL PIPING (CLAMP) 100A0036
02S081 OIL PIPING (S/P) 100A0036
02S082 BOOM CYLINDER AND COMPONENT PARTS 100A0036
02S083 ARM CYLINDER AND COMPONENT PARTS 100A0036
02S084 BUCKET CYLINDER AND COMPONENT PARTS 100A0036
02S085 BLADE CYLINDER AND COMPONENT PARTS 100A0036
02S086 SWING CYLINDER AND COMPONENT PARTS 100A0036
FRONT ATTACHMENTS 02S087 SWING BRACKET 100A0036
02S088 BOOM 100A0036
02S089 CYLINDER COVER (BOOM) 100A0036
02S090 ARM 100A0036
02S091 BUCKET LINK 100A0036
02S092 BUCKET 100A0036
02S093 BLADE 100A0036
TRACK FRAME 02S094 TRACK FRAME 100A0036
02S095 IDLER 100A0036
02S096 TRACK ROLLER 100A0036
02S097 CRAWLER 100A0036
SWIVEL FRAME 02S098 SWIVEL FRAME 100A0036
02S099 SWIVEL GEAR CASE 100A0036
02S100 SWIVEL GEAR 100A0036
02S101 SWIVEL BEARING 100A0036
02S102 SEAT SUPPORT 100A0036
02S103 STEP 100A0036
Ref. KX121-2 Page 41024
Item Part No. Description Book
SWIVEL FRAME 02S104 COVER (LEFT) 100A0036
02S105 COVER (TANK) 100A0036
02S106 BONNET 100A0036
02S107 SPONGE (1) 100A0036
02S108 SPONGE (2) 100A0036
02S109 WEIGHT 100A0036
OPERATOR'S PLATFORM 02S110 CANOPY 100A0036
02S111 CABIN (BODY) 100A0036
02S112 CABIN (DOOR) 100A0036
02S113 CABIN (WINDOW 1) 100A0036
02S114 CABIN (WINDOW 2) 100A0036
02S115 CABIN (SPONGE) 100A0036
02S116 CABIN (PARTITION PLATE) 100A0036
02S117 INSTRUMENT PANEL 100A0036
02S118 SEAT 100A0036
02S119 CABIN (ELECTRICAL WIRING) 100A0036
02S120 CABIN (WIPER MOTOR) 100A0036
02S121 CABIN (HEATER) 100A0036
02S122 CABIN (DEFROSTER) 100A0036
02S123 LIGHT 100A0036
02S124 LABEL 100A0036
ACCESSORIES 02S125 ACCESSORIES 100A0036
02S126 WEIGHT KIT [OPTION] 100A0036
02S127 LABEL KIT [OPTION] 100A0036

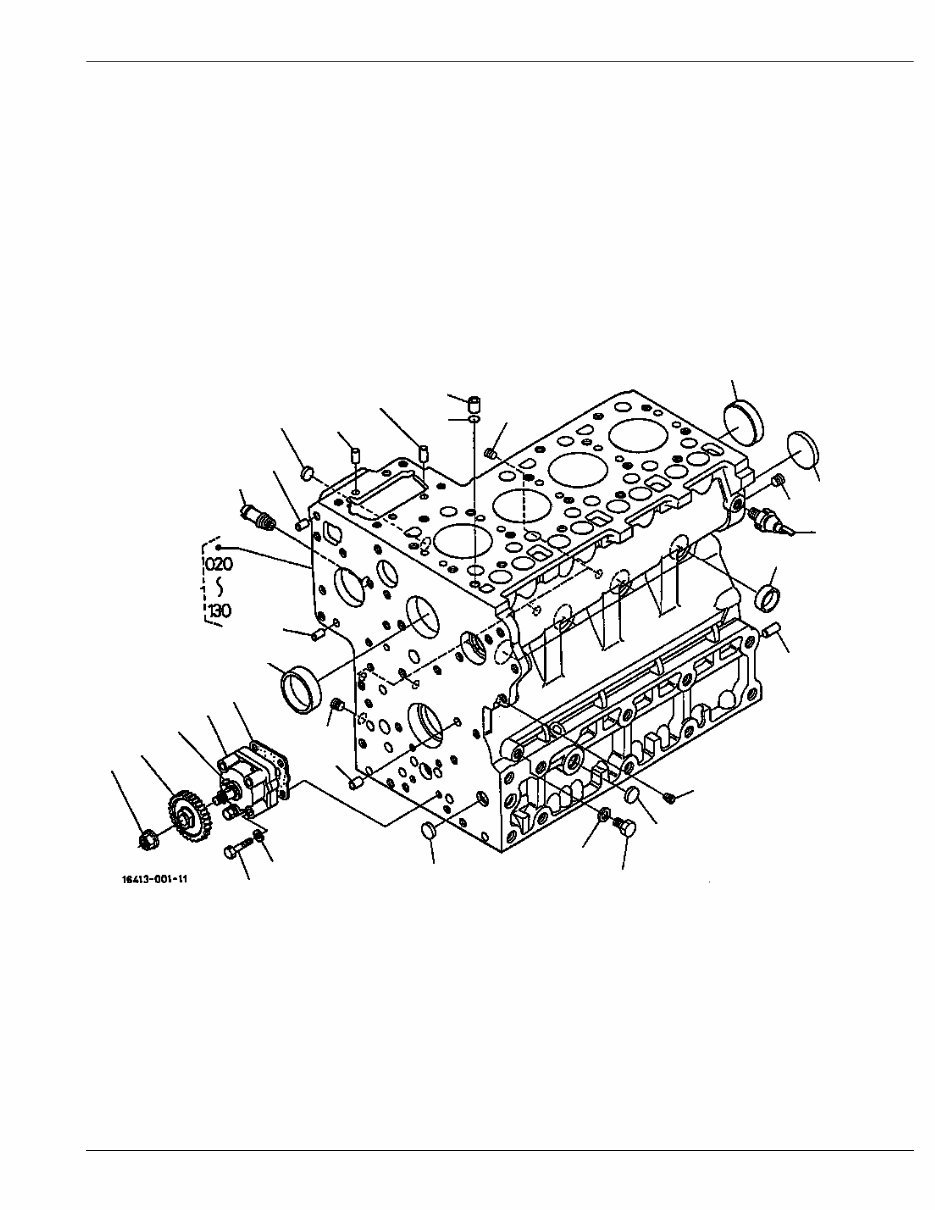

CRANKCASE
Reference: 01S001 Page: 1
010
020
020
030
030
040
040
050
060
070
070
080
090
090
100
100
110
120
125
130
140
150
160
170
180
190
200
210
220
230
240
CRANKCASE
Reference: 01S001 Page: 1
REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight
(kgf)
Weight
(lb)
010 16413-01010 COMP.CRANKCASE 1 0 0
010 16413-01016 COMP.CRANKCASE 1 ← 54.5 119.9
020 15521-96020 PLUG 6 0.003 0.0066
030 15521-96030 PLUG 2 0.007 0.0154
040 17391-96160 PLUG EXPANSION 3 0.003 0.0066
050 06311-75045 PLUG EXPANSION 1 0.026 0.0572
060 15221-03380 CAP SEALING 6 0.017 0.0374
070 15221-03390 CAP SEALING 2 0.03 0.066
080 05012-00408 PIN STRAIGHT 2 0.001 0.0022
090 05012-00609 PIN STRAIGHT 2 0.003 0.0066
100 05012-00612 PIN STRAIGHT 2 0.003 0.0066
110 05012-01018 PIN STRAIGHT 1 0.012 0.0264
120 15221-33650 PIN PIPE 1 0.004 0.0088
125 06311-85020 CAP SEALING 1 0.002 0.0044
130 15321-73340 PIPE WATER RETURN 1 0.016 0.0352
140 15221-33610 PLUG 1 0.009 0.0198
150 15021-33660 GASKET 1 0.001 0.0022
160 15221-33700 O RING 1 0.001 0.0022
170 15471-35010 ASSY PUMP OIL 1 <=6954 0 0
170 15471-35012 ASSY PUMP OIL 1 >=6955 ↔ 0.55 1.21
180 1A021-35150 GASKET OIL PUMP 1 0.001 0.0022
190 01053-50650 BOLT 4 0.011 0.0242
200 04512-60060 WASHER SPRING 4 0.001 0.0022
210 19202-35660 GEAR OIL PUMP DRIVE 1 0.23 0.506
220 05712-00410 KEY FEATHER 1 0.001 0.0022
230 15221-35682 NUT FLANGE 1 0.014 0.0308
240 15531-39010 SWITCH OIL 1 0.032 0.0704

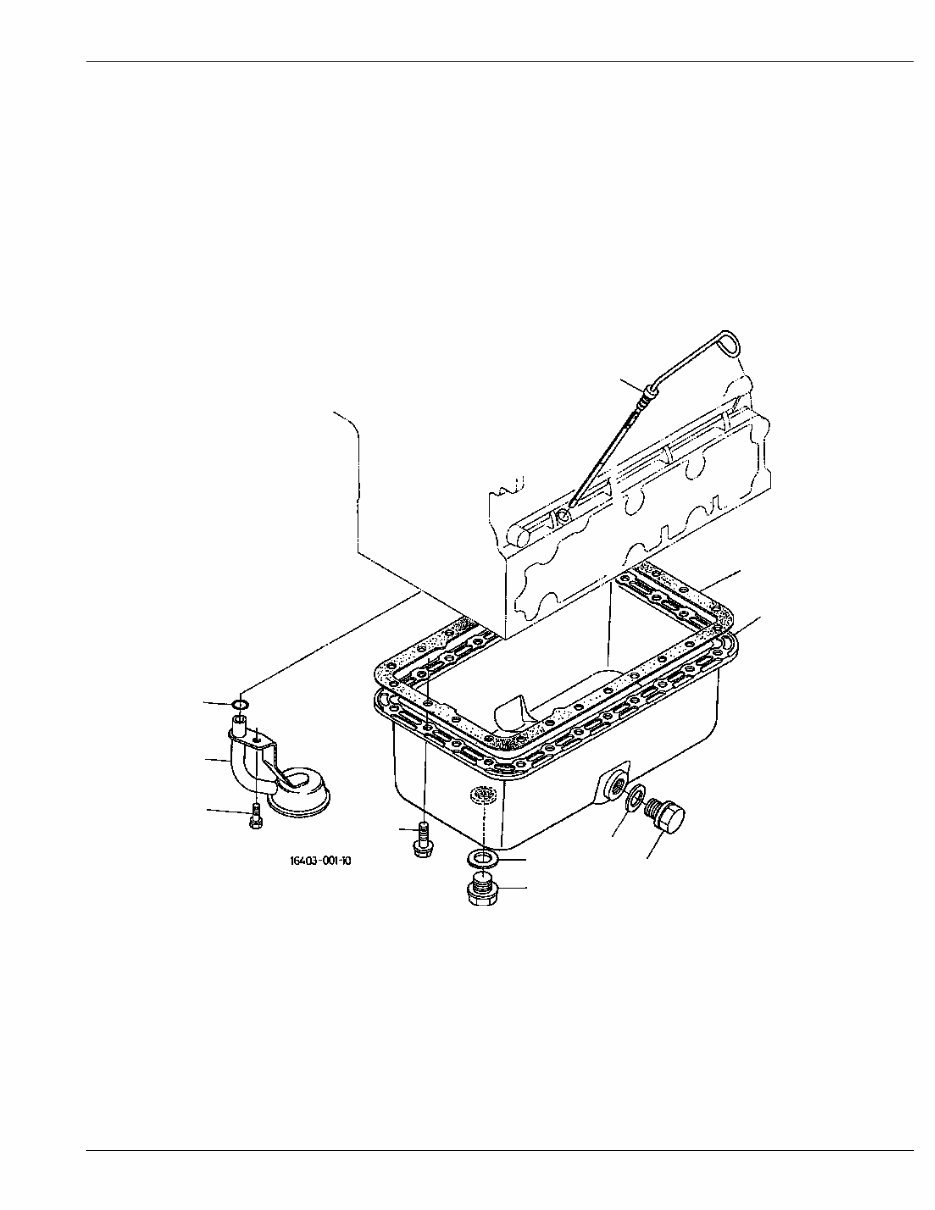

OIL PAN
Reference: 01S002 Page: 2
010
020
030
040
040
050
050
060
070
080
090
OIL PAN
Reference: 01S002 Page: 2
REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight
(kgf)
Weight
(lb)
010 19077-01500 COMP.OIL PAN 1 2.65 5.83
020 19228-01620 GASKET OIL PAN 1 0.07 0.154
030 17333-91010 BOLT FLANGE 24 0.03 0.066
040 16541-33750 PLUG DRAIN 2 0 0
050 15451-96670 GASKET 2 0.003 0.0066
060 16413-32110 FILTER OIL 1 0.24 0.528
070 01123-60816 BOLT 1 0.01 0.022
080 04814-00160 O RING 1 0.001 0.0022
090 16413-36412 GAUGE OIL 1 0.04 0.088

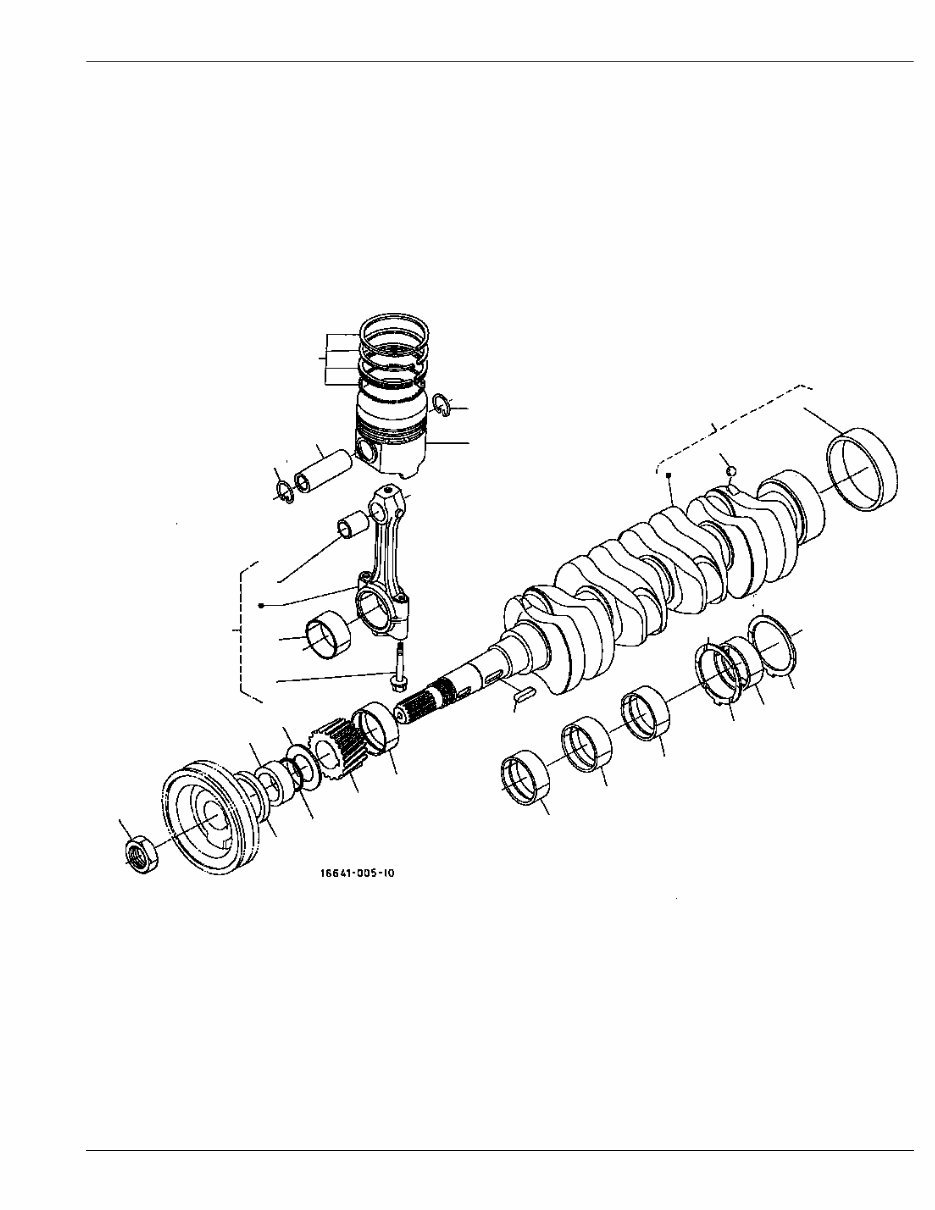

PISTON AND CRANKSHAFT
Reference: 01S003 Page: 3
010
020
030
040
040
050
060
070
080
090
100
110
120
130
140
150
160
170
180
190
200
200
200
200
210
210
220
220
