Kubota KX101 Excavator Illustrated Master Parts Manual

Instructions for Parts Books The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part numbers. Definition of column headings on part number pages: REF.No  The number refering to the part on the picture page of the parts book. Part No.  The number assigned to this part at the time of printing the parts book. Description  Discription of part. Q'ty  Quanity of part used on that page. S.No.  Serial number range of the equipment that this part will fit. >= Your serial number should be greater than or equal to the number shown. <= Your serial number should be lesser than or equal to the serial number shown. I/C  Interchangeability of part shown.  The part shown will work for the older and later serial number. # The part shown is not interchangable with the other serial number.  new for old  old for new Remarks  Notes about this particulart part. Sometimes this may say except [FR] or [CA] Note about Country Codes: The parts books we use in the United States of America may also contain information about a part that would be different in another country. It is important that you are aware of the country codes in some instances. Symbol Country A United States of America CA Canada FR France GR Greece PO Portugal AU Australia If the remarks column says for example EXCEPT [FR] this part works in all countries except France. That means it will work here in the USA.

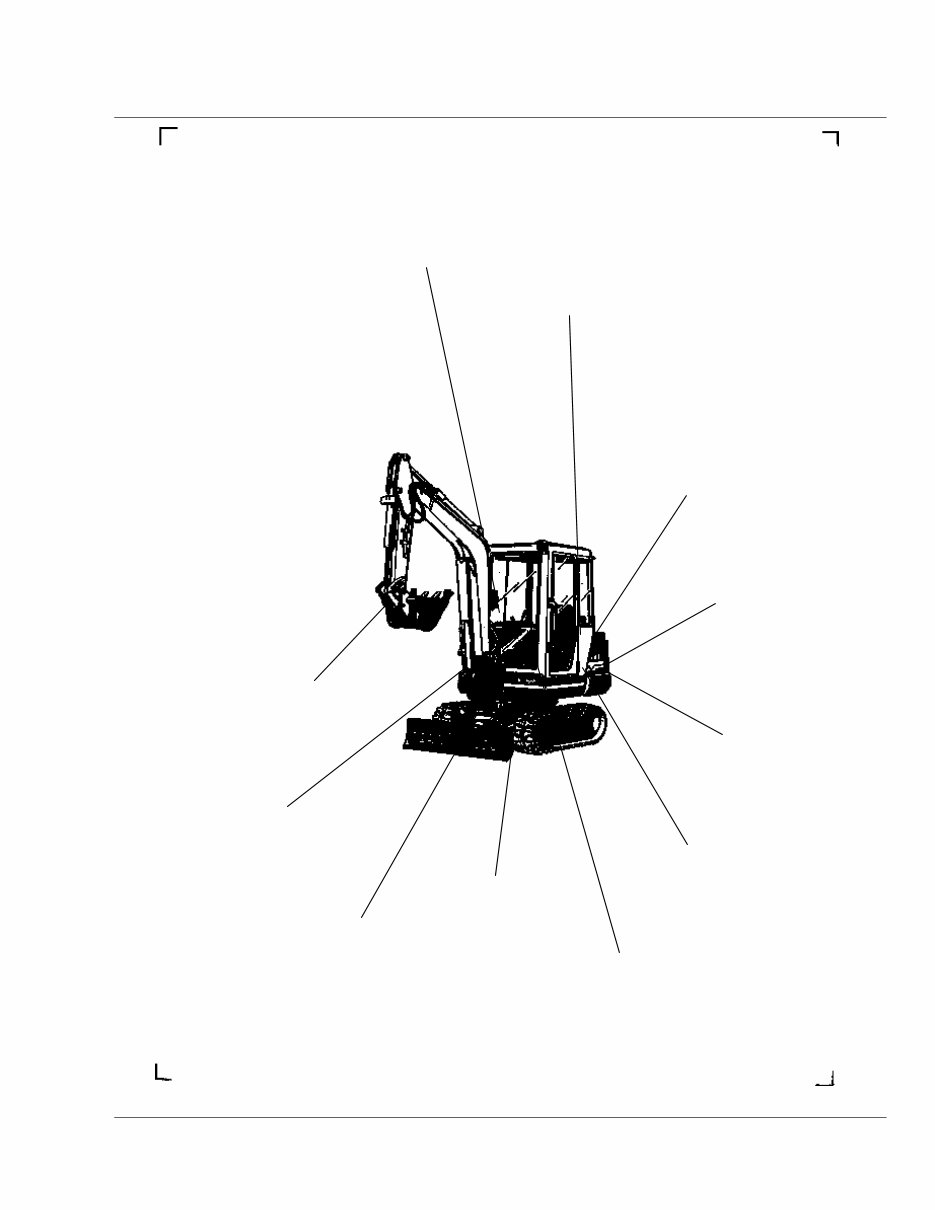

|ALL PRODUCT INDEX KX101 Ref. KX101 Page 41020 BASIC ENGINE AIR INTAKE SYSTEM EXHAUST SYSTEM FUEL SYSTEM COOLING SYSTEM ELECTRICAL SYSTEM HYDRAULIC SYSTEM FRONT ATTACHMENTS TRUCK FRAME SWIVEL FRAME OPERATOR'S PLATFORM ACCESSORIES

Ref. KX101 Page 41020 Item Part No. Description Book BASIC ENGINE 01S001 CRANKCASE 100K0156 01S002 OIL PAN 100K0156 01S003 PISTON, CRANKSHAFT 100K0156 01S004 MAIN BEARING CASE 100K0156 01S005 CAMSHAFT 100K0156 01S006 CYLINDER HEAD 100K0156 01S007 VALVE, ROCKER ARM 100K0156 01S008 CYLINDER HEAD COVER 100K0156 01S009 GEAR CASE 100K0156 01S010 ENGINE STOP LEVER 100K0156 FUEL SYSTEM 01S014 NOZZLE HOLDER, GLOW PLUG 100K0156 01S015 NOZZLE HOLDER (COMPONENT PARTS) 100K0156 01S016 SPEED CONTROL PLATE 100K0156 01S017 GOVERNOR 100K0156 01S018 INJECTION PUMP, CAMSHAFT (1) 100K0156 01S019 INJECTION PUMP (COMPONENT PARTS) 100K0156 01S020 INJECTION PUMP, CAMSHAFT (2) 100K0156 COOLING SYSTEM 01S024 WATER FLANGE 100K0156 01S025 WATER PUMP 100K0156 ELECTRICAL SYSTEM 01S028 FLYWHEEL,STARTER 100K0156 01S02901 STARTER (COMPONENT PARTS) 100K0156 01S02902 STARTER (COMPONENT PARTS) 100K0156 01S030 DYNAMO 100K0156 01S031 DYNAMO (COMPONENT PARTS) 100K0156 BASIC ENGINE 01S011 ENGINE BRACKET 100K0156 AIR INTAKE SYSTEM 01S01201 AIR CLEANER, INLET MANIFOLD 100K0156 EXHAUST SYSTEM 01S013 MUFFLER, EXHAUST MANIFOLD 100K0156 FUEL SYSTEM 01S021 ACCEL LEVER 100K0156 01S022 FUEL PIPING 100K0156 01S023 FUEL TANK 100K0156 COOLING SYSTEM 01S026 RADIATOR 100K0156 01S027 WATER PIPE 100K0156 ELECTRICAL SYSTEM 01S032 BATTERY 100K0156 01S033 REGULATOR, HORN 100K0156 01S034 SWITCH, METER 100K0156 01S035 ELECTRICAL WIRING 100K0156 HYDRAULIC SYSTEM 01S089 PUMP HOUSING 100K0156 01S090 GEAR PUMP & COMPONENT PARTS 100K0156 01S091 HYDRAULIC PUMP & COMPONENT PARTS 100K0156 01S09201 DRIVE MOTOR & COMPONENT PARTS 1 100K0156 01S09202 DRIVE MOTOR & COMPONENT PARTS 2 100K0156 01S093 SWIVEL MOTOR & COMPONENT PARTS 100K0156 01S094 ROTARY JOINT 100K0156 01S095 OIL TANK 100K0156 01S096 CONTROL VALVE (1) 100K0156 01S097 CONTROL VALVE (1) (COMPONENT PARTS) 100K0156 01S09801 SPOOL SECTION (TRAVEL RH) 100K0156 01S09802 SPOOL SECTION (BOOM) 100K0156 01S09803 SPOOL SECTION (BUCKET) 100K0156 01S09804 SPOOL SECTION 100K0156 01S09805 SPOOL SECTION (TRAVEL SPEED 2ND) 100K0156 01S09806 SPOOL SECTION (TRAVEL LH) 100K0156 01S09807 SPOOL SECTION (BOOM) 100K0156 01S09808 SPOOL SECTION (ARM) 100K0156 01S09809 SPOOL SECTION (S/P) 100K0156 01S09810 SPACER SECTION 100K0156

Ref. KX101 Page 41020 Item Part No. Description Book HYDRAULIC SYSTEM 01S099 CONTROL VALVE (3) 100K0156 01S100 CONTROL VALVE (3) (COMPONENT PARTS) 100K0156 01S10101 SPOOL SECTION (SWIVEL) 100K0156 01S10102 SPOOL SECTION (SWING) 100K0156 01S10103 SPOOL SECTION (BLADE) 100K0156 01S102 CHANGE VALVE 100K0156 01S103 CONTROL LEVER (FRAME) 100K0156 01S104 CONTROL LEVER (PATTERN SELECTOR) 100K0156 01S105 CONTROL LEVER (BOX LH) 100K0156 01S10601 CONTROL LEVER (LEVER LH) 100K0156 01S10602 PILOT VALVE (COMPONENT PARTS) 100K0156 01S107 CONTROL LEVER (BOX RH) 100K0156 01S108 CONTROL LEVER (LEVER RH) 100K0156 01S109 CONTROL LEVER (TRAVEL LH) 100K0156 01S110 CONTROL LEVER (TRAVEL RH) 100K0156 01S111 CONTROL TRAVEL PEDAL 100K0156 01S112 CONTROL LEVER (SAFETY LOCK LEVER) 100K0156 01S113 CONTROL PEDAL (SWIVEL/SWING CHANGE) 100K0156 01S114 CONTROL LEVER (BLADE) 100K0156 01S115 CONTROL LEVER (S/P) 100K0156 01S116 OIL PIPING (THIRD LINE) 100K0156 01S117 OIL PIPING (SUCTION) 100K0156 01S118 OIL PIPING (DELIVERY) 100K0156 01S119 OIL PIPING (UNLOAD VALVE) (COMPONENT PARTS) 100K0156 01S120 OIL PIPING (RETURN) 100K0156 01S121 OIL PIPING (OIL COOLER) 100K0156 01S122 OIL PIPING (TRAVEL LH) 100K0156 01S123 OIL PIPING (TRAVEL RH) 100K0156 01S124 OIL PIPING (SWIVEL / SWING) 100K0156 01S125 OIL PIPING (SWIVEL) 100K0156 01S126 OIL PIPING (SWING) 100K0156 01S127 OIL PIPING (LOCK) 100K0156 01S128 OIL PIPING (BOOM 1) 100K0156 01S129 OIL PIPING (BOOM 2) 100K0156 01S130 OIL PIPING (ARM 1) 100K0156 01S131 OIL PIPING (ARM 2) 100K0156 01S132 OIL PIPING (BUCKET 1) 100K0156 01S133 OIL PIPING (BUCKET 2) 100K0156 01S134 OIL PIPING (BLADE) 100K0156 01S135 OIL PIPING (CONFLUENCE) 100K0156 01S136 OIL PIPING (CUSHION) 100K0156 01S137 OIL PIPING (S/P) 100K0156 01S138 BOOM CYLINDER & COMPONENT PARTS 100K0156 01S139 ARM CYLINDER & COMPONENT PARTS 100K0156 01S140 BUCKET CYLINDER & COMPONENT PARTS 100K0156 01S141 BLADE CYLINDER & COMPONENT PARTS 100K0156 01S142 SWING CYLINDER & COMPONENT PARTS 100K0156 FRONT ATTACHMENTS 01S143 SWING BRACKET 100K0156 01S144 BOOM 100K0156 01S145 CYLINDER COVER (BOOM) 100K0156 01S146 ARM 100K0156 01S147 BUCKET LINK 100K0156 01S148 BUCKET 100K0156 01S149 BLADE 100K0156 TRUCK FRAME 01S150 TRUCK FRAME 100K0156

Ref. KX101 Page 41020 Item Part No. Description Book TRUCK FRAME 01S151 IDLER 100K0156 01S152 TRUCK ROLLER 100K0156 01S153 CRAWLER 100K0156 SWIVEL FRAME 01S154 SWIVEL FRAME 100K0156 01S155 SWIVEL GEAR CASE 100K0156 01S156 SWIVEL GEAR 100K0156 01S157 SWIVEL BEARING 100K0156 01S158 FLOOR PLATE (1) 100K0156 01S159 FLOOR PLATE (2) 100K0156 01S160 BONNET 100K0156 01S16102 SPONGE (1) [KTC KCL KTA] 100K0156 01S162 SPONGE (2) 100K0156 01S16302 SPONGE (3) [KTC KCL KTA] 100K0156 01S164 WEIGHT 100K0156 OPERATOR'S PLATFORM 01S16502 CANOPY (ROPS) [KTC KCL KTA] 100K0156 01S16602 CABIN (BODY) [KTC KCL KTA] 100K0156 01S16702 CABIN (DOOR) [KTC/KCL/KTA] 100K0156 01S16802 CABIN (FRONT WINDOW) [KTC KCL KTA] 100K0156 01S16902 CABIN (WINDOW) [KTC KCL KTA] 100K0156 01S17002 CABIN (SPONGE) [KTC KCL KTA] 100K0156 01S171 INSTRUMENT, PANEL 100K0156 01S17203 SEAT [KTC KCL M.E. KTA] 100K0156 01S173 CABIN (ELECTRICAL) 100K0156 01S174 CABIN (WIPER MOTOR) 100K0156 01S175 CABIN (DEFROSTER) 100K0156 01S176 CABIN (HEATER) 100K0156 01S177 LIGHT 100K0156 01S17802 LABEL [KTC KCL KTA] 100K0156 ACCESSORIES 01S179 ACCESSORIES 100K0156

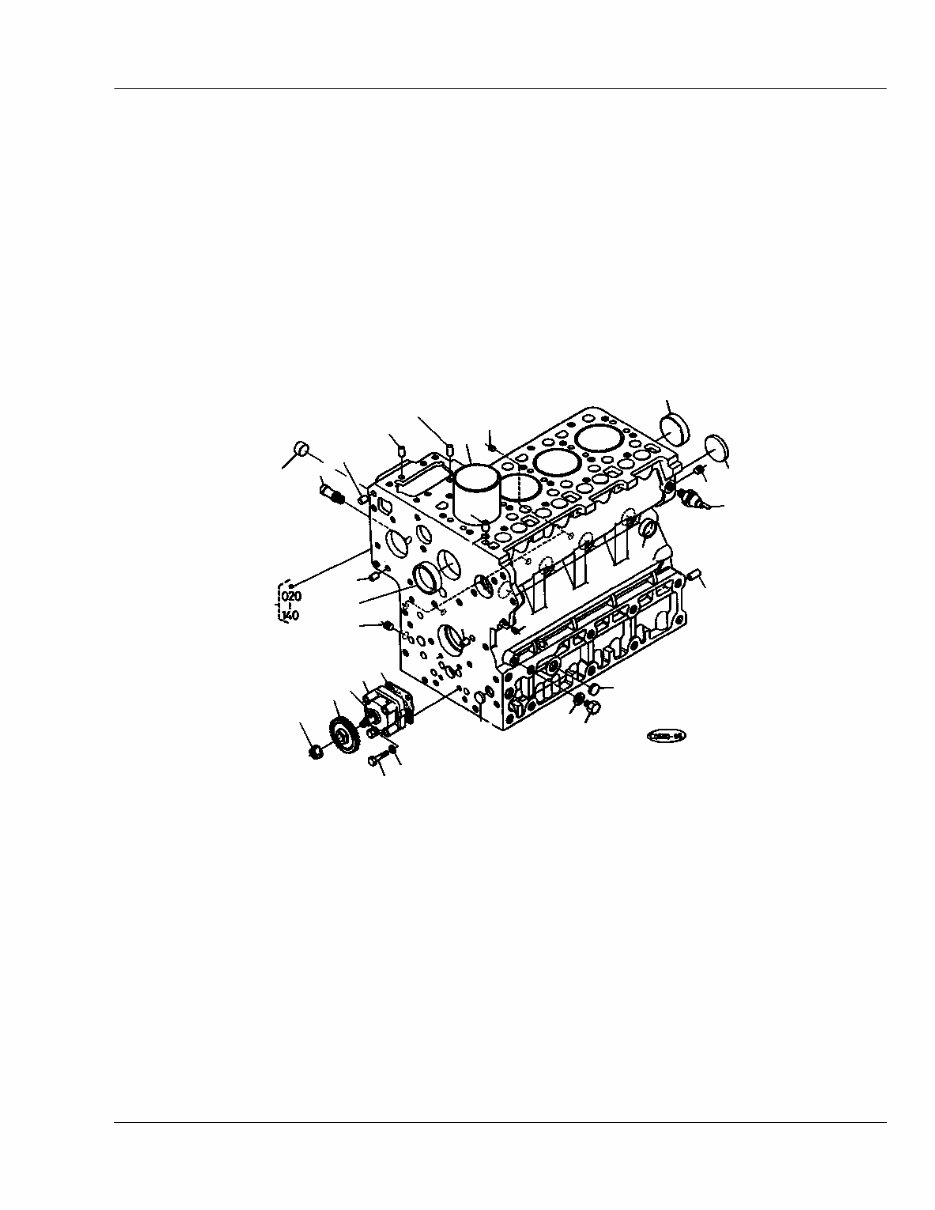

CRANKCASE Reference: 01S001 Page: 1 010 020 020 030 030 040 040 050 060 070 070 080 090 090 100 100 110 120 130 135 140 150 160 170 180 190 200 210 220 230 240 250

CRANKCASE Reference: 01S001 Page: 1 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 16342-01010 COMP.CRANKCASE 1 <=15762 0 0 010 16342-01013 COMP.CRANKCASE 1 >=15763 ← 61 134.2 020 15521-96020 PLUG 6 0.003 0.0066 030 15521-96030 PLUG 2 0.007 0.0154 040 06311-75018 PLUG 3 <=14673 0.004 0.0088 040 17391-96160 PLUG 3 >=14674 ← 0.003 0.0066 050 06311-75045 PLUG 1 0.026 0.0572 060 15221-03380 CAP,SEALING 6 0.017 0.0374 070 15221-03390 CAP,SEALING 2 0.03 0.066 080 05012-00408 PIN,STRAIGHT 2 0.001 0.0022 090 05012-00609 PIN,STRAIGHT 2 0.003 0.0066 100 05012-00612 PIN,STRAIGHT 2 0.003 0.0066 110 05012-01018 PIN,STRAIGHT 1 0.012 0.0264 120 15221-33650 PIN,PIPE 1 0.004 0.0088 130 15321-73340 PIPE,WATER RETURN 1 0.016 0.0352 135 06311-85020 CAP,SEALING 1 >=15763 0.002 0.0044 140 15521-02310 LINER,CYLINDER 4 0.66 1.452 150 15221-33610 PLUG 1 0.009 0.0198 160 15021-33660 GASKET 1 0.001 0.0022 170 15221-33700 O RING 1 0.001 0.0022 180 15471-35010 ASSY PUMP,OIL 1 0 0 190 15221-35150 GASKET,OIL PUMP 1 <=18067 0 0 190 15296-35150 GASKET,OIL PUMP NA 1 >=18068 ≠ 0.001 0.0022 200 01053-50650 BOLT 4 0.011 0.0242 210 04512-50060 WASHER,SPRING 4 0 0 220 19202-35660 GEAR,OIL PUMP DRIVE 1 0.23 0.506 230 05712-00410 KEY,FEATHER 1 0.001 0.0022 240 15221-35682 NUT,FLANGE 1 0.014 0.0308 250 15531-39010 SWITCH,OIL 1 0.032 0.0704

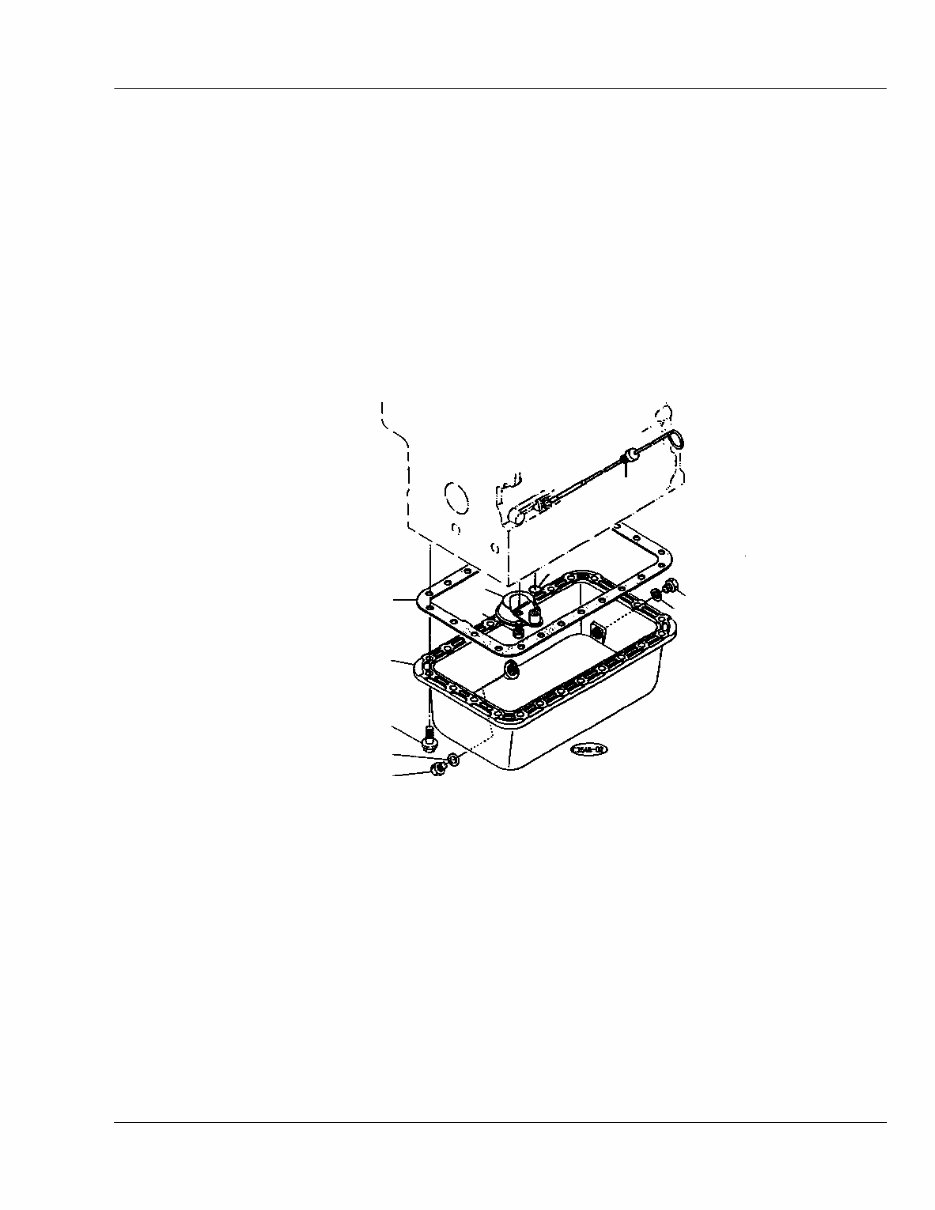

OIL PAN Reference: 01S002 Page: 2 010 020 030 040 050 060 070 080 090 100 110

OIL PAN Reference: 01S002 Page: 2 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 15434-01610 OIL PAN 1 <=17842 0 0 010 15434-01613 OIL PAN 1 >=17843 ↔ 2.25 4.95 020 15469-01620 GASKET,OIL PAN 1 <=18067 0 0 020 19228-01620 GASKET,OIL PAN NA 1 >=18068 ≠ 0.07 0.154 030 17333-91010 BOLT,FLANGE 24 0.03 0.066 040 15221-33750 PLUG 1 0.032 0.0704 050 15109-33660 GASKET 1 0.001 0.0022 060 06331-45016 PLUG 1 0.05 0.11 070 04724-00160 GASKET 1 0.003 0.0066 080 15628-32110 FILTER,OIL 1 0.225 0.495 090 01123-50816 BOLT 1 0.011 0.0242 100 04814-00160 O RING 1 0.001 0.0022 110 15435-36410 GAUGE,OIL 1 <=15156 0 0 110 15435-36412 GAUGE,OIL 1 >=15157 ← 0 0 110 15435-36413 GAUGE,OIL 1 >=17238 ← 0 0 110 15435-36414 GAUGE,OIL 1 >=18821 ← 0.055 0.121

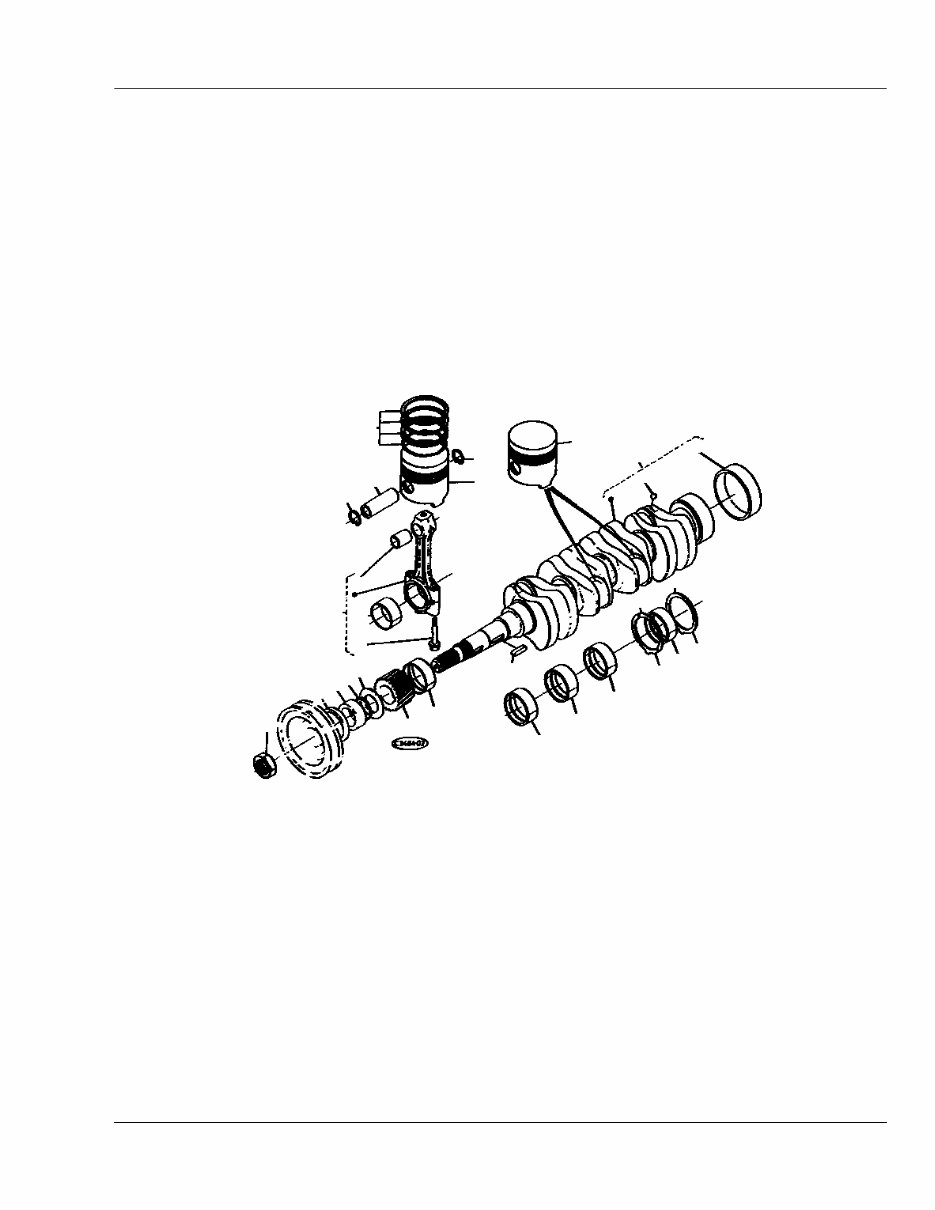

PISTON, CRANKSHAFT Reference: 01S003 Page: 3 010 020 030 040 050 050 060 070 080 090 100 110 120 130 140 150 160 170 180 190 200 210 210 210 210 220 220 230 230
