SAA6D107E-1G-W S/N 26500006-UP
KOMATSU SAA6D107E-1G-W S/N 26500006-UP
Ref. |000000 Page
Item Description Page
AA ENGINE 030000
SAA6D107E-1G-W S/N 26500006-UP
ENGINE
Ref. |030000 Page 030000
Item Description Qty Page
10 CYLINDER HEAD 1 030010
20 LIFTING BRACKET 1 030020
30 LIFTING BRACKET MOUNTING 1 030030
40 HEAD COVER 1 030040
50 BREATHER AND HOSE(#26502270-) 1 030050
60 AIR INTAKE CONNECTOR 1 030060
70 AIR INTAKE HEATER 1 030070
80 AIR INTAKE CONNECTOR MOUNTING 1 030080
90 EXHAUST CONNECTOR CLAMP 1 030090
100 EXHAUST MANIFOLD 1 030100
110 TURBOCHARGER OIL PIPING 1 030110
120 AIR INTAKE COVER 1 030120
130 TURBOCHARGER 1 030130
140 HEAT SHIELD (TURBOCHARGER) (FOR EXCEPT
JAPAN)
1 030140
160 EXHAUST MUFFLER AND MOUNTING BRACKET 1 030160
170 THERMOSTAT 1 030170
180 WATER OUTLET CONNECTOR 1 030180
190 TAPPET AND PLATE(#26500006-26502683) 1 030190
195 TAPPET AND PLATE(#26502684-) 1 030195
200 CYLINDER BLOCK PLATE(#26500006-26502683) 1 030200
210 CYLINDER BLOCK 1 030210
220 FRONT GEAR COVER 1 030220
240 REAR GEAR COVER FITTING PARTS 1 030240
250 OIL PAN 1 030250
260 OIL PAN DRAIN 1 030260
270 OIL LEVEL SENSOR 1 030270
280 OIL LEVEL GAUGE 1 030280
290 BREATHER HOSE RELATED PARTS 1 030290
300 FLYWHEEL HOUSING 1 030300
310 FLYWHEEL 1 030310
320 FLYWHEEL MOUNTING 1 030320
330 CRANKSHAFT 1 030330
340 DAMPER 1 030340
350 PISTON AND CONNECTING ROD 1 030350
360 ROCKER ARM(#26500006-26506236) 1 030360
365 ROCKER ARM(#26506237-) 1 030365
370 CAMSHAFT 1 030370
380 REAR GEAR HOUSING 1 030380
390 ACCESSORY DRIVE PULLEY(#26500978-) 1 030390
400 OIL PUMP 1 030400
SAA6D107E-1G-W S/N 26500006-UP
ENGINE
Ref. |030000 Page 030000
Item Description Qty Page
410 OIL FILTER AND PIPING 1 030410
420 OIL COOLER 1 030420
430 FUEL SYSTEM RELATED PARTS 1 030430
440 FUEL INJECTION PUMP 1 030440
450 FUEL FILTER(#26500070-) 1 030450
460 FUEL FILTER PIPING 1 030460
470 FUEL PIPING 1 030470
490 FUEL SYSTEM COVER 1 030490
500 FUEL FILTER PIPING AND COMMON RAIL 1 030500
510 INJECTOR 1 030510
520 FUEL INJECTION CONTROLLER RELATED PARTS 1 030520
530 FUEL INJECTION CONTROLLER(#26502270-) 1 030530
540 WATER INLET CONNECTOR 1 030540
550 WATER PUMP 1 030550
560 COOLING FAN DRIVE PULLEY(#26502270-) 1 030560
570 COOLING FAN 1 030570
580 FAN SPACER 1 030580
590 ALTERNATOR (35A) 1 030590
600 ALTERNATOR (60A) 1 030600
610 ALTERNATOR (35A) (INNER PARTS) 1 030610
620 ALTERNATOR (60A) (INNER PARTS) 1 030620
630 COOLING FAN BELT(#26500029-) 1 030630
640 ALTERNATOR MOUNTING 1 030640
650 BELT TENSIONER 1 030650
660 STARTING MOTOR (4.5KW) 1 030660
670 STARTING MOTOR (5.5KW) 1 030670
680 STARTING MOTOR (4.5KW) (INNER PARTS) 1 030680
690 STARTING MOTOR (5.5KW) (INNER PARTS) 1 030690
700 STARTING MOTOR MOUNTING (4.5KW)(#26500006-26504302) 1 030700
710 STARTING MOTOR MOUNTING (5.5KW)(#26500006-26504302) 1 030710
713 STARTING MOTOR MOUNTING (4.5KW)(#26504303-) 1 030713
716 STARTING MOTOR MOUNTING (5.5KW)(#26504303-) 1 030716
720 WIRING HARNESS 1 030720
730 WIRING HARNESS BRACKET(#26500978-) 1 030730
740 REPAIR PARTS 1 030740
750 HEATER SWITCH 1 030750
760 STARTER RELAY 1 030760
770 MUFFLER TUBE 1 030770
780 FUEL PRE-FILTER 1 030780
790 AIR TRANSFER CONNECTION 1 030790
800 CORROSION RESISTOR 1 030800
SAA6D107E-1G-W S/N 26500006-UP
ENGINE
Ref. |030000 Page 030000
Item Description Qty Page
810 SPARE PARTS(#26500029-) 1 030810
820 AIR CLEANER(#26500978-) 1 030820
SAA6D107E-1G-W S/N 26500006-UP
00050924

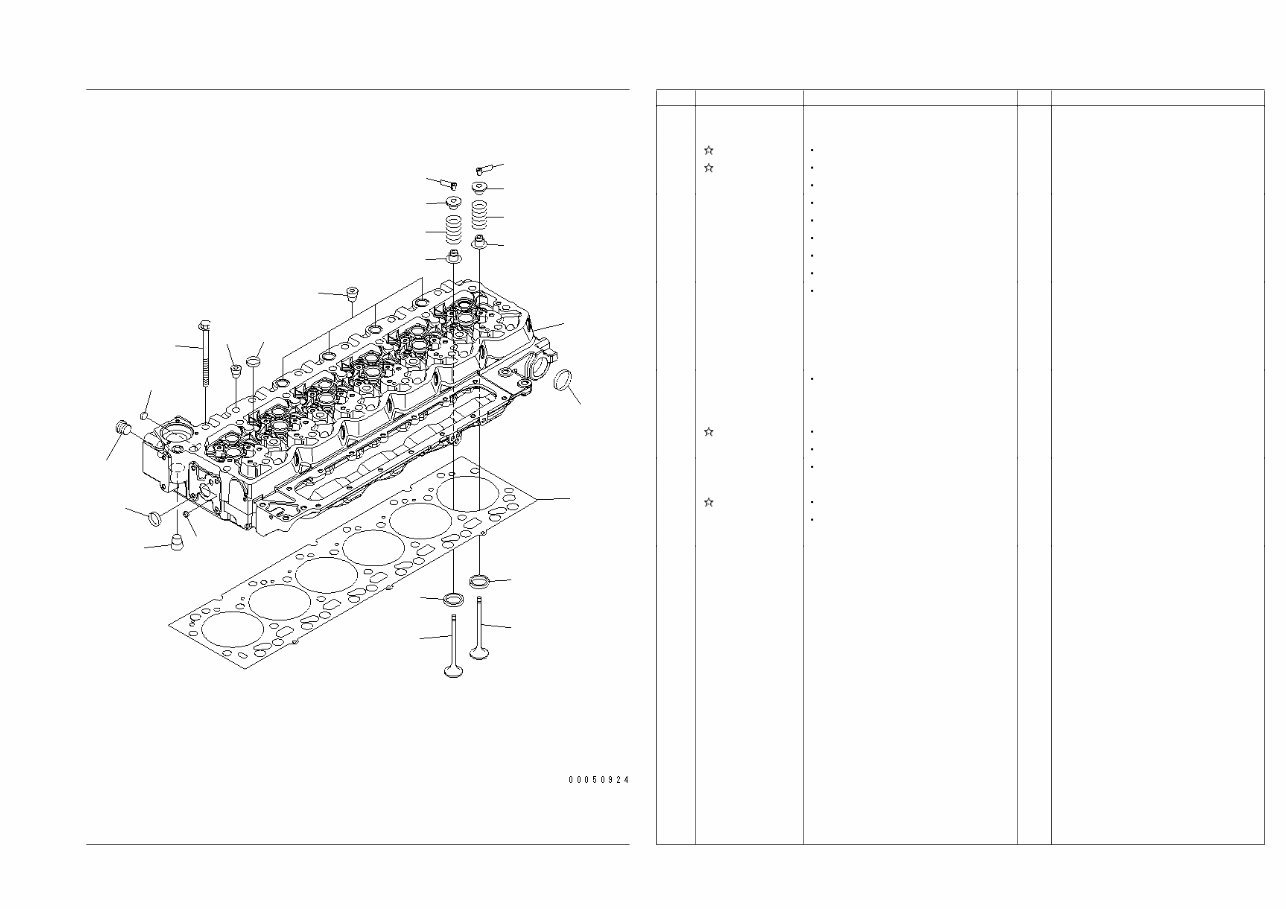

Ref. A1009-01A5 Page 030010
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
20
21
22
SAA6D107E-1G-W S/N 26500006-UP
CYLINDER HEAD
Ref. A1009-01A5 Page 030010
Item Part No. Description Qty Options
6754-11-1101 HEAD ASS'Y,CYLINDER 1 SN:26500067--
6754-11-1100 HEAD ASS'Y,CYLINDER 1 SN:26500006--26500066
1 HEAD,CYLINDER 1 SN:26500067--
HEAD,CYLINDER 1 SN:26500006--26500066
2 6754-11-1170 INSERT,INTAKE 12 SN:26500006--
3 6754-11-1180 INSERT,EXHAUST 12 SN:26500006--
4 6754-11-1150 PLUG 7 SN:26500006--
5 6732-21-1820 PLUG 13 SN:26500006--
6 6735-21-5530 PLUG 11 SN:26500006--
7 6744-11-1070 PLUG 2 SN:26500006--
8 6754-11-1160 PLUG 2 SN:26500006--
9 6732-11-1910 PLUG 4 SN:26500006--
10 6732-11-1920 PLUG 3 SN:26500006--
11 6732-61-2240 PLUG 1 SN:26500006--
12 6216-14-6820 PLUG ASS'Y 1 SN:26500006--
6216-14-6860 O-RING 1 SN:26500006--
13 6754-41-4540 SEAL 12 SN:26500006--
6754-41-4100 VALVE KIT,INTAKE 12 SN:26500006--
14 VALVE 1 SN:26500006--
15 6744-11-1020 COLLET 2 SN:26500006--
16 6754-41-4540 SEAL 1 SN:26500006--
6754-41-4200 VALVE KIT,EXHAUST 12 SN:26500006--
17 VALVE 1 SN:26500006--
18 6744-11-1020 COLLET 2 SN:26500006--
19 6754-41-4430 SPRING 24 SN:26504477--
6754-41-4420 SPRING 24 SN:26500006--26504476
20 6754-41-4510 RETAINER 24 SN:26500006--
21 6754-11-1610 BOLT 26 SN:26500006--
22 6754-11-1811 GASKET 1 SN:26500006--
SAA6D107E-1G-W S/N 26500006-UP
00056619

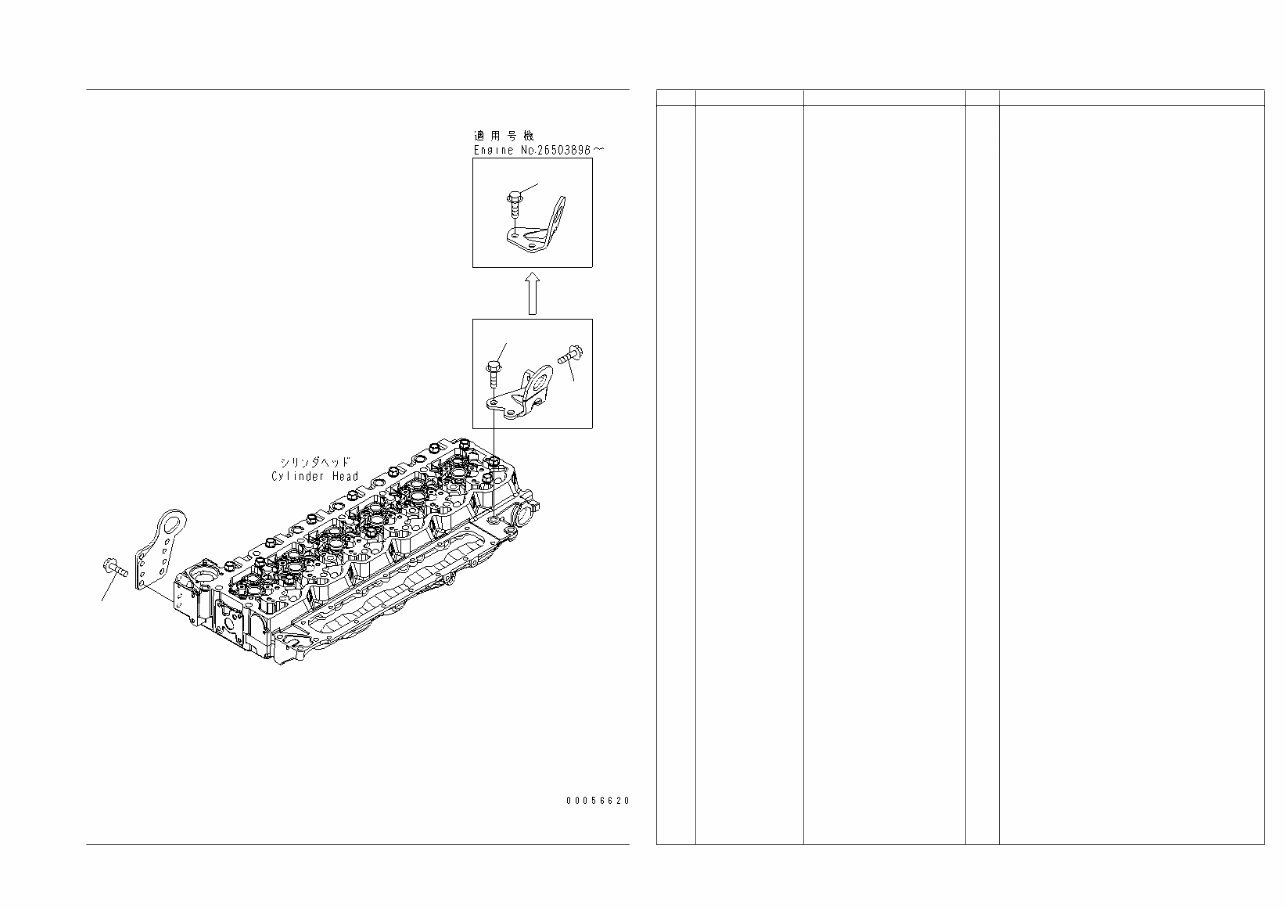

Ref. A105P-01A4 Page 030020
1
2
2
SAA6D107E-1G-W S/N 26500006-UP
LIFTING BRACKET
Ref. A105P-01A4 Page 030020
Item Part No. Description Qty Options
1 6754-11-1710 BRACKET,FRONT 1 SN:26500006--
2 6754-11-1960 BRACKET,REAR 1 SN:26503898--
6754-11-1920 BRACKET,REAR 1 SN:26500006--26503897
SAA6D107E-1G-W S/N 26500006-UP
00056620
Ref. A105R-01A0 Page 030030
1
2
2
3
SAA6D107E-1G-W S/N 26500006-UP
LIFTING BRACKET MOUNTING
Ref. A105R-01A0 Page 030030
Item Part No. Description Qty Options
1 6735-71-3220 BOLT 4 SN:26500006--
2 6754-11-4130 BOLT 2 SN:26503898--
6732-51-5130 BOLT 2 SN:26500006--26503897
3 6732-61-3140 BOLT 2 SN:26500006--26503897
SAA6D107E-1G-W S/N 26500006-UP
00046714

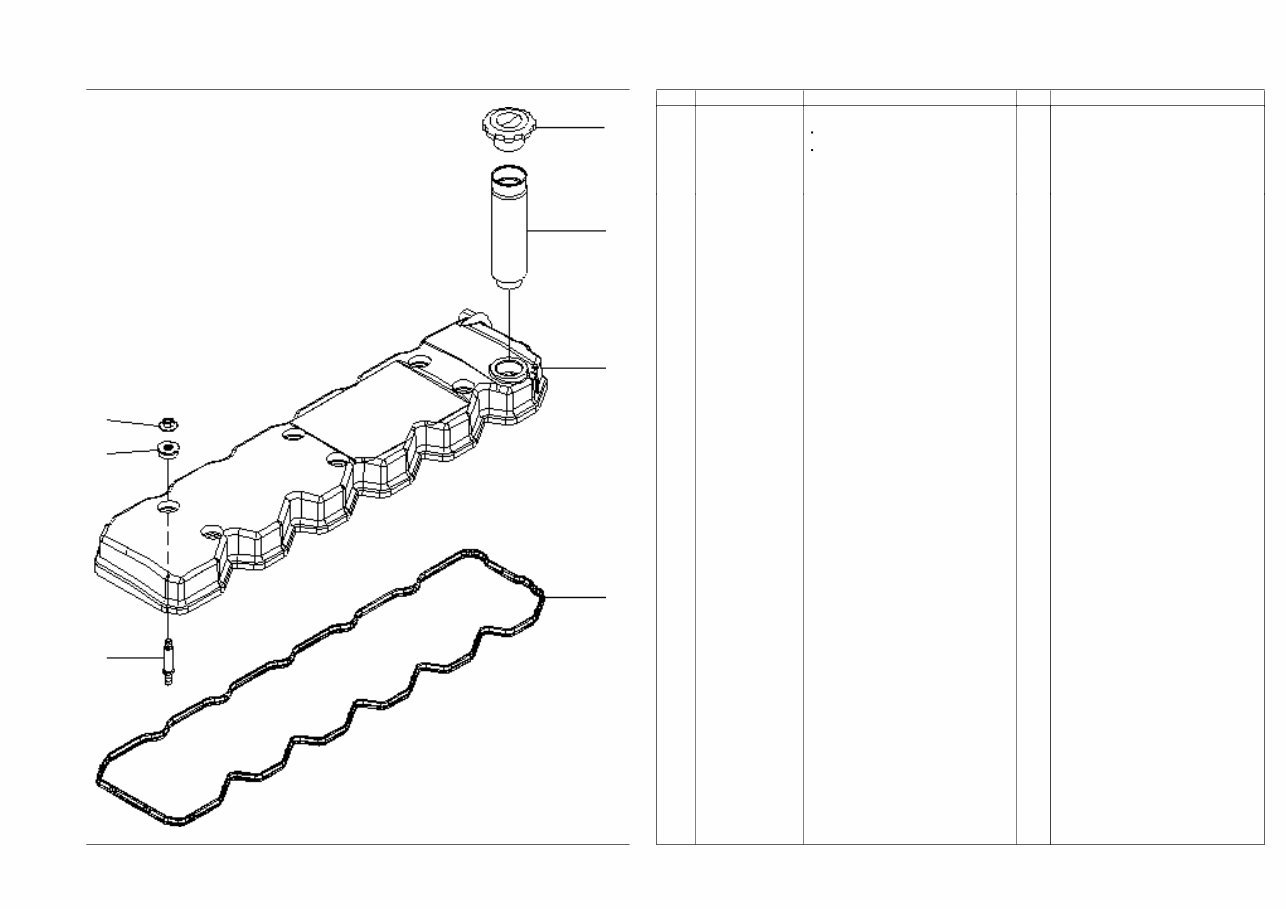

Ref. A111P-01C2 Page 030040
1
2
3
4
5
6
7
SAA6D107E-1G-W S/N 26500006-UP
HEAD COVER
Ref. A111P-01C2 Page 030040
Item Part No. Description Qty Options
6754-11-8100 COVER ASS'Y 1 SN:26500006--
1 6754-11-8110 COVER 1 SN:26500006--
2 6754-11-8140 FILLER,OIL 1 SN:26500006--
3 6754-11-8180 PACKING 1 SN:26500006--
4 6130-12-8610 CAP,FILLER 1 SN:26500006--
5 6754-11-8150 STUD 6 SN:26500006--
6 6754-11-8210 ISOLATOR 6 SN:26500006--
7 6754-11-8160 NUT 6 SN:26500006--
SAA6D107E-1G-W S/N 26500006-UP
00046708

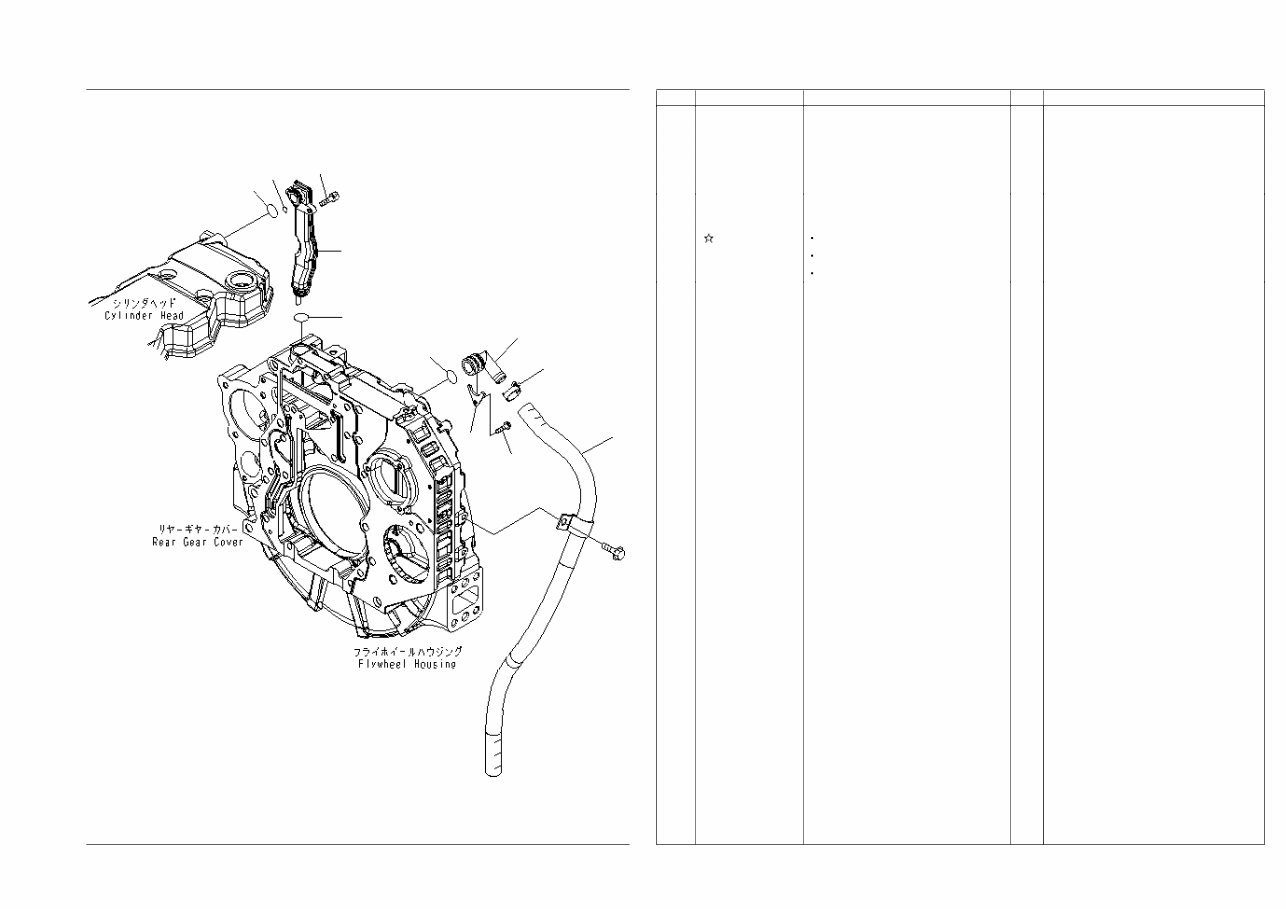

Ref. A111V-01A6 Page 030050
1
2
3
4
5
6
7
8
9
9
10
SAA6D107E-1G-W S/N 26500006-UP
BREATHER AND HOSE(#26502270-)
Ref. A111V-01A6 Page 030050
Item Part No. Description Qty Options
1 6754-21-6140 ELBOW 1 SN:26502270--
2 124-11-55H1 SEAL 1 SN:26502270--
3 6754-21-6150 PLATE 1 SN:26502270--
4 6754-21-6160 BOLT 1 SN:26502270--
5 6738-22-7810 HOSE 1 SN:26502270--
6 6754-21-6180 CLAMP 1 SN:26502270--
6754-21-6100 TUBE ASS'Y 1 SN:26502270--
7 TUBE 1 SN:26502270--
8 6754-21-6250 O-RING 1 SN:26502270--
9 6754-21-6240 O-RING 2 SN:26502270--
10 6754-21-6280 BOLT 2 SN:26502270--
6754-21-6130 BOLT 2 SN:26502270--
SAA6D107E-1G-W S/N 26500006-UP
00046695

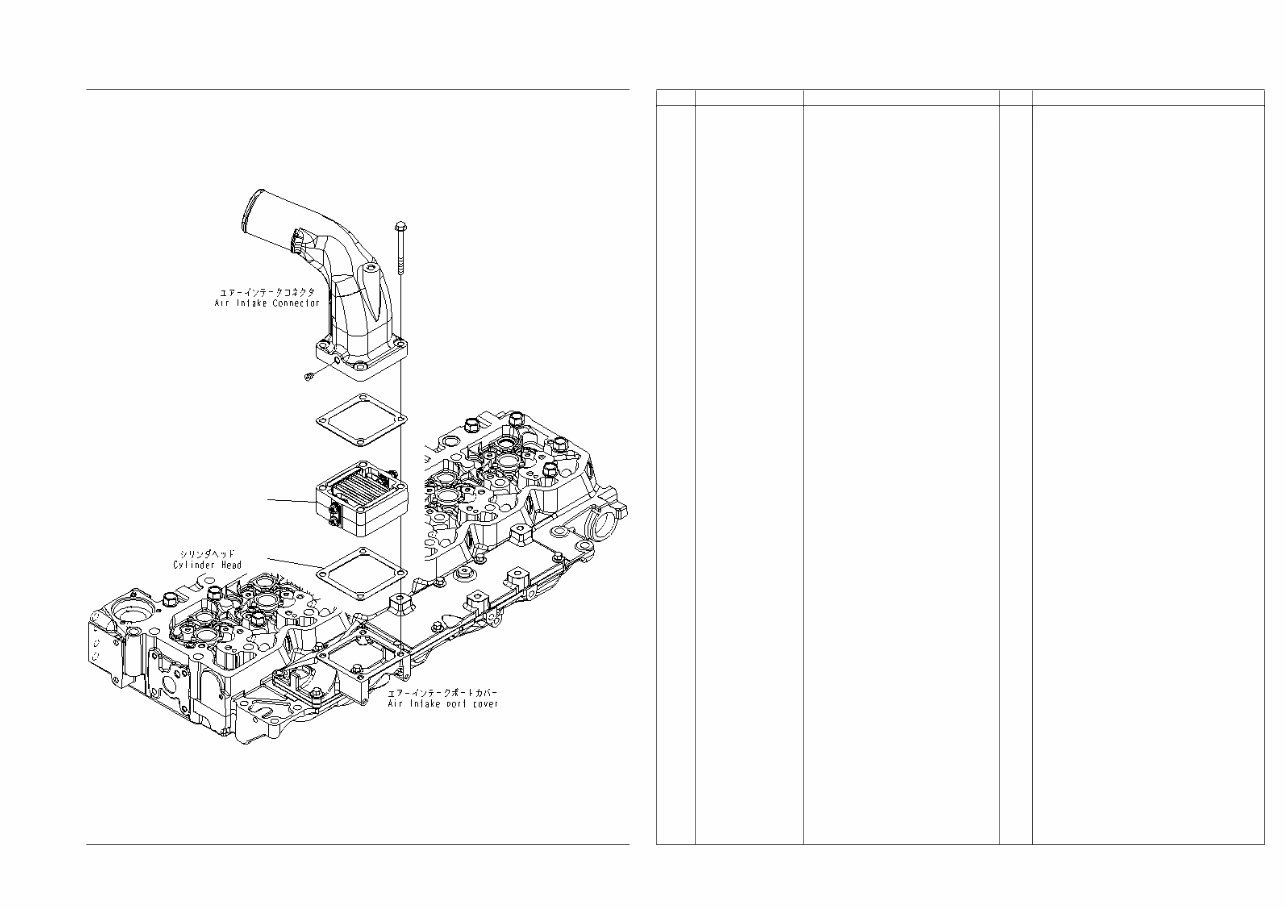

Ref. A131P-01B2 Page 030060
1
2
3
SAA6D107E-1G-W S/N 26500006-UP
AIR INTAKE CONNECTOR
Ref. A131P-01B2 Page 030060
Item Part No. Description Qty Options
1 6754-11-4410 CONNECTOR,AIR INTAKE 1 SN:26500006--
2 07043-70108 PLUG 1 SN:26500006--
3 6754-11-4120 GASKET 1 SN:26500006--
SAA6D107E-1G-W S/N 26500006-UP
00046697

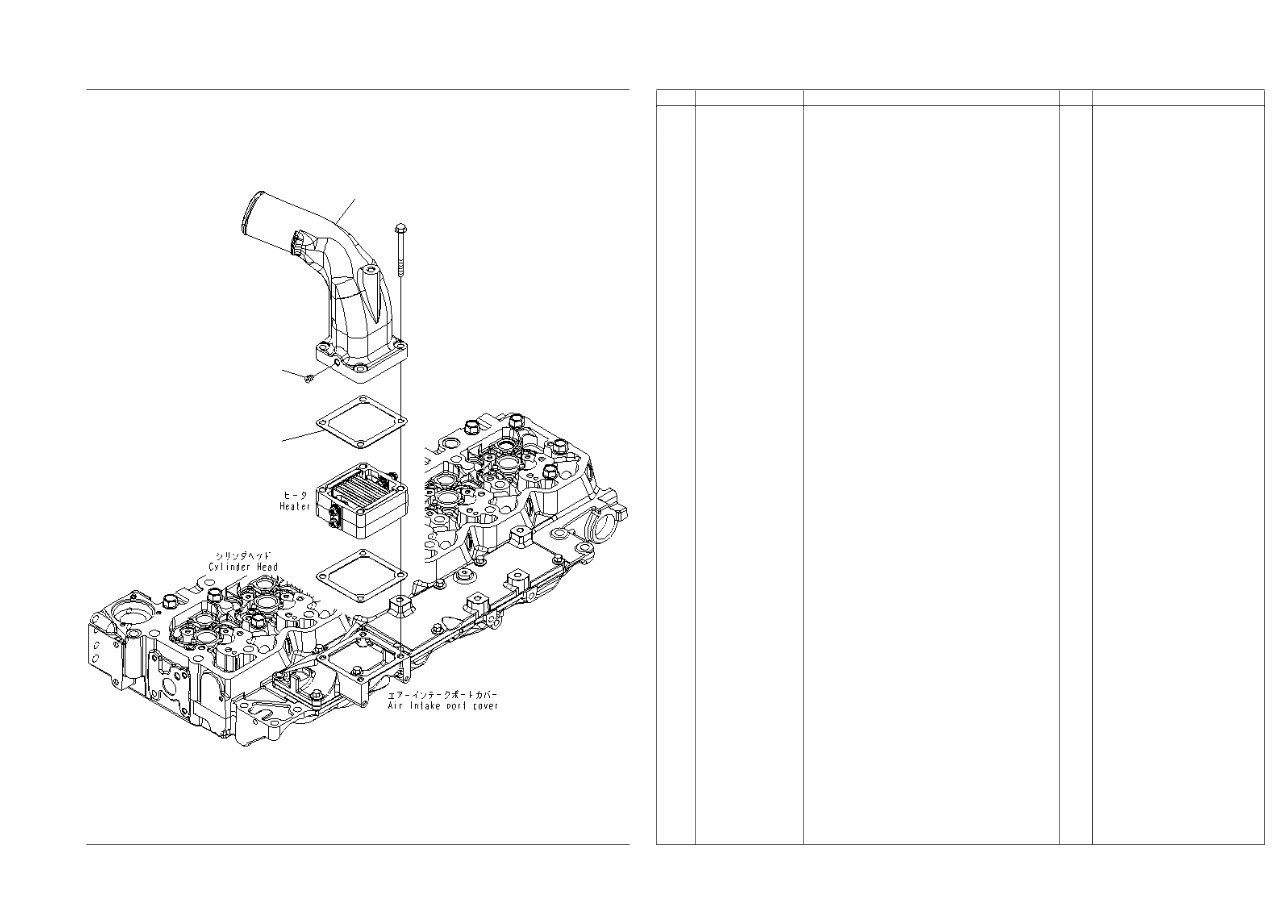

Ref. A131R-01A3 Page 030070
1
2
SAA6D107E-1G-W S/N 26500006-UP
AIR INTAKE HEATER
Ref. A131R-01A3 Page 030070
Item Part No. Description Qty Options
1 6754-81-5110 HEATER 1 SN:26500006--
2 6754-11-4120 GASKET 1 SN:26500006--
