© 2002
All Rights Reserved 00-1
Printed in Belgium 06-02
UEBM001701
PC210, 210LC, 210NLC
PC240LC, 240NLC-7K
• This shop manual may contain attachments and optional equipment that are not available in your area.
Please consult your local Komatsu distributor for those items you may require.
Materials and specifications are subject to change without notice.
MACHINE MODEL SERIAL NUMBER
PC210-7K 00 K40001 AND UP 00
PC210LC-7K 00 K40001 AND UP 00
PC210-NLC-7K 00 K40001 AND UP 00
PC240LC-7K 00 K40001 AND UP 00
PC240NLC-7K 00 K40001 AND UP 00
CONTENTS
00-2
No. of page
01 GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01-1
10 STRUCTURE, FUNCTION AND MAINTENANCE STANDARD . . . . . . . 10-1
20 TESTING AND ADJUSTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-1
30 DISASSEMBLY AND ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30-1
90 OTHERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90-1
00
PC210/240-7K 00-2-1
LIST OF REVISED PAGES
The affected pages are indicated by the use of the
following marks. It is requested that necessary
actions be taken to these pages according to the
table below.
Pages having no marks are those previously revised
or made additions.
LIST OF REVISED PAGES
Mark Indication Action required
Page to be newly added Add
Page to be replaced Replace
( ) Page to be deleted Discard
Mark Page
Time of
revision
Mark Page
Time of
revision
Mark Page
Time of
revision
Mark Page
Time of
revision
Mark Page
Time of
revision
00-1 10-1 10-29 10-57 10-85
00-2 10-2 10-30 10-58 10-86
00-2-1 10-3 10-31 10-59 10-87
00-2-2 10-4 10-32 10-60 10-88
00-2-3 10-5 10-33 10-61 10-89
00-2-4 10-6 10-34 10-62 10-90
10-7 10-35 10-63 10-91
10-8 10-36 10-64 10-92
01-1 10-9 10-37 10-65 10-93
01-2 10-10 10-38 10-66 10-94
01-3 10-11 10-39 10-67 10-95
01-4 10-12 10-40 10-68 10-96
01-5 10-13 10-41 10-69 10-97
01-6 10-14 10-42 10-70 10-98
01-7 10-15 10-43 10-71 10-99
01-8 10-16 10-44 10-72 10-100
01-9 10-17 10-45 10-73 10-101
01-10 10-18 10-46 10-74 10-102
01-11 10-19 10.47 10-75 10-103
01-12 10-20 10-48 10-76 10-104
01-13 10-21 10-49 10-77 10-105
01-14 10-22 10-50 10-78 10-106
10-23 10-51 10-79 10-107
10-24 10-52 10-80 10-108
10-25 10-53 10-81 10-109
10-26 10-54 10-82 10-110
10-27 10-55 10-83 10-111
10-28 10-56 10-84 10-112
00-2-2 PC210/240-7K
LIST OF REVISED PAGES
Mark Page
Time of
revision
Mark Page
Time of
revision
Mark Page
Time of
revision
Mark Page
Time of
revision
Mark Page
Time of
revision
10-113 10-154 10-194 20-11 20-131
10-114 10-155 10-195 20-12 20-132
10-115 10-156 10-196 20-13 20-133
10-116 10-157 10-197 20-14 20-134
10-117 10-158 10-198 20-15 20-135
10-118 10-159 10-199 20-16 20-136
10-119 10-160 10-200 20-137
10-120 10-161 10-201 20-138
10-121 10-162 10-202 20-139
10-122 10-163 10-203 20-140
10-123 10-164 10-204 20-101 20-141
10-124 10-165 10-205 20-102 20-142
10-125 10-166 10-206 20-103 20-143
10-126 10-167 10-207 20-104 20-144
10-127 10-168 10-208 20-105 20-145
10-128 10-169 10-209 20-106 20-146
10-129 10-170 10-210 20-107 20-147
10-130 10-171 10-211 20-108 20-148
10-131 10-172 10-212 20-109 20-149
10-132 10-173 10-213 20-110 20-150
10-133 10-174 10-214 20-111 20-151
10-134 10-175 10-215 20-112 20-152
10-135 10-176 10-216 20-113 20-153
10-136 10-177 10-217 20-114 20-154
10-138 10-178 10-218 20-115 20-155
10-139 10-179 10-219 20-116 20-156
10-140 10-180 20-117 20-157
10-141 10-181 20-118 20-158
10-142 10-182 20-119 20-159
10-143 10-183 20-120 20-160
10-144 10-184 20-121 20-161
10-145 10-185 20-1 20-122 20-162
10-146 10-186 20-2 20-123 20-163
10-147 10-187 20-3 20-124 20-164
10-148 10-188 20-4 20-125 20-165
10-149 10-189 20-5 20-126 20-166
10-150 10-190 20-6 20-127 20-167
10-151 10-191 20-7 20-128 20-168
10-152 10-192 20-8 20-129 20-169
10.153 10-193 20-9 20-130 20-170
PC210/240-7K 00-2-3
LIST OF REVISED PAGES
Mark Page
Time of
revision
Mark Page
Time of
revision
Mark Page
Time of
revision
Mark Page
Time of
revision
Mark Page
Time of
revision
20-171 20-225 20-301 20-342 20-386
20-172 20-226 20-302 20-343
20-173 20-227 20-304 20-344
20-174 20-228 20-305 20-345
20-175 20-229 20-306 20-346
20-176 20-230 20-307 20-347
20-177 20-231 20-308 20-348 20-501
20-178 20-232 20-309 20-349 20-502
20-179 20-233 20-310 20-350 20-503
20-180 20-234 20-311 20-351 20-504
20-181 20-235 20-312 20-352 20-505
20-182 20-236 20-313 20-353 20-506
20-237 20-314 20-354 20-507
20-238 20-315 20-355 20-508
20-239 20-316 20-356 20-510
20-240 20-317 20-357 20-511
20-201 20-241 20-318 20-358 20-512
20-202 20-242 20-319 20-359 20-513
20-203 20-243 20-320 20-360 20-514
20-204 20-244 20-321 20-362 20-515
20-205 20-245 20-322 20-364 20-516
20-206 20-246 20-323 20-365 20-517
20-207 20-247 20-324 20-366 20-518
20-208 20-248 20-325 20-367 20-519
20-209 20-249 20-326 20-368 20-520
20-210 20-250 20-327 20-369 20-521
20-211 20-251 20-328 20-370 20-522
20-212 20-252 20-329 20-372 20-523
20-213 20-253 20-330 20-374 20-524
20-214 20-254 20-331 20-375 20-525
20-215 20-255 20-332 20-376 20-526
20-216 20-256 20-333 20-377 20-527
20-217 20-257 20-334 20-378 20-528
20-218 20-335 20-379 20-530
20-219 20-336 20-380 20-531
20-220 20-337 20-381 20-532
20-221 20-338 20-382 20-533
20-222 20-339 20-383 20-534
20-223 20-340 20-384 20-535
20-224 20-341 20-385 20-536
00-2-4 PC210/240-7K
LIST OF REVISED PAGES
Mark Page
Time of
revision
Mark Page
Time of
revision
Mark Page
Time of
revision
Mark Page
Time of
revision
Mark Page
Time of
revision
20-537 30-43 30-83
20-538 30-44 30-84
20-540 30-45 30-85
20-541 30-1 30-46 30-86
20-542 30-2 30-47 30-87
20-543 30-3 30-48 30-88
20-544 30-4 30-49 30-89
20-545 30-5 30-50 30-90
20-546 30-6 30-51 30-91
30-7 30-52 30-92
30-8 30-53 30-93
30-9 30-54 30-94
30-10 30-55 30-95
30-11 30-56 30-96
20-601 30-12 30-57 30-97
20-602 30-13 30-58
20-603 30-14 30-59
20-604 30-15 30-60
20-605 30-16 30-61
20-606 30-17 30-62
20-607 30-18 30-63 90-1
20-608 30-20 30-64 90-3
20-609 30-21 30-65 90-5
20-610 30-22 30-66 90-7
20-611 30-23 30-67 90-9
20-612 30-24 30-68 90-11
20-613 30-25 30-69
20-614 30-26 30-70
20-615 30-27 30-71
20-616 30-28 30-72
20-617 30-29 30-73
20-618 30-30 30-74
20-619 30-31 30-75
20-620 30-32 30-76
20-621 30-33 30-77
20-622 30-34 30-78
20-623 30-35 30-79
20-624 30-36 30-80
30-37 30-81
30-38 30-82
01 GENERAL
01-1
Specification Dimension Drawings
PC210, PC210LC, PC210NLC-7K . . . 01-2
PC240LC, PC240NLC-7K . . . . . . . . . . 01-4
Specifications
PC210, PC210LC, PC210NLC-7K . . . 01-6
PC240LC, PC240NLC-7K . . . . . . . . . . 01-8
Weight Table
PC210, PC210LC, PC210NLC-7K . . 01-10
PC240LC, PC240NLC-7K . . . . . . . . . 01-12
Fuel, Coolant, And Lubricants . . . . . . . . . . . 01-14
PC210/240-7K
GENERAL SPECIFICATION DIMENSION DRAWINGS
01-2 PC210/240-7K
12

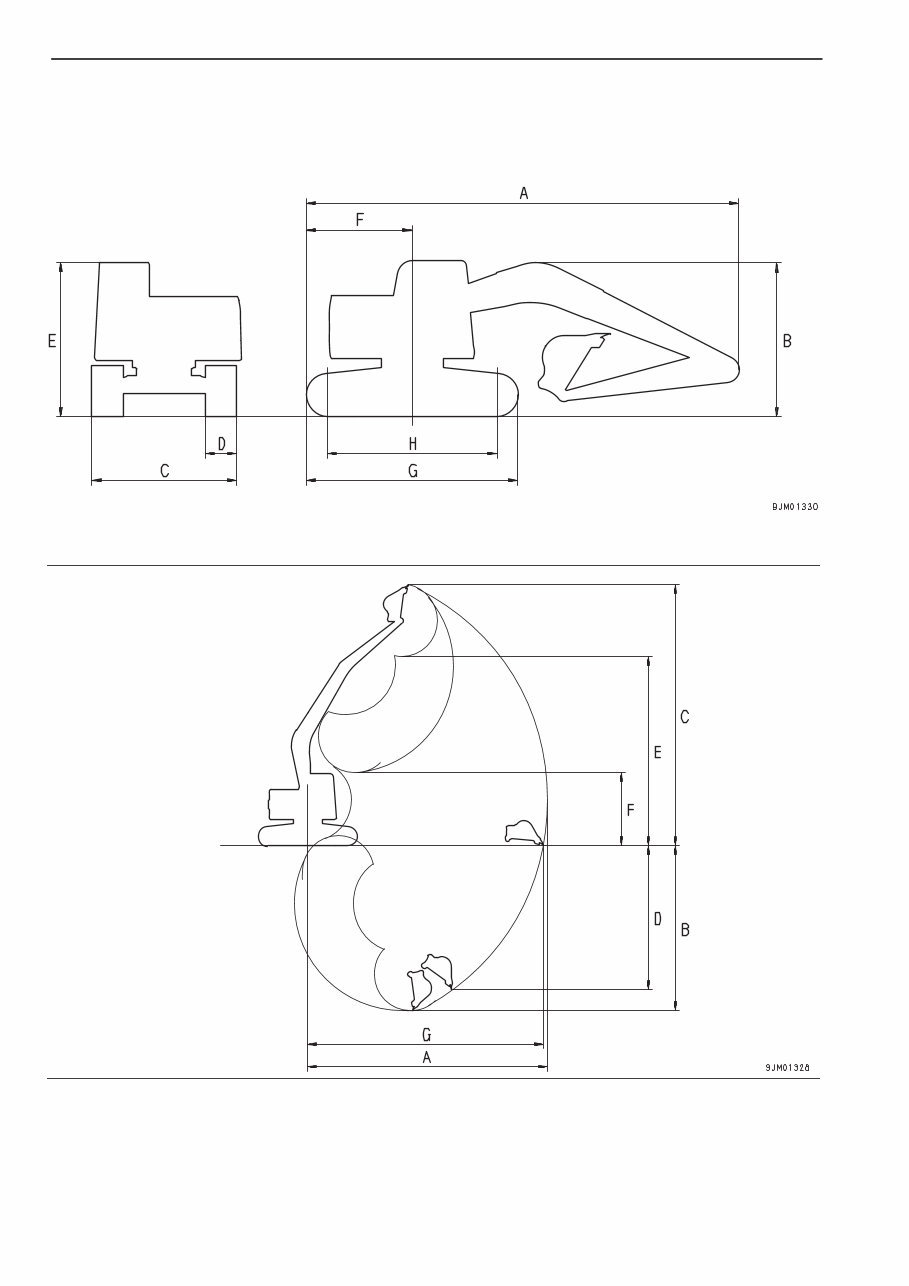

SPECIFICATION DIMENSION DRAWINGS
PC210-7K, PC210LC-7K, PC210NLC-7K
DIMENSIONS
WORKING RANGES
GENERAL SPECIFICATION DIMENSION DRAWINGS
PC210/240-7K 01-3
12
DIMENSIONS
WORKING RANGES
Item Unit PC210-7K PC210LC-7K PC210NLC-7K
A Overall length mm 9,425
B Overall height mm 3,000
C Overall width mm 2,800 3,080 2,540
D Track shoe width mm 600 700 500
E Height of cab mm 3,000
F Tail swing radius mm 2,750
G Track overall length mm 4,080 4,450 4,450
H Length of track on ground mm 3,270 3,640 3,655
Min. ground clearance mm 440
Item Unit PC210-7K PC210LC-7K PC210NLC-7K
A Max. digging reach mm 9,875
B Max. digging depth mm 6,620
C Max. digging height mm 10,000
D Max. vertical wall depth mm 5,980
E Max. dumping height mm 7,110
F Min. dumping height mm 2,645
G Max. reach at ground level mm 2,645
GENERAL SPECIFICATION DIMENSION DRAWINGS
01-4 PC210/240-7K

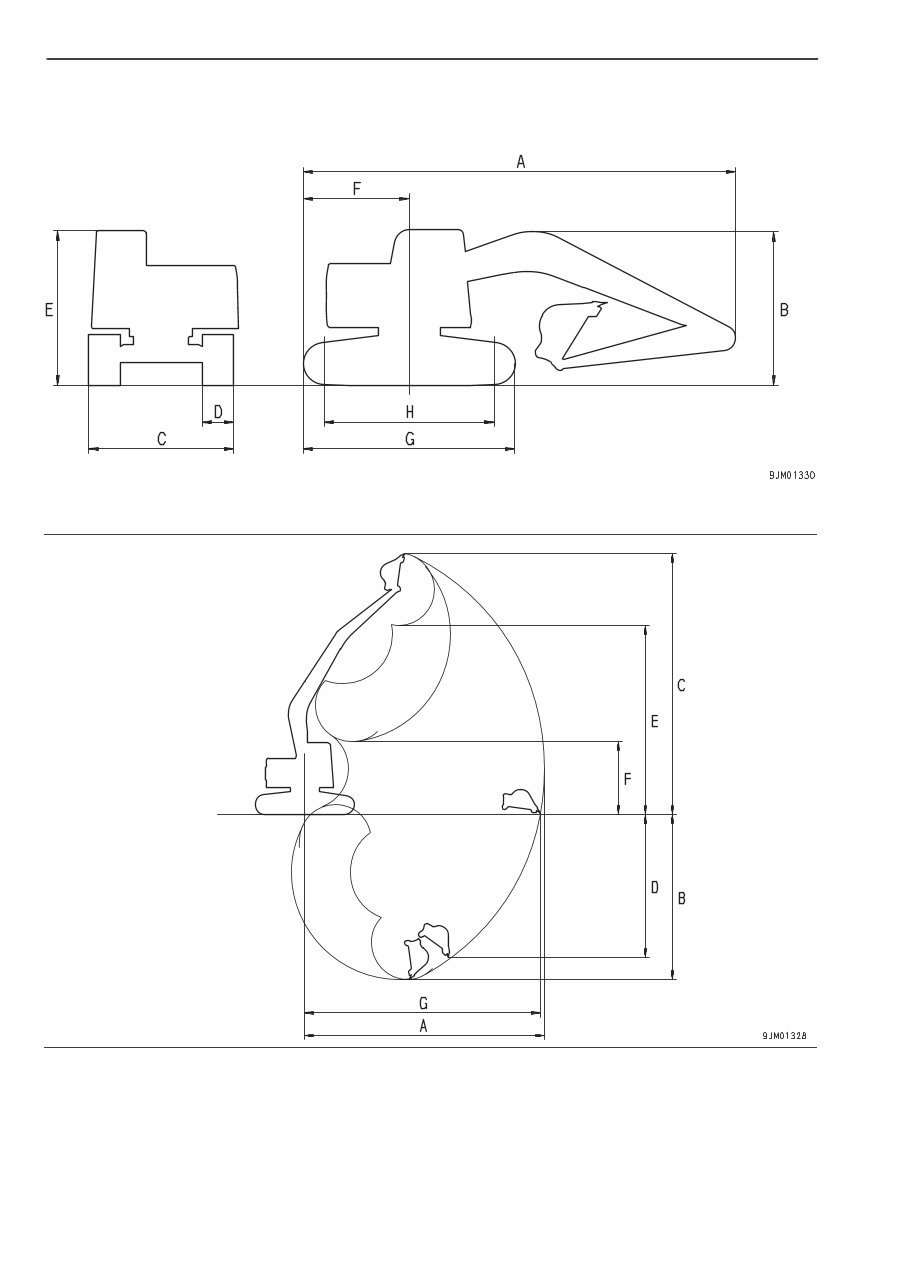

PC240LC-7K, PC240NLC-7K
DIMENSIONS
WORKING RANGES
