Kobelco SK120LC MARK III Hydraulic Exavator Illustrated Parts List Manual - Between Serial Number YPU0301 - YPU0500; With ISUZU
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
Figure Search for SK120LC MARK III EXCAVATOR BTW YPU0301 - YPU0500
Figure Search for SK120LC MARK III EXCAVATOR BTW YPU0301 - YPU0500
004-01 FILTER LIST
011-01 UPPER FRAME ASS'Y 24100J11677F3, F4
011-49 UPPER FRAME ASS'Y 24100J13833F2
015-28 COUNTER-WEIGHT ASS'Y 24100J12143F6
026-01 SWING REDUCTION UNIT 24100J11681F1
041-01 HYDRAULIC TANK ASS'Y 24100J11653F5, F6
045-49 FUEL TANK ASS'Y 24100N6998F1, F3
051-49 CAB INSTALLATION 24100N6946F1
055-49 CAB ASS'Y 24100J11965F1
064-28 FLOOR PLATE ASS'Y 24100J13289F1
071-49 SEAT ASS'Y 24100N6945F3
074-49 SEAT ASS'Y 2448U246F4
081-01 MACHINERY COVERS AND SHEET METAL 24100J12070F7
1 Cyl. Head and Cover Other Parts
10 Oil Filter and Fuel Filter (Fixing Parts)
11 Oil Pipe and Fixing Parts
115-01 Belly Pan Covers
12 Cooling System (Fan, Water and Oil)
121-28 Console and Foot Pedal Installation
13 Air Intake and Exhaust System
15 Fuel System (Inj. Nozzle, Fuel Pipe)
16 Engine Foot, Hanger and Fixing Parts
161-49 Wrist Control and Pilot Line Group
161-49A Wrist Control and Pilot Line Group
18 Injection Pump
19 Electrical Parts
2 Cyl. Block and Other Parts
201-28 Foot Pedal Ass'y
221-49 Upper Hydraulics
24100J5144 Joint Assy, Swivel
24100J6668 Joint Assy, Swivel
2420U235 Plug Assy
2436R1094 Valve Assy, Main Relief
2436R593 Spool Assy
2436R680 Valve Assy, Relief
2436R683 Valve Assy, Relief
2436R721 Valve Assy, Over-Load Relief
2436R727 Valve Assy, Relief
2436R768 Valve Assy, Port Relief
2436R769 Valve Assy, Relief
2436R790 Valve Assy
2436R807 Spool Assy
2436R818 Valve Assy, Main Relief
2436R884 Valve Assy, Solenoid
2436R886 Spool Assy
2436R906 Valve Assy, Shuttle
2436R913 Valve Assy, Relief
2436U1142 Valve Assy, Pilot
Page 1
Figure Search for SK120LC MARK III EXCAVATOR BTW YPU0301 - YPU0500
Figure Search for SK120LC MARK III EXCAVATOR BTW YPU0301 - YPU0500
2436U1200 Valve Assy, Pilot
2436U1213 Valve Assy, Control (Extra and Breaker
2436U1236 Valve Assy, Control (Extra and Dozzer
2436U1237 Valve Assy, Control (Dozzer)
2436U1303 Valve Assy, Flow Divided
2436U1309 Valve Assy, Reduction
2436U1310 Valve Assy
2436U1314 Valve Assy, Solenoid
2436U1421 Valve Assy, Control (Nibbler and Breaker)
2436U1426 Valve Assy, Control (Telescopic)
2436U1453 Valve Assy, Solenoid
2436U1456 Valve Assy, Control (Swing)
2436U1471 Regulator Assy (Rear)
2436U1472 Regulator Assy (Front)
2436U2529 Valve Assy, Sequence
2436U2584 Valve Assy, Bypass (Independent Travel)
2436U2590 Valve Assy, Solenoid
2436U2606 Valve Assy, Pilot
2436U2623 Valve Assy, Holding
2436U2631 Valve Assy, Control
2436U2642 Valve Assy, Pilot
2436U2716 Valve Assy, Control (Swing)
2436Z416 Section Assy, Inlet
2437U157 Pump Assy, Gear
2437U400 Pump Assy
2437U412 Pump Assy
2438U1097 Cylinder Assy (Bucket)
2438U1131 Cylinder Assy (Bucket)
2438U1132 Cylinder Assy (Arm)
2438U1133 Cylinder Assy (R.H. Boom)
2438U1134 Cylinder Assy
2438U1157 Cylinder Assy (Clamshell)
2438U696 Cylinder Assy (Telescopic
2438U738 Cylinder Assy (Dozer)
2441U828 Motor Assy (Swing)
2441U829 Motor Assy (Propelling)
2441U962 Motor Assy (Swing)
291-01 Engine Installation
295-01 Engine Ass'y
295-01A Engine Ass'y
3 Timing Gear Case and Other Parts
301-01 Pump and Drive Ass'y
321-01 Radiator Ass'y
326-01 Bypass Filter Ass'y
371-01 Throttle Control Ass'y
381-49 Instrument Panel Ass'y
386-49 Cluster Gauge, Ass'y
397-32 Heater and Defroster Installation
Page 2
Figure Search for SK120LC MARK III EXCAVATOR BTW YPU0301 - YPU0500
Figure Search for SK120LC MARK III EXCAVATOR BTW YPU0301 - YPU0500
398-32 Heater Ass'y
4 Fly Wheel Housing and Other Parts
411-49 Electrical Wiring Ass'y
421-01 Battery Ass'y
421-49 Battery Ass'y
424-01 Spot Light Ass'y
425-01 Swing Flasher Ass'y
426-49 Back Up Alarm Ass'y
444-01 Lower Installation
451-01 Idler Ass'y
461-01 Bottom Roller Ass'y
467-01 Top Roller Ass'y
471-01 Track Adjuster Ass'y
494-01 Lower Hydraulics
5 Oil Plan and Other Parts
516-01 Crawler Chain and Shoe Ass'y
52 Injection Pump ; Proper (Diesel Kiki)
53 Governor (Mechanical) (Diesel Kiki)
54 Feed Pump ; Injection Pump (Diesel Kiki)
58 Nozzle Holder (Diesel Kiki)
6 Oil Pump and Fixing Parts
62 Starter (Nikko)
621-49 Boom Ass'y, 4.6M
63 Generator (Nikko)
631-49 Arm Ass'y, 3.0M
7 Crank Shaft, Crank Brg, Piston, Conn. Rod and Fly Wheel
711-49 Window Cover Installation
712-49 Window Cover Storage Ass'y
775-28 Element Ass'y
794-59 Operators Cab Fan
797-49 Kit, Converter
852-49 Arm Ass'y, 2.5M
9 Valve Mechanism (Cam Shaft, Idle Gear, Rocker Arm)
961-49 Label Installation
981-49 Tool Kit Ass'y
986-49 Replacement Filter Kit
Page 3
How To Use Figure Search
1). Locate the figure list index at the beginning of manual
examples:
01A01 FRONT WHEEL ASSEMBLY -
2100,2110,2120,2150,2300,2310,3055,3100,3120,3150,3190,3300,3310,3550,4140
01A01[C] FRONT WHEEL ASSEMBLY, W/16" WHEELS - 3400, 3500, 3550, 4400,
4500, 4410, 5100, 5200, 5190, 7100, 7200
01B01 STANDARD REAR WHEELS - 2000, 4100 & 3000 EXCEPT 3550
01B01[A] STANDARD REAR WHEELS - 3500, 3550, 5000, 7000, 4000 EXCEPT 4110
01B02 POWER ADJUSTABLE REAR WHEELS - 2000, 3000, 4140
Use the “search” feature in adobe to jump to the figure number.
Press Ctrl key, and letter F on the keyboard, at the same time. This will bring up the
“search” feature in Adobe Acrobat. Then simply type in the figure number you wish to
locate, and press enter.
Adobe takes you immediately to that page!
COMMON METRIC AND INCH HARDWARE
CONVERSIONS
Allowances have been made in punched and drilled holes to allow interchangeability
of metric and inch dimension hardware in fastening and mounting applications.
However, this interchangeability does not apply to tapped holes or using metric
dimension nuts on inch cap screws, studs and bolts. Likewise, inch dimension nuts
cannot be used on metric cap screws, studs or bolts.
The following is a listing of common sizes for substitution.
Screw Diameter
Inches Millimeters
3/16" 5 mm
1/4" 6 mm
5/16" 8 mm
*3/8" *10 mm
1/2" 12 mm
9/16" 14 mm
5/8" 16 mm
Screw Length
Inches Millimeters
5/8" 15 mm
3/4" 20 mm
*1 *25 mm
1-1/4" 30 mm
1-3/8" 35 mm
1-1/2" 40 mm
1-3/4" 45 mm
2" 50 mm
2-1/4" 60 mm
2-3/4" 70 mm
3" 80 mm
3-1/2" 90 mm
4" 100 mm
* EXAMPLE: For most applications a 3/8" x 1" cap screw and nut can be replaced by a
10 mm x 25 mm cap screw and nut.
For additional size information and possible substitutions, either inch to metric or
metric to inch, please refer to the full conversion table.
SK120LC MARK III EXCAVATOR BTW YPU0301 - YPU0500
004-01 FILTER LIST
Ref Part Number Qty Description
SK120LC MARK III EXCAVATOR BTW YPU0301 - YPU0500
004-01 FILTER LIST
1 2446R333D2 1 ELEMENT, FILTER,
1 894321-2190 1 ISUZU ENGINE PART
2 2446R333D3 1 ELEMENT, FILTER, FUL,
2 894453-7381 1 ISUZU ENGINE PART
3 2446R147 1 ELEMENT, FILTER, FILTER-ELEMENT, HYDR, Remarks: ELEMENT KIT 24046Z15
4 2446U260S2 1 FILTER-ELEMENT, HYDR, TANK BREATHER
5 2446U215S5 1 CARTRIDGE,
6 R36P0019 1 FILTER, OIL,
7 2479U371S28 1 FILTER, AIR,
9 2446U242S2 1 ELEMENT ASSY,
10 2446R339S1 1 N/A ELEMENT ASSY,
11 2446U233S2 1 ELEMENT ASSY,
12 2446U162S2 1 ELEMENT, INNER,
24100J11677F3, APPLICABLE: YPU00301-00353 24100J11677F4, APPLICABLE: YPU00354-
SK120LC MARK III EXCAVATOR BTW YPU0301 - YPU0500

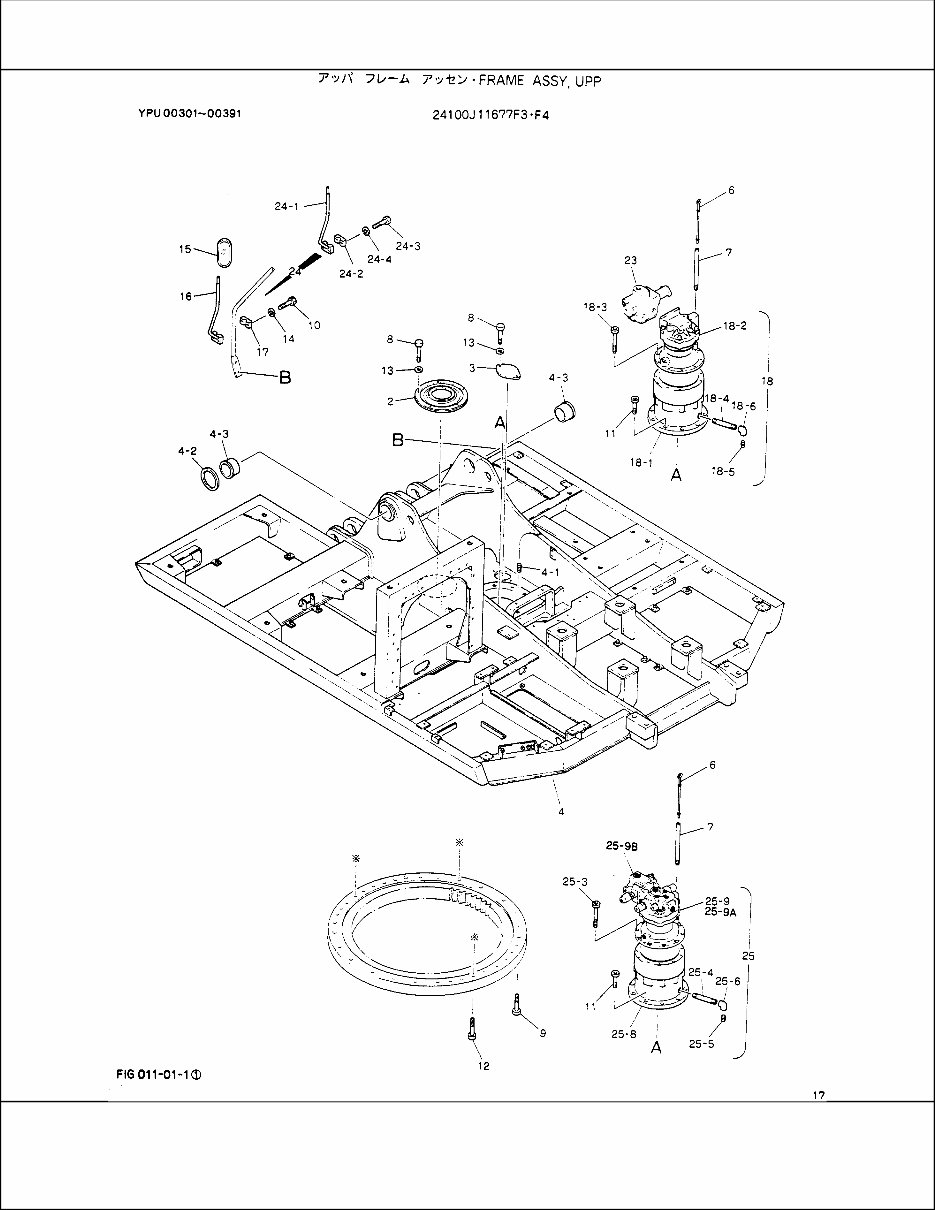

011-01 UPPER FRAME ASS'Y 24100J11677F3, F4
