Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ JS TRACKED EXCAVATORS \ JS200 00705001-
00707999 9802/5810 \ A ATTACHMENTS \ A02 BUCKETS

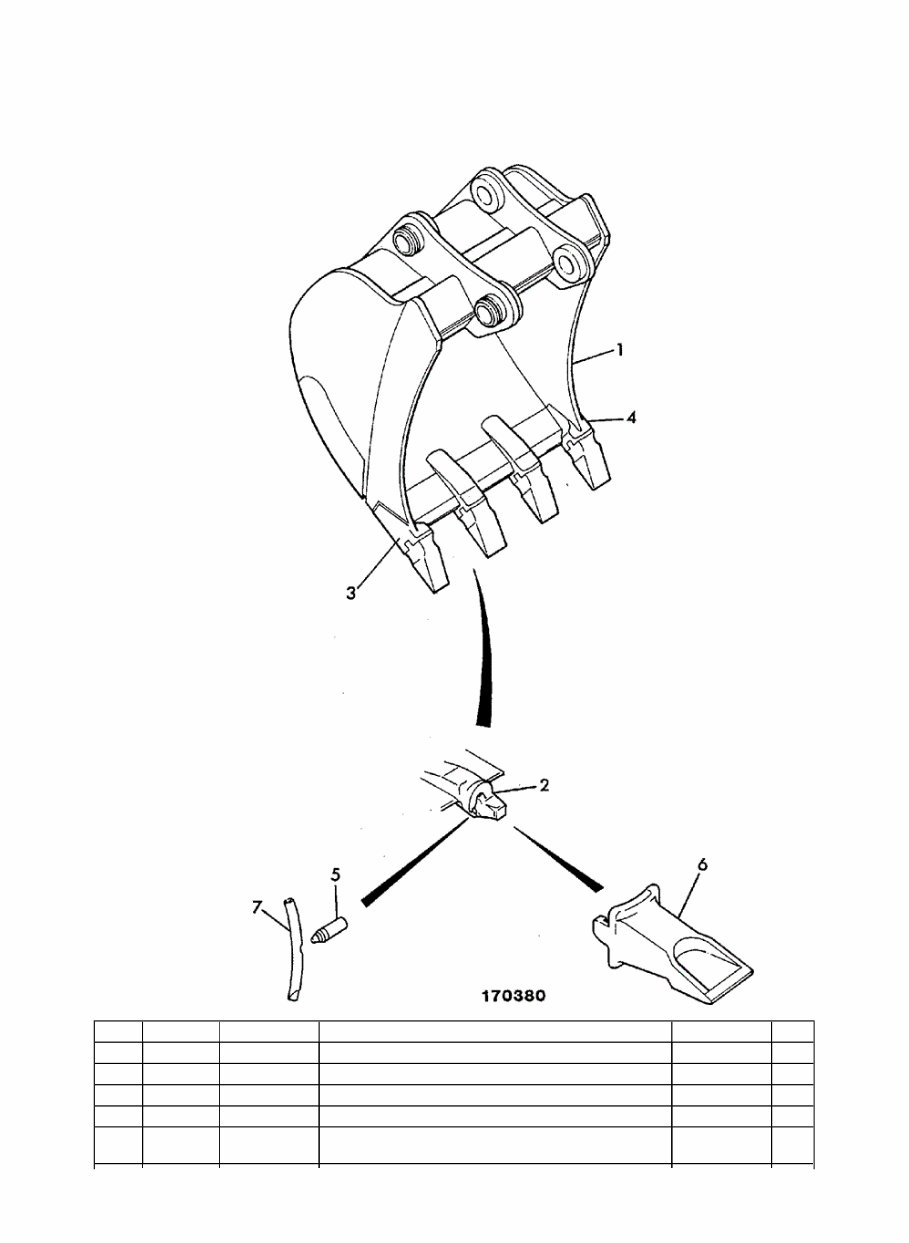

9802/5810 A2-1-13 BUCKET 600 WIDE 0.40 CUBIC METRES
2016/6/13 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=5a4e7a8...
Item Part # Change No Description Usage Code QTY
1 981/00072 Superseded Bucket 600 wide 0.40m cubic metres 1
1 981/00420 Bucket general purpose 600mm wide 1
2 :993/99581 Adapter tooth 1
2 993/99638 Adapter tooth V29 1
2 993/99644
Adapter tooth V33
Heavy duty.
0
3 :993/99565 Adapter tooth, V27 left hand corner 1
4 :993/99566 Adapter tooth, V27 left hand corner 1
5 :JRV0017 Plug 27 series 3
6 :993/99501
Tooth 27 series FYL
Tooth options see frame A2-5-1
3
6 993/99637 Tooth V29 series, SYL 3
6 993/99642
Tooth type V33SYL
Heavy duty.
0
7 :JRV0016 Pin tooth retainer 27 series 3
7 510/86204 Pin locking V29 3
7 993/99643
Pin locking V33
Heavy duty.
0
2016/6/13 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=5a4e7a8...
Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ JS TRACKED EXCAVATORS \ JS200 00705001-
00707999 9802/5810 \ A ATTACHMENTS \ A02 BUCKETS
9802/5810 A2-1-14 BUCKET 900 WIDE 0.70 CUBIC METRES
2016/6/13 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=90c7c7b...
Item Part # Change No Description Usage Code QTY
1 981/00078 Superseded Bucket 900 wide 0.70m cubic metres 1
1 981/00423 Bucket general purpose 900mm wide 1
2 :993/99581 Adapter tooth 2
2 993/99638 Adapter tooth V29 2
2 993/99644
Adapter tooth V33
Heavy duty.
0
3 :993/99565 Adapter tooth, V27 left hand corner 1
4 :993/99566 Adapter tooth, V27 left hand corner 1
5 :JRV0017 Plug 27 series 4
6 :993/99501
Tooth 27 series FYL
Tooth options see frame A2-5-1
4
6 993/99637 Tooth V29 series, SYL 4
6 993/99642
Tooth type V33SYL
Heavy duty.
0
7 :JRV0016 Pin tooth retainer 27 series 4
7 510/86204 Pin locking V29 4
7 993/99643
Pin locking V33
Heavy duty.
0
2016/6/13 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=90c7c7b...
Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ JS TRACKED EXCAVATORS \ JS200 00705001-
00707999 9802/5810 \ A ATTACHMENTS \ A02 BUCKETS
9802/5810 A2-1-15 BUCKET 1000 WIDE 0.81 CUBIC
METRES
2016/6/13 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=1349925...
Item Part # Change No Description Usage Code QTY
1 981/00080 Superseded Bucket 1000 wide 0.81m cubic metres 1
1 981/00424 Bucket general purpose 1000mm wide 1
2 :993/99581 Adapter tooth 2
2 993/99638 Adapter tooth V29 2
2 993/99644
Adapter tooth V33
Heavy duty.
0
2016/6/13 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=1349925...
3 :993/99565 Adapter tooth, V27 left hand corner 1
4 :993/99566 Adapter tooth, V27 left hand corner 1
5 :JRV0017 Plug 27 series 4
6 :993/99501
Tooth 27 series FYL
Tooth options see frame A2-5-1
4
6 993/99637 Tooth V29 series, SYL 4
6 993/99642
Tooth type V33SYL
Heavy duty.
0
7 :JRV0016 Pin tooth retainer 27 series 4
7 510/86204 Pin locking V29 4
7 993/99643
Pin locking V33
Heavy duty.
0
2016/6/13 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=1349925...
Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ JS TRACKED EXCAVATORS \ JS200 00705001-
00707999 9802/5810 \ A ATTACHMENTS \ A02 BUCKETS
9802/5810 A2-1-16 BUCKET 1200 WIDE 1.02 CUBIC
METRES
2016/6/13 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=d21cde4...
Item Part # Change No Description Usage Code QTY
1 981/00084 Superseded Bucket 1200 wide 1.02m cubic metres 1
1 981/00426 Bucket general purpose 1200mm wide 1
2 :993/99581 Adapter tooth 3
2 993/99638 Adapter tooth V29 3
2 993/99644
Adapter tooth V33
Heavy duty.
0
2016/6/13 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=d21cde4...
3 :993/99565 Adapter tooth, V27 left hand corner 1
4 :993/99566 Adapter tooth, V27 left hand corner 1
5 :JRV0017 Plug 27 series 5
6 :993/99501
Tooth 27 series FYL
Tooth options see frame A2-5-1
5
6 993/99637 Tooth V29 series, SYL 5
6 993/99642
Tooth type V33SYL
Heavy duty.
0
7 :JRV0016 Pin tooth retainer 27 series 5
7 510/86204 Pin locking V29 5
7 993/99643
Pin locking V33
Heavy duty.
0
2016/6/13 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=d21cde4...
