Product Catalog \ AGRICULTURAL \ AGRICULTURE \ MINI CRAWLER EXCAVATORS \ 8052 00803371-
00803999,01178000-01178999,01614000-01615999 9802/5480 \ A ATTACHMENTS \ A02 BUCKETS

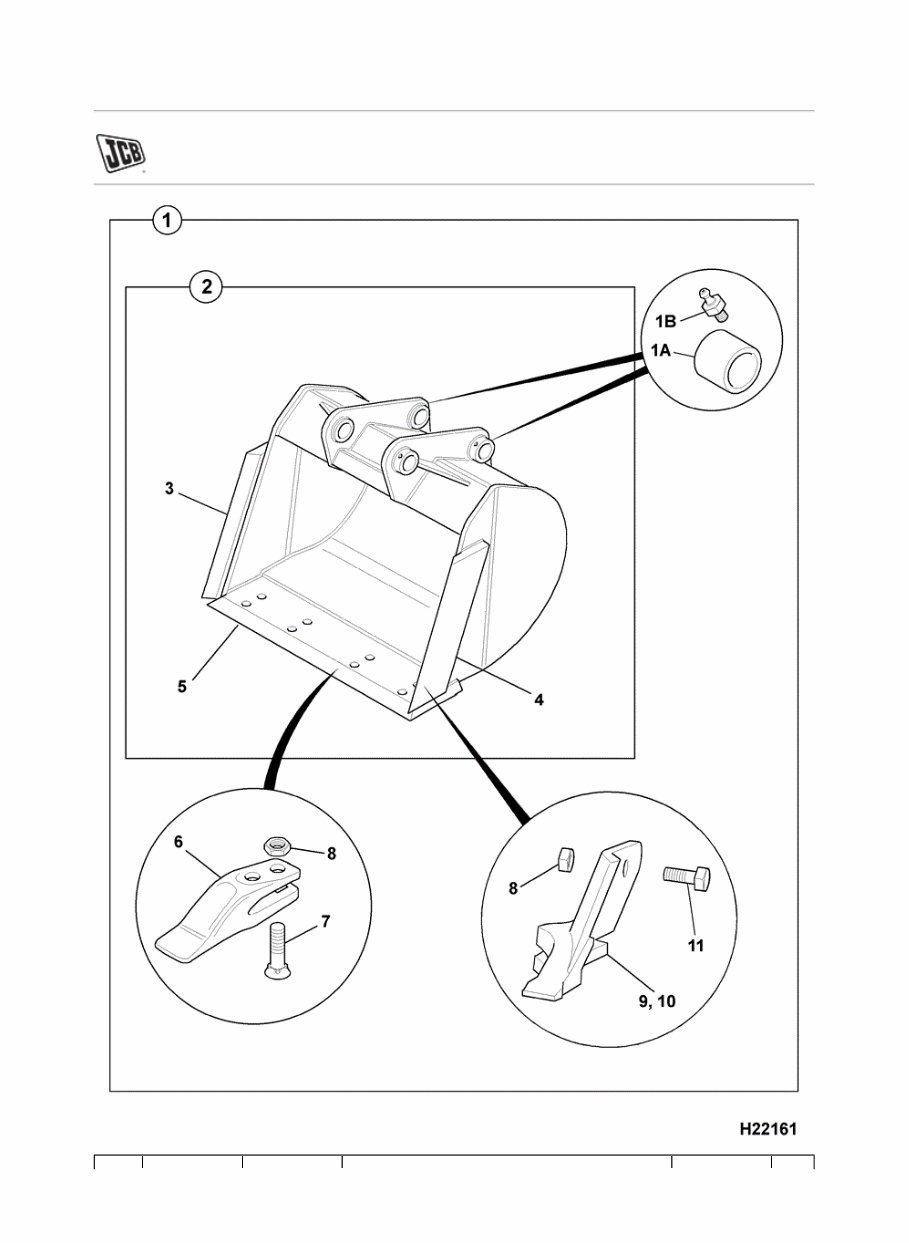

9802/5480 A2-1-1 BUCKET STANDARD
2016/8/3 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=6b2024c9...
Item Part # Change No Description Usage Code QTY
1 528/03800 Bucket 350mm, std profile 1
1 528/04200 Bucket 450mm, std profile 1
1 528/04000 Bucket 400mm, std profile 1
1 528/04400 Bucket 600mm, std profile 1
1 528/04600 Bucket 750mm, std profile 1
1 234/29010 Bucket 300mm Wide 1
1A G65/0 Bush Pivot 4
1B 1450/0001 Nipple Grease, Straight 1/8 BSP 4
2 **** None serviced part 1
3 ::141/00633 Sidecutter left hand 1
4 ::141/00634 Sidecutter right hand 6
5 ::331/18331 Toeplate 280mm wide 6 holes (Weld-On) 1
5 ::141/00431 Toeplate 346mm wide 6 holes (Weld-On) 1
5 :::141/00432 Toeplate 396mm wide 6 holes (Weld-On) 1
5 ::141/00433 Toeplate 446mm wide 6 holes (Weld-On) 1
5 ::141/00434 Toeplate 596mm wide 8 holes (Weld-On) 1
5 ::::141/00435 Toeplate 746mm wide 10 holes (Weld-On) 1
6 :531/03205
Tooth
For 300mm,350mm,400mm and 450mm buckets
3
6 ****
'See Remark'
For 600mm bucket
4
6 ****
'See Remark'
For 750mm bucket
5
7 :826/00303
Bolt Plough
For 300mm,350mm,400mm and 450mm buckets
6
7 ****
'See Remark'
For 600mm bucket
8
7 ****
'See Remark'
For 750mm bucket
10
8 :1340/0701
Nut
For 300mm,350mm,400mm and 450mm buckets
6
8 ****
'See Remark'
For 600mm bucket
8
8 ****
'See Remark'
For 750mm bucket
10
9 531/03208 Sidecutter double flange right hand 2
10 531/03209 Sidecutter double flange left hand 2
11 1305/0714Z Bolt 2
2016/8/3 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=6b2024c9...
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ MINI CRAWLER EXCAVATORS \ 8052 00803371-
00803999,01178000-01178999,01614000-01615999 9802/5480 \ A ATTACHMENTS \ A02 BUCKETS

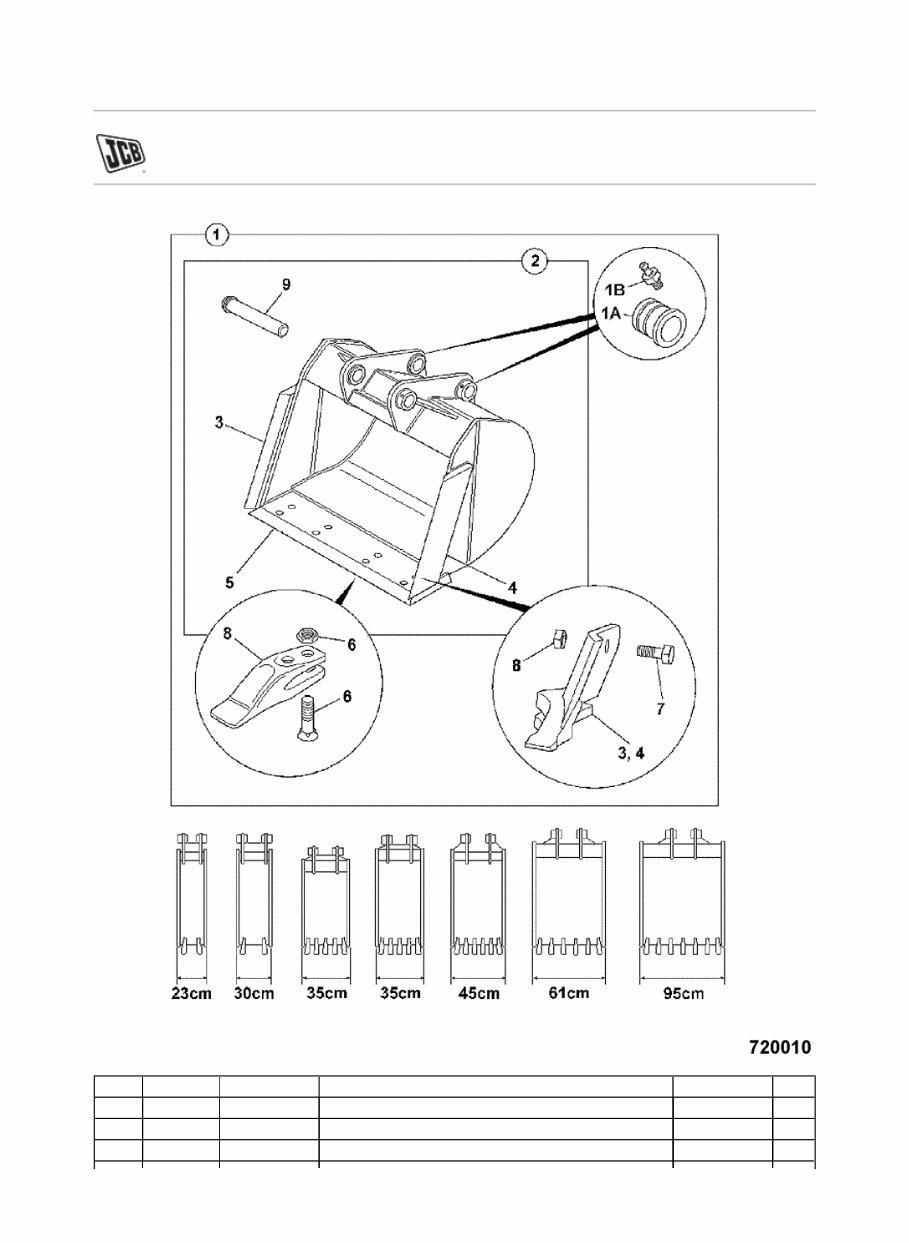

9802/5480 A2-1-2 BUCKET, OPTIONS
Item Part # Change No Description Usage Code QTY
1 980/89817 Bucket 9in (230mm) 1
1 980/89988 Bucket general purpose 250mm L 1
1 **** Bucket 12in (305mm) 1
2016/8/3 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=d288044b...
1 980/89989 Bucket general purpose 300mm M 1
1 980/89881 Bucket general purpose 14in (350mm) 1
1 980/89990 Bucket general purpose 400mm 1
1 980/89991 Bucket general purpose 450mm 1
1 980/89993 Bucket general purpose 600mm 1
1 980/89995 Bucket General Purpose 900mm 1
1 980/90178 Bucket 900mm Gen Purp 805/806 1
1A :G65/0 Bush Pivot 4
1A :809/10032
Bush Spring
Use with 12" bucket
4
1B :1450/0001 Nipple Grease, Straight 1/8 BSP 4
2 ****
None serviced part
Bucket
1
3 :531/03209
Sidecutter double flange left hand
Double flange
1
4 :531/03208
Sidecutter double flange right hand
Double flange
1
5 :993/99016 Toeplate 1
5 :531/24703 Toeplate 280mm wide 6 holes (Weld-In) 1
5 :531/23301 Toeplate 430mm wide 6 holes 1
5 :531/23601 Toeplate 585mm wide 8 holes 1
5 :531/16902 Toeplate 925mm wide 10 holes 1
5 :522/07701
Shell
for 522/07500
1
5 331/49451 Toeplate 241mm wide 4 holes (Weld-On) L 1
5 :331/49457 Toeplate 291mm wide 4 holes (Weld-On) M 1
6 :826/00303
Bolt Plough
Use with double flange side cutter
4
6 :1340/0701 Nut 4
7 :1305/0714 Bolt 2
7 :1340/0701 Nut 2
8 :531/03205 Tooth 0
9 990/88201
Pin pivot 230mm
230mm bucket only
1
9 911/16600
Pin pivot 305mm
305mm bucket only
1
9 826/01598 Pin lynch LM 2
9 1019/2053 Pin pivot 44.45 X 273 long L 2
9 1019/2073 Pin pivot 44.45 X 340 long M 2
2016/8/3 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=d288044b...
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ MINI CRAWLER EXCAVATORS \ 8052 00803371-
00803999,01178000-01178999,01614000-01615999 9802/5480 \ A ATTACHMENTS \ A02 BUCKETS

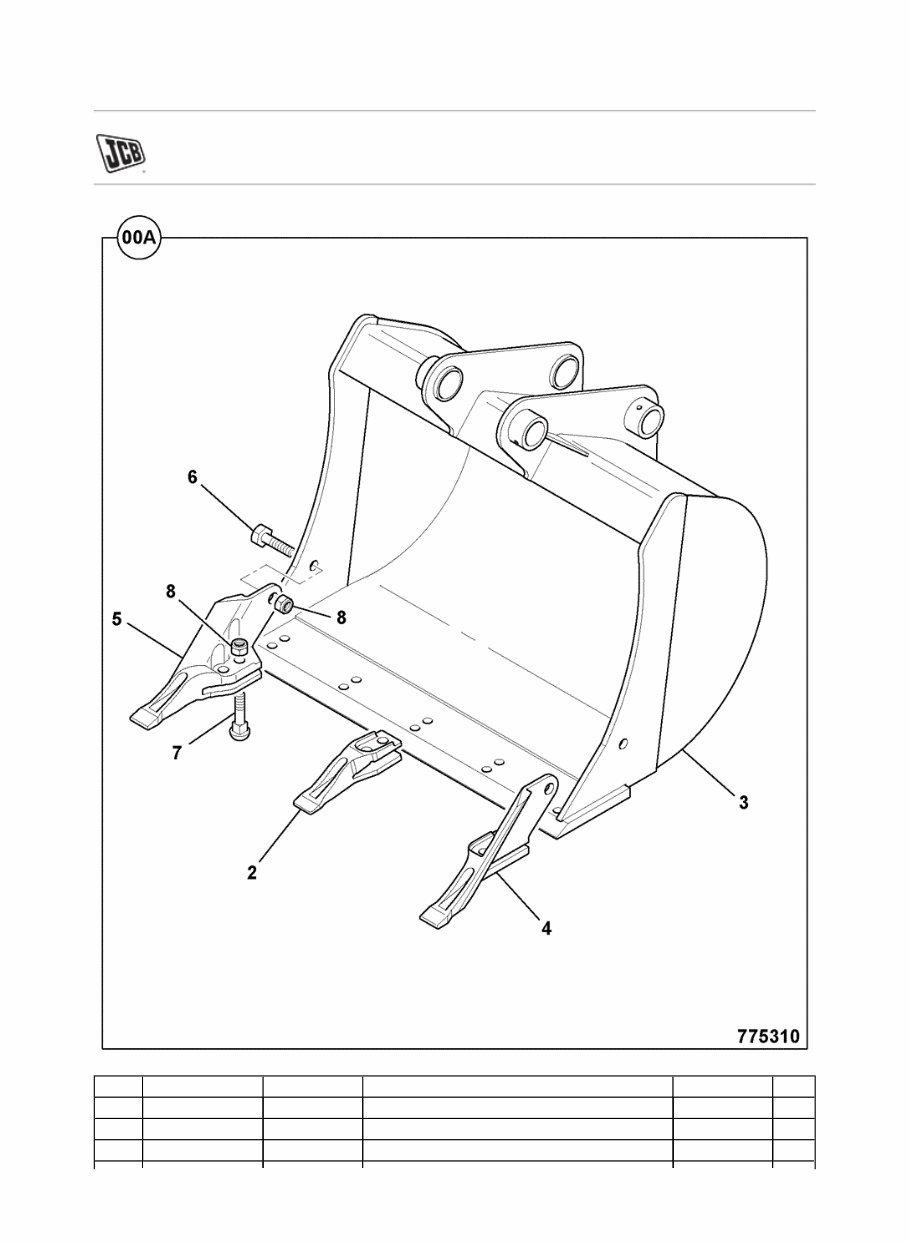

9802/5480 A2-1-3 BUCKET 900MM
Item Part # Change No Description Usage Code QTY
A 522/07600 Bucket 900mm 1
2 531/03205 Tooth 3
2 :1340/0701Z Nut 3/4 6
2016/8/3 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=40a73385...
2 :826/00303 Bolt Plough 6
4 531/03208 Sidecutter double flange right hand 1
5 531/03209 Sidecutter double flange left hand 1
6 1305/0714Z Bolt 2
7 826/00303 Bolt Plough 4
8 1340/0701Z Nut 3/4 6
2016/8/3 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=40a73385...
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ MINI CRAWLER EXCAVATORS \ 8052 00803371-
00803999,01178000-01178999,01614000-01615999 9802/5480 \ A ATTACHMENTS \ A02 BUCKETS

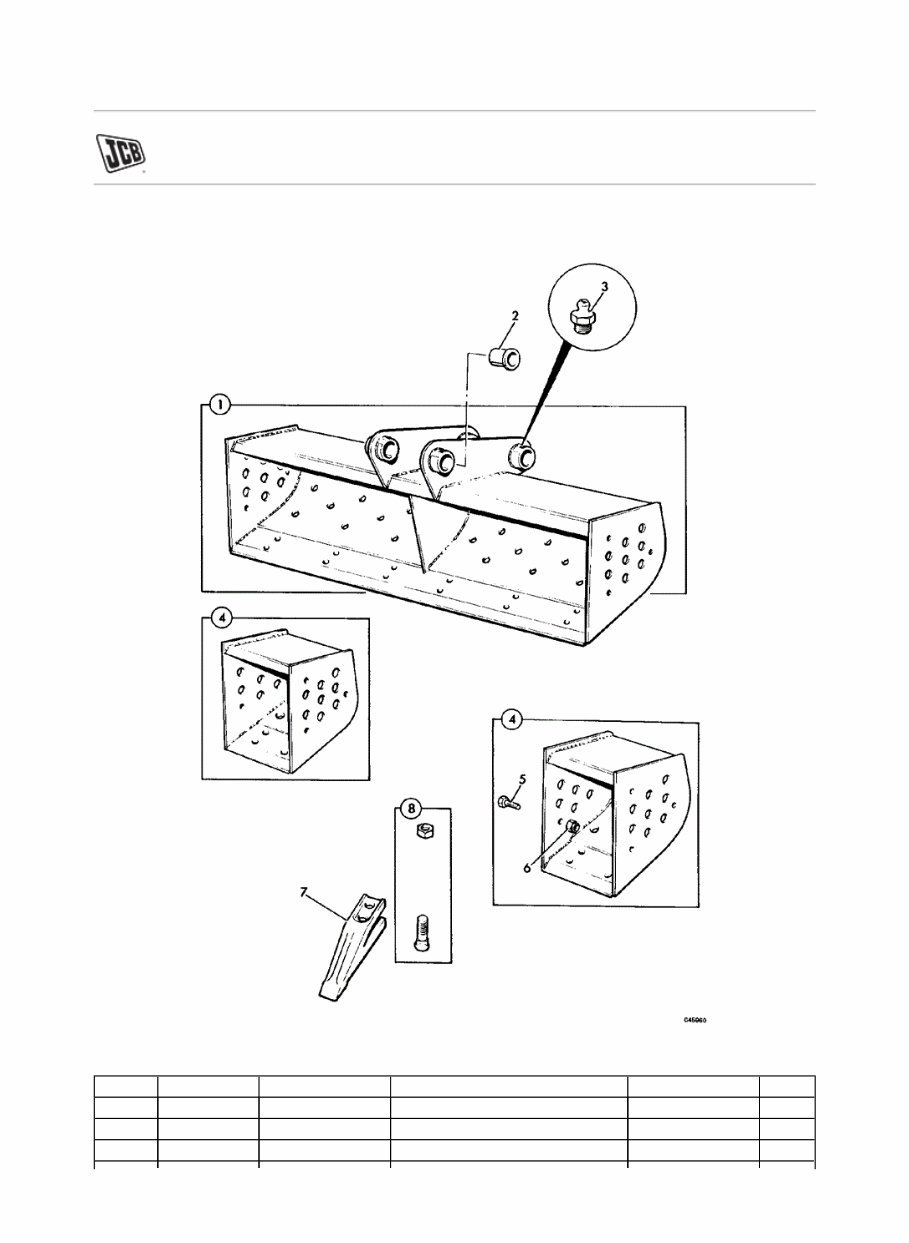

9802/5480 A2-1-4 BUCKET GRADING
Item Part # Change No Description Usage Code QTY
1 980/86061 Bucket grading,1524mm wide 1
1A 534/02505 Toeplate 5'0" (1525mm) 1
2 G65/0 Bush Pivot 1
2016/8/3 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=dedcafda...
3 1450/0002 Nipple Grease, Straight 1/4 1
4 530/11000 Blade extension 1
4A 530/11003 Toeplate 285mm wide 1
5 1305/0712 Bolt 1
6 1340/0703Z Nut 1
7 531/03205 Tooth 1
8 826/00303 Bolt Plough 1
9 1340/0701Z Nut 3/4 1
2016/8/3 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=dedcafda...
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ MINI CRAWLER EXCAVATORS \ 8052 00803371-
00803999,01178000-01178999,01614000-01615999 9802/5480 \ A ATTACHMENTS \ A02 BUCKETS

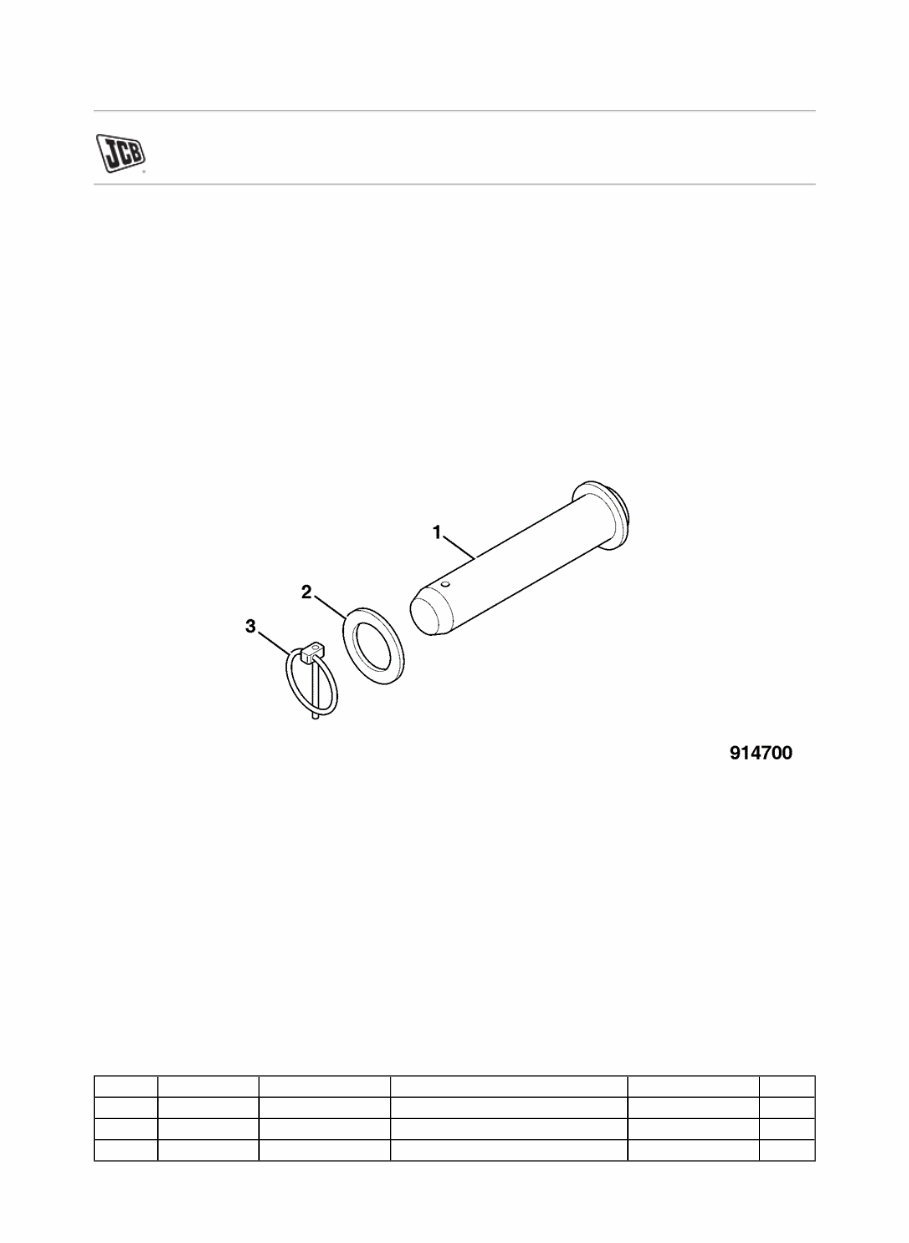

9802/5480 A2-1-7 PIN KIT
Item Part # Change No Description Usage Code QTY
1 911/12400 Pin Pivot 306 mm long 2
2 823/00470 Washer 2
3 826/00512 Pin Linch 2
2016/8/3 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=6b6a9fae...
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ MINI CRAWLER EXCAVATORS \ 8052 00803371-
00803999,01178000-01178999,01614000-01615999 9802/5480 \ A ATTACHMENTS \ A03 ATTACHMENTS

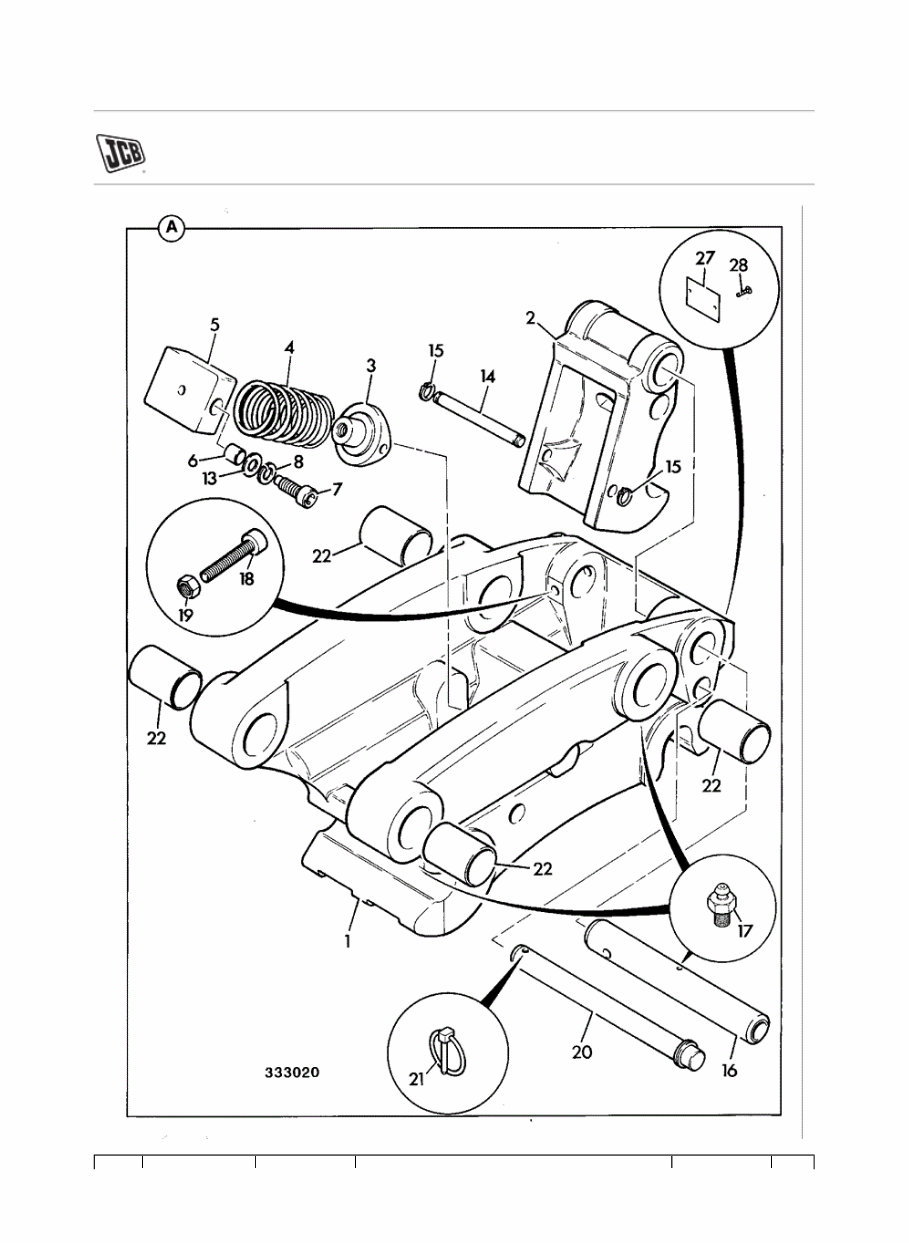

9802/5480 A3-1-1 QUICK HITCH MECHANICAL
2016/8/3 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=c394c10c...
