PART NO.
P1MP11
PARTS CATALOG
ZX10U-2
EXCAVATOR
Serial No. 000101~ HITACHI
1MP ZX10U-2 \ P1MP-1-1 \ UPPERSTRUCTURE \

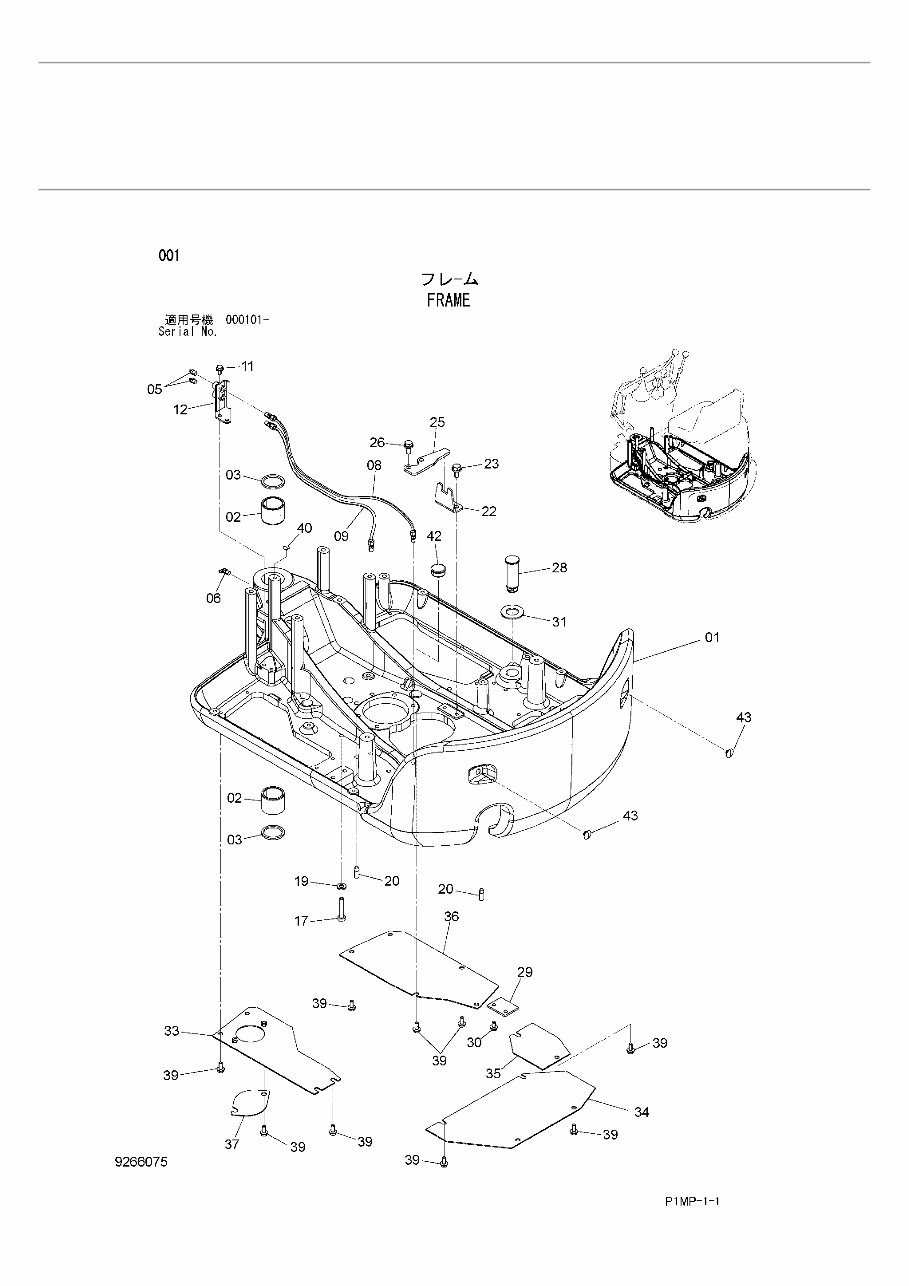

001: FRAME
Applicable Model
Model Symbol
Applicable S/N 000101 -
Code Part No. Qty Part name Service code Applied S/N
range
ICA Alternate
Part No.
Alternate part
quantity
01 0005650 1 FRAME;MAIN
02 4332743 2 BUSHING
03 4279531 2 SEAL;DUST
05 J75481 3 FITTING;GREASE
08 4461604 1 HOSE;NYLON
09 4663752 1 HOSE;NYLON
11 J260816 2 BOLT;SEMS D
11A J900816 1 * BOLT
11B A590108 1 * WASHER;PLANE
12 8106287 1 BRACKET
17 J921055 12 BOLT
19 J222010 12 WASHER
20 4657762 2 PIN;KNOCK
22 4645290 1 STOPPER
23 J271025 2 BOLT;SEMS D
23A J901025 1 * BOLT
23B J222010 1 * WASHER
25 4645289 1 PLATE
26 J271025 2 BOLT;SEMS D
26A J901025 1 * BOLT
26B J222010 1 * WASHER
28 4643274 1 PIN
29 4388312 1 PLATE
30 J260816 2 BOLT;SEMS D
30A J900816 1 * BOLT
30B A590108 1 * WASHER;PLANE
31 4627999 1 SPACER 3.2mm R
33 9767404 1 COVER
34 4666133 1 COVER
35 4666135 1 COVER
36 4666136 1 COVER
37 4640766 1 COVER
39 J260820 17 BOLT;SEMS D
39A J900820 1 * BOLT
39B A590108 1 * WASHER;PLANE
40 4484294 1 PLUG
42 4669476 1 BUSHING;RUBBER
43 4351928 2 PLUG
NOT FOR REPRODUCTION
1MP ZX10U-2 \ P1MP-1-1 \ UPPERSTRUCTURE \
001: FRAME
Applicable Model
Model Symbol
Applicable S/N 000101 -
NOT FOR REPRODUCTION
1MP ZX10U-2 \ P1MP-1-1 \ UPPERSTRUCTURE \

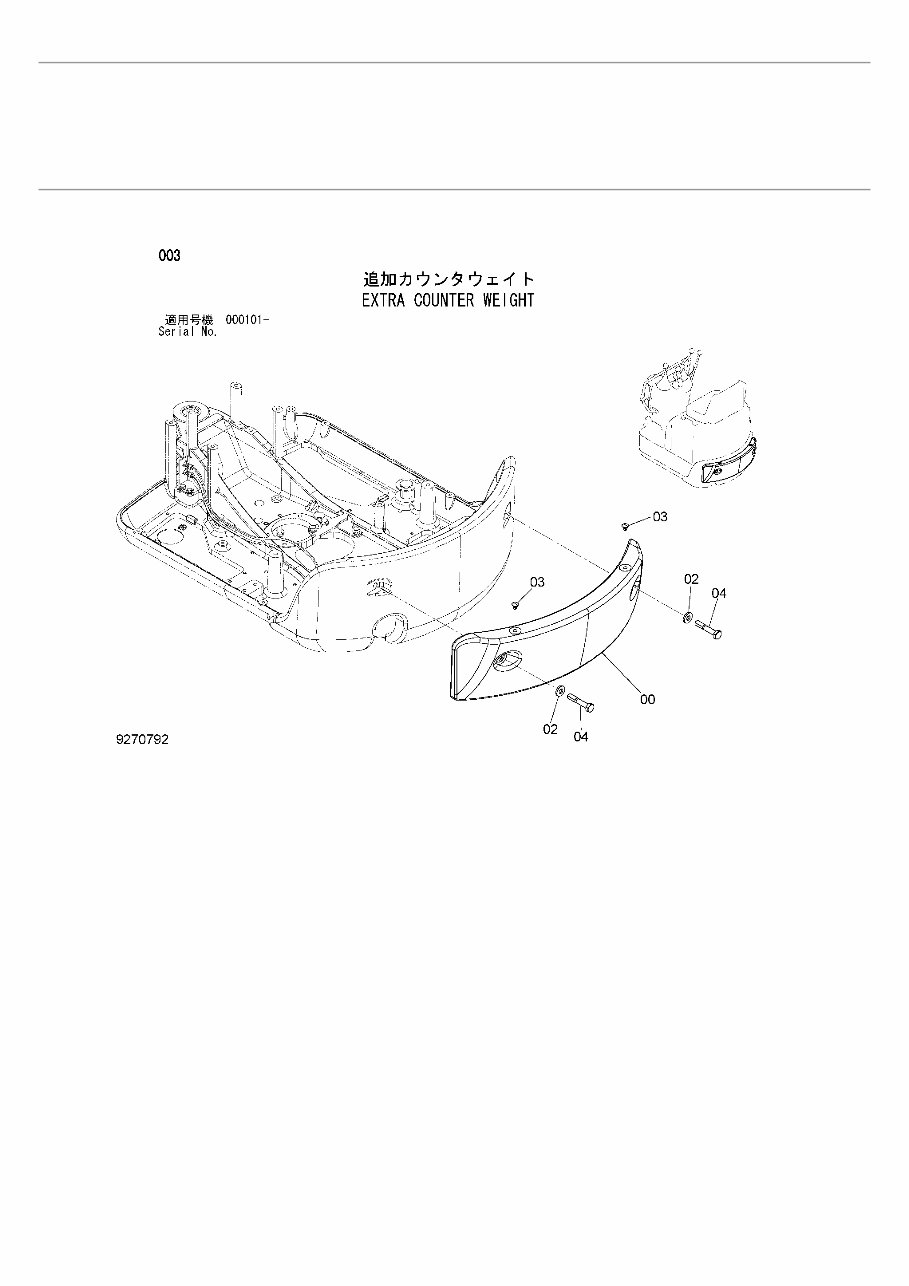

003: EXTRA COUNTER WEIGHT
Applicable Model
Model Symbol
Applicable S/N 000101 -
Code Part No. Qty Part name Service code Applied S/N
range
ICA Alternate
Part No.
Alternate part
quantity
00 7051763 1 WEIGHT;COUNTER
02 J222014 2 WASHER
03 4288579 2 PLUG
04 J921475 2 BOLT
NOT FOR REPRODUCTION
1MP ZX10U-2 \ P1MP-1-1 \ UPPERSTRUCTURE \
003: EXTRA COUNTER WEIGHT
Applicable Model
Model Symbol
Applicable S/N 000101 -
NOT FOR REPRODUCTION
1MP ZX10U-2 \ P1MP-1-1 \ UPPERSTRUCTURE \

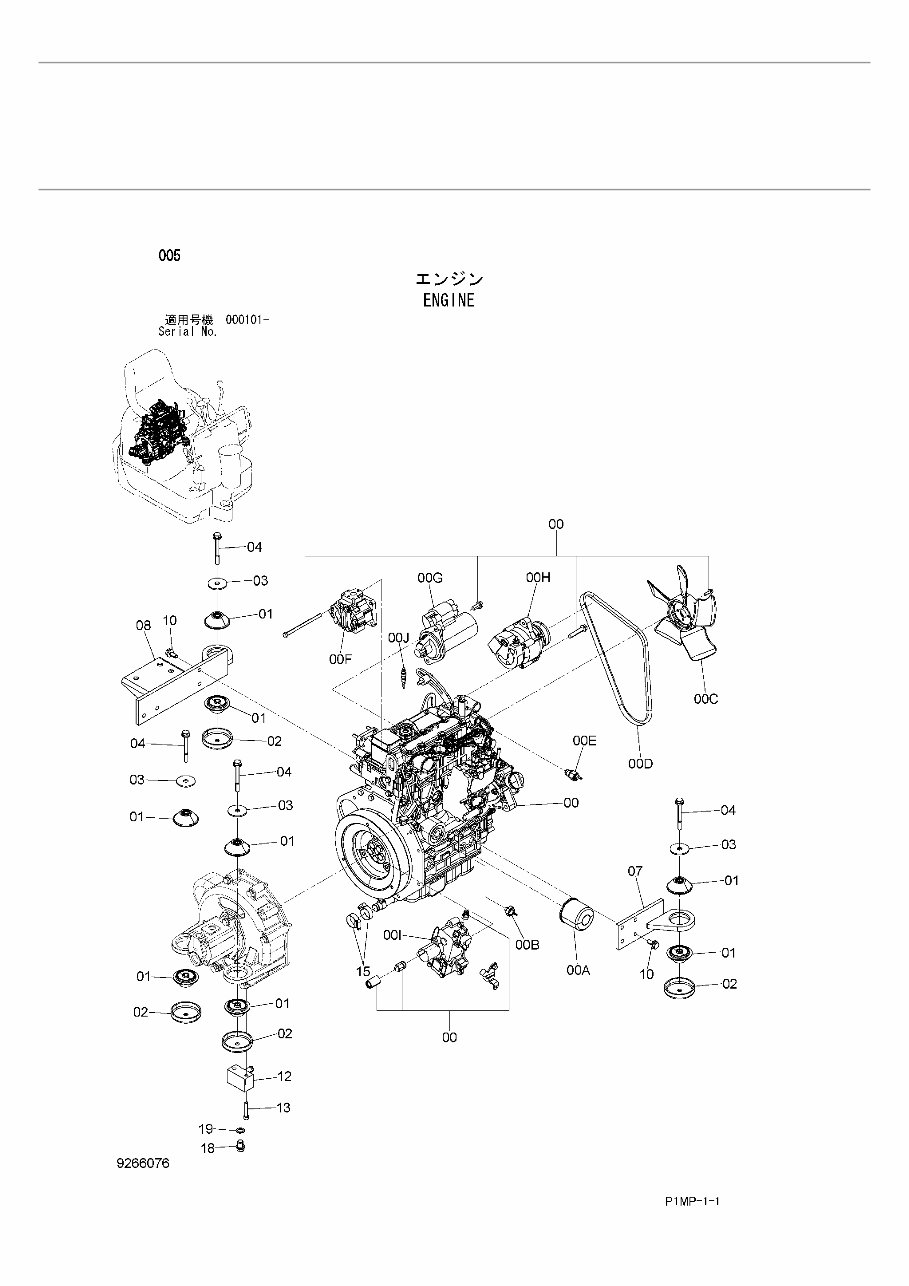

005: ENGINE
Applicable Model
Model Symbol
Applicable S/N 000101 -
Code Part No. Qty Part name Service code Applied S/N
range
ICA Alternate
Part No.
Alternate part
quantity
00 4631704 1 ENGINE Z
00A 4661289 1 * FILTER;OIL Z
00B 4626338 1 * SWITCH;PRES. Z
00C 4661282 1 * FAN Z
00D 4661283 1 * BELT;FAN Z
00E 4626341 1 * SWITCH;THERMO Z
00F 4655517 1 * PUMP;GEAR Z
00G 4661284 1 * STARTER Z
00H 4661285 1 * ALTERNATOR Z
00I 4626346 1 * SOLENOID Z
00J 4661286 3 * PLUG;HEATER Z
01 4631697 8 RUBBER
02 4643370 4 STOPPER
03 4456585 4 PLATE
04 J271090 4 BOLT;SEMS D
04A J901090 1 * BOLT
04B J222010 1 * WASHER
07 8105796 1 BRACKET
08 8105795 1 BRACKET
10 J271025 8 BOLT;SEMS D
10A J901025 1 * BOLT
10B J222010 1 * WASHER
12 8106020 1 MANIFOLD
13 J780845 2 BOLT;SOCKET
15 4504367 2 CLAMP;HOSE
18 4662264 1 PLUG;DRAIN
19 4662265 1 WASHER;SEAL
NOT FOR REPRODUCTION
1MP ZX10U-2 \ P1MP-1-1 \ UPPERSTRUCTURE \
005: ENGINE
Applicable Model
Model Symbol
Applicable S/N 000101 -
NOT FOR REPRODUCTION
1MP ZX10U-2 \ P1MP-1-1 \ UPPERSTRUCTURE \

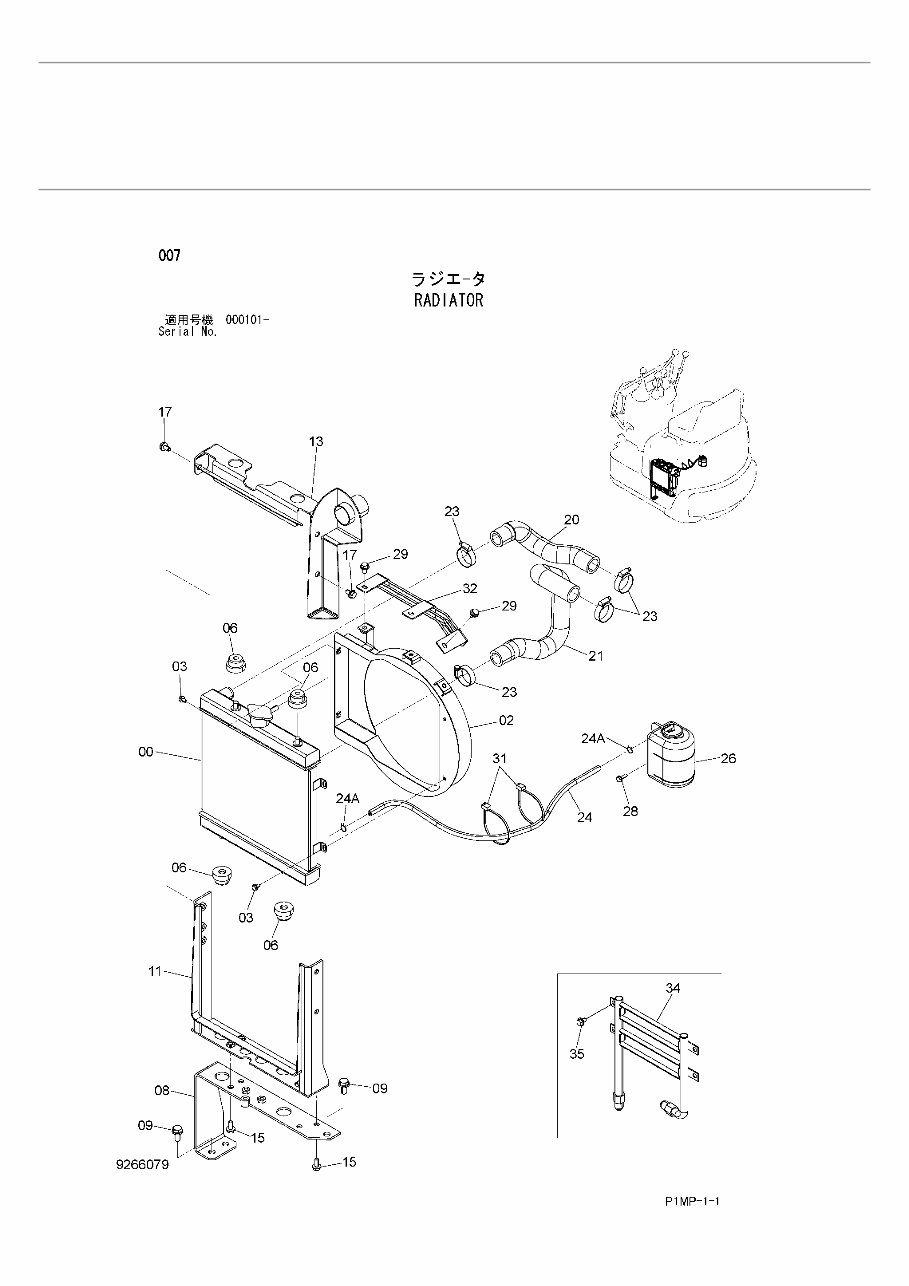

007: RADIATOR
Applicable Model
Model Symbol
Applicable S/N 000101 -
Code Part No. Qty Part name Service code Applied S/N
range
ICA Alternate
Part No.
Alternate part
quantity
00 4657575 1 RADIATOR
00A +++++++ 1 * CORE
00B +++++++ 1 * CAP
02 7051200 1 SHROUD
03 J260612 4 BOLT;SEMS D
03A J900612 1 * BOLT
03B A590106 1 * WASHER;PLANE
06 4643366 4 RUBBER;CUSHION
08 8105618 1 BRACKET
09 J271025 3 BOLT;SEMS D
09A J901025 1 * BOLT
09B J222010 1 * WASHER
11 7050988 1 BRACKET
13 8104747 1 BRACKET
15 J260820 4 BOLT;SEMS D
15A J900820 1 * BOLT
15B A590108 1 * WASHER;PLANE
17 J260816 3 BOLT;SEMS D
17A J900816 1 * BOLT
17B A590108 1 * WASHER;PLANE
20 3108301 1 HOSE;WATER
21 3108300 1 HOSE;WATER
23 4505243 4 CLAMP;HOSE
24 4421674 1 HOSE;WATER
24A 4397686 1 * CLAMP
26 4279429 1 TANK;WATER
28 J260620 2 BOLT;SEMS D
28A J900620 1 * BOLT
28B A590106 1 * WASHER;PLANE
29 J260814 3 BOLT;SEMS D
29A J900814 1 * BOLT
29B A590108 1 * WASHER;PLANE
31 4055312 2 CLIP;BAND
32 8108023 1 GUARD
34 8108949 1 PIPE
35 J260814 4 BOLT;SEMS D
35A J900814 1 * BOLT
35B A590108 1 * WASHER;PLANE
NOT FOR REPRODUCTION
1MP ZX10U-2 \ P1MP-1-1 \ UPPERSTRUCTURE \
007: RADIATOR
Applicable Model
Model Symbol
Applicable S/N 000101 -
NOT FOR REPRODUCTION
1MP ZX10U-2 \ P1MP-1-1 \ UPPERSTRUCTURE \
009: AIR CLEANER
Applicable Model
Model Symbol
Applicable S/N 000101 -
Code Part No. Qty Part name Service code Applied S/N
range
ICA Alternate
Part No.
Alternate part
quantity
00 4643545 1 CLEANER;AIR
00A 4383875 1 * ELEMENT
00B +++++++ 1 * BODY
00C +++++++ 1 * COVER
00D +++++++ 1 * VALVE
01 4643546 1 BRACKET
02 J260825 2 BOLT;SEMS D
02A J900825 1 * BOLT
02B A590108 1 * WASHER;PLANE
08 4656701 1 HOSE;AIR
09 3108299 1 HOSE;AIR
11 4670491 4 CLAMP;HOSE
NOT FOR REPRODUCTION
