HITACHI ZX10U-2 Excavator EQUIPMENT COMPONENTS Parts Catalog Manual ( Serial Number: 010001 and up )

PART NO. P1MPE11 PARTS CATALOG ZX10U-2 EQUIPMENT COMPONENTS PARTS Serial No. 010001~ HITACHI

1MP ZX10U-2 \ P1MP-E1-1 \ PUMP \ 001: PUMP;GEAR Applicable Model Model Symbol Applicable S/N 010001 - Code Part No. Qty Part name Service code Applied S/N range ICA Alternate Part No. Alternate part quantity 4638423 1 PUMP;GEAR 01 +++++++ 1 * COVER;FRONT D 02 +++++++ 1 * BODY D 03 +++++++ 1 * GEAR;DRIVE D 04 +++++++ 1 * GEAR;DRIVEN D 05 +++++++ 2 * GEAR;DRIVEN D 06 +++++++ 4 * PLATE;SIDE D 07 +++++++ 1 * REAR;COVER D 50 +++++++ 4 * GASKET D/K 51 +++++++ 2 * GASKET D/K 52 +++++++ 4 * BALL;STEEL D 53 +++++++ 4 * BOLT;SEMS D 55 +++++++ 1 * SEAL;OIL D/K 56 +++++++ 1 * RING;RETAINING D/K 100 4671659 1 KIT;SEAL NOT FOR REPRODUCTION

1MP ZX10U-2 \ P1MP-E1-1 \ PUMP \ 001: PUMP;GEAR Applicable Model Model Symbol Applicable S/N 010001 - NOT FOR REPRODUCTION

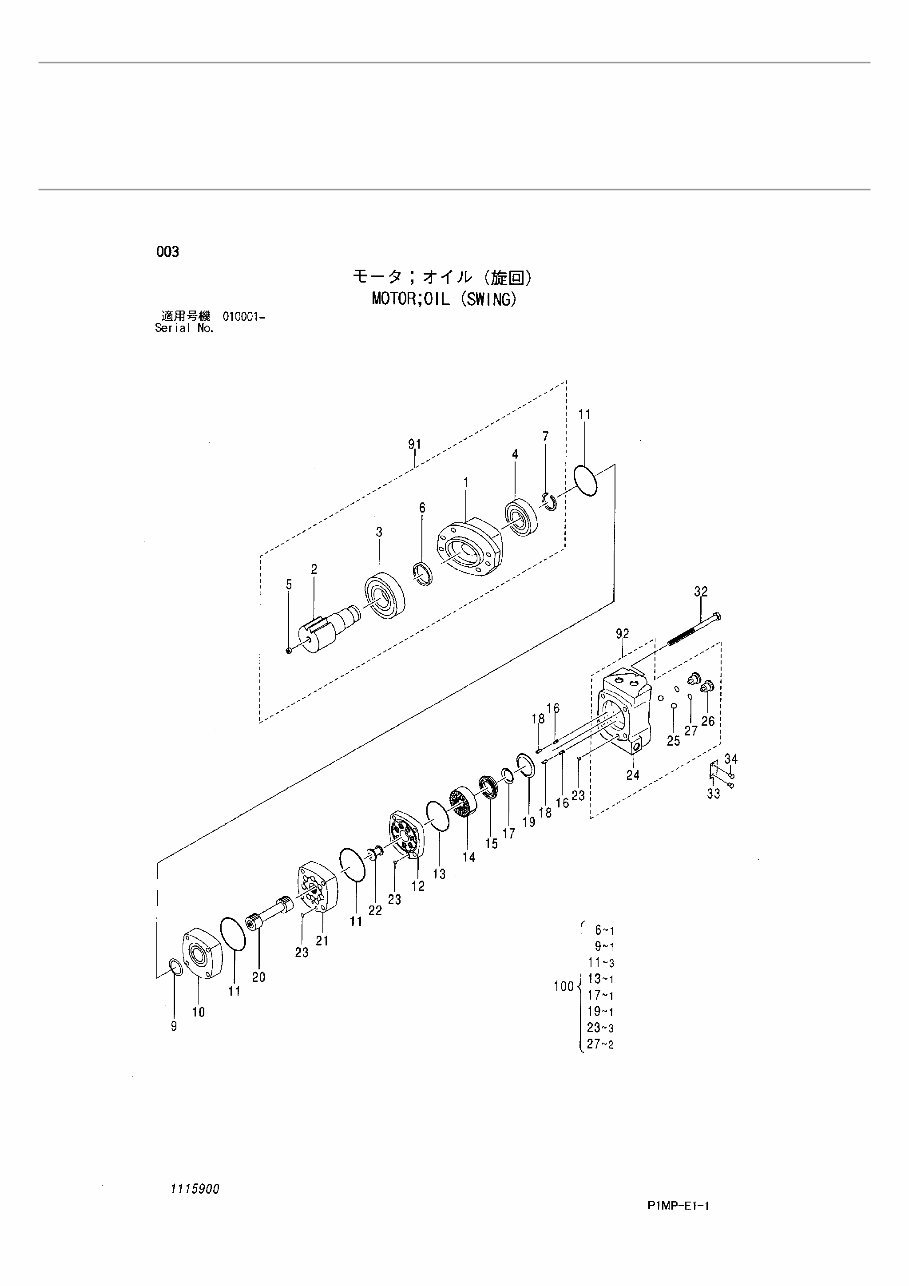

1MP ZX10U-2 \ P1MP-E1-1 \ MOTOR \ 003: MOTOR;OIL (SWING) Applicable Model Model Symbol Applicable S/N 010001 - Code Part No. Qty Part name Service code Applied S/N range ICA Alternate Part No. Alternate part quantity 4643515 1 MOTOR;OIL (SWING) 1 +++++++ 1 * BRG. D 2 +++++++ 1 * GEAR D 3 +++++++ 1 * BRG.;BALL D 4 +++++++ 1 * BRG.;BALL D 5 0600314 1 * PLUG 6 +++++++ 1 * RING D/K 7 +++++++ 1 * RING;RETAINING D 9 +++++++ 1 * SEAL D/K 10 +++++++ 1 * PLATE D 11 4126681 3 * O-RING K 12 +++++++ 1 * PLATE;VALVE D 13 4150808 1 * O-RING K 14 +++++++ 1 * VALVE D 15 +++++++ 1 * RING D 16 +++++++ 2 * SPRING D 17 +++++++ 1 * SEAL D/K 18 +++++++ 2 * PIN D 19 +++++++ 1 * SEAL D/K 20 +++++++ 1 * DRIVE D 21 +++++++ 1 * ROTOR D 22 +++++++ 1 * VALVE D 23 4154239 3 * O-RING K 24 +++++++ 1 * HOUSING D 25 +++++++ 2 * BALL;STEEL D 26 0427627 2 * PLAG 27 4510184 2 * O-RING K 32 0427631 4 * BOLT 33 +++++++ 1 * NAME-PLATE D 34 +++++++ 2 * RIVET D 91 1115901 1 * GEAR ASS'Y 92 1115902 1 * HOUSING ASS'Y 100 4671658 1 KIT;SEAL NOT FOR REPRODUCTION

1MP ZX10U-2 \ P1MP-E1-1 \ MOTOR \ 003: MOTOR;OIL (SWING) Applicable Model Model Symbol Applicable S/N 010001 - NOT FOR REPRODUCTION

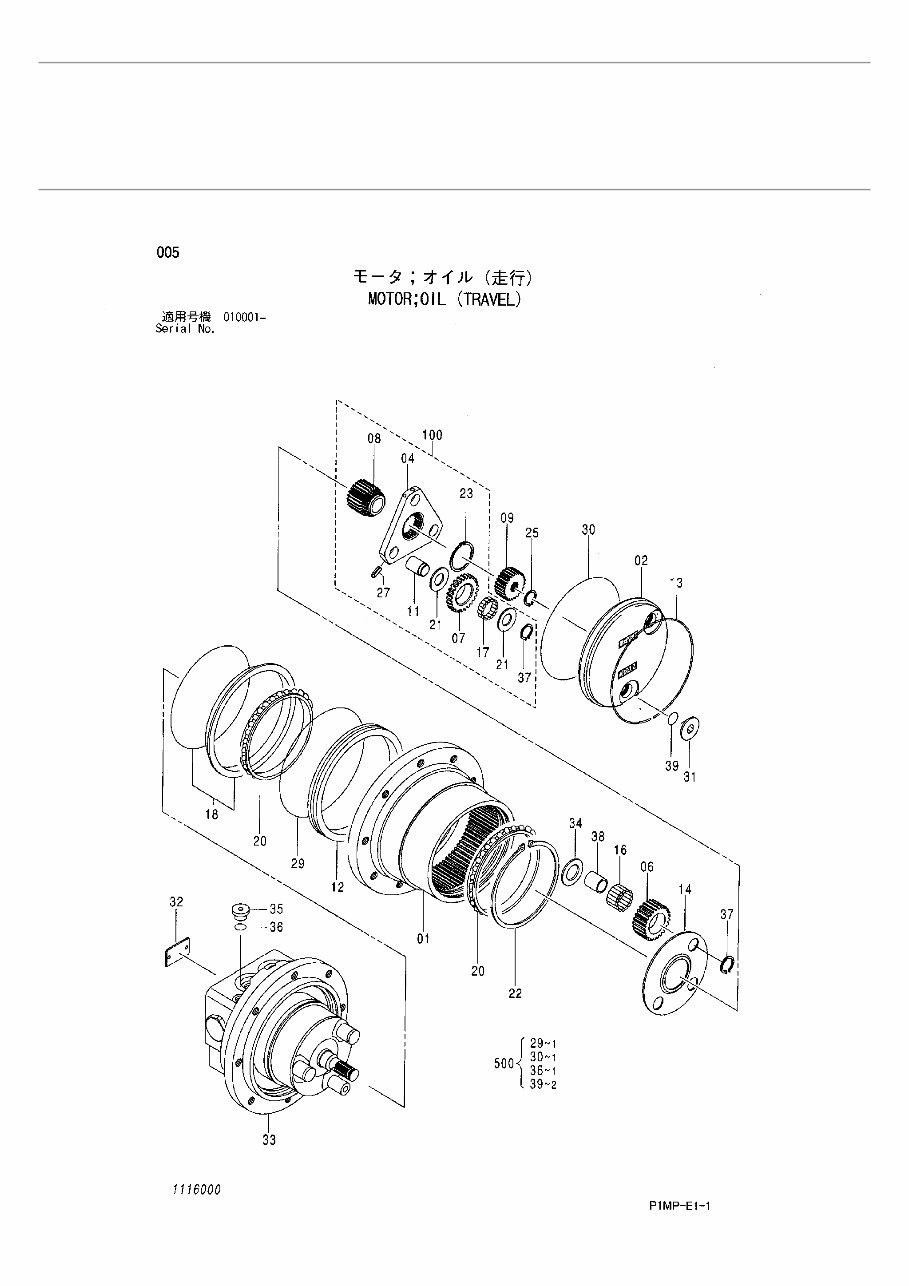

1MP ZX10U-2 \ P1MP-E1-1 \ MOTOR \ 005: MOTOR;OIL (TRAVEL) Applicable Model Model Symbol Applicable S/N 010001 - Code Part No. Qty Part name Service code Applied S/N range ICA Alternate Part No. Alternate part quantity 4643516 1 MOTOR;OIL (TRAVEL) 01 1116001 1 * BODY 02 0773601 1 * COVER 04 +++++++ 1 * CARRIER D 06 0773602 3 * GEAR 07 +++++++ 3 * GEAR D 08 +++++++ 1 * GEAR D 09 1116002 1 * GEAR 11 +++++++ 3 * PIN D 12 0773603 1 * RING;SEAL 13 0647103 1 * RING;STOPPER 14 1116003 1 * PLATE;THRUST 16 0773606 45 * NEEDLE 17 +++++++ 39 * NEEDLE D 18 0773607 1 * SEAL;RING 20 1116004 2 * BEARING 21 +++++++ 6 * WASHER;THRUST D 22 0773608 1 * RING;RETAINING 23 0426804 1 * RING;RETAINING 25 0426805 1 * RING;RETAINING 27 +++++++ 3 * PIN;SPRING D 29 A810130 1 * O-RING K 30 1116005 1 * O-RING K 31 0664916 2 * PLUG 32 +++++++ 1 * NAME-PLATE D 33 4672093 1 * MOTOR;OIL 34 0773610 3 * WASHER;THRUST 35 0630505 1 * PLUG 36 957366 1 * O-RING K 37 0647108 6 * RING;RETAINING 38 0773612 3 * RING 39 4509180 2 * O-RING K 100 1116006 1 CARRIER 2 KIT 500 4671660 1 KIT;SEAL NOT FOR REPRODUCTION

1MP ZX10U-2 \ P1MP-E1-1 \ MOTOR \ 005: MOTOR;OIL (TRAVEL) Applicable Model Model Symbol Applicable S/N 010001 - NOT FOR REPRODUCTION

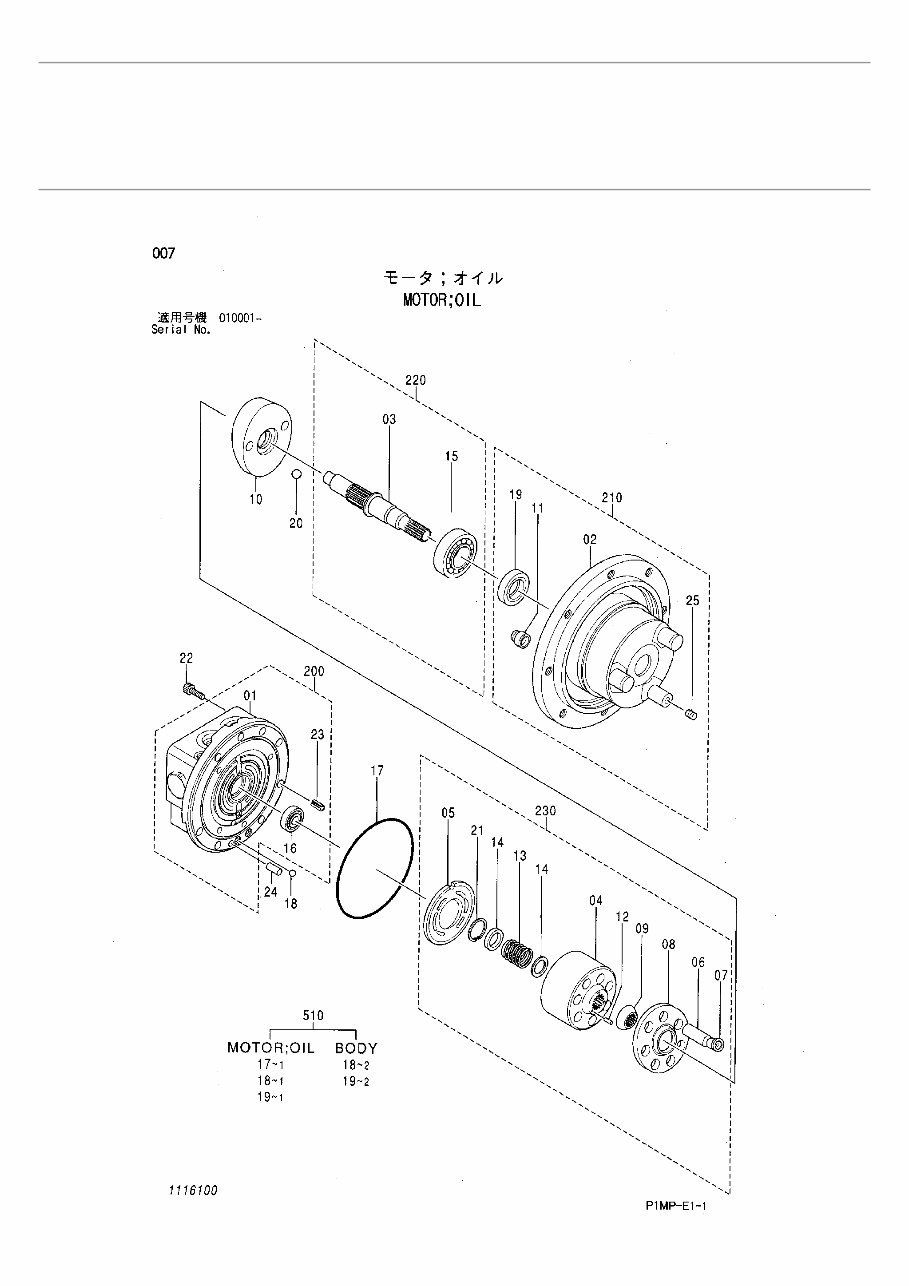

1MP ZX10U-2 \ P1MP-E1-1 \ MOTOR \ 007: MOTOR;OIL Applicable Model Model Symbol Applicable S/N 010001 - Code Part No. Qty Part name Service code Applied S/N range ICA Alternate Part No. Alternate part quantity 4672093 1 MOTOR;OIL 01 +++++++ 1 * BODY D 02 +++++++ 1 * BODY D 03 +++++++ 1 * SHAFT D 04 +++++++ 1 * BLOCK;CYL. D 05 +++++++ 1 * PLATE D 06 +++++++ 7 * PISTON D 07 +++++++ 7 * SHOE D 08 +++++++ 1 * HOLDER D 09 +++++++ 1 * HOLDER D 10 1116101 1 * PLATE 11 +++++++ 1 * PISTON D 12 +++++++ 3 * PIN D 13 +++++++ 1 * SPRING D 14 +++++++ 2 * RETAINER D 15 0426901 1 * BRG. 16 0426902 1 * BRG. 17 A811105 1 * O-RING K 18 4506406 1 * O-RING K 19 +++++++ 1 * SEAL;OIL D/K 20 0773704 2 * BALL 21 0426904 1 * RING;RETAINING 22 0477206 7 * SCREW 23 0426906 1 * PIN;SPRING 24 0426908 1 * PIN 25 +++++++ 1 * PLUG D 200 1116102 1 BODY 1 KIT 210 1116103 1 BODY 2 KIT 220 1116104 1 SHAFT 230 0773708 1 BARREL ASSY 510 4671689 1 KIT;SEAL NOT FOR REPRODUCTION

1MP ZX10U-2 \ P1MP-E1-1 \ MOTOR \ 007: MOTOR;OIL Applicable Model Model Symbol Applicable S/N 010001 - NOT FOR REPRODUCTION

1MP ZX10U-2 \ P1MP-E1-1 \ MOTOR \ 009: BODY Applicable Model Model Symbol Applicable S/N 010001 - Code Part No. Qty Part name Service code Applied S/N range ICA Alternate Part No. Alternate part quantity +++++++ 1 BODY D 01 +++++++ 1 * BODY D 02 +++++++ 1 * SPOOL D 03 +++++++ 2 * VALVE;CHECK D 04 +++++++ 2 * GUIDE;SPRING D 05 +++++++ 1 * SPOOL D 06 +++++++ 1 * SPOOL D 07 +++++++ 2 * SPRING D 08 +++++++ 2 * SPRING D 09 +++++++ 1 * SPRING D 10 +++++++ 2 * PLUG D 11 +++++++ 2 * PLUG D 12 +++++++ 2 * PLUG D 13 +++++++ 2 * CHOKE D 14 +++++++ 2 * RING D 15 +++++++ 4 * PLUG D 16 +++++++ 2 * PLUG D 17 +++++++ 2 * O-RING D 18 4509180 2 * O-RING K 19 4506418 2 * O-RING K 20 +++++++ 2 * CHOKE D 21 +++++++ 2 * PIN D 22 +++++++ 6 * PLUG D +++++++ 1 KIT;SEAL NOT FOR REPRODUCTION
