HITACHI EX50U Excavator Parts Catalog Manual ( Serial Number: 000101 and up )

PART NO. P1AV12 PARTS CATALOG EX50U EXCAVATOR Serial No. 000101~ HITACHI

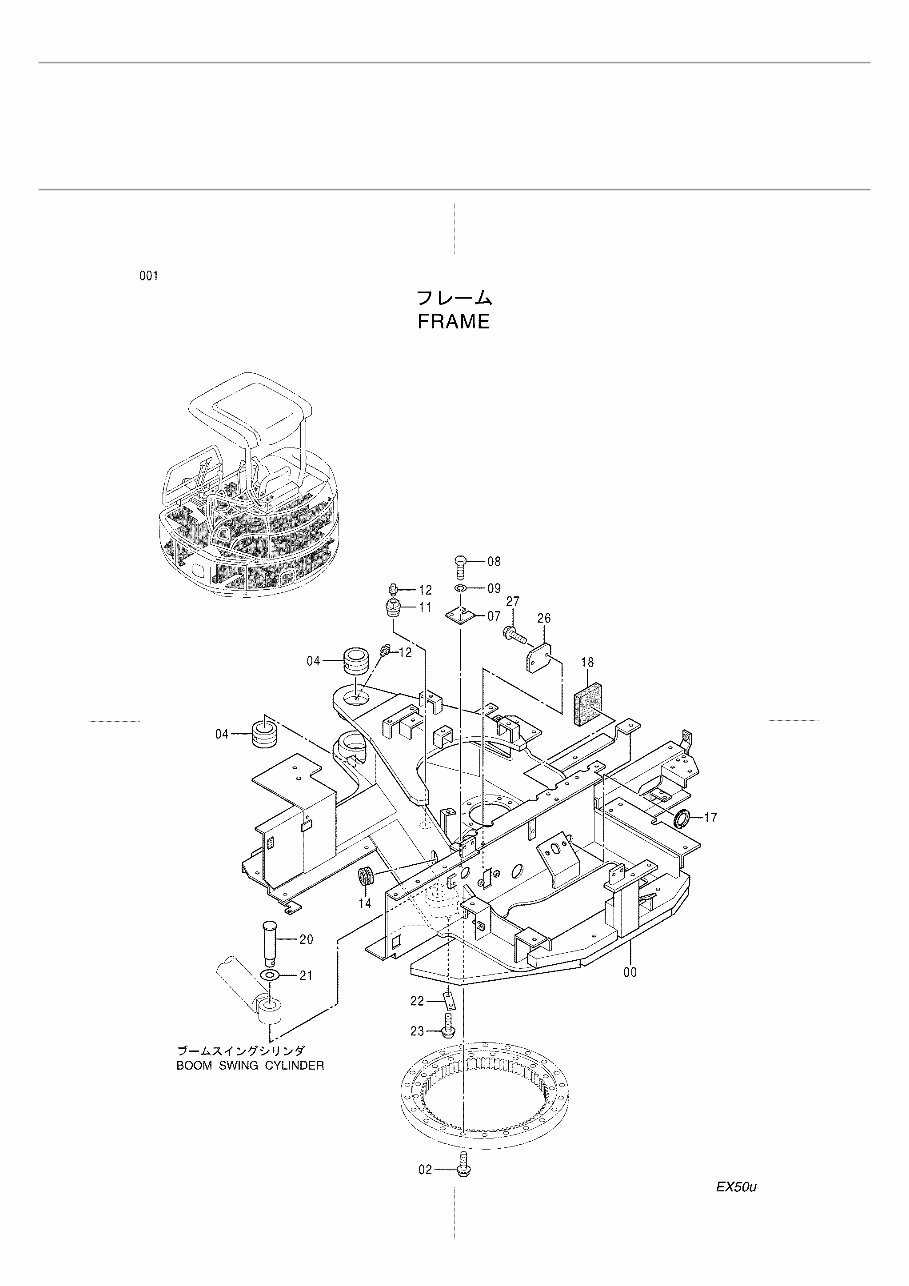

1AV EX50U \ P1AV-1-2 \ UPPERSTRUCTURE \ 001: FRAME Applicable Model Model Symbol Applicable S/N 000101 - Code Part No. Qty Part name Service code Applied S/N range ICA Alternate Part No. Alternate part quantity 00 5006209 1 FRAME;MAIN - 000226 00 5006209 1 FRAME;MAIN 000228 - 000241 00 5006209 1 FRAME;MAIN 000248 - 000254 00 5006209 1 FRAME;MAIN 000257 - 000299 00 5006749 1 FRAME;MAIN # 000227 - 000227 00 5006749 1 FRAME;MAIN # 000242 - 000247 00 5006749 1 FRAME;MAIN # 000255 - 000256 00 5006749 1 FRAME;MAIN # 000300 - 02 J931465 22 BOLT 04 4405597 2 BUSHING 07 4276606 1 STOPPER 08 J971225 2 BOLT 09 J252212 2 WASHER;SPRING 11 4310999 1 PLUG 12 J75481 3 FITTING;GREASE 14 4259340 1 BUSHING;RUBBER 17 4412159 1 RUBBER 18 4418983 1 BUSHING 20 4392008 1 PIN 21 4392007 1 SPACER 22 4392683 1 PLATE 23 J041230 2 BOLT;SEMS 26 4354933 1 PLATE 27 J090820 2 BOLT;SEMS NOT FOR REPRODUCTION

1AV EX50U \ P1AV-1-2 \ UPPERSTRUCTURE \ 001: FRAME Applicable Model Model Symbol Applicable S/N 000101 - NOT FOR REPRODUCTION

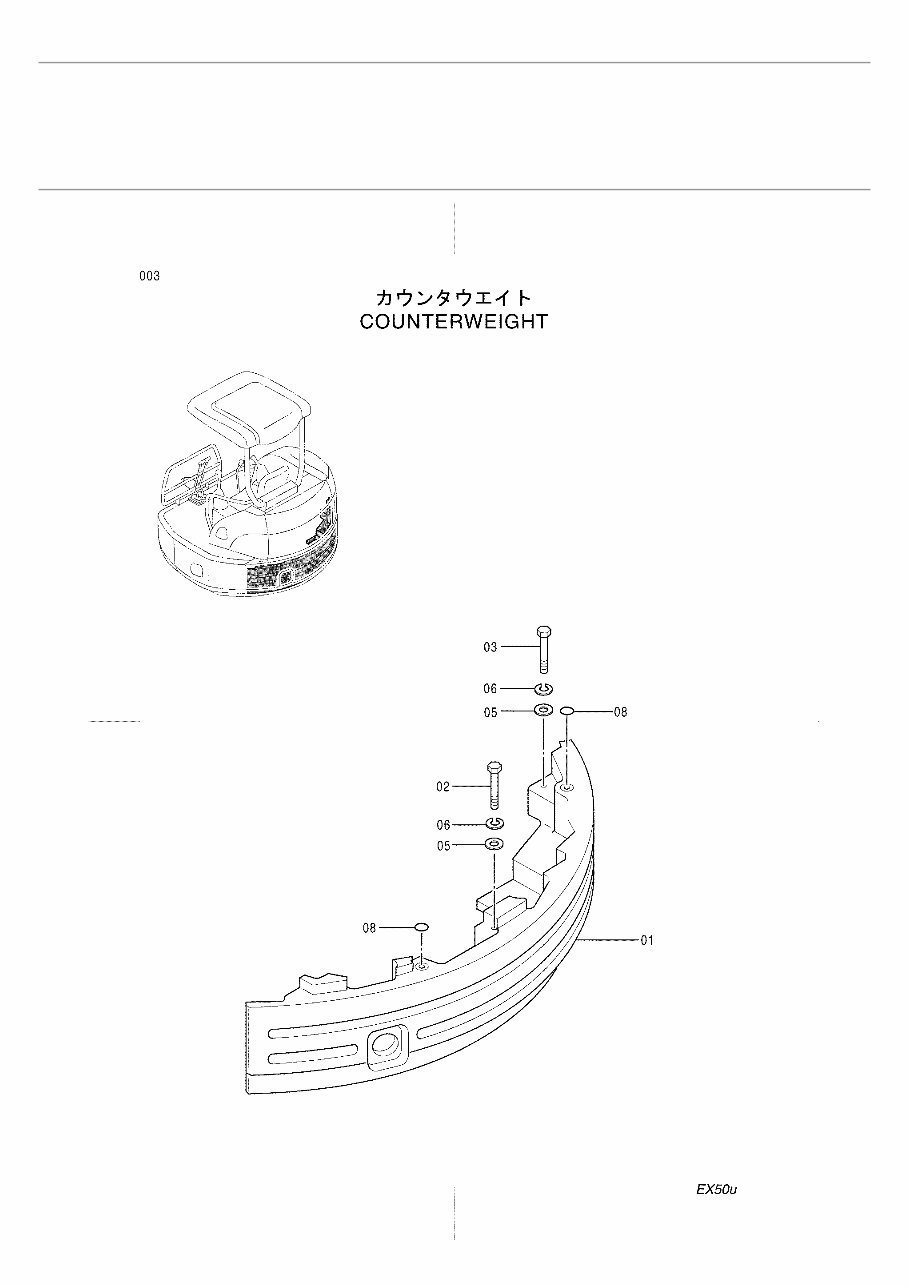

1AV EX50U \ P1AV-1-2 \ UPPERSTRUCTURE \ 003: COUNTERWEIGHT Applicable Model Model Symbol Applicable S/N 000101 - Code Part No. Qty Part name Service code Applied S/N range ICA Alternate Part No. Alternate part quantity 01 5006016 1 WEIGHT;COUNTER 02 J922013 2 BOLT 03 J922004 1 BOLT 05 4403508 3 WASHER 06 J257220 3 WASHER;SPRING 08 4087559 2 NAME-PLATE NOT FOR REPRODUCTION

1AV EX50U \ P1AV-1-2 \ UPPERSTRUCTURE \ 003: COUNTERWEIGHT Applicable Model Model Symbol Applicable S/N 000101 - NOT FOR REPRODUCTION

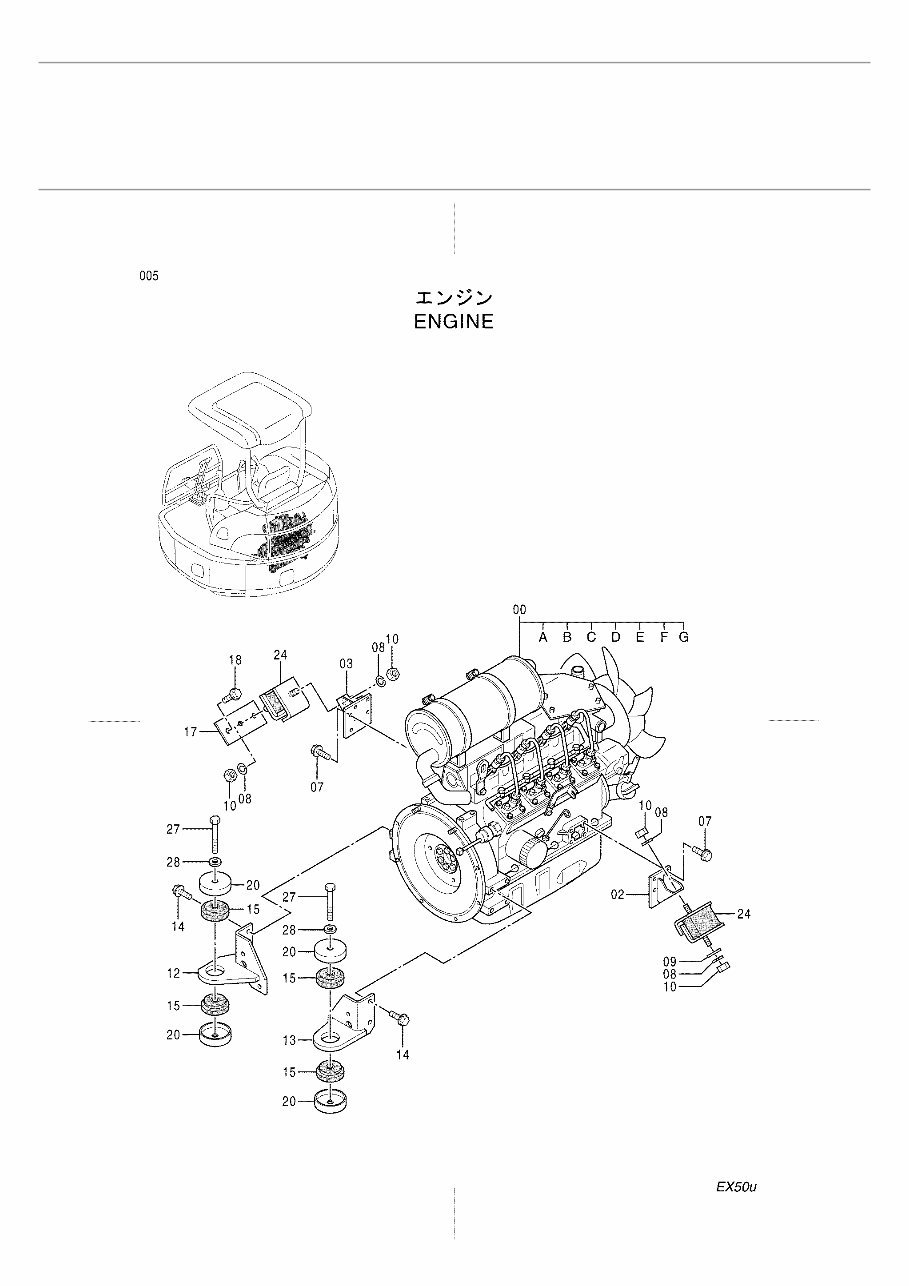

1AV EX50U \ P1AV-1-2 \ UPPERSTRUCTURE \ 005: ENGINE Applicable Model Model Symbol Applicable S/N 000101 - Code Part No. Qty Part name Service code Applied S/N range ICA Alternate Part No. Alternate part quantity 00 4403495 1 ENGINE Z 00A 4417515 1 * BELT;FAN Z 00B 4373419 1 * FILTER;OIL Z 00C 4356051 1 * SWITCH;PRES. Z 00D 4355590 1 * SENSOR;THERMO Z 00E 4403056 1 * SWITCH;THERMO Z 00F 4420669 1 * FAN Z 00G 4397706 1 * MUFFLER Z 02 8072727 1 BRACKET 03 8073234 1 BRACKET 07 J041030 8 BOLT;SEMS 08 J252214 4 WASHER;SPRING 09 4086894 1 WASHER 10 J231214 4 NUT 12 8070195 1 BRACKET 13 8070194 1 BRACKET 14 J041025 8 BOLT;SEMS 15 4390496 4 RUBBER 17 4348541 1 PLATE 18 J051240 2 BOLT;SEMS 20 4276374 4 STOPPER 24 4272585 2 RUBBER 27 J971202 2 BOLT 28 J254012 2 WASHER NOT FOR REPRODUCTION

1AV EX50U \ P1AV-1-2 \ UPPERSTRUCTURE \ 005: ENGINE Applicable Model Model Symbol Applicable S/N 000101 - NOT FOR REPRODUCTION

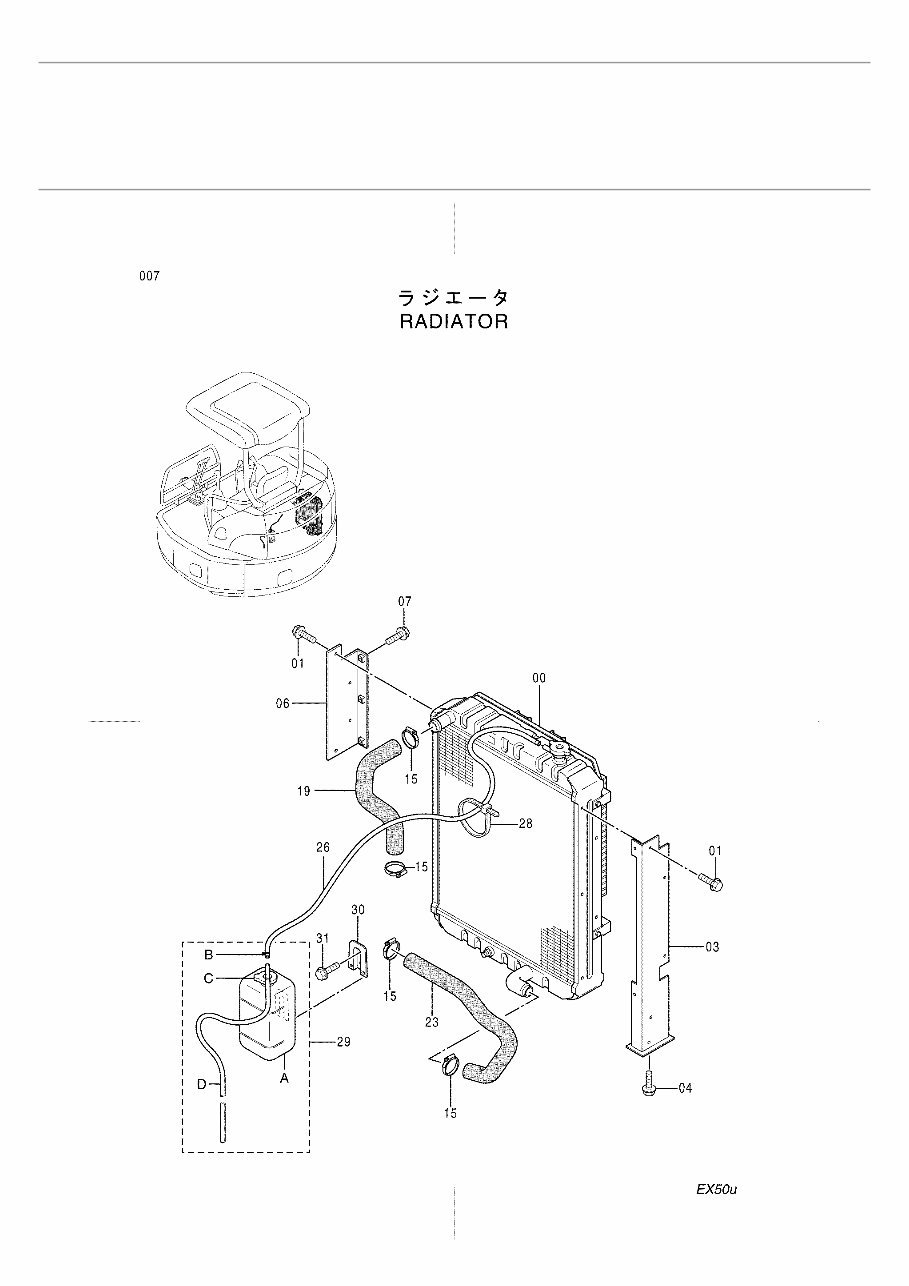

1AV EX50U \ P1AV-1-2 \ UPPERSTRUCTURE \ 007: RADIATOR Applicable Model Model Symbol Applicable S/N 000101 - Code Part No. Qty Part name Service code Applied S/N range ICA Alternate Part No. Alternate part quantity 00 4390488 1 RADIATOR 01 J080812 8 BOLT;SEMS 03 8070294 1 BRACKET 04 J051030 1 BOLT;SEMS 06 8070295 1 BRACKET 07 J090620 3 BOLT;SEMS 15 4011675 4 CLAMP;HOSE 19 3076297 1 HOSE;WATER 23 3081936 1 HOSE;WATER 26 4367203 1 HOSE;WATER 28 4055312 1 CLIP;BAND 29 4363469 1 TANK;WATER 29A 4397682 1 * TANK;WATER 29B 4397686 2 * CLAMP 29C 4421236 1 * CAP (with PACKING) 29D 4397685 1 * HOSE;VINYL 30 4367147 1 PLATE 31 J080610 2 BOLT;SEMS NOT FOR REPRODUCTION

1AV EX50U \ P1AV-1-2 \ UPPERSTRUCTURE \ 007: RADIATOR Applicable Model Model Symbol Applicable S/N 000101 - NOT FOR REPRODUCTION

1AV EX50U \ P1AV-1-2 \ UPPERSTRUCTURE \ 009: SHROUD Applicable Model Model Symbol Applicable S/N 000101 - Code Part No. Qty Part name Service code Applied S/N range ICA Alternate Part No. Alternate part quantity 01 6017801 1 SHROUD 03 J090620 4 BOLT;SEMS 05 J090616 3 BOLT;SEMS 07 4414164 1 GUARD;FAN NOT FOR REPRODUCTION
