HITACHI EX40UR MINI Excavator Parts Catalog Manual ( Serial Number: 000101 and up )

PART NO. P1BA12 PARTS CATALOG EX40UR EXCAVATOR Serial No. 000101~ HITACHI

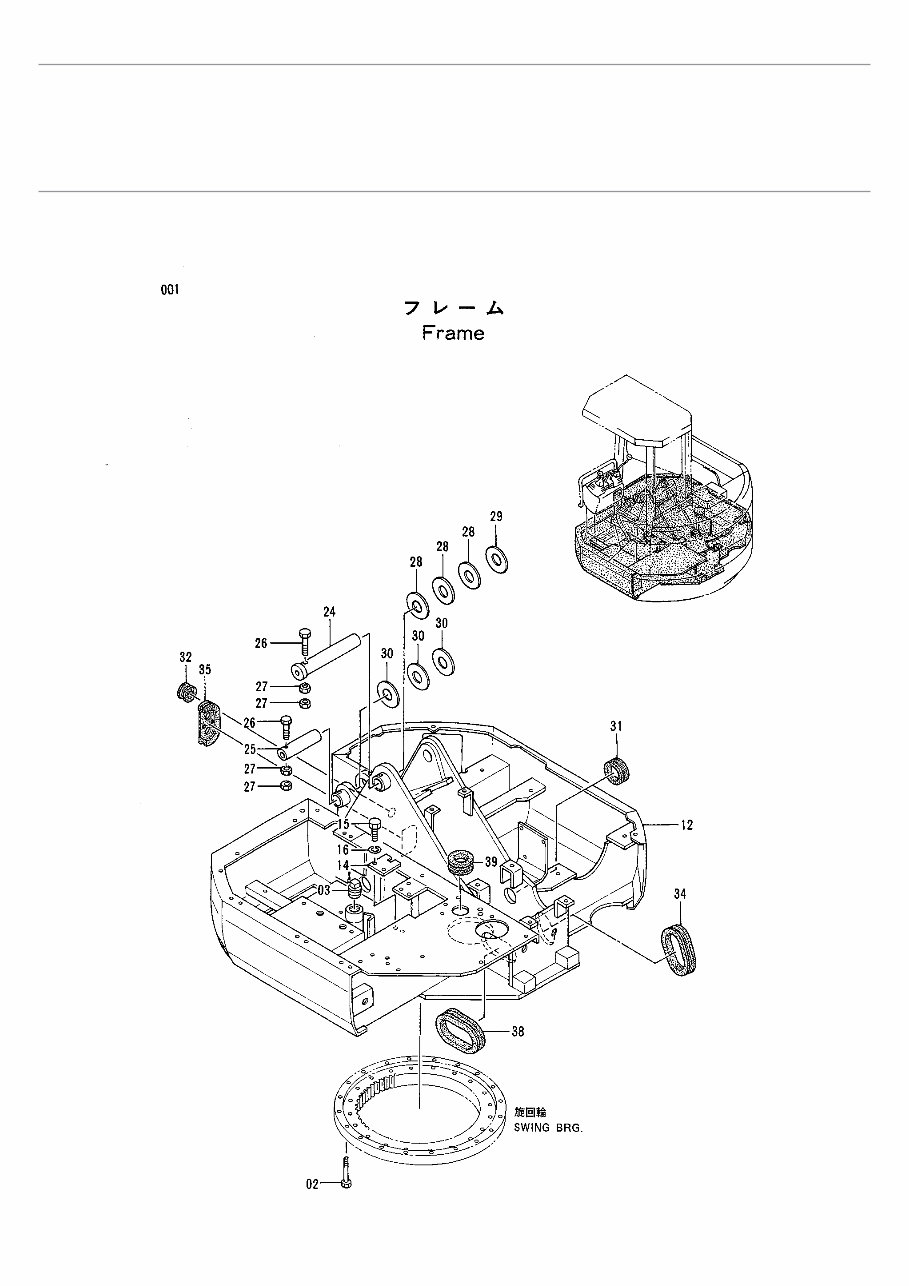

1BA EX40UR \ P1BA-1-2 \ UPPERSTRUCTURE \ 001: FRAME Applicable Model Model Symbol Applicable S/N 000101 - Code Part No. Qty Part name Service code Applied S/N range ICA Alternate Part No. Alternate part quantity 02 J931260 18 BOLT 03 J75214 1 PLUG 12 5003747 1 FRAME;MAIN 14 4276606 1 STOPPER 15 J901225 2 BOLT 16 A590912 2 WASHER;SPRING 24 3059247 1 PIN 25 3059187 1 PIN 26 J901290 2 BOLT 27 J950012 4 NUT 28 4290990 3 WASHER 29 4290991 1 WASHER 30 4290992 3 WASHER 31 4255530 1 BUSHING;RUBBER 32 4196825 2 BUSHING;RUBBER 34 4304274 1 BUSHING;RUBBER 35 4304275 1 BUSHING;RUBBER 38 4304273 1 BUSHING;RUBBER 39 4208279 1 BUSHING;RUBBER NOT FOR REPRODUCTION

1BA EX40UR \ P1BA-1-2 \ UPPERSTRUCTURE \ 001: FRAME Applicable Model Model Symbol Applicable S/N 000101 - NOT FOR REPRODUCTION

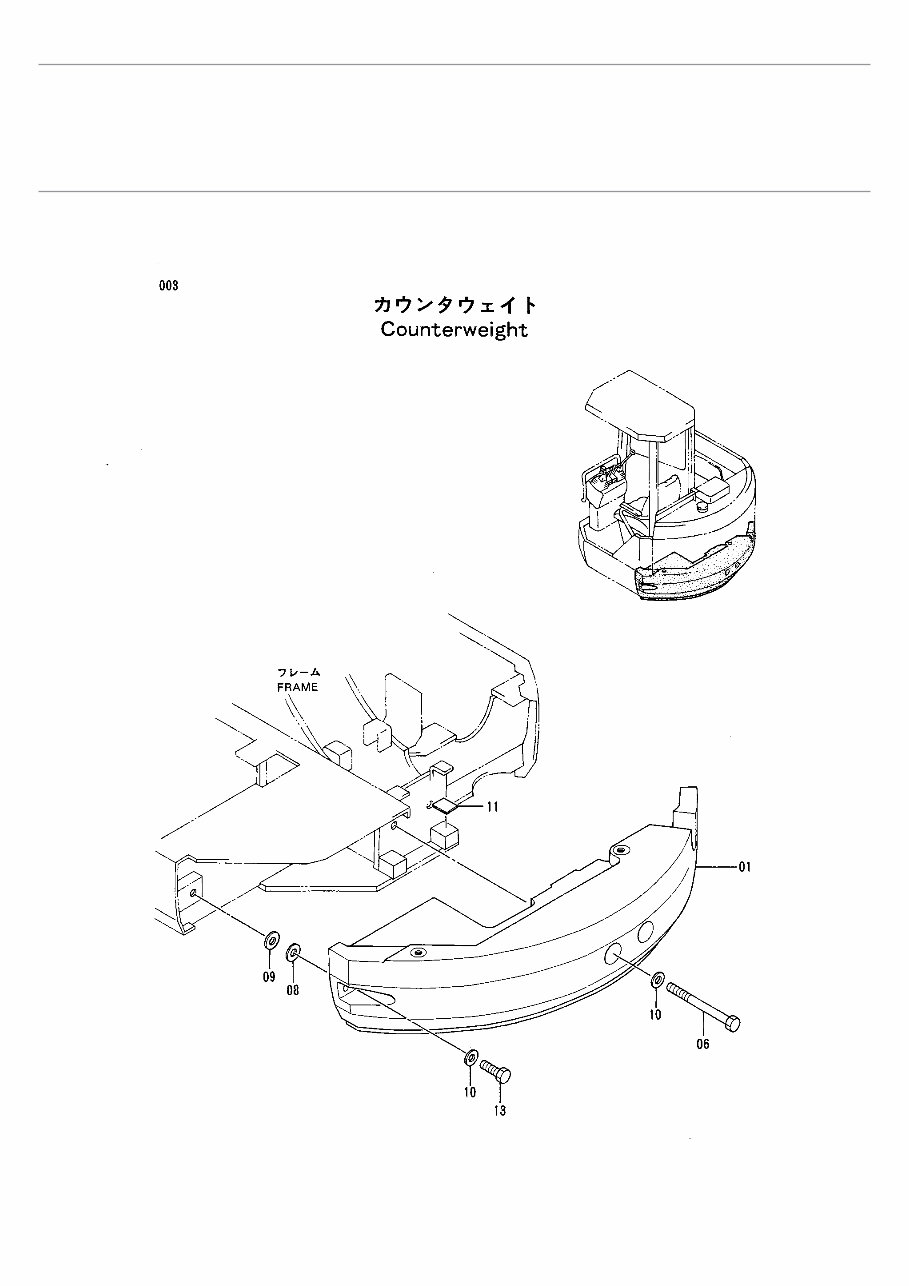

1BA EX40UR \ P1BA-1-2 \ UPPERSTRUCTURE \ 003: COUNTERWEIGHT Applicable Model Model Symbol Applicable S/N 000101 - Code Part No. Qty Part name Service code Applied S/N range ICA Alternate Part No. Alternate part quantity 01 6012964 1 WEIGHT;COUNTER 06 J932222 2 BOLT 08 4290988 1 WASHER 09 4290989 1 WASHER 10 4089822 3 WASHER 11 4289926 2 SPACER 13 J932275 1 BOLT NOT FOR REPRODUCTION

1BA EX40UR \ P1BA-1-2 \ UPPERSTRUCTURE \ 003: COUNTERWEIGHT Applicable Model Model Symbol Applicable S/N 000101 - NOT FOR REPRODUCTION

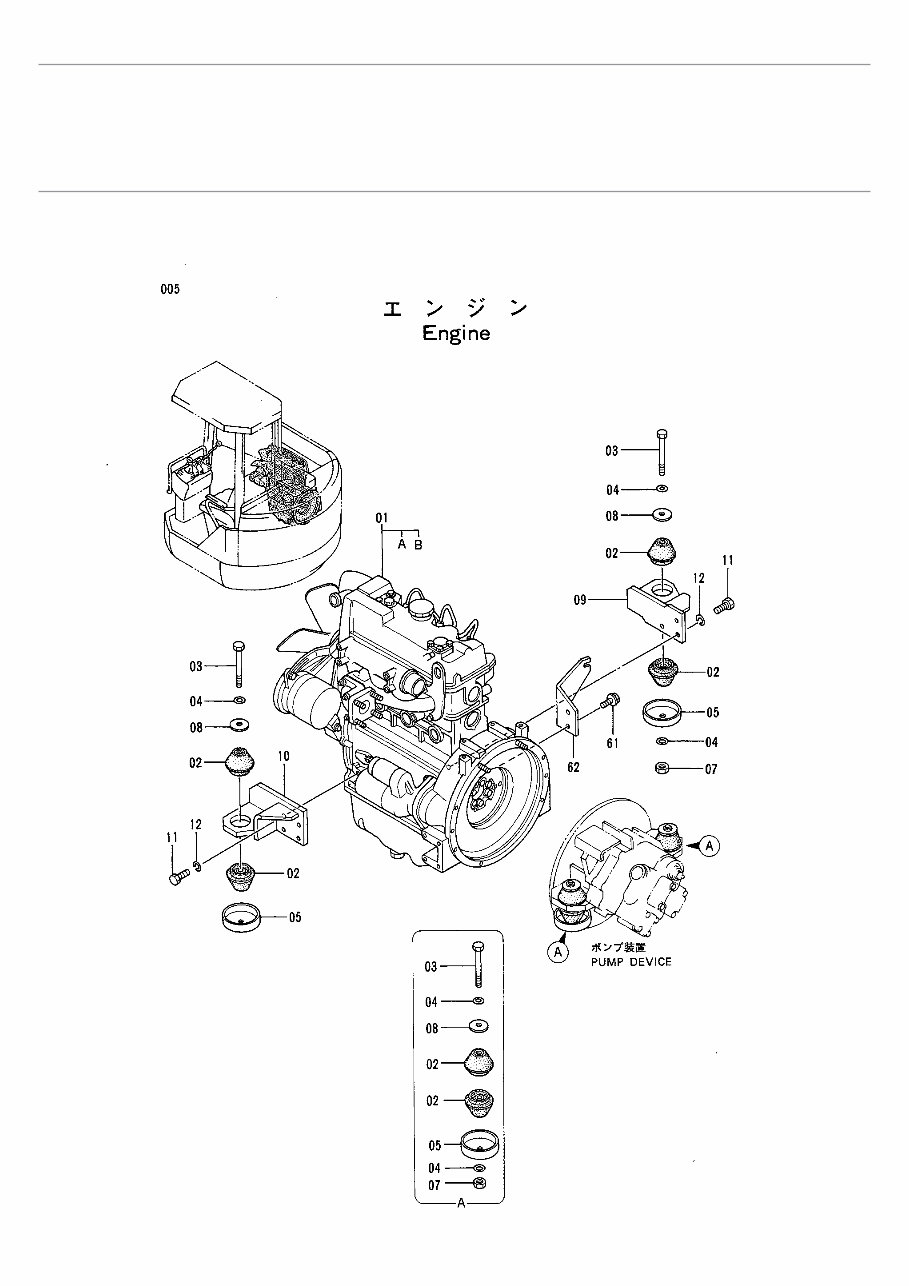

1BA EX40UR \ P1BA-1-2 \ UPPERSTRUCTURE \ 005: ENGINE Applicable Model Model Symbol Applicable S/N 000101 - Code Part No. Qty Part name Service code Applied S/N range ICA Alternate Part No. Alternate part quantity 01 4304278 1 ENGINE Z 01A 4294843 1 * BELT;FAN Z 01B 4294841 1 * FILTER;OIL Z 02 4276955 8 RUBBER 03 J901202 4 BOLT 04 J222012 7 WASHER # 05 4276374 4 STOPPER 07 J950012 3 NUT 08 4307120 4 PLATE 09 8051304 1 BRACKET 10 8051305 1 BRACKET 11 J901028 7 BOLT 12 A590910 7 WASHER;SPRING 61 J021025 2 BOLT;SEMS 62 4295964 1 BRACKET NOT FOR REPRODUCTION

1BA EX40UR \ P1BA-1-2 \ UPPERSTRUCTURE \ 005: ENGINE Applicable Model Model Symbol Applicable S/N 000101 - NOT FOR REPRODUCTION

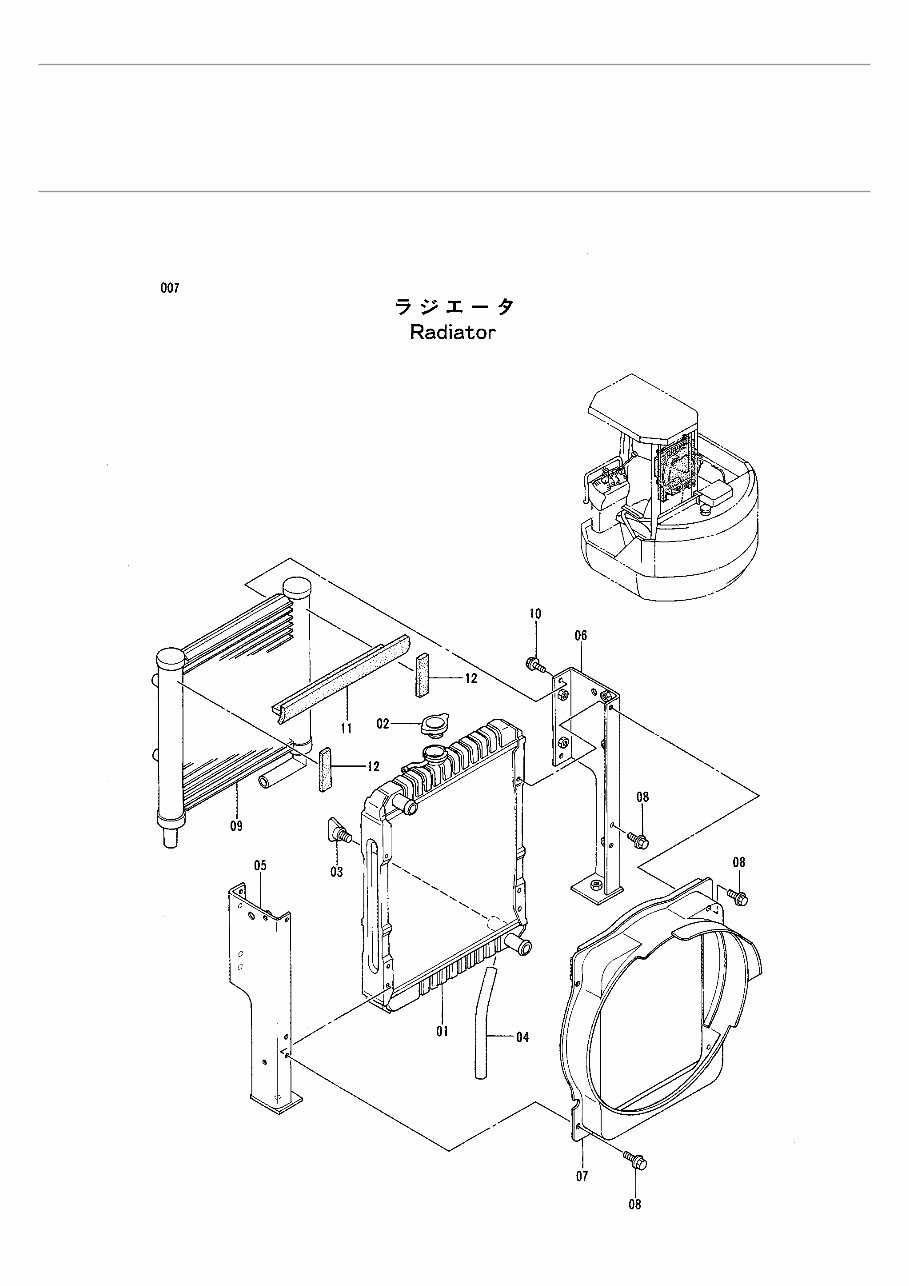

1BA EX40UR \ P1BA-1-2 \ UPPERSTRUCTURE \ 007: RADIATOR Applicable Model Model Symbol Applicable S/N 000101 - Code Part No. Qty Part name Service code Applied S/N range ICA Alternate Part No. Alternate part quantity 4268251 1 RADIATOR ASS'Y 01 4294854 1 * CORE;RADIATOR 02 4296743 1 * CAP 03 4206928 1 * PLUG 04 4297138 1 * HOSE 05 4297057 1 * BRACKET 06 4297058 1 * BRACKET 07 4294856 1 * GUIDE;FAN 08 J020816 6 * BOLT;SEMS 09 4294855 1 * COOLER;OIL 10 J020816 4 * BOLT;SEMS 11 4296750 1 * PACKING 12 4297059 2 * PACKING NOT FOR REPRODUCTION

1BA EX40UR \ P1BA-1-2 \ UPPERSTRUCTURE \ 007: RADIATOR Applicable Model Model Symbol Applicable S/N 000101 - NOT FOR REPRODUCTION

1BA EX40UR \ P1BA-1-2 \ UPPERSTRUCTURE \ 009: RADIATOR SUPPORT Applicable Model Model Symbol Applicable S/N 000101 - Code Part No. Qty Part name Service code Applied S/N range ICA Alternate Part No. Alternate part quantity 01 J011030 2 BOLT;SEMS 16 A590110 2 WASHER;PLANE 17 4277907 1 STAY 18 J011020 2 BOLT;SEMS 20 2032056 1 HOSE;WATER 21 2033109 1 HOSE;WATER 22 4505243 4 CLAMP;HOSE NOT FOR REPRODUCTION
