HITACHI EX30UR-3 Excavator EQUIPMENT COMPONENTS Parts Catalog Manual ( Serial Number: 010001 and up )

PART NO. P1BRE11 PARTS CATALOG EX30UR-3 EQUIPMENT COMPONENTS PARTS Serial No. 010001~ HITACHI

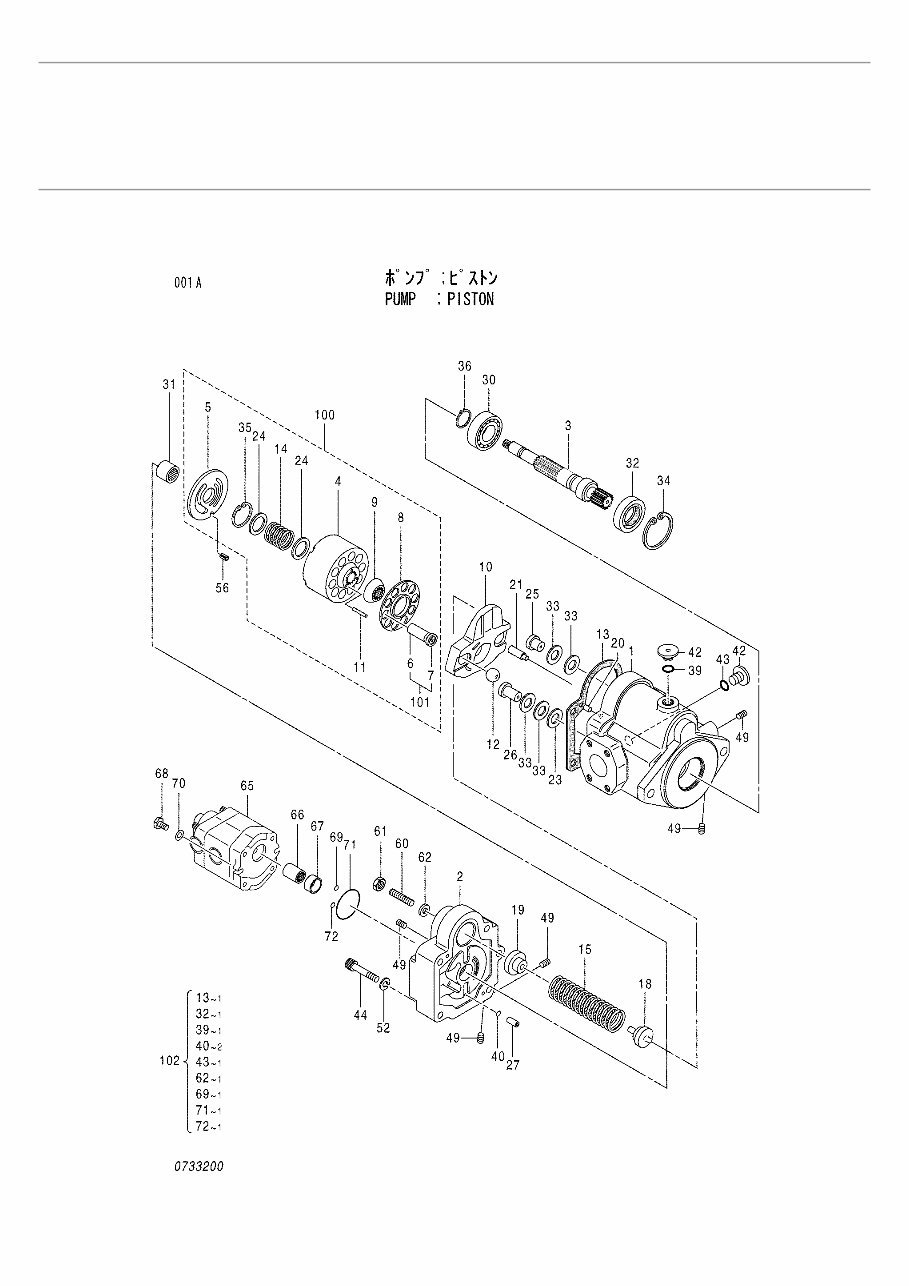

1BR EX30UR-3 \ P1BR-E1-1 \ PUMP \ 001: PUMP;PISTON Applicable Model Model Symbol Applicable S/N 010001 - Code Part No. Qty Part name Service code Applied S/N range ICA Alternate Part No. Alternate part quantity 4403523 0 PUMP;PISTON 1 +++++++ 1 * BODY D 2 +++++++ 1 * BODY D 3 0733201 1 * SHAFT 4 +++++++ 1 * BLOCK D 5 +++++++ 1 * PLATE;VALVE D 6 +++++++ 10 * PISTON D 7 +++++++ 10 * SHOE D 8 0733202 1 * HOLDER;SHOE 9 0630604 1 * HOLDER 10 0733203 1 * PLATE;SWASH 11 0655905 3 * NEEDLE 12 0647307 2 * PIN 13 0477001 1 * PACKING K 14 0655906 1 * SPRING 15 0733204 1 * SPRING 18 0733205 1 * HOLDER;SPRING 19 0733206 1 * GUIDE;SPRING 20 0429816 1 * PIN 21 0733207 1 * ROD 23 0655910 1 * WASHER 24 0630614 2 * RETAINER 25 0733208 1 * PIN;STOPPER 26 0680603 1 * PIN;STOPPER 27 0733209 1 * PIN 30 0477002 1 * BRG.;BALL 31 0429818 1 * BRG.;NEEDLE 32 0630618 1 * SEAL;OIL K 33 0647314 4 * SPRING 34 991722 1 * RING;RETAINING 35 991342 1 * RING;RETAINING 36 942517 1 * RING;RETAINING 39 957366 1 * O-RING K 40 4506412 2 * O-RING K 42 0733210 2 * PLUG 43 957366 1 * O-RING K 44 0429824 5 * BOLT;SOCKET 49 0429712 5 * PLUG 52 A590910 5 * WASHER;SPRING 56 0429826 1 * PIN;SPRING 60 0630508 1 * SCREW 61 0630509 1 * NUT 62 0630510 1 * WASHER;SEAL K 65 0733211 1 * PUMP;GEAR 66 0733212 1 * CUPPLING 67 0733213 1 * COLLAR 68 0426905 2 * BOLT;SOCKET 69 4506407 1 * O-RING K 70 0733214 2 * WASHER 71 0733215 1 * O-RING K 72 4506408 1 * O-RING K 100 0733216 1 KIT;PISTON 101 0733217 1 PISTON ASS'Y 102 0733218 1 KIT;SEAL NOT FOR REPRODUCTION

1BR EX30UR-3 \ P1BR-E1-1 \ PUMP \ 001: PUMP;PISTON Applicable Model Model Symbol Applicable S/N 010001 - NOT FOR REPRODUCTION

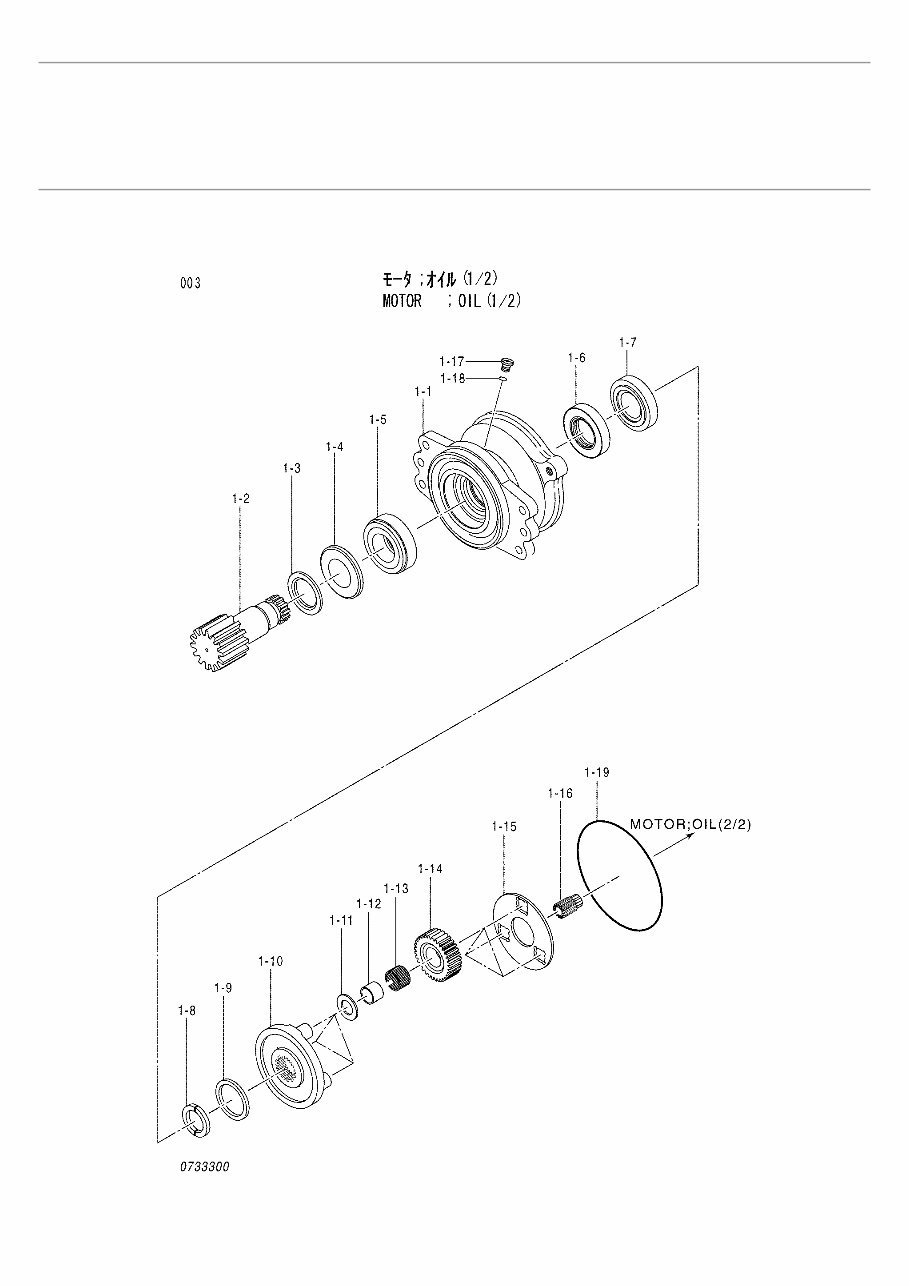

1BR EX30UR-3 \ P1BR-E1-1 \ MOTOR \ 003: .MOTOR;OIL (1/2) Applicable Model Model Symbol Applicable S/N 010001 - Code Part No. Qty Part name Service code Applied S/N range ICA Alternate Part No. Alternate part quantity 4403525 1 MOTOR;OIL (1/2) 1-1 0733301 1 * HOUSING 1-10 0733313 1 * HOLDER 1-11 0646807 3 * WASHER;THRUST 1-12 0733314 3 * RACE;INNER 1-13 0733315 3 * BRG.;NEEDLE 1-14 0733316 3 * GEAR;PLANETARY 1-15 0733317 1 * PLATE;THRUST 1-16 0733318 1 * GEAR;DRIVE 1-17 0647006 1 * PLUG 1-18 4506408 1 * O-RING 1-19 0234201 1 * O-RING 1-2 0733302 1 * SHAFT;PINION 1-3 0733303 1 * COLLAR 1-4 0733304 1 * PLATE 1-5 0733305 1 * BRG.;ROL. 1-6 0251311 1 * SEAL;OIL 1-7 0733306 1 * BRG. 1-8 0733307 2 * PLATE R 1-8 0733308 2 * PLATE R 1-8 0733309 2 * PLATE R 1-8 0733310 2 * PLATE R 1-8 0733311 2 * PLATE R 1-9 0733312 1 * COLLAR NOT FOR REPRODUCTION

1BR EX30UR-3 \ P1BR-E1-1 \ MOTOR \ 003: .MOTOR;OIL (1/2) Applicable Model Model Symbol Applicable S/N 010001 - NOT FOR REPRODUCTION

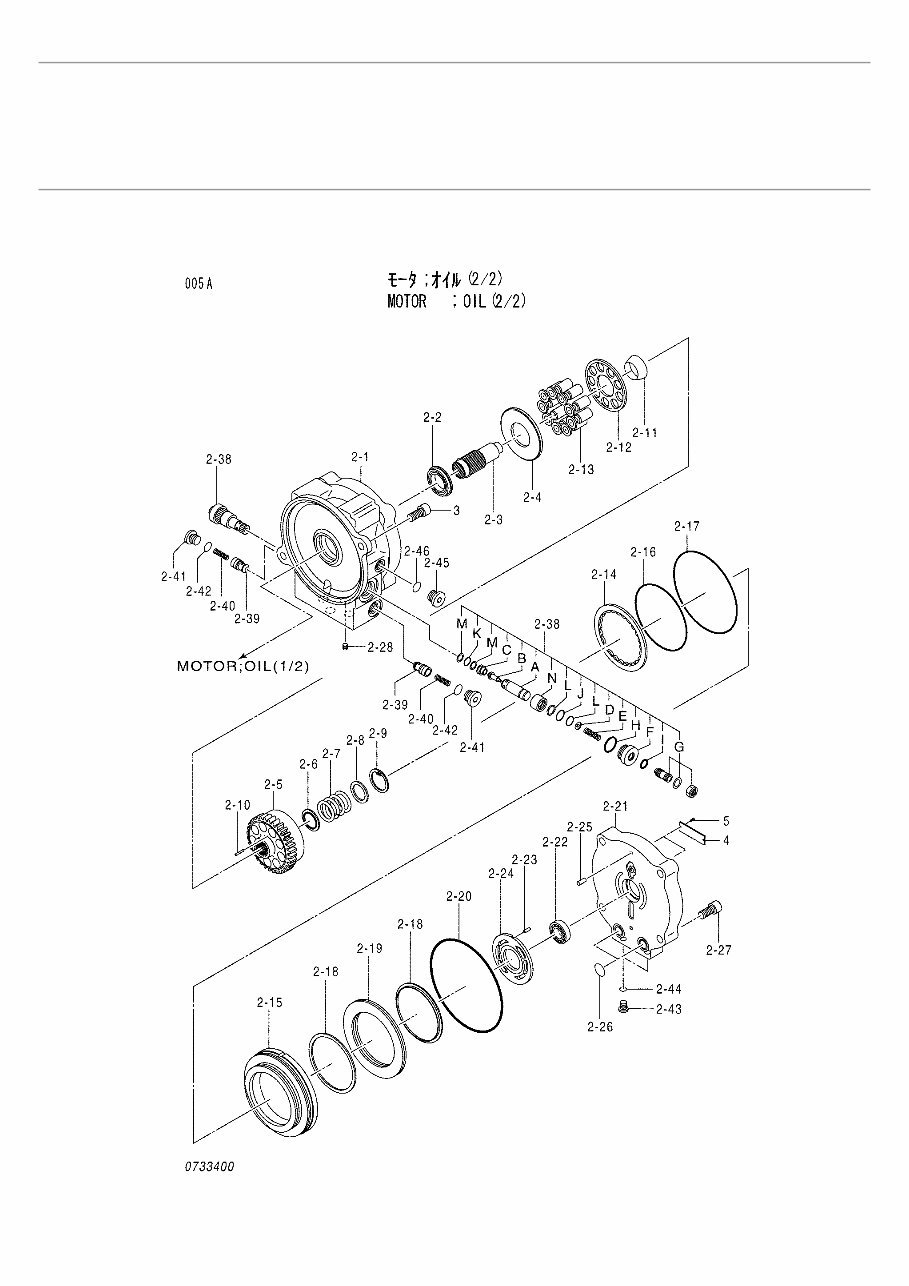

1BR EX30UR-3 \ P1BR-E1-1 \ MOTOR \ 005: .MOTOR;OIL (2/2) Applicable Model Model Symbol Applicable S/N 010001 - Code Part No. Qty Part name Service code Applied S/N range ICA Alternate Part No. Alternate part quantity 4403525 1 MOTOR;OIL (2/2) 2-1 0733401 1 * CASE 2-10 0434005 3 * PIN 2-11 0397908 1 * HOLDER 2-12 0732004 1 * PLATE 2-13 +++++++ 9 * PISTON D 2-14 0733403 1 * DISK 2-15 0733404 1 * PISTON 2-16 A811110 1 * O-RING 2-17 A811135 1 * O-RING 2-18 0733405 2 * SEAT;SPRING 2-19 0733406 1 * SPRING;DISK 2-2 0646903 1 * BRG.;BALL 2-20 0158830 1 * O-RING 2-21 0733407 1 * COVER 2-22 0397915 1 * BRG.;BALL 2-23 0396703 1 * PIN 2-24 0732003 1 * PLATE;VALVE 2-25 0311313 2 * PIN 2-26 985099 2 * O-RING 2-27 0168006 5 * BOLT;SOCKET 2-28 0397916 1 * ORIFICE 2-3 0733402 1 * SHAFT 2-38 0733408 2 * VALVE;RELIEF 2-38A +++++++ 1 ** HOUSING D 2-38B +++++++ 1 ** POPET D 2- 38C +++++++ 1 ** SEAT D 2- 38D +++++++ 1 ** SEAT;SPRING D 2-38E +++++++ 1 ** SPRING D 2-38F +++++++ 1 ** PLUG D 2- 38G +++++++ 1 ** ADJUSTER D 2- 38H 4506424 1 ** O-RING 2-38I 4506320 1 ** O-RING 2-38J +++++++ 1 ** O-RING D 2-38K 4506412 1 ** O-RING 2-38L +++++++ 2 ** RING;BACK-UP D 2- 38M 4027963 2 ** RING;BACK-UP 2- 38N +++++++ 1 ** PISTON D 2-39 0647003 2 * VALVE;CHECK 2-4 0396807 1 * PLATE;THRUST 2-40 0647004 2 * SPRING 2-41 0311336 2 * PLUG 2-42 4509180 2 * O-RING 2-43 0647006 2 * PLUG 2-44 4506408 2 * O-RING 2-45 0436608 1 * PLUG 2-46 957366 1 * O-RING 2-5 +++++++ 1 * BLOCK;CYL. D 2-6 0397905 1 * COLLAR NOT FOR REPRODUCTION

1BR EX30UR-3 \ P1BR-E1-1 \ MOTOR \ 005: .MOTOR;OIL (2/2) Applicable Model Model Symbol Applicable S/N 010001 - Code Part No. Qty Part name Service code Applied S/N range ICA Alternate Part No. Alternate part quantity 2-7 0434006 1 * SPRING 2-8 0434007 1 * WASHER 2-9 0396815 1 * RING;RETAINING 3 0168006 2 * BOLT;SOCKET 4 +++++++ 1 * NAME-PLATE D 5 +++++++ 2 * SCREW;DRIVE D NOT FOR REPRODUCTION

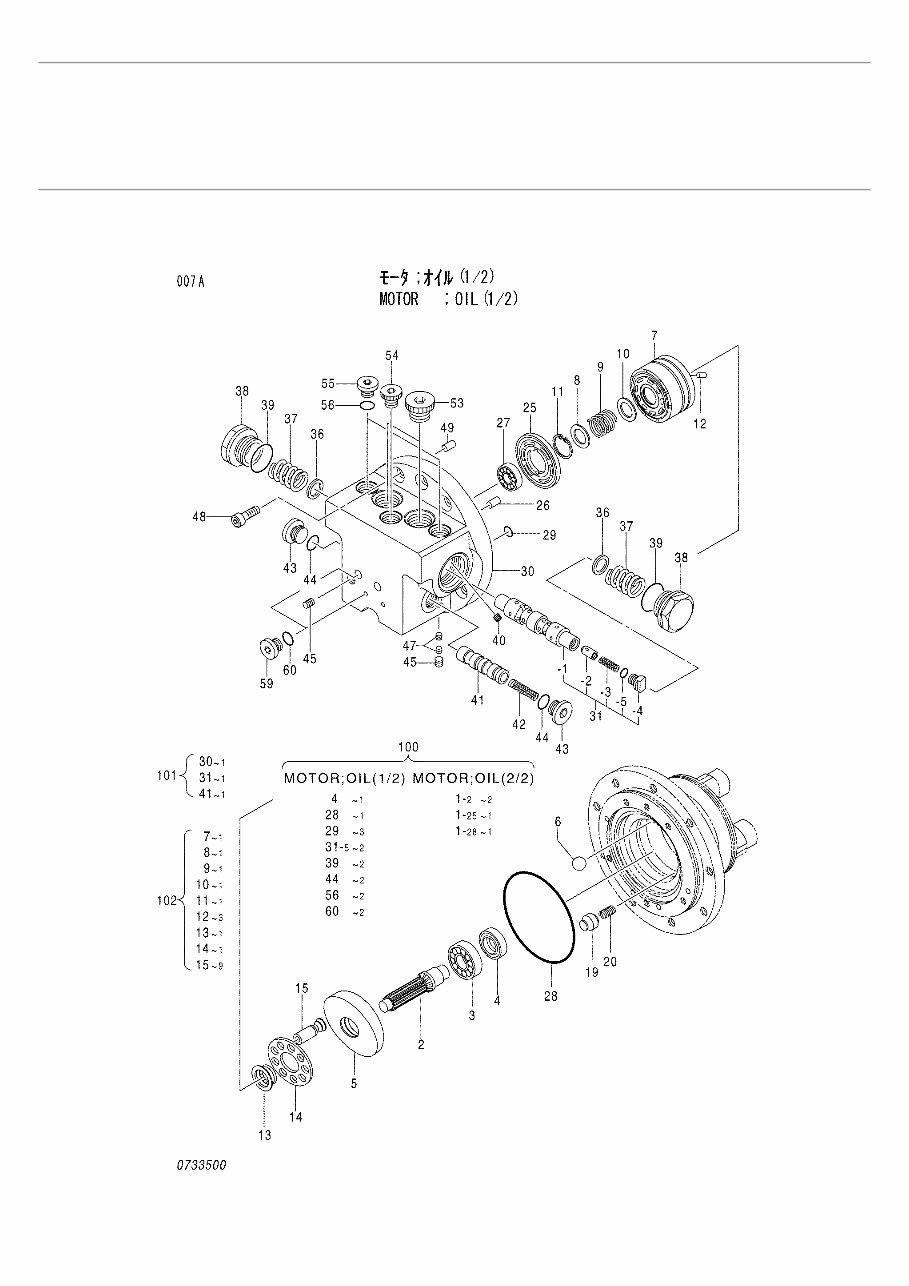

1BR EX30UR-3 \ P1BR-E1-1 \ MOTOR \ 007: .MOTOR;OIL (1/2) Applicable Model Model Symbol Applicable S/N 010001 - Code Part No. Qty Part name Service code Applied S/N range ICA Alternate Part No. Alternate part quantity 4403526 1 MOTOR;OIL (1/2) 2 0436401 1 * SHAFT 3 0436402 1 * BAG.;BALL 4 0733501 1 * SEAL;OIL K 5 0472301 1 * PLATE 6 0733502 2 * BALL;STEAL 7 +++++++ 1 * BLOCK;CYL. D 8 +++++++ 1 * WASHER D 9 +++++++ 1 * SPRING D 10 +++++++ 1 * SEAT;SPRING D 11 +++++++ 1 * RING;RETAINING D 12 +++++++ 3 * PIN D 13 +++++++ 1 * HOLDER D 14 +++++++ 1 * PLATE;RETAINER D 15 +++++++ 9 * PISTON D 19 0733503 2 * PISTON 20 0436413 2 * SPRING 25 0733504 1 * PLATE;VALVE 26 0396703 1 * PIN 27 0436415 1 * BRG.;BALL 28 A810120 1 * O-RING K 29 4506407 3 * O-RING K 30 +++++++ 1 * PLATE;BASE D 31 +++++++ 1 * SPOOL ASS'Y D 31-1 +++++++ 1 ** SPOOL D 31-2 +++++++ 2 ** VALVE;CHECK D 31-3 0398002 2 ** SPRING 31-4 0647901 2 ** PLUG 31-5 4506320 2 ** O-RING K 36 0398004 2 * SEAT;SPRING 37 0733505 2 * SPRING 38 0398006 2 * CAP 39 4506429 2 * O-RING K 40 0436603 2 * ORIFICE 41 +++++++ 1 * SPOOL D 42 0436602 1 * SPRING 43 0311336 2 * PLUG 44 4509180 2 * O-RING K 45 0352225 4 * PLUG 47 0436603 4 * ORIFICE 48 0167922 6 * BOLT;SOCKET 49 0397910 2 * PIN 53 +++++++ 2 * PLUG D 54 +++++++ 1 * PLUG D 55 0436608 2 * PLUG 56 957366 2 * O-RING K 59 0436608 2 * PLUG 60 957366 2 * O-RING K 100 0733506 1 KIT;SEAL 101 0733507 1 BASE PLATE ASS'Y 102 0733508 1 BLOCK;CYL. ASS'Y NOT FOR REPRODUCTION
