HITACHI EX25 Excavator EQUIPMENT COMPONENTS Parts Catalog Manual ( Serial Number: 000101 and up )

PART NO. P1AB14 PARTS CATALOG EX25 EXCAVATOR Serial No. 000101~ HITACHI

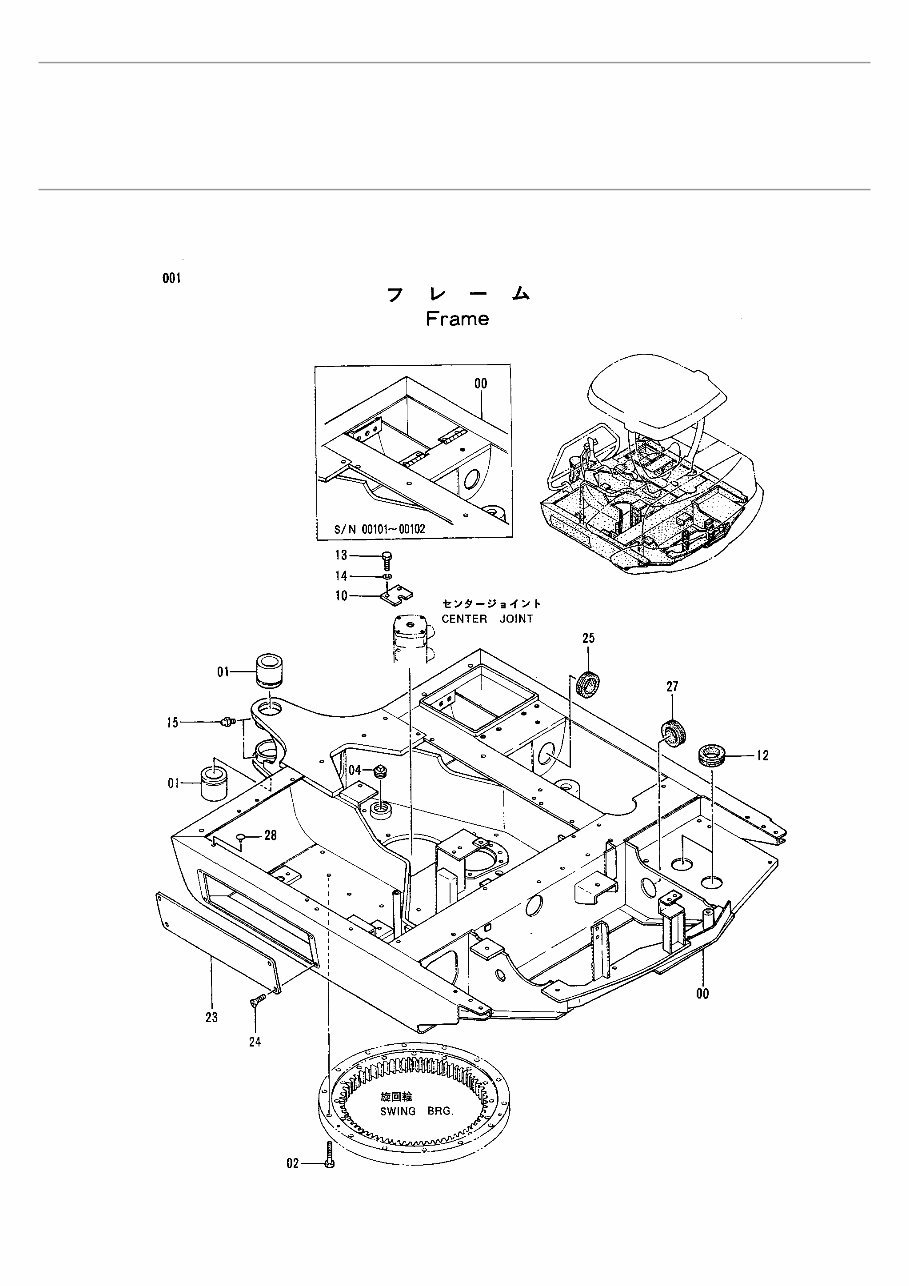

1AB EX25 \ P1AB-1-4 \ UPPERSTRUCTURE \ 001: FRAME Applicable Model Model Symbol Applicable S/N 000101 - Code Part No. Qty Part name Service code Applied S/N range ICA Alternate Part No. Alternate part quantity 00 5003520 1 FRAME;MAIN 01 4297272 2 BUSHING - 00279 I 4316499 2 01 4316499 2 BUSHING 00280 - 02 J931260 13 BOLT 04 J75214 1 PLUG 10 4276606 1 STOPPER 12 4087462 2 BUSHING;RUBBER 13 J901225 2 BOLT 14 A590912 2 WASHER;SPRING 15 J75481 2 FITTING;GREASE 23 4288387 1 COVER 24 M470816 4 SCREW 25 4184582 1 BUSHING;RUBBER 27 4208279 1 BUSHING;RUBBER 28 4288579 1 PLUG NOT FOR REPRODUCTION

1AB EX25 \ P1AB-1-4 \ UPPERSTRUCTURE \ 001: FRAME Applicable Model Model Symbol Applicable S/N 000101 - NOT FOR REPRODUCTION

1AB EX25 \ P1AB-1-4 \ UPPERSTRUCTURE \ 001: FRAME Applicable Model Model Symbol Applicable S/N 000101 - Code Part No. Qty Part name Service code Applied S/N range ICA Alternate Part No. Alternate part quantity 00 5003520 1 FRAME;MAIN 01 4297272 2 BUSHING - 00279 I 4316499 2 01 4316499 2 BUSHING 00280 - 02 J931260 13 BOLT 04 J75214 1 PLUG 10 4276606 1 STOPPER 12 4087462 2 BUSHING;RUBBER 13 J901225 2 BOLT 14 A590912 2 WASHER;SPRING 15 J75481 2 FITTING;GREASE 23 4288387 1 COVER 24 M470816 4 SCREW 25 4184582 1 BUSHING;RUBBER 27 4208279 1 BUSHING;RUBBER 28 4288579 1 PLUG NOT FOR REPRODUCTION

1AB EX25 \ P1AB-1-4 \ UPPERSTRUCTURE \ 001: FRAME Applicable Model Model Symbol Applicable S/N 000101 - NOT FOR REPRODUCTION

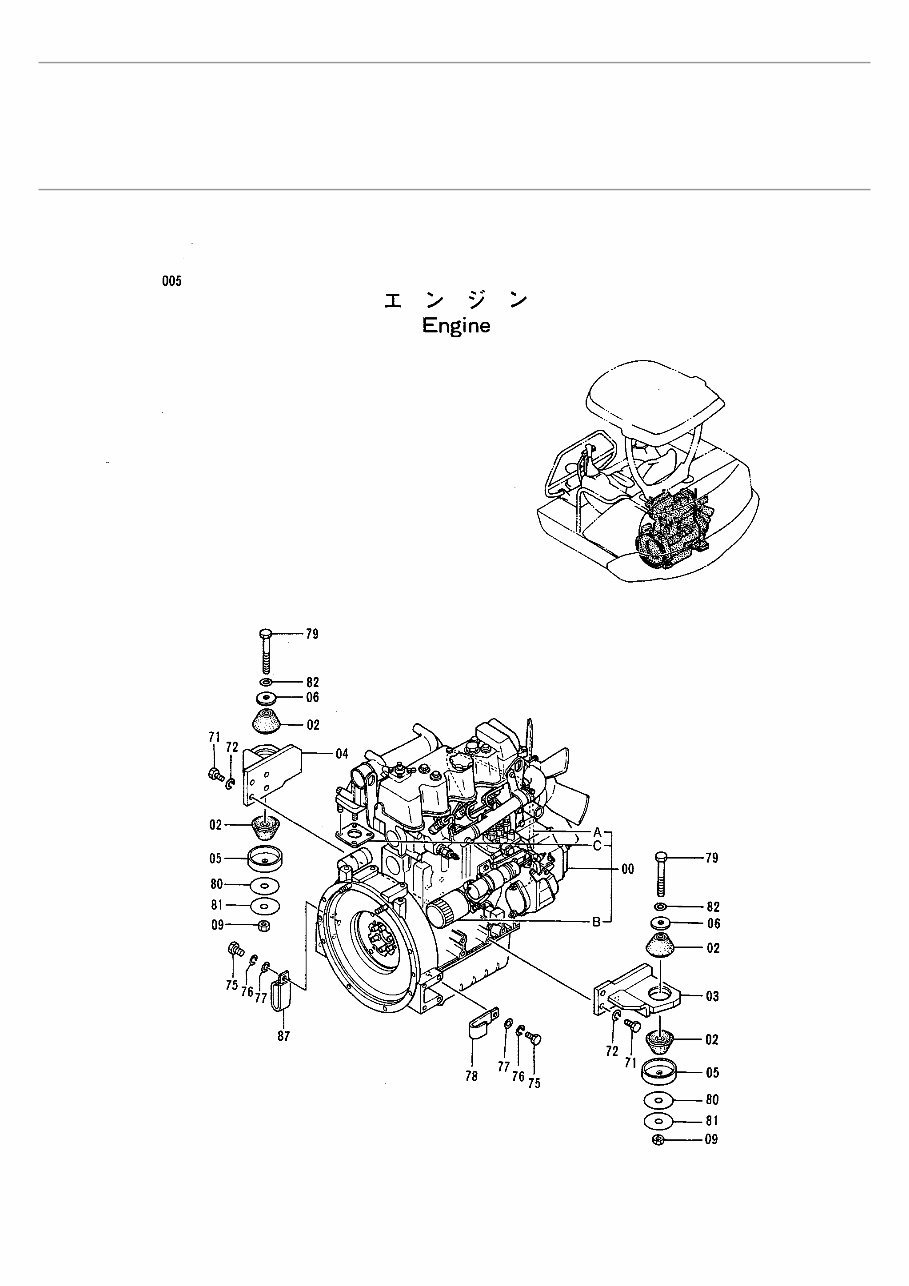

1AB EX25 \ P1AB-1-4 \ UPPERSTRUCTURE \ 005: ENGINE Applicable Model Model Symbol Applicable S/N 000101 - Code Part No. Qty Part name Service code Applied S/N range ICA Alternate Part No. Alternate part quantity 00 4274275 1 ENGINE Z 00A 4294843 1 * BELT;FAN Z 00B 4294841 1 * FILTER;OIL Z 00C 4293198 1 * GASKET #/Z 02 4276955 4 RUBBER 03 8051304 1 BRACKET 04 8051305 1 BRACKET 05 4276374 2 STOPPER 06 4278824 2 PLATE - 00102 06 4307120 2 PLATE 00103 - 09 J950012 2 NUT 71 J901028 7 BOLT 72 A590910 7 WASHER;SPRING 75 J901020 1 BOLT 00103 - 75 J901020 2 BOLT - 00102 76 A590910 1 WASHER;SPRING 00103 - 76 A590910 2 WASHER;SPRING - 00102 77 A590110 1 WASHER;PLANE 00103 - 77 A590110 2 WASHER;PLANE - 00102 78 4290136 1 CLAMP 79 J901202 2 BOLT 80 4295159 2 SHIM 1.0 R 81 4295160 2 SHIM 1.2 R 82 J222012 2 WASHER 87 4291657 1 CLAMP - 00102 NOT FOR REPRODUCTION

1AB EX25 \ P1AB-1-4 \ UPPERSTRUCTURE \ 005: ENGINE Applicable Model Model Symbol Applicable S/N 000101 - NOT FOR REPRODUCTION

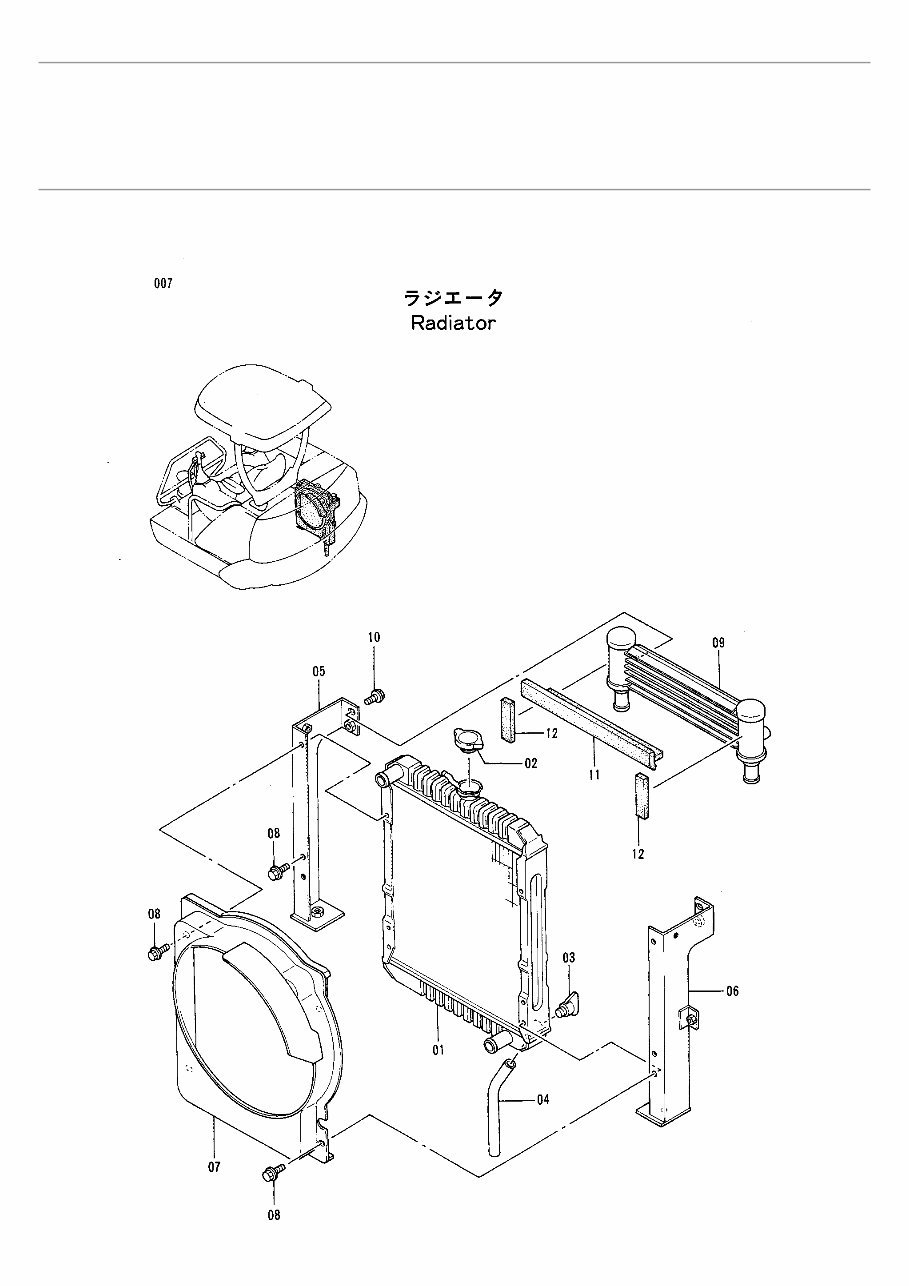

1AB EX25 \ P1AB-1-4 \ UPPERSTRUCTURE \ 007: RADIATOR Applicable Model Model Symbol Applicable S/N 000101 - Code Part No. Qty Part name Service code Applied S/N range ICA Alternate Part No. Alternate part quantity 4302112 1 RADIATOR ASS'Y 01 4294851 1 * CORE;RADIATOR 02 4296743 1 * CAP 03 4206928 1 * PLUG 04 4217603 1 * HOSE 00103 - 04 4296745 1 * HOSE - 00102 Y 4217603 1 05 4296746 1 * BRACKET 06 4296747 1 * BRACKET 07 4307424 1 * GUIDE;FAN 08 4296748 6 * BOLT;SEMS 09 4294852 1 * COOLER;OIL 10 4296749 2 * BOLT;SEMS 11 4296750 1 * PACKING 12 4296751 2 * PACKING NOT FOR REPRODUCTION

1AB EX25 \ P1AB-1-4 \ UPPERSTRUCTURE \ 007: RADIATOR Applicable Model Model Symbol Applicable S/N 000101 - NOT FOR REPRODUCTION

1AB EX25 \ P1AB-1-4 \ UPPERSTRUCTURE \ 009: RADIATOR SUPPORT Applicable Model Model Symbol Applicable S/N 000101 - Code Part No. Qty Part name Service code Applied S/N range ICA Alternate Part No. Alternate part quantity 01 J011025 3 BOLT;SEMS 13 J217083 2 WASHER 14 4280395 1 STAY 15 J011020 1 BOLT;SEMS 16 J950010 1 NUT 17 2032058 1 HOSE;WATER 18 2032059 1 HOSE;WATER 19 4505243 4 CLAMP;HOSE 35 A590110 4 WASHER;PLANE 51 8048317 1 STAY 00103 - 51 8054633 1 STAY - 00102 52 J011040 1 BOLT;SEMS 78 4290136 1 CLAMP - 00102 NOT FOR REPRODUCTION
