Hitachi EX200-1
BUCKET
BUCKET PINS
BUCKET LINKAGES
BUCKET LINKAGES
DIPPER STICK
BOOM
BUCKET CYLINDER
DIPPER STICK CYLINDER
BOOM LIFT CYLINDER
CAB
SEAT
INSTRUMENT PANEL
RELAYS
COMPUTER
WIRING LOOM
HAND SERVO CONTROLS
HEATER A/C
BONNET
DOORS
FUEL TANK
HYDRAULIC TANK
BELLY PLATES
DIESEL ENGINE
RADIATOR
HYDRAULIC OIL COOLER
HYDRAULIC PUMPS
HYD PUMP DRIVE GEARBOX
SLEW MOTOR
SLEW MOTOR GEARBOX
CONTROL VALVE
CENTRE JOINT
SLEW BEARING
TRACK CHAINS & GROUSERS
TOP ROLLERS
FRONT IDLERS
RECOIL SPRINGS
TRACK ADJUSTERS
BOTTOM ROLLERS
TRACK MOTORS
FINAL DRIVES
DRIVE SPROCKETS
BATTERIES
HOSES

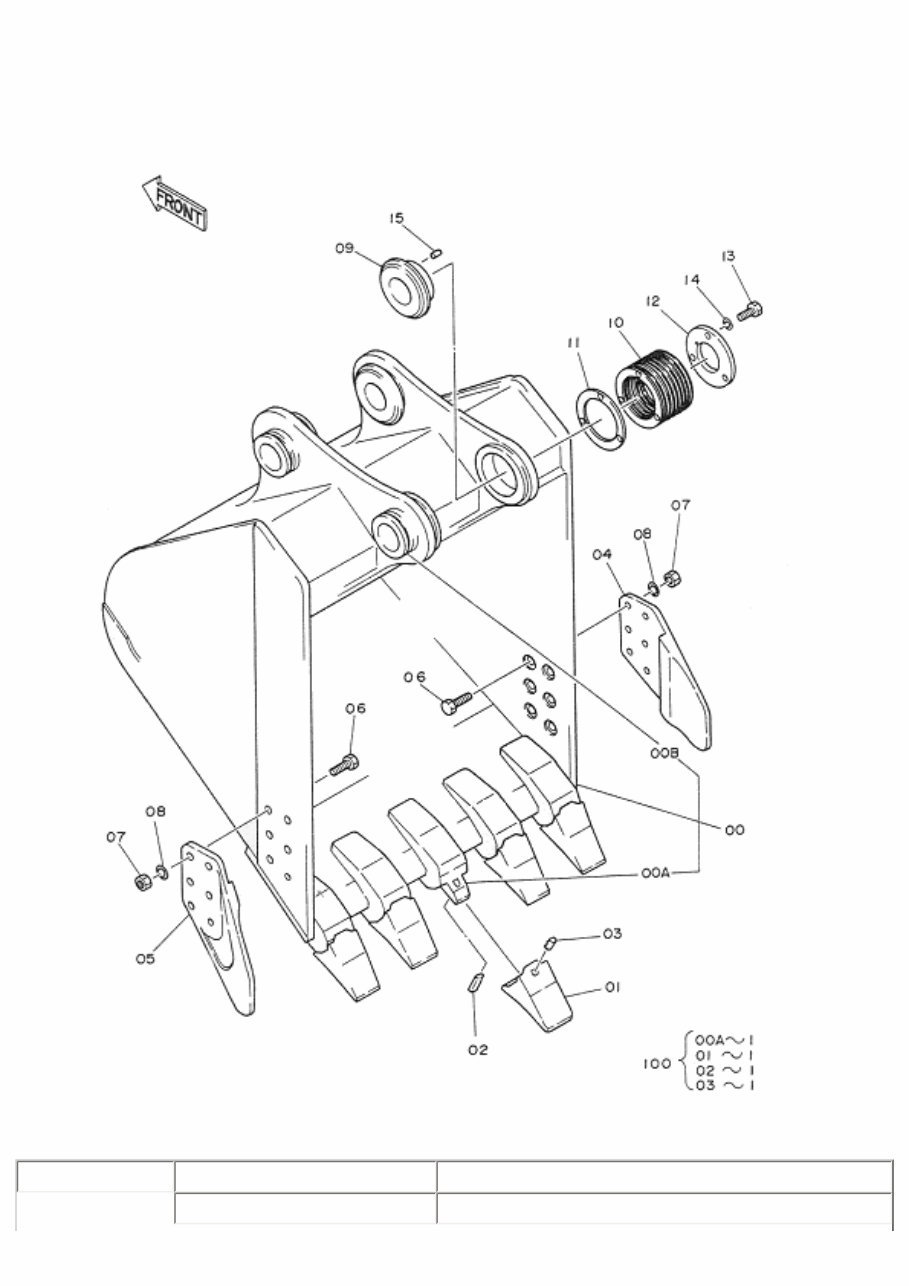

Bucket
ITEM PART NO. PART NAME
9066946 BUCKET ASS’Y
00 8035054 BUCKET
00A 4187940 ADAPTER; TOOTH
00B 4197035 STOPPER
01 4501626 POINT; TOOTH
02 4501627 PIN; LOCK
03 4501625 RUBBER; LOCK
04 2014503 CUTTER; SIDE
05 2014504 CUTTER; SIDE
06 J932260 BOLT
07 J951022 NUT
08 A590922 WASHER; SPRING
09 4124030 SPACER
10 4124032 SHIM 1.0
11 4124033 SHIM 0.5
12 4143813 PLATE
13 J901650 BOLT
14 A590916 WASHER; SPRING
15 4179110 PIN; KNOCK
100 9075610 KIT; POINT

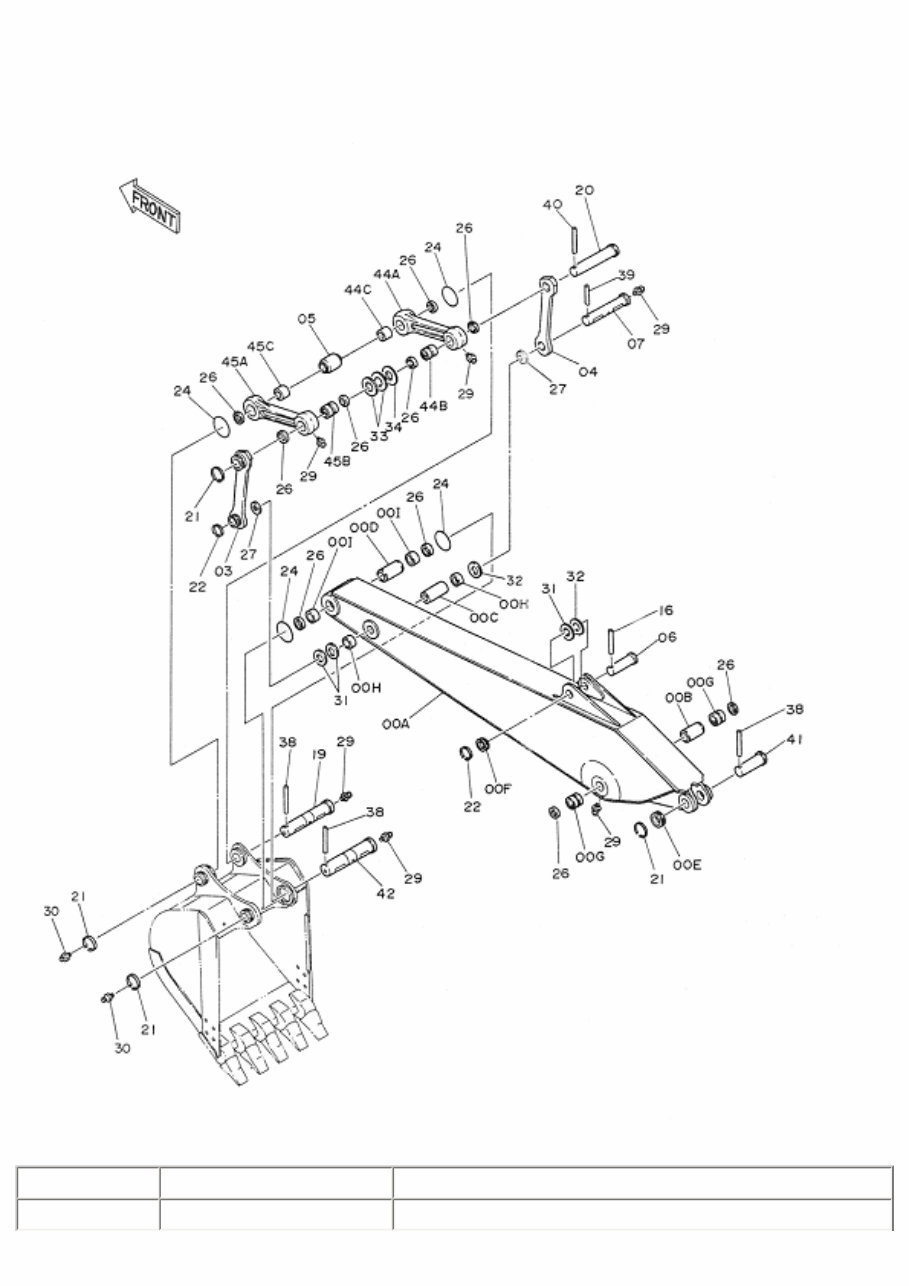

Bucket Pins
ITEM PART NO. PART NAME
00A-I 6007483 ARM ASS'Y
00A 6007469 ARM
00B 4123816 SPACER
00C 4123814 SPACER
00D 4123815 SPACER
00E 4197035 STOPPER
00F 4197034 STOPPER
00G 3036976 BUSHING
00H 4196106 BUSHING
00I 4196105 BUSHING
03 9724023 LINK
04 3033718 LINK
05 4154425 SPACER
06 3036970 PIN
07 3036971 PIN
16 4098717 PIN
19 3036974 PIN
19 3041201 PIN
20 3036973 PIN
21 4098712 RING
22 4098716 RING
24 4089028 O-RING
26 4067902 SEAL;DUST
27 4084578 SEAL;DUST
29 J75481 FITTING
30 J75481 FITTING
31 4097354 SHIM 1.2
32 4097355 SHIM 2.3
33 4114817 SHIM 1.0
34 4114816 SHIM 2.3
38 4098713 PIN
39 4106307 PIN
40 4109669 PIN
41 3036969 PIN
42 3036972 PIN
42 3041200 PIN
44A-C 8038558 LINK (WITH BUSHING)
44A 2024500 LINK
44B 3036977 BUSHING
44C 4196107 BUSHING
45A-C 8033941 LINK (WITH BUSHING)
45A 2021852 LINK
45B 3036977 BUSHING
45C 4196107 BUSHING
Bucket Linkages
ITEM PART NO. PART NAME
00A-I 6007483 ARM ASS'Y
00A 6007469 ARM
00B 4123816 SPACER
00C 4123814 SPACER
00D 4123815 SPACER
00E 4197035 STOPPER
00F 4197034 STOPPER
00G 3036976 BUSHING
00H 4196106 BUSHING
00I 4196105 BUSHING
03 9724023 LINK
04 3033718 LINK
05 4154425 SPACER
06 3036970 PIN
07 3036971 PIN
16 4098717 PIN
19 3036974 PIN
19 3041201 PIN
20 3036973 PIN
21 4098712 RING
22 4098716 RING
24 4089028 O-RING
26 4067902 SEAL;DUST
27 4084578 SEAL;DUST
29 J75481 FITTING
30 J75481 FITTING
31 4097354 SHIM 1.2
32 4097355 SHIM 2.3
33 4114817 SHIM 1.0
34 4114816 SHIM 2.3
38 4098713 PIN
39 4106307 PIN
40 4109669 PIN
41 3036969 PIN
42 3036972 PIN
42 3041200 PIN
44A-C 8038558 LINK (WITH BUSHING)
44A 2024500 LINK
44B 3036977 BUSHING
44C 4196107 BUSHING
45A-C 8033941 LINK (WITH BUSHING)
45A 2021852 LINK
45B 3036977 BUSHING
45C 4196107 BUSHING
