H56C H56C Japanese Craftsmanship Service Manual

INTRODUCTION To insure a long life for the machine and the engine and to prevent failure and problems, proper operation, maintenance and repairs are imperative. This service manual includes an “outline,” “structure and operation,” “inspection and ad- justment,” “disassembly and assembly,” “standard maintenance,” and “repair and replace- ment of parts” of the machine which are necessary to carry out the inspections and repairs in the repair shop. We trust that this manual will help you to effectively carry out the necessary. Repairs should they arise, also provide a accurate description of the product, and the correct repair procedures.

CONTENTS 1. Precautions on Maintenance 2. Outline 3. Attachment 4. Engine 5. Main Pump 6. Hydraulic Oil Filter 7. Control Valve 8. Joystick (Pilot Valve) 9. Pilot Valve (1) (Travel) 10. Pilot valve (2) (Swing, PTO) 11. Pilot Valve (3) (Dozer) 12. Slew Motor 13. Travel Motor 14. Hydraulic Cylinder 15. Swivel Joint 16. Crawler 17. Spring Case and Grease Cylinder 18. Idler 19. Sprocket 20. Track Roller 21. Carrier Roller 22. Electrical Equipment 23. Troubleshooting

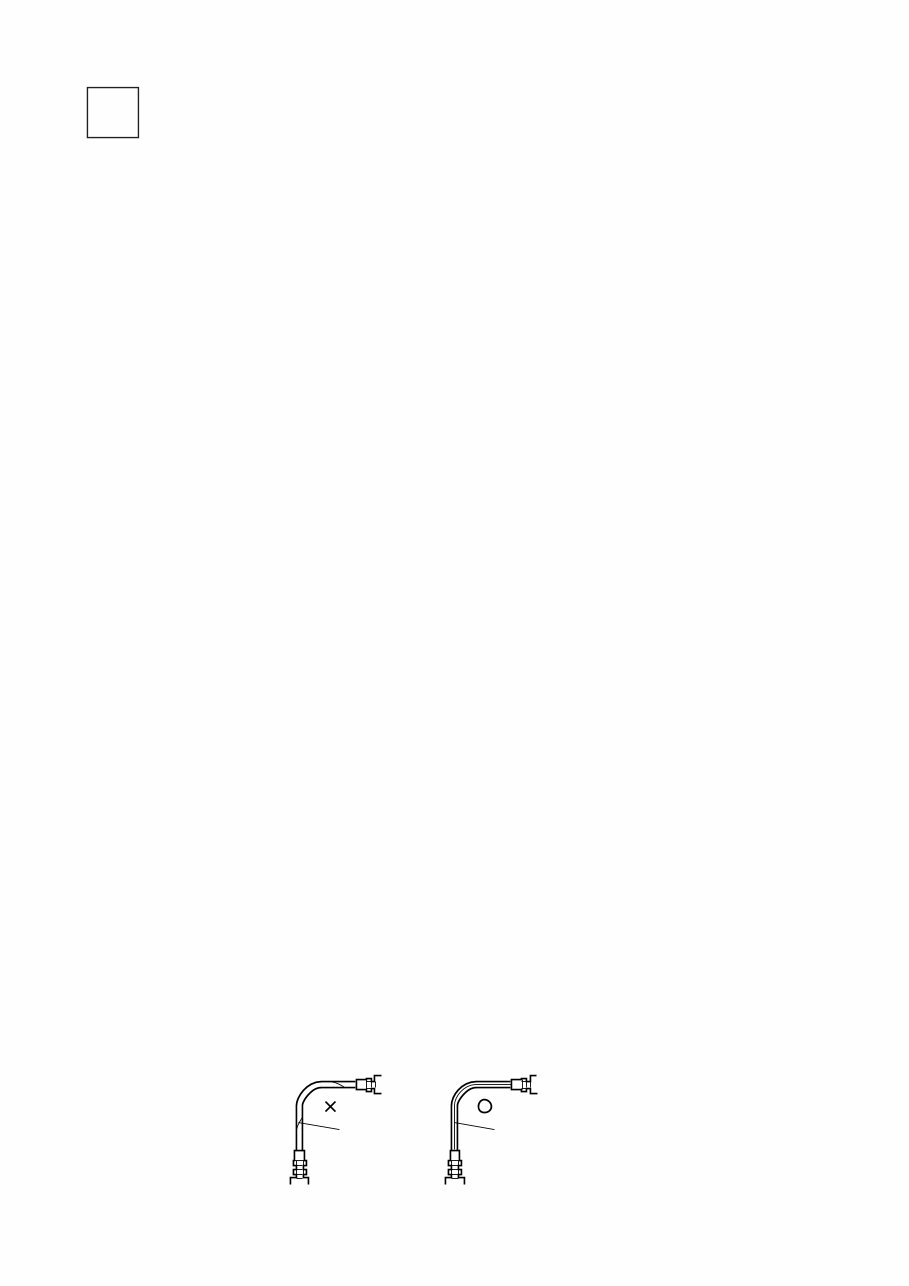

1 PRECAUTIONS ON MAINTENANCE 1. Correct operation Correct operation means to follow the correct “procedure” and “method.” Procedure focuses on speed and accuracy of each job. In the method, are addressed what type of facility, tools, instruments, materials, oil should be used, how and which part should be checked, adjusted or disassembled, and what matters to attend to. 2. Precautions on operation 1. Safety check Check that stoppers and sleepers are correctly installed for the vehicle jack-up operation. 2. Preparation Prepare all of the tools and inspect and adjust the instruments. 3. For efficiency 1) Understand the state before disassembly. What is the problem? Is disassembly absolutely necessary? 2) Before disassembly Determine whether match marks are necessary. For the electrical system, discon- nect the cable from the battery terminal. 3) Precautions for disassembly In stead of checking all of the disassembled parts at once, check each part individually as it is disassembled. When removing the hydraulic unit or the hoses, mount a dust cap on the connection. 4) Repair of disassembled parts Keep the disassembled parts in order. Clearly distinguish the parts to be replaced with new parts from those to be reused. Packings, seals, rings, split pins must be replaced. NOTE: Electrical equipment, rubbers and V belts (which are easily affected by water and oil) must be handled carefully in order to prevent soiling them. 5) Clean disassembled parts Thoroughly clean the disassembled parts. 6) Assembly Perform the assembly correctly (tightening torque, application of Three Bond, screw lock, grease, use of seal tape, etc.). Also install the hose correctly. 1-1 Hose mark Hose mark

2 OUTLINE CONTENTS 2-1 Location of serial No. 2-2 Name of each part 2-3 Dimensions and specification 2-3-1 H56C PTO flow 2-4 Weight list 2-5 Oil and grease supply points 2-6 List of supply oil and grease 2-7 When to repair 2-8 Hydraulic circuit diagram

MACHINE MASCHINE MACCHINA MAKUIME MASKIN MODEL MODELL/MODELLE MODELLO/MODELOS MODEL MODELL/MODELLE MODELLO/MODELOS NO. WEIGHT/GEWICHT GEWICHT/POID PESO/PESO/VEKT YEAR/JAAR BAUJAHR/ANNEE ANNO/ANO/ R NO. POWER/VERMOGEN LEISTUNG/PUISSANCE POTENSA/POTENCEA YTELSE ENGINE MOTOR MOTEUR MOTORE MODOR Unit B Windmill Lane, Denton, Manchester M34 3SP, United Kingdom MADE IN JAPAN MAX. DRAWBAR PULL MAX. VERT. LOAD kg kN kN kW/ min -1 2-1 2-1 Location of Serial Number Model Name. Serial No.

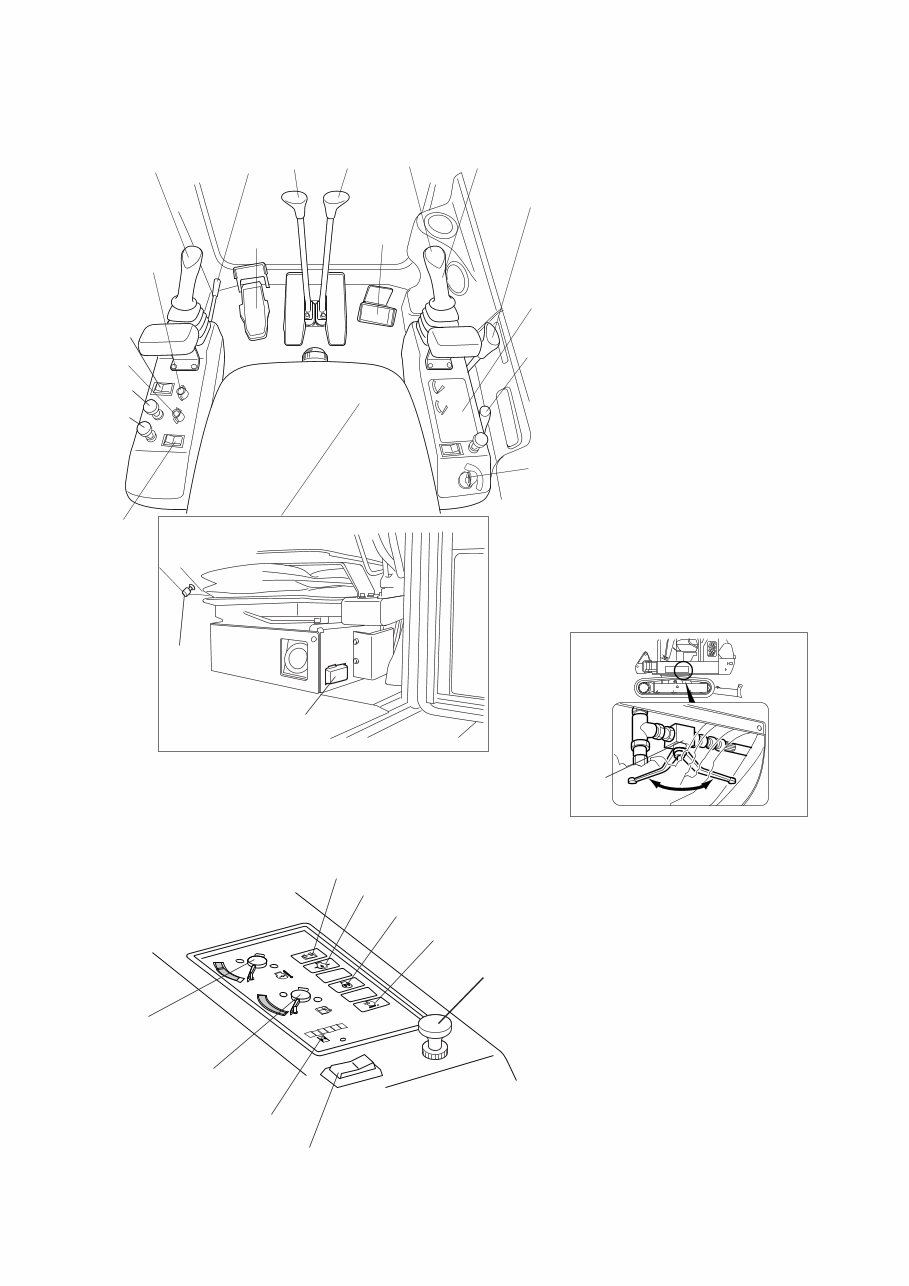

2-2 2-2 Name of each part 1. Meter unit 2. Starter switch 3. Horn switch 4. Fuse box 5. Right operation lever 6. Left operation lever 7. Accelerator lever 8. Dozer lever 9. Right travelling lever 10. Left travelling lever 11. Swing pedal 12. P.T.O. pedal 13. Operation lock lever 14. Over drive switch 15. Hearter switch (for cabin) 16. Wiper switch (for cabin) 17. Manual boom lowering lever 18. Cigarette lighter 19. A/C switch (option) 20. Change lever (heater↔A/C) 21. Change lever (ventilation) (option) 1. Water temperature meter 2. Fuel gauge 3. Hour meter 4. Charge lamp 5. Engine oil pressure lamp 6. Glow lamp 7. Air filter lamp 8. Head light switch 9. Heater change lever (cold↔warm) 0 0 0 0 0 0 H C F E WATER TEMP FUEL HOUR METER 7 2 5 4 6 3 1 8 17 8 7 12 10 9 2 5 6 3 1 13 11 15 14 16 9 19 20 21 4 18

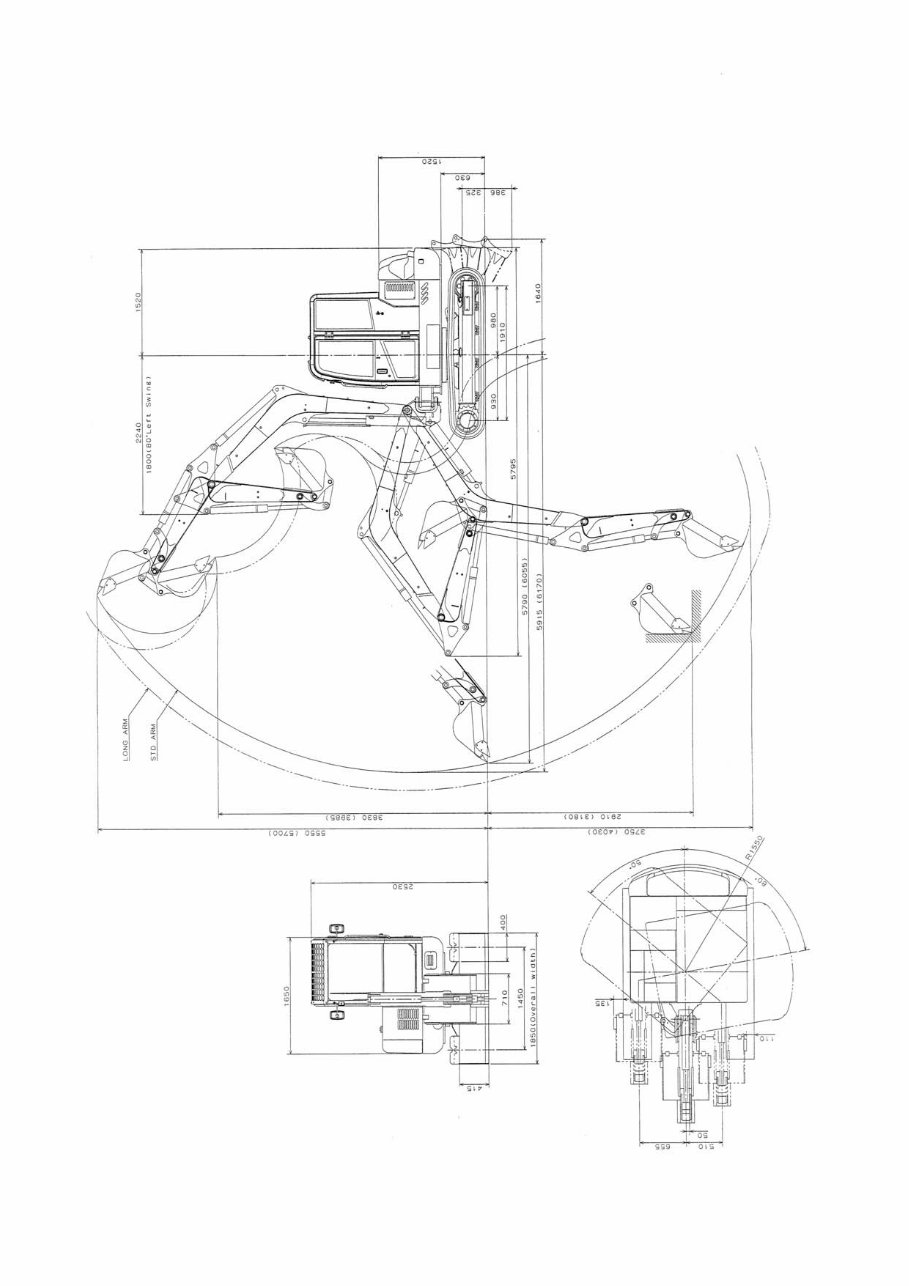

2-3 2-3 Dimensions and Specifications
