Fig. 1100 MAIN FRAME
SOLAR 300LC-V
Fig. 1100 MAIN FRAME
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
- 600-00068E MAIN FRAME ASS'Y - D 1001~4940
- 160609-00017 FRAME ASSY;MAIN - D 4941~
1 603-00121A FRAME;MAIN 1 1001~3784 I 603-00121B 1
1 603-00121B FRAME;MAIN 1 3785~4076 I 603-00121C 1
1 603-00121C FRAME;MAIN 1 4077~4166 I 603-00121E 1
1 603-00121E FRAME;MAIN 1 4167~4529 I 603-00121G 1
1 603-00121G FRAME;MAIN 1 4530~
2 624-00032H WEIGHT;COUNTER 1 1001~4940 Y 160702-00041 1
2 160702-00041 WEIGHT,COUNTER;4.9TON 1 4941~
3 2120-4010 BOLT 4 1001~2309 I 2120-4010A 4
3 2120-4010A BOLT 4 2310~
4 114-00055 WASHER;HARDEN 4
5 S0775861 BOLT M24X2.0X125 35 1001~2309 I S0775866 35
5 S0775866 BOLT 35 2310~
6 2123-1107D4 PIN;KNOCK 2
7 2160-9010 COVER;RUBBER 1
8 2195-2786A BRACKET 1
9 S0515253 BOLT M12X1.75X30 3
10 S5102703 WASHER;SPRING M12 3
11 2403-1002 PLATE 1
12 2180-1017A PACKING 1
13 S0511853 BOLT 2
14 S5102603 WASHER,SPRING;M10 2
15 2160-1201D24 BUSHING;RUBBER 1
16 2160-1201D7 BUSHING;RUBBER 1
17 2160-1004D34 BUSHING;RUBBER 1
18 2160-1004D42 BUSHING;RUBBER 1
19 621-01579A COVER;LAMP 1
20 2114-1831A WASHER;HARDEN 35
21 S0521961 BOLT M16X2.0X65 2
22 S4012933 NUT 2
23 2160-9034 CAP 2
24 621-01527A COVER;LAMP 1
25 S0508853 BOLT 8
26 S5010513 WASHER,PLAIN;M8 8
1
SOLAR 300LC-V

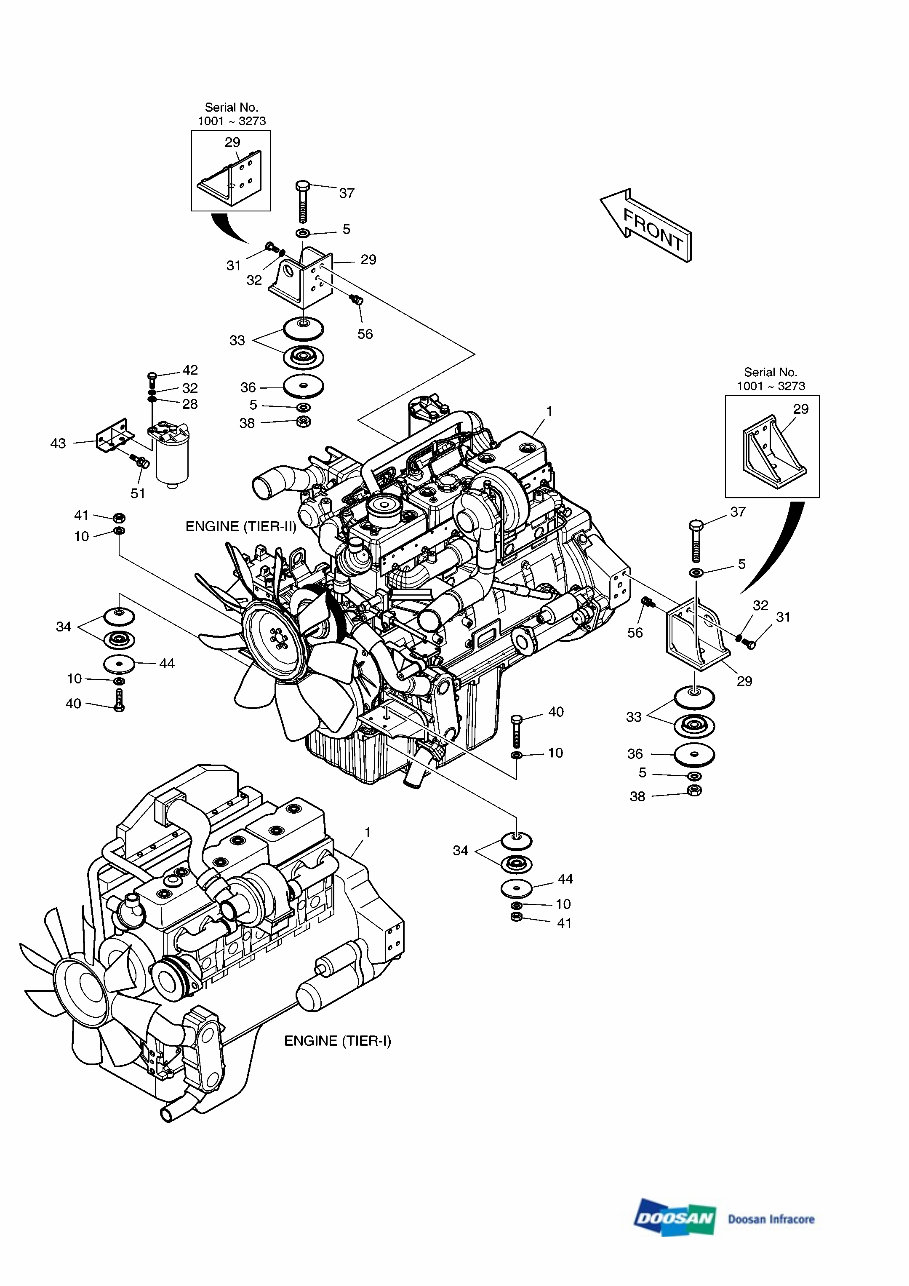

Fig. 1110 ENGINE MOUNTING
SOLAR 300LC-V
Fig. 1110 ENGINE MOUNTING
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
- 201-00080B ENGINE ASS'Y - D
1 201-00079 ENGINE ASS'Y(TIER-II) 1
1 201-00149 ENGINE ASS'Y(TIER-I) 1
5 2114-9012A WASHER 4
10 2114-1816A WASHER 4
28 S5010713 WASHER;PLAIN M12 2
29 195-01415A BRACKET 2 1001~3273 I K1008719 2
29 K1008719 BRACKET 2 3274~3877 I K1008719A 2
29 K1008719A BRACKET 2 3878~
31 S0515253 BOLT M12X1.75X30 8
32 S5102703 WASHER;SPRING M12 10
33 161-00299 MOUNT;E/G 4 1001~3768 I 161-00553 4
33 161-00553 RUBBER;E/G MOUNTING 4 3769~
34 161-00298 RUBBER;E/G MOUNTING 4
36 2114-1929 WASHER 2
37 S0771461 BOLT M20X1.5X130 2 1001~1091
37 S0771466 BOLT 2 1092~
38 121-00066 NUT;LOCK 2
40 S0766261 BOLT M16X1.5X100 2 1001~1091
40 S0766266 BOLT M16X1.5X100 2 1092~
41 121-00035 NUT;LOCK M16X1.5 2
42 S0560553 BOLT M12X1.75X40 2
43 195-01494 BRACKET;FUEL FILTER 1
44 114-00417 WASHER;BUMP 2
51 2120-2196D10 BOLT;SET M12X1.75X25 2
56 2123-1066A PIN 2 3878~
1
SOLAR 300LC-V

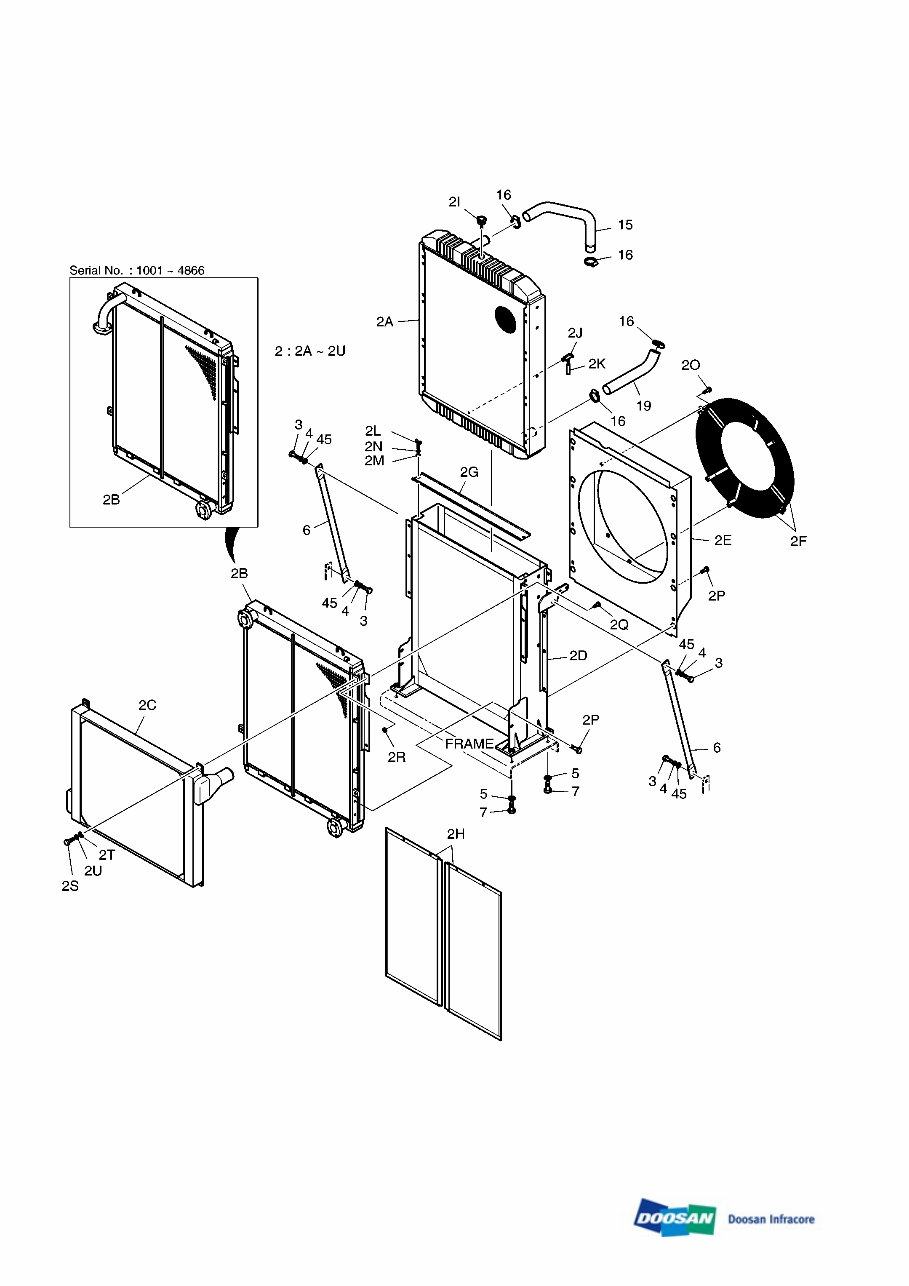

Fig. 1120 RADIATOR
SOLAR 300LC-V
Fig. 1120 RADIATOR
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
- 201-00080 ENGINE ASS'Y - D 1001~4838
- 150109-00073 ENGINE ASSY - D 4839~
2 202-00071B RADIATOR 1 1001~1009 I 202-00071C 1
2 202-00071C RADIATOR 1 1010~3143 I 202-00071E 1
2 202-00071E RADIATOR 1 3144~4866
2 440211-00012 RADIATOR ASS'Y 1 4867~
2A 13F11000 RADIATOR ASS'Y 1
2B 13F12000 OIL COOLER ASS'Y 1 1001~3143 I 13F12000A 1
2B 13F12000A OIL COOLER ASS'Y 1 3144~4866
2B 400206-00097 COOLER,OIL 1 4867~
2C 13F13000 C/H AIR COOLER ASS'Y 1
2D 13F14000 FRAME ASS'Y 1
2E 13F15000 SHROUD ASS'Y 1
2F 13F16000 FAN GUARD ASS'Y 2
2G 13F17000 PLATE 1
2H 13F18000 WIRE NET ASS'Y 2
2I P06A CAP ASS'Y 1
2J P04 DRAIN COCK ASS'Y 1
2K P03 HOSE;DRAIN 1
2L P1106 BOLT;WING M6X1.0X15 6
2M P1306 WASHER;PLAIN 6
2N P1406 WASHER;SPRING 6
2O P1108 BOLT M8X1.25X20 8
2P P1110A BOLT M10X1.25X20 26
2Q P1110B BOLT M10X1.25X25 6
2R P1112 NUT;FLANGE 6
2S P1110 BOLT M10X1.25X25 4
2T P1210 WASHER;SPRING 4
2U P1210 WASHER;SPRING 4
3 S0521461 BOLT M16X2.0X40 4 1001~1091
3 S0521466 BOLT M16X2.0X40 4 1092~
4 S5102903 WASHER,SPRING 4
5 2114-9012A WASHER 4
6 145-00056A STAY 2
7 S0569861 BOLT M20X2.5X50 4 1001~1091
7 S0569866 BOLT M20X2.5X50 4 1092~
1
SOLAR 300LC-V
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
15 185-00244 HOSE;WATER 1
16 S8470065 CLAMP;HOSE 4
19 185-00243 HOSE;WATER 1
45 S5010913 WASHER,PLAIN;M16 4
2
SOLAR 300LC-V

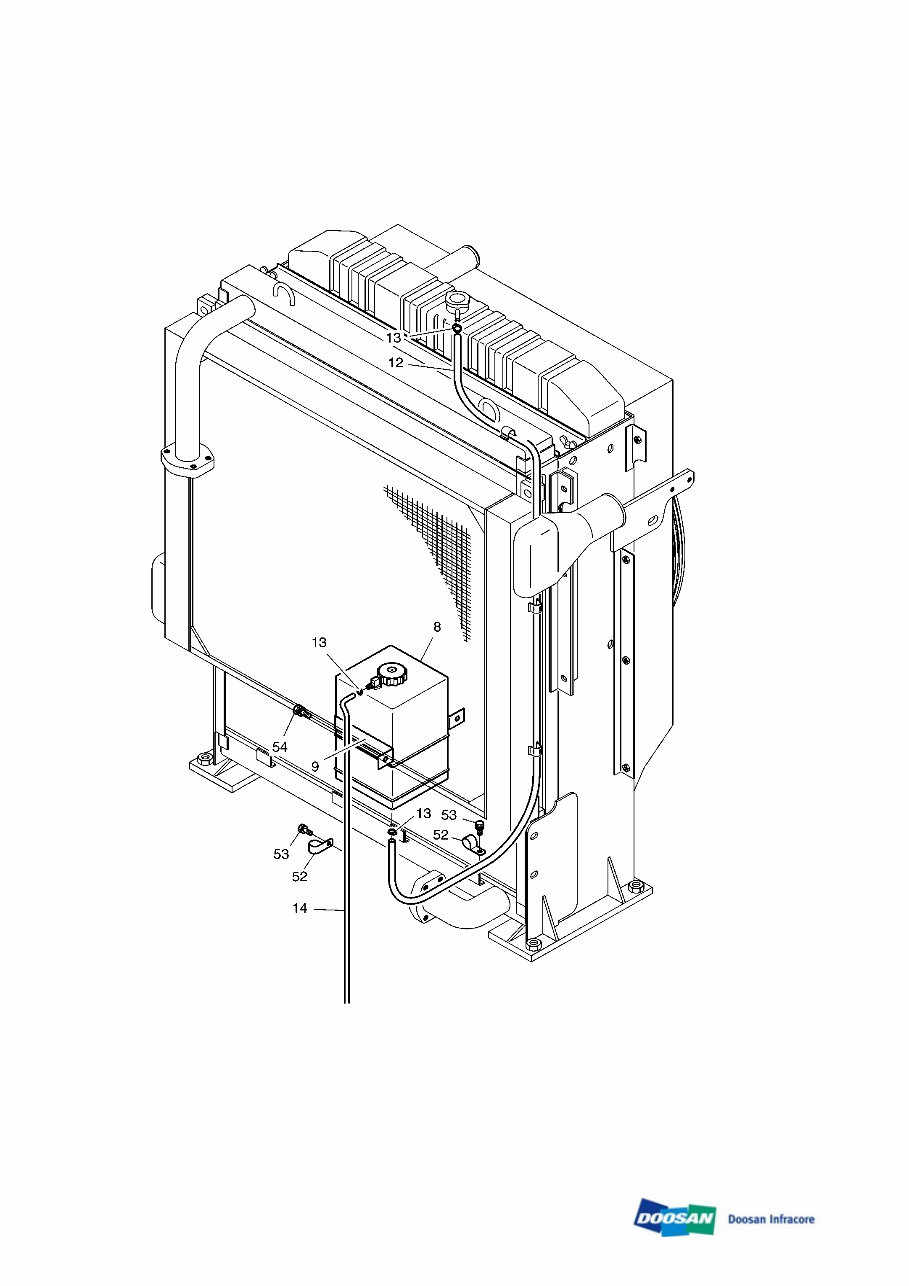

Fig. 1130 RESERVE TANK
SOLAR 300LC-V
Fig. 1130 RESERVE TANK
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
- 201-00080 ENGINE ASS'Y - D
8 2470-9017 TANK;RESERVE 1 1001~3407 I K1003354 1
8 K1003354 TANK;RESERVE 1 3408~3544 I K1003354A 1
8 K1003354A TANK;RESERVE 1 3545~
9 2124-1690 CLAMP 1
12 185-00298 HOSE 1
13 S8450006 CLAMP;HOSE 3
14 185-00320 HOSE 1
52 124-00208D2 CLIP 2
53 120-00276 BOLT M8X1.25X12 2
54 2120-2196D1 BOLT;SET M10X1.5X20 2
1
SOLAR 300LC-V

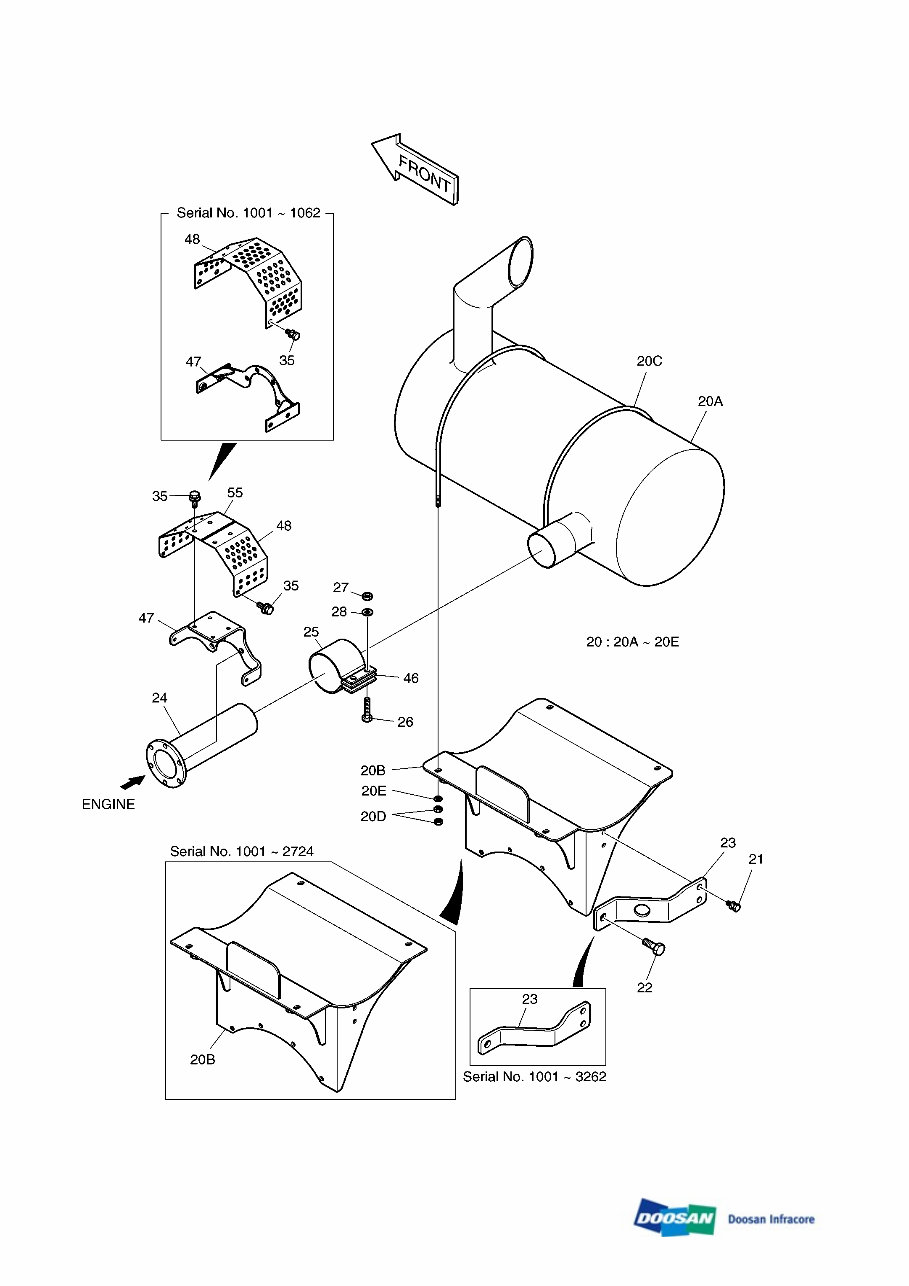

Fig. 1140 MUFFLER
SOLAR 300LC-V
