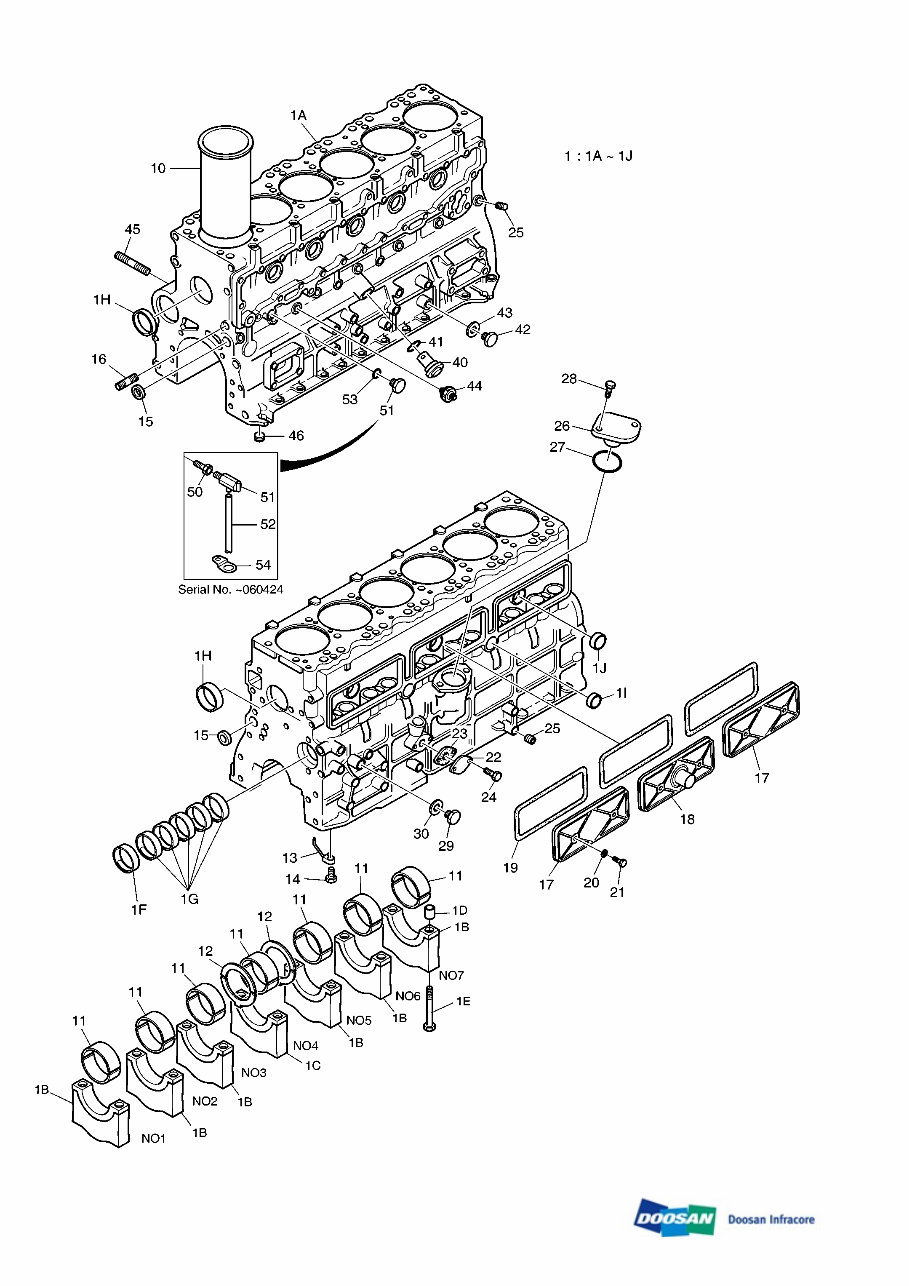

Fig. 001 CYLINDER BLOCK
SOLAR 255LC-V
Fig. 001 CYLINDER BLOCK
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
1 65.01101-6079 CYLINDER BLOCK ASS'Y 1 ~030629 Y 65.01101-6079A 1
1 65.01101-6079A CYLINDER BLOCK ASS'Y 1 ~041214 Y 65.01101-6079B 1
1 65.01101-6079B CYLINDER BLOCK ASS'Y 1 ~051004 Y 65.01101-6079C 1
1 65.01101-6079C CYLINDER BLOCK ASS'Y 1 ~060726 Y 65.01101-6079D 1
1 65.01101-6079D CYLINDER BLOCK ASS'Y 1 060727~
1A 65.01101-0030F BLOCK;CYLINDER 1 D ~030629
1A 65.01101-0030G BLOCK;CYLINDER 1 D ~051004
1A 65.01101-0030H BLOCK;CYLINDER 1 D ~060726
1A 65.01101-0030I BLOCK;CYLINDER 1 D 060727~
1B 65.01105-1048 CAP;BEARING(F.M.R) 6 D ~060726
1B 65.01105-1048A CAP;BEARING(F.M.R) 6 D 060727~
1C 65.01105-1047 CAP;BEARING(NO.4) 1 D ~060726
1C 65.01105-1047A CAP;BEARING(NO.4) 1 D 060727~
1D 65.91710-0001 RING;STOPPER 2
1E 65.90020-0066A BOLT;BRG CAP 14
1F 65.04410-0007A BUSH;CAM SHAFT 1 B ~021109 Y 65.04410-0007B 1
1F 65.04410-0007B BUSH;CAM SHAFT 1 B ~041214 Y 65.04410-0007C 1
1F 65.04410-0007C BUSH;CAM SHAFT 1 B ~060726 Y 65.04410-0007D 1
1F 65.04410-0007D BUSH;CAM SHAFT 1 B 060727~
1G 65.04410-0006A BUSH;CAM SHAFT 5 B ~021109 Y 65.04410-0006B 5
1G 65.04410-0006B BUSH;CAM SHAFT 5 B ~041214 Y 65.04410-0006C 5
1G 65.04410-0006C BUSH;CAM SHAFT 5 B 041215~
1H 65.90302-0009 PLUG;CORE 2
1I 06.15091-0319 PLUG;CORE 2 ~030510
1I 65.90302-0041 PLUG;CORE 2 030511~
1J 06.15091-0322 PLUG;CORE 3 ~030510
1J 65.90302-0042 PLUG;CORE 3 030511~
10 65.01201-0067 LINER;CYLINDER (ALTV.) 6 D
10 65.01201-0068 LINER;CYLINDER(1A) 6
10 65.01201-0069 LINER;CYLINDER(1B) 6
10 65.01201-0070 LINER;CYLINDER(2A) 6
10 65.01201-0071 LINER;CYLINDER(2B) 6
11 65.01110-6090B METAL;CRANK STD 7
11 65.01110-6091B METAL;CRANK 0.25 7 US
11 65.01110-6092B METAL;CRANK 0.50 7 US
12 65.01150-6010A WASHER;THRUST STD 2 ~060808 I 65.01150-6008 2
1
SOLAR 255LC-V
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
12 65.01150-6008 WASHER;THRUST 2 060809~
12 65.01150-6034A WASHER;THRUST 0.25 2 OS
12 65.01150-6035A WASHER;THRUST 0.50 2 OS
13 65.01601-5010A OIL JET PIPE 6
14 65.05401-5023 RELIEF VALVE ASS'Y 6
15 06.15091-0313 PLUG;CORE 2
16 65.90201-0058 BOLT;STUD M14X12.5X45 1
17 65.01112-0021A COVER;PUSH ROD CHAMBER 2
18 65.01112-5018 COVER;PUSH ROD CHAMBER 1 ~090313 Y 110508-00358 1
18 110508-00358 COVER;PUSH ROD CHAMBER 1 090314~
19 65.01901-0020 GASKET;PUSH ROD CHAMBER 3
20 65.96507-0007 PACKING;PUSH ROD CHAMBER 6
21 65.90020-0049 BOLT;HEX. 6
22 65.91615-0011 COVER;BLIND 1
23 65.05903A0013 GASKET;FLANGE 1
24 06.01913-3113 BOLT ASS'Y M8X20 2
25 65.90320-0022 PLUG SCREW PT1/8 10
26 65.91605-0001E COVER 1
27 06.56021-0106 O-RING;O/P DRIVE FLANGE 1
28 06.01913-3113 BOLT ASS'Y M8X20 2
29 65.90310-0135 PLUG;SCREW 1
30 06.56190-0706 SEAL RING A14X20 1
40 65.05401-5002F RELIEF VALVE ASS'Y 1 ~080424 Y 65.05401-5002G 1
40 65.05401-5002G RELIEF VALVE 1 080425~
41 06.56021-0102 O-RING 1
42 65.90310-0030 SCREW;PLUG M12X1.25 1
43 06.56190-0704 RING;SEAL 1
44 65.27441-7006 SWITCH;OIL PRESS. 1
45 65.90201-0182 BOLT;STUD 1
46 65.90320-0019 PLUG SCREW PT3/8 1
50 65.98130-0040A ADAPTER 1 ~060424
51 65.06310-6003 PLUG;DRAIN 1 ~021123 Y 65.06310-6003A 1
51 65.06310-6003A PLUG;DRAIN 1 ~060424
51 65.90310-0122 PLUG;DRAIN 1 060425~
52 04.50010-0811 HOSE;VINYL 1 ~060424
53 06.56190-0713 RING;SEAL A18X24 2
54 65.97401-0050 CLIP;PIPE 1 ~060424
2
SOLAR 255LC-V

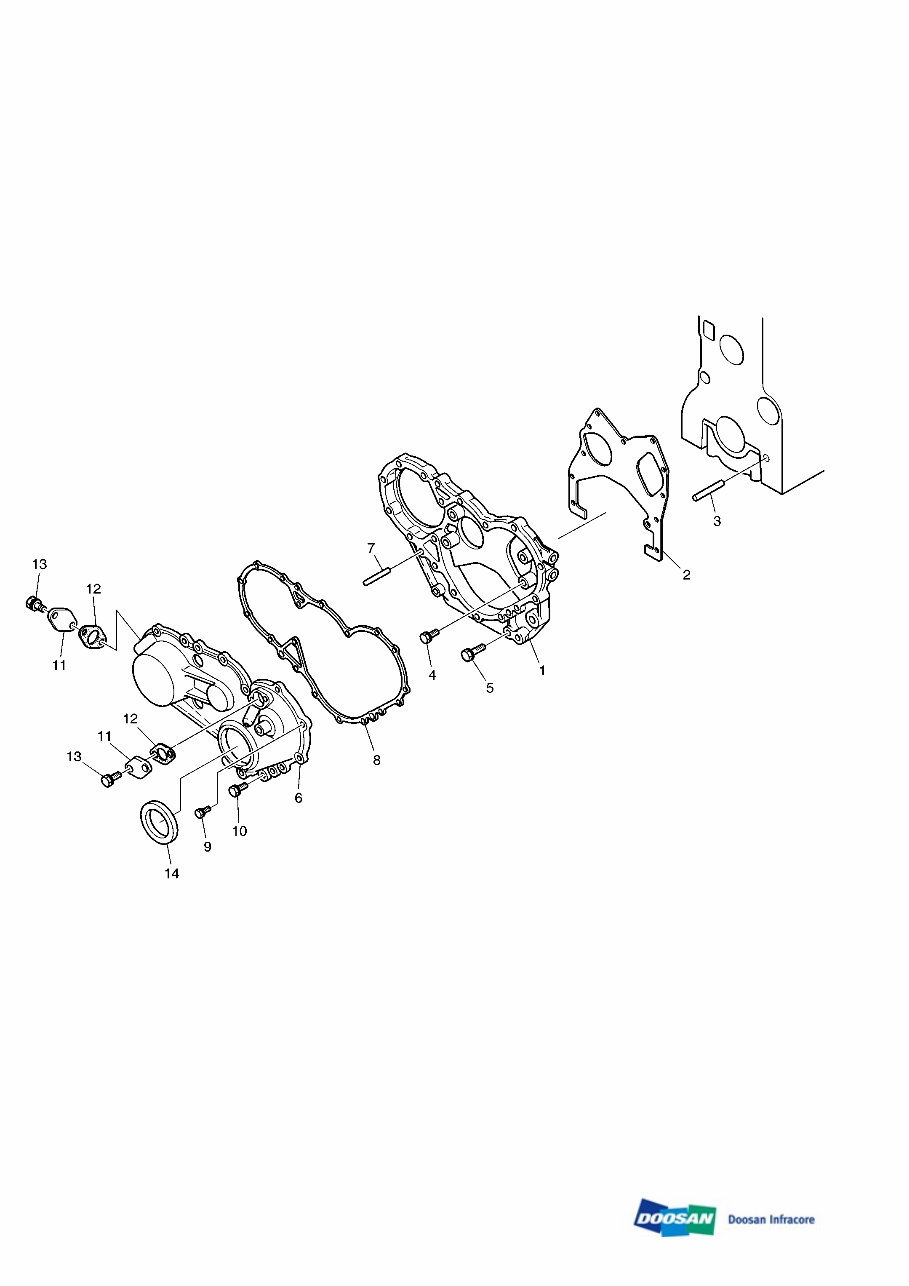

Fig. 002 TIMING GEAR CASE
SOLAR 255LC-V
Fig. 002 TIMING GEAR CASE
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
1 65.01304-0003C CASE;TIMING GEAR 1
2 65.01903B0004 GASKET;TIMING GEAR 1
3 06.22022-3119 PIN 1
4 06.01913-3113 BOLT ASS'Y M8X20 4
5 06.01913-3120 BOLT ASS`Y M8X45 2
6 65.01305-5074 COVER;TIMING GEAR CASE 1 ~050628 Y 65.01305-5074A 1
6 65.01305-5074A COVER;TIMING GEAR CASE 1 050629~
7 06.22022-3111 PIN 1
8 65.01903B0003 GASKET;TIMING GEAR CASE 1
9 06.01913-3115 BOLT ASS'Y M8X25 7
10 06.01913-3122 BOLT ASS'Y M8X55 5
11 65.01307-0002B COVER;TIMING CHECK HOLE 2 ~081204 I 65.01307-0014 2
11 65.01307-0014 COVER;FOR CHECK HOLE 2 081205~
12 65.01903-0002C GASKET 2
13 06.01913-2911 BOLT ASS'Y M6X16 4 ~081204 I 06.01923-2911 4
13 06.01923-2911 BOLT ASS'Y M6X16 4 081205~
14 65.01510-0001 SEAL;OIL(FRONT) 1
1
SOLAR 255LC-V

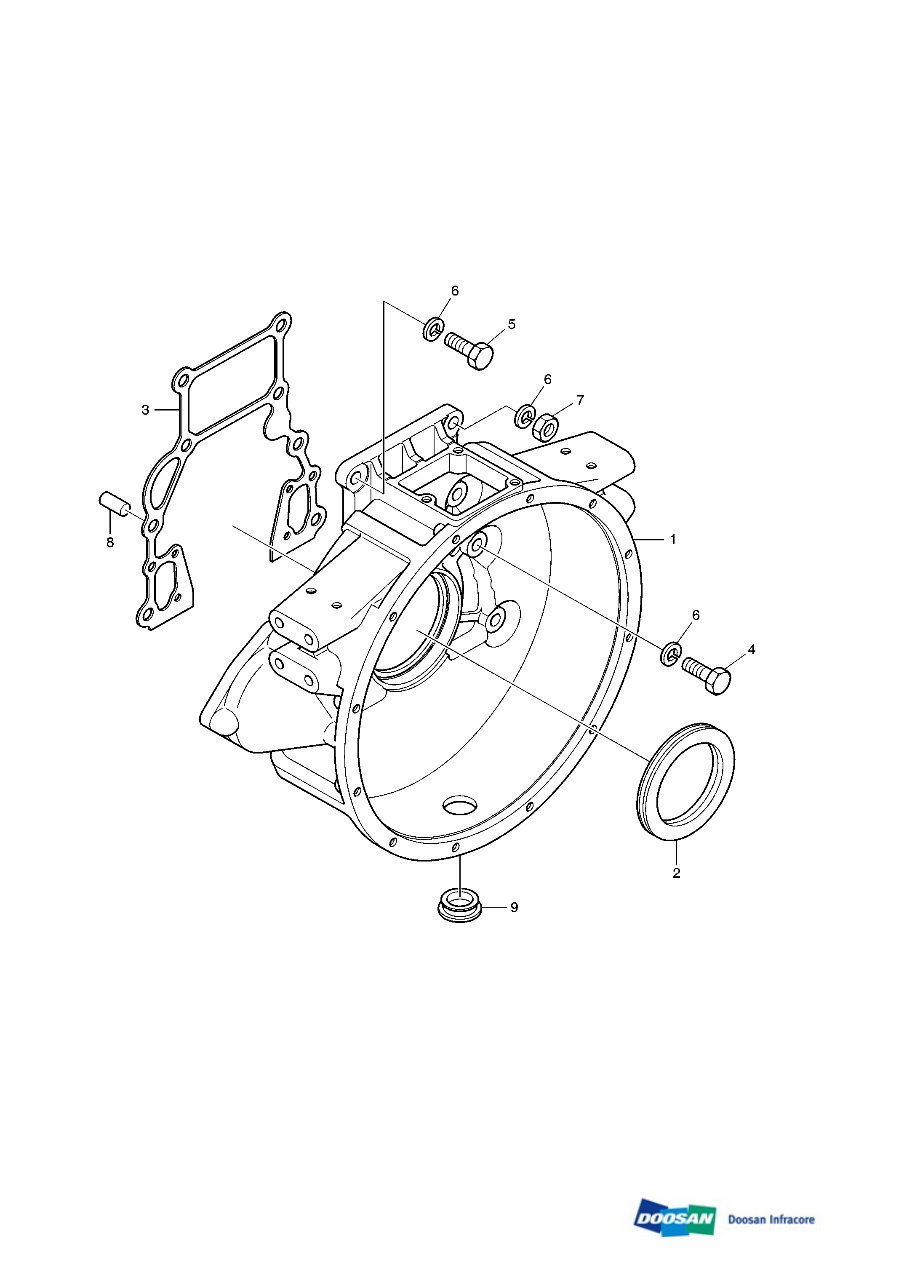

Fig. 003 FLYWHEEL HOUSING
SOLAR 255LC-V
Fig. 003 FLYWHEEL HOUSING
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
1 65.01401-0119 HOUSING;FLYWHEEL 1 ~061228 Y 65.01401-0119A 1
1 65.01401-0119A HOUSING;FLYWHEEL 1 061229~
2 65.01510-0101 SEAL;OIL(REAR) 1
3 65.01904-0021 GASKET;FLYWHEEL HOUSING 1
4 06.01494-4409 BOLT;HEX. M14X1.5X50 6
5 06.01494-4407 BOLT;HEX. M14X1.5X40 1
6 06.16731-2110 WASHER;SPRING 8
7 06.11063-9217 NUT 1
8 06.22022-3111 PIN 2
9 65.96401-0007 CAP;RUBBER 1
1
SOLAR 255LC-V

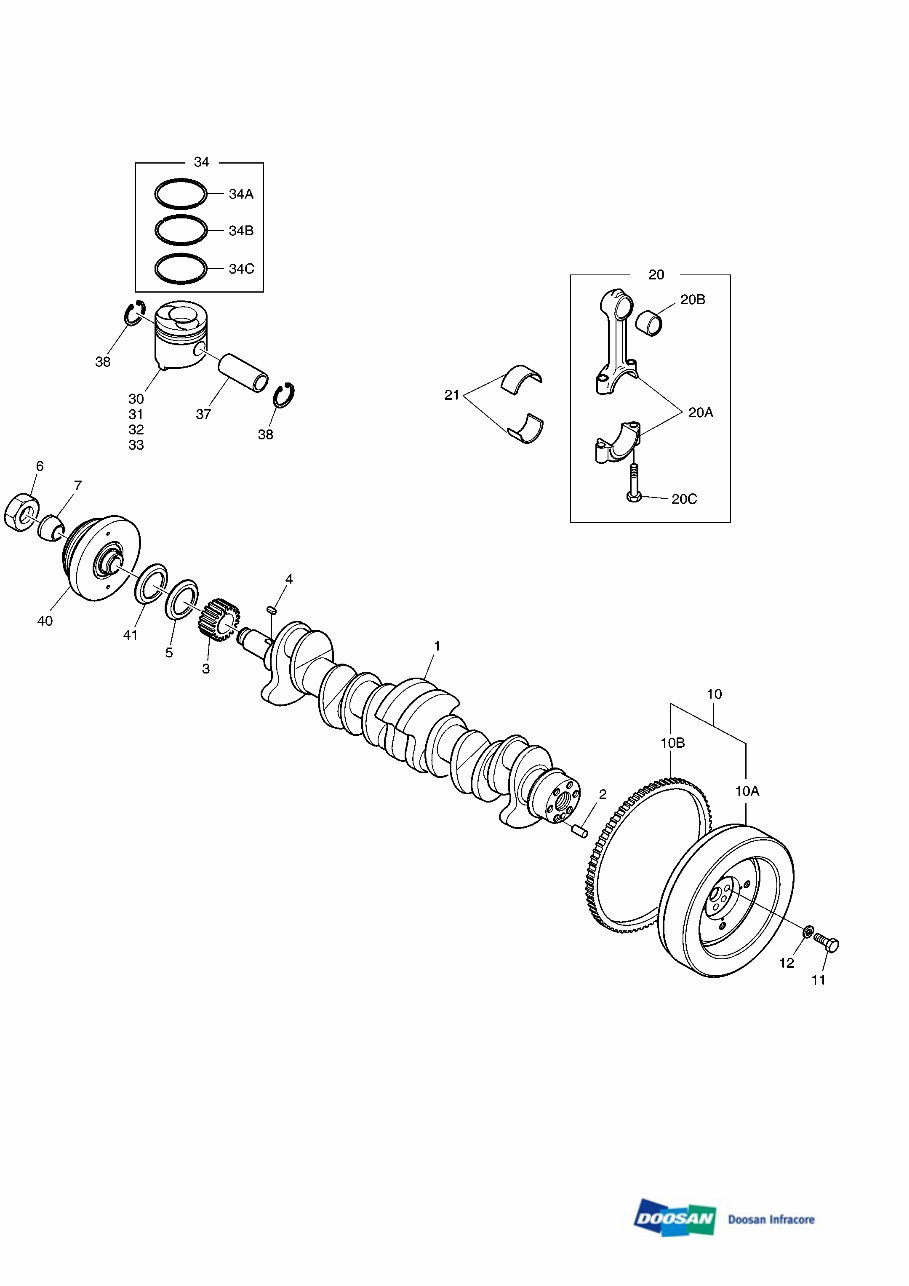

Fig. 004 CRANK SHAFT
SOLAR 255LC-V
Fig. 004 CRANK SHAFT
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
1 65.02101-0045A SHAFT;CRANK 1
2 06.22022-3212 PIN;PARALLEL 1
3 65.02115-0009 GEAR;CRANK SHAFT 1
4 65.91501-0006 KEY;SLIDING 1
5 65.02120-0002 RING;OIL THROWER 1
6 65.90501-0006 NUT 1
7 65.93020-0015 BUSH;TAPER 1
10 65.02301-5094 FLYWHEEL ASS'Y 1
10A 65.02301-0086 FLY WHEEL 1
10B 65.02310-0006 GEAR;RING 1
11 06.01494-4506 BOLT M16X1.5X35 6
12 06.16731-2111 WASHER;SPRING 6
20 65.02401-6021 CONNECTING ROD ASS'Y 6
20A 65.02401-0163D ROD;CONNECTING 1 D
20B 65.02405-0006 BUSH 1 B
20C 65.02411-0006A BOLT 2
21 65.02410-6083B METAL;CON-ROD STD 6
21 65.02410-6124B METAL;CON-ROD 0.125mm 6 US
21 65.02410-6125B METAL;CON-ROD 0.25mm 6 US
21 65.02410-6126B METAL;CON-ROD 0.5mm 6 US
30 65.02501-0410 PISTON(ALTV.) 6 D ~020913
30 65.02501-0416 PISTON(ALTV.) 6 D ~050707
30 65.02501-0440 PISTON(ALTV.) 6 D 050708~
31 65.02501-0416 PISTON(ALTV.) 6 D 050708~
31 65.02501-0443 PISTON(ALTV.-2) 6 D 050708~
32 65.02501-0417 PISTON-1;A GRADE 6 050708~
32 65.02501-0444 PISTON-2;A GRADE 6 050708~
33 65.02501-0418 PISTON-1;B GRADE 6 050708~
33 65.02501-0445 PISTON-2;B GRADE 6 050708~
34 65.02503-8058 PISTON RING KIT 1
34A - RING;TOP 6 K
34B - RING,SECOND 6 K
34C - RING;OIL 6 K
37 65.02502-0082A PIN;PISTON 6
38 65.90815-0007 RING;RETAINING 12
40 65.02601-5024 PULLEY;DAMPER 1
1
SOLAR 255LC-V
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
41 65.02122-0001 COVER;DUST 1
2
SOLAR 255LC-V
