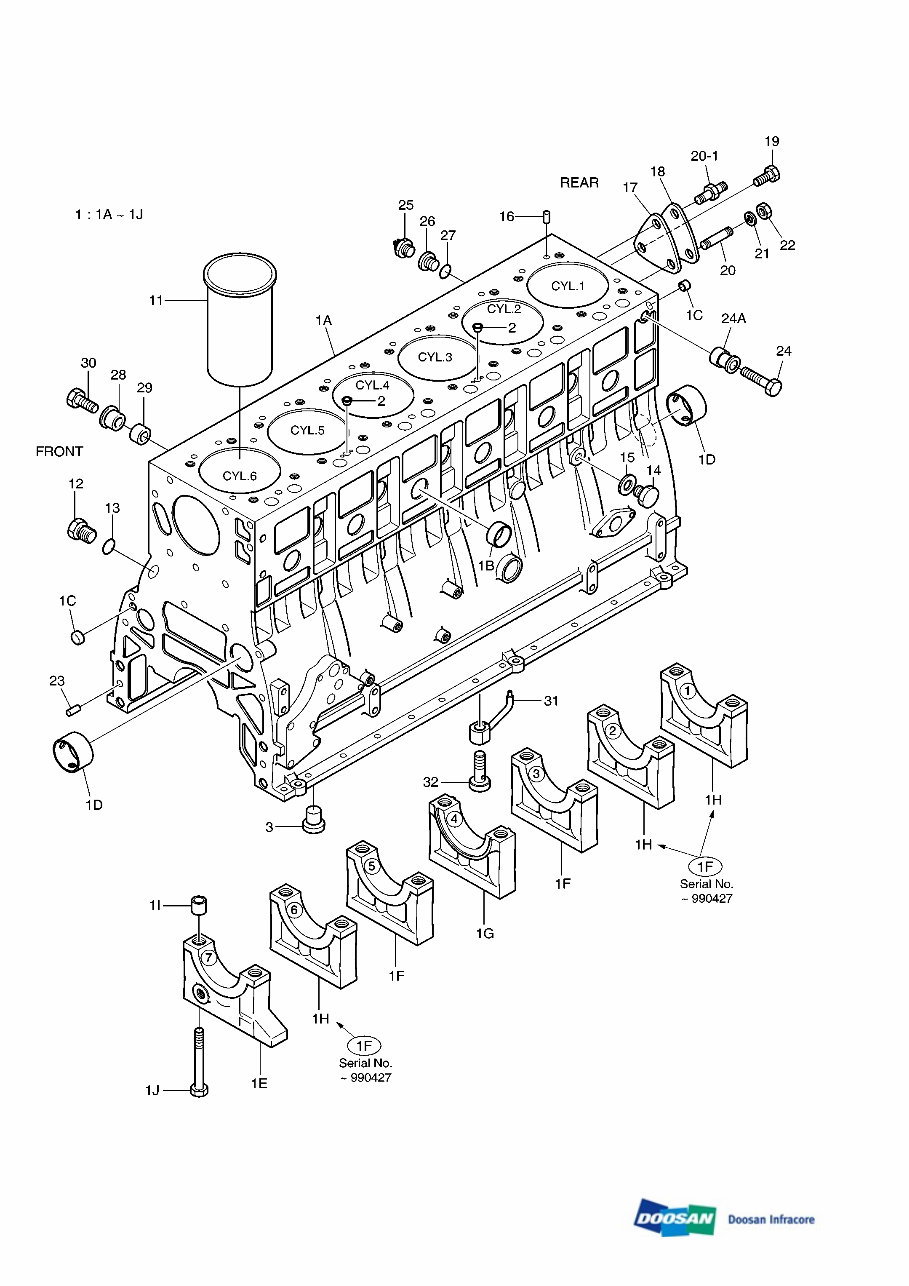

Fig. 011 CYLINDER BLOCK
SOLAR 250LC-V
Fig. 011 CYLINDER BLOCK
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
1 65.01101-6040E CYLINDER BLOCK ASS'Y 1 ~010802 Y 65.01101-6040F 1
1 65.01101-6040F CYLINDER BLOCK ASS'Y 1 ~080529 Y 65.01101-6040N 1
1 65.01101-6040N CYLINDER BLOCK ASS'Y 1 080530~
1A 65.01101-0040L BLOCK;CYLINDER 1 D ~010802
1A 65.01101-0040M BLOCK;CYLINDER 1 D ~080529
1A 65.01101-0040R BLOCK;CYLINDER 1 D 080530~
1B 06.15091-0326 PLUG;CORE 9 ~040209 I 65.91606-0037 9
1B 65.91606-0037 PLUG;CORE 9 040210~
1C 65.91606-0041 PLUG;CORE 2
1D 65.04410-0017 BUSH;CAM SHAFT 4 D
1E 65.01105-1164D CAP;BEARING NO.7 1 D ~050907
1E 65.01105-1175C BEARING;CAP NO7 1 D 050908~
1F 65.01105-1160 CAP;BEARING NO.1.2.3.5.6 5 D ~990427
1F 65.01105-1160E CAP;BEARING NO.3.5 2 D ~030730
1F 65.01105-1160F BEARING;CAP NO.3.5 2 D 030731~
1G 65.01105-1156C CAP;BEARING THRUST 1 D ~030730
1G 65.01105-1156D CAP BEARING;THRUST 1 D 030731~
1H 65.01105-1172A CAP;BEARING NO.1.2.6 3 D ~030730
1H 65.01105-1172B BEARING;CAP NO.1.2.6 3 D 030731~
1I 65.91710-0035 RING;LOCATING 14 ~030428 Y 65.91710-0035B 14
1I 65.91710-0035B RING;LOCATING 14 030429~
1J 65.90020-0035B BOLT;BEARING CAP 14
2 65.91001-0002 PLUG 2 ~050908 I 65.91001-0013 2
2 65.91001-0013 AVSEAL 2 ~060223 Y 65.91001-0013A 2
2 65.91001-0013A PIN;CORE 2 060224~
3 65.91020-0013 PLUG;CORE 1
11 65.01201-0050 LINER;CYLINDER 6
12 65.90310-0048 SCREW;PLUG M10X1.5 6
13 06.56180-0714 RING;SEAL 6
14 65.90310-0091 SCREW;PLUG M12X1.5X20 1
15 06.56190-0704 RING;SEAL 1
16 06.22022-0907 PIN;DOWEL 6M6X10 6
17 65.96601A0042 GASKET;END COVER 1
18 65.91605-0006B COVER;END 1
19 06.01913-3114 BOLT ASS'Y M8X22 1
20 06.06225-0706 BOLT;STUD M8X25 1 ~990427
1
SOLAR 250LC-V
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
20 06.06225-0704 BOLT;STUD M8X20 1 990428~
20-1 65.90201-0075 BOLT;SPACER 1
21 06.16731-2107 WASHER 2
22 06.11063-8214 NUT 1
23 06.22220-1212 PIN;SPIRAL LOCK 8X24 2 ~980828 Y 06.22022-1013 2
23 06.22022-1013 PIN;DOWEL 2 980829~
24 06.01013-9517 BOLT;HEX M16X60 1
24A 65.91701-0148 SPACER 1
25 65.27441-7007 SWITCH;OIL PRESSURE 1
26 65.98130-0194 ADAPTER 1
27 06.56180-0714 RING;SEAL 1
28 65.91701-0273 RING;SPACER 1
29 65.91701-0088 SPACER 1
30 06.01283-7524 BOLT;HEX. M16X65 1
31 65.01601-6003 OIL SPRAY NOZZLE ASS'Y 6
32 65.05405-6001 RELIEF VALVE ASS`Y 6
2
SOLAR 250LC-V

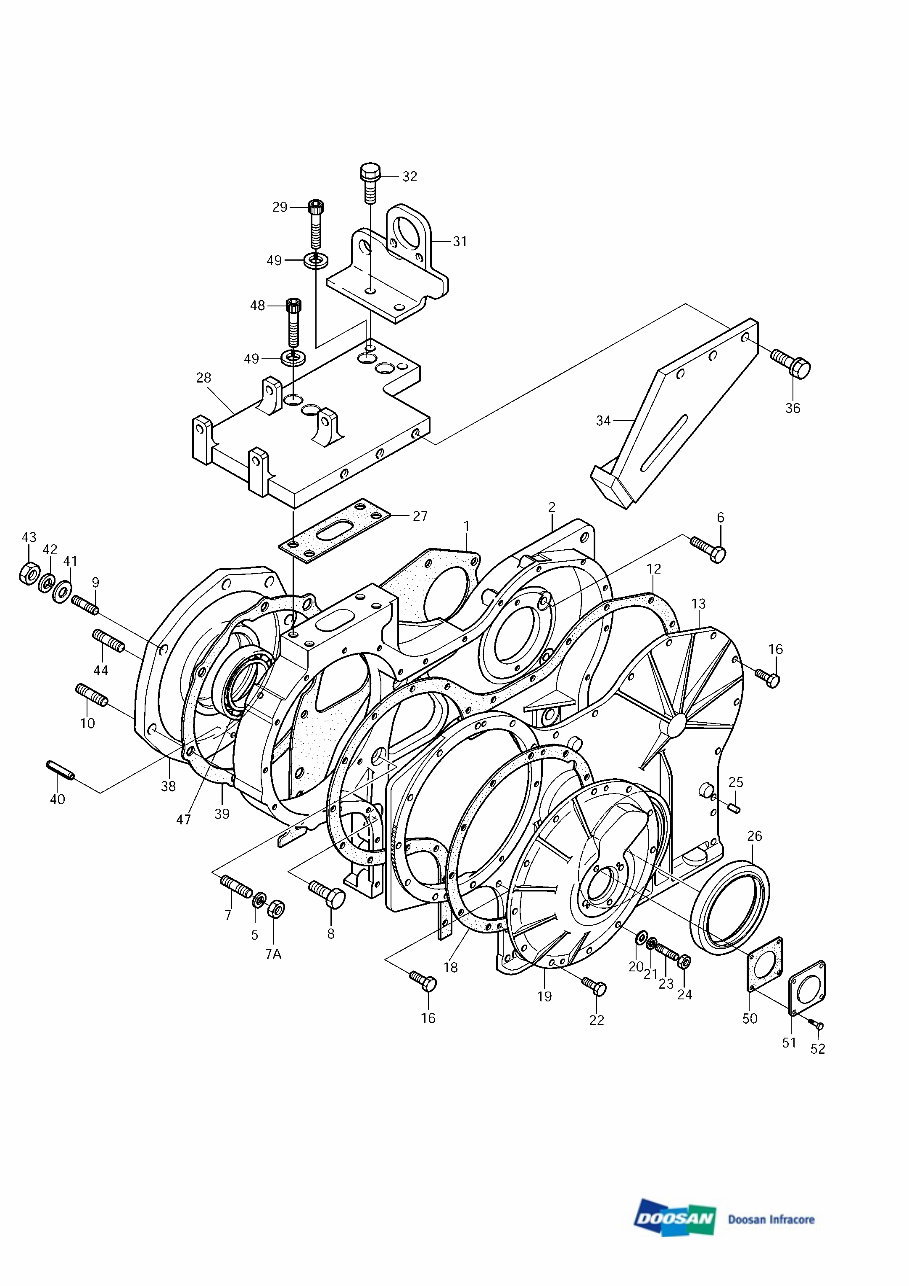

Fig. 012 TIMING GEAR CASE
SOLAR 250LC-V
Fig. 012 TIMING GEAR CASE
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
1 65.01903-0021 GASKET(TIMING GEAR CASE) 1 ~950929 Y 65.01903C0021 1
1 65.01903C0021 GASKET;TIMING GEAR CASE 1 950930~
2 65.01304-0010M CASE;TIMING GEAR 1 ~000730 Y 65.01304-0010N 1
2 65.01304-0010N CASE;TIMING GEAR 1 000731~
5 06.16731-2107 WASHER 1
6 06.01913-3113 BOLT ASS'Y M8X20 5
7 06.06225-0704 BOLT;STUD M8X20 1
7A 06.11063-8214 NUT 1
8 06.01943-3317 BOLT ASS`Y M12X1.5X30 4
9 65.90201-0048 BOLT;STUD 1
10 06.06225-0809 BOLT;STUD M10X35 6
12 65.01903B0113 GASKET;T.G.C COVER 1
13 65.01305-5028A TIMING GEAR CASE COVER 1 ~990519 Y 65.01305-5028C 1
13 65.01305-5028C COVER;TIMING GEAR CASE 1 990520~
16 06.01923-2914 BOLT ASS`Y M6X22 13
18 65.01903B0029 GASKET;COVER 1
19 65.01307-5009 TIMING GEAR CASE COVER 1
20 06.15010-2309 WASHER;PLAIN 2
21 06.16731-2105 WASHER 2
22 06.01923-2918 BOLT ASS`Y M6X35 9
23 06.06225-0502 BOLT;STUD M6X16 2 ~001215 Y 65.90201-0146 2
23 65.90201-0146 BOLT;STUD M6X16 2 001216~
24 06.11063-8212 NUT 2
25 06.22022-0907 PIN;DOWEL 6M6X10 2
26 65.01510-0026 SEAL;CRANK SHAFT(FRONT) 1 ~990916 Y 65.01510-0157 1
26 65.01510-0157 SEAL;OIL 1 990917~
27 65.54903A0013 GASKET 1
28 65.54302-0006 BRACKET;AIRCON 1 ~000221 Y 65.54302-0006A 1
28 65.54302-0006A BRACKET;AIRCON 1 000222~
29 06.02090-0511 BOLT;SOCKET M10X22 2
31 65.54306-0003 ANGLE;BRACKET 1
32 06.01913-3215 BOLT ASS'Y M10X25 2
34 65.95840-0033 BRACKET;IDLE PULLEY 1
36 06.01913-3213 BOLT ASS`Y M10X20 3
38 65.11401-0040 MOUNTING FLANGE ASS'Y 1
39 65.11902-0018A GASKET;MOUNTING FLANGE 1
1
SOLAR 250LC-V
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
40 06.22220-1110 PIN;SPRING 1
41 06.15010-2312 WASHER;PLAIN 7
42 06.16731-2108 WASHER;SPRING 7
43 06.11063-8215 NUT;HEX. M10 7
44 65.90201-0059 BOLT;STUD M10X35 4
47 65.93410-0036 BEARING;BALL 1
48 06.02090-0513 BOLT;SOCKET 2
49 06.16731-2108 WASHER;SPRING 4
50 65.27901-0005B GASKET 1
51 65.91605-0009 COVER;END 1
52 06.01913-2911 BOLT ASS'Y M6X16 4
2
SOLAR 250LC-V

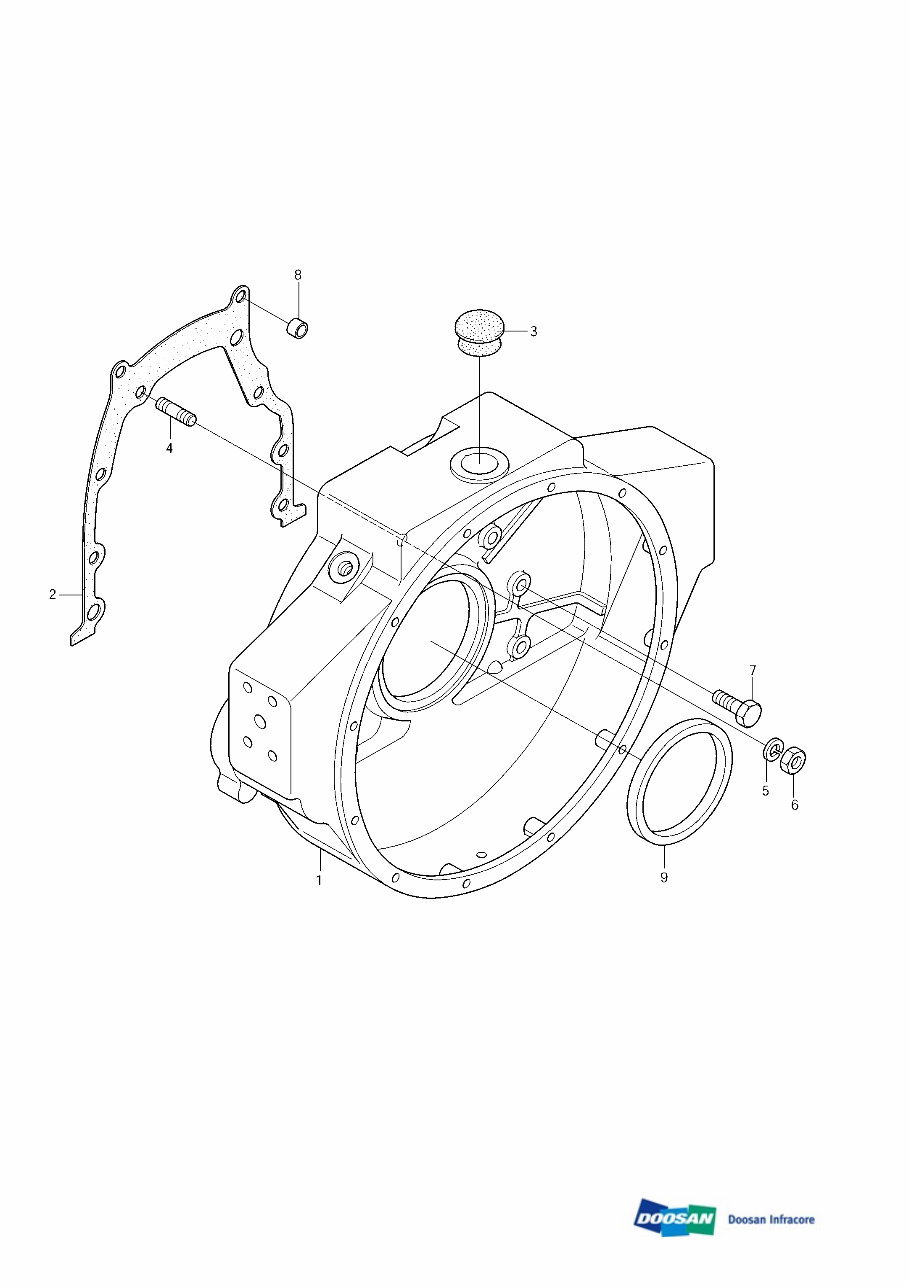

Fig. 013 FLYWHEEL HOUSING
SOLAR 250LC-V
Fig. 013 FLYWHEEL HOUSING
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
1 65.01401-0177 HOUSING;FLYWHEEL 1
2 65.01903A0178 GASKET;FLYWHEEL HOUSING 1
3 65.96002-0003 PLUG;RUBBER 1
4 06.06176-8309 BOLT,STUD 1
5 06.16731-2109 WASHER;SPRING A12 1
6 06.11063-9216 NUT;HEX. M12X1.5 1
7 06.01943-3319 BOLT ASS'Y M12X1.5X40 9
8 65.91710-0023 RING;INTERMEDIATE 2
9 51.01510-0141 SEAL;CRANK SHAFT(REAR) 1 ~990916 Y 65.01510-0037 1
9 65.01510-0037 SEAL;OIL REAR 1 990917~
1
SOLAR 250LC-V

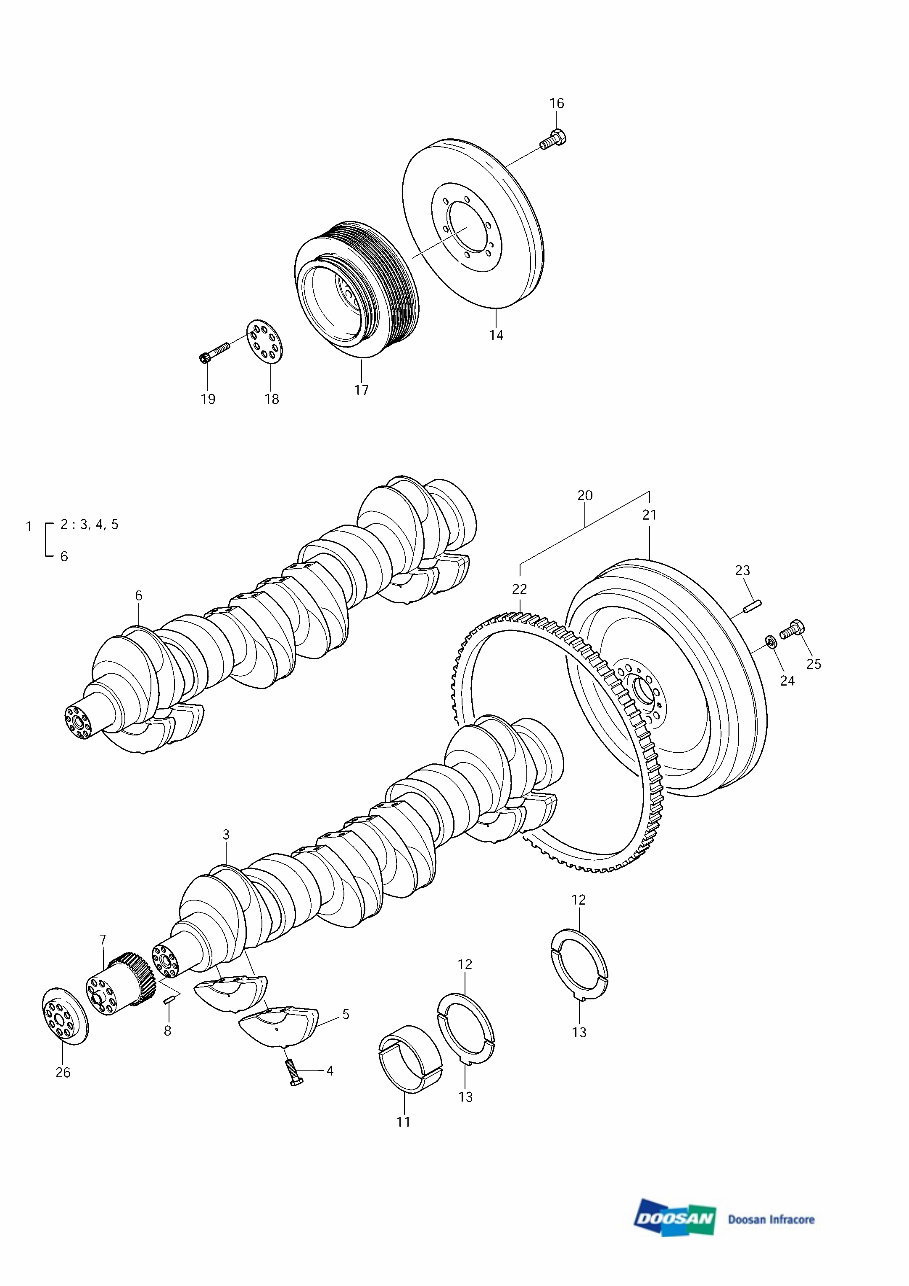

Fig. 014 CRANK SHAFT
SOLAR 250LC-V
Fig. 014 CRANK SHAFT
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
1 65.02101-7540 CRANK SHAFT ASS'Y 1
2 65.02101-7024 CRANK SHAFT ASS'Y 1
3 65.02101-0024 SHAFT;CRANK 1 D
4 65.90430-0014B BOLT;CRANK SHAFT 12 D
5 65.02110-0011 WEIGHT;BALANCE 6 D
6 65.02101-0056 CRANK SHAFT ASS'Y 1
7 65.02115-0040K GEAR;CRANK SHAFT 1
8 06.22022-0912 PIN;DOWEL 1
11 65.01110-6351 METAL;MAIN STD 7
11 65.01110-6352 METAL;MAIN 0.25 -
11 65.01110-6353 METAL;MAIN 0.50 -
11 65.01110-6354 METAL;MAIN 0.75 -
12 65.01150-0015 WASHER;THRUST(UPPER) 2
12 65.01150-0019 WASHER;THRUST(0.25) -
12 65.01150-0020 WASHER;THRUST(0.50) -
13 65.01150-0016 WASHER;THRUST(LOWER) STD. 2
13 65.01150-0023 WASHER;THRUST(LOWER) 0.25 -
13 65.01150-0024 WASHER;THRUST(LOWER) 0.50 -
14 65.02201-7032 DAMPER;VIBRATION 1
16 06.01913-3215 BOLT ASS'Y M10X25 6
17 65.02601-0168 PULLEY;V-BELT 1
18 65.90720-0022 WASHER 1 ~001225 T 65.90720-0088 1
18 - 06.02106-0619 8
18 65.90720-0088 WASHER 1 001226~
19 06.02106-0620 BOLT;SOCKET HEAD 8 ~001225 T 06.02106-0619 8
19 - 65.90720-0088 1
19 06.02106-0619 BOLT;SOCKET HEAD 8 001226~
20 65.02301-5062 FLY WHEEL ASS'Y 1
21 65.02301-0215 WHEEL;FLY 1 D
22 65.02310-0010A GEAR;STARTER RING 1 D
23 06.22220-1208 PIN;SPIRAL LOCK 8X16 1 ~980203 Y 06.22022-1010 1
23 06.22022-1010 PIN;DOWEL 1 980204~
24 06.16731-2110 WASHER;SPRING 6
25 65.90001-0084 BOLT;HEX. M14X1.5X40 6
26 65.01505-0030 COVER;DUST 1 ~970825
1
SOLAR 250LC-V
