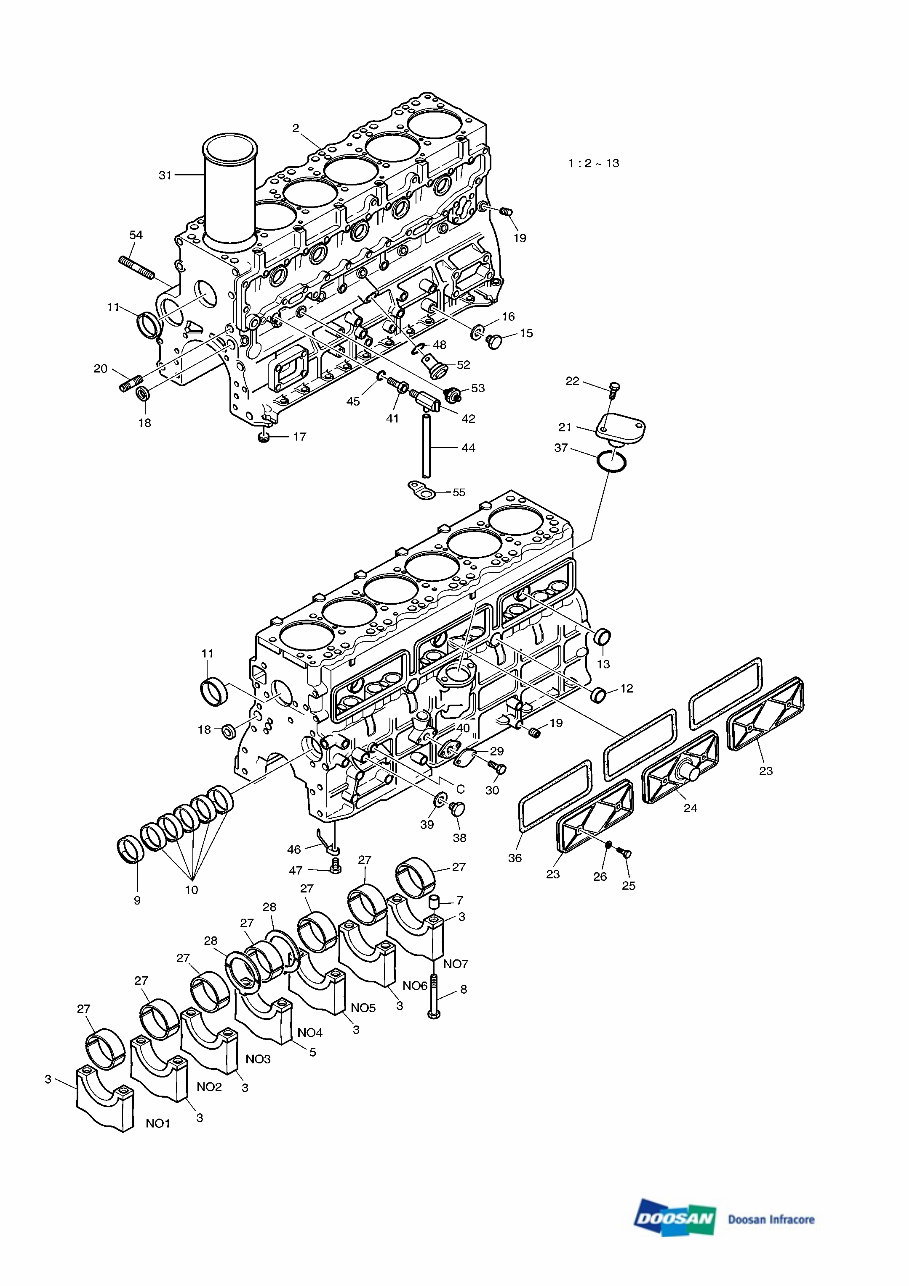

Fig. 001 CYLINDER BLOCK
SOLAR 130LC-V
Fig. 001 CYLINDER BLOCK
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
1 65.01101-6051F CYLINDER BLOCK ASS'Y 1 ~990518 Y 65.01101-6051H 1
1 65.01101-6051H CYLINDER BLOCK ASS'Y 1 990519~
2 65.01101-0030E BLOCK;CYLINDER 1 D
2 65.01101-0030F BLOCK;CYLINDER 1 D
3 65.01105-1044 CAP;BEARING(F.M.R) 6 D
5 65.01105-1043 CAP;BEARING(NO.4) 1 D
7 65.91710-0001 RING;STOPPER 2
8 65.90020-0066A BOLT;BRG CAP 14
9 65.04410-0007A BUSH;CAM SHAFT 1 B
10 65.04410-0006A BUSH;CAM SHAFT 5 B
11 65.90302-0009 PLUG;CORE 2
12 06.15091-0319 PLUG;CORE 2
13 06.15091-0322 PLUG;CORE 3
15 65.90310-0030 SCREW;PLUG M12X1.25 1
16 06.56190-0704 RING;SEAL 1
17 65.90320-0019 PLUG SCREW PT3/8 1
18 06.15091-0313 PLUG;CORE 2
19 65.90320-0022 PLUG SCREW PT1/8 10
20 65.90201-0058 BOLT;STUD M14X12.5X45 1
21 65.91605-0001C COVER 1 Y 65.91605-0001E 1
21 65.91605-0001E COVER 1
22 06.01913-3113 BOLT ASS'Y M8X20 2
23 65.01112-0021 COVER;PUSH ROD CHAMBER 2 Y 65.01112-0021A 2
23 65.01112-0021A COVER;PUSH ROD CHAMBER 2
24 65.01112-5018 COVER;PUSH ROD CHAMBER 1
25 65.90020-0049 BOLT;HEX. 6
26 65.96507-0007 PACKING;PUSH ROD CHAMBER 6
27 65.01110-6090A METAL;CRANK STD 7 Y 65.01110-6090B 7
27 65.01110-6090B METAL;CRANK STD 7
27 65.01110-6091 METAL;CRANK 0.25 7 US
27 65.01110-6092 METAL;CRANK 0.50 7 US
28 65.01150-6010 WASHER;THRUST STD 2 ~000501 Y 65.01150-6010A 2
28 65.01150-6010A WASHER;THRUST STD 2 000502~
28 65.01150-6011 WASHER;THRUST 0.25 2 OS ~000501
28 65.01150-6034A WASHER;THRUST 0.25 2 OS 000502~
28 65.01150-6012 WASHER;THRUST 0.50 2 OS ~000501
1
SOLAR 130LC-V
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
28 65.01150-6035A WASHER;THRUST 0.50 2 OS 000502~
29 65.91615-0011 COVER;BLIND 1
30 06.01913-3113 BOLT ASS'Y M8X20 2
31 65.01201-0067 LINER;CYLINDER (ALTV.) 6 D
31 65.01201-0068 LINER;CYLINDER(1A) 6
31 65.01201-0069 LINER;CYLINDER(1B) 6
31 65.01201-0070 LINER;CYLINDER(2A) 6
31 65.01201-0071 LINER;CYLINDER(2B) 6
36 65.01901-0004 GASKET;CHAMBER COVER 3 65.01901-0020 3
36 65.01901-0020 GASKET;PUSH ROD CHAMBER 3 Y
37 06.56021-0106 O-RING;O/P DRIVE FLANGE 1
38 65.90310-0135 PLUG;SCREW 1
39 06.56190-0706 SEAL RING A14X20 1
40 65.05903-0013 GASKET 1 Y 65.05903A0013 1
40 65.05903A0013 GASKET;FLANGE 1
41 65.98130-0040A ADAPTER 1
42 65.06310-6003 PLUG;DRAIN 1
44 04.50010-0811 HOSE;VINYL 1
45 06.56190-0713 RING;SEAL A18X24 2
46 65.01601-5010A OIL JET PIPE 6
47 65.05401-5015 RELIEF VALVE ASS'Y 6 ~971027
47 65.05401-5023 RELIEF VALVE ASS'Y 6 971028~
48 06.56021-0102 O-RING 1
52 65.05401-5002 RELIEF VALVE ASS'Y 1 Y 65.05401-5002F 1
52 65.05401-5002F RELIEF VALVE ASS'Y 1
53 65.27441-7006 SWITCH;OIL PRESS. 1
54 65.90201-0182 BOLT;STUD 1
55 65.97401-0050 CLIP;PIPE 1 000822~
2
SOLAR 130LC-V

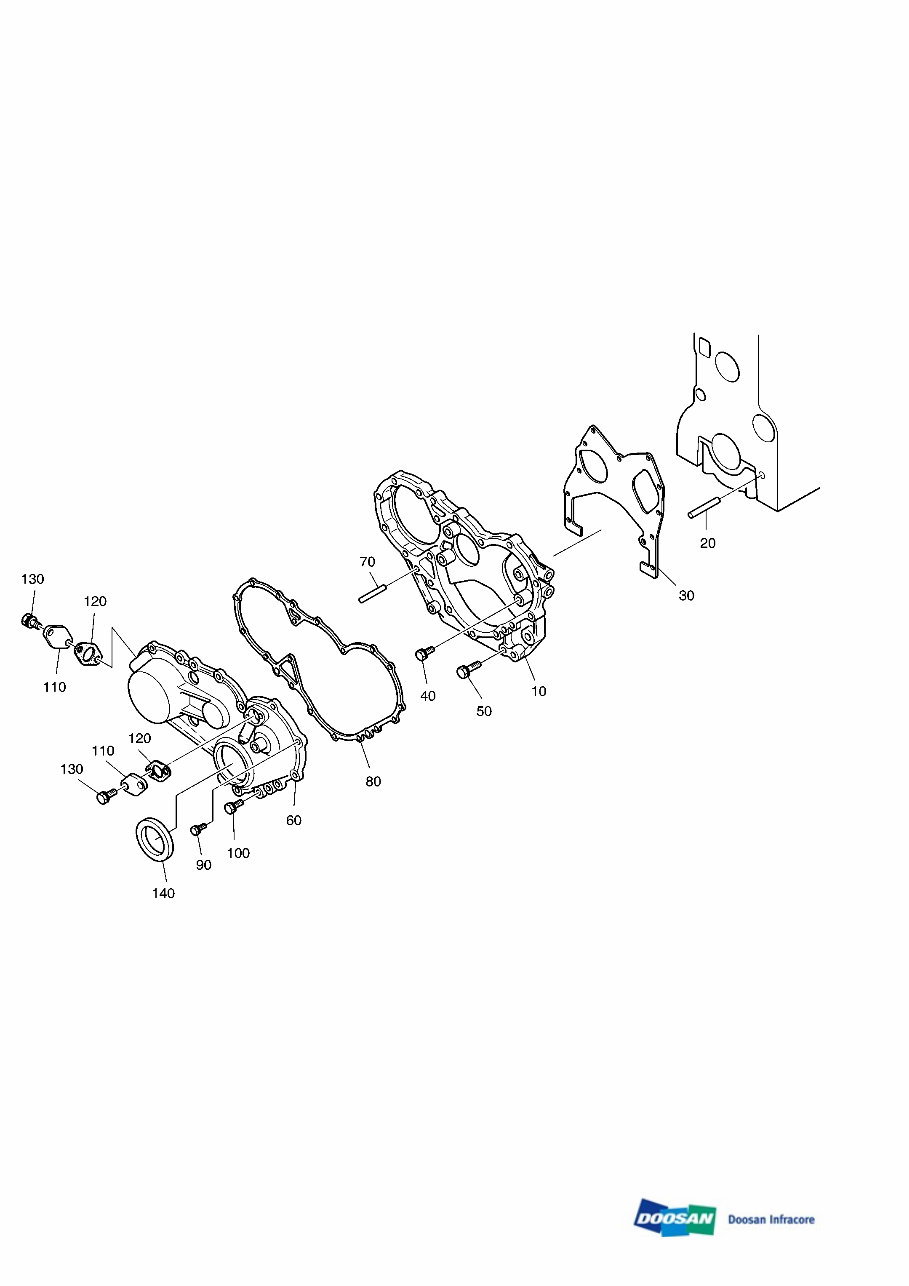

Fig. 002 TIMING GEAR CASE
SOLAR 130LC-V
Fig. 002 TIMING GEAR CASE
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
10 65.01304-0003C CASE;TIMING GEAR 1
20 06.22022-3119 PIN 1
30 65.01903B0004 GASKET;TIMING GEAR 1
40 06.01913-3113 BOLT ASS'Y M8X20 4
50 06.01913-3120 BOLT ASS`Y M8X45 2
60 65.01305-5074 COVER;TIMING GEAR CASE 1
70 06.22022-3111 PIN 1
80 65.01903B0003 GASKET;TIMING GEAR CASE 1
90 06.01913-3115 BOLT ASS'Y M8X25 7
100 06.01913-3122 BOLT ASS'Y M8X55 5
110 65.01307-0002B COVER;TIMING CHECK HOLE 2
120 65.01903-0002C GASKET 2
130 06.01913-2911 BOLT ASS'Y M6X16 4
140 65.01510-0001 SEAL;OIL(FRONT) 1
1
SOLAR 130LC-V

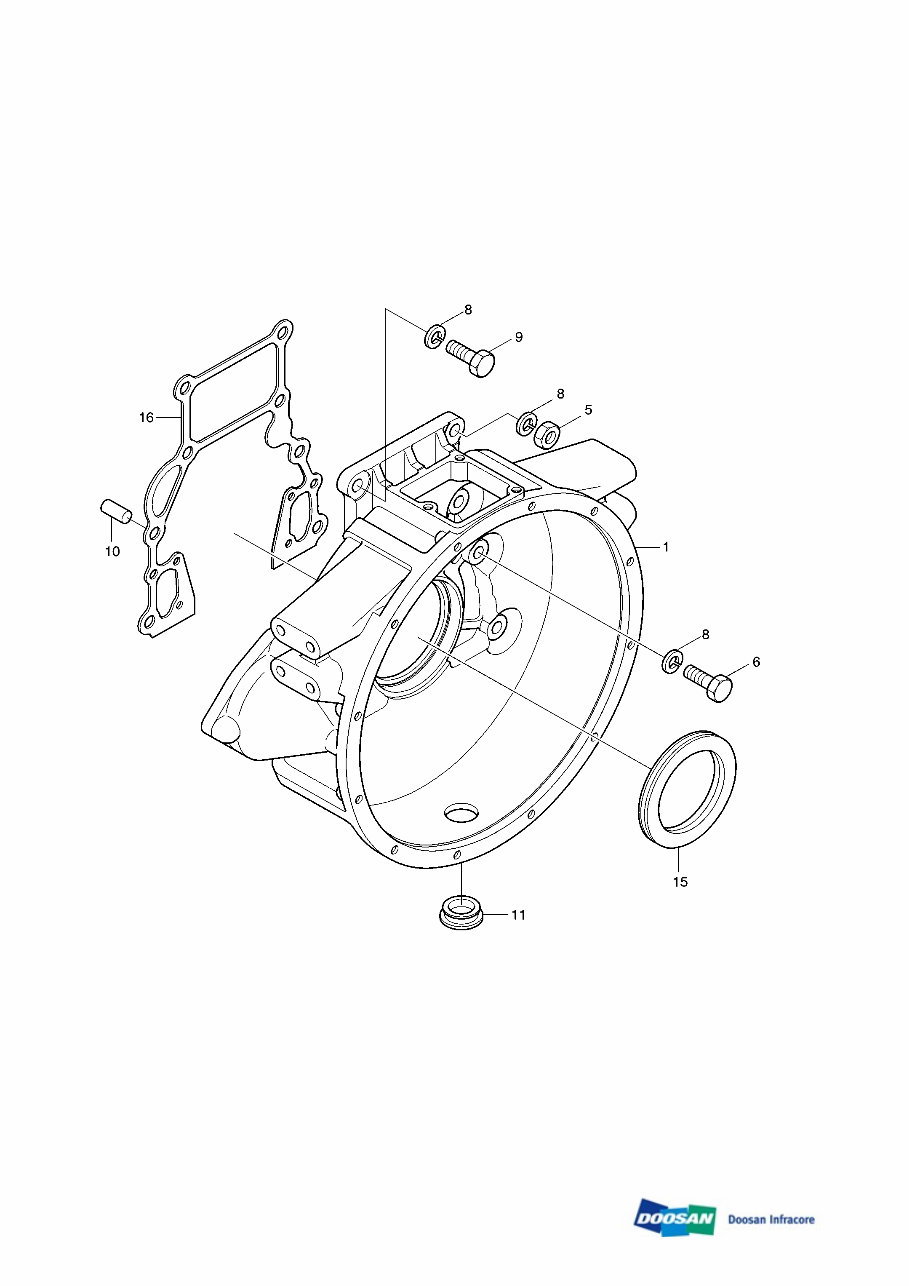

Fig. 003 FLYWHEEL HOUSING
SOLAR 130LC-V
Fig. 003 FLYWHEEL HOUSING
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
1 65.01401-0224A HOUSING;FLYWHEEL 1 ~010730 I 65.01401-0119 1
1 65.01401-0119 HOUSING;FLYWHEEL 1 010731~
5 06.01494-4407 BOLT;HEX. M14X1.5X40 1
6 06.01494-4409 BOLT;HEX. M14X1.5X50 6
8 06.16731-2110 WASHER;SPRING 8
9 06.11063-9217 NUT 1
10 06.22022-3111 PIN 2
11 65.96401-0007 CAP;RUBBER 1
15 65.01510-0101 SEAL;OIL(REAR) 1
16 65.01904-0021 GASKET;FLYWHEEL HOUSING 1
1
SOLAR 130LC-V

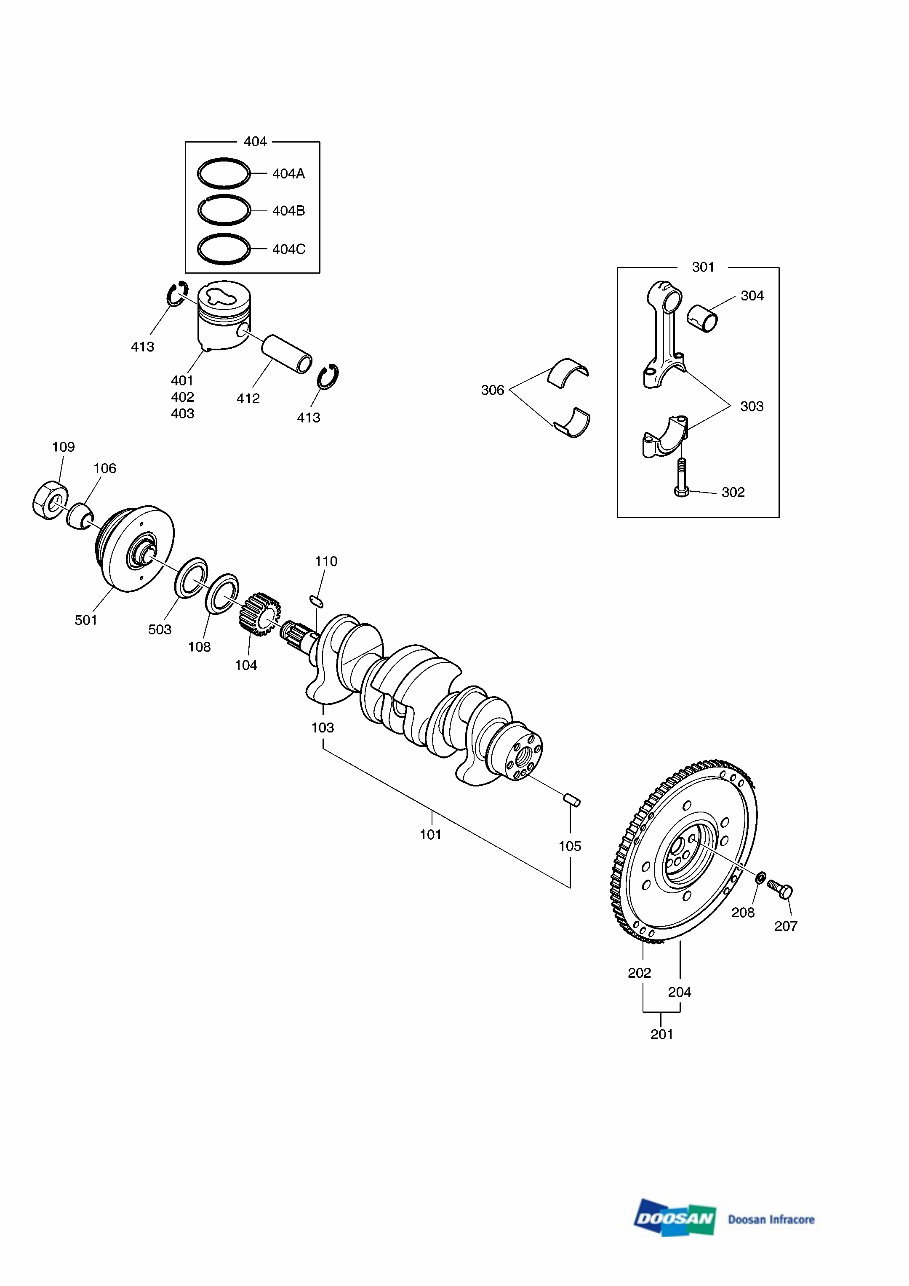

Fig. 004 CRANK SHAFT
SOLAR 130LC-V
Fig. 004 CRANK SHAFT
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
101 65.02101-6018 CRANK SHAFT ASS'Y 1 ~000519 Y 65.02101-6018A 1
101 65.02101-6018A CRANK SHAFT ASS'Y 1 000520~
103 65.02101-0045A SHAFT;CRANK 1
105 06.22022-3210 PIN;PARALLEL 1 ~000519
105 06.22022-3212 PIN;PARALLEL 1 000520~
104 65.02115-0013 GEAR;CRANK SHAFT 1 ~000301
104 65.02115-0009 GEAR;CRANK SHAFT 1 000302~
106 65.93020-0015 BUSH;TAPER 1
108 65.02120-0002 RING;OIL THROWER 1
109 65.90501-0006 NUT 1
110 65.91501-0006 KEY;SLIDING 1
201 65.02301-5099A FLYWHEEL ASS'Y 1
202 65.02310-0006 GEAR;RING 1
204 65.02301-0245A FLY WHEEL 1
207 06.01494-4506 BOLT M16X1.5X35 6
208 06.16731-2111 WASHER;SPRING 6
301 65.02401-6161 CONNECTING ROD ASS'Y 6 ~970909 T 65.02401-6205D 1
301 - 65.02501-0561 1
301 - 65.02502-0082A 1
301 - 65.90815-0007 2
301 65.02401-6205B CONNECTING ROD ASS'Y 6 ~990524 Y 65.02401-6205D 1
301 65.02401-6205D CONNECTING ROD ASS'Y 6 ~021213 I 65.02401-6021 6
301 65.02401-6021 CONNECTING ROD ASS'Y 6 021214~
302 65.02411-0006 BOLT 2 ~970909 Y 65.02411-0006A 2
302 65.02411-0006A BOLT 2 970910~
303 65.02401-0163C ROD;CONNECTING 1 D ~021213
303 65.02401-0164A ROD;CONNECTING 1 D 021214~
304 65.02405-0163B BUSH 1 B ~021213
304 65.02405-0006 BUSH 1 B 021214~
306 65.02410-6083 METAL;CON-ROD STD 6 ~021010 Y 65.02410-6083D 6
306 65.02410-6083D METAL;CON-ROD STD 6 021011~
306 65.02410-6124B METAL;CON-ROD 0.125mm 6 US 021011~
306 65.02410-6125B METAL;CON-ROD 0.25mm 6 US 021011~
306 65.02410-6126B METAL;CON-ROD 0.5mm 6 US 021011~
401 65.02501-0211 PISTON(ALTV.) 6 ~970909 T 65.02401-6205D 1
401 - 65.02501-0561 1
1
SOLAR 130LC-V
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
401 - 65.02502-0082A 1
401 - 65.90815-0007 2
401 65.02501-0561 PISTON(ALTV.-1) 6 970910~
402 65.02501-0562 PISTON-1;A GRADE 6
403 65.02501-0563 PISTON-1;B GRADE 6
404 65.02503-8058 PISTON RING KIT 1
404A - RING;TOP 6 K
404B - RING,SECOND 6 K
404C - RING;OIL 6 K
412 65.02502-0002 PIN;PISTON 6 ~970909
412 65.02502-0082A PIN;PISTON 6 970910~
413 06.29020-0122 RING;RETAINING 12 ~970909
413 65.90815-0007 RING;RETAINING 12 970910~
501 65.02601-5019 PULLEY;DAMPER 1
503 65.02122-0001 COVER;DUST 1
2
SOLAR 130LC-V
