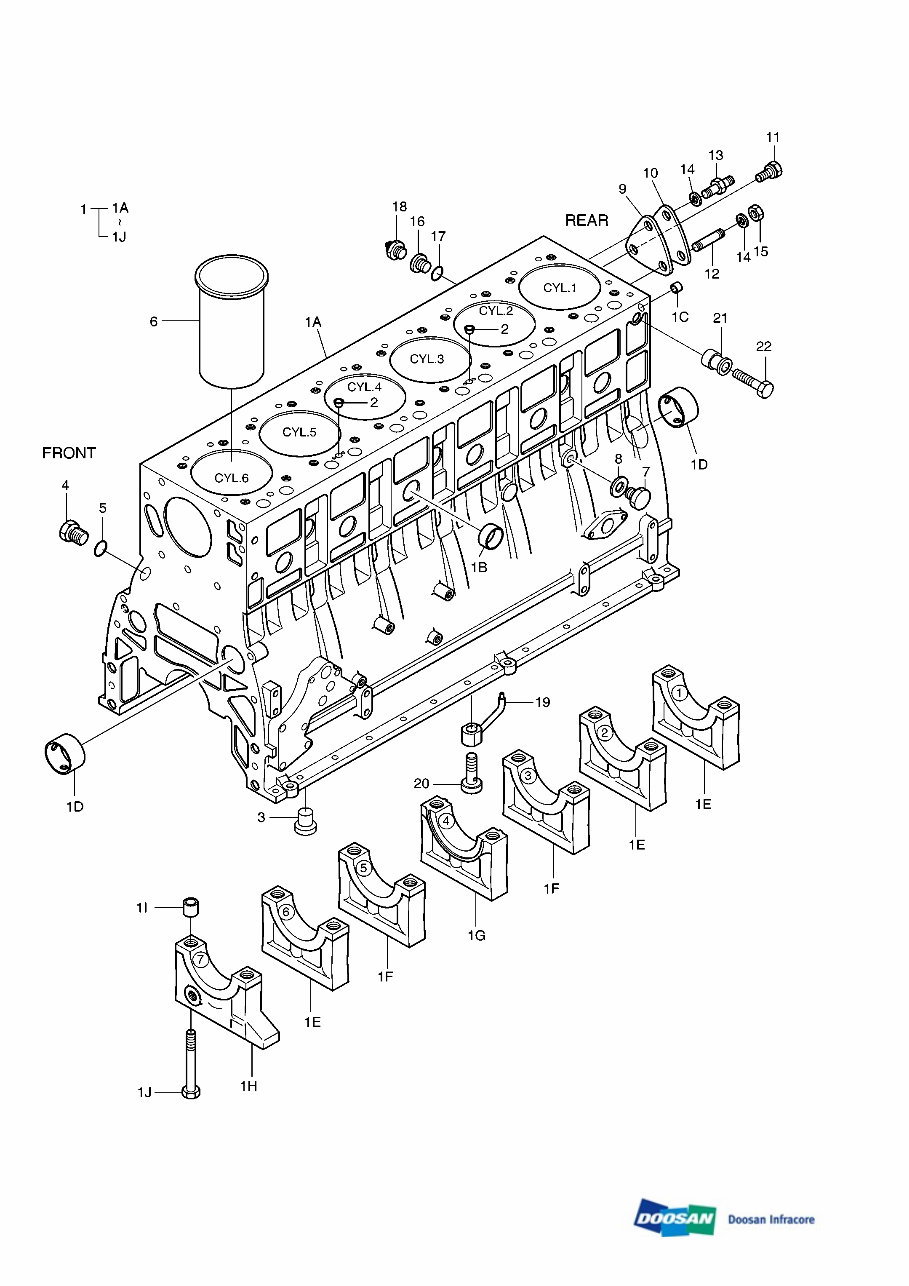

Fig. 011 CYLINDER BLOCK
DX300LCA
Fig. 011 CYLINDER BLOCK
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
1 65.01101-6040N CYLINDER BLOCK ASS'Y 1
1A 65.01101-0040R BLOCK;CYLINDER 1 D
1B 65.91606-0037 PLUG;CORE 9
1C 65.91606-0041 PLUG;CORE 2
1D 65.04410-0017 BUSH;CAM SHAFT 4 B
1E 65.01105-1172B BEARING;CAP NO.1.2.6 3 D
1F 65.01105-1160F BEARING;CAP NO.3.5 2 D
1G 65.01105-1156D CAP BEARING;THRUST 1 D
1H 65.01105-1175C BEARING;CAP NO7 1 D
1I 65.91710-0035B RING;LOCATING 14
1J 65.90020-0035B BOLT;BEARING CAP 14
2 65.91001-0013A PIN;CORE 2
3 65.91020-0013 PLUG;CORE 1
4 65.90310-0048 SCREW;PLUG M10X1.5 6
5 06.56180-0714 RING;SEAL 6
6 65.01201-0050 LINER;CYLINDER 6 ~111210
6 150117-00028 LINER,CYLINDER 6 111211~
7 65.90310-0091 SCREW;PLUG M12X1.5X20 1
8 06.56190-0704 RING;SEAL 1
9 65.96601A0042 GASKET;END COVER 1
10 65.91605-0006B COVER;END 1
11 06.01913-3114 BOLT ASS'Y M8X22 1
12 06.06225-0704 BOLT;STUD M8X20 1
13 65.90201-0075 BOLT;SPACER 1 ~100616 I 120122-00014 1
13 120122-00014 BOLT,SPACER;M8 1 100617~
14 06.16731-2107 WASHER 2
15 06.11063-8214 NUT 1
16 65.98130-0194 ADAPTER 1
17 06.56180-0714 RING;SEAL 1
18 65.27441-7007 SWITCH;OIL PRESSURE 1
19 65.01601-6003C OIL SPRAY NOZZLE ASS`Y 6
20 65.05405-6001 RELIEF VALVE ASS`Y 6
21 65.91701-0148 SPACER 1
22 06.01283-7524 BOLT;HEX. M16X65 1
1
DX300LCA

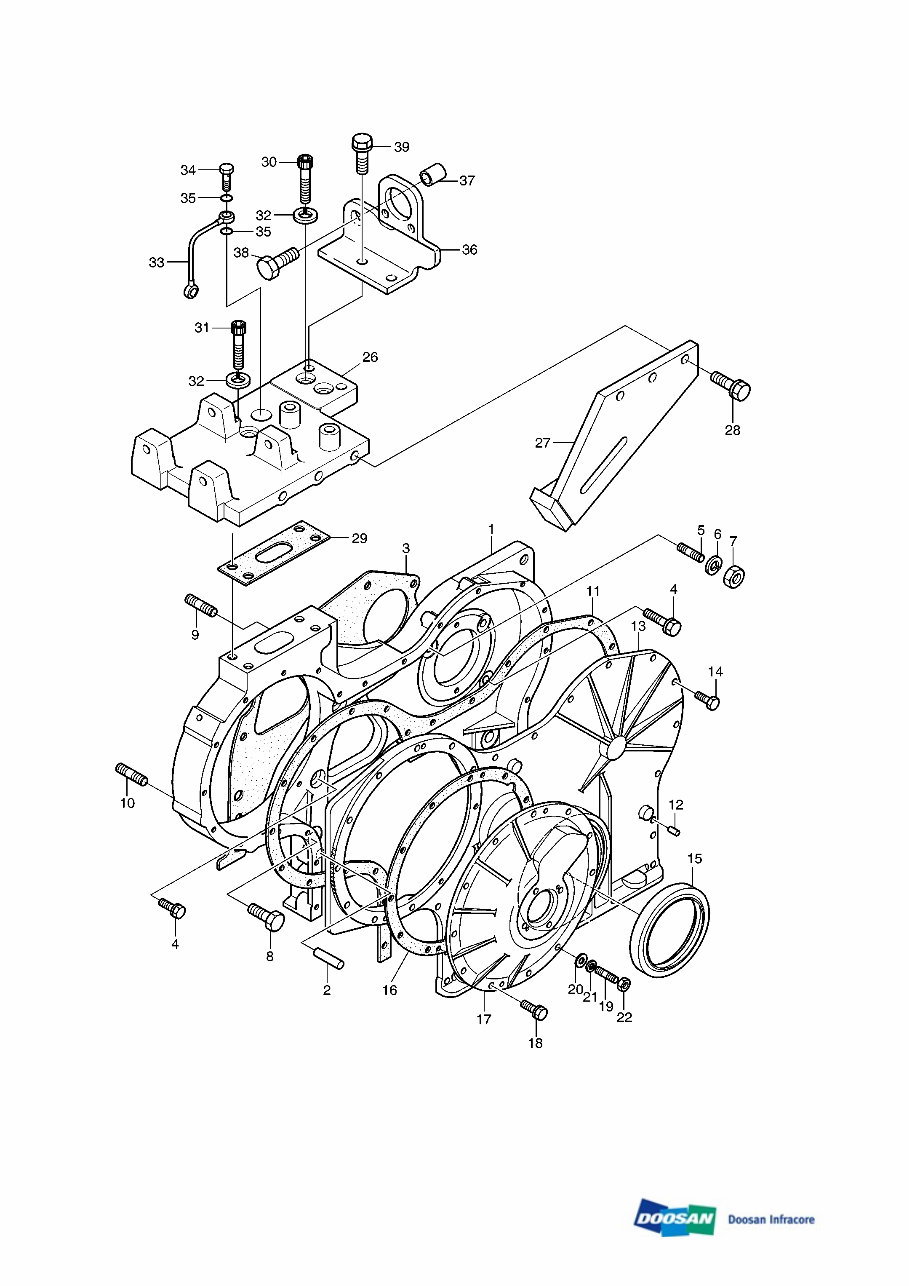

Fig. 012 TIMING GEAR CASE
DX300LCA
Fig. 012 TIMING GEAR CASE
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
1 130405-00007 CASE;TIMING GEAR 1
2 65.91010-0018 PIN;DOWEL 2
3 65.01903C0021 GASKET;TIMING GEAR CASE 1
4 06.01913-3113 BOLT ASS'Y M8X20 5
5 06.06225-0704 BOLT;STUD M8X20 1
6 06.16731-2107 WASHER 1
7 06.11063-8214 NUT 1
8 06.01943-3317 BOLT ASS`Y M12X1.5X30 4
9 65.90201-0048 BOLT;STUD 1
10 06.06225-0809 BOLT;STUD M10X35 6
11 65.01903B0113 GASKET;T.G.C COVER 1
12 06.22022-0907 PIN;DOWEL 6M6X10 2
13 65.01305-5028C COVER;TIMING GEAR CASE 1
14 06.01923-2914 BOLT ASS`Y M6X22 13
15 65.01510-0157 SEAL;OIL 1
16 65.01903B0029 GASKET;COVER 1
17 65.01307-5002 COVER;TIMING GEAR CASE 1
18 06.01923-2918 BOLT ASS`Y M6X35 9
19 65.90201-0146 BOLT;STUD M6X16 2
20 06.15010-2309 WASHER;PLAIN 2
21 06.16731-2105 WASHER 2
22 06.11063-8212 NUT 2
26 65.54302-0021A PLATE;AIR COMPRESSOR 1
27 65.95840-0033 BRACKET;IDLE PULLEY 1
28 06.01913-3215 BOLT ASS'Y M10X25 3
29 65.54903A0013 GASKET 1
30 06.02090-0511 BOLT;SOCKET M10X22 2
31 06.02090-0513 BOLT;SOCKET 2
32 06.16731-2108 WASHER;SPRING 4
33 65.05701-5456 OIL PIPE ASS'Y 1
34 65.98150-0056 SCREW;HOLLOW 1
35 06.56180-0712 RING;SEAL 2
36 65.54306-0003 ANGLE;BRACKET 1
37 65.91701-0273 RING;SPACER 1
38 06.01013-9517 BOLT;HEX M16X60 1
39 06.01913-3215 BOLT ASS'Y M10X25 2
1
DX300LCA

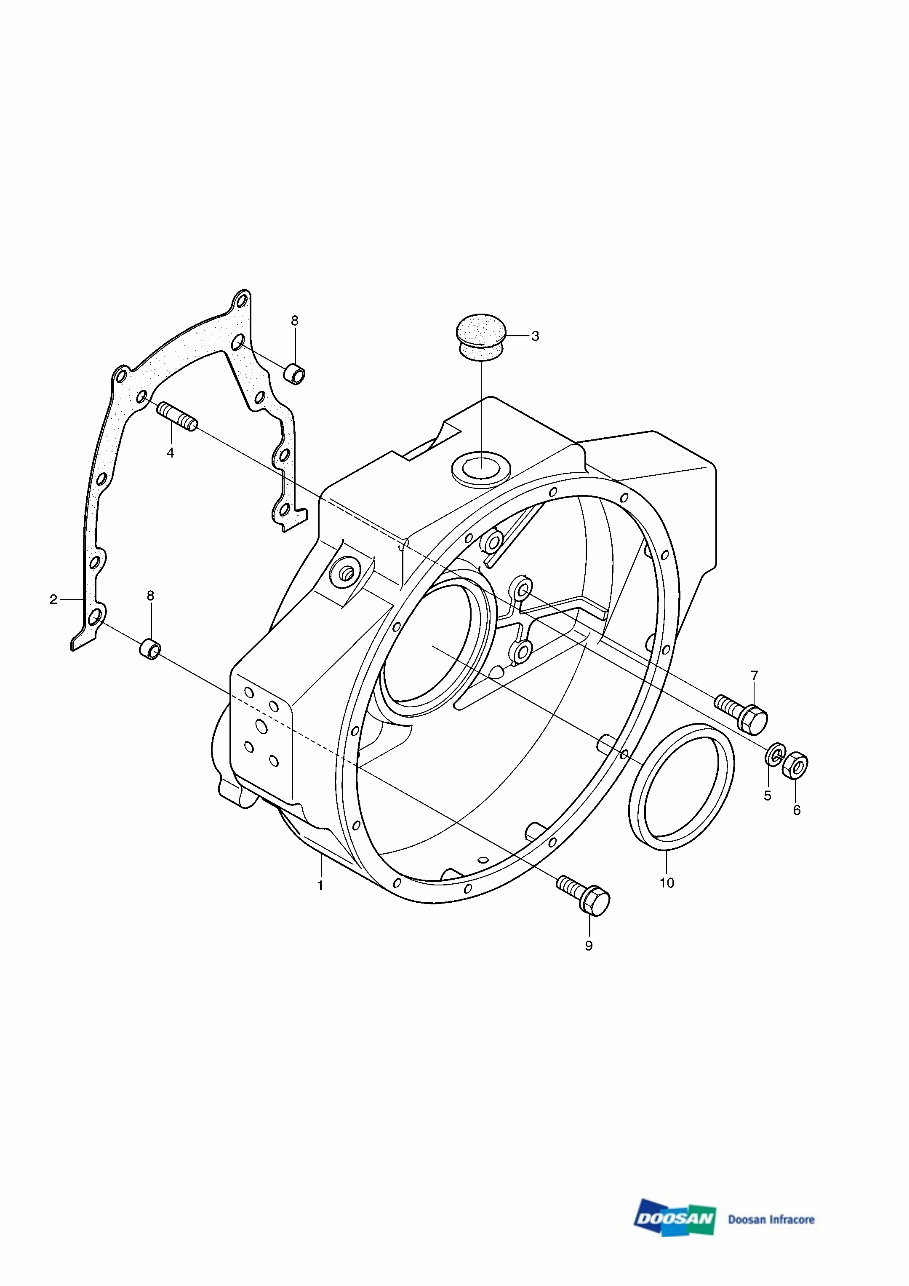

Fig. 013 FLYWHEEL HOUSING
DX300LCA
Fig. 013 FLYWHEEL HOUSING
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
1 65.01401-0177D HOUSING;FLY WHEEL 1
2 65.01903A0178 GASKET;FLYWHEEL HOUSING 1
3 65.96002-0003 PLUG;RUBBER 1
4 06.06176-8309 BOLT,STUD 1
5 06.16731-2109 WASHER;SPRING A12 1
6 06.11063-9216 NUT;HEX. M12X1.5 1
7 06.01943-3319 BOLT ASS'Y M12X1.5X40 9 ~101111
7 06.01943-3319 BOLT ASS'Y M12X1.5X40 7 101112~
8 65.91710-0016 RING;STOPPER 2
9 06.01943-3320 BOLT ASS`Y M12X1.5X45 2 101112~
10 65.01510-0037 SEAL;OIL REAR 1
1
DX300LCA

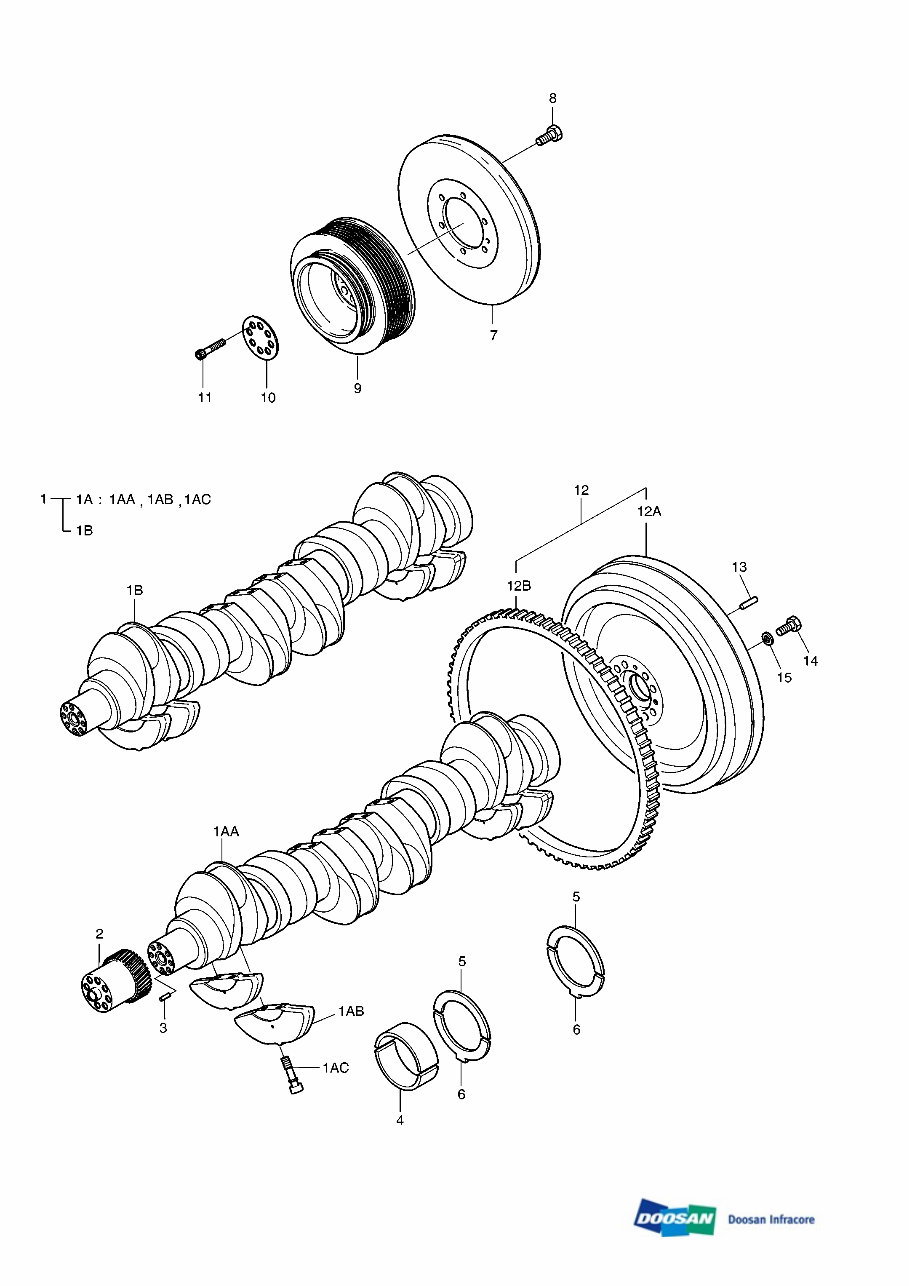

Fig. 014 CRANK SHAFT
DX300LCA
Fig. 014 CRANK SHAFT
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
1 65.02101-7540A CRANKSHAFT ASS'Y 1 D
1A 65.02101-7024C CRANKSHAFT ASS'Y 1
1AA 65.02101-0024N SHAFT;CRANK 1 D
1AB 65.02110-0011 WEIGHT;BALANCE 6 D
1AC 65.90430-0014B BOLT;CRANK SHAFT 12
1B 65.02101-0056B SHAFT;CRANK 1 ~090713 I 150107-00183 1
1B 150107-00183 CRANK SHAFT 1 090714~
2 65.02115-0040K GEAR;CRANK SHAFT 1 ~130307
2 130410-00044A GEAR,CRANKSHAFT 1 130308~
3 06.22022-0912 PIN;DOWEL 1
4 65.01110-6351 METAL;MAIN STD 7
4 65.01110-6352 METAL;MAIN 0.25 7 US
4 65.01110-6353 METAL;MAIN 0.50 7 US
5 65.01150-0015 WASHER;THRUST(UPPER) 2
5 65.01150-0019 WASHER;THRUST(0.25) 2 OS
5 65.01150-0020 WASHER;THRUST(0.50) 2 OS
6 65.01150-0016A WASHER;THRUST(LOWER) 2
6 65.01150-0023A WASHER;THRUST(0.25) 2 OS
6 65.01150-0024A WASHER;THRUST(0.50) 2 OS
7 65.02201-7032 DAMPER;VIBRATION 1
8 65.90020-0062B BOLT;HEX M10X20 6
9 65.02601-0168 PULLEY;V-BELT 1
10 65.90701-0088 WASHER 1
11 06.02106-0619 BOLT;SOCKET HEAD 8
12 65.02301-5118 FLYWHEEL ASS`Y 1 ~101105
12 150111-00080 FLYWHEEL ASSY 1 101106~
12A 65.02301-0262 FLYWHEEL 1
12B 65.02310-0010A GEAR;STARTER RING 1 ~101105
12B 130422-00034 GEAR,RING 1 101106~
13 06.22022-1010 PIN;DOWEL 1
14 65.90001-0084 BOLT;HEX. M14X1.5X40 6
15 06.16731-2110 WASHER;SPRING 6
1
DX300LCA

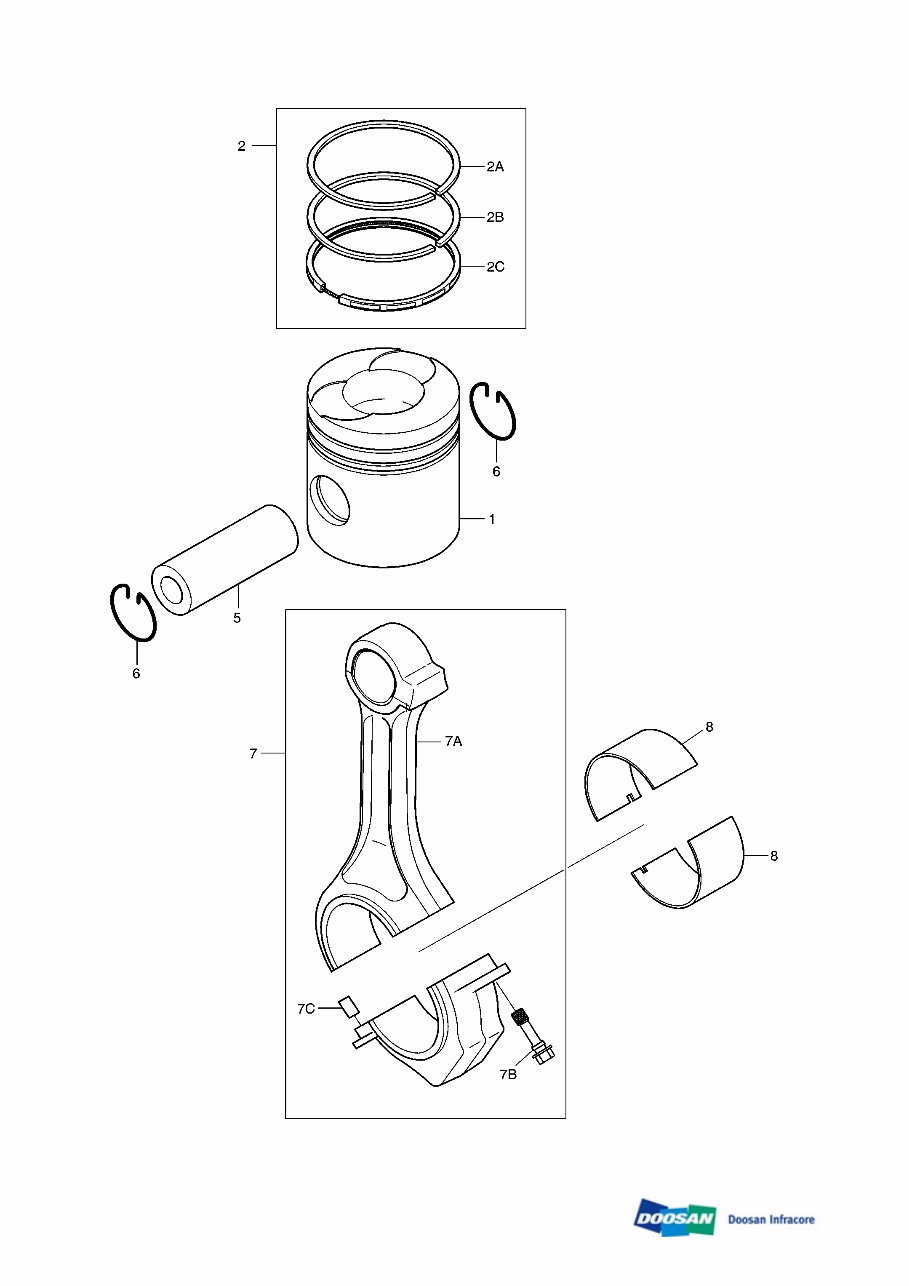

Fig. 015 PISTON
DX300LCA
Fig. 015 PISTON
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
1 65.02501-0228B PISTON 6 ~111210
1 130602-00804 PISTON 6 111211~
2 65.02503-8146 PISTON RING KIT 1 ~111210
2 401004-00101 RING KIT,PISTON 1 111211~
2A - RING;TOP 111X3.5 6 K
2B - RING;SECOND 111X3.5 6 K
2C - RING;OIL 111X4 6 K
5 65.02502-0010 PIN;PISTON 42X20X95 6
6 06.29020-0126 RING;SNAP 42X1.75 12
7 65.02401-6018C CONNECTING ROD ASS`Y 6
7A - ROD;CONNECTING 1 D
7B 65.90020-0009D BOLT;CONNECTING ROD 2
7C 65.02405-0010 BUSH;CONNECTING ROD 1 B
7D 65.91301-0010 PIN;DOWEL 2
8 65.02410-0010 METAL;CONNECTING ROD(STD) 6
8 65.02410-0011 METAL;CONNECTING ROD 0.25 6 US
8 65.02410-0012 METAL;CONNECTING ROD 0.5 6 US
1
