PARTS CATALOGUE
CX50B
CASE MINI CRAWLER EXCAVATOR
(N5GN01157 AND AFTER)
CX50B MINI CRAWLER EXCAVATOR (N5GN01157 & AFTER) (6/05- )

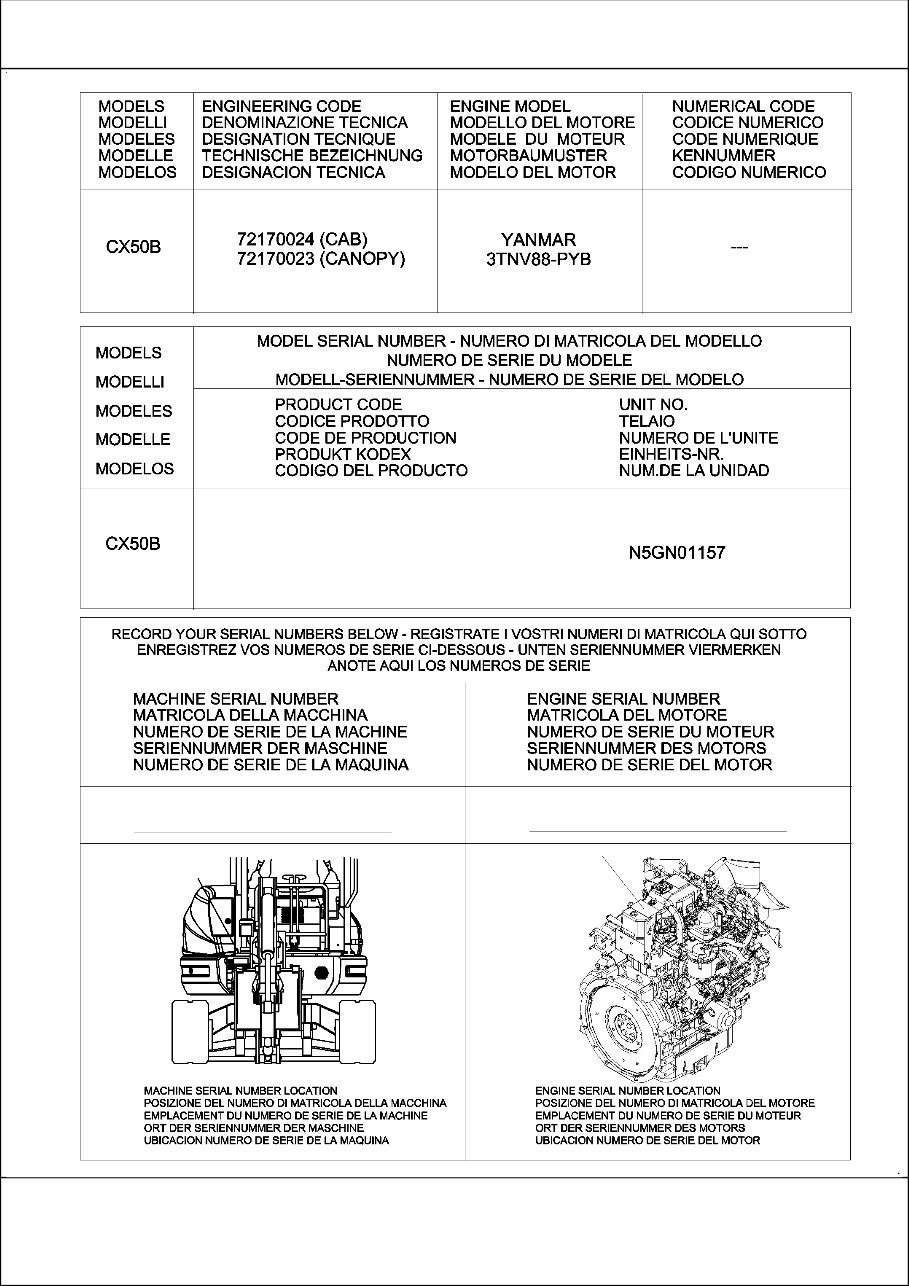

0 - VERSION(00) IDENTIFICATION AND VERSION LIST
Ref Part Number Qty Description
CX50B MINI CRAWLER EXCAVATOR (N5GN01157 & AFTER) (6/05- )
0 - VERSION(00) IDENTIFICATION AND VERSION LIST
CX50B MINI CRAWLER EXCAVATOR (N5GN01157 & AFTER) (6/05- )

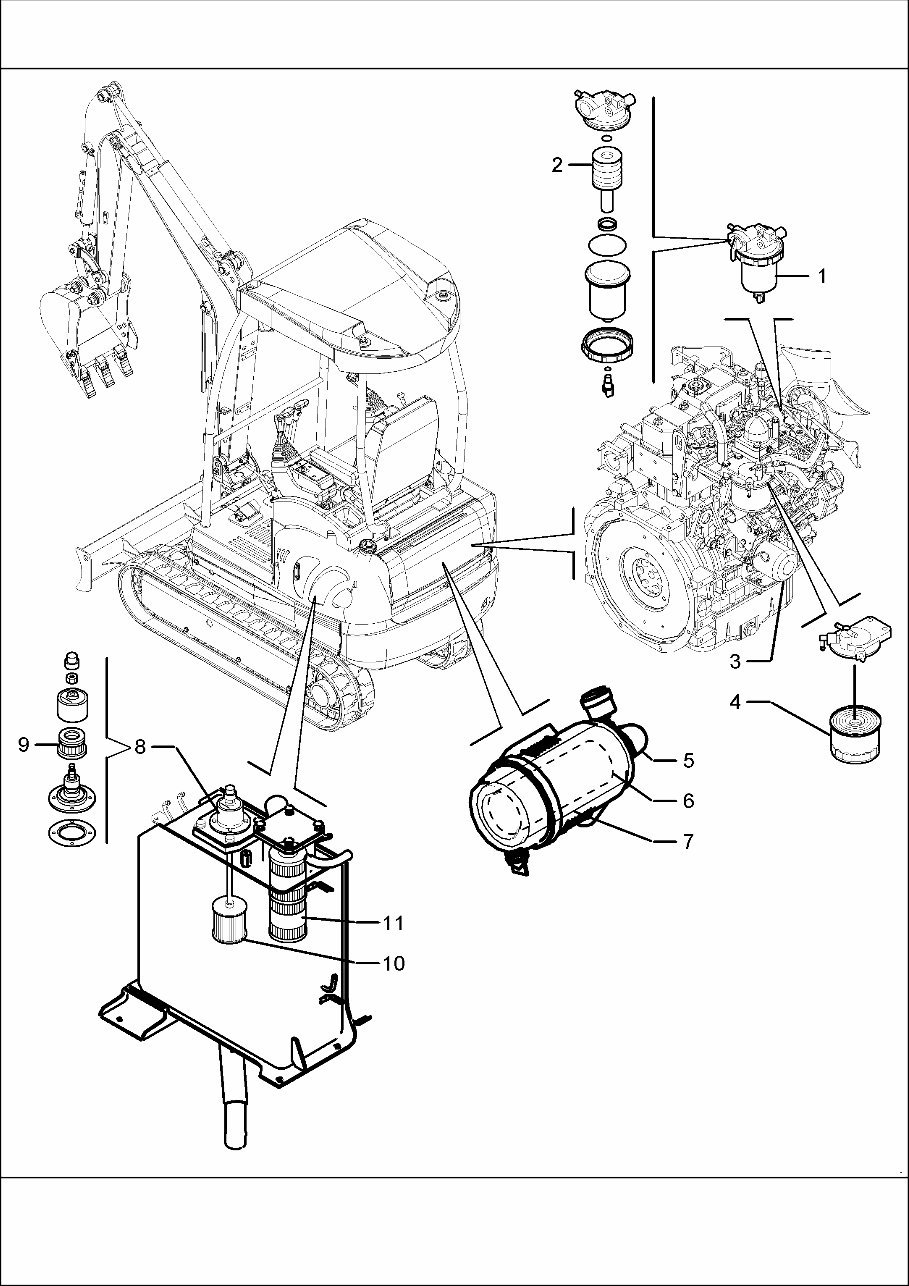

0.000(00) MAINTENANCE PARTS
Ref Part Number Qty Description
CX50B MINI CRAWLER EXCAVATOR (N5GN01157 & AFTER) (6/05- )
0.000(00) MAINTENANCE PARTS
1 72280600 1 SEPARATOR, , See Page 0.021 - 0.203
2 72280430 1 FILTER, COOLANT, , See Page 0.021 - 0.203
3 72285425 1 FILTER, ENGINE OIL, , See Page 0.305
4 72280422 1 FILTER, FUEL, , See Page 0.021 - 0.203
5 72283516 1 AIR CLEANER, , See Page 0.001A
6 72281613 1 FILTER, ELEMENT, , See Page 0.001A
7 72281617 1 FILTER, ELEMENT, , See Page 0.001A
8 72284639 1 PLUG, , See Page 1.020 02
9 72281517 1 BREATHER, , See Page 1.020 02
10 72282237 1 STRAINER, ELEMENT, , See Page 1.020 02
11 72281486 1 FILTER, HYDRAULIC OIL,
CX50B MINI CRAWLER EXCAVATOR (N5GN01157 & AFTER) (6/05- )

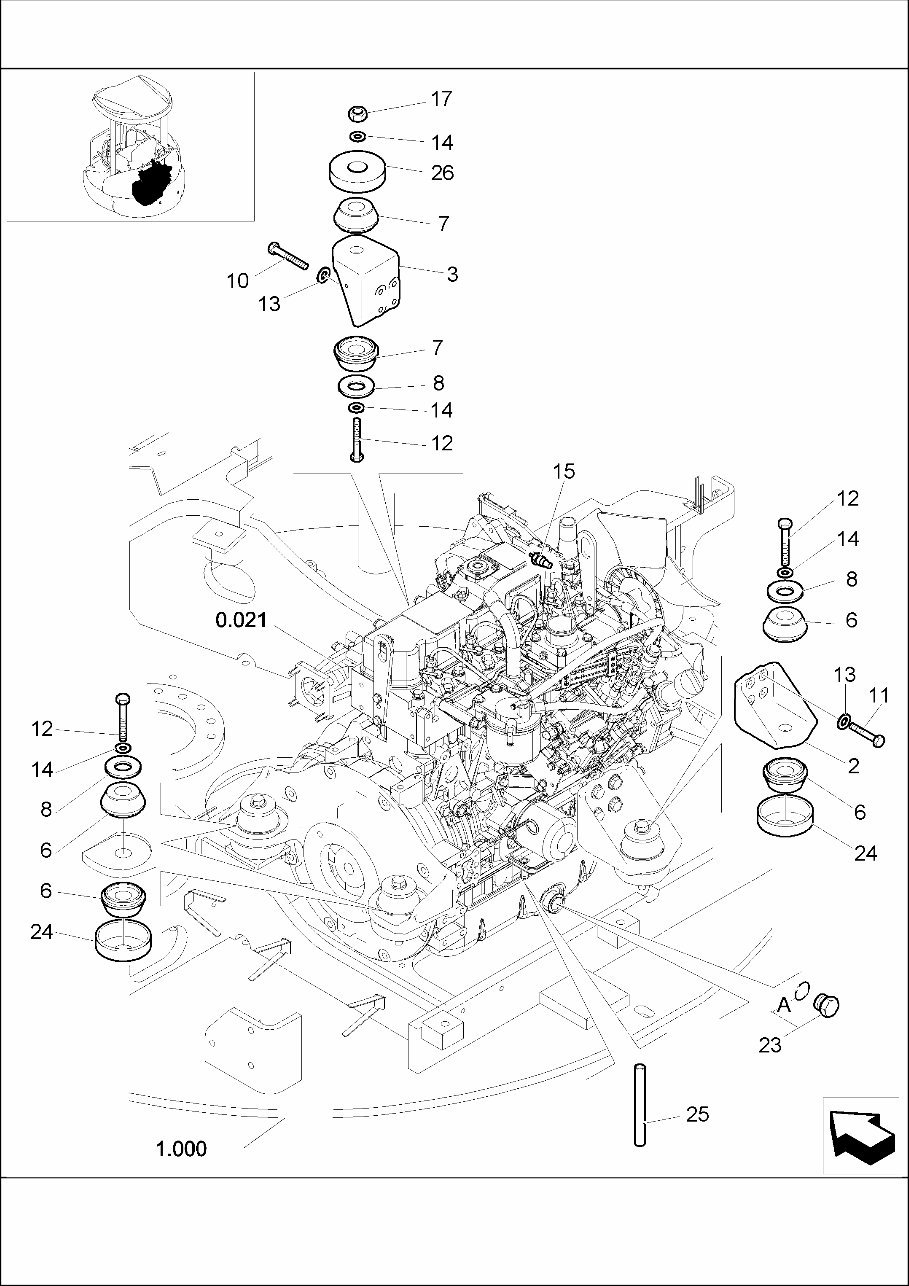

0.000(01) ENGINE INSTALLATIONS
Ref Part Number Qty Description
CX50B MINI CRAWLER EXCAVATOR (N5GN01157 & AFTER) (6/05- )
0.000(01) ENGINE INSTALLATIONS
2 72283479 1 BRACKET,
3 72283480 1 BRACKET,
6 72280520 6 MOUNTING, RUBBER,
7 72283481 2 MOUNTING, RUBBER,
8 72951034 4 WASHER,
10 11106234 4 SCREW, Hex, M10 x 25, 10.9, Full Thd,
11 11106434 4 SCREW, Hex, M10 x 30, 10.9, Full Thd,
12 11114634 4 SCREW, TE M12x120
13 12626221 8 WASHER, Ш10
14 13550521 6 WASHER, LOCK, Ш12
15 72273958 1 SENSOR,
17 11702924 2 NUT, M12
23 72280522 1 SET OF PARTS,
23A 72280525 1 O-RING,
24 72280528 3 COVER,
25 72280529 1 HOSE,
26 72285248 1 COVER,
CX50B MINI CRAWLER EXCAVATOR (N5GN01157 & AFTER) (6/05- )

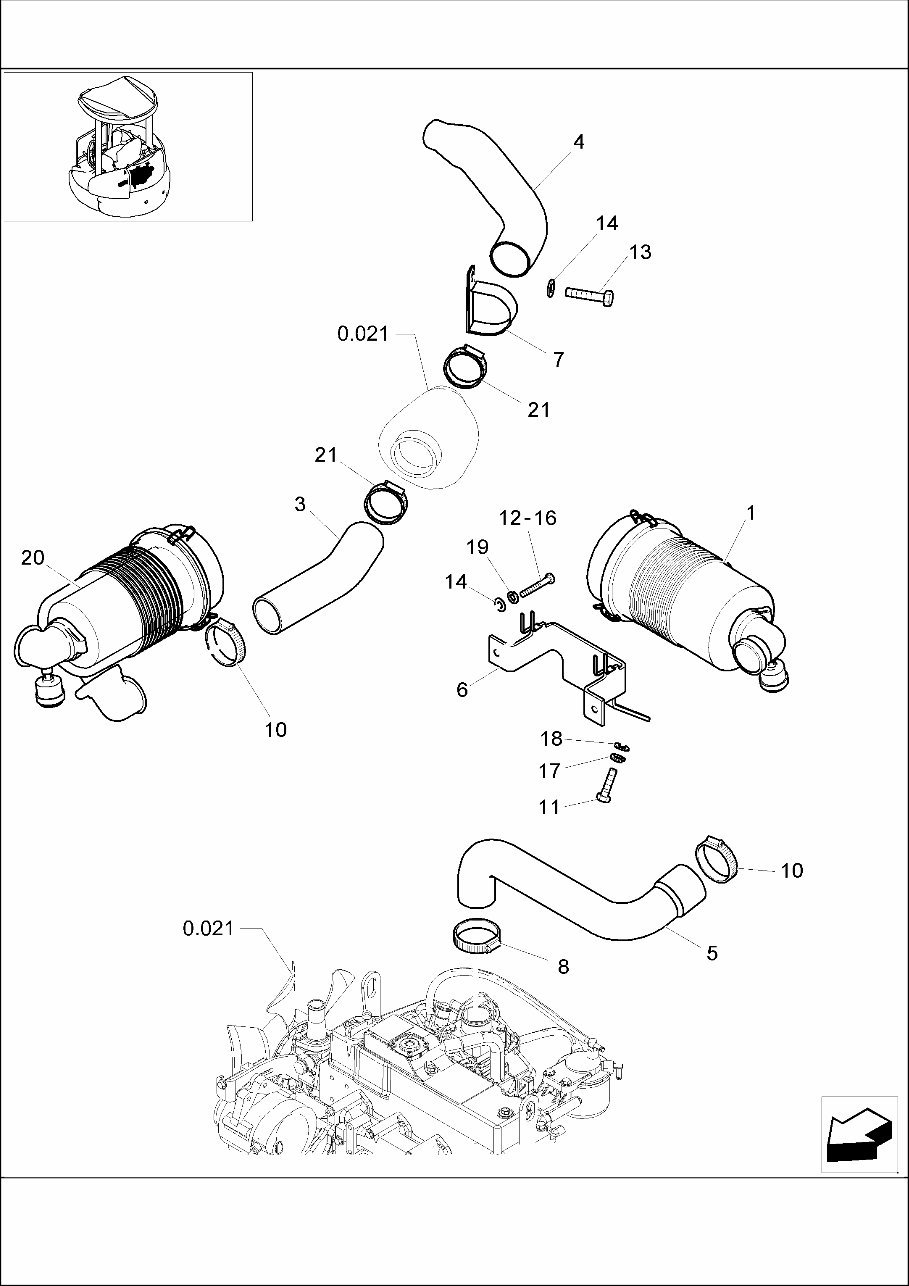

0.001(01) AIR CLEANER - CANOPY
Ref Part Number Qty Description
CX50B MINI CRAWLER EXCAVATOR (N5GN01157 & AFTER) (6/05- )
0.001(01) AIR CLEANER - CANOPY
1 72283516 1 AIR CLEANER, , See Page 0.001A
3 72283520 1 HOSE, LARGE,
4 72283521 1 HOSE, LARGE,
5 72283522 1 HOSE, LARGE,
6 87542577 1 BRACKET,
7 87343836 1 CLIP,
8 87526525 1 CLAMP,
10 87526526 2 CLAMP,
11 16043434 4 SCREW, Hex, M8 x 20, 10.9, Full Thd, TE M8x20
12 11106234 1 SCREW, Hex, M10 x 25, 10.9, Full Thd,
13 11106034 1 SCREW, Hex, M10 x 20, 10.9, Full Thd,
14 14496621 3 WASHER, M10 x 21 x 2,
16 11106434 1 SCREW, Hex, M10 x 30, 10.9, Full Thd,
17 10571779 4 WASHER, LOCK, Ш8
18 12654421 4 WASHER, Ш8
19 10571879 2 WASHER, LOCK, M10,
20 72281616 1 AIR CLEANER,
21 87526651 2 CLAMP,
CX50B MINI CRAWLER EXCAVATOR (N5GN01157 & AFTER) (6/05- )

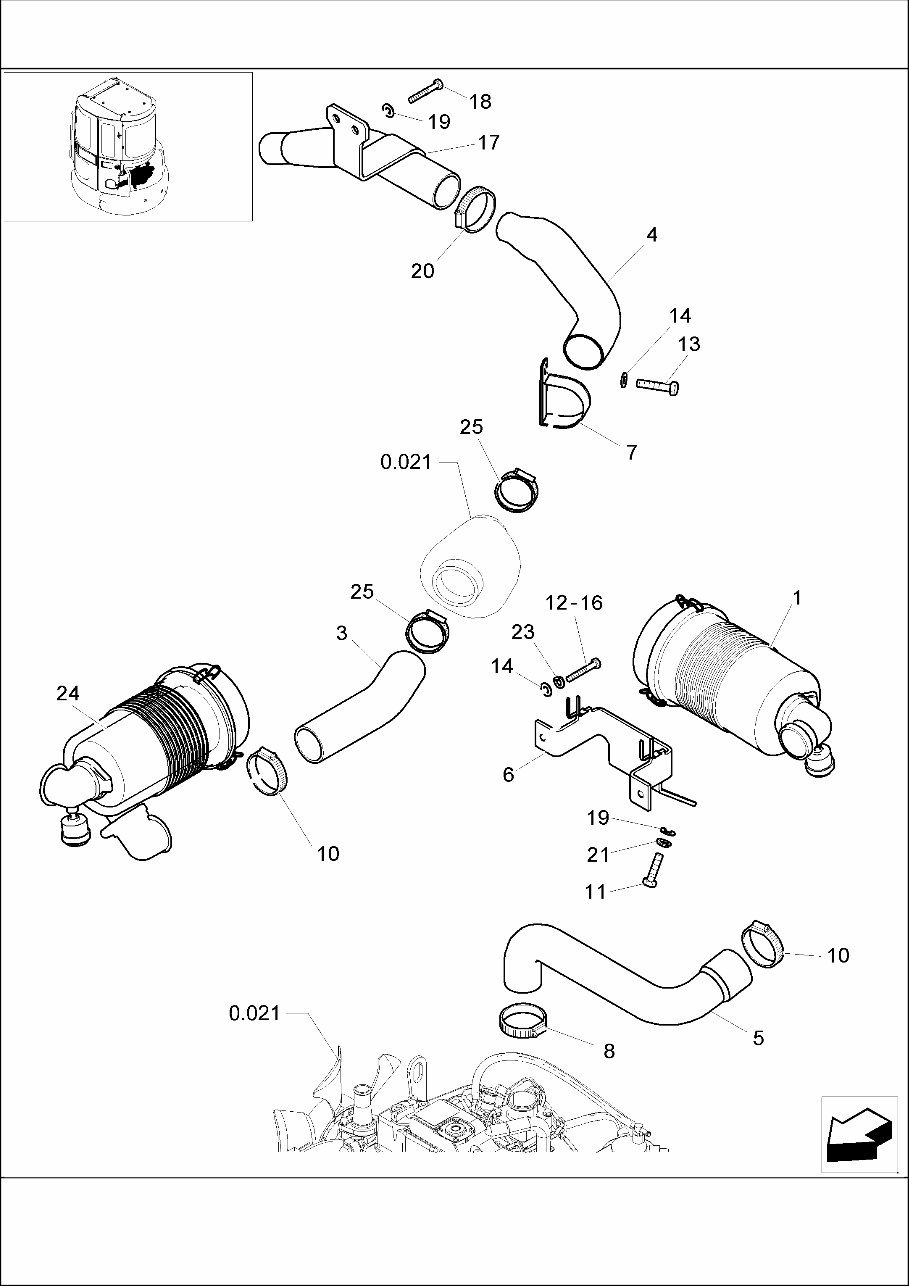

0.001(02) AIR CLEANER - CAB
