PARTS CATALOGUE
CX330
CASE CRAWLER EXCAVATOR (EUR)
DC33B6001, DCH330R3N5EAP7001
& after
CX330 CASE CRAWLER EXCAVATOR (EUR) (DC33B6001, DCH330R3N5EAP7001 & AFTER) (1/06- )

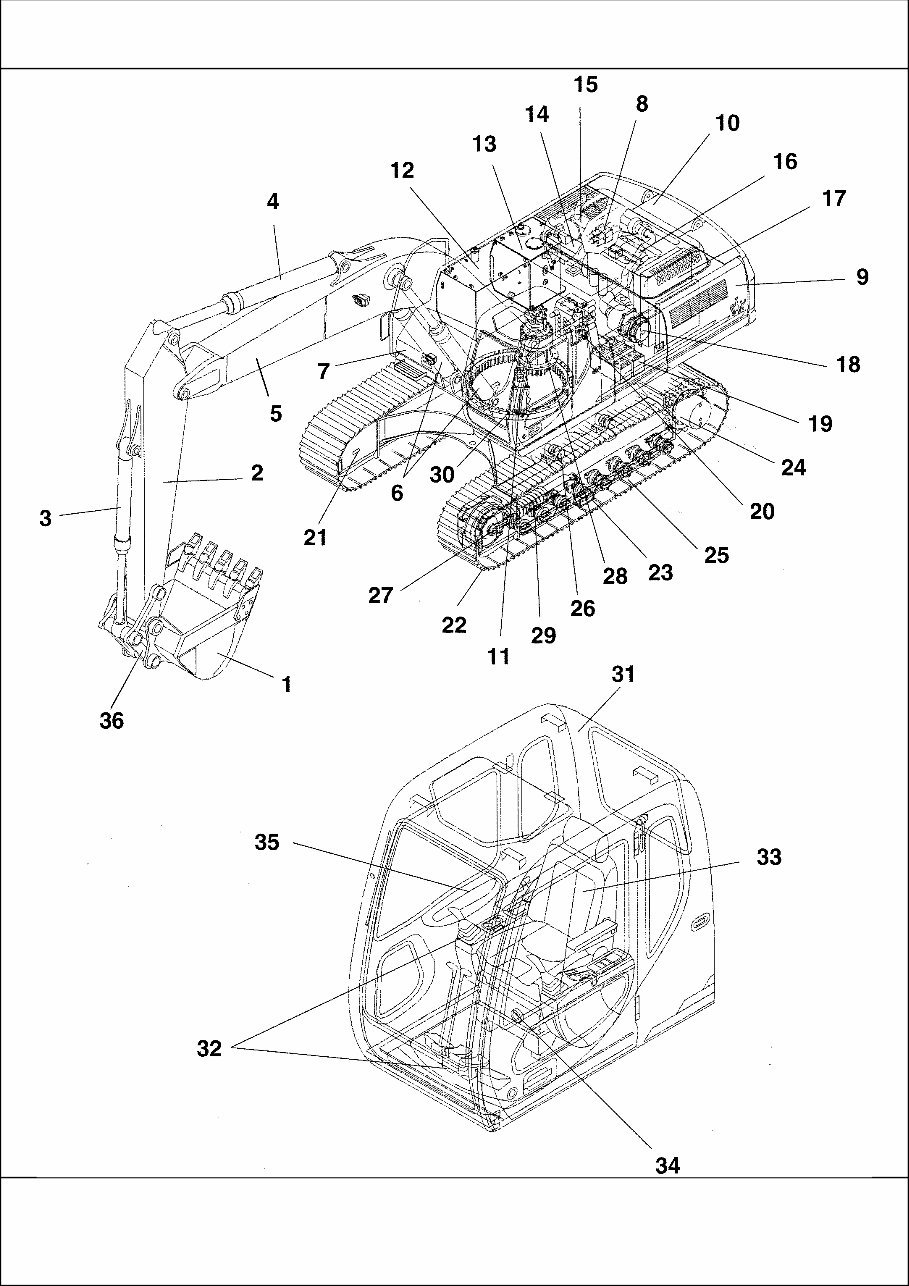

00-001-00(01) COMPONENT INDEX
Ref Part Number Qty Description
CX330 CASE CRAWLER EXCAVATOR (EUR) (DC33B6001, DCH330R3N5EAP7001 & AFTER) (1/06- )
00-001-00(01) COMPONENT INDEX
1 1 BUCKET - See Pages 09-300-00 01 To 09-316-00 01
2 1 DIPPER - See Pages 09-200-00 01 To 09-203-00 01
3 1 BUCKET CYLINDER - See Pages 08-020-00 01 To 08-023-00 01
4 1 DIPPER CYLINDER - See Pages 08-017-00 01, 08-018-00 01, 08-019-00 01
5 1 MONOBLOCK BOOM - See Pages 09-100-00 01, 09-100-01 01, 09-101-00 01
6 1 BOOM CYLINDER - See Pages 08-012-00 01 To 08-015-00 01
7 1 UPPERSTRUCTURE CHASSIS - See Pages 09-002-00 01, 09-003-00 01
8 1 SOLENOID VALVE - See Page 08-250-00 01
9 1 COWLING - See Pages 09-005-00 01 To 09-008-01 01
10 1 COUNTERWEIGHT - See Pages 09-004-00 01, 09-004-01 01
11 1 SWING JOINT - See Page 07-010-00 01
12 1 FUEL TANK, FUEL SYSTEM - See Pages 03-001-00 01 To 03-042-01 01
13 1 HYDRAULIC RESERVOIR, HYDRAULIC SYSTEM - See Pages 08-001-00 01, 08-004-00 01 To
08-056-00 01
14 1 HYDRAULIC PUMP - See Pages 08-002-00 01, 08-003-00 01, 08-100-00 01 To 08-108-00 01
15 1 EXHAUST ENGINE - See Page 02-003-00 01
16 1 ENGINE - See Pages 02-001-00 01, 02-005-01 01 To 02-110-01 01
17 1 RADIATOR - See Pages 02-004-00 01, 02-004-01 01
18 1 AIR FILTRATION - See Page 02-002-00 01
19 1 BATTERIES, ELECTRICAL SYSTEM - See Pages 04-001-00 01 To 04-815-02 01
20 1 CONTROL VALVE - See Pages 08-200-00 01 To 08-206-00 01
21 1 UNDERCARRIAGE, HYDRAULIC CIRCUIT - See Pages 05-001-00 01, 05-001-01 01To 07-001-00 01,
07-001-01 01
22 1 TRACK FOOT STEP - See Pages 05-006-00 01 To 05-010-00 01
23 1 GUIDE, CHAIN - See Pages 05-011-00 01, 05-011-01 01
24 1 TRAVEL MOTOR AND REDUCTION GEAR - See Pages 06-001-00 01, 06-010-00 01, 07-011-00 01,
07-012-00 01
25 1 ROLLER LOWER - See Page 05-003-00 01
26 1 ROLLER UPPER - See Page 05-002-00 01
27 1 GUIDE PULLEY - See Page 05-004-00 01
28 1 SWING MOTOR-DRIVE REDUCTION GEAR - See Pages 06-002-00 01, 08-220-00 01
29 1 TENSION DAMPER - See Page 05-005-00 01
30 1 SWING COMPONENTS, LUBRICATION CIRCUIT - See Page 09-001-00 01
31 1 OPERATORS COMPARTMENT, CAB - See Pages 09-010-00 01 To 09-018-00 01, 09-029-00 01 To
09-043-00 01
32 1 OPERATORS COMPARTMENT, LEVER, CONTROL - See Page 09-032-00 01
33 1 OPERATORS COMPARTMENT - SEAT AND CONTROL ARM MOUNTING - See Pages 09-019-00
01 To 09-023-00 01
34 1 CAB AIR CONDITIONING - Sees Pages 09-024-00 01 To 09-028-00 01
35 1 SIDE INSTRUMENT PANEL - See Page 04-009-00 01
36 1 BUCKET CONTROL See Page 09-300-00 01
CX330 CASE CRAWLER EXCAVATOR (EUR) (DC33B6001, DCH330R3N5EAP7001 & AFTER) (1/06- )

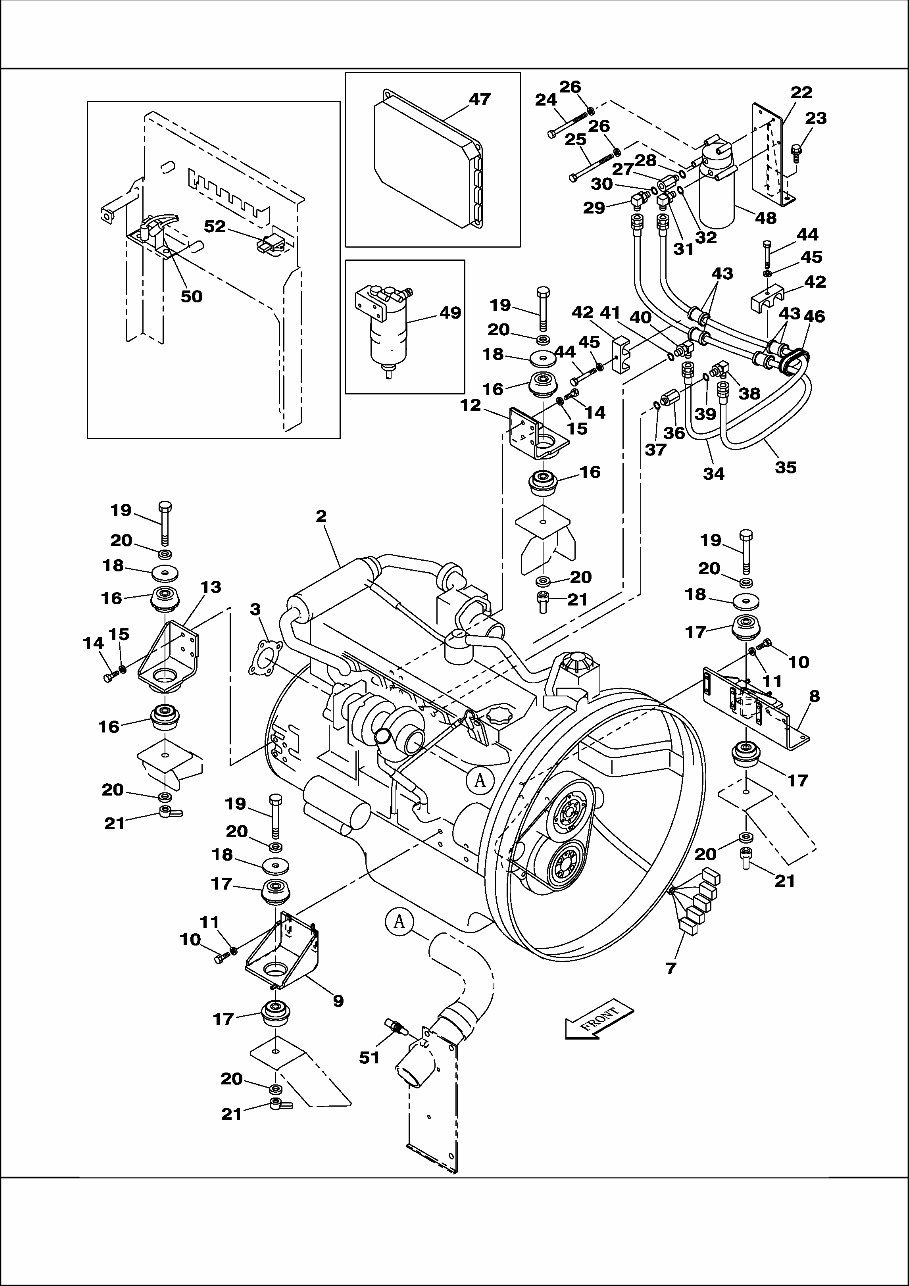

02-001-00(01) ENGINE MOUNTING - ENGINE
Ref Part Number Qty Description
CX330 CASE CRAWLER EXCAVATOR (EUR) (DC33B6001, DCH330R3N5EAP7001 & AFTER) (1/06- )
02-001-00(01) ENGINE MOUNTING - ENGINE
2 KSH10070 1 ENGINE ASSY, , Consists Of Ref. Number 3, 7, 47 To 52, Also Page(s) 02-005-01 01 To 02-110-01
01, 03-040-01 01 To 03-042-01 01, 04-060-01 01 To 04-815-02 01
3 REF 1 INSTRUCTION, Gasket, See Page(s) 02-150-01 01 Ref. 84
7 REF 1 INSTRUCTION, Harness, See Page(s) 04-810-01 01 Ref. 71
8 KSH1067 1 SUPPORT,
9 KSH0908 1 SUPPORT ASSY.,
10 627-10035 1 BOLT, Hex, M10 x 35, 10.9, Full Thd,
11 150409A1 1 WASHER, W M10
12 KSH0909 1 SUPPORT ASSY.,
13 KSH0910 1 SUPPORT ASSY.,
14 627-12040 1 BOLT, Hex, M12 x 40, 10.9, Full Thd, M12 x 40
15 150811A1 1 WASHER, W12
16 KTH0566 1 INSULATOR BLOCK,
17 KTH0567 1 INSULATOR BLOCK,
18 150874A1 1 WASHER,
19 827-20150 1 BOLT, Hex, M20 x 150, 10.9, M10 x 150
20 150817A1 1 WASHER, W 20
21 KSH0923 1 NUT,
22 KSH1055 1 SUPPORT,
23 166352A1 1 BOLT, M13 x 30
24 102R008Y110R 1 BOLT, M8 x 110
25 KHH0515 1 BOLT, M8 x 140
26 153081A1 1 WASHER, W M8
27 152012A1 1 CONNECTOR,
28 150542A1 1 O-RING,
29 157580A1 1 ELBOW,
30 150542A1 1 O-RING,
31 157580A1 1 ELBOW,
32 150542A1 1 O-RING,
34 KSH1054 1 HOSE, 1550 mm
35 KSH1056 1 HOSE, 1670 mm
36 152012A1 1 CONNECTOR,
37 154503A1 1 O-RING,
38 157580A1 1 ELBOW,
39 154503A1 1 O-RING,
40 157580A1 1 ELBOW,
41 154503A1 1 O-RING,
42 KHJ2283 1 CLAMP,
43 KHJ2023 1 CLAMP, HOSE,
44 827-10065 1 BOLT, Hex, M10 x 65, 10.9, M10 x 65
45 150409A1 1 WASHER, W M10
46 KEJ0421 1 GROMMET,
47 REF 1 INSTRUCTION, Control Unit, See Page(s) 04-060-01 01 Ref. 613
48 REF 1 INSTRUCTION, Oil Filter, See Page(s) 02-050-02 01 Ref. 496
49 REF 1 INSTRUCTION, Fuel Filter, See Page(s) 03-041-01 01 Ref. 1
Ref Part Number Qty Description
CX330 CASE CRAWLER EXCAVATOR (EUR) (DC33B6001, DCH330R3N5EAP7001 & AFTER) (1/06- )
02-001-00(01) ENGINE MOUNTING - ENGINE
50 REF 1 INSTRUCTION, Relay, See Page(s) 04-060-01 01 Ref. 424
51 REF 1 INSTRUCTION, Sensor, See Page(s) 04-060-01 01 Ref. 797
52 REF 1 INSTRUCTION, Sensor, See Page(s) 04-060-01 01 Ref. 796
CX330 CASE CRAWLER EXCAVATOR (EUR) (DC33B6001, DCH330R3N5EAP7001 & AFTER) (1/06- )

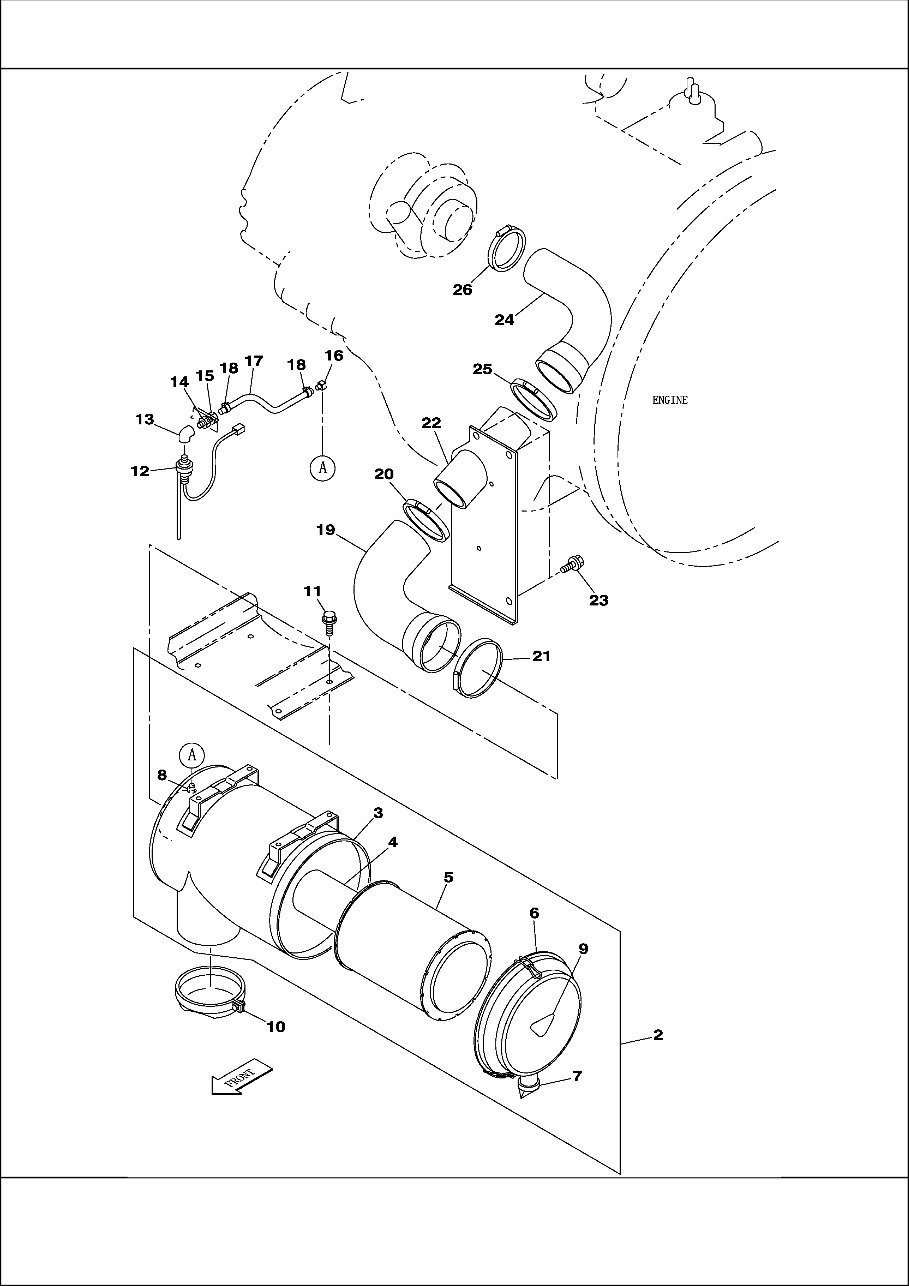

02-002-00(01) AIR FILTRATION
Ref Part Number Qty Description
CX330 CASE CRAWLER EXCAVATOR (EUR) (DC33B6001, DCH330R3N5EAP7001 & AFTER) (1/06- )
02-002-00(01) AIR FILTRATION
2 KSH0930 1 FILTER ASSY., , Consists Of Ref. Numbers 3 To 9
3 KSH0931 1 CASE,
4 KSH0932 1 FILTER, AIR, , Secondary
5 KSH0933 1 FILTER, AIR, , Primary
6 KSH0934 1 COVER,
7 KTH0579 1 VALVE,
8 KSH0935 1 FITTING,
9 NSS 1 NOT SERVICED SEPARATELY,
10 166564A1 1 CAP,
11 166347A1 4 BOLT, M10 x 30
12 KHH10330 1 SENSOR,
13 165818A1 1 ELBOW,
14 KRH1236 1 SEAL,
15 157742A1 1 NUT, M10 x 1.25
16 KRH1237 1 ELBOW,
17 KHH10740 1 350 mm
18 165951A1 2 CLAMP,
19 KSH1036 1 HOSE, LARGE,
20 150545A1 1 CLAMP,
21 150855A1 1 CLAMP,
22 KSH10080 1 SUPPORT,
23 166352A1 3 BOLT, M12 x 30
24 KSH1035 1 HOSE, LARGE,
25 150545A1 1 CLAMP,
26 150294A1 1 CLIP,
CX330 CASE CRAWLER EXCAVATOR (EUR) (DC33B6001, DCH330R3N5EAP7001 & AFTER) (1/06- )

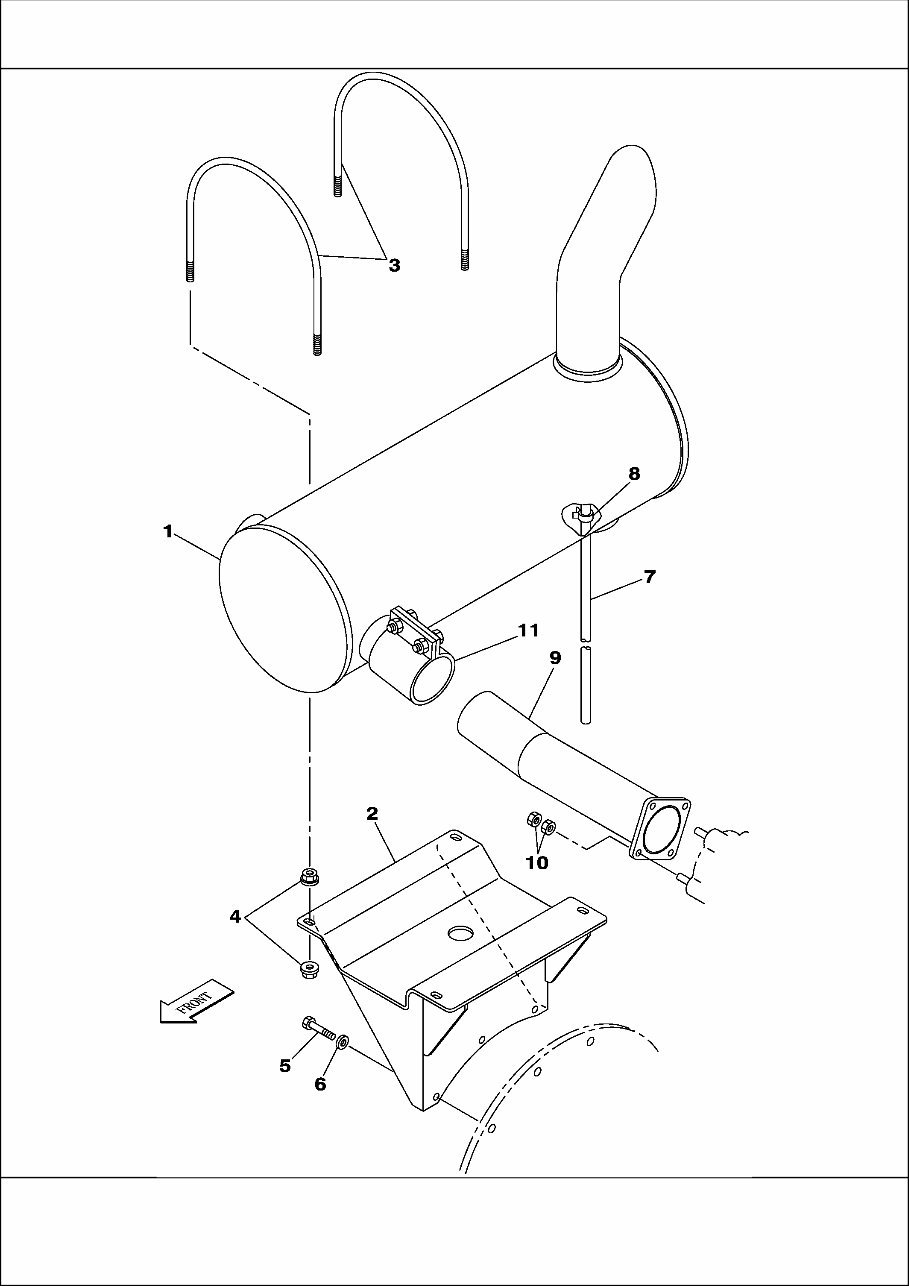

02-003-00(01) EXHAUST
Ref Part Number Qty Description
CX330 CASE CRAWLER EXCAVATOR (EUR) (DC33B6001, DCH330R3N5EAP7001 & AFTER) (1/06- )
02-003-00(01) EXHAUST
1 KSH0948 1 MUFFLER,
2 KSH1037 1 SUPPORT,
3 KBH0850 2 U-BOLT,
4 150472A1 8 NUT, N M10
5 827-10050 3 BOLT, Hex, M10 x 50, 10.9, M10 x 50
6 150409A1 3 WASHER, W M10
7 150668A1 1 TUBE,
8 165952A1 1 MOUNTING CLIP,
9 KSH1038 1 PIPE, EXHAUST SYSTEM,
10 153856A1 8 NUT, M10 x 1.25
11 KSH0951 1 COLLAR ASSY.,
