PARTS CATALOGUE
CX290
CASE CRAWLER EXCAVATOR
Until DCH29B0258
CX290 CASE CRAWLER EXCAVATOR (EUROPE)

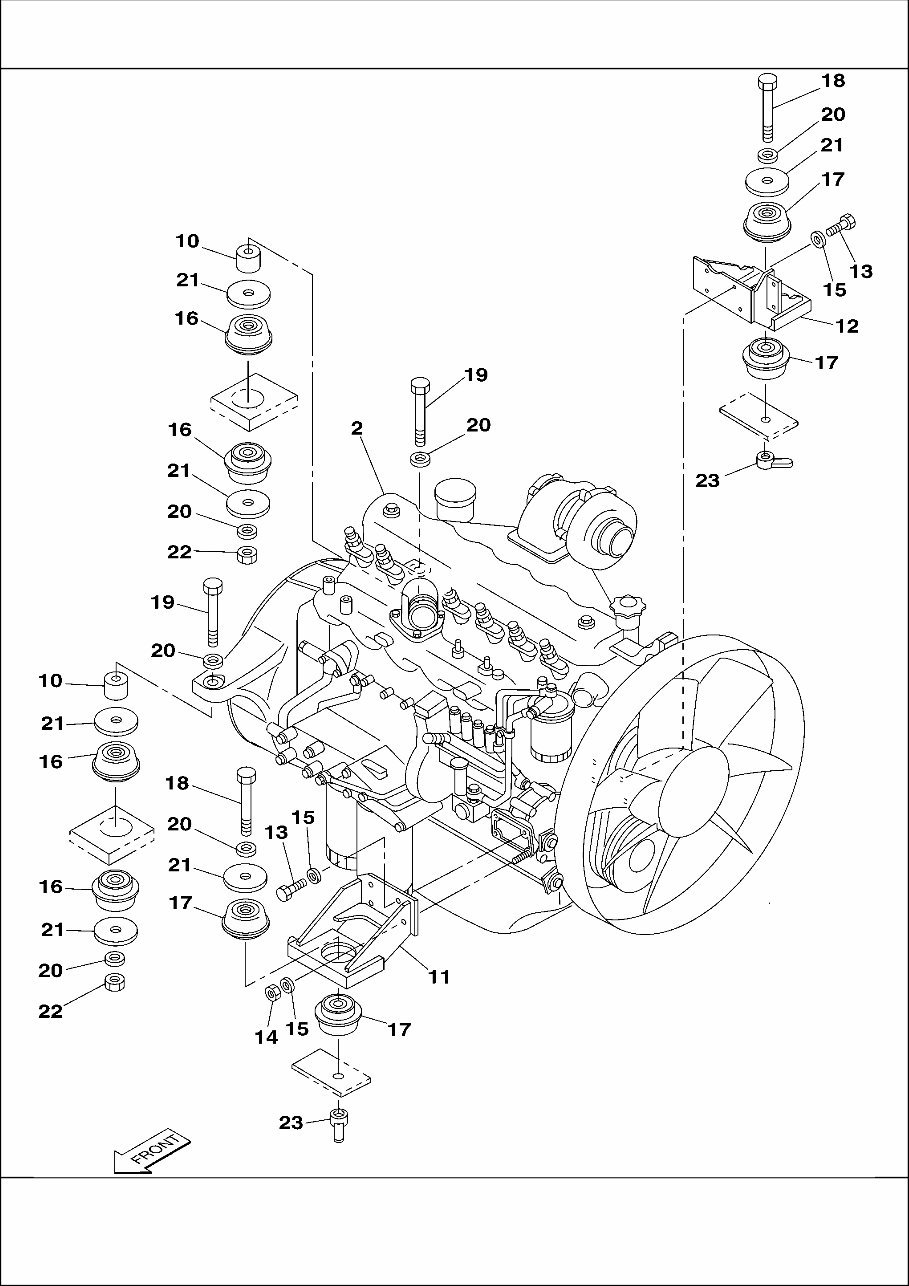

02-003-00(01) ENGINE MOUNTING - ENGINE
Ref Part Number Qty Description
Until DCH29B0258
CX290 CASE CRAWLER EXCAVATOR (EUROPE)
02-003-00(01) ENGINE MOUNTING - ENGINE
2 KBH0916 1 ENGINE ASSY, , See Page(s) 02-017-00-01 To 02-061-00-01, 03-011-00-01 To 03-027-00-01,
04-029-00-01
10 167984A1 2 SPACER,
11 KRH1341 1 SUPPORT,
12 KHH0485 1 SUPPORT,
13 159657A1 7 BOLT, M10 x 1.25 x 25
14 153604A1 1 NUT, M10 x 1.25
15 150409A1 8 WASHER, W M 10
16 KRH1225 4 RUBBER BLOCK,
17 KRH1226 4 RUBBER BLOCK,
18 827-16140 2 BOLT, Hex, M16 x 140, 10.9, M16 x 140
19 828-16210 2 BOLT, Hex, M16 x 210, 10.9, M16 x 210
20 150814A1 6 WASHER,
21 KRH1256 6 PLATE,
22 829-1416 2 NUT, M16, Cl 10, N M16
23 KRH1251 2 NUT, M16
DCH29B0259 And After
CX290 CASE CRAWLER EXCAVATOR (EUROPE)

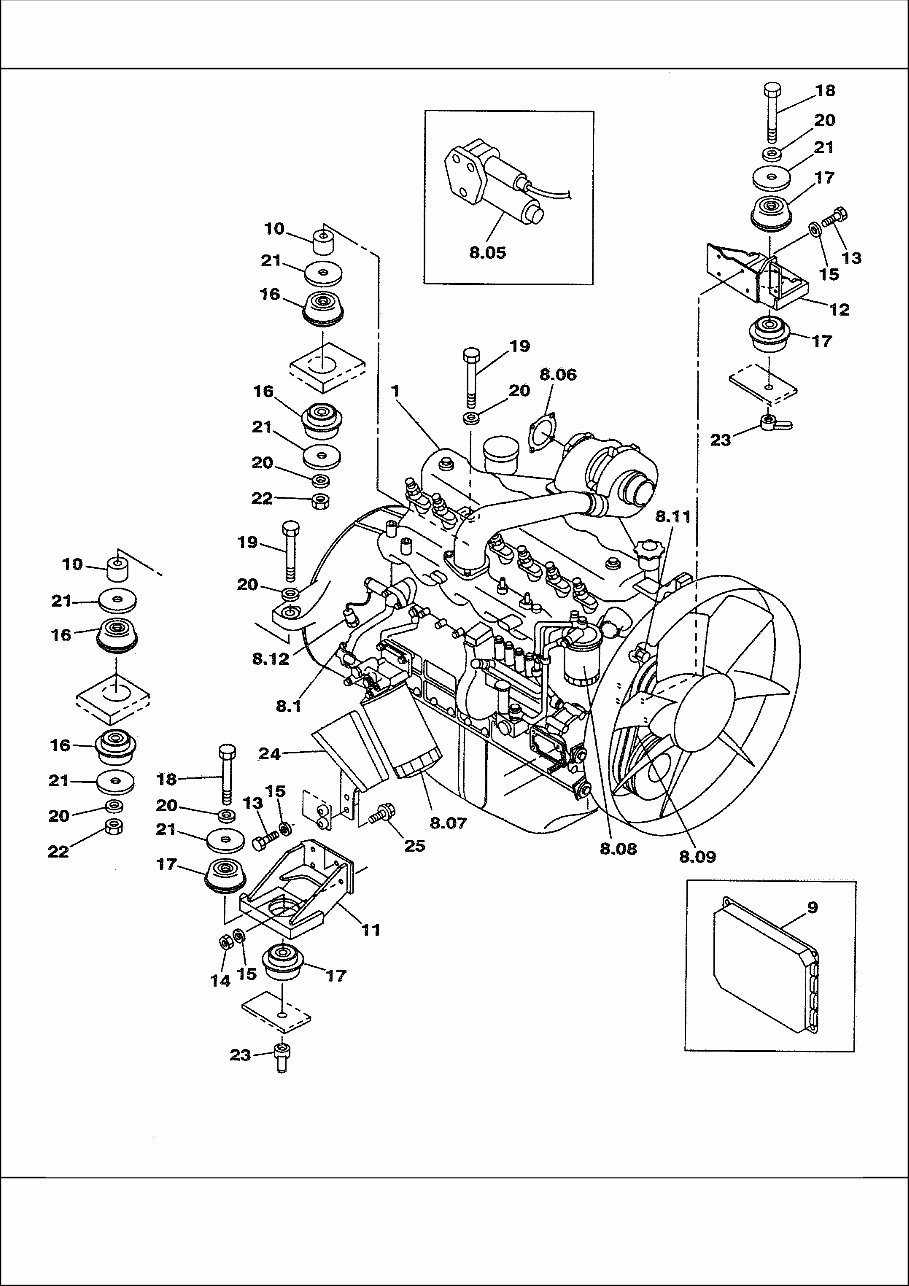

02-003-00(02) ENGINE MOUNTING - ENGINE
Ref Part Number Qty Description
DCH29B0259 And After
CX290 CASE CRAWLER EXCAVATOR (EUROPE)
02-003-00(02) ENGINE MOUNTING - ENGINE
1 KBH1010 1 ENGINE, , Consists Of Ref. Numbers 8.05 To 9, Also Page(s) 02-017-00 01 To 02-061-00 01,
03-011-00 01 To 03-027-0- 01, 04-029-00 01 To 04-033-00 01
8.05 REF 1 INSTRUCTION, Motor, See Page(s) 04-029-00 01 Ref. 1
8.06 REF 1 INSTRUCTION, Gasket, See Page(s) 02-007-00 01 Ref. 12
8.07 REF 1 INSTRUCTION, Oil Filter, See Page(s) 02-039-01 01 Ref.2
8.08 REF 1 INSTRUCTION, Fuel Filter, See Page(s) 03-013-00 01 Ref. 1
8.09 REF 1 INSTRUCTION, Belt, See Page(s) 02-017-00 01 Ref. 36
8.1 REF 1 INSTRUCTION, Sensor, Temperature, See Page(s) 04-029-00 01 Ref. 7
8.11 REF 1 INSTRUCTION, Sensor, Water Temperature, See Page(s) 04-029-00 01 Ref. 16
8.12 REF 1 INSTRUCTION, Switch, Oil Pressure, See Page(s) 04-029-00 01 Ref. 6
9 REF 1 INSTRUCTION, Controler, See Page(s) 04-029-00 01 Ref. 14
10 167984A1 2 SPACER,
11 KRH1341 1 SUPPORT,
12 KHH0485 1 SUPPORT,
13 159657A1 7 BOLT, M10 x 1.25 x 25
14 153604A1 1 NUT, M10 x 1.25
15 150409A1 8 WASHER, W M 10
16 KRH1225 4 RUBBER BLOCK,
17 KRH1226 4 RUBBER BLOCK,
18 827-16140 2 BOLT, Hex, M16 x 140, 10.9, M16 x 140
19 828-16210 2 BOLT, Hex, M16 x 210, 10.9, M16 x 210
20 150814A1 6 WASHER, W 16
21 KRH1256 6 PLATE,
22 829-1416 2 NUT, M16, Cl 10, N M16
23 KRH1251 2 NUT, M16
24 KHH0548 1 SUPPORT,
25 166052A1 2 BOLT, M10 x 25
CX290 CASE CRAWLER EXCAVATOR (EUROPE)

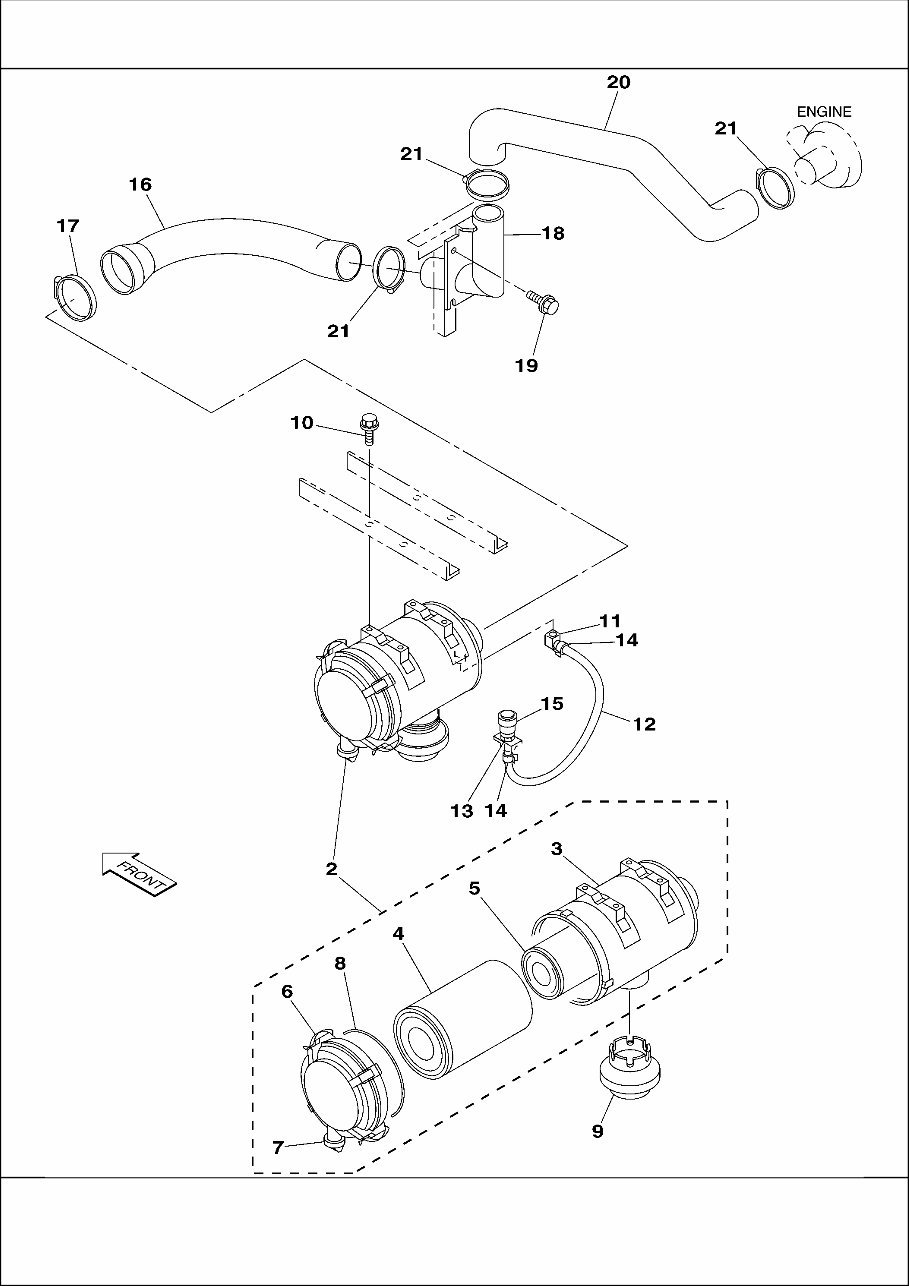

02-005-00(01) AIR FILTRATION
Ref Part Number Qty Description
CX290 CASE CRAWLER EXCAVATOR (EUROPE)
02-005-00(01) AIR FILTRATION
2 KBH0918 1 AIR CLEANER, , Consists Of Ref. Numbers 3-8
3 KBH0920 1 HOUSING,
4 KBH0921 1 FILTER, AIR, , Primary
5 KBH0922 1 FILTER, AIR, , Secondary
6 KBH0923 1 COVER ASSY,
7 KBH0924 1 VALVE,
8 NSS 1 NOT SERVICED SEPARATELY,
9 KBH0919 1 CAP ASSY.,
10 166052A1 4 BOLT,
11 KRH1237 1 ELBOW,
12 157779A1 1 HOSE,
13 KRH1236 1 SEAL,
14 165951A1 2 CLAMP,
15 KSH0050 1 INDICATOR,
16 KBH0902 1 HOSE, LARGE,
17 150545A1 1 CLAMP,
18 KBH0903 1 SUPPORT,
19 152718A1 4 BOLT,
20 KBH0901 1 HOSE, LARGE,
21 150902A1 3 CLAMP,
CX290 CASE CRAWLER EXCAVATOR (EUROPE)

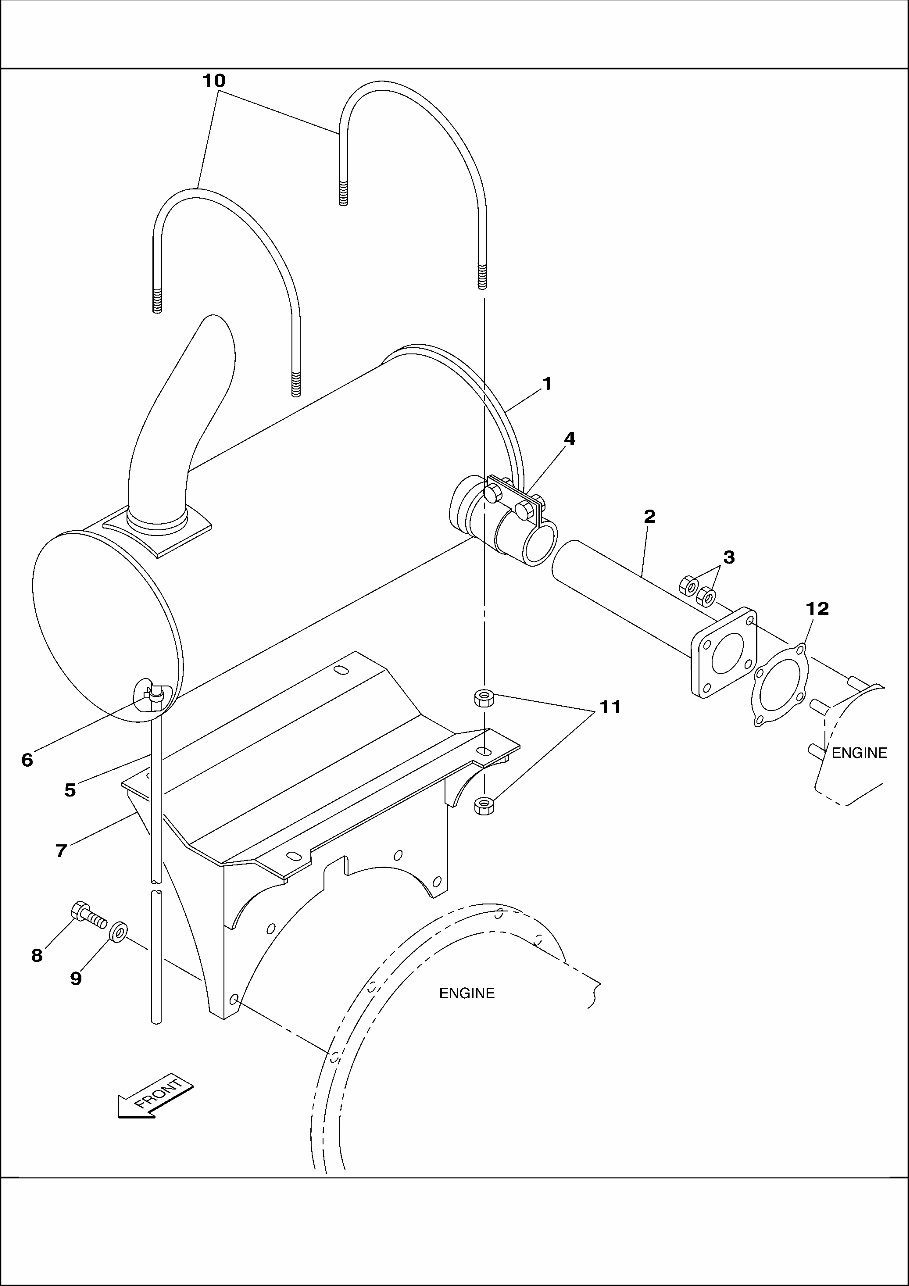

02-007-00(01) EXHAUST
Ref Part Number Qty Description
CX290 CASE CRAWLER EXCAVATOR (EUROPE)
02-007-00(01) EXHAUST
1 KBH0893 1 MUFFLER,
2 KBH0849 1 PIPE,
3 829-1408 8 NUT, M8, Cl 10, , M8; 10
4 KRH1321 1 CLAMP,
5 157480A1 1 TUBE,
6 151367A1 1 CLAMP,
7 KBH0855 1 SUPPORT,
8 627-10035 4 BOLT, Hex, M10 x 35, 10.9, Full Thd, , M10 x 35; 10.9
9 150409A1 4 WASHER, , 10,5 x 21 x 3,2 mm
10 KBH0850 2 U-BOLT,
11 150472A1 8 NUT,
12 289213A1 1 GASKET,
CX290 CASE CRAWLER EXCAVATOR (EUROPE)

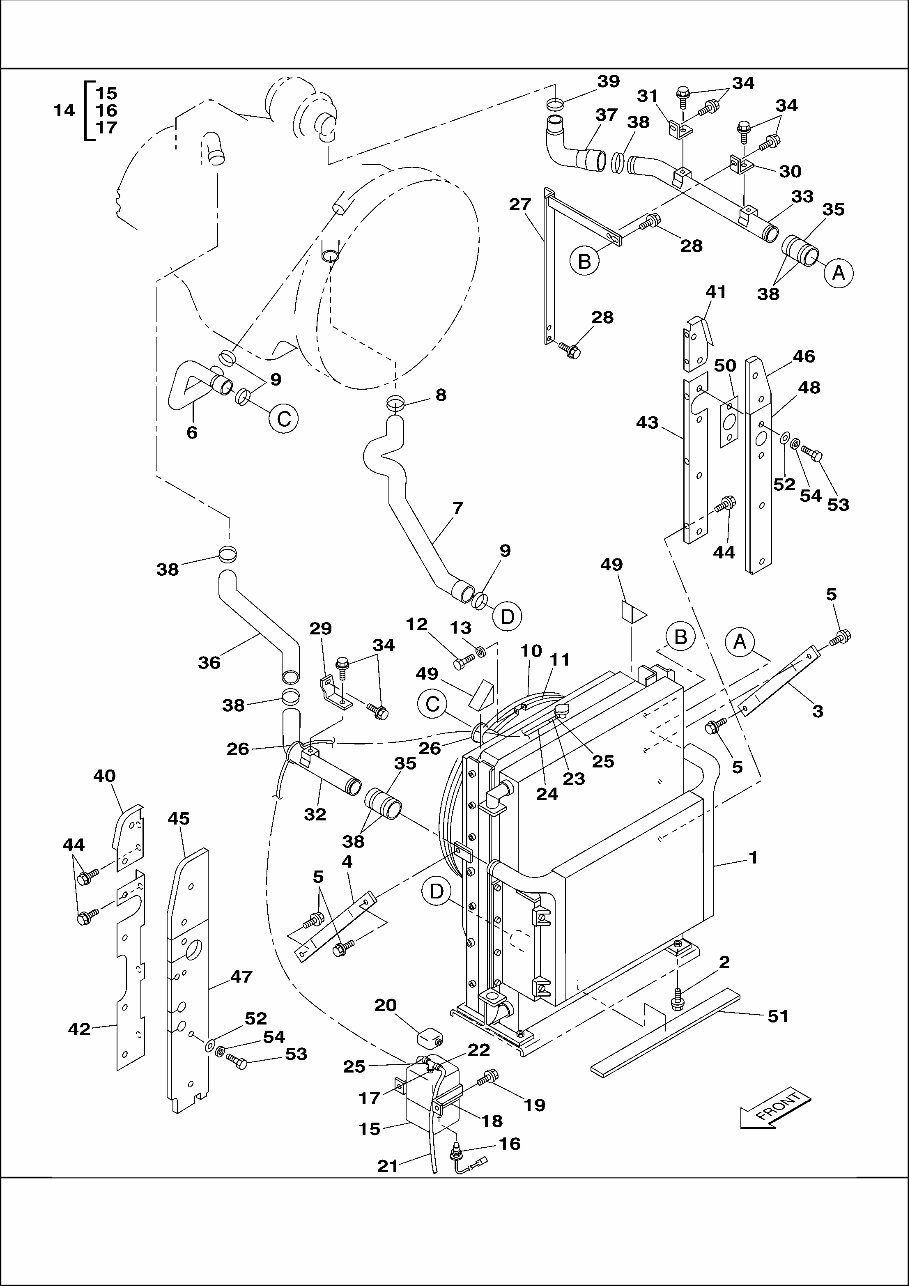

02-009-00(01) WATER CIRCUIT - RADIATOR
