Case CX27B Parts Catalog

Parts Catalog Print No. 47880313 Issued 05/2015 CX27B Mini Crawler Excavator Tier 3 ASN PD03-05001

GENERAL INFORMATION 1. Whenever the terms left and right are used, it should be understood to mean from a position facing in direction of travel. 2. Throughout this manual you may find common hardware not illustrated, but listed in the description column. The service part immediately preceding a hardware listing is the part using these particular items for mounting purposes. This hardware is not included with the service part or assembly when ordered as a replacement. 3. The illustrations show typical assemblies plus individual parts but in all cases may not show the exact shape or detail of parts required. However, the purpose for the illustrations is to identify parts performing like functions. Whenever possible, illustrations are located at the beginning of each section or immediately adjacent to the applicable text. 4. CNH America LLC is continually striving to improve its products. We must, therefore, reserve the right to make improvements or changes when it becomes practical and possible to do so, without incurring any obligation to make changes or additions to the equipment sold previously. CNH America LLC, Racine, WI 53404 U.S.A.

How to Use Your Parts Catalog 1 2 3 4 9 7 11 5 6 8 10 14 19 18 20 10 17 12 13 15 1 2 3 4 8 12 16

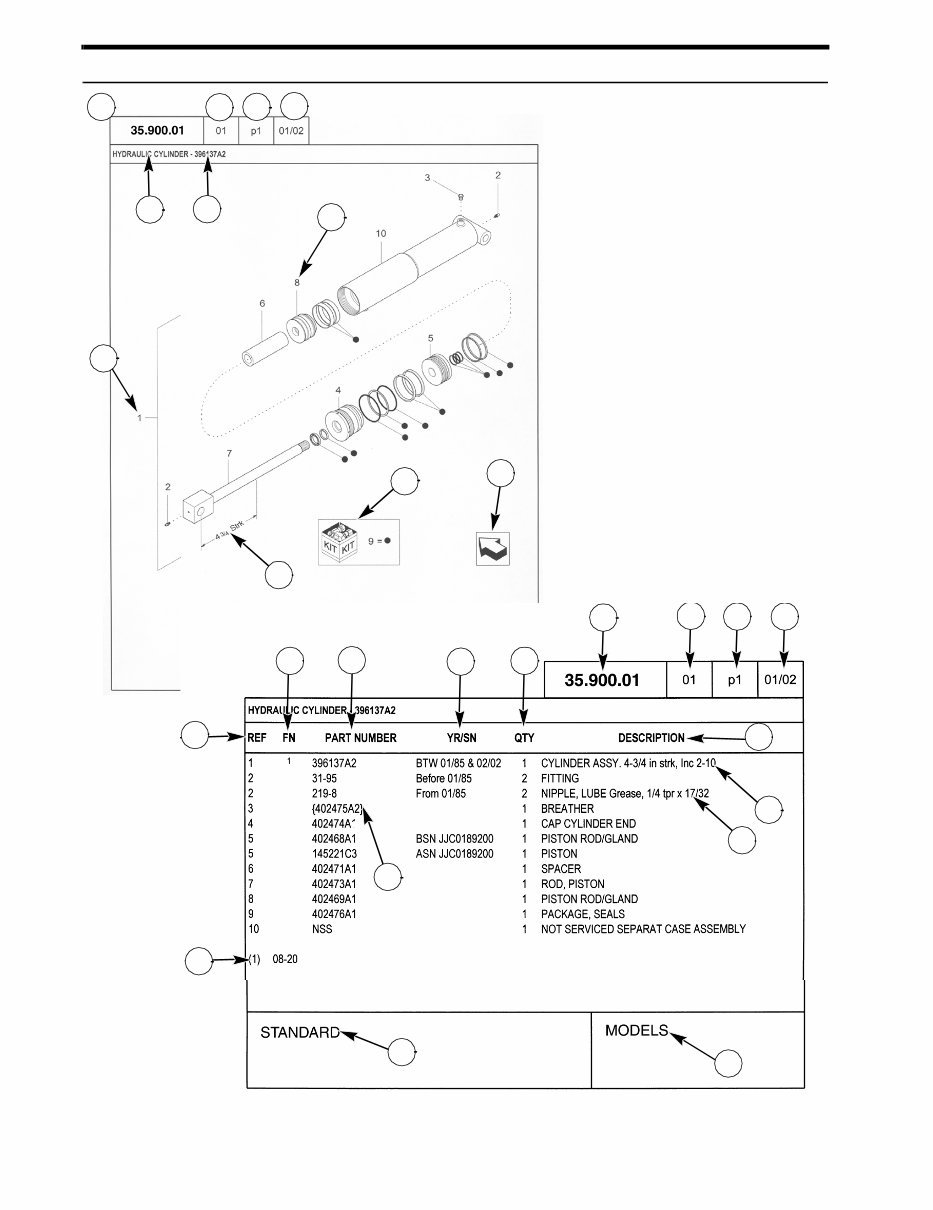

How to Use Your Parts Catalog 1. Figure Number 2. Sequence code within the Figure Number 3. Page number within the Sequence Code 4. Date of Printing (month / year) 5. Figure Description 6. General information regarding the figure 7. Parts supplied in repair kits per symbol reference 8. Figure call-out of the part number (REF) 9. Technical Specifications relating to the part indicated 10. Figure call-out includes bracketed items, the included items may also be listed in the additional description area 11. Orientation - Arrow indicates front of the machine 12. Footnote - Additional information relating to the part number. In this example, 08-20 equals another figure that this part is shown on. 13. Part Number NSS = Non-serviced parts Bracketed numbers = not available as service parts in this market 14. Not Available as service part in this market 15. YR/SN Year Before 01/85 = Part valid for production January 1985 and before From 01/85 = Part valid for production from January 1985 and after BTW 01/85 & 02/02 = Part valid for machines produced between January 1985 and February 2002. Serial Number (P.I.N.) BSN JJC0268800 = Part valid for serial number JJC0268800 and below ASN JJC0268800 = Part valid for serial number JJC0268800 and above BTW JJC0178000 & JJC0179000 = Part valid for serial numbers between JJC0178000 & JJC0179000 16. Total Quantity of the Part referred to in the page. The quantity can be replaced by the following indications: AR = quantity as required X = as required 17. Part Description 18. Additional description of the part to help confirm identification 19. Figure Notes 20. Model Number(s)

Explanation of Abbreviations Abbreviation Meaning adj adjustable amp ampere AR As required ASN Serial number and after / P.I.N. and after barb barb blkhd bulkhead boss boss BSN before serial number / before P.I.N BTW between cc cubic centimetre chain chain cl class cp pt cup point CRS Chrome Alloy Steel CST Carbon Steel cu yd cubic yard deg degree dia diameter dr type drive type dry dry fc face fc sl face seal fem female fem PT female pipe thread fl flare ft feet (or foot) gal gallon(s) gr grade hd head hp horsepower ID inside diameter in inch(es) Inc. includes inv fl inverted flare K kilo kg kilogram L litre lb pound(s) lg long LH left hand LH thd left hand thread links links M (prefix) metric thread size m metre male male mm millimetre NF National Fine No. number NS National Super Fine OD outside diameter ohm electrical unit of resis- tance Or O-ring orifice orifice P pitch piece piece psi pounds per square inch PT pipe thread rd round rd holes round holes RH right hand RH thd right hand thread rpm revolutions per minute Abbreviation Meaning

Dimensions Metric and U.S. hardware dimensions do not show the numeric designations of standard coarse threads. A number following a semi colon (;) is the class or grade of hardware. A comma (,) represents the decimal point (.) used in U.S. dimensions. sl self locking slat slat spool spool sq square SST Stainless Steel st self tapping stem stem strk stroke sw swivel T teeth Teflon Teflon thin thin thk thick tpr taper Abbreviation Meaning tube tube type type V volt(s) W watt(s) way way wide wide X as required yd yard Abbreviation Meaning Explanation of Abbreviations

TABLE OF CONTENTS 00.000.00 01 PICTORIAL INDEX - MAIN SECTIONS, CANOPY 00.000.00 02 PICTORIAL INDEX - MAIN SECTIONS , CAB 00.000.10 PICTORIAL INDEX - ENGINE 00.000.35 01 PICTORIAL INDEX - HYDRAULIC SYSTEMS 00.000.35 02 PICTORIAL INDEX - HYDRAULIC SYSTEMS 00.000.35 03 PICTORIAL INDEX - HYDRAULIC SYSTEMS 00.000.35 04 PICTORIAL INDEX - HYDRAULIC SYSTEMS 00.000.39 01 PICTORIAL INDEX - FRAMES AND BALLASTING 00.000.39 02 PICTORIAL INDEX - FRAMES AND BALLASTING 00.000.48 PICTORIAL INDEX - TRACKS AND TRACK SUSPENSION 00.000.50 PICTORIAL INDEX - CAB CLIMATE CONTROL 00.000.55 01 PICTORIAL INDEX - ELECTRICAL SYSTEMS 00.000.55 02 PICTORIAL INDEX - ELECTRICAL SYSTEMS 00.000.71 PICTORIAL INDEX - LUBRICATION SYSTEM 00.000.82 PICTORIAL INDEX - FRONT LOADER AND BUCKET 00.000.84 PICTORIAL INDEX - BOOMS, DIPPERS & BUCKET 00.000.86 PICTORIAL INDEX - DOZER 00.000.88 PICTORIAL INDEX - ACCESSORIES 00.000.90 01 PICTORIAL INDEX - PLATFORM, CAB, BODYWORK AND DECALS 00.000.90 02 PICTORIAL INDEX - PLATFORM, CAB, BODYWORK AND DECALS 00.000.90 03 PICTORIAL INDEX - PLATFORM, CAB, BODYWORK AND DECALS 05.100.01 INITIAL STOCKING LIST (LIST A) 05.100.02 INITIAL STOCKING LIST (LIST B) 05.100.03 FILTER LIST 05.100.03 02 CAPACITIES 10.000.00 SECTION INDEX - ENGINE 10.001.AD 01 CYLINDER, BLOCK 10.001.AD 02 GASKET, SET 10.001.AD 03 ENGINE INSTAL 10.001.AK 01 ENGINE, INSTAL 10.001.AK 02 ENGINE, INSTAL 10.101.AA CYLINDER HEAD & BONNET 10.103.AK FLYWHEEL & HOUSING, OIL, SUMP 10.105.AB CRANKSHAFT & PISTON
