PARTS CATALOGUE
CRAWLER EXCAVATOR
CX225SR
CX225SR CASE CRAWLER EXCAVATOR (EU)

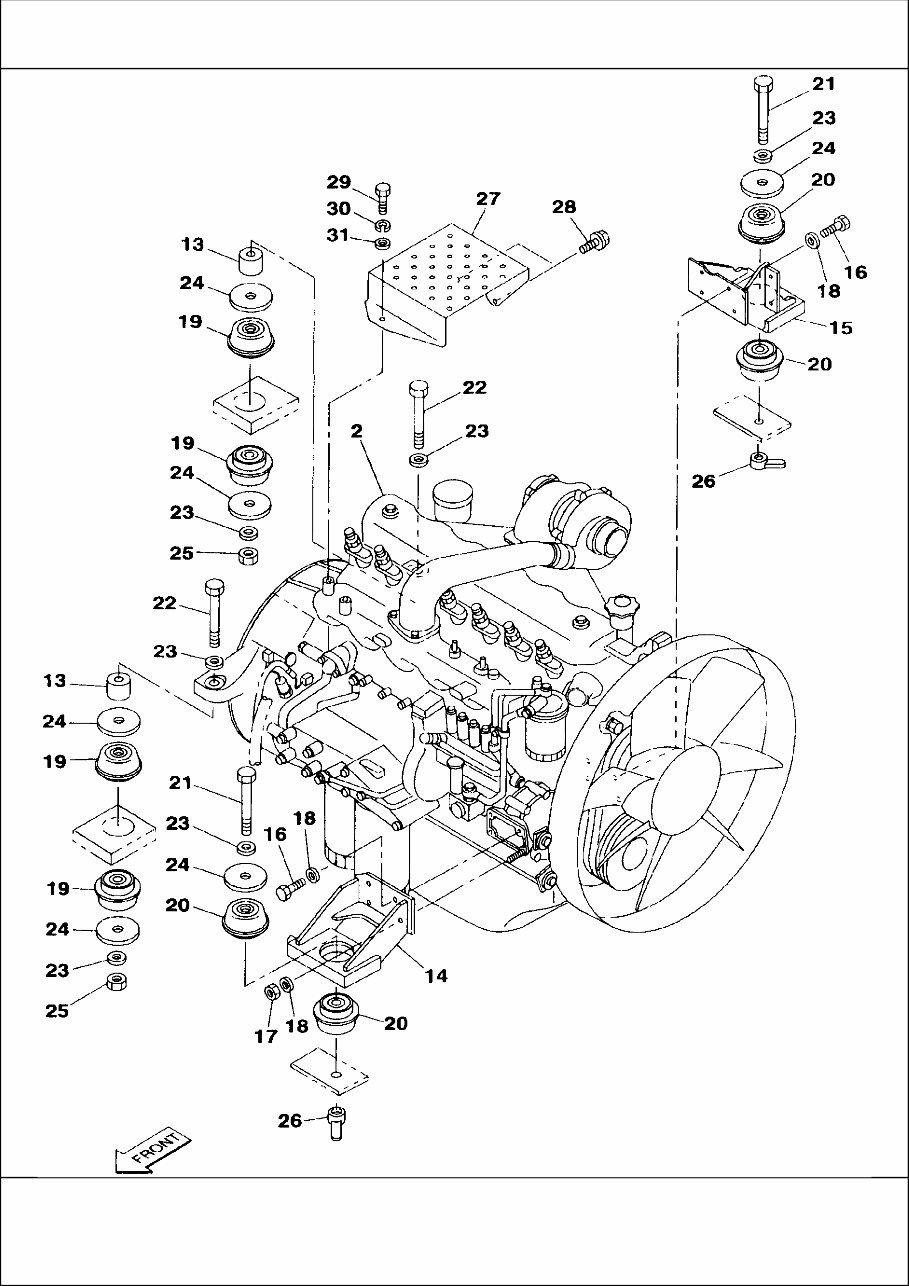

02-003-00(01) ENGINE MOUNTING - ENGINE
Ref Part Number Qty Description
CX225SR CASE CRAWLER EXCAVATOR (EU)
02-003-00(01) ENGINE MOUNTING - ENGINE
2 KRH1493 1 ENGINE ASSY, , Until DCH22U0157, See Page(s) 02-013-00 01, 02-019-00 01, 02-033-00 01,
03-011-00 01, 03-019-00 01, 04-029-00 01
2 KRH1641 1 ENGINE, , DCH22U0158 And After, See Page(s) 02-013-00 01, 02-019-00 01, 02-033-00 01,
03-011-00 01, 03-019-00 01, 04-029-00-01
13 167984A1 2 SPACER,
14 KRH1341 1 SUPPORT,
15 KHH0485 1 SUPPORT,
16 159657A1 7 BOLT, M10 x 20; 10.9
17 153604A1 1 NUT,
18 150409A1 8 WASHER, 10,5 x 21 x 3,2 mm
19 KRH1225 4 RUBBER BLOCK,
20 KRH1226 4 RUBBER BLOCK,
21 827-16140 2 BOLT, Hex, M16 x 140, 10.9, M16 x 140; 10.9
22 828-16210 2 BOLT, Hex, M16 x 210, 10.9, M16 x 210; 10.9
23 150814A1 6 WASHER, 17 x 32 x 4,5 mm
24 KRH1256 6 PLATE,
25 829-1416 2 NUT, M16, Cl 10, M16; 10
26 KRH1251 2 NUT, M16
27 KRH1261 1 STEP,
28 167518A1 2 BOLT,
29 166355A1 1 BOLT,
30 892-11010 1 WASHER, LOCK, M10, W10
31 895-11010 1 WASHER, M10 x 20 x 2, M10
CX225SR CASE CRAWLER EXCAVATOR (EU)

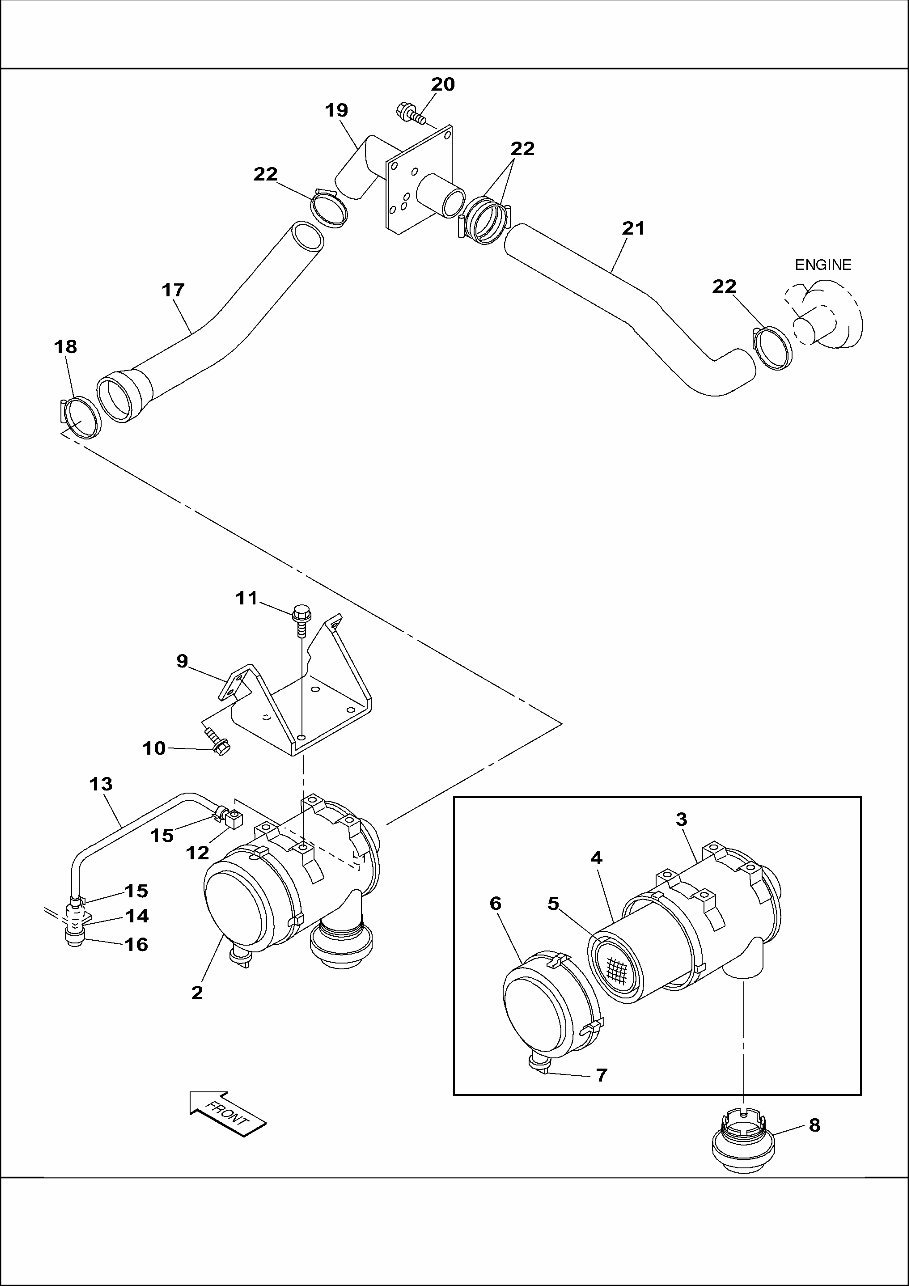

02-005-00(01) AIR FILTRATION
Ref Part Number Qty Description
CX225SR CASE CRAWLER EXCAVATOR (EU)
02-005-00(01) AIR FILTRATION
2 KRH1319 1 AIR CLEANER, , Consists Of Ref. Numbers 3 To 7
3 KRH1248 1 BODY,
4 KRH0652 1 FILTER, AIR,
5 KRH1320 1 FILTER, AIR,
6 KRH1249 1 COVER,
7 KRH1250 1 VALVE,
8 165437A1 1 CAP,
9 KRH1536 1 BREATHER,
10 166351A1 4 BOLT,
11 166052A1 4 BOLT,
12 KRH1237 1 ELBOW,
13 157780A1 1 HOSE,
14 KRH1236 1 SEAL,
15 165951A1 2 CLAMP,
16 KSH0050 1 INDICATOR,
17 KRH1534 1 HOSE, LARGE,
18 150545A1 1 CLAMP,
19 KRH1535 1 BREATHER,
20 166052A1 4 BOLT,
21 KRH1533 1 HOSE, LARGE,
22 150902A1 4 CLAMP,
CX225SR CASE CRAWLER EXCAVATOR (EU)

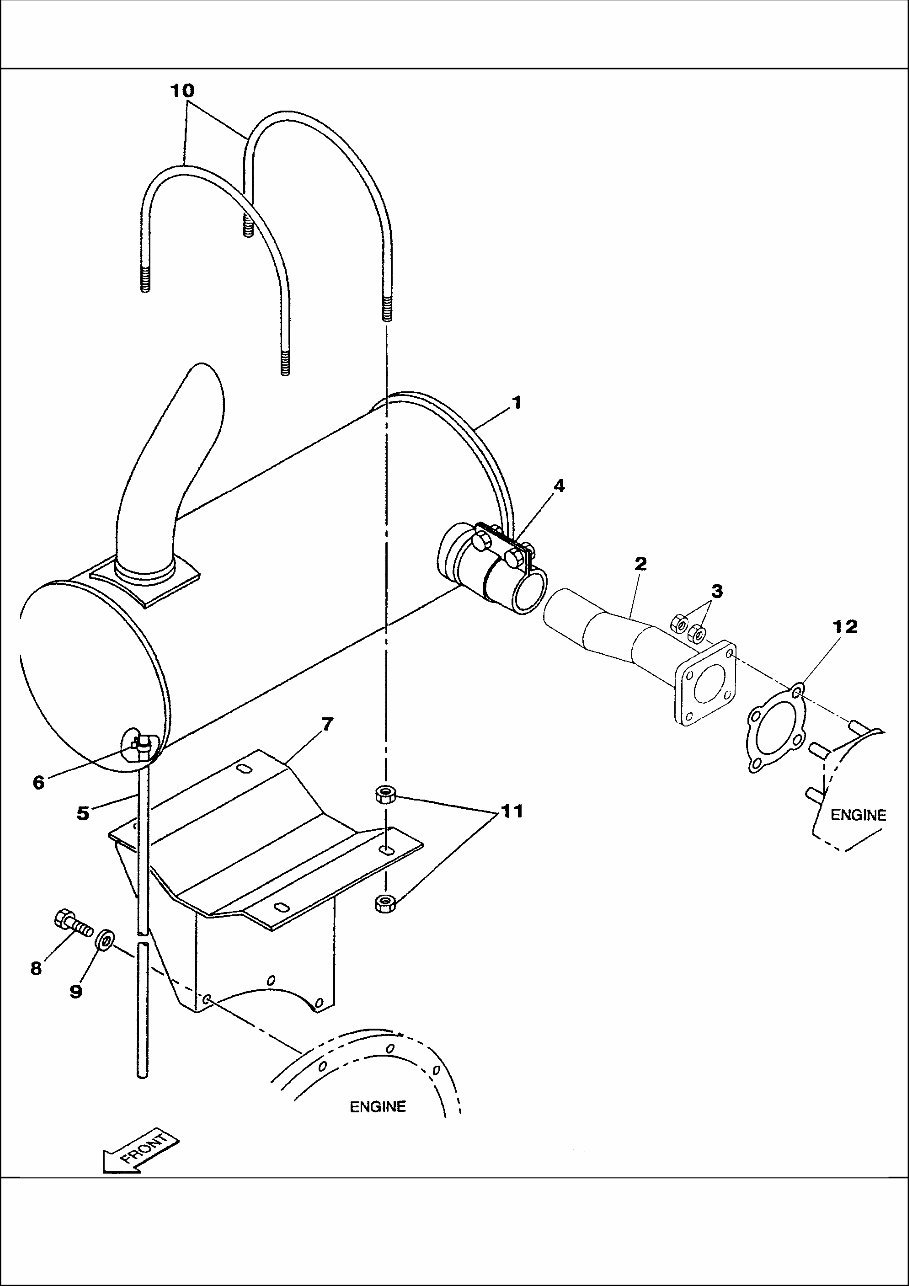

02-007-00(01) EXHAUST
Ref Part Number Qty Description
CX225SR CASE CRAWLER EXCAVATOR (EU)
02-007-00(01) EXHAUST
1 KRH1459 1 MUFFLER,
2 KRH1480 1 PIPE, EXHAUST SYSTEM,
3 829-1408 8 NUT, M8, Cl 10, M8; 10
4 KRH1321 1 CLAMP,
5 157480A1 1 TUBE, 900 mm (35-1/2 in)
6 151367A1 1 CLAMP,
7 KRH1371 1 BRACKET,
8 627-10035 3 BOLT, Hex, M10 x 35, 10.9, Full Thd, M10 x 35; 10.9
9 150409A1 3 WASHER, 10,5 x 21 x 3,2 mm
10 159696A1 2 U-BOLT,
11 150472A1 8 NUT,
12 167996A1 1 GASKET,
CX225SR CASE CRAWLER EXCAVATOR (EU)
02-009-00(01) WATER CIRCUIT
Ref Part Number Qty Description
CX225SR CASE CRAWLER EXCAVATOR (EU)
02-009-00(01) WATER CIRCUIT
1 NSS 1 NOT SERVICED SEPARATELY, , See Page(s) 02-011
2 627-16035 4 BOLT, Hex, M16 x 35, 10.9, Hex, M16 x 35, 10.9
3 150814A1 4 WASHER, 17 x 32 x 4,5 mm
4 KRH1484 1 STAY,
5 KRH1483 1 STAY,
6 152718A1 4 BOLT,
7 KRH1547 1 HOSE, LARGE,
8 KRH1482 1 HOSE, LARGE,
9 165793A1 4 CLAMP,
10 KHH0260 1 TANK,
11 KRH1270 1 HOLDER,
12 166052A1 2 BOLT,
13 150740A1 1 HOSE, LARGE,
14 157138A1 1 TUBE,
15 150860A1 2 CLAMP,
16 150496A1 2 MOUNTING CLIP,
17 840-168 2 SCREW, Cross Pan Hd, M6 x 8,
18 165951A1 2 CLAMP,
19 157487A1 1 HOSE, , Replaced By 150047A1
19 150047A1 1 MOTOR, Hose
20 165952A1 1 MOUNTING CLIP,
21 159363A1 1 GROMMET,
22 KRH1532 1 SEAL,
23 KHH0358 4 RETAINER,
24 827-8040 4 BOLT, Hex, M8 x 40, 10.9,
25 895-11008 4 WASHER, M8 x 16 x 1.6, 9 x 16 x 1,6 mm
26 KRH1548 1 RETAINER, SEAL,
27 166345A1 3 BOLT,
28 KRH1549 1 SEAL,
29 KHH0358 4 RETAINER,
30 827-8040 4 BOLT, Hex, M8 x 40, 10.9,
31 895-11008 4 WASHER, M8 x 16 x 1.6, 9 x 16 x 1,6 mm
32 KRH1492 1 SEAL,
33 KRH1530 1 SEAL,
34 KRH1488 1 SEAL,
35 KRH1531 1 SEAL,
36 KRH1375 1 GASKET,
37 KRH1376 1 MOUNTING CLIP,
38 KRH1377 1 SCREW,
39 895-11005 1 WASHER, M5 x 10 x 1, 5,6 x 10 x 1 mm
CX225SR CASE CRAWLER EXCAVATOR (EU)

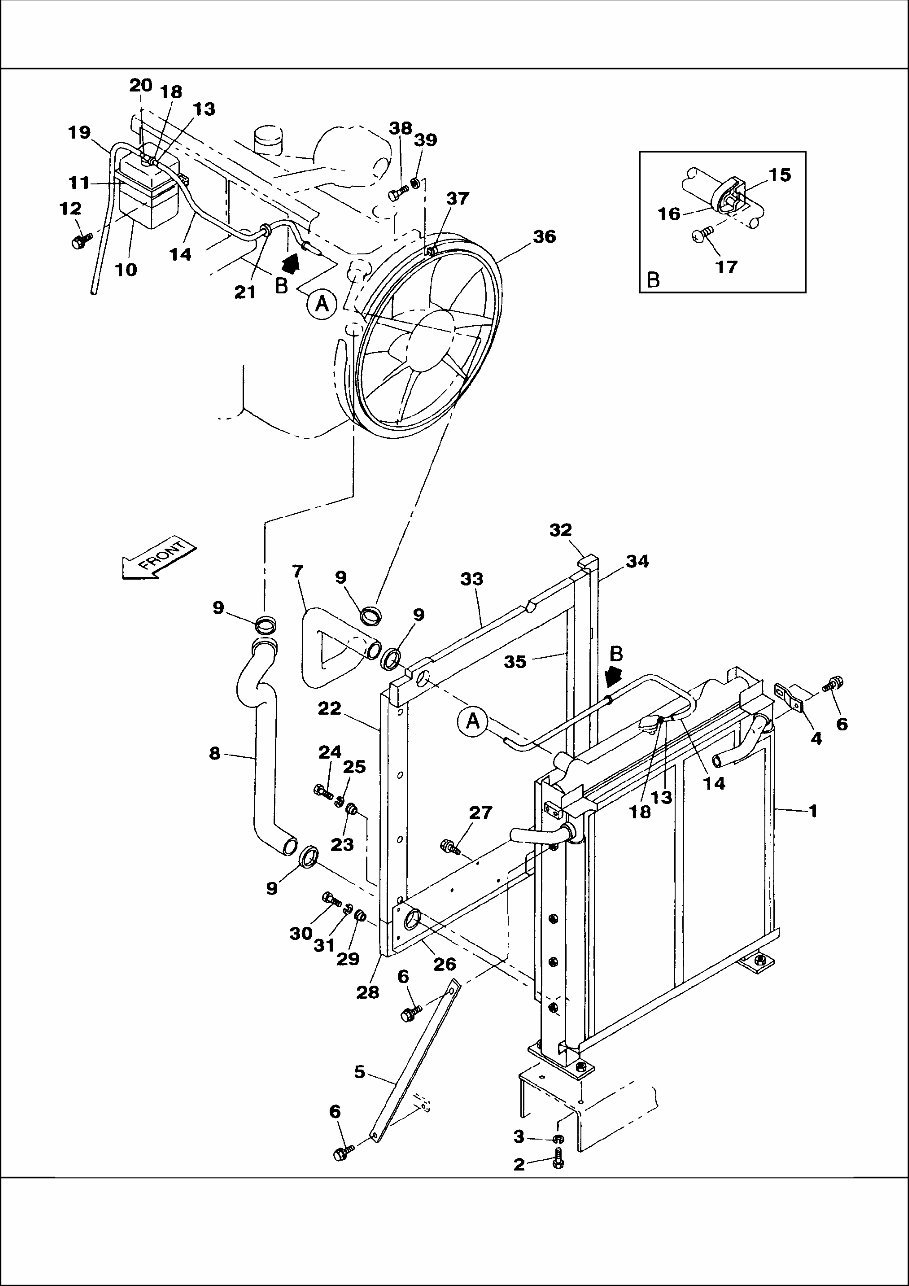

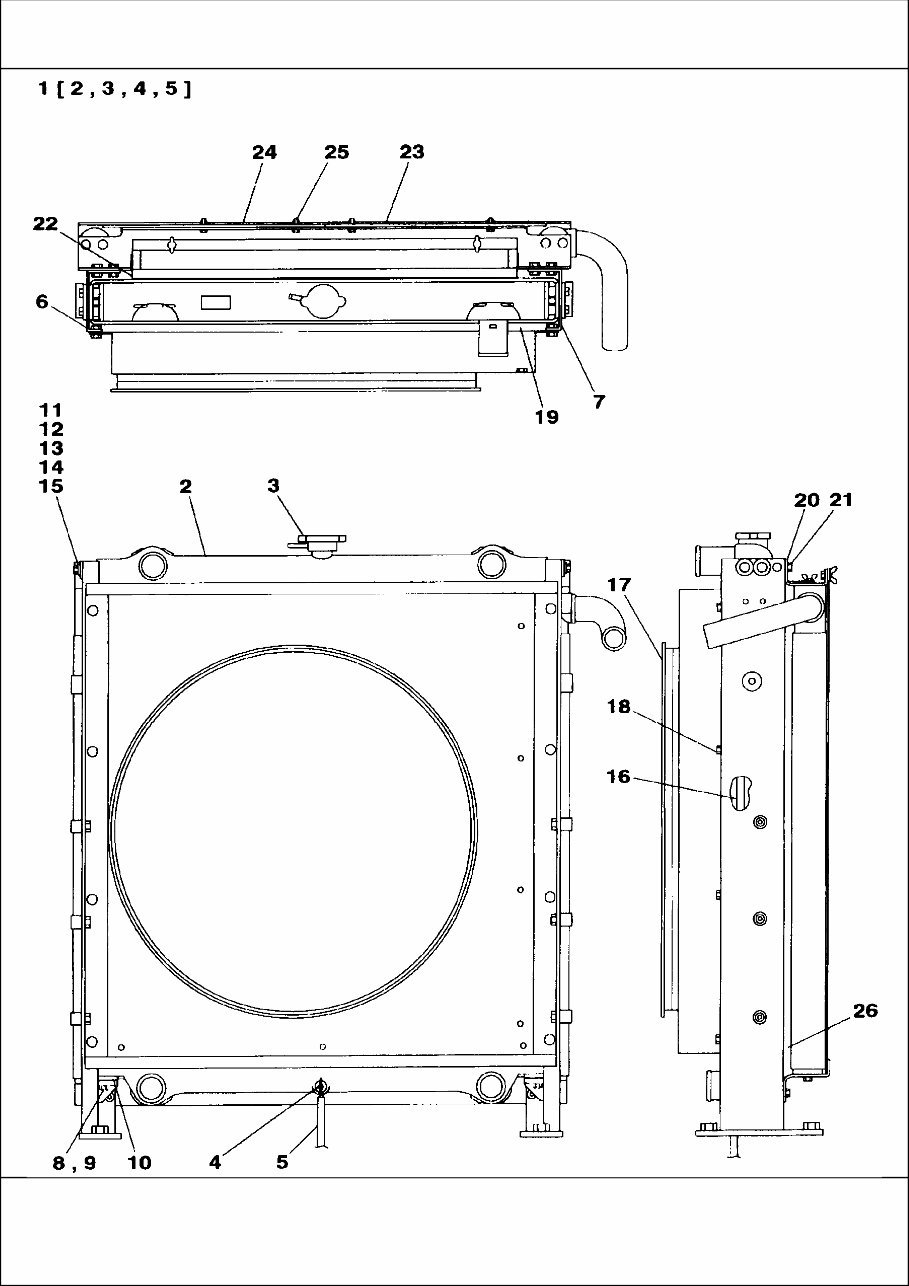

02-011-00(01) RADIATOR
