PARTS CATALOGUE
CX210
CASE CRAWLER EXCAVATOR
CX210 CASE CRAWLER EXCAVATOR (EUROPE) (5/03- )

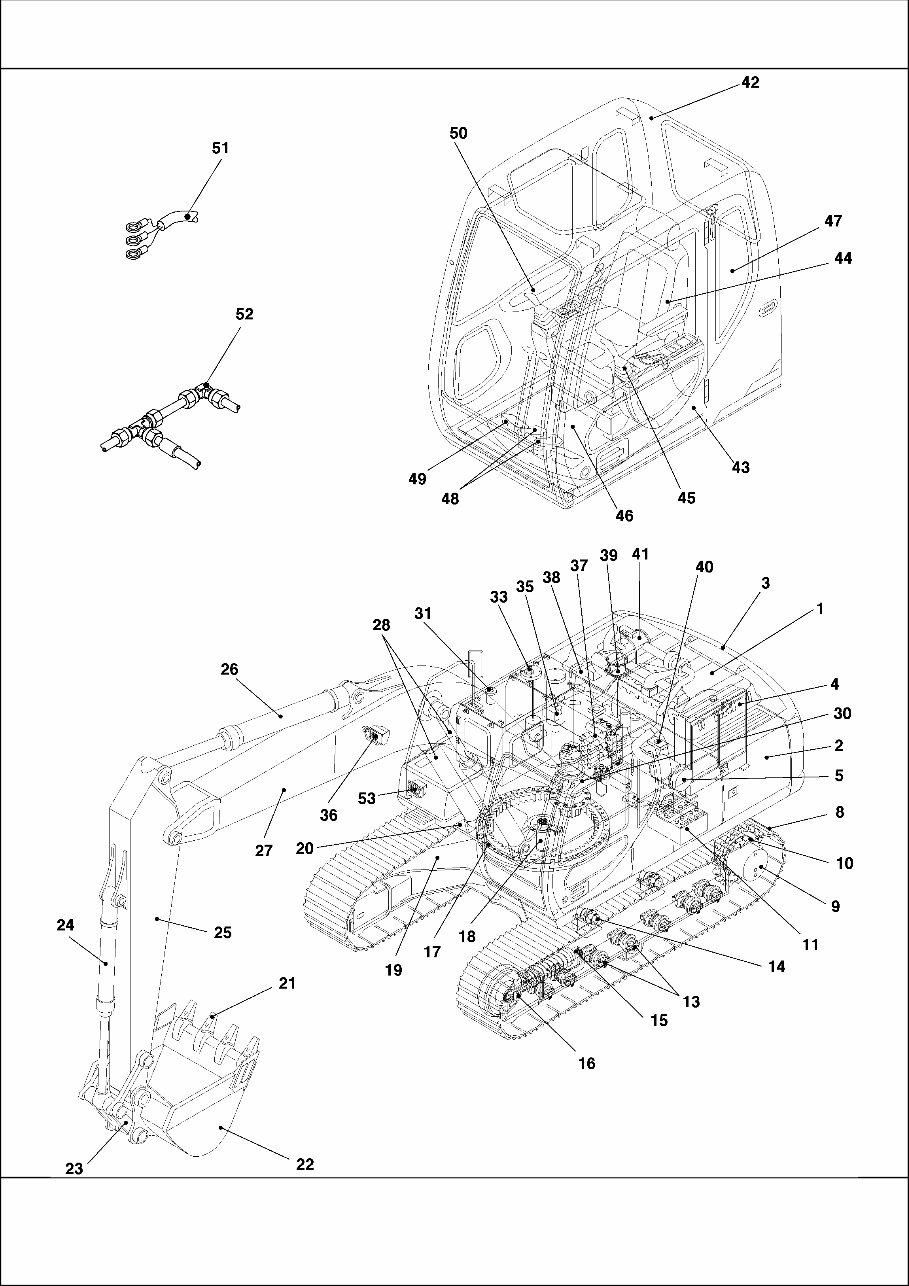

01-003-00(01) COMPONENT INDEX
Ref Part Number Qty Description
CX210 CASE CRAWLER EXCAVATOR (EUROPE) (5/03- )
01-003-00(01) COMPONENT INDEX
1 1 ENGINE MOUNTING - ENGINE - See Page : 02-003-00
2 1 COWLING - See Pages : 09-007-00, 09-011-00 to 09-019-00, CX210 LC / CX210 LR
2 1 COWLING - See Pages : 09-007B-00, 09-011B-00 to 09-019B-00, CX210 NLC / CX230
3 1 COUNTERWEIGHT - See Page : 09-009-00, CX210 LC
3 1 COUNTERWEIGHT - See Page : 09-009B-00, CX210 NLC / CX230
3 1 COUNTERWEIGHT - See Page : 09-009D-00, CX210 LR
4 1 WATER CIRCUIT - See Page : 02-009-00, CX210 LC / CX210 LR
4 1 WATER CIRCUIT - See Page : 02-009B-00, CX210 NLC / CX230
5 1 AIR FILTRATION - See Page : 02-005-00, CX210 LC / CX210 LR
5 1 AIR FILTRATION - See Page : 02-005B-00, CX210 NLC / CX230
8 1 STEEL TRACK - See Page : 05-009-00, CX210 LC
8 1 STEEL TRACK - See Page : 05-011-00, CX210 NLC / CX230
8 1 STEEL TRACK - See Page : 05-011B-00, CX210 LR
9 1 TRAVEL MOTOR AND REDUCTION GEAR - See Page : 06-003-00
10 1 SPROCKET - See Page : 06-003-00
11 1 BATTERIES - See Page : 04-021-00
13 1 ROLLER LOWER - See Page : 05-019-00
14 1 ROLLER UPPER - See Page : 05-017-00
15 1 TENSION DAMPER - See Page : 05-015-00
16 1 GUIDE PULLEY - See Page : 05-013-00
17 1 SWING COMPONENTS - See Page : 09-003-00, CX210 LC / CX210 LR
17 1 SWING COMPONENTS - See Page : 09-003B-00, CX210 NLC / CX230
18 1 SWING JOINT - See Page : 07-013-00
19 1 UNDERCARRIAGE - See Page : 05-003-00, CX210 LC / CX210 LR
19 1 UNDERCARRIAGE - See Page : 05-003B-00, CX210 NLC / CX230
20 1 UPPERSTRUCTURE CHASSIS - See Page : 09-005-00, CX210 LC / CX210 LR
20 1 UPPERSTRUCTURE CHASSIS - See Page : 09-005B-00, CX210 NLC / CX230
21 1 TOOTH TIPS - See Page : 09-101-00, CX210 LC / CX210 NLC / CX230
21 1 TOOTH TIPS - See Page : 09-101B-00, CX210 LR
22 1 BUCKET - See Pages : 09-087-00, 09-093F-00, 09-095-00, 09-099-00, CX210 LC / CX210 NLC /
CX230
22 1 BUCKET - See Pages : 09-093B-00, 09-093D-00, 09-097B-00, 09-097D-00, 09-099B-00, CX210 LR
23 1 BUCKET CONTROL - See Page : 09-085-00, CX210 LC / CX210 NLC / CX230
23 1 BUCKET CONTROL - See Page : 09-085B-00, CX210 LR
24 1 BUCKET CYLINDER - See Page : 09-083-00, CX210 LC / CX210 NLC / CX230
24 1 BUCKET CYLINDER - See Page : 09-083B-00, CX210 LR
25 1 DIPPER - See Pages : 09-075B-00 to 09-079-00, CX210 LC / CX210 NLC / CX230
25 1 DIPPER - See Page : 09-079B-00, CX210 LR
26 1 DIPPER CYLINDER - See Page : 09-081-00, CX210 LC / CX210 NLC / CX230
26 1 DIPPER CYLINDER - See Page : 09-081B-00, CX210 LR
27 1 MONOBLOCK BOOM - See Page : 09-071-00, CX210 LC / CX210 NLC / CX230
27 1 MONOBLOCK BOOM - See Page : 09-073F-00, CX210 LR
27 1 OFFSET BACKHOE BOOM - See Page : 09-073B-00
28 1 BOOM CYLINDER - See Page : 09-075-00
30 1 SWING MOTOR-DRIVE REDUCTION GEAR - See Pages : 06-007-00, 06-009-00
Ref Part Number Qty Description
CX210 CASE CRAWLER EXCAVATOR (EUROPE) (5/03- )
01-003-00(01) COMPONENT INDEX
31 1 FUEL TANK - See Page : 03-003-00, CX210 LC / CX210 LR
31 1 FUEL TANK - See Page : 03-003B-00, CX210 NLC / CX230
33 1 HYDRAULIC RESERVOIR - See Page : 08-003-00, CX210 LC / CX210 LR
33 1 HYDRAULIC RESERVOIR - See Page : 08-003B-00, CX210 NLC / CX230
35 1 VALVE SOLENOIDE - See Page : 08-045-00, CX210 LC / CX210 LR
35 1 VALVE SOLENOIDE - See Page : 08-049B-00, CX210 NLC / CX230
36 1 LAMP, WORK - See Page : 04-017-00
37 1 CONTROL VALVE - See Pages : 08-077-00, 08-077D-00, CX210 LC / CX210 NLC / CX230
37 1 CONTROL VALVE - See Pages : 08-077B-00, 08-077D-00, CX210 LR
38 1 HYDRAULIC PUMP - COUPLING - See Pages : 08-005-00, 08-005B-00
39 1 OIL FILTER - See Page : 08-013-00
40 1 TANK, EXPANSION - See Page : 02-009-00, CX210 LC / CX210 LR
40 1 TANK, EXPANSION - See Page : 02-009B-00, CX210 NLC / CX230
41 1 EXHAUST - See Page : 02-007-00
42 1 CAB - See Pages : 09-057-00 to 09-065-00
43 1 CAB DOOR - See Page : 09-067-00
44 1 SEAT - See Page : 09-033-00
45 1 HAND CONTROL VALVE - See Page : 09-023-00
46 1 MAT, FLOOR - OPERATORS COMPARTMENT - See Pages : 09-021-00, 09-033-00
47 1 HEATING CIRCUIT- See Pages : 09-043B-00, 09-043F-00, CX210 LC / CX210 LR
47 1 HEATING CIRCUIT- See Pages : 09-043D-00, 09-043F-00, CX210 NLC / CX230
47 1 AIR CONDITIONING - See Pages : 09-045-00, 09-053-00, CX210 LC / CX210 LR
47 1 AIR CONDITIONING - See Pages : 09-045-00, 09-053B-00, CX210 NLC / CX230
48 1 TRAVEL CONTROL - See Page : 09-025-00
49 1 OPTION CONTROL - See Pages : 09-027-00 to 09-027D-00
50 1 SIDE INSTRUMENT PANEL - See Page : 04-023-00
51 1 ELECTRICAL CIRCUIT - See Pages : 04-003-00, 04-009-00 to 04-013-00, CX210 LC / CX210 LR
51 1 ELECTRICAL CIRCUIT - See Pages : 04-007B-00 to 04-013-00, CX210 NLC / CX230
52 1 HYDRAULIC CIRCUIT - See Page : 07-003-00, CX210 LC / CX210 LR, Undercarriage
52 1 HYDRAULIC CIRCUIT - See Page : 07-003B-00, Undercarriage, CX210 NLC / CX230
52 1 HYDRAULIC CIRCUIT - See Pages : 08-007-00 to 08-019-00, 08-031-00 to 08-059H-00, CX210 LC /
CX210 LR, Upperstructure chassis
52 1 HYDRAULIC CIRCUIT - See Pages : 08-007B-00 to 08-019B-00, 08-031-00 to 08-059H-00,
Upperstructure chassis, CX210 NLC / CX230
52 1 HYDRAULIC CIRCUIT - See Pages : 08-021-00 to 08-029J-00, 08-059J-00 to 08-061H-00, 08-113-00
to 08-117-00, Attachments, CX210 LC / CX210 NLC / CX230
52 1 HYDRAULIC CIRCUIT - See Pages : 08-021-00 to 08-023-00, 08-025B-00 to 08-025F-00, 08-029L-00,
08-029N-00, CX210 LR, Attachments
53 1 LAMP, HEAD - See Page : 04-017-00
CX210 LC / CX210 LR Until DCH21B2067 / CX210 NLC Until DCH21N0387
CX210 CASE CRAWLER EXCAVATOR (EUROPE) (5/03- )
02-003-00(01) ENGINE MOUNTING - ENGINE
Ref Part Number Qty Description
CX210 LC / CX210 LR Until DCH21B2067 / CX210 NLC Until DCH21N0387
CX210 CASE CRAWLER EXCAVATOR (EUROPE) (5/03- )
02-003-00(01) ENGINE MOUNTING - ENGINE

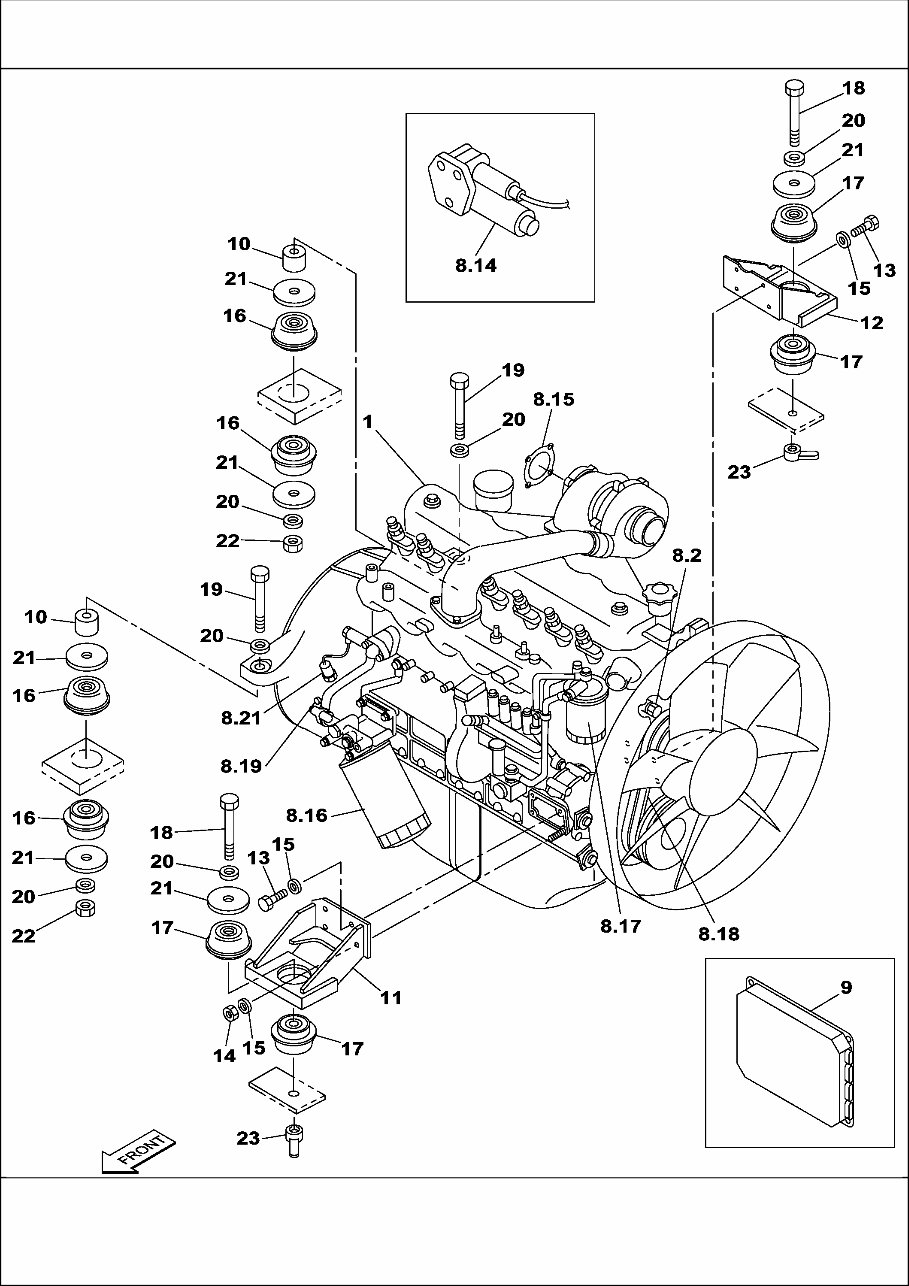

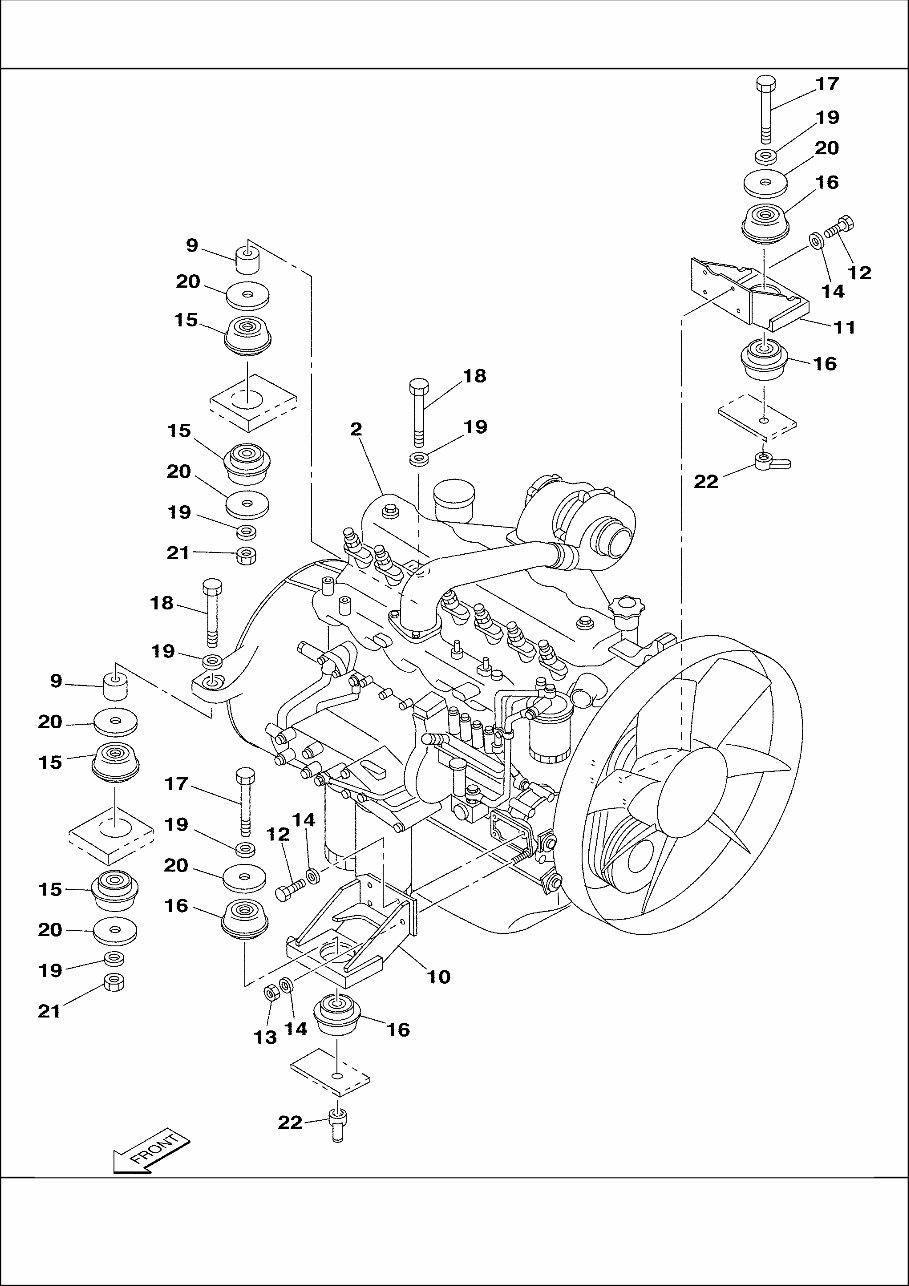

2 KRH1389 1 ENGINE ASSY, , CX210 LC DCH21B0101 And After / CX210 LR DCH21B0101 And After - See
Page(s) 02-015-00-01 To 02-045-00-01, 03-009-00-01 To 03-025-00-01, 04-027-00-01, 04-029-00-01,
04-037-00-01 To 04-043-00-01
2 KRH1473 1 MOTOR, , CX210 NLC Until DCH21N0387 - See Page(s) 02-015-00-01 To 02-045-00-01,
03-009-00-01 To 03-025-00-01, 04-027-00-01, 04-029-00-01, 04-037-00-01 To 04-043-00-01
9 167984A1 2 SPACER,
10 KRH1341 1 SUPPORT,
11 KHH0485 1 SUPPORT,
12 159657A1 7 BOLT, M10 x 20; 10.9
13 153604A1 1 NUT,
14 150409A1 8 WASHER, 10,5 x 21 x 3,2 mm
15 KRH1225 4 RUBBER BLOCK,
16 KRH1226 4 RUBBER BLOCK,
17 827-16140 2 BOLT, Hex, M16 x 140, 10.9, M16 x 140
18 828-16210 2 BOLT, Hex, M16 x 210, 10.9, M16 x 210
19 150814A1 6 WASHER,
20 KRH1256 6 PLATE,
21 829-1416 2 NUT, M16, Cl 10, M16; 10
22 KRH1251 2 NUT, M16
CX210 LC / CX210 LR DCH21B2068 And After / CX210 NLC DCH21N0388 And After / CX230 DC23N0001 And After
CX210 CASE CRAWLER EXCAVATOR (EUROPE) (5/03- )
02-003-00(02) ENGINE MOUNTING - ENGINE
Ref Part Number Qty Description
CX210 LC / CX210 LR DCH21B2068 And After / CX210 NLC DCH21N0388 And After / CX230 DC23N0001 And After
CX210 CASE CRAWLER EXCAVATOR (EUROPE) (5/03- )
02-003-00(02) ENGINE MOUNTING - ENGINE
2 KHR1642 1 Engine, Consists Of Ref. Numbers 8.14 To 9, Also Pages 02-015-00 01 To 02-045-00 01, 03-009-00
01 To 03-027-00 01, 04-027-00 01, 04-029-00 01, 04-037-00 01 To 04-045-00-01
8.14 REF 1 INSTRUCTION, Motor, See Page(s) 04-029-00 01 Ref. 1
8.15 REF 1 INSTRUCTION, Gasket, See Page(s) 02-007-00 01 Ref. 12
8.16 REF 1 INSTRUCTION, Oil Filter, See Page(s) 02-029-01 01 Ref.2
8.17 REF 1 INSTRUCTION, Fuel Filter, See Page(s) 03-011-00 01 Ref. 5
8.18 REF 1 INSTRUCTION, Belt, See Page(s) 02-015-00 01 Ref. 7
8.19 REF 1 INSTRUCTION, Sensor, Temperature , See Page(s) 04-027-00 01 Ref. 7
8.2 REF 1 INSTRUCTION, Sensor, Water Temperature, See Page(s) 04-027-00 01 Ref. 16
8.21 REF 1 INSTRUCTION, Switch, Oil Pressure, See Page(s) 04-027-00 01 Ref. 6
9 REF 1 INSTRUCTION, Controler, See Page(s) 04-027-00 01 Ref. 14
10 167984A1 2 SPACER,
11 KRH1341 1 SUPPORT,
12 KHH0485 1 SUPPORT,
13 159657A1 7 BOLT, M10 x 20; 10.9
14 153604A1 1 NUT,
15 150409A1 8 WASHER, 10,5 x 21 x 3,2 mm
16 KRH1225 4 RUBBER BLOCK,
17 KRH1226 4 RUBBER BLOCK,
18 827-16140 2 BOLT, Hex, M16 x 140, 10.9, M16 x 140
19 828-16210 2 BOLT, Hex, M16 x 210, 10.9, M16 x 210
20 150814A1 6 WASHER,
21 KRH1256 6 PLATE,
22 829-1416 2 NUT, M16, Cl 10, M16; 10
23 KRH1251 2 NUT, M16
CX210 LC DCH21B0101 To DCH21B0857 / CX210 LR DCH21B0101 And After
CX210 CASE CRAWLER EXCAVATOR (EUROPE) (5/03- )
02-005-00(01) AIR FILTRATION
Ref Part Number Qty Description
CX210 LC DCH21B0101 To DCH21B0857 / CX210 LR DCH21B0101 And After
CX210 CASE CRAWLER EXCAVATOR (EUROPE) (5/03- )
02-005-00(01) AIR FILTRATION
1 150902A1 3 CLAMP,
2 KRH1319 1 AIR CLEANER, , Consists Of Ref. Numbers 3 To 7
3 KRH1248 1 BODY,
4 KRH0652 1 FILTER, AIR,
5 KRH1320 1 FILTER, AIR,
6 KRH1249 1 COVER,
7 KRH1250 1 VALVE,
8 165437A1 1 CAP,
9 166052A1 4 BOLT,
10 KRH1237 1 ELBOW,
11 157779A1 1 HOSE,
12 KRH1236 1 SEAL,
13 165951A1 2 CLAMP,
14 KSH0050 1 INDICATOR,
15 KRH1294 1 HOSE, LARGE,
16 150545A1 1 CLAMP,
17 KRH1295 1 BRACKET,
18 152718A1 4 BOLT,
19 KRH1293 1 HOSE, LARGE,
