Thwaites 201 1 Tonne dumper parts manual
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
201 - HI-TIP
© Thwaites Limited 2001
T0421 - 201 Parts Book
Thwaites Ltd
Leamington Spa
Warwickshire
CV32 7NQ
Tel +44 (0)1926 422471
Fax +44 (0)1926 450458
www.thwaitesdumpers.co.uk
FROM VIN No.
DATED
VIN No.
ENGINE BUILD No.
PAYLOAD
SKIP
TRANSMISSION
TYPE
PREFIX No.
A3308
30th OCTOBER 2003
1 TONNE
HI-TIP
HYDROSTATIC
MACH 201
08
A __ __ __ __
3TNV76-KWA
201 - HI-TIP
MACHINE IDENTIFICATION

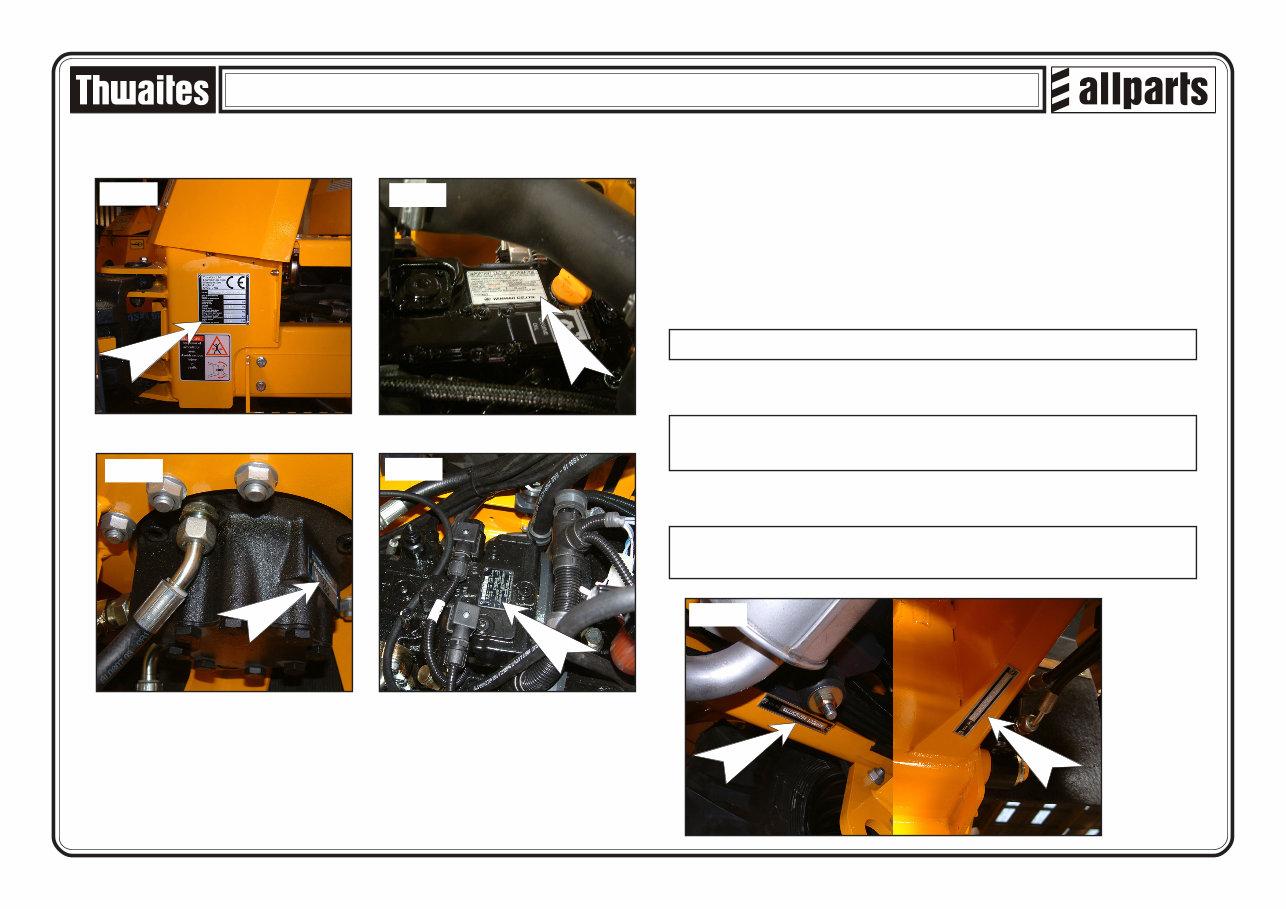

Serial Numbers
Note machine serial numbers. Always quote them in
communication with Thwaites dealer or Head Office.
Model Type (Fig 1.)
Fig. 2
Fig. 3
Vin Nº (Fig. 1)
Engine Serial Nº (Fig. 2)
Wheel Motor Serial Nº (Fig. 3) Front
Rear
Drive Pump Serial Nº (Fig. 4)
Chassis Serial Nº (Fig. 5) Front
Rear
Fig. 4
Fig. 1
Fig. 5
201 - HI-TIP

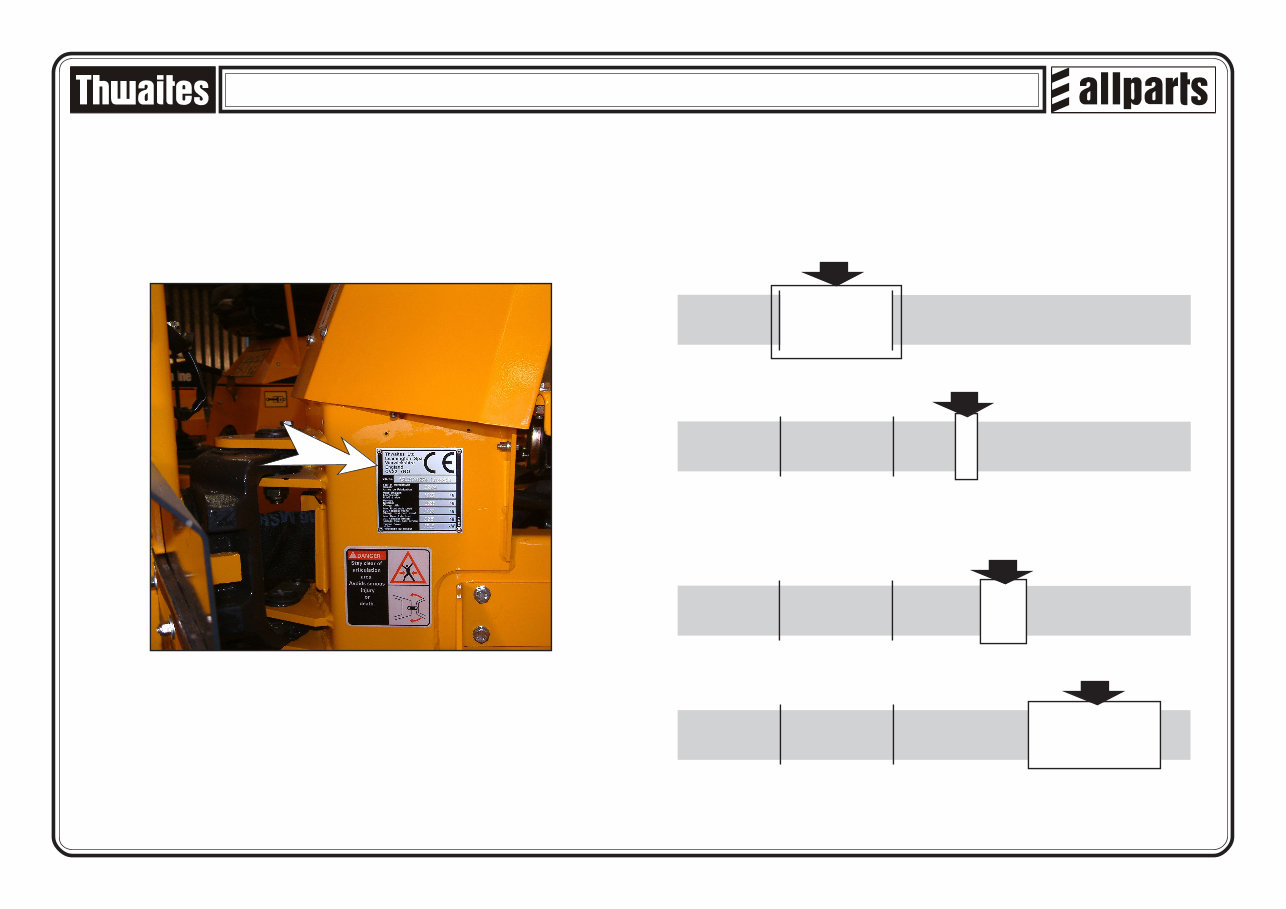

Thwaites have now adopted the international identification system
known as VEHICLE IDENTIFICATION NUMBER normally referred to
as VIN.
The VIN number incorporates a number of security features and
also the machine model and individual serial number.
Important note: Do not use this parts manual to order
replacement spares if the prefix level of
your machine is higher than the number
quoted at the front of this parts manual.
S L C M 2 0 1 Z Z 1 0 1 A 3 3 0 8 *
S L C M 2 0 1 Z Z 1 0 1 A 3 3 0 8 *
S L C M 2 0 1 Z Z 1 0 1 A 3 3 0 8 *
S L C M 2 0 1 Z Z 1 0 1 A 3 3 0 8 *
VEHICLE IDENTIFICATION NUMBER - (VIN)
When ordering replacement spares it is important that the model or
MACH number is used to identify the correct parts manual.
The year of manufacture:
The Machine Parts Manual issue level denoted by the two digit Prefix
Number:
The unique machine serial number:
Please ensure that these numbers are quoted in all correspondence
with your Thwaites distributor.
201 - HI-TIP

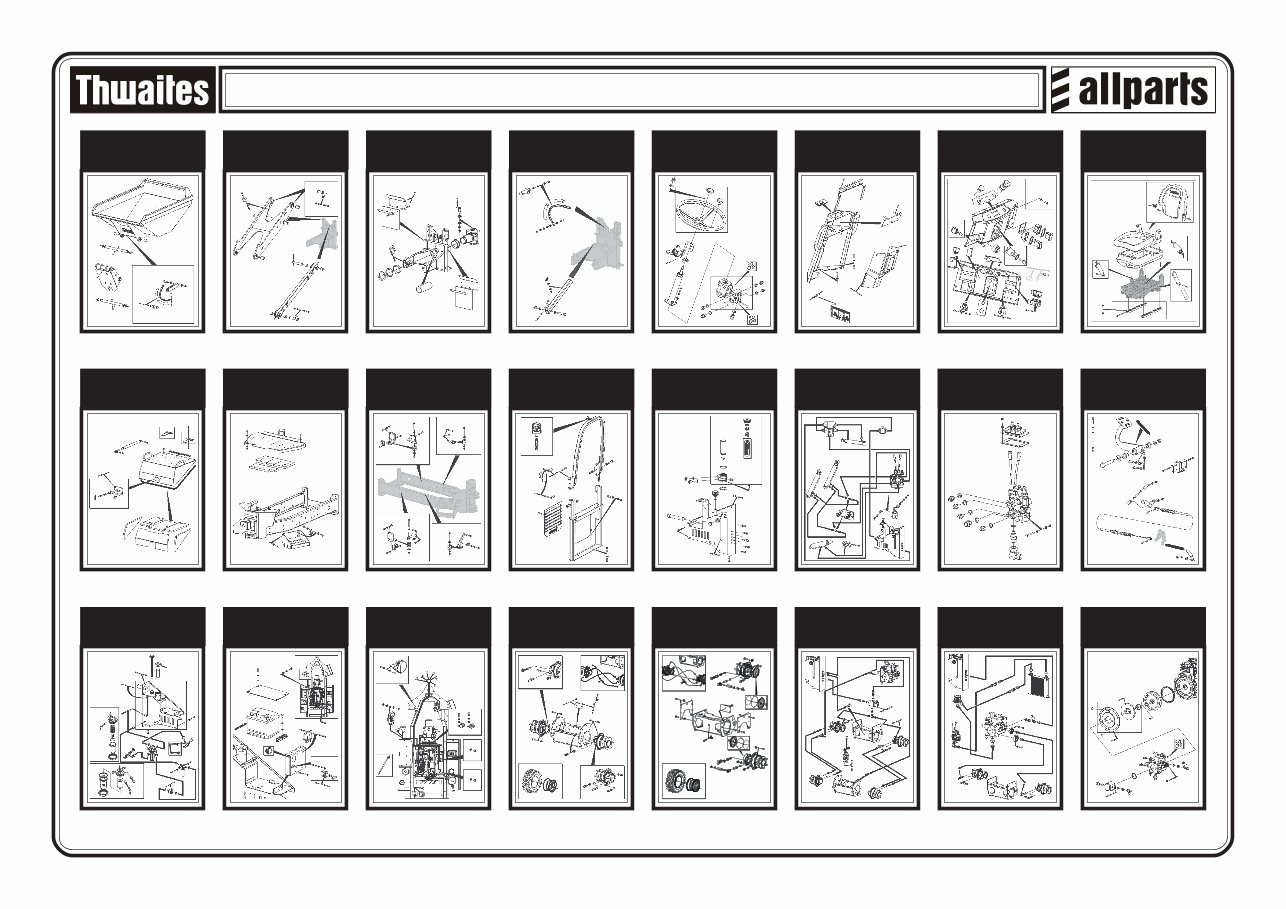

PAGE 1 PAGE 2 PAGE 3 PAGE 4 PAGE 5 PAGE 6 PAGE 7 PAGE 8
PAGE 11 PAGE 12 PAGE 13 PAGE 14 PAGE 15 PAGE 16
PAGE 17 & 18 PAGE 19 PAGE 20 PAGE 21 PAGE 22 PAGE 24 PAGE 25 & 26
SKIP & SUPPORT
BASE ASSY.
LIFT ARM &
TIE ROD ASSY
FRONT
CHASSIS
SKIP PROP &
LOCK PIN
STEERING
ASSEMBLY
ENGINE
MOUNTINGS
HYD. TANK
ASSEMBLY
BATTERY &
FIXINGS
HYD. CIRCUIT
CONTROLS
TIPPING VALVE
ASSEMBLY
ENGINE
HARNESS
FRONT MOTOR
& WHEEL ASSY.
REAR MOTOR
& WHEEL ASSY.
HYDROSTATIC
CIRCUIT
TRANS. DRIVE &
HYD. PUMP
REAR COVER &
ROPS FRAME
THROTTLE
ASSEMBLY
LEG GUARD
ASSEMBLY
DASH PANEL
ASSEMBLY
SEAT
ASSEMBLY
PAGE 9 PAGE 10
BONNET
ASSEMBLY
PAGE 23
HYD. CIRCUIT
WHEEL MOTORS
REAR CHASSIS
ASSEMBLY
FUEL TANK
ASSEMBLY
201 - HI-TIP

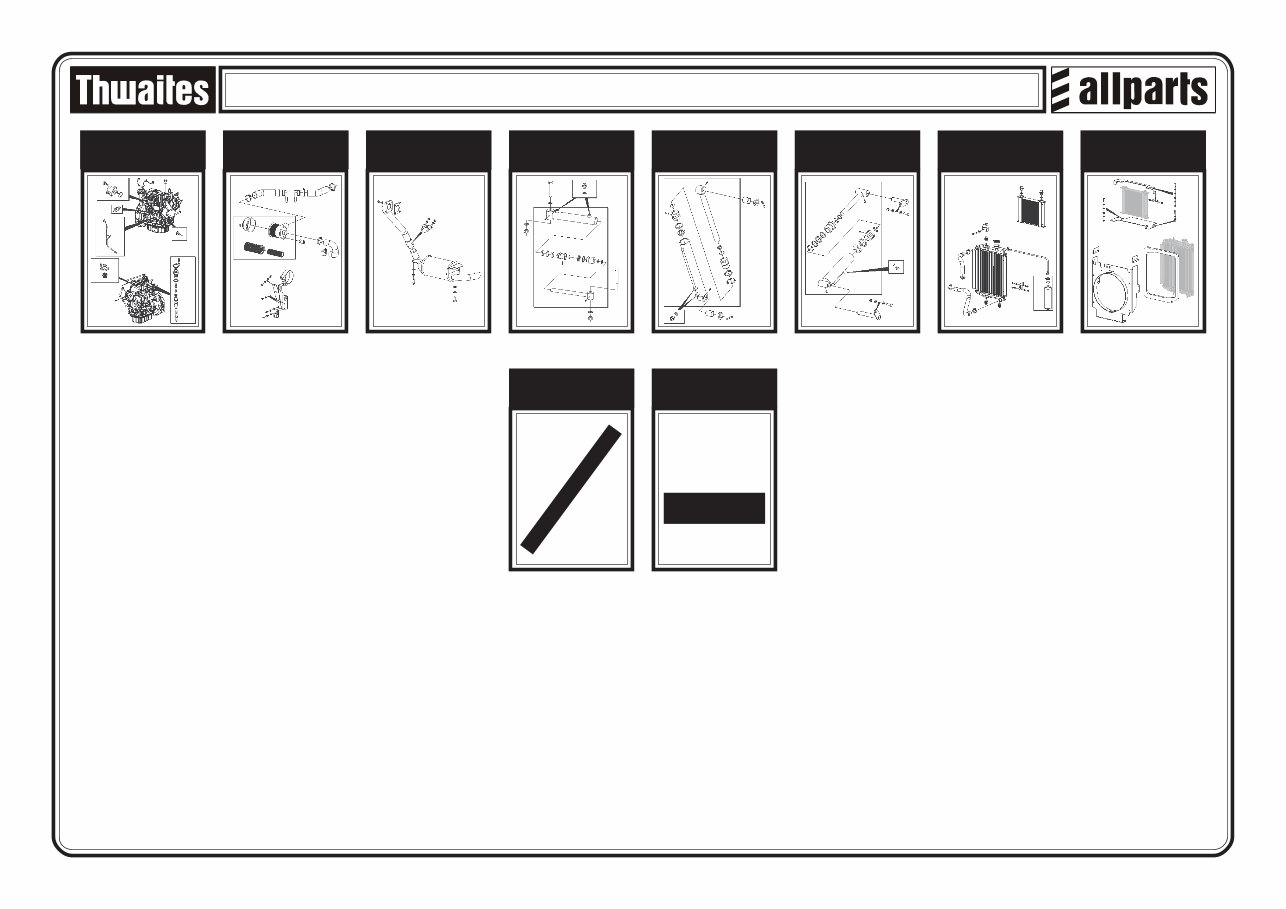

PAGE 31 PAGE 32 PAGE 34
PAGE 50 - 54
PAGE 33
COOLER & RAD.
FIXINGS
*
DENOTES
MODIFICATION
MODIFICATIONS
& ADDITIONS
ARM LIFT RAM
ASSEMBLY
TIPPING RAM
ASSEMBLY
RADIATOR &
OIL COOLER
PAGE 28 PAGE 29 PAGE 30
STEERING RAM
ASSEMBLY
PAGE 27
ENGINE
ACCESSORIES
AIR CLEANER
ASSEMBLY
EXHAUST
ASSEMBLY
PAGE 35-49
OPTIONAL
EXTRAS
OPTIONAL EXTRAS
201 - HI-TIP
PAGE 1

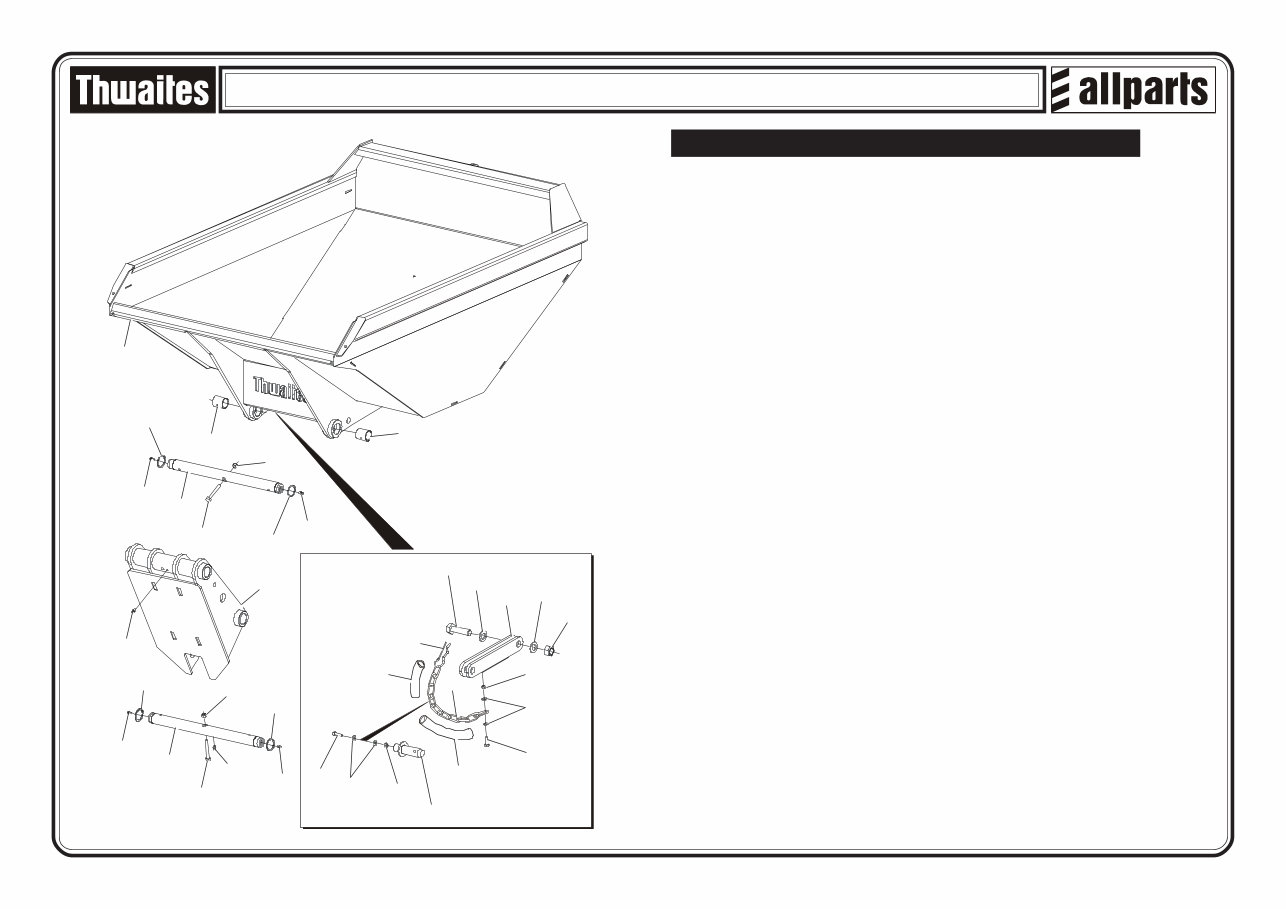

SKIP & SUPPORT BASE ASSEMBLY
Item Part No. Description Qty U/M
1 T100310 BOLT 1.0 EA
2 T17306 PLAIN WASHER 2.0 EA
3 T100102 LOCK BAR 1.0 EA
4 T13739 NUT 1.0 EA
5 T10431 NUT 2.0 EA
6 T13911 FLAT WASHER 4.0 EA
7 T16477 BOLT 2.0 EA
8 T18186 PIN RETAINING CHAIN 1.0 EA
9 T17508 CHAIN SLEEVE 2.0 EA
10 T10012 LINCH PIN 1.0 EA
11 T100103 LOCK PIN 1.0 EA
12 T16586 GREASE NIPPLE 6.0 EA
13 T14412 CIRCLIP 4.0 EA
14 T17157 BOLT 2.0 EA
15 T19007 PHILIDAS NUT 2.0 EA
16 T101523 SKIP PIVOT PIN 2.0 EA
17 T101477 SKIP SUPPORT BASE 1.0 EA
18 T101440 ARM BEARING 2.0 EA
19 T101398 SKIP 1.0 EA
Skip and Support Base
1
2
3
2
4
5
5
6
6
7
7
8
9
9
10
11
12
12
12
12
12
12
13
13
13
13
14
14
15
15
16
16
17
18
18
19
201 - HI-TIP
PAGE 2

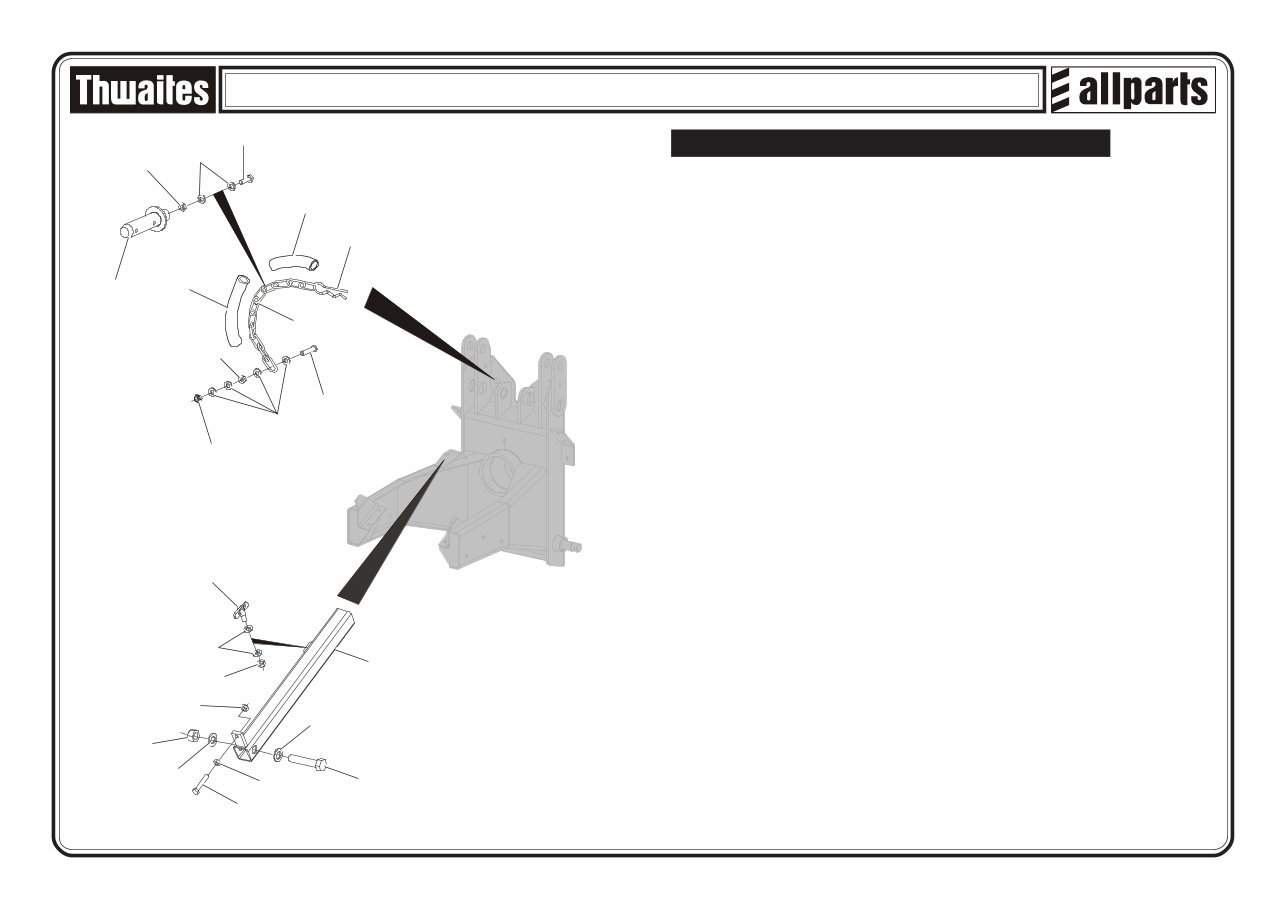

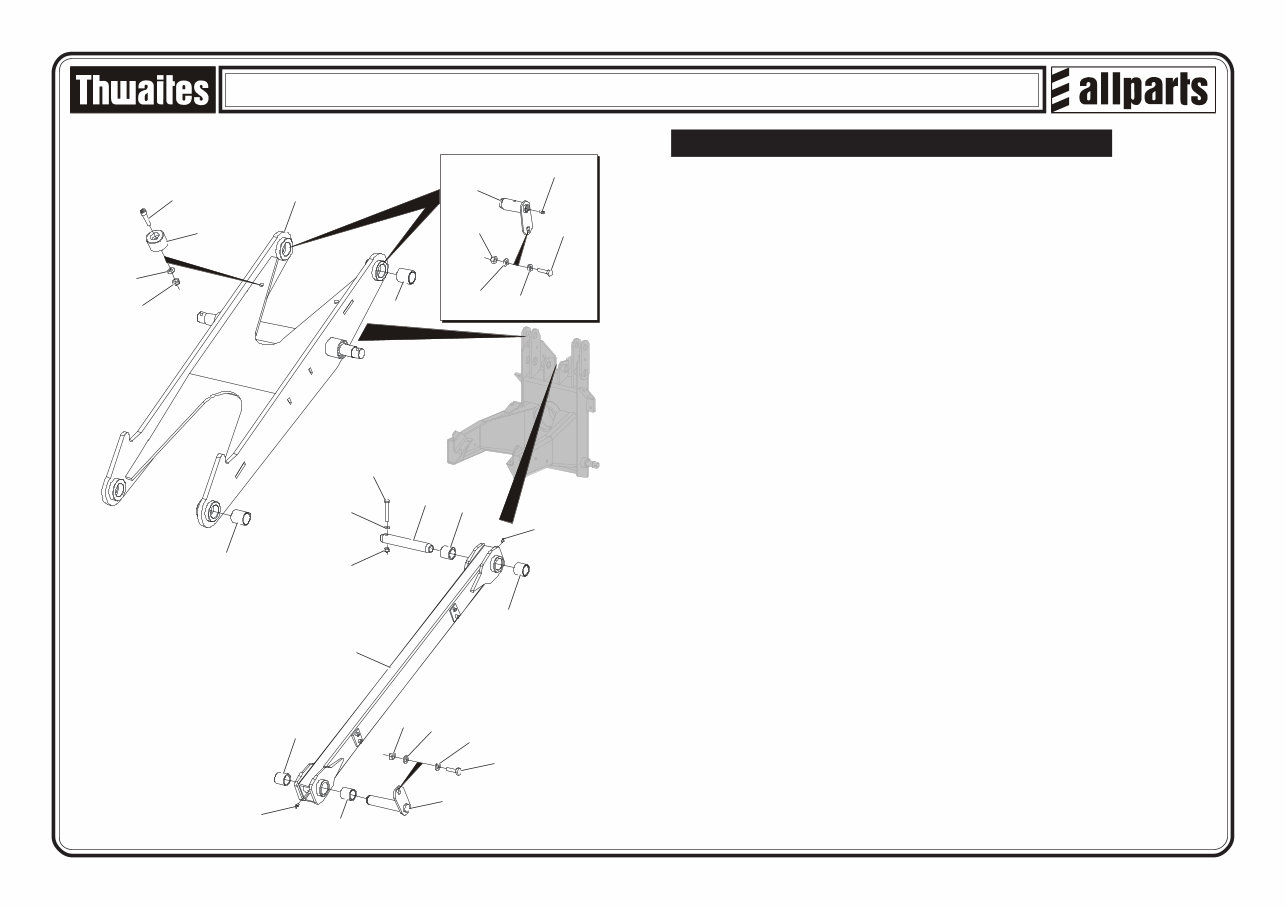

LIFT ARM & TIE ROD ASSEMBLY
Item Part No. Description Qty U/M
1 T19704 CAPHEAD SET SCREW 2.0 EA
2 T101733 SKIP STOP SPACER 2.0 EA
3 T15819 PLAIN WASHER 5.0 EA
4 T101724 NYLOC NUT 2.0 EA
5 T101478 LIFT ARM 1.0 EA
6 T101440 ARM BEARING 4.0 EA
7 T101525 ARM PIVOT PIN 2.0 EA
8 T16586 GREASE NIPPLE 4.0 EA
9 T16505 SET BOLT 3.0 EA
10 T10734 H/DUTY WASHER 3.0 EA
11 T13064 NUT 3.0 EA
12 T15326 BOLT 1.0 EA
13 T12973 PLAIN WASHER 1.0 EA
14 T19007 PHILIDAS NUT 1.0 EA
15 T101526 LINK PIVOT PIN 1.0 EA
16 T19455 BUSH 4.0 EA
17 T101524 LINK PIVOT PIN 1.0 EA
18 T101480 TIE ROD 1.0 EA
Lift Arm & Tie Rod Assembly
1
2
3
4
5
6
6
7
8
8
8
9
9
10
10
3
3
11
11
12
13
14
15
16
16
16
16
17
18
201 - HI-TIP
PAGE 3

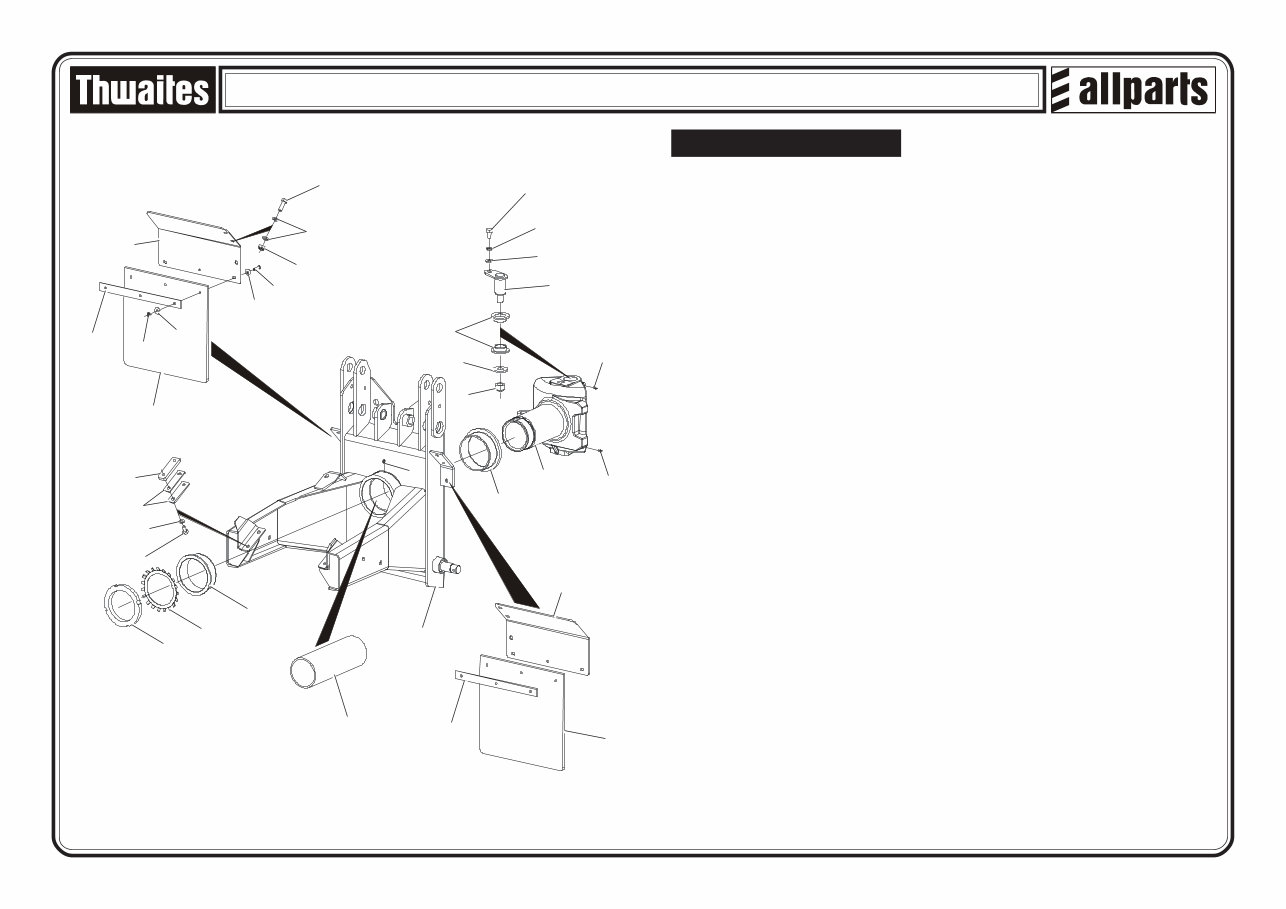

Front Chassis
FRONT CHASSIS
Item Part No. Description Qty U/M
1 T9157 BOLT 6.0 EA
2 T10734 H/DUTY WASHER 2.0 EA
3 T13362 SPRING WASHER 6.0 EA
4 T101528 CENTRE PIN 2.0 EA
5 T101439 BEARING 4.0 EA
6 T101543 SPACER 2.0 EA
7 T13739 NUT 2.0 EA
8 T16586 GREASE NIPPLE 3.0 EA
9 T101451 CENTRE PIVOT 1.0 EA
10 T101606 PIVOT BEARING REAR 1.0 EA
11 T101731 FRONT MUDGUARD MTG LH 1.0 EA
12 T18059 RUBBER MUDFLAP 2.0 EA
13 T18068 MUDFLAP RETAINER 2.0 EA
14 T101443 FRONT CHASSIS 1.0 EA
15 T101438 PIVOT BEARING 1.0 EA
16 T101457 LOCK WASHER 1.0 EA
17 T101456 BEARING LOCKNUT 1.0 EA
18 T101549 ARM STOP SHIM 4.0 EA
19 T101544 LIFT ARM STOP 2.0 EA
20 T101730 FRONT MUDGUARD MTG RH 1.0 EA
21 T16481 NYLOC NUT 6.0 EA
22 T15830 WASHER 12.0 EA
23 T17086 BUTTON HEAD SET SCREW 6.0 EA
24 T13064 NUT 6.0 EA
25 T15819 PLAIN WASHER 12.0 EA
26 T20618 SET SCREW 6.0 EA
27 T101897 HOSE PROTECTIVE SLEEVING 1.0 EA
1
2
3
4
5
6
7
8
8
9
10
11
12
13
12
13
14
15
16
17
1
3
18
19
20
21
22
22
23
24
25
26
8
27
201 - HI-TIP
PAGE 4
Skip Prop & Chassis Pin
SKIP PROP & CHASSIS LOCK PIN
Item Part No. Description Qty U/M
1 T101546 CHASSIS LOCK PIN 1.0 EA
2 T10431 NUT 2.0 EA
3 T13911 FLAT WASHER 6.0 EA
4 T16477 BOLT 1.0 EA
5 T17508 CHAIN SLEEVE 2.0 EA
6 T18186 PIN RETAINING CHAIN 1.0 EA
7 T10012 LINCH PIN 1.0 EA
8 T100700 DOME HEAD SET SCREW 1.0 EA
9 T16481 NYLOC NUT 1.0 EA
10 T100384 ANTI-LUCE FITTING 1.0 EA
11 T14748 PLAIN WASHER 2.0 EA
12 T14283 PHILIDAS NUT 1.0 EA
13 T100235 SKIP PROP ASSY 1.0 EA
14 T20329 BOLT 1.0 EA
15 T17306 PLAIN WASHER 2.0 EA
16 T12509 NUT 1.0 EA
17 T15392 BOLT 1.0 EA
18 T13739 NUT 1.0 EA
19 T13064 NUT 1.0 EA
1
2
2
3
3
4
5
5
6
7
8
9
10
11
12
13
14
15
15
16
17
18
19
201 - HI-TIP
PAGE 5

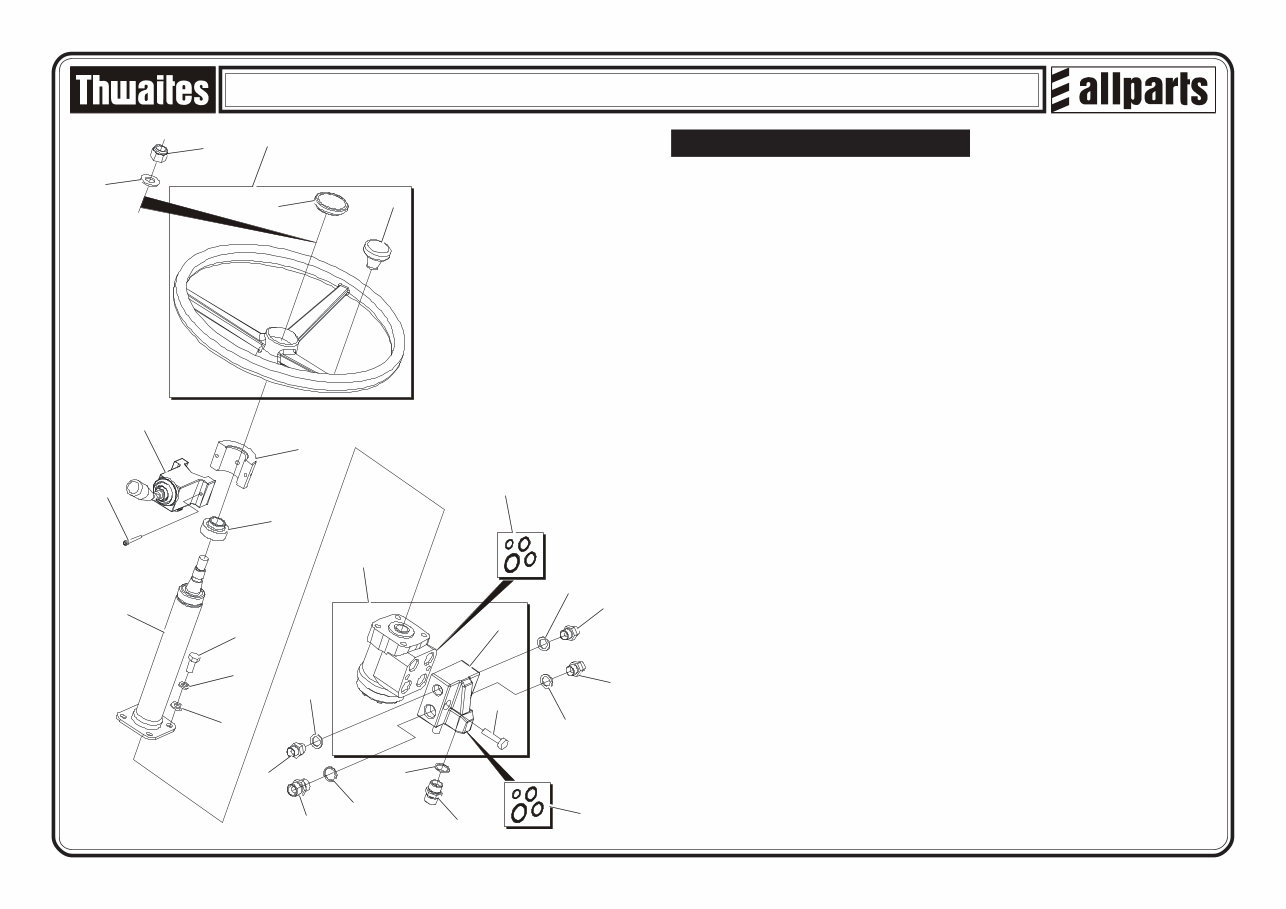

Steering Assembly
STEERING ASSEMBLY
Item Part No. Description Qty U/M
1 T6765 WASHER 1.0 EA
2 T100690 NYLOC NUT 1.0 EA
3 T100496 STEERING WHEEL & CAP 1.0 EA
4 T50541 CENTRE CAP 1.0 EA
5 T52520 SPINNER KNOB 1.0 EA
6 T19611 COLUMN SWITCH CLAMP 1.0 EA
7 T100019 COLUMN SWITCH 1.0 EA
8 T19583 CAPHEAD SETSCREW 2.0 EA
9 T52517 END CAP 1.0 EA
10 T100015 STEERING COLUMN 1.0 EA
11 T7466 SET SCREW 4.0 EA
12 T13362 SPRING WASHER 4.0 EA
13 T15819 PLAIN WASHER 4.0 EA
14 T51661 SEAL KIT 2.0 EA
15 T5637 BONDED SEAL 3.0 EA
16 T13606 ADAPTOR 3.0 EA
17 T101772 STEERING UNIT 1.0 EA
18 T18602 PRIORITY VALVE 1.0 EA
19 T52378 SCREWS 2.0 EA
20 T5596 HYDRAULIC SEAL 2.0 EA
21 T13936 ADAPTOR 2.0 EA
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
15
15
16
16
17
18
19
20
21
20
21
14
