84148930 12/08 1st Printing Operators Manual ™ 60SM, 72SM, 84SM

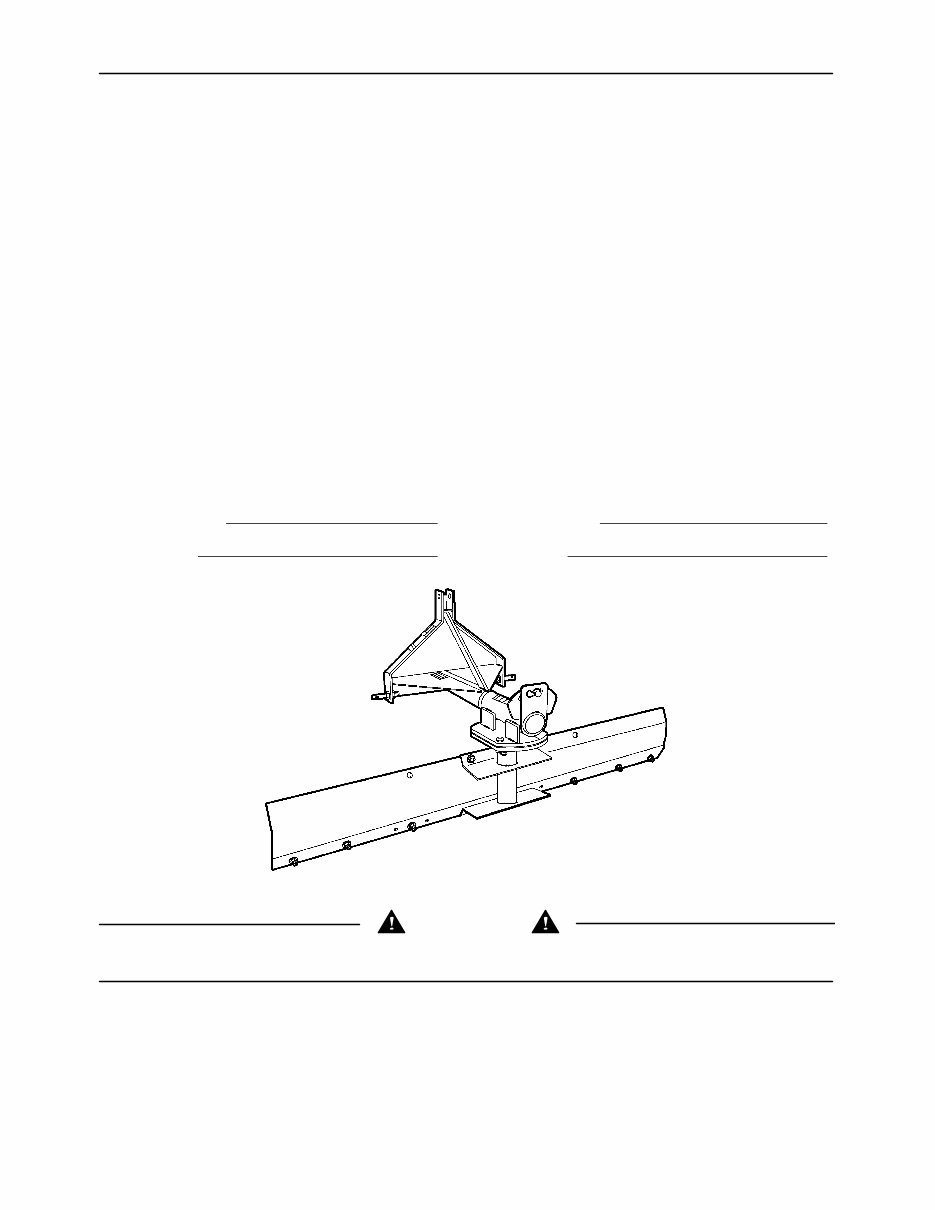

0-1 TO THE OWNER This manual contains information concerning the adjustment and maintenance of your Work EZ Model 60/72/84SM Rear Blade. You have purchased a dependable implement, but only by proper care and operation can you expect to receive the performance and long service built into the rear blade. Please have all operators read this manual carefully and keep it available for ready reference. The rear blades are designed for a wide range of applications. They may be used for smoothing, grading, scraping, leveling, clearing and landscaping, along with various other uses. Your dealer will instruct you in the general operation of your rear blade. (Refer to the Delivery Report at the back of this manual). Your dealers staff of factory-trained service technicians will be glad to answer any questions that may arise regarding the operation of your rear blade. Your dealer carries a complete line of genuine Work EZ service parts. These parts are manufactured and carefully inspected to insure high quality and accurate fitting of any necessary replacement parts. Be prepared to give your dealer the model and product identification number of the rear blade when ordering parts. Locate these numbers now and record them below. Refer to the General Information section of this manual for the location of the model and product identification numbers of your rear blade. Rear Blade Model, Tractor Model, Rear Blade PIN, and Tractor PIN. Rear Blade Model Tractor Model Rear Blade PIN Tractor PIN 86084806 WARNING This safety alert symbol indicates important safety messages in this manual. When you see this symbol, carefully read the message that follows and be alert to the possibility of personal injury or death. IMPROVEMENTS CNH America LLC is continually striving to improve its products. We reserve the right to make improvements or changes when it becomes practical and possible to do so, without incurring any obligation to make changes or additions to the equipment sold previously.

0-2 CONTENTS SAFETY 0-4 ........................................................ GENERAL INFORMATION 1-1 ....................................... OPERATION 2-1 .................................................... SPECIFICATIONS 3-1 ............................................... INDEX 3-3 ......................................................... PRE-DELIVERY REPORT 3-5 ........................................

0-3 PRECAUTIONARY STATEMENTS PERSONAL SAFETY Throughout this manual and on machine decals, you will find precautionary statements (DANGER, WARNING, and CAUTION) followed by specific instructions. These precautions are intended for the personal safety of you and those working with you. Please take the time to read them. DANGER This word DANGER indicates an immediate hazardous situation that, if not avoided, will result in death or serious injury. The color associated with Danger is RED. WARNING This word WARNING indicates a potentially hazardous situation that, if not avoided, could result in death or serious injury. The color associated with Warning is ORANGE. CAUTION This word CAUTION indicates a potentially hazardous situation that, if not avoided, may result in minor or moderate injury. It may also be used to alert against unsafe practices. The color associated with Caution is YELLOW. FAILURE TO FOLLOW THE DANGER, WARNING, AND CAUTION INSTRUCTIONS MAY RESULT IN DEATH OR SERIOUS BODILY INJURY. MACHINE SAFETY The precautionary statement (IMPORTANT) is followed by specific instructions. This statement is intended for machine safety. IMPORTANT: The word IMPORTANT is used to inform the reader of something he needs to know to prevent minor machine damage if a certain procedure is not followed. INFORMATION NOTE: Instructions used to identify and present supplementary information. ASAE S441.3 FEB04 ISO 11684 VERSION -- FEB 08

0-4 SAFETY PRECAUTIONARY STATEMENTS A careful operator is the best operator. Most accidents can be avoided by observing certain precautions. To help prevent accidents, read the following precautions before operating this equipment. Equipment should be operated only by those who are responsible and instructed to do so. Carefully review the procedures given in this manual with all operators. It is important that all operators be familiar with and follow safety precautions. OPERATION Know your controls and how to stop tractor and engine quickly in an emergency. READ THIS MANUAL AND THE ONE PROVIDED WITH YOUR TRACTOR. To avoid accident or injury, do not allow anyone to operate this equipment without proper instructions. Any person who operates this equipment must be instructed in and be capable of the safe operation of the unit, its attachments and all controls. Always wear relatively tight and belted clothing to avoid entanglement in moving parts. Wear sturdy, rough soled work shoes. Never operate tractor or implements in bare feet, sandals or sneakers. WARNING Do not let anyone operate the machine and blade without proper instruction. Operate blade only from operators seat. Avoid excessive rate of drop. Keep children and others away when you operate machine. Always lower the blade to the ground and stop engine before getting off the tractor. Look carefully behind tractor for children before you back up. WARNING DO NOT allow children to operate tractor. DANGER Do not tow anything with blade. Do not allow riders on blade at any time. Do not stand or ride in or on blade. WARNING When turning close to buildings or passing through narrow areas, be sure to allow sufficient clearance for the blade. Avoid catching the blade on stumps or other immovable objects. Use extra caution when backfilling deep holes or trenches. Make adjustments only when the blade is attached to the tractor and lowered to a position to allow safe adjustments. Keep all people and pets at a safe distance away when operating the blade. Always comply with all state and local lighting and marking requirements when operating on highways. Periodically tighten all hardware to ensure unit is in a safe condition. MAINTENANCE WARNING Travel slowly over rough terrain. Use care when ditching on slopes. Keep engine free of grass, leaves or excess grease to reduce fire hazard. Sand areas where paint is chipped and repaint to prevent rust. Store unit where it cannot fall or tip and injure someone. DANGER When removing, changing the angle, or revers- ing the blade, be sure that your feet are never under the blade. Never work on unit without safety blocks.

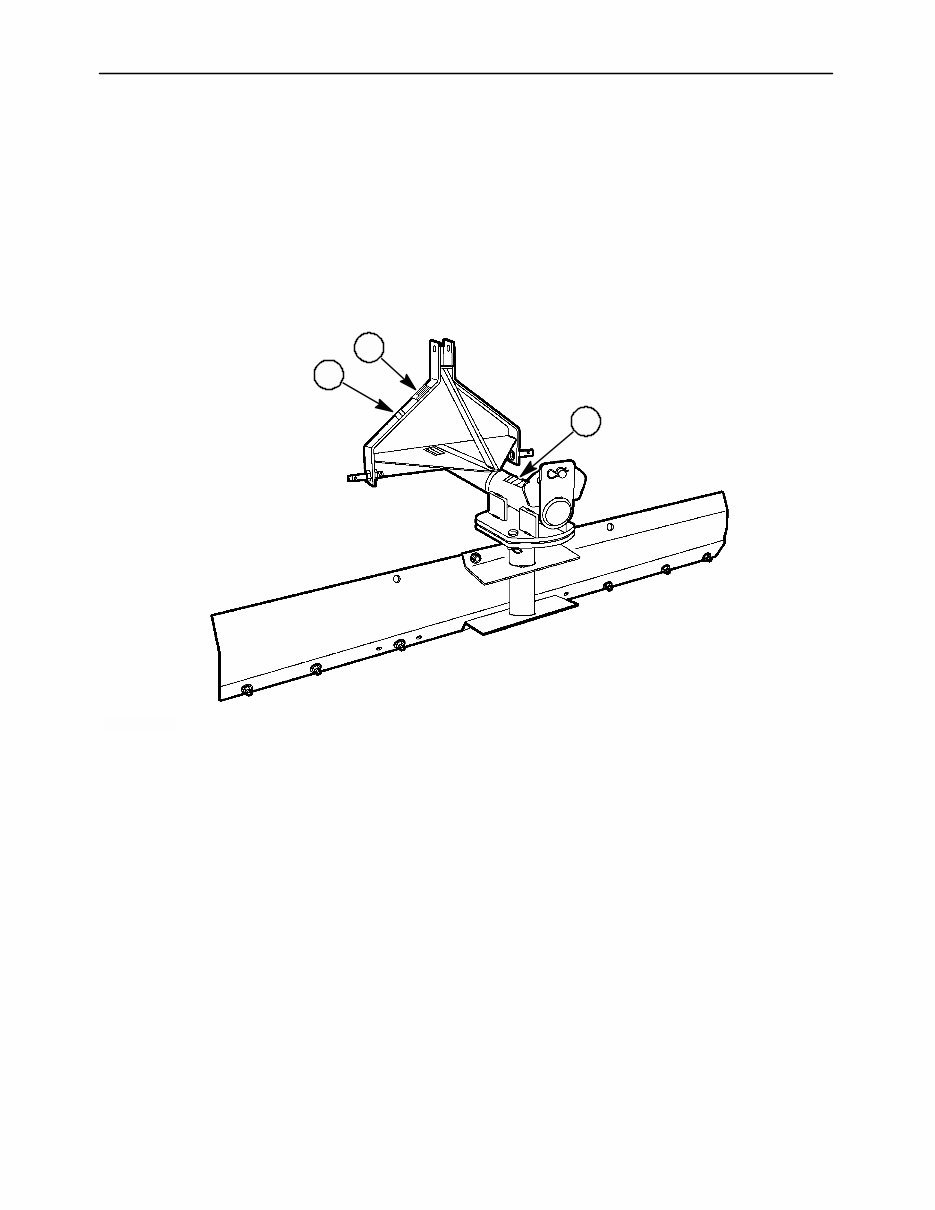

0-5 SAFETY DECALS The following safety decals have been placed on your rear blade in the areas indicated. They are intended for your personal safety and for those working with you. Please take this manual and walk around your rear blade to note the content and location of these warning signs. Review these signs and operating instructions detailed in this manual with your rear blade operators. Keep the decals legible. If they are not, obtain replacements from your authorized dealer. The decal replacement part numbers are listed with each decal. DECAL LOCATIONS 86084806 3 2 1

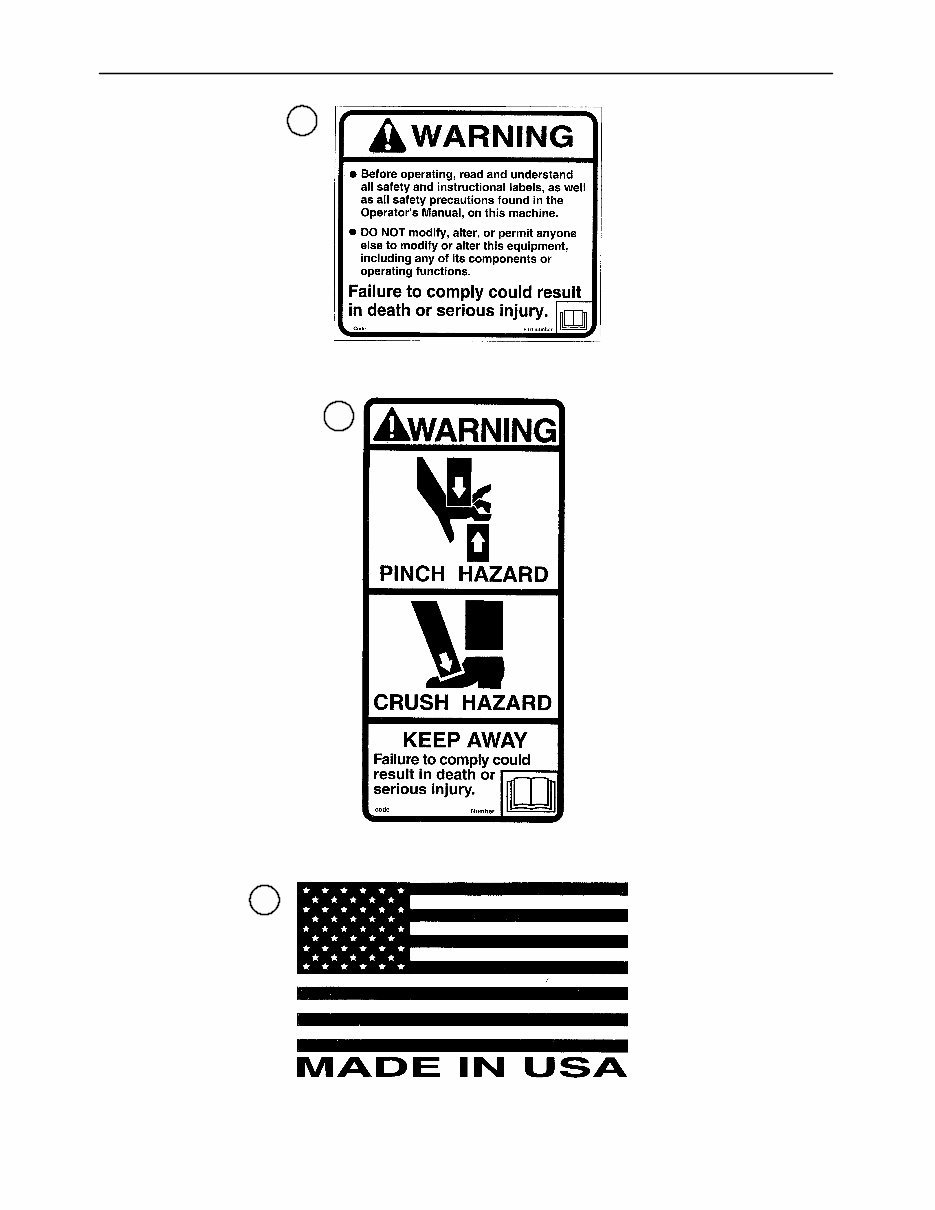

0-6 3 Part MAG490D1023 2 Part MAG490D4005 1 Part MAG490D4007

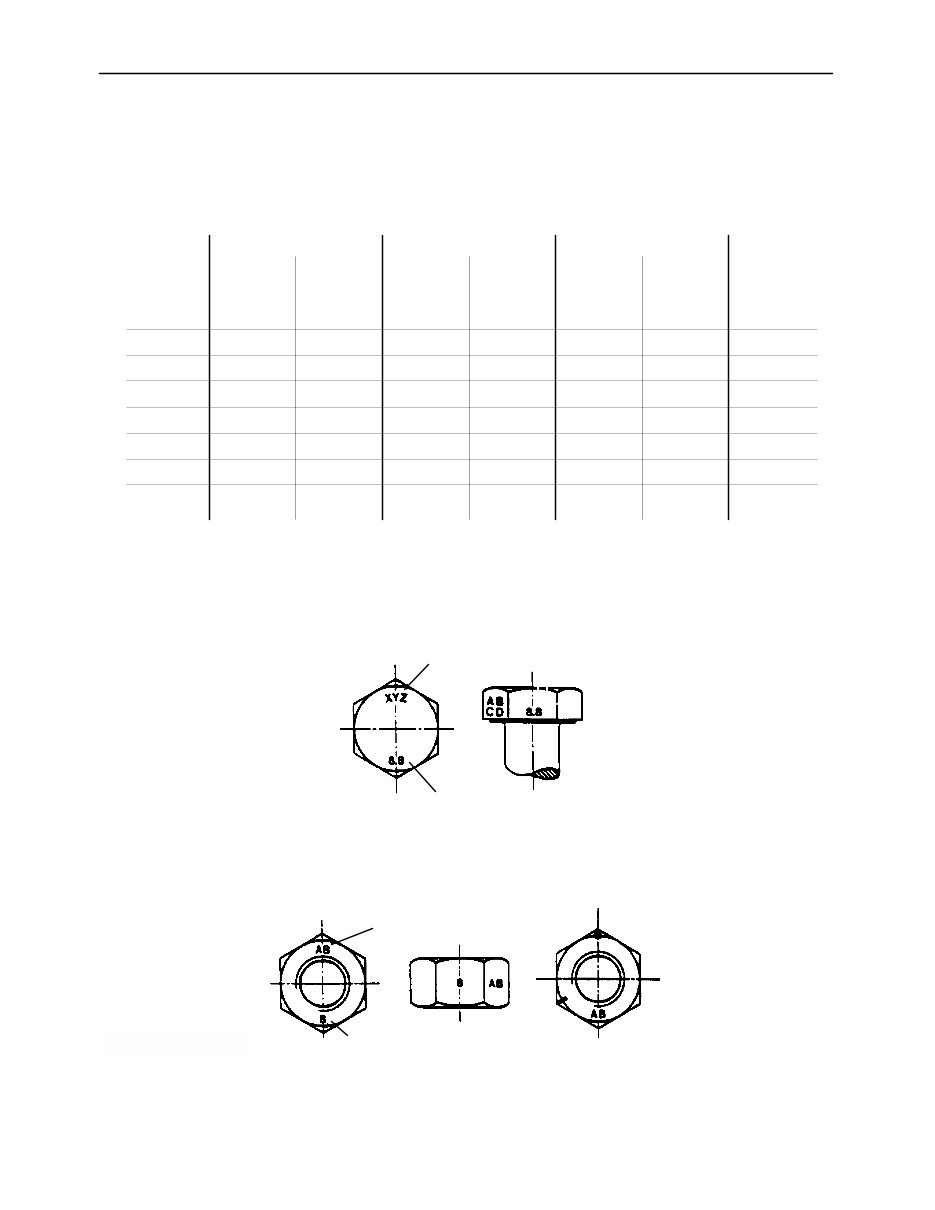

0-7 M4 1.7 (15)* 2.2 (19)* 2.6 (23)* 3.4 (30)* 3.7 (33)* 4.8 (42)* 2.3 (20)* M6 5.8 (51)* 7.6 (67)* 8.9 (79)* 12 (102)* 13 (115)* 17 (150)* 7.8 (69)* M8 14 (124)* 18 (159)* 22 (195)* 28 (248)* 31 (274)* 40 (354)* 19 (169)* M10 28 (21) 36 (27) 43 (32) 56 (41) 61 (45) 79 (58) 38 (28) M12 49 (36) 63 (46) 75 (55) 97 (72) 107 (79) 138 (102) 66 (49) M16 121 (89) 158 (117) 186 (137) 240 (177) 266 (196) 344 (254) 164 (121) M20 237 (175) 307 (226) 375 (277) 485 (358) 519 (383) 671 (495) 330 (243) M24 411 (303) 531 (392) 648 (478) 839 (619) 897 (662) 1160 (855) 572 (422) NOTE: Torque values shown with * are inch pounds. IDENTIFICATION HEX CAP SCREW AND CARRIAGE BOLTS CLASSES 5.6 AND UP MANUFACTURERS IDENTIFICATION PROPERTY CLASS HEX NUTS AND LOCKNUTS CLASSES 05 AND UP MANUFACTURERS IDENTIFICATION MINIMUM HARDWARE TIGHTENING TORQUES IN NEWTON-METERS (FOOT POUNDS) FOR NORMAL ASSEMBLY APPLICATIONS METRIC NON-FLANGED HARDWARE AND LOCKNUTS SIZE UNPLATED PLATED UNPLATED PLATED UNPLATED PLATED W/CL8.8 W/ZnCr W/ZnCr W/ZnCr BOLT CLASS 5.8 CLASS 8.8 CLASS 10.9 PROPERTY CLASS LOCKNUT CL.8 NOMINAL CLOCK MARKING 86529681 REV F 5.1

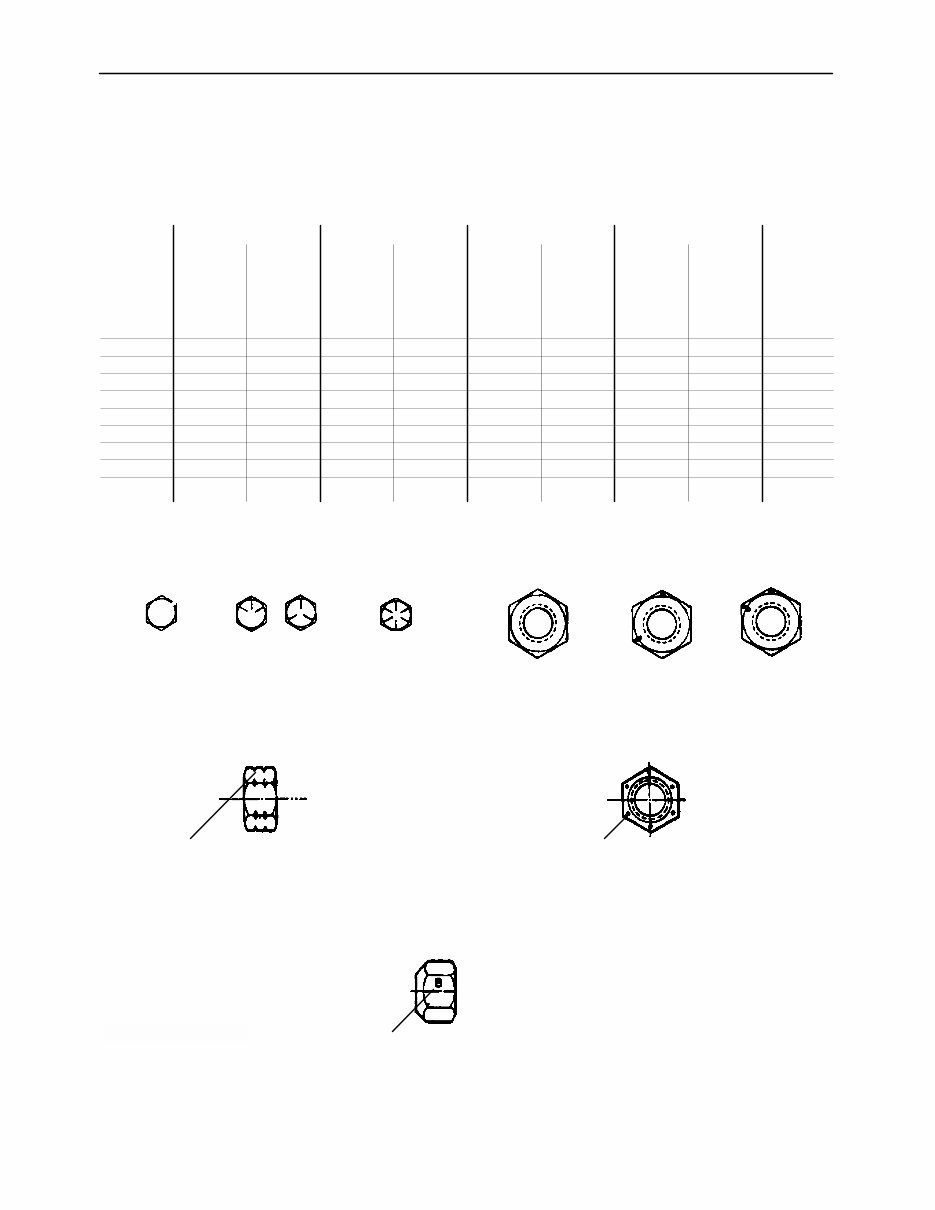

0-8 NOTE: Torque values shown with * are inch pounds. IDENTIFICATION CAP SCREWS AND CARRIAGE BOLTS LOCKNUTS GRADE A NO MARK 1 289 (213) 373 (275) 742 (547) 960 (708) 1048 (773) 1356 (1000) 654 (483) 924 (681) 1 7/8 193 (142) 248 (183) 495 (365) 641 (473) 698 (515) 904 (667) 437 (323) 617 (455) 7/8 3/4 198 (146) 256 (189) 306 (226) 397 (293) 432 (319) 560 (413) 271 (200) 383 (282) 3/4 5/8 112 (83) 145 (107) 174 (128) 224 (165) 244 (180) 316 (233) 153 (113) 215 (159) 5/8 9/16 81 (60) 104 (77) 125 (92) 163 (120) 176 (130) 229 (169) 111 (82) 156 (115) 9/16 1/2 57 (42) 73 (54) 87 (64) 113 (83) 123 (91) 159 (117) 76 (56) 108 (80) 1/2 7/16 37 (27) 47 (35) 57 (42) 73 (54) 80 (59) 104 (77) 50 (37) 71 (53) 7/16 3/8 23 (17) 30 (22) 35 (26) 46 (34) 50 (37) 65 (48) 31 (23) 44 (33) 3/8 5/16 13 (115)* 17 (149)* 20 (178)* 26 (229)* 28 (250)* 37 (324)* 17.5 (155)* 25 (220)* 5/16 1/4 6.2 (55)* 8.1 (72)* 9.7 (86)* 13 (112)* 14 (121)* 18 (157)* 8.5 (75)* 12.2 (109)* 1/4 MINIMUM HARDWARE TIGHTENING TORQUES IN NEWTON-METERS (FOOT POUNDS) FOR NORMAL ASSEMBLY APPLICATIONS INCH NON-FLANGED HARDWARE AND LOCKNUTS NOMINAL UNPLATED PLATED UNPLATED PLATED UNPLATED PLATED GR.B GR.C NOMINAL SIZE or W/ZnCr or W/ZnCr or W/ZnCr w/GR5 w/GR8 SIZE PLATED PLATED PLATED BOLT BOLT SILVER GOLD SILVER GOLD SILVER GOLD SAE GRADE 2 SAE GRADE 5 SAE GRADE 8 LOCKNUTS SAE GRADE 2 SAE GRADE 5 SAE GRADE 8 REGULAR NUTS SAE GRADE 5 HEX NUTS SAE GRADE 8 HEX NUTS GRADE IDENTIFICATION GRADE A NO NOTCHES GRADE B ONE CIRCUMFERENTIAL NOTCH GRADE C TWO CIRCUMFERENTIAL NOTCHES GRADE IDENTIFICATION GRADE A NO MARKS GRADE B THREE MARKS GRADE C SIX MARKS MARKS NEED NOT BE LOCATED GRADE IDENTIFICATION AT CORNERS GRADE B LETTER B GRADE C LETTER C 86529681 REV F 5.2

0-9 ECOLOGY AND THE ENVIRONMENT Soil, air, and water are vital factors of agriculture and life in general. When legislation does not yet rule the treatment of some of the substances which are required by advanced technology, common sense should govern the use and disposal of products of a chemical and petrochemical nature. The following are recommendations which may be of assistance: • Become acquainted with and ensure that you understand all applicable local and national legislation and regulations. • Where no legislation exists, obtain information from suppliers of oils, cleaning agents, etc., with regard to their effect on man and nature and how to safely store, use and dispose of these substances. Agricultural consultants will, in many cases, be able to help you as well. HELPFUL HINTS 1. Avoid filling tanks using cans or inappropriate pressurized fuel delivery systems which may cause considerable spillage. 2. In general, avoid skin contact with all fuels, oils, acids, solvents, etc. Most of them contain substances which may be harmful to your health. 3. Modern oils contain additives. Do not burn contaminated fuels and or waste oils in ordinary heating systems. 4. Avoid spillage when draining off used engine coolant mixtures. Do not mix drained brake fluids or fuels with lubricants. Store them safely until they can be disposed of in a proper way to comply with local legislation and available resources. 5. Modern coolant mixtures, i.e., antifreeze and other additives, should be replaced every two years. They should not be allowed to get into the soil but should be collected and disposed of safely. 6. Do not open the air-conditioning system yourself. It contains gases which should not be released into the atmosphere. Your dealer or air conditioning specialist has a special extractor for this purpose and will have to recharge the system properly. 7. Repair any leaks or defects in the engine cooling or hydraulic system immediately. 8. Do not increase the pressure in a pressurized circuit as this may lead to a component failure. 9. Protect hoses during welding as penetrating weld splatter may burn a hole or weaken them, allowing the loss of oils, coolant, etc.
