6D95L-1AC-E S/N 96999-UP
6D95L-1AC-E S/N 96999-UP
Reference: Page:|000000
Item Part Name
AA ENGINE
6D95L-1AC-E S/N 96999-UP
ENGINE
Reference: Page:030000
Item Part Name Qty
10 CYLINDER HEAD 1
20 CYLINDER HEAD (HIGH ALTITUDE SPEC.) 1
30 FRONT HANGER (FOR 15A ALTERNATOR) 1
40 FRONT HANGER (FOR 13A?25A ALTERNATOR) 1
50 REAR HANGER 1
60 HEAD COVER 1
70 HEAD COVER (HIGH ALTITUDE SPEC.) 1
80 AIR INTAKE (FOR 15A ALTERNATOR) 1
90 AIR INTAKE (FOR 15A ALTERNATOR) (AIR CONNECTOR ELBOW TYPE) 1
100 AIR INTAKE (WITH WATER SEPARATOR) 1
110 AIR INTAKE (HIGH ALTITUDE SPEC.) 1
120 AIR INTAKE (FOR 13A?25A ALTERNATOR) 1
130 AIR INTAKE (FOR 15A ALTERNATOR WITH WATER SEPARATOR) (NOISE SUPPRESSION SPEC.) 1
140 HEATER SWITCH 1
150 AIR CLEANER 1
160 AIR CLEANER (AIR CONNECTOR ELBOW TYPE) 1
170 AIR CLEANER (WITH EXTENSION) 1
180 AIR CLEANER (HIGH ALTITUDE SPEC.) 1
190 EXHAUST MANIFOLD 1
200 EXHAUST MANIFOLD (HIGH ALTITUDE SPEC.) 1
210 TURBOCHARGER OIL PIPING (HIGH ALTITUDE SPEC.) 1
220 TURBOCHARGER (HIGH ALTITUDE SPEC.) (INNER PARTS) 1
230 MUFFLER (NOISE SUPPRESSION SPEC.) 1
240 MUFFLER 1
250 MUFFLER (HIGH ALTITUDE SPEC.) 1
260 MUFFLER (CATALYZER TYPE)(#100413-) 1
270 MUFFLER (WITH SPARK ARRESTER)(#100413-) 1
280 MUFFLER (WITH SPARK ARRESTER CATALYZER TYPE)(#100413-) 1
290 MUFFLER PIPING (HIGH ALTITUDE SPEC.) 1
300 CYLINDER BLOCK 1
310 CYLINDER BLOCK (HIGH ALTITUDE SPEC.) 1
320 OIL PUMP 1
330 OIL PUMP (HIGH ALTITUDE SPEC.) 1
340 FRONT COVER (WITH COVER) 1
350 FRONT COVER 1
360 IDLER GEAR 1
370 OIL PAN AND SUCTION TUBE 1
380 OIL PAN AND SUCTION TUBE (HIGH ALTITUDE SPEC.) 1
390 OIL LEVEL GAUGE 1
400 OIL LEVEL GAUGE (HIGH ALTITUDE SPEC.) 1
410 FLYWHEEL HOUSING 1
420 FLYWHEEL 1
430 ENGINE MOUNTING 1
440 CRANKSHAFT 1
450 DAMPER 1
460 PISTON 1
470 CRANK PULLEY (NON HARDENING PULLEY) (FOR 15A?25A ALTERNATOR) 1
480 CRANK PULLEY (HARDENING PULLEY) (FOR 13A ALTERNATOR) 1
490 CRANK PULLEY (NON HARDENING PULLEY) (HIGH ALTITUDE SPEC.) 1
500 ROCKER ARM 1
510 CAMSHAFT AND TAPPET 1
520 FRONT POWER TAKE OFF 1
530 OIL FILTER 1
540 FUEL INJECTION PUMP MOUNTING(#100413-) 1
550 FUEL INJECTION PUMP MOUNTING (HIGH ALTITUDE SPEC.) 1
560 FUEL INJECTION PUMP MOUNTING (WITHOUT STOP MOTOR)(#100413-) 1
570 FUEL INJECTION PUMP (PUMP) (1/2) (INNER PARTS)(#100413-) 1
580 FUEL INJECTION PUMP (PUMP) (1/2) (HIGH ALTITUDE SPEC.) (INNER PARTS) 1
590 FUEL INJECTION PUMP (PUMP) (1/2) (WITHOUT STOP MOTOR) (INNER PARTS)(#100413-) 1
600 FUEL INJECTION PUMP (PUMP) (2/2) (INNER PARTS)(#100413-) 1
610 FUEL INJECTION PUMP (PUMP) (2/2) (HIGH ALTITUDE SPEC.) (INNER PARTS) 1
620 FUEL INJECTION PUMP (PUMP) (2/2) (WITHOUT STOP MOTOR) (INNER PARTS)(#100413-) 1
630 FUEL INJECTION PUMP (GOVERNOR) (1/2) (INNER PARTS)(#100413-) 1
640 FUEL INJECTION PUMP (GOVERNOR) (1/2) (HIGH ALTITUDE SPEC.) (INNER PARTS) 1
650 FUEL INJECTION PUMP (GOVERNOR) (1/2) (WITHOUT STOP MOTOR) (INNER PARTS)(#100413-) 1
660 FUEL INJECTION PUMP (GOVERNOR) (2/2) (INNER PARTS)(#100413-) 1
6D95L-1AC-E S/N 96999-UP
ENGINE
Reference: Page:030000
Item Part Name Qty
670 FUEL INJECTION PUMP (GOVERNOR) (2/2) (HIGH ALTITUDE SPEC.) (INNER PARTS) 1
680 FUEL INJECTION PUMP (GOVERNOR) (2/2) (WITHOUT STOP MOTOR) (INNER PARTS)(#100413-) 1
690 FUEL INJECTION PUMP (FEED PUMP) (INNER PARTS)(#100413-) 1
700 FUEL INJECTION PUMP (FEED PUMP) (HIGH ALTITUDE SPEC.) (INNER PARTS) 1
710 FUEL INJECTION PUMP (FEED PUMP) (WITHOUT STOP MOTOR) (INNER PARTS)(#100413-) 1
720 INJECTION PIPING 1
730 FUEL INJECTION PUMP LUBRICATOR 1
740 FUEL FILTER (FOR 15A ALTERNATOR) 1
750 FUEL FILTER (FOR 13A?25A ALTERNATOR) 1
760 FUEL FILTER (HIGH ALTITUDE SPEC.) 1
770 WATER SEPARATOR (FOR 13A?25A ALTERNATOR) 1
780 WATER SEPARATOR (FOR 15A ALTERNATOR) 1
790 INJECTION NOZZLE 1
800 HOLDER (INNER PARTS) 1
810 FUEL RETURN (FOR 15A ALTERNATOR) 1
820 FUEL RETURN (FOR 13A?25A ALTERNATOR) (FOR 15A ALTERNATOR WITH WATER SEPARATOR) 1
830 FUEL RETURN (FOR 13A?25A ALTERNATOR) (NOISE SUPPRESSION SPEC.) 1
840 FUEL RETURN (HIGH ALTITUDE SPEC.) 1
850 STOP MOTOR 1
860 WATER PUMP 1
870 WATER PUMP (FOR REVERSIBLE FAN) 1
880 WATER PUMP PULLEY (NON HARDENING PULLEY) (TWO-GROOVE PULLEY) (FOR 15A
ALTERNATOR)(#100413-)
1
890 WATER PUMP PULLEY (NON HARDENING PULLEY) (ONE-GROOVE PULLEY) (FOR 15A ALTERNATOR) 1
900 WATER PUMP PULLEY (NON HARDENING PULLEY) (FOR 13A?5A ALTERNATOR)(NOISE SUPPRESSION
SPEC.)
1
910 WATER PUMP PULLEY (HARDENING PULLEY) (FOR TRIMMING DOZER) (HIGH ALTITUDE
SPEC.)(#100413-)
1
920 WATER PUMP PULLEY (NON HARDENING PULLEY) (FOR 25A ALTERNATOR) 1
930 COOLING FAN 1
940 COOLING FAN (REVERSIBLE FAN TYPE) 1
950 TENSION PULLEY (FOR 25A ALTERNATOR) 1
960 TENSION PULLEY (FOR 13A ALTERNATOR) 1
970 ALTERNATOR MOUNTING (15A) (WITH NON HARDENING PULLEY) 1
980 ALTERNATOR MOUNTING (25A) (WITH NON HARDENING PULLEY) 1
990 ALTERNATOR MOUNTING (13A) (WITH HARDENING PULLEY) 1
1000 ALTERNATOR (15A) (WITH NON HARDENING PULLEY) (INNER PARTS) 1
1010 ALTERNATOR (25A) (WITH NON HARDENING PULLEY) (INNER PARTS) 1
1020 ALTERNATOR (13A) (WITH HARDENING PULLEY) (INNER PARTS) 1
1030 STARTING MOTOR MOUNTING (5.5KW) 1
1040 STARTING MOTOR (5.5KW) (INNER PARTS) 1
1050 SAFETY GUARD (FOR 25A ALTERNATOR) 1
1060 CYLINDER HEAD GASKET KIT 1
1070 CYLINDER HEAD GASKET KIT (HIGH ALTITUDE SPEC.) 1
1080 CYLINDER BLOCK GASKET KIT 1
1090 CYLINDER BLOCK GASKET KIT (HIGH ALTITUDE SPEC.) 1
1100 SPARE PARTS (FOR 15A ALTERNATOR) 1
1110 SPARE PARTS (FOR 25A ALTERNAOTR REVERSIBLE FAN TYPE) (FOR 13A ALTERNATOR)(#100413-) 1
1120 SPARE PARTS (FOR 25A ALTERNATOR)(#100413-) 1
1130 NAME PLATE AND CAUTION (FRENCH-ENGLISH) 1
1140 NAME PLATE AND CAUTION (INDONESIAN-ENGLISH) 1
1150 NAME PLATE AND CAUTION (SPANISH-ENGLISH) 1
1160 NAME PLATE AND CAUTION (GERMAN-ENGLISH) 1
1170 NAME PLATE AND CAUTION (ENGLISH) 1
1180 NAME PLATE AND CAUTION (ITALIAN-ENGLISH)(#100413-) 1
1190 NAME PLATE AND CAUTION (CHINESE)(#100413-) 1
6D95L-1AC-E S/N 96999-UP
@@38197@
Ref. A1010-A0A2 Page 030010
1
2
2
3
4
5
5
5
6
7
7
7
7
8
9
10
11
11
12
12
13
13
14
14
15
15
16
17
18
19
6D95L-1AC-E S/N 96999-UP

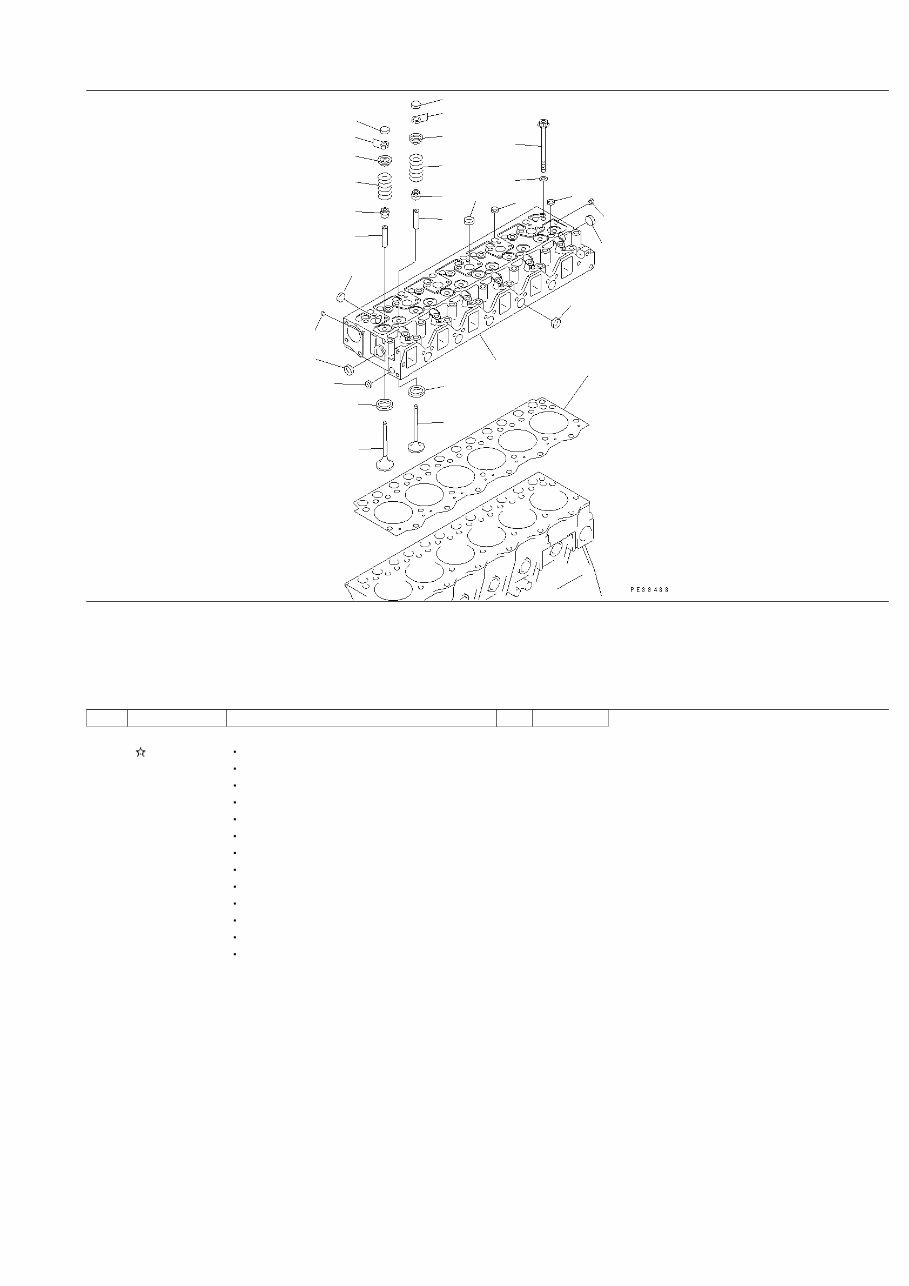

CYLINDER HEAD
Reference:A1010-A0A2 Page:030010
Item Part No. Part Name Qty Serial No.
6206-11-1400 CYLINDER HEAD ASS'Y,VALVE LESS 1 96999-
1 HEAD,CYLINDER 1 96999-
2 6204-19-1310 GUIDE,VALVE 12 96999-
3 6204-11-1440 SEAT,EXHAUST VALVE (STD) 6 96999-
6204-19-1440 SEAT, 0.25MM,EXHAUST VALVE (OS) 6 96999-
6204-18-1440 SEAT, 0.50MM,EXHAUST VALVE (OS) 6 96999-
4 07046-41008 PLUG 6 96999-
5 07046-41810 PLUG 13 96999-
6 07046-42216 PLUG 5 96999-
7 07046-42516 PLUG 15 96999-
8 02720-40104 PLUG 1 96999-
9 6207-41-4110 VALVE,INTAKE 6 96999-
10 6204-41-4210 VALVE,EXHAUST 6 96999-
11 6204-41-4510 SEAT,SPRING 12 96999-
12 6204-41-4520 COTTER 24 96999-
13 6204-41-4410 SPRING,VALVE 12 96999-
14 6204-41-4550 CAP,VALVE STEM 12 96999-
15 6204-41-4540 SEAL,VALVE (K1) 12 96999-
16 6206-11-1830 GASKET,HEAD (K1) 1 96999-
17 6204-13-1610 BOLT 25 96999-
18 01643-51232 WASHER 25 96999-
19 6207-11-1430 SEAT,INTAKE VALVE (SERVICE PARTS) (STD) 6 96999-
6207-19-1430 SEAT, 0.25MM,INTAKE VALVE (SERVICE PARTS) (OS) 6 96999-
6207-18-1430 SEAT, 0.50MM,INTAKE VALVE (SERVICE PARTS) (OS) 6 96999-
6D95L-1AC-E S/N 96999-UP
@@39488@
Ref. A1010-A0A6 Page 030020
1
2
2
3
4
5
6
6
6
7
8
8
8
8
9
10
11
12
12
13
13
14
14
15
15
16
16
17
18
19
6D95L-1AC-E S/N 96999-UP

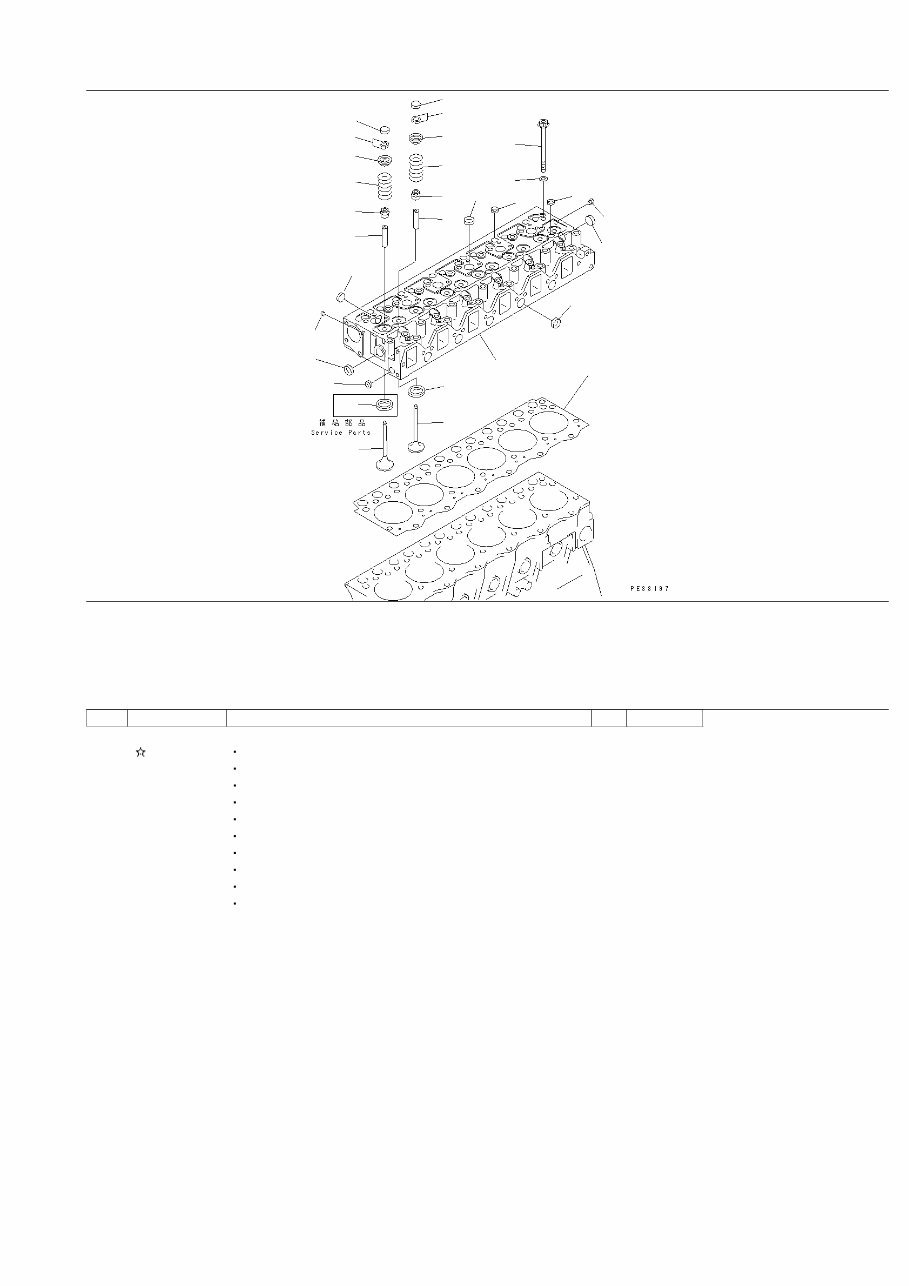

CYLINDER HEAD (HIGH ALTITUDE SPEC.)
Reference:A1010-A0A6 Page:030020
Item Part No. Part Name Qty Serial No.
6207-11-1100 CYLINDER HEAD ASS'Y,VALVE LESS 1 96999-
1 HEAD,CYLINDER 1 96999-
2 6204-19-1310 GUIDE,VALVE 12 96999-
3 6207-11-1430 SEAT,INTAKE VALVE (STD) 6 96999-
6207-19-1430 SEAT, 0.25MM,INTAKE VALVE (OS) 6 96999-
6207-18-1430 SEAT, 0.50MM,INTAKE VALVE (OS) 6 96999-
4 6207-11-1440 SEAT,EXHAUST VALVE (STD) 6 96999-
6207-19-1440 SEAT, 0.25MM,EXHAUST VALVE (OS) 6 96999-
6207-18-1440 SEAT, 0.50MM,EXHAUST VALVE (OS) 6 96999-
5 07046-41008 PLUG 6 96999-
6 07046-41810 PLUG 13 96999-
7 07046-42216 PLUG 5 96999-
8 07046-42516 PLUG 15 96999-
9 02720-40104 PLUG 1 96999-
10 6207-41-4110 VALVE,INTAKE 6 96999-
11 6204-41-4210 VALVE,EXHAUST 6 96999-
12 6204-41-4510 SEAT,SPRING 12 96999-
13 6204-41-4520 COTTER 24 96999-
14 6204-41-4410 SPRING,VALVE 12 96999-
15 6204-41-4550 CAP,VALVE STEM 12 96999-
16 6204-41-4540 SEAL,VALVE (K1) 12 96999-
17 6206-11-1830 GASKET,HEAD (K1) 1 96999-
18 6204-13-1610 BOLT 25 96999-
19 01643-51232 WASHER 25 96999-
