Komatsu D155A-6 Bulldozer Parts Catalogue Manual - SN 85001-85076
What's Included?
Lifetime Access
Fast Download Speeds
Offline Viewing
Access Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
SAA6D140E-5GR-W S/N 630001-UP
SAA6D140E-5GR-W S/N 630001-UP
Reference: Page:|000000
Item Part Name
AA ENGINE
SAA6D140E-5GR-W S/N 630001-UP
ENGINE
Reference: Page:030000
Item Part Name Qty
10 CYLINDER HEAD 1
20 CYLINDER HEAD COVER(#630001-630156) 1
30 CYLINDER HEAD COVER(#630157-) 1
40 HEAD COVER MOUNTING BOLT 1
50 AIR INTAKE MANIFOLD AND CONNECTION(#630014-) 1
60 EXHAUST MANIFOLD(#630003-) 1
70 TURBOCHARGER MOUNTING AND LUBRICATOR(#630014-) 1
80 TURBOCHARGER WATER PIPING(#630014-) 1
90 TURBOCHARGER (KTR110L-3H4EW) (INNER PARTS)(#630014-) 1
100 COVER FOR EGR LESS 1
110 HEAT SHIELD(#630006-) 1
120 MUFFLER(#630014-) 1
130 CYLINDER BLOCK 1
140 CYLINDER BLOCK ACCESSORY(#630006-) 1
150 FRONT COVER (WITH SLEEVE)(#630014-) 1
160 FRONT COVER ACCESSORY AND BREATHER(#630006-) 1
170 IDLER GEAR 1
180 CAMFOLLOWER COVER(#630006-630156) 1
190 CAMFOLLOWER COVER(#630157-) 1
200 OIL PAN AND SUCTION TUBE(#630014-) 1
210 FLYWHEEL HOUSING(#630006-) 1
220 FLYWHEEL 1
230 ENGINE FRONT SUPPORT(#630014-) 1
240 CRANKSHAFT 1
250 VIBRATION DAMPER(#630006-) 1
260 PISTON AND CONNECTING ROD 1
270 DAMPER FLANGE 1
280 CAMSHAFT 1
290 CAMFOLLOWER AND PUSH ROD 1
300 ROCKER ARM 1
310 FRONT POWER TAKE OFF (HARDENING PULLEY SPEC.) 1
320 FRONT POWER TAKE OFF (NON DRIVE SPEC.)(#630014-) 1
330 LUBRICATING OIL PUMP 1
340 OIL FILTER AND PIPING(#630014-630014) 1
350 OIL FILTER AND PIPING(#630015-) 1
360 OIL COOLER 1
370 FUEL SUPPLY PUMP AND COMMON RAIL MOUNTING 1
380 COMMON RAIL (INNER PARTS) 1
390 FUEL SUPPLY PUMP (PUMP) (INNER PARTS) 1
400 FUEL SUPPLY PUMP (FEED PUMP) (INNER PARTS) 1
410 FUEL SUPPLY PUMP BRACKET AND PIPING 1
420 FUEL SUPPLY TUBE JOINT SUPPORT 1
430 FUEL SUPPLY PUMP LUBRICATOR 1
440 FUEL FILTER (THREAD 1-5/8)(#630006-) 1
450 FUEL PRIMING PUMP(#630006-) 1
460 FUEL AIR VENT(#630006-) 1
470 FUEL FILTER CARTRIDGE (SERVICE ONLY)(#630001-630015) 1
480 FUEL FILTER CARTRIDGE (SERVICE ONLY)(#630016-) 1
490 PRE-FILTER (THREAD 1-1/4)(#630006-) 1
500 PRE-FILTER (SERVICE ONLY)(#630014-) 1
510 FUEL INJECTOR AND SPILL TUBE(#630003-) 1
520 FUEL RETURN(#630006-) 1
530 FUEL INJECTION CONTROLLER(#630014-) 1
540 FUEL INJECTION CONTROLLER (HARD WATER AREA ARRANGEMENT SPEC.)(#630302-) 1
550 THERMOSTAT AND AIR VENT(#630006-) 1
560 WATER PUMP(#630006-) 1
570 CORROSION RESISTOR(#630006-630314) 1
580 WATER LINE PLUG (WITHOUT CORROSION RESISTOR)(#630315-) 1
590 ALTERNATOR MOUNTING (75A)(#630006-630411) 1
600 ALTERNATOR MOUNTING (75A)(#630412-) 1
610 ALTERNATOR MOUNTING (60A)(#630412-) 1
620 ALTERNATOR MOUNTING (75A) (SANDY AND DUSTY SPEC.)(#630006-630411) 1
630 ALTERNATOR MOUNTING (75A) (SANDY AND DUSTY SPEC.)(#630412-) 1
640 ALTERNATOR MOUNTING (50A AND 60A) (SANDY AND DUSTY SPEC.)(#630014-630411) 1
650 ALTERNATOR MOUNTING (50A AND 60A) (SANDY AND DUSTY SPEC.)(#630412-) 1
660 ALTERNATOR (75A) (INNER PARTS)(#630006-630411) 1
SAA6D140E-5GR-W S/N 630001-UP
ENGINE
Reference: Page:030000
Item Part Name Qty
670 ALTERNATOR (75A) (INNER PARTS)(#630412-) 1
680 ALTERNATOR (60A) (INNER PARTS)(#630412-) 1
690 ALTERNATOR (75A) (SANDY AND DUSTY SPEC.) (INNER PARTS)(#630006-630411) 1
700 ALTERNATOR (75A) (SANDY AND DUSTY SPEC.) (INNER PARTS)(#630412-) 1
710 ALTERNATOR (50A AND 60A) (SANDY AND DUSTY SPEC.) (INNER PARTS)(#630014-630411) 1
720 ALTERNATOR (50A AND 60A) (SANDY AND DUSTY SPEC.) (INNER PARTS)(#630412-) 1
730 STARTING MOTOR MOUNTING (11KW)(#630006-) 1
740 STARTING MOTOR (11KW) (INNER PARTS)(#630006-) 1
750 ELECTRICAL WIRING (1/4)(#630006-) 1
760 ELECTRICAL WIRING (2/4)(#630006-) 1
770 ELECTRICAL WIRING (3/4)(#630006-) 1
780 ELECTRICAL WIRING (4/4)(#630006-) 1
790 NAME PLATE AND CAUTION (ENGLISH) 1
800 COOLING FAN?AIR CLEANER?WATER SEPARATOR AND TIMER(#630014-) 1
SAA6D140E-5GR-W S/N 630001-UP
00041077
Ref. A1010-A4D2 Page 030010
1
2
3
4
5
6
7
8
9
10
11
12 13
14
15
16
17 18
19
20
21
22
22
23
24
25
26
26

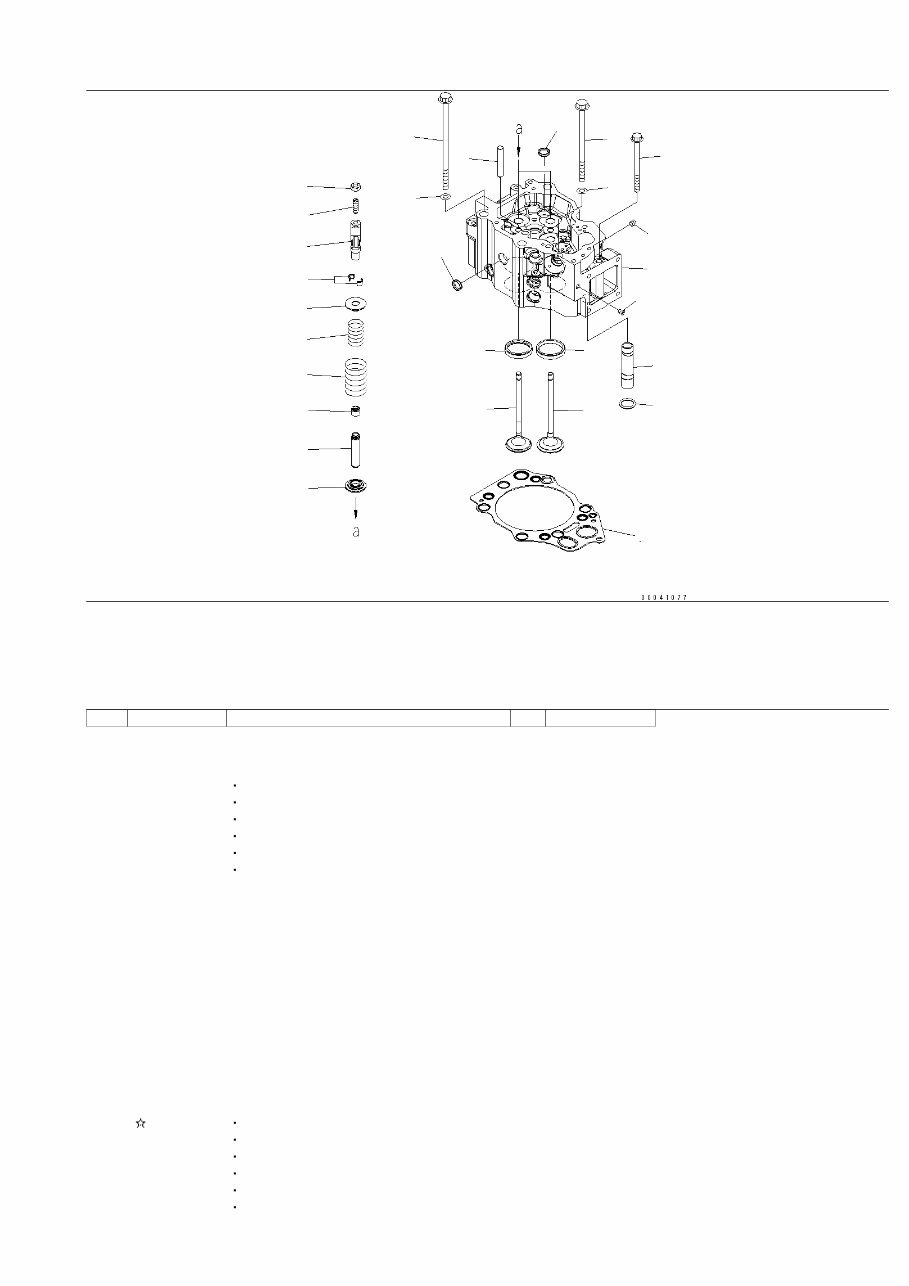

SAA6D140E-5GR-W S/N 630001-UP
CYLINDER HEAD
Reference:A1010-A4D2 Page:030010
Item Part No. Part Name Qty Serial No.
1 6217-11-1610 BOLT,HEAD 18 630001-
2 6217-11-1620 BOLT,HEAD 18 630001-
3 6210-17-1814 GASKET,HEAD 6 630001-
6210-11-1820 GROMMET,OIL 1 630001-
6210-11-1831 GROMMET,OIL 1 630001-
6210-11-1840 GROMMET,OIL 1 630001-
6210-11-1962 GROMMET,WATER 1 630001-
6210-11-1952 GROMMET,WATER 4 630001-
6210-11-1940 GROMMET,WATER 4 630001-
4 6210-41-5620 CROSSHEAD 12 630001-
5 6210-41-5641 SCREW 12 630001-
6 6162-43-5630 NUT,LOCK 12 630001-
7 6136-41-4520 COTTER,VALVE 48 630001-
8 6210-11-1140 GUIDE,CROSSHEAD 12 630001-
9 6210-41-4430 SPRING,OUTER 24 630001-
10 6210-41-4440 SPRING,INNER 24 630001-
11 6210-41-4510 SEAT,UPPER 24 630001-
12 6215-41-4212 VALVE,EXHAUST 12 630027-
6215-41-4220 VALVE,EXHAUST 12 630001-630026
13 6217-41-4110 VALVE,INTAKE 12 630001-
14 6217-41-4531 SEAT,LOWER 24 630001-
15 6217-41-4540 SEAL,SEAL 24 630001-
6261-11-1100 CYLINDER HEAD ASS'Y 6 630001-
16 HEAD,CYLINDER 1 630001-
17 6216-11-1330 INSERT,INTAKE VALVE (STD) 2 630001-
6216-19-1330 INSERT, 0.25MM,INTAKE VALVE (OS) 2 630001-
6216-18-1330 INSERT, 0.50MM,INTAKE VALVE (OS) 2 630001-
6216-17-1330 INSERT, 0.75MM,INTAKE VALVE (OS) 2 630001-
6216-16-1330 INSERT, 1.00MM,INTAKE VALVE (OS) 2 630001-
SAA6D140E-5GR-W S/N 630001-UP
CYLINDER HEAD
Reference:A1010-A4D2 Page:030010
Item Part No. Part Name Qty Serial No.
18 6217-11-1321 INSERT,EXHAUST VALVE (STD) 2 630001-
6217-19-1321 INSERT, 0.25MM,EXHAUST VALVE (OS) 2 630001-
6217-18-1321 INSERT, 0.50MM,EXHAUST VALVE (OS) 2 630001-
6217-17-1321 INSERT, 0.75MM,EXHAUST VALVE (OS) 2 630001-
6217-16-1321 INSERT, 1.00MM,EXHAUST VALVE (OS) 2 630001-
19 6217-16-1441 GUIDE,VALVE 4 630001-
20 6210-11-1150 PIPE 1 630001-
21 07000-73025 O-RING 1 630001-
22 6162-13-1150 PLUG,EXPANSION 13 630001-
23 07043-50108 PLUG 1 630001-
24 708-21-12541 PLUG 2 630001-
25 01438-01020 BOLT 6 630001-
26 01643-51645 WASHER 36 630001-
