D155A-1 S/N 5508-UP
D155A-1 S/N 5508-UP
Reference: Page:|000000
Item Part Name
S6D155-4B S/N 10016-UP
10 ENGINE RELATED PARTS AND ELECTRICAL SYSTEM
20 TORQUE CONVERTOR AND TRANSMISSION
30 STEERING SYSTEM AND FINAL DRIVE
40 TRACK
50 GUARD
60 WORK EQUIPMENT CONTROL SYSTEM
70 WORK EQUIPMENT
80 OPTIONAL PARTS
90 TOOL AND KIT
D155A-1 S/N 5508-UP
ENGINE RELATED PARTS AND ELECTRICAL SYSTEM
Reference: Page:030000
Item Part Name Qty
10 ENGINE RELATED PARTS 1
20 ENGINE RELATED PARTS (TBG SPEC.)(#15001-) 1
30 BYPASS FILTER PIPING (FOR ROCKET HEATER)(#29891-) 1
40 POWER TAKE OFF 1
50 COMPRESSION RELEASE LEVER(#5508-10262) 1
60 COMPRESSION RELEASE LEVER(#10263-15000) 1
70 COMPRESSION RELEASE LEVER(#15001-17000) 1
80 COMPRESSION RELEASE LEVER(#17001-25000) 1
90 FUEL CONTROL LEVER(#5508-10262) 1
100 FUEL CONTROL LEVER(#10263-15000) 1
110 FUEL CONTROL LEVER(#15001-17000) 1
120 FUEL CONTROL LEVER(#17001-25000) 1
130 FUEL CONTROL LEVER(#25001-) 1
140 FUEL CONTROL LINKAGE(#15001-17000) 1
150 FUEL CONTROL LINKAGE(#17001-) 1
160 FUEL CONTROL LINKAGE (TBG SPEC.)(#17001-) 1
170 DECELERATOR PEDAL(#5508-10262) 1
180 DECELERATOR PEDAL(#10263-15000) 1
190 DECELERATOR PEDAL(#15001-17000) 1
200 DECELERATOR PEDAL(#17001-) 1
210 RADIATOR(#5508-15000) 1
220 RADIATOR(#15001-21375) 1
230 RADIATOR(#21376-) 1
240 RADIATOR PIPING(#21376-) 1
250 RADIATOR FAN GUARD AND NET(#5508-15000) 1
260 RADIATOR FAN GUARD AND NET(#15001-21375) 1
270 RADIATOR FAN GUARD AND NET(#21376-) 1
280 RADIATOR FAN GUARD AND NET (FOR SAUDI ARABIA)(#25001-) 1
290 RADIATER FAN GUARD AND NET (FOR ROCKET HEATER)(#29891-) 1
300 RADIATOR MOUNTING(#21376-) 1
310 OIL COOLER(#5508-15000) 1
320 OIL COOLER(#15001-) 1
330 OIL COOLER (FOR ROCKET HEATER)(#29891-) 1
340 FUEL TANK(#5508-8650) 1
350 FUEL TANK(#8651-15000) 1
360 FUEL TANK(#15001-) 1
370 FUEL TANK (TBG SPEC.)(#15001-) 1
380 FUEL TANK (FOR IRAQ)(#28750-) 1
390 FUEL PIPING(#5508-8650) 1
400 FUEL PIPING(#8651-15000) 1
410 FUEL PIPING(#15001-30427) 1
420 FUEL PIPING(#30428-) 1
430 FUEL PIPING (FOR ROCKET HEATER)(#29891-) 1
440 ROCKET HEATER(#29891-) 1
450 BATTERY AND RELAY SWITCH(#5508-8650) 1
460 BATTERY AND RELAY SWITCH(#8651-15000) 1
470 BATTERY(#15001-17000) 1
480 BATTERY(#17001-25000) 1
490 BATTERY AND RELAY SWITCH(#25001-) 1
500 BATTERY (TBG SPEC.)(#17001-25000) 1
510 BATTERY AND RELAY SWITCH (TBG SPEC.)(#25001-) 1
520 BATTERY AND RELAY SWITCH (FRENCH NOISE SUPPRESSION SPEC.)(#25001-) 1
530 BATTERY AND RELAY SWITCH (FOR IRAQ)(#28750-) 1
540 INSTRUMENT PANEL(#5508-10262) 1
550 INSTRUMENT PANEL(#10263-15000) 1
560 INSTRUMENT PANEL(#15001-17000) 1
570 INSTRUMENT PANEL(#17001-25000) 1
580 INSTRUMENT PANEL(#25001-) 1
590 INSTRUMENT PANEL (TBG SPEC.)(#17001-25000) 1
600 INSTRUMENT PANEL (TBG SPEC.)(#25001-) 1
610 INSTRUMENT PANEL (FRENCH NOISE SUPPRESSION SPEC.)(#25001-) 1
620 INSTRUMENT PANEL (FOR COLD WEATHER) (AFTER COOLER MOUNTING)(#17001-25000) 1
630 ELECTRICAL SYSTEM (1/3)(#5508-10262) 1
640 ELECTRICAL SYSTEM (1/3)(#10263-15000) 1
650 ELECTRICAL SYSTEM (1/3)(#15001-17000) 1
660 ELECTRICAL SYSTEM (1/3)(#17001-25000) 1
D155A-1 S/N 5508-UP
ENGINE RELATED PARTS AND ELECTRICAL SYSTEM
Reference: Page:030000
Item Part Name Qty
670 ELECTRICAL SYSTEM (1/3)(#25001-) 1
680 ELECTRICAL SYSTEM (2/3)(#5508-10262) 1
690 ELECTRICAL SYSTEM (2/3)(#10263-15000) 1
700 ELECTRICAL SYSTEM (2/3)(#15001-17000) 1
710 ELECTRICAL SYSTEM (2/3)(#17001-25000) 1
720 ELECTRICAL SYSTEM (2/3)(#25001-) 1
730 ELECTRICAL SYSTEM (3/3)(#5508-10262) 1
740 ELECTRICAL SYSTEM (3/3)(#10263-15000) 1
750 ELECTRICAL SYSTEM (3/3)(#15001-17000) 1
760 ELECTRICAL SYSTEM (3/3)(#17001-) 1
770 ELECTRICAL SYSTEM (1/2) (FOR COLD WEATHER)(AFTER COOLER MOUNTING)(#17001-25000) 1
780 ELECTRICAL SYSTEM (2/2) (FOR COLD WEATHER)(AFTER COOLER MOUNTING)(#10263-15000) 1
790 ELECTRICAL SYSTEM (2/2) (FOR COLD WEATHER)(AFTER COOLER MOUNTING)(#15001-17000) 1
800 ELECTRICAL SYSTEM (2/2) (FOR COLD WEATHER)(AFTER COOLER MOUNTONG)(#17001-25000) 1
810 ELECTRICAL SYSTEM (1/3) (FOR ROCKET HEATER)(#29891-) 1
820 ELECTRICAL SYSTEM (2/3) (FOR ROCKET HEATER)(#29891-) 1
830 ELECTRICAL SYSTEM (3/3) (FOR ROCKET HEATER)(#29891-) 1
D155A-1 S/N 5508-UP
@@Q04443

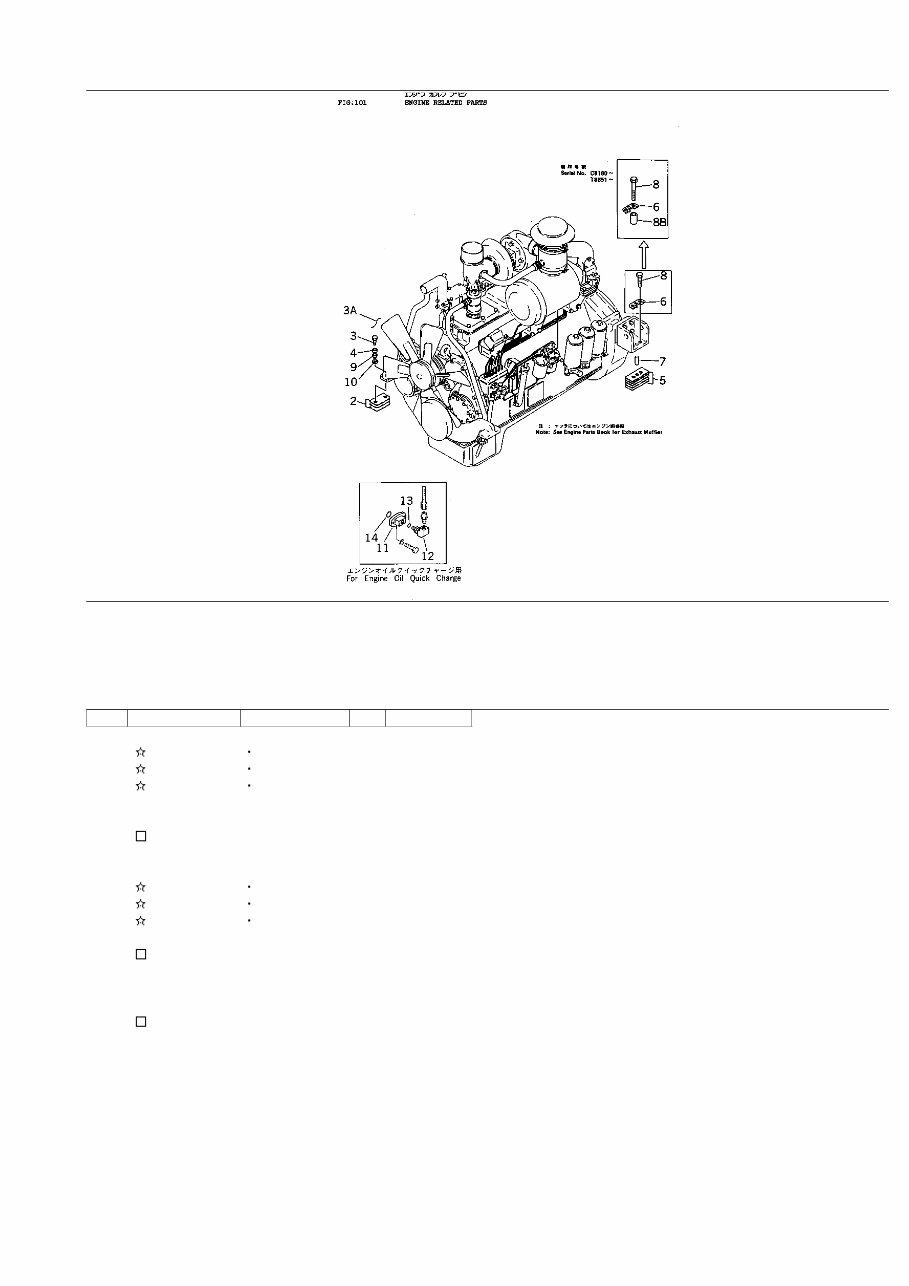

Ref. 101 Page 030010
D155A-1 S/N 5508-UP
ENGINE RELATED PARTS
Reference:101 Page:030010
Item Part No. Part Name Qty Serial No.
2 175-01-00073 SHIM ASS'Y 2 5508-
SHIM, 1.0MM 3 5508-
SHIM, 0.5MM 1 5508-
SHIM, 0.2MM 2 5508-
3 175-01-22110 BOLT 4 5508-
3A 195-01-15670 WIRE 2 19001-
04059-01663 WIRE 2 5508-19000
4 175-01-22130 SEAT 4 5508-
5 175-01-00082 SHIM ASS'Y 2 5508-
SHIM, 1.0MM 3 5508-
SHIM, 0.5MM 1 5508-
SHIM, 0.2MM 2 5508-
6 175-01-21173 WASHER 2 6843-
175-01-21171 WASHER 2 5508-6842
7 170-01-11120 PIN 2 5508-
8 01011-32210 BOLT 4 8651-
01010-32255 BOLT 4 6091-8650
01040-32255 BOLT 4 5508-6090
8A 195-01-11190 SPACER 4 8151-
9 175-01-22120 BUSHING 4 5508-
10 175-01-22140 BUSHING 4 5508-
11 154-01-21770 BLOCK 1 5508-
12 154-01-21760 ELBOW 1 5508-
13 07002-32434 O-RING 1 5508-
14 07000-63028 O-RING 1 5508-
D155A-1 S/N 5508-UP
@@Q04444

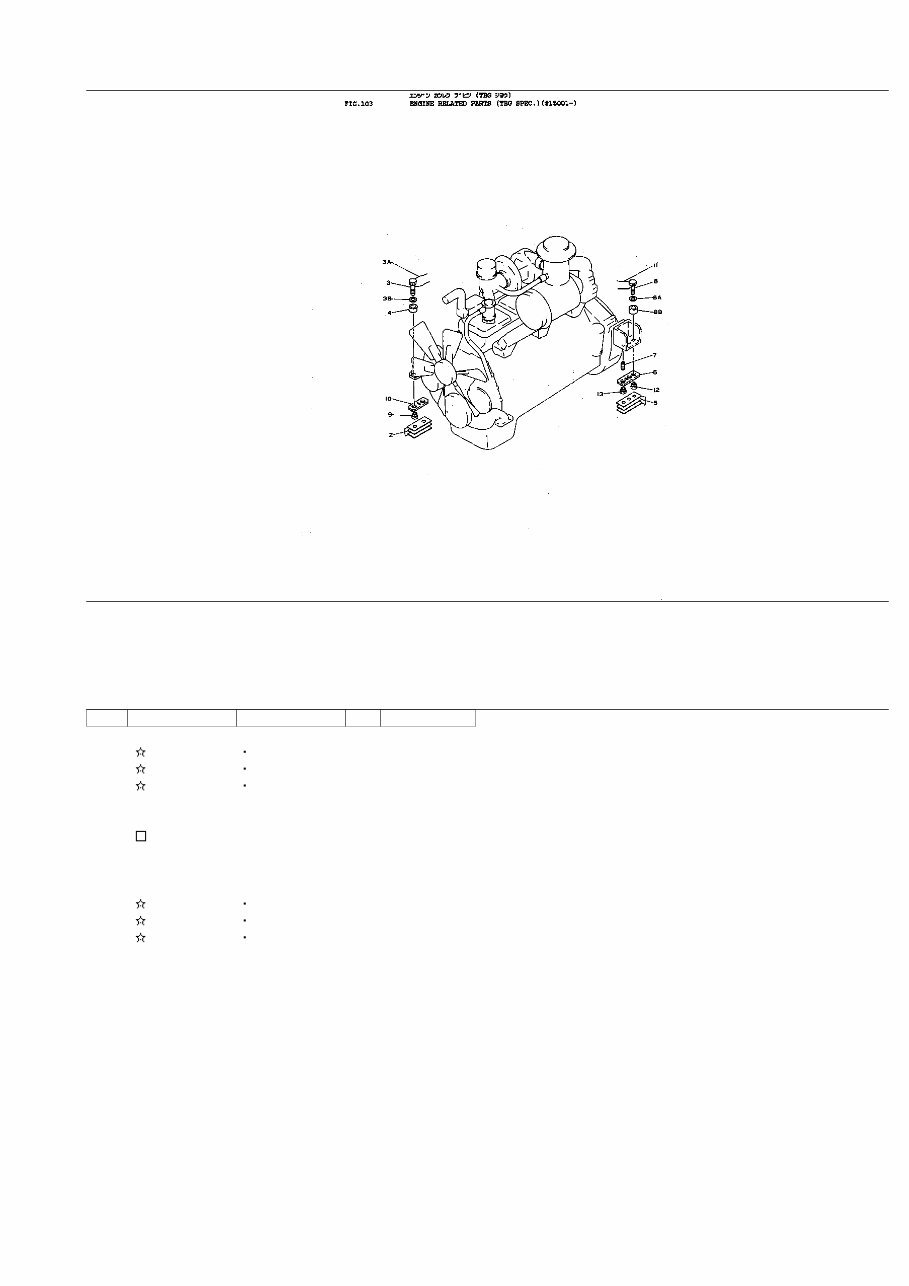

Ref. 103 Page 030020
D155A-1 S/N 5508-UP
ENGINE RELATED PARTS (TBG SPEC.)(#15001-)
Reference:103 Page:030020
Item Part No. Part Name Qty Serial No.
2 175-01-00090 SHIM ASS'Y 2 12760-
SHIM, 1.0MM 3 12760-
SHIM, 0.5MM 1 12760-
SHIM, 0.2MM 2 12760-
3 01015-32210 BOLT 4 12760-
3A 195-01-15670 WIRE 2 19001-
04059-01663 WIRE 2 12760-19000
3B 01643-32260 WASHER 4 12760-
4 175-01-81130 SHIM 4 12760-
5 175-01-00100 SHIM ASS'Y 2 12760-
SHIM, 1.0MM 3 12760-
SHIM, 0.5MM 1 12760-
SHIM, 0.2MM 2 12760-
6 175-01-81110 RUBBER 2 12760-
7 170-01-81190 PIN 2 12760-
8 01015-32210 BOLT 4 12760-
8A 01643-32260 WASHER 4 12760-
8B 175-01-81130 SHIM 4 12760-
9 175-01-81150 SHIM 4 12760-
10 175-01-81120 SHIM 2 12760-
11 04059-01620 WIRE 2 12760-
12 175-01-81150 SHIM 4 12760-
13 175-01-81140 SHIM 2 12760-
