Komatsu D135A-1 Bulldozer Parts Catalogue Manual - SN 10001 and UP

SA6D125-1Q S/N 28389-UP SA6D125-1Q S/N 28389-UP Reference: Page:|000000 Item Part Name 01 CYLINDER HEAD 02 CYLINDER BLOCK 03 LUBRICATING OIL SYSTEM 04 FUEL SYSTEM 05 COOLING SYSTEM 06 ELECTRICAL SYSTEM 09 TOOL AND KIT

SA6D125-1Q S/N 28389-UP CYLINDER HEAD Reference: Page:030000 Item Part Name Qty 10 CYLINDER HEAD 1 20 ROCKER ARM AND HOUSING 1 30 ROCKER ARM HOUSING COVER 1 40 AIR INTAKE MANIFOLD AND AFTER COOLER 1 50 AIR CLEANER 1 60 EXHAUST MANIFOLD AND TURBOCHARGER 1 70 TURBOCHARGER 1 80 MUFFLER 1 90 WATER MANIFOLD AND THERMOSTAT 1 100 AFTER COOLER PIPING 1

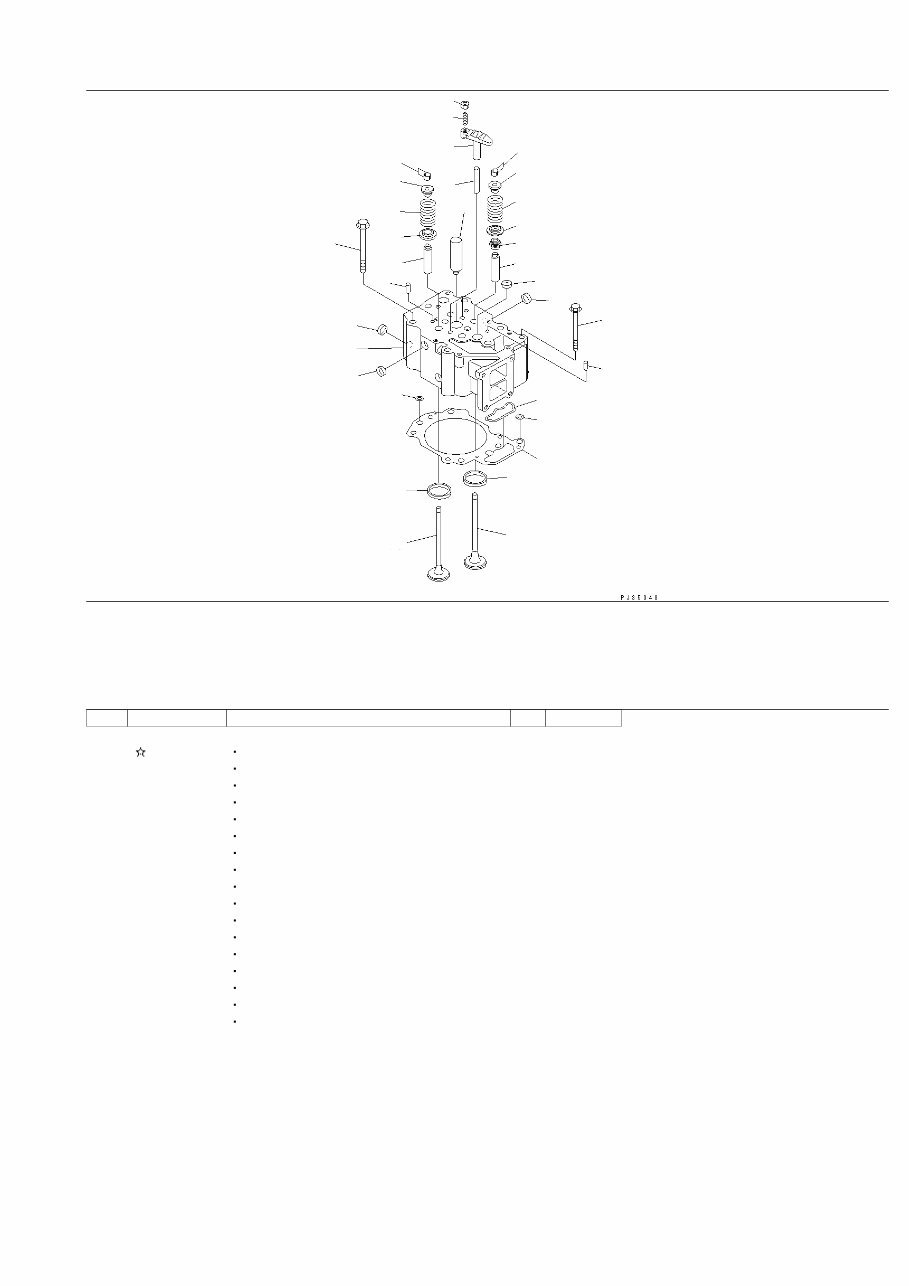

SA6D125-1Q S/N 28389-UP @@35048@ Ref. 0101 Page 030010 1 2 3 4 5 6 7 8 8 8 8 9 9 10 11 12 13 14 15 15 16 16 17 18 19 20 21 22 23 24 25 26 27 SA6D125-1Q S/N 28389-UP CYLINDER HEAD Reference:0101 Page:030010 Item Part No. Part Name Qty Serial No. 6151-11-1100 CYLINDER HEAD ASS'Y,VALVE LESS 6 28389- 1 HEAD,CYLINDER 1 28389- 2 6136-11-1130 SLEEVE 1 28389- 3 6150-11-1331 INSERT,INTAKE VALVE (STD) 2 28389- 6150-19-1331 INSERT, 0.25MM,INTAKE VALVE (OS) 2 28389- 6150-18-1331 INSERT, 0.50MM,INTAKE VALVE (OS) 2 28389- 6150-17-1331 INSERT, 0.75MM,INTAKE VALVE (OS) 2 28389- 6150-16-1331 INSERT, 1.00MM,INTAKE VALVE (OS) 2 28389- 4 6150-11-1320 INSERT,EXHAUST VALVE (STD) 2 28389- 6150-19-1320 INSERT, 0.25MM,EXHAUST VALVE (OS) 2 28389- 6150-18-1320 INSERT, 0.50MM,EXHAUST VALVE (OS) 2 28389- 6150-17-1320 INSERT, 0.75MM,EXHAUST VALVE (OS) 2 28389- 6150-16-1320 INSERT, 1.00MM,EXHAUST VALVE (OS) 2 28389- 5 6150-12-1341 GUIDE,INTAKE VALVE 2 28389- 6 6150-12-1351 GUIDE,EXHAUST VALVE 2 28389- 7 6150-11-1140 GUIDE 2 28389- 8 6162-13-1150 PLUG 8 28389- 9 04020-00820 PIN,DOWEL 2 28389- 10 6150-41-4111 VALVE,INTAKE 12 28389- 11 6150-41-4210 VALVE,EXHAUST 12 28389- 12 6150-41-4540 ROTATOR,INTAKE VALVE 12 28389- 13 6140-41-4540 SEAL,EXHAUST VALVE (K1) 12 28389- 14 6150-41-4430 SEAT,LOWER 12 28389- 15 6150-41-4510 SEAT,UPPER 24 28389- 16 6136-42-4520 COTTER 48 28389- 17 6150-41-4420 SPRING,INTAKE 12 28389- 18 6150-41-4411 SPRING,EXHAUST 12 28389- 19 6150-41-5611 CROSSHEAD 12 28389- 20 6150-41-5620 SCREW 12 28389-

SA6D125-1Q S/N 28389-UP CYLINDER HEAD Reference:0101 Page:030010 Item Part No. Part Name Qty Serial No. 21 6150-41-5630 NUT 12 28389- 22 6150-17-1812 GASKET,HEAD (K1) 6 28389- 23 6150-11-1920 GROMMET,OIL 1 28389- 24 6150-11-1930 GROMMET,OIL 1 28389- 25 6150-11-1940 GROMMET,WATER 4 28389- 26 6150-11-1610 BOLT 36 28389- 27 6150-81-9160 BOLT 6 28389-

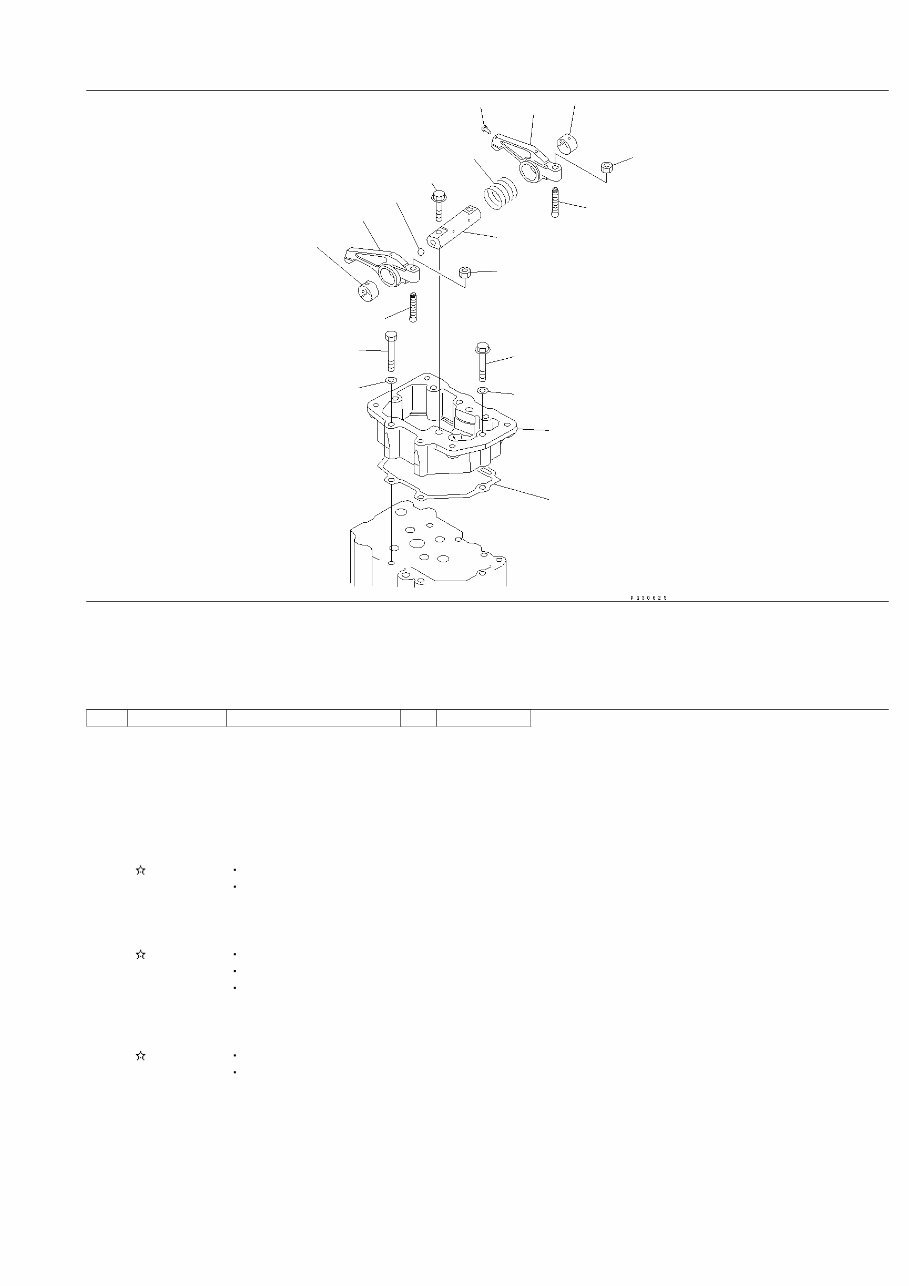

SA6D125-1Q S/N 28389-UP @@30625@ Ref. 0111 Page 030020 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 SA6D125-1Q S/N 28389-UP ROCKER ARM AND HOUSING Reference:0111 Page:030020 Item Part No. Part Name Qty Serial No. 1 6150-11-7110 HOUSING,ROCKER ARM 6 28389- 2 6150-11-7810 GASKET (K1) 6 28389- 3 6150-81-9140 BOLT 32 28389- 4 01643-31032 WASHER 32 30217- 01640-01016 WASHER 32 28389-30216 5 01010-51095 BOLT 2 28389- 6 01640-01016 WASHER 2 28389- 6150-41-5400 ARM ASS'Y,INTAKE 6 28389- 7 ARM,ROCKER 1 28389- 8 6150-41-5420 BUSHING 1 28389- 9 6150-41-5540 SCREW 6 28389- 10 01582-01008 NUT 6 28389- 6150-41-5500 ARM ASS'Y,EXHAUST 6 28389- 11 ARM,ROCKER 1 28389- 12 6150-41-5420 BUSHING 1 28389- 13 6162-43-5340 RIVET 1 28389- 14 6150-41-5540 SCREW 6 28389- 15 01582-01008 NUT 6 28389- 6150-41-5300 ROCKER ARM SHAFT A. 6 28389- 16 SHAFT 1 28389- 17 6150-81-8420 BALL 1 28389- 18 6150-41-5320 SPRING 6 28389- 19 6150-81-9370 BOLT 12 28389-
