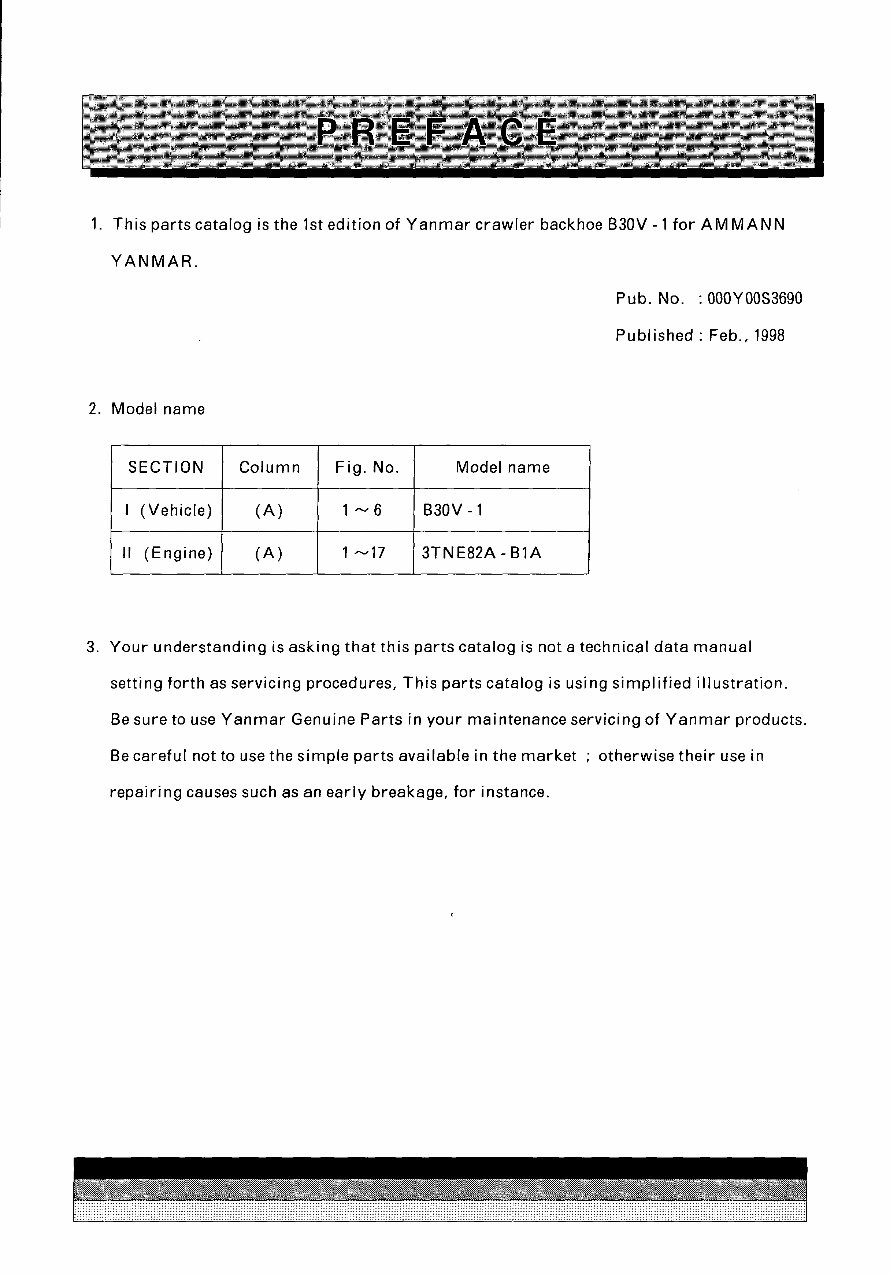

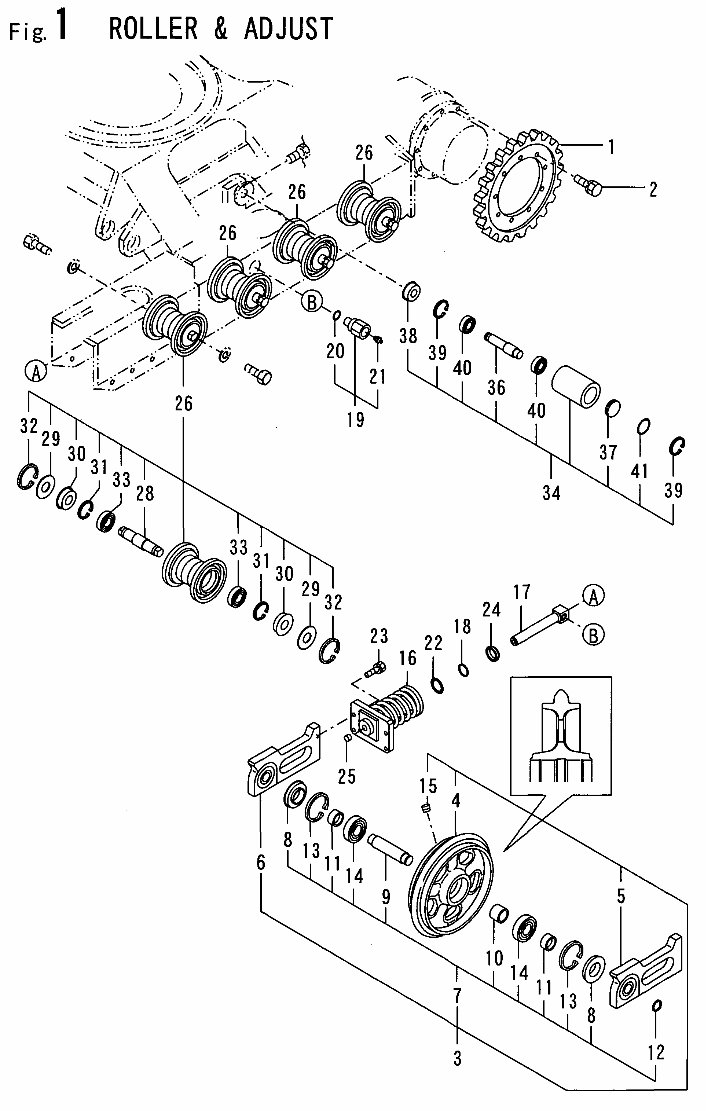

1,1,,172141-29110,,SPROCKET,2,,,,,,,,,,,,,,,,,,
2,1,,26013-120302,,"BOLT W/WASHER M12X30",18,,,,,,,,,,,,,,,,,,
3,1,,772422-37100,,"IDLER 289",2,,,,,,,,,,,,,,,,,,
4,2,,172422-37100,,IDLER,2,,,,,,,,,,,,,,,,,,
5,2,,172141-37111,,"FORK(L), IDLER",2,,,,,,,,,,,,,,,,,,
6,2,,172141-37121,,"FORK(R), IDLER",2,,,,,,,,,,,,,,,,,,
7,2,,172175-99490,,"IDLER KIT, FRONT",2,,,,,,,,,,,,,,,,,,
8,3,,172164-37120,,"SEAL 45 85 8.5 19",4,,,,,,,,,,,,,,,,,,
9,3,,172175-37130,,"SHAFT, IDLE",2,,,,,,,,,,,,,,,,,,
10,3,,172631-37150,,"COLLER 35X45X34",2,,,,,,,,,,,,,,,,,,
11,3,,172631-37160,,"COLLER 35X45X22.5",4,,,,,,,,,,,,,,,,,,
12,3,,22242-000300,,"CIRCLIP 30",2,,,,,,,,,,,,,,,,,,
13,3,,22252-000800,,"CIRCLIP 80",4,,,,,,,,,,,,,,,,,,
14,3,,24101-063074,,BEARING,4,,,,,,,,,,,,,,,,,,
15,2,,194630-42120,,"PLUG PT1/8",2,,,,,,,,,,,,,,,,,,
16,1,,172422-37700,,SPRING,2,,,,,,,,,,,,,,,,,,
17,1,,172422-37780,,"PISTON ASSY, ADJUST",2,,,,,,,,,,,,,,,,,,
18,1,,172122-37830,,"RING, BUCK UP",2,,,,,,,,,,,,,,,,,,
19,1,,172122-37843,,"VALVE ASSY, NIPPLE",2,,,,,,,,,,,,,,,,,,
20,2,,24315-000140,,"O-RING 1B P-14.0",2,,,,,,,,,,,,,,,,,,
21,2,,24761-020000,,"NIPPLE PT1/8,GREASE",2,,,,,,,,,,,,,,,,,,
22,1,,24325-000400,,"O-RING 1B G 40",2,,,,,,,,,,,,,,,,,,
23,1,,26013-100402,,"BOLT M10X 40",8,,,,,,,,,,,,,,,,,,
24,1,,933111-23600,,"SEAL 4052710",2,,,,,,,,,,,,,,,,,,
25,1,,933171-13691,,"PLUG PT1/8",2,,,,,,,,,,,,,,,,,,
26,1,,172441-37301,,"ROLLER ASSY, TRACK",8,,,,,,,,,,,,,,,,,,
28,2,,172422-37310,,SHAFT,8,,,,,,,,,,,,,,,,,,
29,2,,172141-37320,,"SPACER 75X2.6",16,,,,,,,,,,,,,,,,,,
30,2,,1A1030-48250,,"SEAL QLF30621218,OIL",16,,,,,,,,,,,,,,,,,,
31,2,,22252-000620,,"CIRCLIP 62(H)",16,,,,,,,,,,,,,,,,,,
32,2,,22252-000750,,"CIRCLIP 75",16,,,,,,,,,,,,,,,,,,
33,2,,933111-73800,,BEARING,16,,,,,,,,,,,,,,,,,,
34,1,,172441-37500,,"ROLLER ASSY, CARIA",2,,,,,,,,,,,,,,,,,,
36,2,,172146-37510,,"SHAFT, CARIA ROLLER",2,,,,,,,,,,,,,,,,,,
37,2,,172116-37540,,"COVER, BLIND",2,,,,,,,,,,,,,,,,,,
38,2,,1E6140-73420,,"SEAL QLF255218, OIL",2,,,,,,,,,,,,,,,,,,
39,2,,22252-000520,,"CIRCLIP 52",4,,,,,,,,,,,,,,,,,,
40,2,,24101-062054,,"BEARING #6205",4,,,,,,,,,,,,,,,,,,
41,2,,24311-000460,,"O-RING 1A P-46.0",2,,,,,,,,,,,,,,,,,,
www.maskinisten.net
www.maskinisten.net

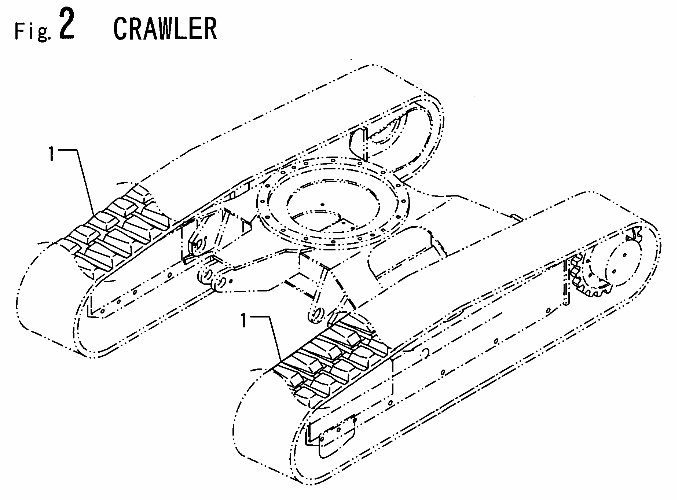

1,1,,172422-38600,,"CRAWLER, RUBBER",2,,,,,,,,,,,,,,,,,,
www.maskinisten.net
www.maskinisten.net

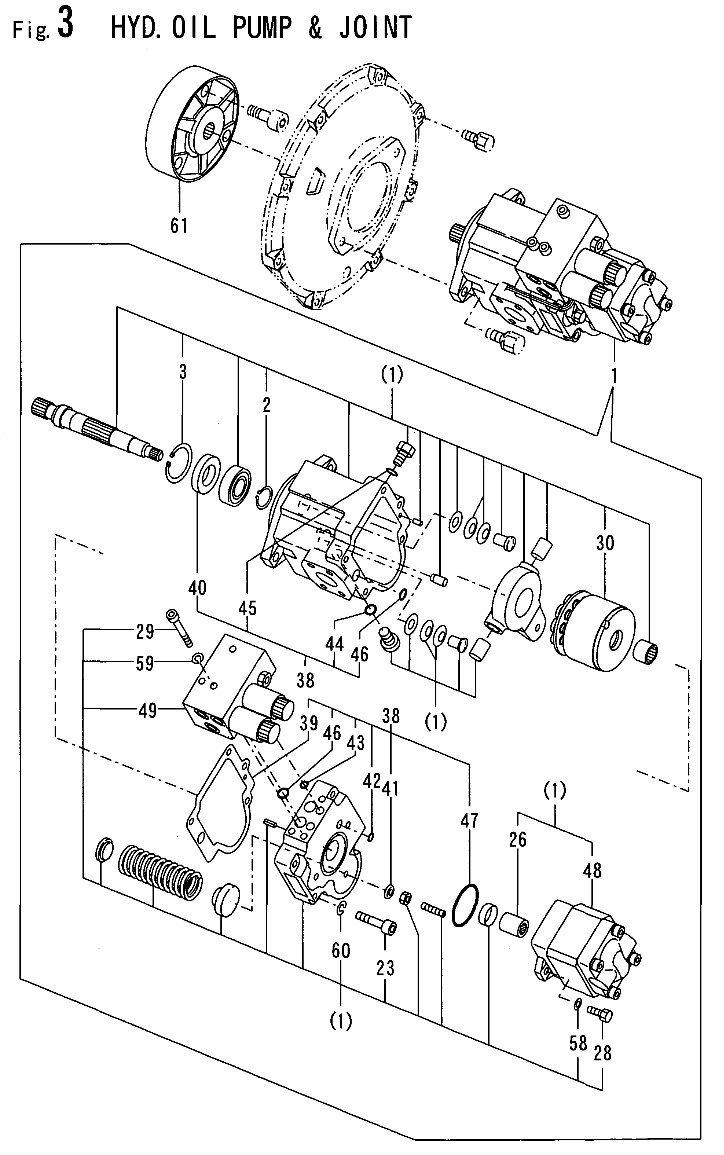

1,1,,172422-73101,,"PUMP ASSY",1,,,,,,,,,,,,,,,,,,
2,2,,22252-000250,,"CIRCLIP 25",1,,,,,,,,,,,,,,,,,,
3,2,,22252-000520,,"CIRCLIP 52",1,,,,,,,,,,,,,,,,,,
23,2,,172422-73540,,BOLT,5,,,,,,,,,,,,,,,,,,
26,2,,172422-73580,,COUPLING,1,,,,,,,,,,,,,,,,,,
28,2,,172422-73600,,BOLT,2,,,,,,,,,,,,,,,,,,
29,2,,172422-73610,,BOLT,3,,,,,,,,,,,,,,,,,,
30,2,,172422-73680,,"VALEL KIT",1,,,,,,,,,,,,,,,,,,
38,2,,172422-73700,,"SEAL KIT",1,,,,,,,,,,,,,,,,,,
39,3,,172422-73170,,GASKET,1,,,,,,,,,,,,,,,,,,
40,3,,172422-73510,,OILSEAL,1,,,,,,,,,,,,,,,,,,
41,3,,172422-73570,,WASHER,1,,,,,,,,,,,,,,,,,,
42,3,,24315-000070,,"O-RING 1B P-7.0",1,,,,,,,,,,,,,,,,,,
43,3,,24315-000080,,"O-RING 1B P-8.0",2,,,,,,,,,,,,,,,,,,
44,3,,24315-000110,,"O-RING 1B P-11.0",1,,,,,,,,,,,,,,,,,,
45,3,,24315-000110,,"O-RING 1B P-11.0",1,,,,,,,,,,,,,,,,,,
46,3,,24315-000120,,"O-RING 1B P-12.0",3,,,,,,,,,,,,,,,,,,
47,3,,24325-000550,,"O-RING 1B G-55.0",1,,,,,,,,,,,,,,,,,,
48,2,,172422-73710,,"PUMP, GEAR",1,,,,,,,,,,,,,,,,,,
49,2,,172422-73721,,"VALVE BLOCK ASSY",1,,,,,,,,,,,,,,,,,,
58,2,,22133-080000,,"WASHER 8",2,,,,,,,,,,,,,,,,,,
59,2,,22212-080000,,"WASHER 8",3,,,,,,,,,,,,,,,,,,
60,2,,22212-100000,,"WASHER 10",5,,,,,,,,,,,,,,,,,,
61,1,,172165-71200,,COUPLING,1,,,,,,,,,,,,,,,,,,
www.maskinisten.net
www.maskinisten.net

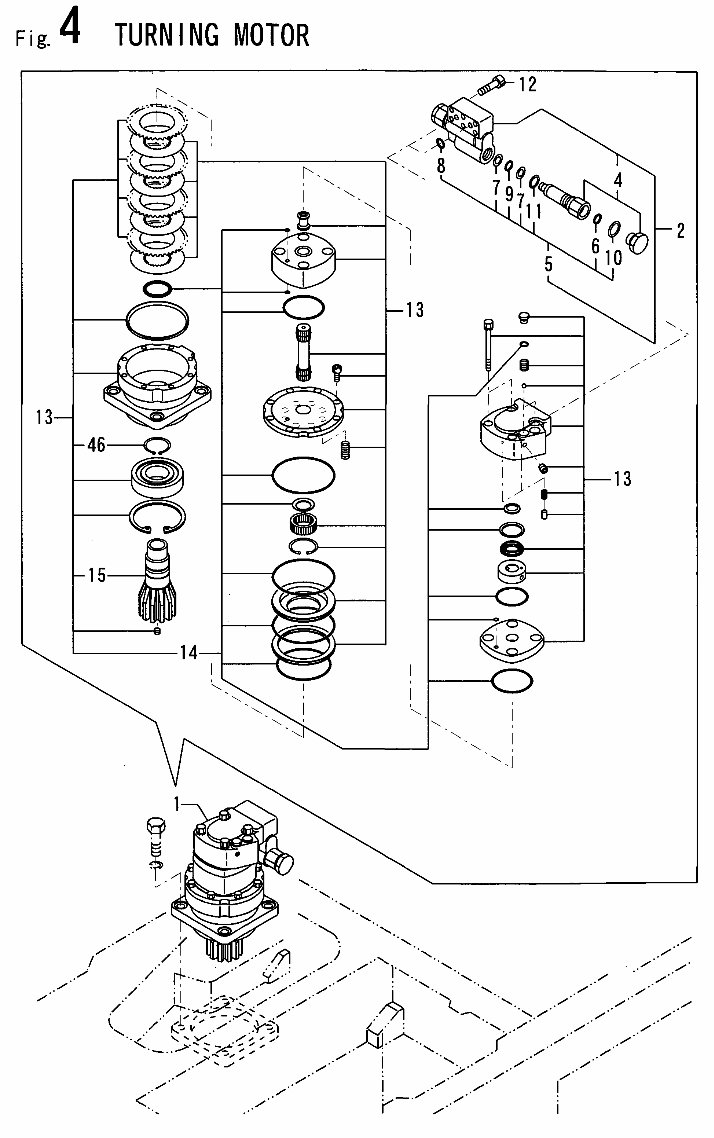

1,1,,172428-73310,,MOTOR,1,,,,,,,,,,,,,,,,,,
2,2,,172168-73330,,"VALVE ASY, SHOCKLESS",1,,,,,,,,,,,,,,,,,,
4,3,,172168-73350,,CARTRIDGE,2,,,,,,,,,,,,,,,,,,
5,3,,172168-73360,,"SEAL KIT",1,,,,,,,,,,,,,,,,,,
6,4,,172171-73330,,SEAL,2,,,,,,,,,,,,,,,,,,
7,4,,172171-73340,,RING,4,,,,,,,,,,,,,,,,,,
8,4,,24315-000160,,"O-RING 1B P-16.0",2,,,,,,,,,,,,,,,,,,
9,4,,24315-000200,,"O-RING 1B P-20.0",2,,,,,,,,,,,,,,,,,,
10,4,,24315-000250,,"O-RING 1B P-25.0",2,,,,,,,,,,,,,,,,,,
11,4,,24315-000280,,"O-RING 1B P-28.0",2,,,,,,,,,,,,,,,,,,
12,3,,172168-73370,,BOLT,6,,,,,,,,,,,,,,,,,,
13,2,,172428-73320,,"MOTOR ASSY",1,,,,,,,,,,,,,,,,,,
14,3,,172428-73340,,"SEAL KIT",1,,,,,,,,,,,,,,,,,,
15,3,,172428-73330,,"GEAR ASSY, PINION",1,,,,,,,,,,,,,,,,,,
www.maskinisten.net
www.maskinisten.net
1,1,,172442-74100,,"VALVE, CONTROL",1,,,,,,,,,,,,,,,,,,
2,2,,172422-74110,,NUT,6,,,,,,,,,,,,,,,,,,
3,2,,172422-74120,,"ROD, TIE",3,,,,,,,,,,,,,,,,,,
4,2,,172422-74130,,"OUTLET SECTION",1,,,,,,,,,,,,,,,,,,
6,2,,172422-74630,,"SECTION, BUCKET",1,,,,,,,,,,,,,,,,,,
7,3,,172187-74130,,"VALVE, ANTI-VOIDE",1,,,,,,,,,,,,,,,,,,
8,4,,172116-74150,,O-RING,1,,,,,,,,,,,,,,,,,,
9,3,,172422-74150,,"SECTION, SPOOL",1,,,,,,,,,,,,,,,,,,
16,4,,172422-74220,,O-RING,2,,,,,,,,,,,,,,,,,,
20,4,,24321-000550,,"O-RING 1A G-55.0",1,,,,,,,,,,,,,,,,,,
21,3,,172422-74570,,VALVE,1,,,,,,,,,,,,,,,,,,
22,4,,172116-74150,,O-RING,1,,,,,,,,,,,,,,,,,,
23,4,,24315-000100,,"O-RING 1B P-10.0",1,,,,,,,,,,,,,,,,,,
24,2,,172442-74110,,"SECTION, BOOM",1,,,,,,,,,,,,,,,,,,
25,3,,172442-74120,,"SECTION, SPOOL",1,,,,,,,,,,,,,,,,,,
32,4,,172422-74220,,O-RING,2,,,,,,,,,,,,,,,,,,
37,4,,172422-74280,,O-RING,1,,,,,,,,,,,,,,,,,,
44,4,,172116-74430,,O-RING,1,,,,,,,,,,,,,,,,,,
46,4,,24315-000110,,"O-RING 1B P-11.0",1,,,,,,,,,,,,,,,,,,
50,4,,172312-74770,,O-RING,1,,,,,,,,,,,,,,,,,,
51,4,,24321-000550,,"O-RING 1A G-55.0",1,,,,,,,,,,,,,,,,,,
52,3,,172422-74570,,VALVE,1,,,,,,,,,,,,,,,,,,
53,4,,172116-74150,,O-RING,1,,,,,,,,,,,,,,,,,,
54,4,,24315-000100,,"O-RING 1B P-10.0",1,,,,,,,,,,,,,,,,,,
55,3,,172422-74580,,VALVE,1,,,,,,,,,,,,,,,,,,
56,4,,172116-74150,,O-RING,1,,,,,,,,,,,,,,,,,,
57,4,,24315-000100,,"O-RING 1B P-10.0",1,,,,,,,,,,,,,,,,,,
58,2,,172422-74340,,"SECTION, SPOOL",1,,,,,,,,,,,,,,,,,,
65,3,,172614-74290,,WIPER,2,,,,,,,,,,,,,,,,,,
69,3,,172422-74370,,O-RING,2,,,,,,,,,,,,,,,,,,
71,3,,24321-000550,,"O-RING 1A G-55.0",1,,,,,,,,,,,,,,,,,,
72,2,,172422-74660,,"SECTION, INLET",1,,,,,,,,,,,,,,,,,,
73,3,,172164-74330,,"VALVE 175/25,RELIEF",2,,,,,,,,,,,,,,,,,,
74,4,,172116-74150,,O-RING,2,,,,,,,,,,,,,,,,,,
75,3,,172422-74380,,"INLET SECTION",1,,,,,,,,,,,,,,,,,,
79,4,,172422-74220,,O-RING,2,,,,,,,,,,,,,,,,,,
83,4,,24321-000550,,"O-RING 1A G-55.0",2,,,,,,,,,,,,,,,,,,
84,2,,172422-74410,,"SECTION, SPOOL",1,,,,,,,,,,,,,,,,,,
90,3,,172614-74290,,WIPER,2,,,,,,,,,,,,,,,,,,
93,3,,172422-74370,,O-RING,2,,,,,,,,,,,,,,,,,,
95,3,,24321-000550,,"O-RING 1A G-55.0",1,,,,,,,,,,,,,,,,,,
96,2,,172442-74130,,"SECTION, SWING",1,,,,,,,,,,,,,,,,,,
97,3,,172442-74140,,"SECTION, SPOOL",1,,,,,,,,,,,,,,,,,,
106,4,,172614-74290,,WIPER,2,,,,,,,,,,,,,,,,,,
109,4,,172422-74370,,O-RING,2,,,,,,,,,,,,,,,,,,
111,4,,24321-000550,,"O-RING 1A G-55.0",1,,,,,,,,,,,,,,,,,,
112,3,,172187-74130,,"VALVE, ANTI-VOIDE",1,,,,,,,,,,,,,,,,,,
113,4,,172116-74150,,O-RING,1,,,,,,,,,,,,,,,,,,
114,3,,172422-74570,,VALVE,1,,,,,,,,,,,,,,,,,,
115,4,,172116-74150,,O-RING,1,,,,,,,,,,,,,,,,,,
116,4,,24315-000100,,"O-RING 1B P-10.0",1,,,,,,,,,,,,,,,,,,
