Bomag BP15/36-2 Vibrating plates non reversible Service Parts Catalogue Manual SN101220501371-101220501470

BP 15/36-2 101220501371 -> 101220501470 (00817412) BP 15/36-2 PE Page 1 from 2

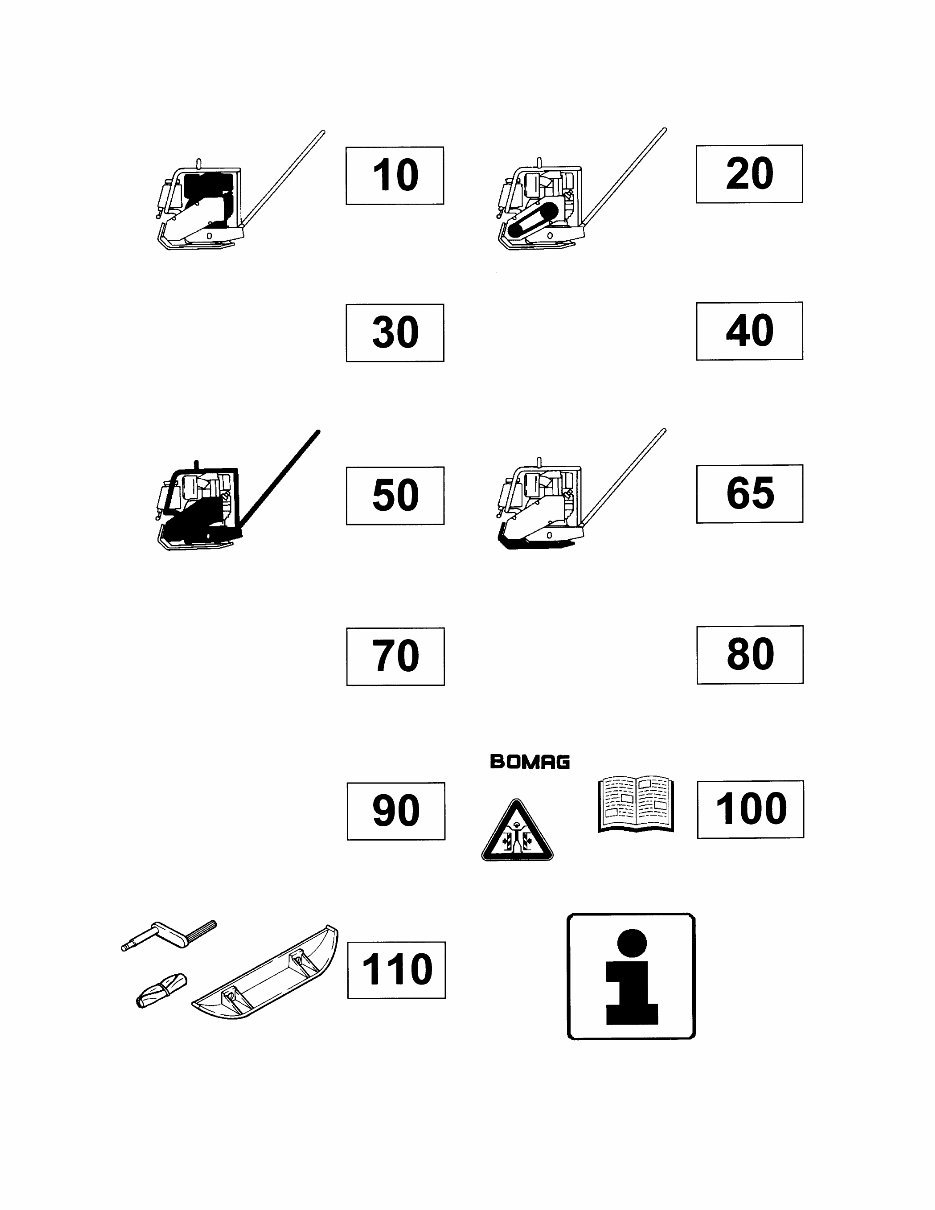

BP 15/36-2 101220501371 -> 101220501470 (00817412) BP 15/36-2 PE Description Assembly group Engine / Fitting Parts 10.00 Frame with Attachment Parts 50.00 Plate / Foot 65.00 Accessories 100.00 Special Equipment 110.00 Frequently used parts VT Page 2 from 2

11.25 7365006 9999999 05747010 Throttle Control BP 15/36-2 PE Page 1 from 5

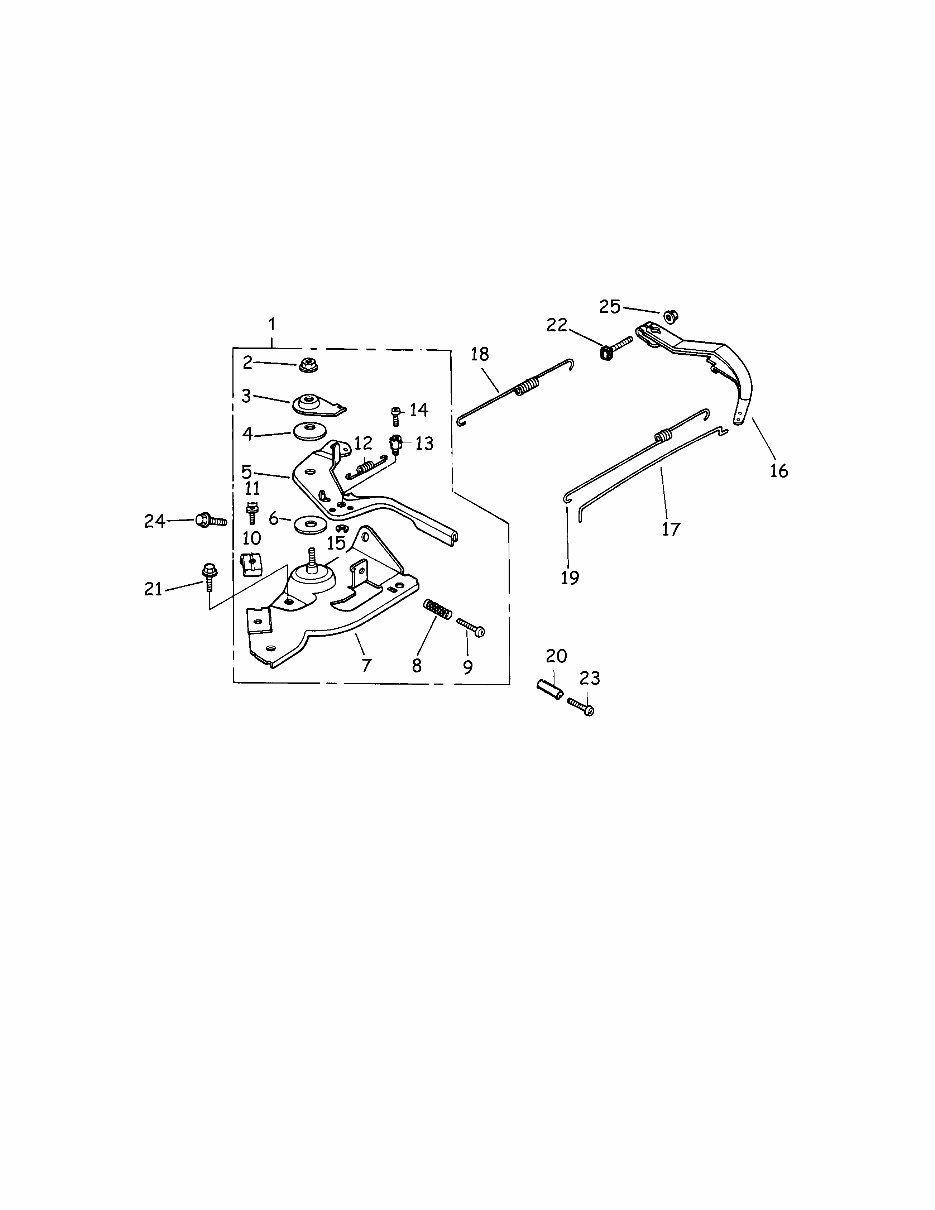

11.25 7365006 9999999 05747010 Throttle Control BP 15/36-2 PE M Ite m No. Pag e Part No. Description Quant. Uni t Remarks 1 001 05747417 Control assy. 1 2 001 05747264 Safety nut 1 < 3 001 05747155 Washer 1 < 4 001 05747227 Belleville spring 1 < 5 001 05747647 Governor lever 1 < 6 001 05747156 Connecting piece 1 < 7 001 05747420 Control base 1 < 8 001 05747158 Adjusting spring 1 < 9 001 05747425 Screw 1 < 10 001 05747418 Cable clip 1 < 11 001 05747426 Screw 1 < 12 001 05747341 Return spring 1 < 13 001 05747332 Wire holder 1 < 14 001 05747334 Screw 1 < 15 001 05747333 Spring ring 1 < 16 001 05747151 Arm governor 1 17 001 05747244 Rod 1 18 001 05747245 Governor spring 1 19 001 05747246 Return spring 1 20 001 05747422 Stop bush 1 21 001 05747322 Hexagon bolt 1 22 001 05747423 Screw 1 23 001 05747424 Screw 1 24 001 05747322 Hexagon bolt 1 25 001 05747312 Collar nut 1 Page 2 from 5

11.25 7365006 9999999 05747010 Throttle Control BP 15/36-2 PE Page 3 from 5

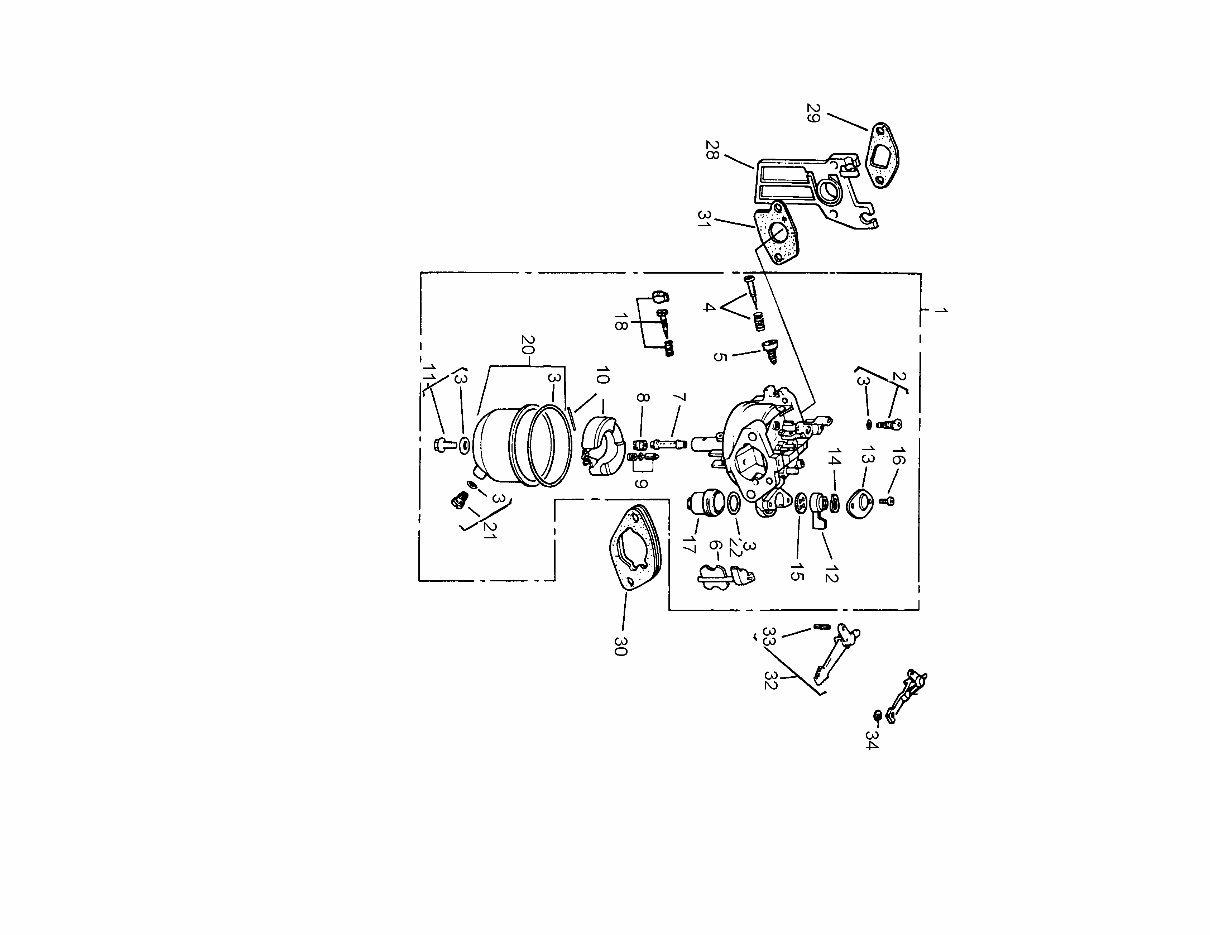

11.25 7365006 9999999 05747010 Throttle Control BP 15/36-2 PE M Ite m No. Pag e Part No. Description Quant. Uni t Remarks 1 002 05747435 Carburetor 1 002 GX160K1 1 002 05748587 Carburetor 1 002 GX160T1 2 002 05747194 Kit,nozzle 1 < 3 002 05747249 Kit,seal 1 < 4 002 05747147 Kit, bolts 1 < 5 002 05747148 Stop screw 1 < 6 002 05747433 Kit, choke 1 < 7 002 05747437 Main nozzle 1 < 8 002 05747445 Main nozzle 1 < 002 #70 GX160K1 8 002 05748589 Main nozzle 1 < 002 #70 9 002 05747146 Kit,floater valve 1 < 10 002 05747429 Float set 1 < 002 GX160K1 10 002 05748588 Float set 1 < 002 GX160T1 11 002 05747432 Screw plug with seal 1 < 12 002 05747645 Lever 1 < 13 002 05747441 Fastening plate 1 < 14 002 05747442 Spring 1 < 15 002 05747218 Gasket 1 < 16 002 05747443 Screw 2 < 002 GX160K1 16 002 05748500 Screw 1 < Page 4 from 5

11.25 7365006 9999999 05747010 Throttle Control BP 15/36-2 PE M Ite m No. Pag e Part No. Description Quant. Uni t Remarks 002 GX160T1 17 002 05747313 Cup,fuel strainer 1 < 18 002 05747644 Kit, bolts 1 < 20 002 05747430 Floater housing 1 < 21 002 05747431 Screw plug with seal 1 < 22 002 05747438 O-ring 1 < 28 002 05747350 Insulator 1 29 002 05747342 Insulator gasket 1 30 002 05747149 Connecting piece 1 31 002 05747440 Gasket 1 32 002 05747159 Lever 1 33 002 05747281 Dowel pin 1 < 34 002 05747333 Spring ring 1 Page 5 from 5

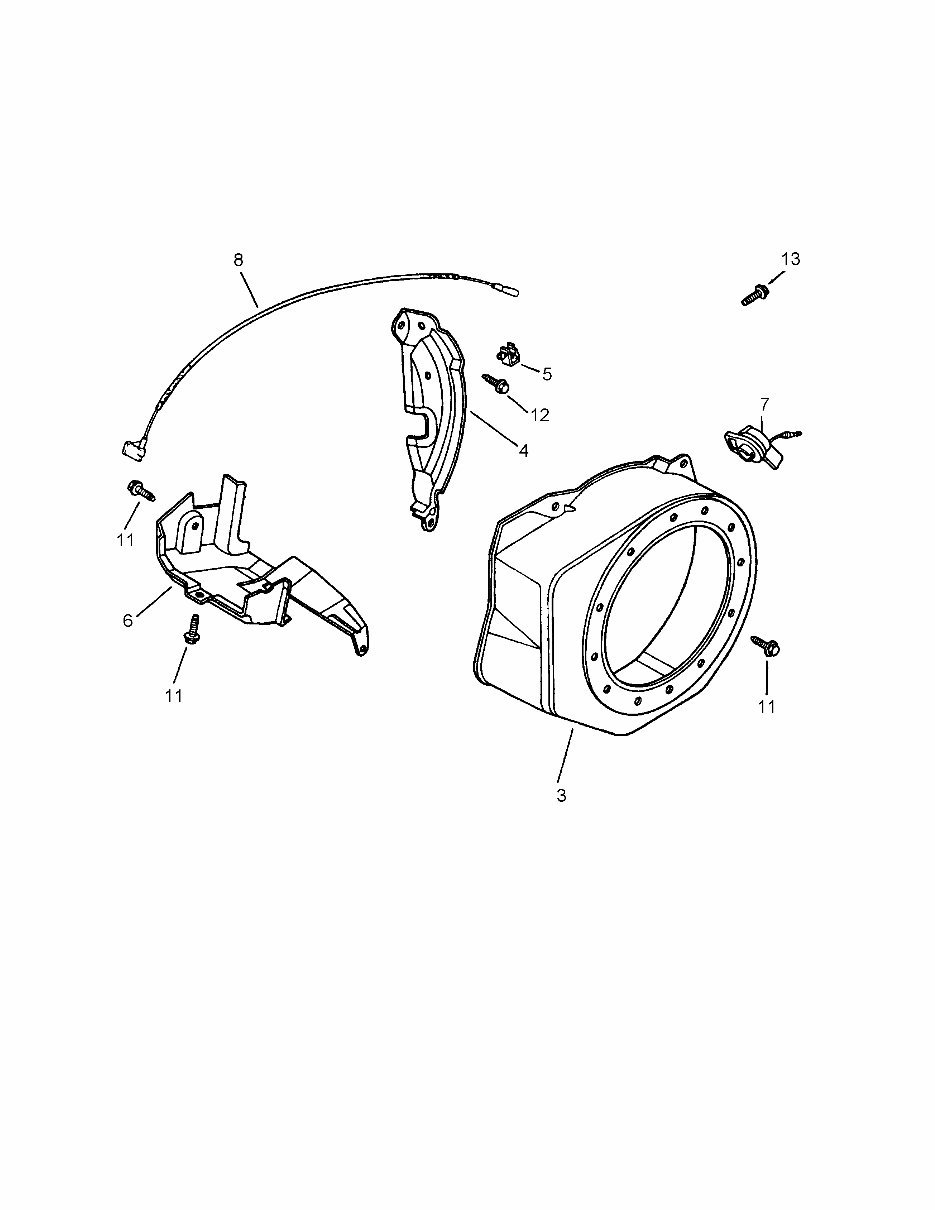

11.30 7365006 9999999 05747010 Cooling Air Duct BP 15/36-2 PE Page 1 from 2

11.30 7365006 9999999 05747010 Cooling Air Duct BP 15/36-2 PE M Ite m No. Pag e Part No. Description Quant. Uni t Remarks 3 001 05747366 Cover 1 4 001 05747411 Side plate 1 5 001 05747412 Clamp 1 6 001 05747413 Cover 1 7 001 05747407 Engine stop switch 1 8 001 05747415 Shut down rope 1 11 001 05747322 Hexagon bolt 6 12 001 05747325 Screw 1 Page 2 from 2

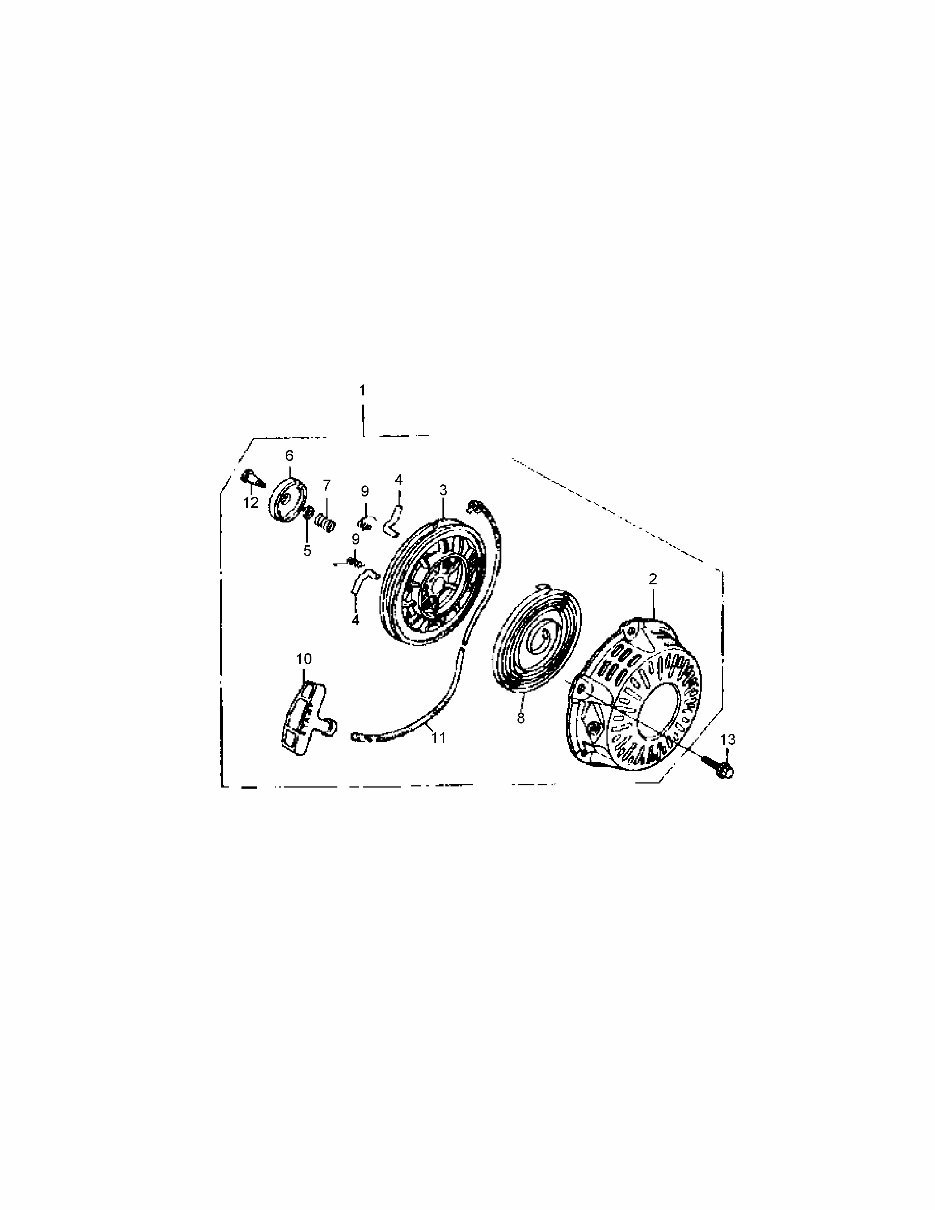

11.31 7365006 9999999 05747010 Recoil Starter BP 15/36-2 PE Page 1 from 3
